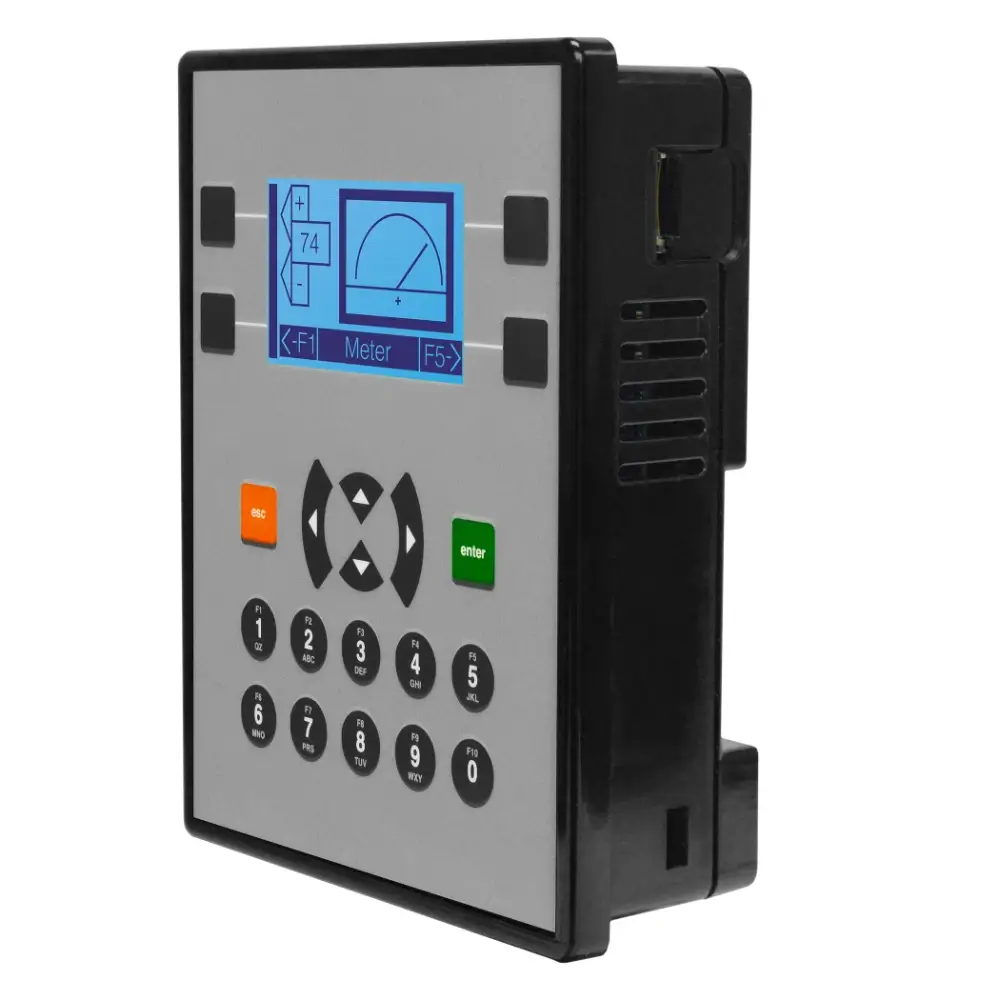

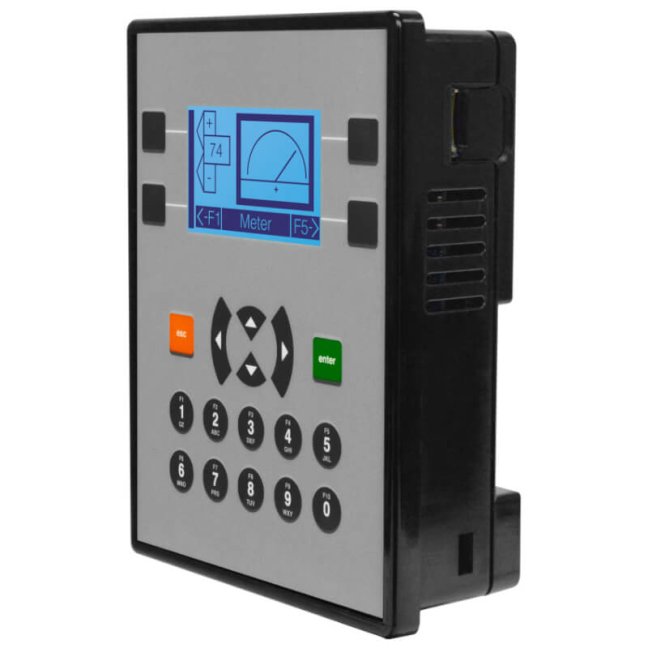

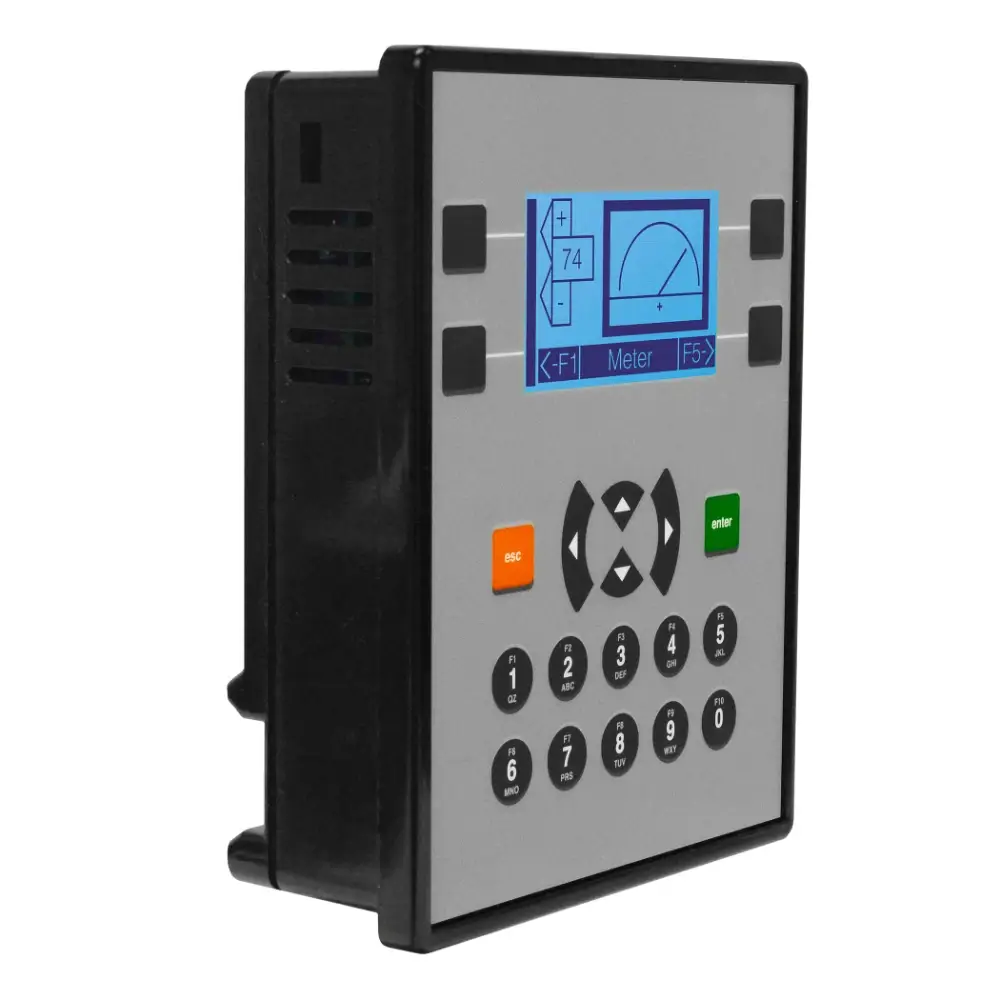

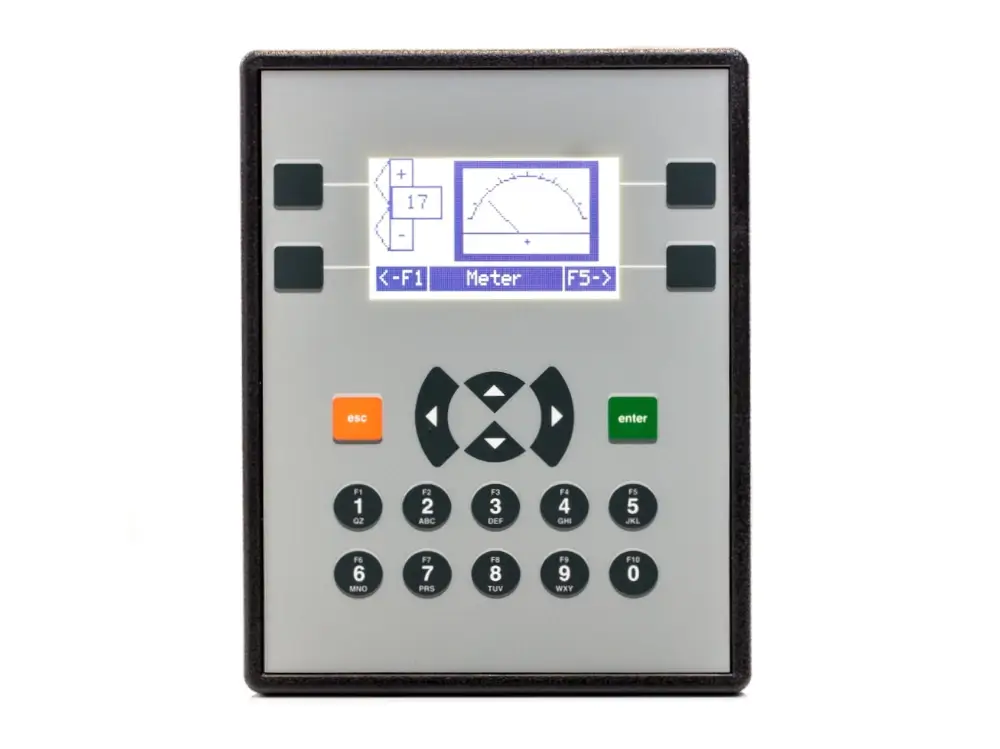

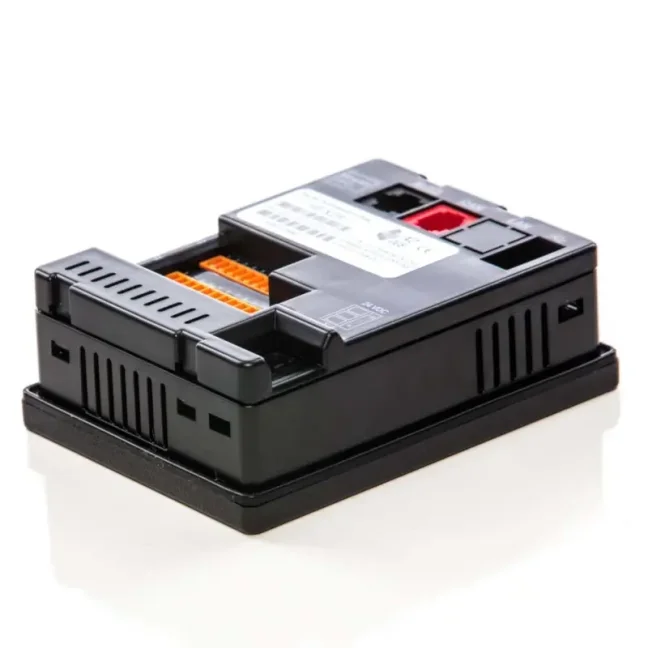

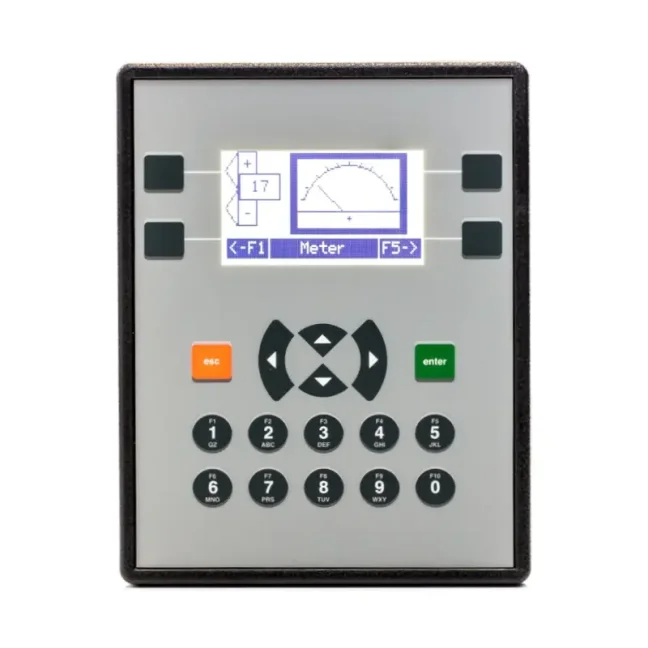

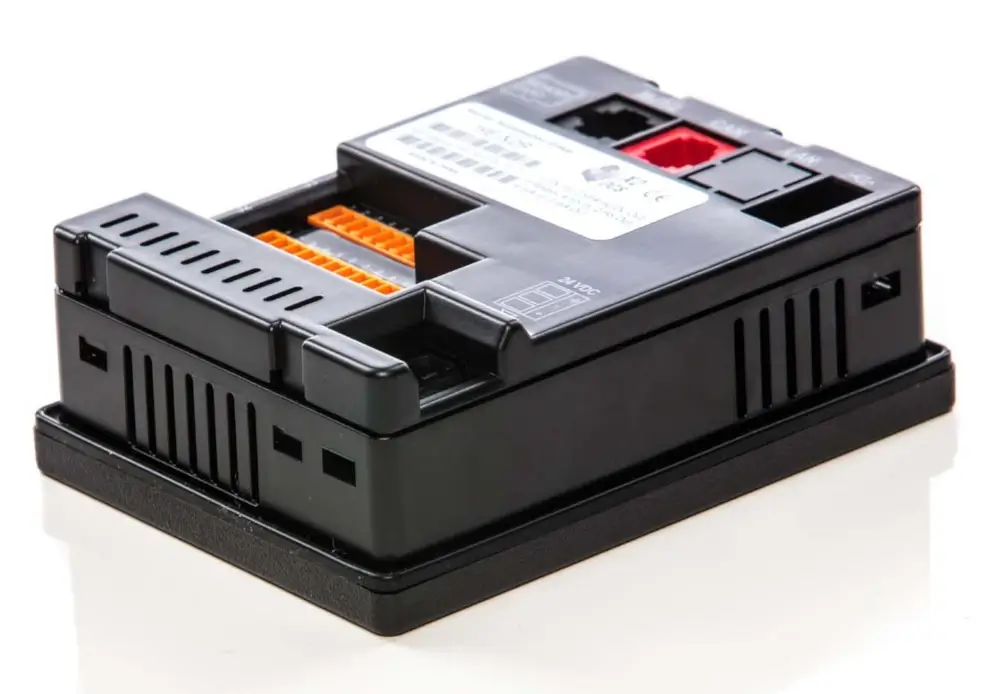

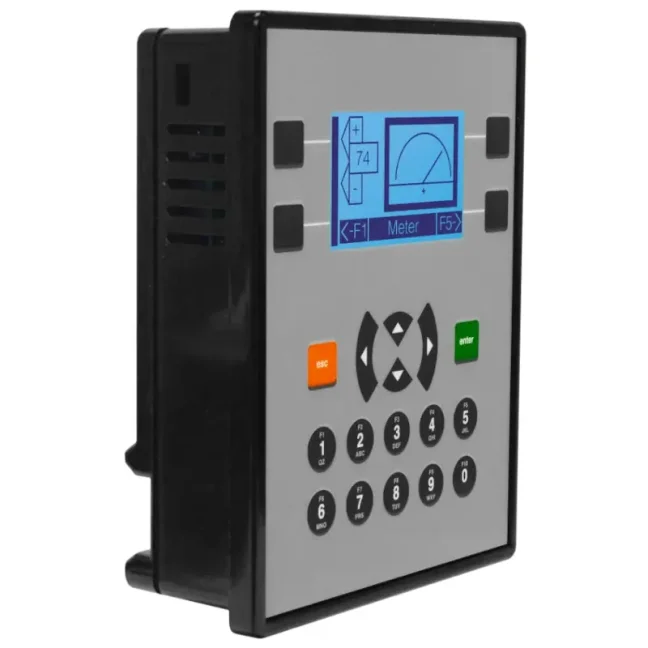

HORNER X2 PLC HMI controller with 2.2″ monochrome screen, analog / digital inputs and outputs - Type: 12x DI (24 VDC, 4x HSC, 10 kHz), 12x DO (24 VDC, 2x PWM, 65 kHz), 4x AI (4-20 mA, 12 bit), 2x AO (4-20 mA, 12 bit)
HORNER X2 combines PLC, 2,2″ monochrome display, buttons and built-in I/O for simple machines and technologies. Cscape for PLC program and screens is free. FOXON will help with selection, first project and training.
More
Code: HE-X2A
HORNER X2 combines PLC, 2,2″ monochrome display, buttons and built-in I/O for simple machines and technologies. Cscape for PLC program and screens is free. FOXON will help with selection, first project and training.
More
Code: HE-X2A
Options 2
| Type | Code | Availability | Price excl. VAT | |
|---|---|---|---|---|
| 12x DI (24 VDC, 4x HSC, 10 kHz), 12x DO (24 VDC, 2x PWM, 65 kHz), 4x AI (4-20 mA, 12 bit), 2x AO (4-20 mA, 12 bit) | HE-X2A | In stock 3 pcs |
277 EUR
|
|
| 12x DI (24 VDC, 4x HSC, 10 kHz), 2x DO (24 VDC, 2x PWM, 65 kHz), 6x DO relay (3 A), 4x AI (4-20 mA, 12 bit), 2x AO (4-20 mA, 12 bit) | HE-X2R | Delivery in 1-2 weeks |
277 EUR
|
PLC, control and I/O in one panel.
HORNER X2 combines PLC, 2,2″ monochrome display, physical buttons and built-in inputs and outputs. From one place, you collect signals, control a small machine or fixture and change technology settings. It is suitable for tasks with a simple display of states and values.
Standard Cscape is free with each panel. You can create the PLC program and the HMI screens without a paid programming license. Additional features have their own license terms.
Verify X2 on your own task.
Free loan of selected products for 14 days is arranged individually according to availability. We will confirm the specific model, date and conditions in advance. FOXON will help with the selection and the first project.
Introducing X2
The Horner product video presents the X2 and its basic equipment. English.
Applications in small machines and systems
Pump switching according to time or event
Starting at a specified time, running for a set time or reacting to a level and other input signal. The operator sets the values and sees the pump status on the display.
Controlling a small machine or fixture
Starting the work cycle, continuity of individual steps and counting of pieces. The operator changes the length of the step or the number of repetitions on the panel.
Measurement and simple regulation
Display of pressure, temperature or other quantity and reaction to the set limit. The sensor type and signal range must match the selected panel inputs.
Local equipment monitoring
Input states, error messages and common settings on one display. You can prepare the range of screens and controls according to the specific device.
You create a function for your technology in Cscape. Select the necessary sensors and control elements according to the device.
Trial loan and training
Free loan by agreement
Free loan of selected products for 14 days is arranged individually according to availability. We will confirm the specific model, date and conditions in advance.
Training in Liberec
We train individuals and groups in our training room in Liberec. We will agree on the scope and date according to the experience of the participants and their tasks.
The original Horner Automation Europe video instructions are used for self-study. Translated titles and annotations explain their content, videos remain in English. Horner Europe video tutorials on YouTube
Selection of variant X2
In the menu above, you choose between the transistor version HE-X2A and the relay version HE-X2R. Both variants have the same analog channels.
HE-X2A12 digital inputs, 12 transistor outputs, 4 analog inputs and 2 analog outputs.
For tasks with transistor outputs; two support PWM to 65 kHz.
HE-X2R12 digital inputs, 6 relay and 2 transistor/PWM outputs, 4 analog inputs and 2 analog outputs.
For tasks requiring relay contacts. Two transistor outputs support PWM to 10 kHz.
We will advise you on the selection of a suitable design and accessories according to the project.
Signal types and wiring limitations
The four analog inputs support current signals 0-20 mA and 4-20 mA. X2 does not have built-in inputs for direct connection of 0-10 V or Pt100. The two analog outputs are 4-20 mA. The four digital inputs can be used as high-speed counters to 10 kHz; these are shared inputs. The PWM shares two transistor outputs. Switch the power load through the corresponding element and observe the limits of the specific variant.
Technical parameters HORNER X2
| Display and operation | 2,2″ monochrome, 128 × 64 px; physical buttons |
|---|---|
| Built-in I/O | A: 12 DI / 12 DO / 4 AI / 2 AO; R: 12 DI / 6 relay + 2 DO / 4 AI / 2 AO |
| Analog signals | AI: 0-20 mA, 4-20 mA; AO: 4-20 mA |
| Connection | RS232, RS485, CAN, USB Mini-B, microSD; without Ethernet |
| Program memory | 256 kB before firmware 15.41; from version 15.41 512 kB |
| Power supply | 24 V DC ±20 % |
| Operating temperature | -10 to +60 °C |
You can find detailed information in the tab Features.

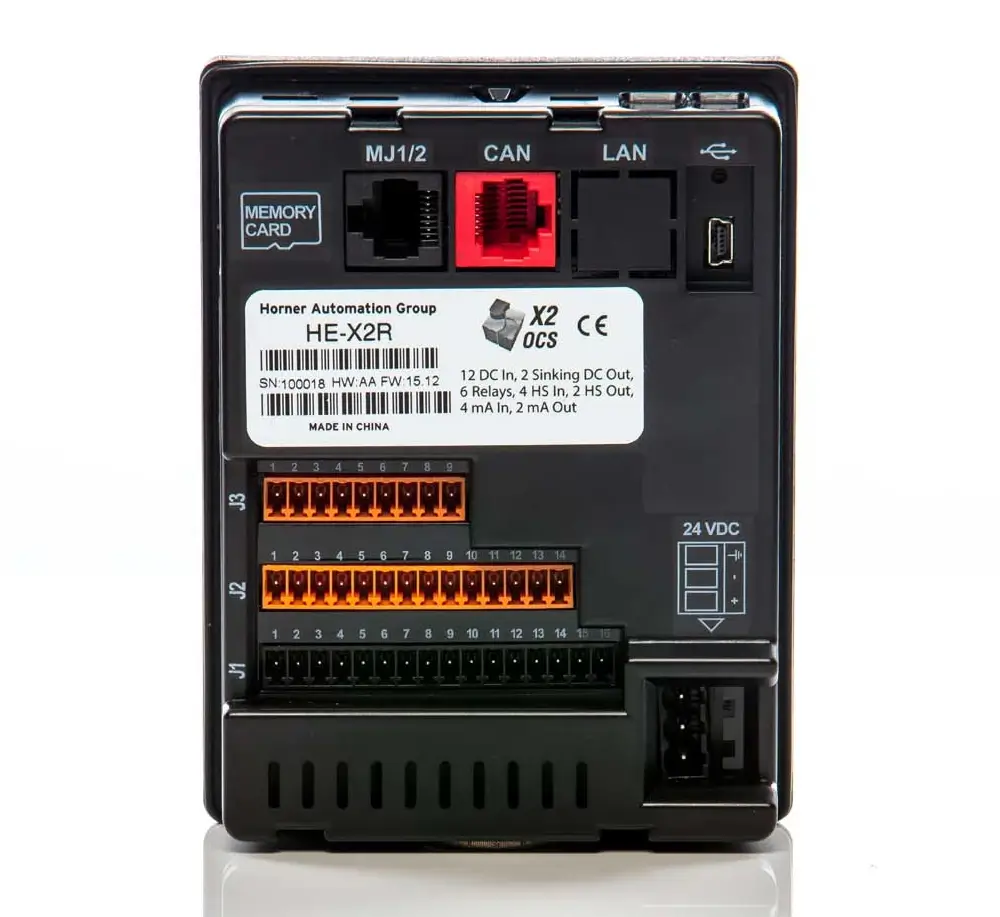

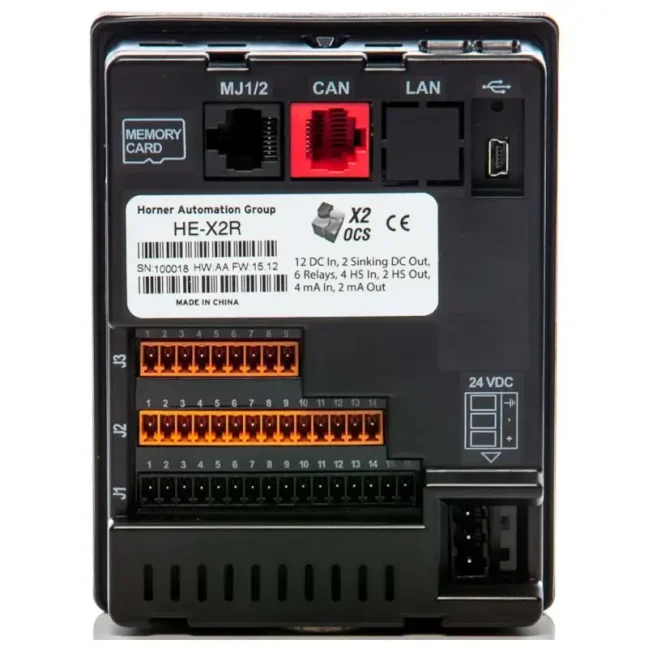

Connection and operation
X2 has RS232 and RS485 in common connector MJ1/2 and CAN with protocol CsCAN for the corresponding remote I/O. USB Mini-B is for programming; microSD to store and transfer data. The X2 does not have a built-in Ethernet.
You can create both the PLC program and monochrome screens in the free Cscape. Address the communication requirements according to the actual ports X2. The features and extension licenses of the larger panels do not automatically apply to the X2.
Equipment and cost of first launch
| Panel HORNER X2 | Current price in the selection of variants above |
|---|---|
| Standard Cscape | 0 CZK - program PLC and screens HMI |
| Power supply and connection | 24 V DC power supply and USB Mini-B programming cable; separate items depending on the setup. |
| Sensors and controls | According to the signals and loads of your job |
| Training, design and assembly | Pricing according to the agreed scope |
The price of the panel is not the price of the entire automation. In the offer, we will discuss the necessary equipment and the possible work of technicians. We select the source, cables and other accessories according to the assembly.
Contents of the standard package
Panel in selected design and mounting clips. We will confirm the exact range of connectors and accessories for the supplied version. Choose the source, programming cable and sensors separately.
First project in Cscape
Download Cscape from Horner. A manufacturer account is required to download Cscape. The video explains connection, configuration and a basic program using Micro OCS. It uses a colour touchscreen panel; for X2, adapt the screens to its monochrome display and physical buttons.
Your first test task
When first verifying, start with one simple function. For example, an output that switches on for a set time after pressing a button or changing the input signal.
- Set the switching time on the display and show the input and output status.
- Handle the trigger condition and timer in the program.
- On the test load, verify switching on, switching off after a time has elapsed and changing the settings on the display.
Photo gallery and connection
Click to open a separate image in a larger view.
Frequently asked questions
Do I need separate PLC or HMI?
X2 contains PLC, monochrome display, buttons and built-in I/O. For a simple task, you don't need separate PLC and HMI. Another I/O depends on the number and type of signals.
What is free and what is charged separately?
Standard Cscape is free with each panel. You can create the PLC program and the HMI screens without a paid programming license. Additional features have their own license terms. Free loan of selected products for 14 days is arranged individually according to availability. We will confirm the specific model, date and conditions in advance. Accessories, training and the work of technicians will be priced according to the scope.
Does the X2 have a Ethernet or a touch screen?
It does not have a built-in Ethernet. It is operated with physical buttons and uses a 128 × 64 px monochrome display. If you need a color touch and Ethernet, we will choose another suitable panel.
Do I connect Pt100 or sensor 0-10 V?
The built-in analogue inputs of HE-X2A and HE-X2R accept current signals. For Pt100 or 0-10 V, we will select a suitable converter, expansion I/O or another solution.
How can I check trial loan availability?
Click Arrange a trial loan and describe your application. We will check a suitable loan model, availability, dates and conditions. Trial loans of selected products are arranged individually.
Can you help with the first project?
We advise on the selection of equipment and offer training in Liberec for individuals and groups. If necessary, we will prepare the project design and assembly with our own technicians.
Why buy from FOXON
Distributor HORNER
We supply new HORNER products with warranty and will help you choose the right equipment and accessories.
Selection according to your project
We will discuss technology function, signals and communication. We will compare the entry with the HORNER options and select a suitable product.
Technical support and training
We advise on the use of the equipment and train individuals and groups. For self-study, we recommend the manufacturer's instructions.
Solution design and assembly
If necessary, we will design a solution, prepare a project and install the equipment with our own technicians. We will agree on the scope of work according to the technology.
Video tutorials by topic
First project, starter setup and support
Setup for initial commissioning
We will select a suitable power supply, connections and any external I/O for this panel. The quotation will itemise the hardware and optional start-up support. Standard Cscape is free.
Help with your project
We arrange consultation, configuration, programming or training in Liberec for individuals and groups. We will confirm the scope of work, output, price and deadline in advance.
Deployment examples HORNER
View specific deployments of HORNER X4 and X7 at machine manufacturers. The model used and the implementer are listed in the relevant study.
Try and choose for your task
Send technology function, necessary signals and deadline. We will check the possibility of a loan or discuss a suitable product and the price of the necessary equipment.
Downloads and initial setup
Documents and videos are in English. Select the current datasheet according to the entire order code. Some downloads on the manufacturer's website require registration and login.
Software and first steps
Cscape - environment for both PLC and HMI
Standard Cscape is free with each panel. You can create the PLC program and the HMI screens without a paid programming license. Additional features have their own license terms. You need a manufacturer account to download.
Open the materialFirst project in Cscape
A manufacturer account is required to download Cscape. The video explains connection, configuration and a basic program using Micro OCS. It uses a colour touchscreen panel; for X2, adapt the screens to its monochrome display and physical buttons.
Open the materialHorner Europe video tutorial library
Additional procedures for programming, screens and communication. Choose according to the functions of your panel.
Open the materialProduct selection and range overview
X2 - product and use overview
Brief brochure for the first acquaintance. Prepare the electrical connection according to the current datasheet.
Open the materialConnection and commissioning
X2 A/R - electrical parameters and wiring
Current datasheet for HE-X2A and HE-X2R. Analogue current channels, output limits, ports and dimensions.
Open the materialX2 A/R - configuration and operation
User manual: configuration, system menu, programming and working with I/O.
Open the materialDrawings and firmware
X2 - electrical drawings
Basics for designing connections. Differentiate between A and R designs.
Open the materialX2 - mechanical drawings
Bases for assembly and cutout. Before production, compare with the current datasheet.
Open the materialFirmware and Release Notes
Select the exact model and read the update conditions. Back up the project and settings before changing the firmware.
Open the materialProperties HORNER X2
In the menu above, you choose between the transistor version HE-X2A and the relay version HE-X2R. Both variants have the same analog channels.
Design and types of signals
HE-X2A12 digital inputs, 12 transistor outputs, 4 analog inputs and 2 analog outputs.
For tasks with transistor outputs; two support PWM to 65 kHz.
HE-X2R12 digital inputs, 6 relay and 2 transistor/PWM outputs, 4 analog inputs and 2 analog outputs.
For tasks requiring relay contacts. Two transistor outputs support PWM to 10 kHz.
Control system and hardware versions
| Programming | Cscape; Advanced Ladder and languages IEC 61131-3 |
|---|---|
| Program memory | 256 kB before firmware 15.41; from version 15.41 512 kB |
| Cycle of logic | 1,2 ms/kB |
| Display | 2,2″ monochrome LCD; 128 × 64 px |
| Operation | 4 soft keys + 16 number/function keys |
| Screens | Up to 250 screens; up to 15 objects on the screen |
| Storage medium | microSD, max 32 GB, FAT32 |
Inputs and outputs
| Digital inputs | 12; 12/24 V DC; 4 inputs can be used as HSC to 10 kHz |
|---|---|
| Outputs HE-X2A | 12 transistors; including 2 PWM to 65 kHz |
| Outputs HE-X2R | 6 relay + 2 transistor/PWM to 10 kHz |
| Analog inputs | 4; 0-20 mA, 4-20 mA; 12 bits |
| Analog outputs | 2; 4-20 mA; 12 bits; max. load 500 Ω |
Ports and communication functions
| Serial ports | 1× RS232 and 1× RS485; common connector MJ1/2 |
|---|---|
| Serial communication | Modbus RTU; other functions according to Cscape settings |
| CAN | 1× RJ45; CsCAN; the port is not galvanically isolated |
| USB Mini-B | Programming only; no USB host for a flash drive |
| Ethernet | Not built-in |
| Software | Standard Cscape Free |
Assembly and operating conditions
| Power supply | 24 V DC ±20 % |
|---|---|
| Current consumption at full backlight | Typically 64 mA at 24 V DC (1,53 W) |
| Device dimensions (w x h x d) | 125,2 × 96,2 × 32,7 mm |
| Mounting cutout | 119,5 × 90,5 mm; tolerance +0,5 / -0 mm |
| Assembly | To the panel using clips; cutout dimensions are in the datasheet |
| Device weight | 270 g |
| Operating temperature | -10 to +60 °C |
| Storage temperature | -20 to +70 °C |
| Relative humidity | 5-95 %, no condensation |
Contents of delivery and accessories
Panel in selected design and mounting clips. We will confirm the exact range of connectors and accessories for the supplied version. Choose the source, programming cable and sensors separately.
24 V DC power supply and USB Mini-B programming cable; separate items depending on the setup.
