HORNER CANVAS 7 PLC HMI controller with 7″ colour touchscreen, analog / digital inputs and outputs - Type: No built-in I/O

More photos (7)

Add to favourites

HORNER CANVAS 7 PLC HMI controller with 7″ colour touchscreen, analog / digital inputs and outputs - Type: No built-in I/O

Software for free FOXON PLUS

PLC with 7" touchscreen, 6 variants with up to 42 I/O, dual-core, 2 MB logic memory, 1x RJ45, 1x USB A, 1x USB Mini-B, 1x RS232/485, 1x RS232 + 1x RS485, 1x CAN, microSD slot, 1x Audio Out, 10–30 VDC More

Code: HE-CV-070C-00

1 306 EUR excl. VAT (1 580,26 EUR incl. VAT)

Type

Delivery in 1-2 weeks

pcs

(0 pcs in stock)

Code: HE-CV-070C-00

Options 6

Type	Code	Availability	Price excl. VAT
No built-in I/O	HE-CV-070C-00	Delivery in 1-2 weeks	1 306 EUR	Quote
12x DI (24 VDC, 4x HSC, 1 MHz), 6x DO relay (3 A), 4x AI (0-10 V, 0-20 mA, 4-20 mA, 12 bit)	HE-CV-070C-02	In stock 1 pcs	1 458 EUR	Quote
12x DI (24 VDC, 4x HSC, 500 kHz), 12x DO (24 VDC, 2x PWM, 10 kHz), 2x AI (0-10 V, 0-20 mA, 4-20 mA, 12 bit)	HE-CV-070C-03	Delivery in 1-2 weeks	1 584 EUR	Quote
24x DI (24 VDC, 4x HSC, 500 kHz), 16x DO (24 VDC, 2x PWM, 10 kHz), 2x AI (0-10 V, 0-20 mA, 4-20 mA, 12 bit)	HE-CV-070C-04	Delivery in 1-2 weeks	1 643 EUR	Quote
12x DI (24 VDC, 4x HSC, 500 kHz), 12x DO (24 VDC, 2x PWM, 10 kHz), 2x AI (0-10 V, 100 mV, 0-20 mA, 4-20 mA, RTD, THM, 14/16 bit), 2x AO (0-10 V, 0-20 mA, 4-20 mA, 12 bit)	HE-CV-070C-05	Delivery in 1-2 weeks	1 676 EUR	Quote
12x DI (24 VDC, 4x HSC, 500 kHz), 12x DO (24 VDC, 2x PWM, 10 kHz), 6x AI (0-10 V, 60 mV, 0-20 mA, 4-20 mA, RTD, THM, 17 bit), 4x AO (0-10 V, 0-20 mA, 4-20 mA, 12 bit)	HE-CV-070C-06	Delivery in 1-2 weeks	1 820 EUR	Quote

CANVAS 7 is a powerful industrial panel with a 7" colour touchscreen. It combines a logic control system (HORNER PLC) and a touchscreen operator interface (HMI) in a single device. Depending on the model, the number and type of analog and digital inputs and outputs can be selected. If the built-in I/Os are not sufficient for a specific application, they can be expanded via Ethernet, CAN or serial interfaces.

All HORNER Canvas panels offer improved and more powerful graphics, providing a modern look for process visualization and making them suitable for demanding applications. They allow data transmission to the cloud using MQTT. In addition, they are ready for deployment with the upcoming Horner OCS360 Cloud service.

HORNER Canvas 7 is suitable for industrial applications that require reliable control, high performance and a large area for visualization. It is suitable for operations where a larger colour touchscreen and wide communication options are required in one device.

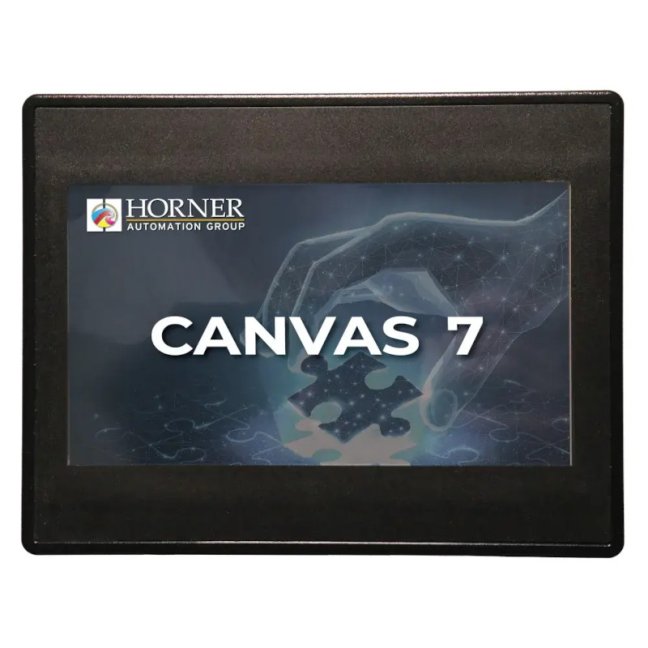

HORNER CANVAS 7 PLC HMI controller with 7″ colour touchscreen, analog / digital inputs and outputs

Key features:

7" WVGA colour touchscreen (800 x 480 px) with virtual control buttons
6 models according to I/O combination:

HE-CV-070C-00: no built-in I/O
HE-CV-070C-02: 12x DI (4x HSC), 6x DO relay, 4x AI (12 bit)
HE-CV-070C-03: 12x DI (4x HSC), 12x DO (2x PWM), 2x AI (12 bit)
HE-CV-070C-04: 24x DI (4x HSC), 16x DO (2x PWM), 2x AI (12 bit)
HE-CV-070C-05: 12x DI (4x HSC), 12x DO (2x PWM), 2x AI (14/16 bit), 2x AO (12 bit)
HE-CV-070C-06: 12x DI (4x HSC), 12x DO (2x PWM), 6x AI (17 bit), 4x AO (12 bit)

1x Ethernet port
3x serial ports: 1x RS232/485 (MJ3 switchable between RS232 or RS485) and 1x RS232 + 1x RS485 (shared MJ1/2 connector with two simultaneously available RS232 and RS485 ports)
1x CAN port
1x USB A (2.0), 1x USB Mini-B
1x audio output
Power supply 10–30 VDC, panel mounting (cutout 131,9 x 175 mm) or DIN rail mounting, operating temperature from -10 to 60 °C
Programming in Cscape (IEC 61131-3), support for Ladder diagram, online program editing during runtime
Dual-layer microprocessor (SOM) with separate cores for logic and graphics
No license purchases needed – everything is included by default: WebMI+, CANopen, BACnet IP, MQTT Spark Plug, J1939, Enhanced IEC

Why choose CANVAS 7:

All-in-one: PLC + HMI + I/O + communication interfaces
Easy deployment: programming and visualization in free and intuitive software (Cscape)
Low system cost: no need to purchase a separate HMI, external I/Os, or additional licenses
Large screen: more space for control elements and clearer process display
Modern visualization: CANVAS series uses next-generation graphics in Cscape 10, offering smoother screen rendering, sharper elements, and advanced graphic objects
Speed: thanks to parallel processing of logic and graphics, the system responds instantly to touch input while maintaining stable scan times
IIoT support: enables direct connection to IIoT networks via MQTT and WebMI+ without external devices or licenses
IT layer integration: real-time communication with cloud, SCADA, or databases via MQTT protocol
Remote access: via web interface (WebMI+) enables monitoring and control of the application from mobile, tablet, or PC
File transfer via FTP: easy upload and download of data (e.g. CSV or programs) between PLC and PC
Email alerts: automatic sending of alarms, status messages, or data directly to email (configuration on Cscape is needed)
Audio feedback: by adding a speaker, sounds can be played based on events in the application (e.g. warnings or faults)

HORNER CANVAS 7 PLC HMI controller with 7″ colour touchscreen, analog / digital inputs and outputs

Control Unit (PLC)

Program memory: 2 MB (NVRAM, supports online programming)
Number of cores: 2
Scan time: 0.02 ms/kB
Removable memory: microSD card (up to 32 GB, for storing and loading applications, capturing screen images, and logging data for later retrieval)
AutoTune PID Capable: yes, the PLC can automatically set optimal PID parameters
Local Comment Storage: yes, comments can be saved directly in the PLC program
Floating point support: yes

Display and User Interface

Display type: 7" touchscreen WVGA, 65k colours
Resolution: 800 x 480 px
Character Height: selectable fonts
Number of programmable screens: up to 1023
Number of objects per screen: up to 1023
Buttons: 6 virtual on-screen buttons (5 of them functionally programmable)
OEM front panel: design can be customized upon request (logo, colour, labeling)

Inputs / Outputs

Number of built-in inputs / outputs: depending on selected model: 22–42, or a version without I/O
External I/O support: via CsCAN and Ethernet ports (e.g. Horner SmartStix, SmartRail, SmartBlock)
Max. number of digital inputs / outputs (built-in and external together): 2048 / 2048
Max. number of analog inputs / outputs (built-in and external together): 512 / 512
General Purpose Registers (words): 50000
General Purpose Internal Coils (bits): 32768 (16384 retentive)

Ethernet / Internet

Number of ports: 1x RJ45 (10/100 Mbps, Auto-MDX)
Supported protocols: TCP/IP, Modbus TCP, FTP, SMTP, EGD, ICMP, ASCII
Remote access for control and monitoring of Horner Canvas panel: via WebMI, HTTP, or EnvisionRV
Remote file access (data transfer, configuration, program backup, operation logs): via FTP or EnvisionFX
IIoT support: cloud communication using MQTT protocol (Sparkplug)

Serial Communication

Number of ports: 3x (1x RS232/485, 1x RS232, 1x RS485)
Connector layout: MJ3 (switchable between RS232 or RS485), MJ1/2 (shared connector with simultaneously available RS232 and RS485 ports)
Supported protocols: Modbus RTU Master / Slave, Serial ASCII In/Out, optional third-party protocols

USB Interface

USB A: 1x 2.0 (e.g. for USB flash drive)
USB Mini-B: 1x (e.g. for PLC programming, visualization setup, or data access)

CAN Communication

Number of ports: 1x
Supported protocols: CsCAN + one selectable protocol (CANopen, DeviceNet Master (Layer 3 - ISO/OSI network layer), SAE J1939)
Max. CAN cable length: up to 500 m per segment, maximum 4 segments
CAN port (independently galvanically isolated) enables: connection of remote I/O, communication between two or more PLCs / panels without a master control system, and programming in Cscape

Dimensions

Height: 144 mm (5,66″)
Width: 187 mm (7,34″)
Depth: 47 mm (1,84″)
Expansion module depth: additional serial communication module increases unit depth by 24,83 mm (0,98″)
Weight (without I/O module): 1785 g

Operating Conditions and Standards

Operating temperature: -10 to +60 °C (-40 °C Low Temp Option, Contact us)
Storage temperature: -20 to +60 °C
Relative humidity (non-condensing): 5 to 95%
Product certifications and approvals: CE (compliance with European standards), UL Class I Div II (suitable for hazardous environments – e.g., explosive gases)
Enclosure / environmental protection rating: UL Type 1, 3R, 4, 4x, 12, 12k, 13

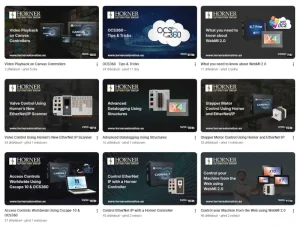

VIDEO: Tips and tricks for setting up HORNER PLCs with display, inputs and outputs
