PROFIBUS Connectors

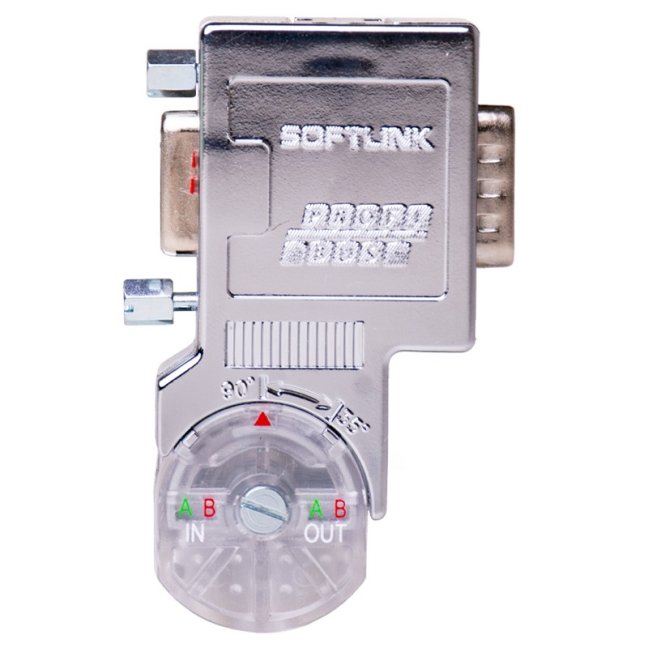

Choose proven connectors for connecting PROFIBUS cables to stations, PLCs, remote I/O modules and other network components. We offer connectors with or without a PG port, adjustable 35° or 90° cable outlets, straight 180° versions, connectors with LED diagnostics and robust M12 connectors.
- With or without a PG port
- 35°, 90° or 180° cable outlet
- Screw connection for A/B wires
- Versions with LED diagnostics
- B-coded M12 connectors
Which PROFIBUS connector should you choose and what is a PG port used for?
Choose a connector according to the connection type, available space and application
9-pin PROFIBUS connector
The standard connector for a PROFIBUS DP or MPI port. The cable is connected using screw terminals, providing a firm and reliable long-term connection for the A and B conductors.
- versions with or without a PG port,
- 35°, 90° or 180° cable outlet,
- integrated ON/OFF terminating resistor,
- metallised housing to reduce interference.
Connectors with a 35° or 90° angle
The adjustable outlet allows the cable direction to be adapted to the available space in the control cabinet or to the connector position on the device. One type can therefore replace several fixed-angle versions.
- less mechanical stress on the connected cable,
- better use of space in the control cabinet,
- simpler stocking of replacement connectors,
- versions with or without a PG port.
Connectors with LED diagnostics
Integrated LEDs provide basic visual information about communication and connection status. They help maintenance personnel perform an initial network check directly at the device.
- faster orientation when identifying a problem,
- version with a PG diagnostic port,
- screw connection for the conductors,
- 90° cable outlet.
M12 PROFIBUS connectors
M12 connectors are used for devices installed outside control cabinets or in environments with greater mechanical protection requirements. PROFIBUS uses B coding.
- male and female versions,
- robust metal housing,
- suitable for industrial installations,
- reliable field connection.
The PG port allows a programming adapter or diagnostic tester to be connected without disconnecting the cable. It is particularly useful for maintenance, service and regular network measurements with ProfiTrace.
A more compact version for locations where an additional diagnostic or programming connection is not required. It can be used where a measuring point is available elsewhere in the segment.
How should you choose a PROFIBUS connector?
The connector at the beginning or end of a segment must have its terminating resistor switched ON. A connector inside the segment, with both an incoming and outgoing cable, must have termination switched OFF.
A diagnostic port makes preventive measurement and troubleshooting easier because the technician can connect a tester without disconnecting a running network. Accessible measuring points considerably simplify future servicing of the complete production line.
PROFIBUS FastConnect Stripping Tool
90,75 EUR incl. VAT
PROFIBUS Connector with PG Port, cable outlet in 35° or 90°
30,25 EUR incl. VAT
PROFIBUS Connector without PG Port, cable Outlet in 35° or 90°
30,25 EUR incl. VAT
PROFIBUS Connector without PG Port, cable outlet direct 180°
26,62 EUR incl. VAT
M12 connector for PROFIBUS, female
38,72 EUR incl. VAT
PROFIBUS Connector with PG Port, cable 90°, LED Diagnostics
81,07 EUR incl. VAT
M12 PROFIBUS connector, male
38,72 EUR incl. VAT
PROFIBUS M12 connector, female
45,98 EUR incl. VAT
PROFIBUS M12 connector, male
45,98 EUR incl. VAT
PROFIBUS: 3 Sins and 10 Tips
The PROFIBUS industrial bus is highly tolerant and will forgive many faults. But if a critical fault occurs—or several small ones accumulate—you will definitely notice. That’s why this aging industrial network deserves attention. Even if faults on your network are still rare, they will gradually accumulate. What do our technicians recommend? What are their 10 tips for maintaining PROFIBUS?
The 3 Biggest Killers of the PROFINET Industrial Network
Our engineers perform diagnostics of industrial networks in hundreds of manufacturing companies. They travel across the country to find the causes of failures. We have asked them what problems they have most frequently diagnosed in customers' PROFINET networks recently. What have they told us?
We train the basics and troubleshooting of PROFIBUS networks | FOXON Academy
Do you want to know why your industrial communication is dropping out? Know where the errors are on the bus and fix them quickly? How the PROFIBUS network works and how to upgrade it and make it more robust? Learn all this in a training session full of practical examples
Quality PROFIBUS connectors are important
PROFIBUS connectors are part and parcel of every network. Their quality and ease of installation are factors that contribute enormously to a healthy network. We're the only company offering special Canon PROFIBUS connectors with multi-angle cable outlet (the connector's cable outlet can be at 35° or 90° to the device's PROFIBUS port). These connectors allow you to set the cable outlet direction to meet your needs. Apart from that, they feature screw terminals, which means that A and B wires are screwed in using terminal blocks. We sell connectors with PG port for the same price as those without it. We're in favour of PG port as it enables PROFIBUS diagnostics. That's why we actively encourage our customers to buy connectors with this port.
