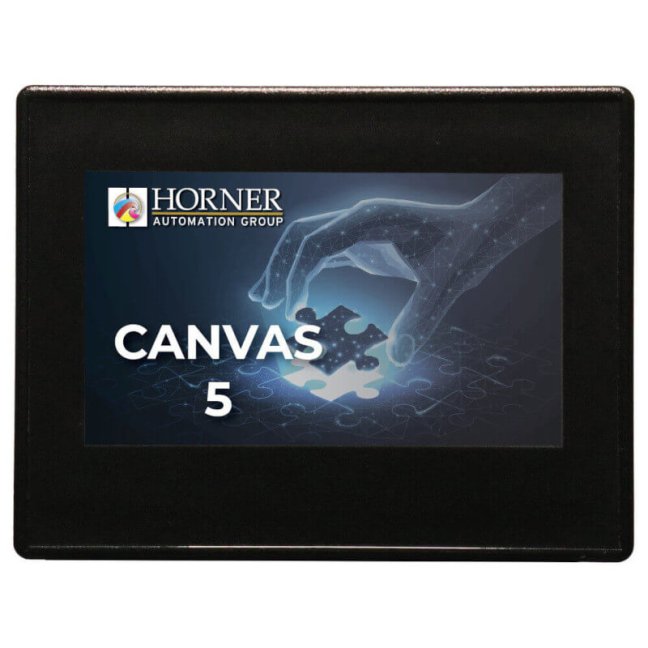

HORNER CANVAS 5 PLC HMI controller with 4.3″ colour touchscreen, analog / digital inputs and outputs - Type: 4x DI (24 VDC, 4x HSC, 500 kHz), 4x DO (30 VDC, 0,5 A, 2x PWM, 500 kHz), 4x AI (0-20 mA, 4-20 mA, 0-10 V, 12 bit)
HORNER CANVAS 5 connects PLC, 4,3″ color touch screen, 4 digital inputs, 4 transistor outputs and 4 analog inputs. Cscape for PLC program and screens is free. FOXON will help with selection, first project and training.
More
Code: HE-CV-043C-01
HORNER CANVAS 5 connects PLC, 4,3″ color touch screen, 4 digital inputs, 4 transistor outputs and 4 analog inputs. Cscape for PLC program and screens is free. FOXON will help with selection, first project and training.
More
Code: HE-CV-043C-01
Options 1
| Type | Code | Availability | Price excl. VAT | |
|---|---|---|---|---|
| 4x DI (24 VDC, 4x HSC, 500 kHz), 4x DO (30 VDC, 0,5 A, 2x PWM, 500 kHz), 4x AI (0-20 mA, 4-20 mA, 0-10 V, 12 bit) | HE-CV-043C-01 | In stock 1 pcs |
960 EUR
|
PLC, control and I/O in one panel.
HORNER CANVAS 5 connects PLC, 4,3″ color touch screen and 12 built-in inputs and outputs. From one place, you collect signals, control a small machine or fixture and change technology settings. For a simple task, you have control and operation in one device; you will prepare the screens in the CANVAS series graphic environment.
Cscape 10 for both the PLC program and the HMI screens is free with each panel. You do not buy a programming license. In addition, CANVAS includes WebMI+, MQTT, Enhanced IEC and J1939 by default; external and cloud services have their own terms and conditions.
Verify CANVAS 5 on your own task.
Free loan of selected products for 14 days is arranged individually according to availability. We will confirm the specific model, date and conditions in advance. FOXON will help with the selection and the first project.
Introducing the CANVAS series
The short video Horner introduces the CANVAS series, its operation and basic equipment. It shows more models of the series. English.
Applications in small machines and systems
Pump switching according to time or event
Starting at a specified time, running for a set time or reacting to a level and other input signal. The operator sets the values and sees the pump status on the display.
Controlling a small machine or fixture
Starting the work cycle, continuity of individual steps and counting of pieces. The operator changes the length of the step or the number of repetitions on the panel.
Measurement and simple regulation
Display of pressure, temperature or other quantity and reaction to the set limit. The sensor type and signal range must match the selected panel inputs.
Local equipment monitoring
Input states, error messages and common settings on one display. You can prepare the range of screens and controls according to the specific device.
You create a function for your technology in Cscape. Select the necessary sensors and control elements according to the device.
Trial loan and training
Free loan by agreement
Free loan of selected products for 14 days is arranged individually according to availability. We will confirm the specific model, date and conditions in advance.
Training in Liberec
We train individuals and groups in our training room in Liberec. We will agree on the scope and date according to the experience of the participants and their tasks.
The original Horner Automation Europe video instructions are used for self-study. Translated titles and annotations explain their content, videos remain in English. Horner Europe video tutorials on YouTube
Selection of variant CANVAS 5
You are ordering HE-CV-043C-01 on this page. It has a fixed combination of 4 digital inputs, 4 transistor outputs and 4 analog inputs. If you need relay or analog outputs or a different number of signals, we will help you choose an extension or another panel.
HE-CV-043C-014 digital inputs, 4 transistor outputs and 4 analog inputs 0-10 V, 0-20 mA or 4-20 mA.
For jobs with fewer signals and a color touch screen requirement. It has no built-in relay or analog outputs.
We will advise you on the selection of a suitable design and accessories according to the project.
Signal types and wiring limitations
Built-in analog inputs support 0-10 V, 0-20 mA and 4-20 mA; direct measurement of Pt100 and thermocouples is not their function. Set the current or voltage mode according to the connection and configuration. High-speed counters use the same four digital inputs. Transistor outputs are limited to 0,5 A per channel and 2 A in total; control the power load via the corresponding power element. CANVAS 5 does not have built-in analog or relay outputs.
Technical parameters HORNER CANVAS 5
| Display | 4,3″ color touch, 480 × 272 px |
|---|---|
| Program memory | 2 MB |
| Built-in I/O | 4 digital inputs + 4 transistor outputs + 4 analog inputs |
| Analog signals | 0-10 V, 0-20 mA, 4-20 mA; 12 bits |
| Connection | Ethernet 10/100 Mb/s, RS232, RS485, CAN, USB Mini-B, USB-A, microSD |
| Power supply | 10-30 V DC; commonly 24 V DC |
| Operating temperature | -10 to +60 °C |
You can find detailed information in the tab Features.
Connection and operation
CANVAS 5 has Ethernet 10/100 Mb/s, RS232 and RS485 in common connector MJ1/2 and CAN to connect the corresponding remote I/O. For data exchange, you can use, for example, the Modbus TCP or Modbus RTU according to the project settings. USB-A and microSD are used for working with data, USB Mini-B for PC connection.
You can create logic and more advanced screens in the free Cscape 10. WebMI+, MQTT, Enhanced IEC and J1939 are standard on the CANVAS. When designing remote access, we will also verify the network, the necessary services and their conditions.
Equipment and cost of first launch
| Panel HORNER CANVAS 5 | Current price in the selection of variants above |
|---|---|
| Standard Cscape | 0 CZK - program PLC and screens HMI |
| Power supply and connection | Source 24 V DC and programming link USB Mini-B or Ethernet; separate items by assembly. |
| Sensors and controls | According to the signals and loads of your job |
| Training, design and assembly | Pricing according to the agreed scope |
The price of the panel is not the price of the entire automation. In the offer, we will discuss the necessary equipment and the possible work of technicians. We select the source, cables and other accessories according to the assembly.
Contents of the standard package
HE-CV-043C-01 panel and mounting accessories. We will confirm the exact range of supplied connectors before ordering. Select the source, programming cable, memory medium and sensors separately according to the assembly.
First project in Cscape
Download Cscape from Horner. You need a manufacturer account to download Cscape. The CANVAS tutorial shows PC connection, hardware configuration, control logic and creating the first screen.
Your first test task
When first verifying, start with one simple function. For example, an output that switches on for a set time after pressing a button or changing the input signal.
- Set the switching time on the display and show the input and output status.
- Handle the trigger condition and timer in the program.
- On the test load, verify switching on, switching off after a time has elapsed and changing the settings on the display.

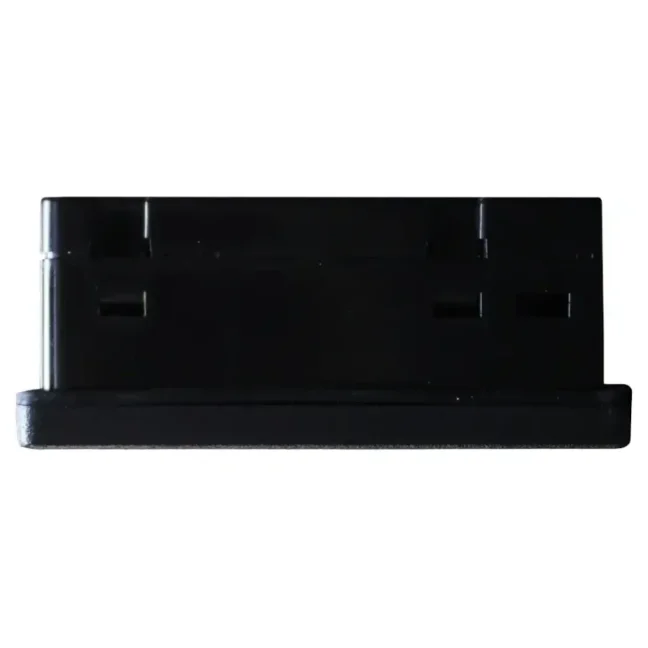

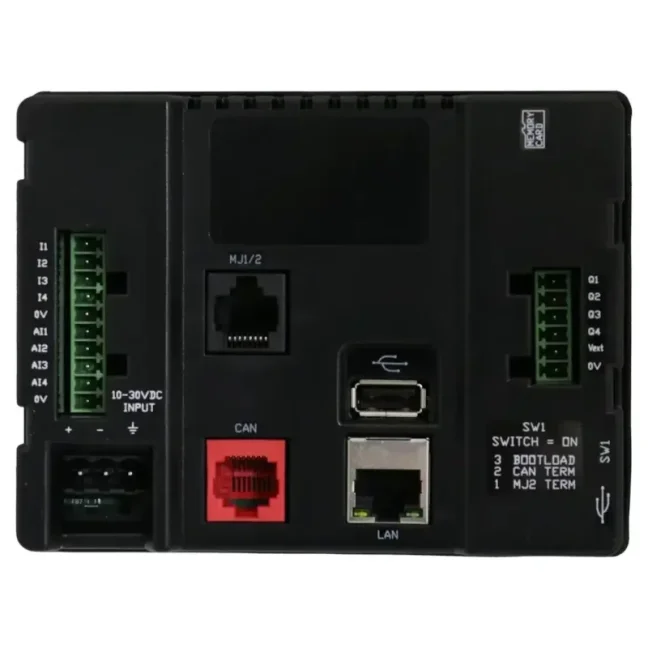

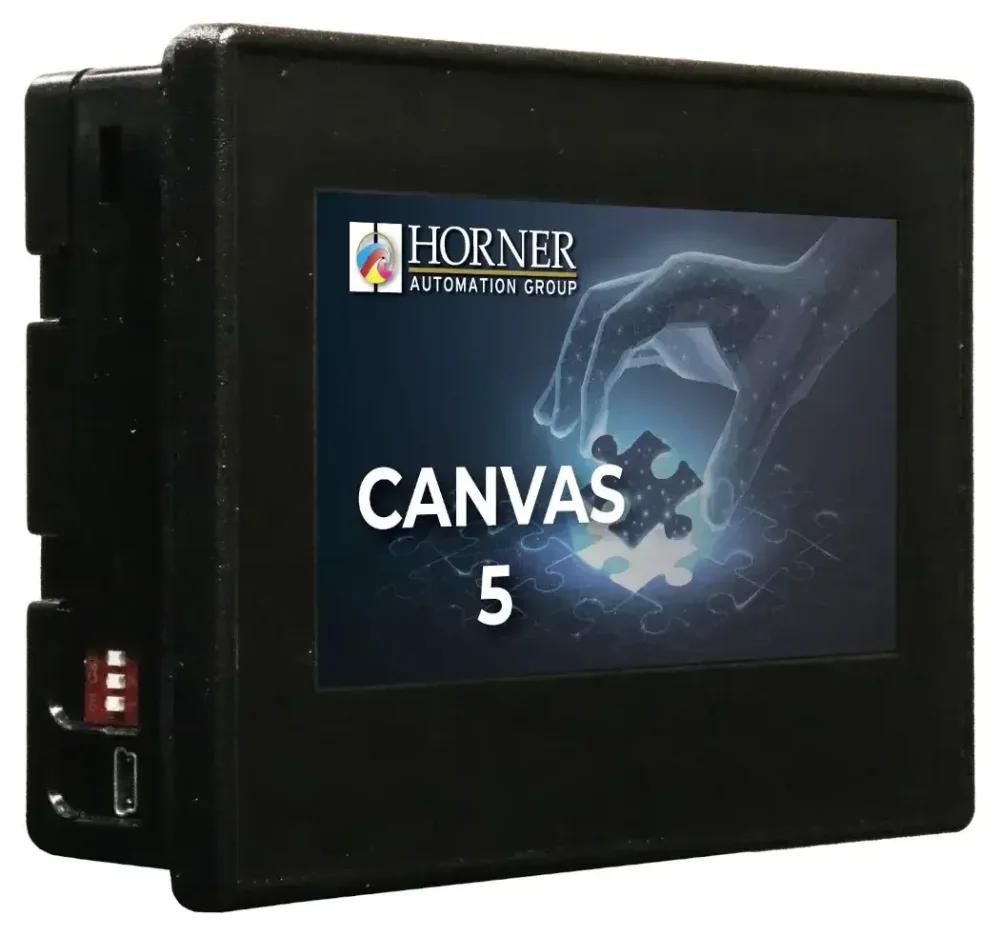

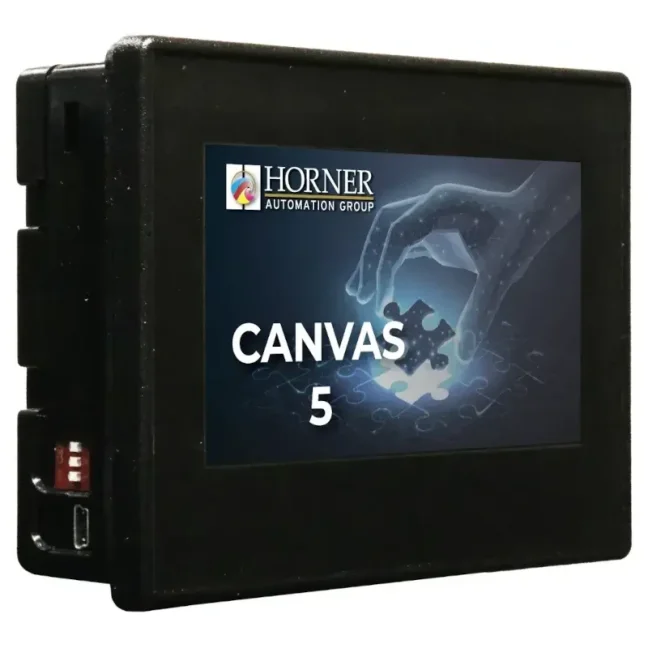

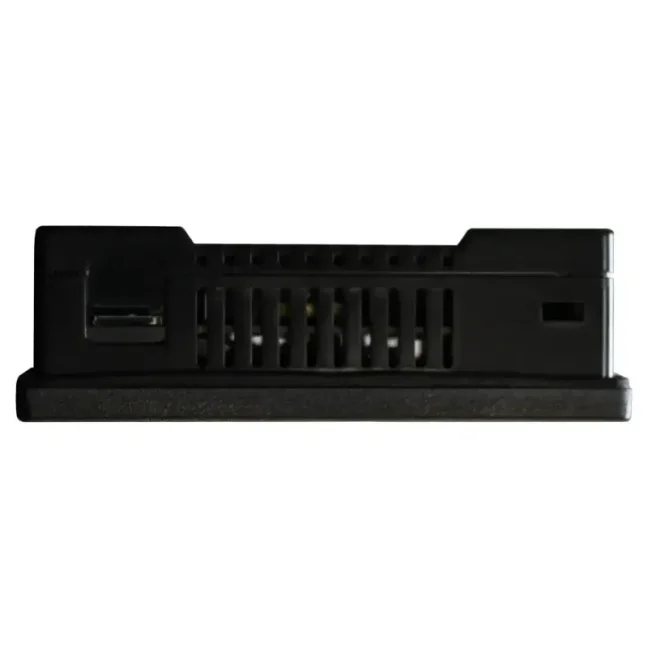

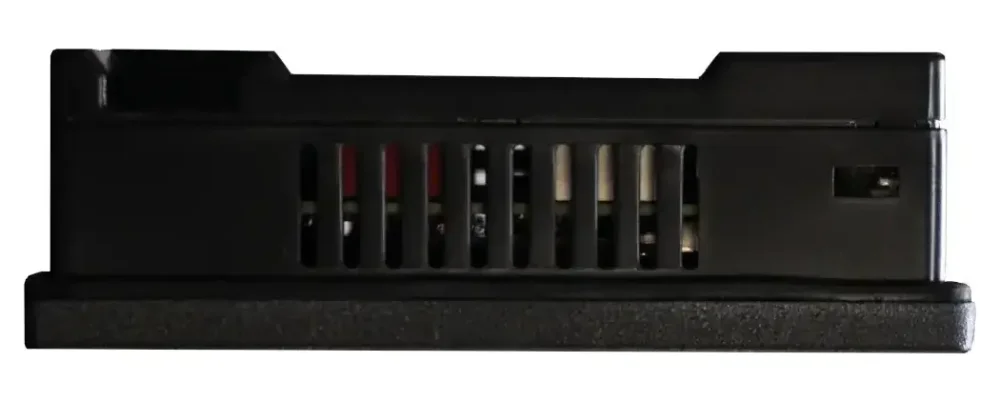

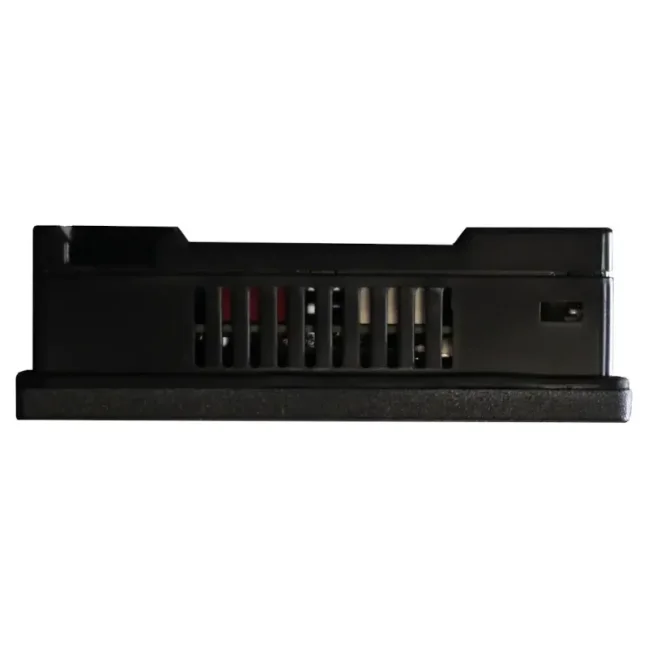

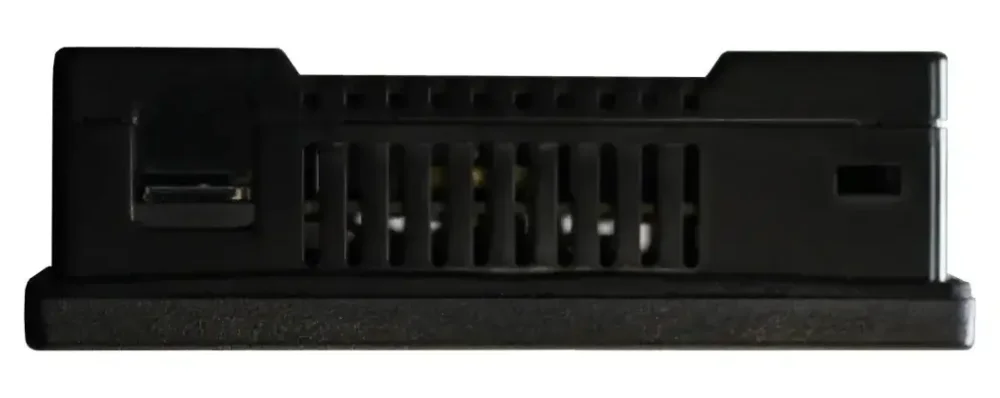

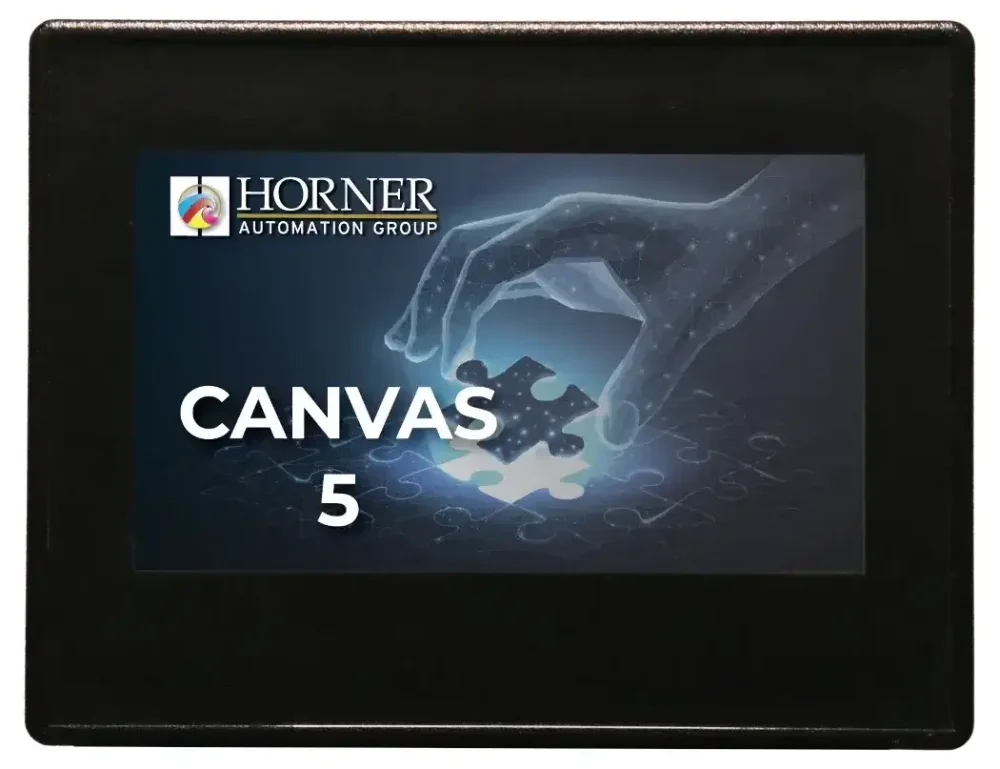

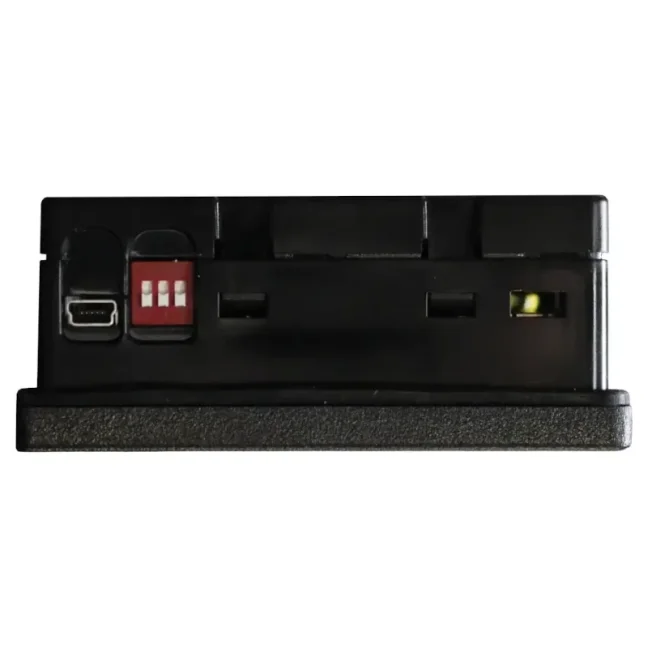

Photo gallery and connection
Click to open a separate image in a larger view.
Frequently asked questions
Do I need separate PLC or HMI?
CANVAS 5 contains PLC, color touch screen and 12 built-in I/O. You don't need separate PLC and HMI for the same simple task. In case of a larger number or other type of signals, the corresponding I/O will be added.
What is free and what is charged separately?
Standard Cscape is free with each panel. You can create the PLC program and the HMI screens without a paid programming license. Additional features have their own license terms. Free loan of selected products for 14 days is arranged individually according to availability. We will confirm the specific model, date and conditions in advance. Accessories, training and the work of technicians will be priced according to the scope.
How to decide between X4 and CANVAS 5?
Compare the necessary signals, screens and communications. The CANVAS 5 has 4 digital inputs, 4 transistor outputs, 4 voltage/current analog inputs, and CANVAS graphics. The same display size in itself does not mean the same equipment. Send a list of signals and we will select a suitable model.
Do I connect Pt100 directly or do I need an analog output?
The built-in analog channels are voltage/current inputs only. For direct measurement of Pt100, thermocouple or for analog output, we select a suitable extension or other panel.
How can I check trial loan availability?
Click Arrange a trial loan and describe your application. We will check a suitable loan model, availability, dates and conditions. Trial loans of selected products are arranged individually.
Can you help with the first project?
We advise on the selection of equipment and offer training in Liberec for individuals and groups. If necessary, we will prepare the project design and assembly with our own technicians.
Why buy from FOXON
Distributor HORNER
We supply new HORNER products with warranty and will help you choose the right equipment and accessories.
Selection according to your project
We will discuss technology function, signals and communication. We will compare the entry with the HORNER options and select a suitable product.
Technical support and training
We advise on the use of the equipment and train individuals and groups. For self-study, we recommend the manufacturer's instructions.
Solution design and assembly
If necessary, we will design a solution, prepare a project and install the equipment with our own technicians. We will agree on the scope of work according to the technology.
Video tutorials by topic
First project, starter setup and support
Setup for initial commissioning
We will select a suitable power supply, connections and any external I/O for this panel. The quotation will itemise the hardware and optional start-up support. Standard Cscape is free.
Help with your project
We arrange consultation, configuration, programming or training in Liberec for individuals and groups. We will confirm the scope of work, output, price and deadline in advance.
Deployment examples HORNER
View specific deployments of HORNER X4 and X7 at machine manufacturers. The model used and the implementer are listed in the relevant study.
Try and choose for your task
Send technology function, necessary signals and deadline. We will check the possibility of a loan or discuss a suitable product and the price of the necessary equipment.
Downloads and initial setup
Documents and videos are in English. Select the current datasheet according to the entire order code. Some downloads on the manufacturer's website require registration and login.
Software and first steps
Cscape - environment for both PLC and HMI
Standard Cscape is free with each panel. You can create the PLC program and the HMI screens without a paid programming license. Additional features have their own license terms. You need a manufacturer account to download.
Open the materialFirst project in Cscape
You need a manufacturer account to download Cscape. The CANVAS tutorial shows PC connection, hardware configuration, control logic and creating the first screen.
Open the materialHorner Europe video tutorial library
Additional procedures for programming, screens and communication. Choose according to the functions of your panel.
Open the materialProduct selection and range overview
CANVAS - comparison of models and equipment
The Horner brochure presents the CANVAS series and will help with orientation between the models. Use the datasheet of the specific code for connection.
Open the materialConnection and commissioning
CANVAS 5 - electrical parameters and connections
Current datasheet for HE-CV-043C-01. Signal types, output current limits, power supply conditions, ports and dimensions.
Open the materialCANVAS 5 - quick connection and assembly
A quick guide for first time fitting and wiring. Check the datasheet for detailed electrical limits.
Open the materialCANVAS 5 - configuration and operation
User manual for system menu, communication, working with I/O and commissioning.
Open the materialDrawings and firmware
Dimensional drawing and assembly cut-out
The drawing is part of the CANVAS 5 datasheet. Before making the cabinet, check the dimensions and leave room for wiring.
Open the materialFirmware and Release Notes
Select the exact model and read the update conditions. Back up the project and settings before changing the firmware.
Open the materialProperties HORNER CANVAS 5
You are ordering HE-CV-043C-01 on this page. It has a fixed combination of 4 digital inputs, 4 transistor outputs and 4 analog inputs. If you need relay or analog outputs or a different number of signals, we will help you choose an extension or another panel.
Design and types of signals
HE-CV-043C-014 digital inputs, 4 transistor outputs and 4 analog inputs 0-10 V, 0-20 mA or 4-20 mA.
For jobs with fewer signals and a color touch screen requirement. It has no built-in relay or analog outputs.
Control system and hardware versions
| Programming | Cscape 10; Advanced Ladder and languages IEC 61131-3 |
|---|---|
| Program memory | 2 MB |
| Cycle of logic | 0,02 ms/kB |
| Display | 4,3″ resistive touch, 65 thousand colours |
| Resolution and brightness | 480 × 272 px; 450 cd/m² |
| Screens and graphics memory | Up to 1 023 screens; 22 MB screen memory |
| Storage media | microSD in FAT32; supported USB media via USB-A |
Inputs and outputs
| Digital inputs | 4; fast counters use the same input channels; 4 HSC to 500 kHz |
|---|---|
| Digital outputs | 4 transistorized; max 0,5 A per channel, max 2 A total |
| Analog inputs | 4; 0-10 V, 0-20 mA, 4-20 mA; 12 bits |
| Analog outputs | They are not built-in |
| Relay outputs | They are not built-in |
| Direct temperature inputs | For Pt100 or thermocouple, a corresponding external extension or converter is needed |
Ports and communication functions
| Ethernet | 1× 10/100 Mb/s; for example Modbus TCP, FTP, SMTP and ASCII |
|---|---|
| Serial ports | 1× RS232 and 1× RS485; common connector MJ1/2 |
| CAN | 1×; CsCAN, CANopen, DeviceNet and J1939 depending on configuration |
| USB Mini-B | PC connection for programming and data access |
| USB-A | USB host for supported devices and storage media |
| Web and data transfer | WebMI+ and MQTT; setting in Cscape 10 |
| Expanding I/O | Selection according to the required signals, bus and project configuration |
Assembly and operating conditions
| Power supply | 10-30 V DC |
|---|---|
| Typical current consumption at full backlight | About 118,85 mA at 24 V DC |
| Device dimensions (w x h x d) | 125,2 × 96,2 × 45 mm |
| Mounting cutout | 119,5 × 90,5 mm; tolerance +0,5 / -0 mm |
| Device weight | 271 g |
| Operating temperature | -10 to +60 °C |
| Storage temperature | -30 to +70 °C |
| Relative humidity | 5-95 %, no condensation |
| Short power drop | During a brief supply dip of approximately 100 ms, active outputs may remain on for approximately 1 second during restart. Take this into account when designing the power supply and control system. |
Contents of delivery and accessories
HE-CV-043C-01 panel and mounting accessories. We will confirm the exact range of supplied connectors before ordering. Select the source, programming cable, memory medium and sensors separately according to the assembly.
Source 24 V DC and programming link USB Mini-B or Ethernet; separate items by assembly.
VIDEO: Tips and tricks for setting up HORNER PLCs with display, inputs and outputs
HORNER PLCs combine machine control, operator display and inputs/outputs in one device. If you need a compact solution for a smaller machine, part of a production line, a test station or modernization of older equipment, you do not have to source and combine a separate PLC, HMI panel and I/O modules.
The manufacturer’s training videos show how to connect the panel, work in Cscape, set up communication, use WebMI and work with basic inputs and outputs. They are especially useful during initial commissioning, so you do not have to figure everything out by trial and error.
Review: Horner Canvas Series PLC with Integrated HMI – Part 1: PLC
Horner PLCs with integrated HMI are new not only to our e-shop, but also to our market. We asked respected industrial automation specialist Jaroslav Blažek (blaja.cz) to explore all the functions and user-friendliness of these devices. You can find out whether he was satisfied and what it was like working with the Horner units in his review.
Review: Cscape Software for Horner PLCs with Integrated HMI
For efficient work with Horner panels (PLCs with integrated HMI), you need a reliable and intuitive programming tool. The Cscape software allows configuration of both the PLC and the integrated HMI within a single environment—and it’s free. Once again, we asked specialist Jaroslav Blažek (blaja.cz) to take a closer look at the software. You can find out how the installation and registration went in his review.
Review: Horner Canvas Series PLC with Integrated HMI – Part 2: HMI and Remote Monitoring
Horner PLCs with integrated HMI have not been part of our product range for long, but they are already attracting well-deserved attention. We asked industrial automation expert Jaroslav Blažek (blaja.cz) to take a closer look at them — especially in terms of functionality, intuitive operation, and practical deployment options. Find out how these Horner devices performed and what he has to say about them in the following review.
New on the Market: Touchscreen PLC with Integrated HMI and I/Os from Horner Automation
Are you looking for a compact, powerful and easy-to-integrate solution for machine control or upgrading existing technology? We are pleased to introduce a new addition to our product range: panels from Horner Automation. Their PLCs, which feature an integrated HMI with a touchscreen display and inputs/outputs, are ideal for designers of new machines as well as engineers looking to innovate their companies' production.
Case Study: How the Horner X7 Control Panel Automated Weighing and Dosing
A new fully automated dosing and weighing machine is controlled by a Horner X7 PLC with integrated HMI and I/Os. In this setup, the industrial panel manages recipes, temperature control, and precise weighing of ingredients. At the same time, it collects batch data, eliminates human errors, and ensures consistent food quality. What does it look like in practice?
Case Study: Successful Machine Upgrade with the Horner X4 PLC Featuring Integrated HMI and I/Os
To modernize a sheet-cleaning machine, W&K-Automation sought a powerful, compact solution that could be easily integrated into limited cabinet space. They replaced the obsolete control system with the Horner X4 industrial panel, which met all requirements.
