Ewon Flexy 205 - Industrial Router for Remote Access and PLC Data Collection
Ewon Flexy 205 combines secure remote machine access with data collection from PLCs and industrial devices. It enables remote PLC and HMI programming, alarm monitoring, historical data storage and data transfer to OPC UA, visualisation systems, MES, ERP or cloud applications.
Which PLC data do you need to read, and where should it be sent?
We will discuss the PLC type, data points, alarms, storage, internet connection and target system, then propose a suitable Ewon Flexy 205 configuration.
More about Ewon Flexy 205 functions, communication and applications
Remote access and data collection in one device
Ewon Flexy 205 is suitable for applications where remote programming alone is not enough. It can read data from PLCs and other devices, store it, evaluate alarms and transfer information to higher-level systems.
Secure programming and diagnostics of PLCs, HMI panels, robots and industrial computers without a public IP address or your own VPN server.
Flexy communicates directly with supported PLCs and can read and write values without major changes to the control program.
Storage of process values, alarm logging and notifications when a fault occurs or a limit is exceeded.
Data transfer to OPC UA, visualisation, SCADA, MES, ERP, Power BI or cloud applications.
When the connection is interrupted, data can be stored locally and sent retrospectively once communication is restored.
The router can be expanded with cards for Wi-Fi, 4G LTE, serial interfaces or digital and analogue I/O.
Supported PLCs and communication protocols
SIMATIC S7-1200, S7-1500, S7-300 and S7-400
Communication with Rockwell Automation PLCs
Reading and writing values from supported PLCs
Communication with PLCs and industrial devices
Modbus TCP and Modbus RTU
OPC UA Client and OPC UA Server
Communication with supported BACnet devices
Reading data from network and other SNMP devices
Advanced data processing and transfer
Typical Ewon Flexy 205 applications
Programming, diagnostics and support for machines installed locally and abroad.
Monitoring operating states, alarms, counters, consumption and other process values.
Acquiring PLC data for visualisation, reporting, OEE, maintenance or production analysis.
Transferring selected values to SCADA, MES, ERP, Power BI or cloud applications.
The base Flexy 205 router can be fitted with suitable Ewon Flexy expansion cards. We will help configure the system according to the available connection, devices and required inputs and outputs.
Comparison of Ewon Cosy+, Flexy 205 and SIA Connect
| Function | Ewon Cosy+ | Ewon Flexy 205 | SIA Connect |
|---|---|---|---|
| Remote access | Yes | Yes | Yes |
| PLC programming | Yes | Yes | Yes |
| PLC data collection | No | Yes | Yes |
| Store & Forward | No | Yes | Yes |
| OPC UA | No | Yes | Yes |
| PLC ↔ PLC data transfer | No | Via script | Yes |
| PLC ↔ device data transfer | No | Via script | Yes |
| Database storage | No | Via script | Yes |
| MQTT | No | Via script | Yes |
| Cloud service | Talk2M | Talk2M | Optional |
| Typical use | Remote machine service | Remote service, alarms and data collection | Comprehensive OT/IT integration |
For remote service alone, Ewon Cosy+ is usually sufficient. For remote access, alarms, storage and basic data collection, Ewon Flexy 205 is a suitable choice. For broader integration with databases, MQTT, APIs and other IT systems, consider SIA Connect.
Why buy Ewon Flexy 205 from FOXON?
- More than 17 years of experience with Ewon products.
- We help verify communication with your PLC.
- We design the right combination of router and expansion cards.
- We help configure Talk2M, alarms and data collection.
- Commissioning and user training.
- The router and starter kit are in stock in Liberec.
Ewon Flexy 205 router
951,06 EUR incl. VAT
Ewon Flexy 205 – Starter Kit
597,74 EUR incl. VAT

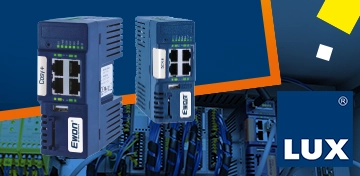

Ewon in Practice: Commissioning a Machine on Réunion Island from an Office in Jablonné
Are you considering remote access to machines and equipment, whether they operate on the other side of the world or simply in another building at your facility? Then choose a simple, reliable and secure connection with encrypted communication to all your routers, just like machine manufacturer LUX.
How to Meet NIS2 Requirements: Secure Remote Access with Ewon Routers and W&T Firewalls
The European NIS2 directive introduces new obligations for companies in protecting against cyber threats. Below, we compare these requirements with the technical measures in IEC 62443 and show how to meet them easily using Ewon industrial routers, the secure Talk2M cloud service, and firewalls from the German manufacturer W&T.
Ewon in Action: ŽĎAS Demonstrates Intelligent Use of Industrial Routers
The most frequent users of Ewon industrial routers are machine and equipment manufacturers. The remote access capability of these routers enables them to communicate with the control systems of the machines they manufacture and sell, even if they are on the other side of the world. In addition, Ewon Flexy makes it possible to collect data from machines and make it available to customers via visualisation. One of the companines that cleverly use all the benefits of these routers is the leading Czech engineering company ŽĎAS.
How to upgrade from Talk2M free to Talk2M light or pro and add Ewon routers
Do you use one or more Talk2M free accounts? Have you found that this solution is no longer enough and that you need Talk2M light or Talk2M pro? This guide will show you:
- how to upgrade your existing Talk2M free account to Talk2M light or Talk2M pro,
- how to import Ewon devices from one or more Talk2M free accounts into the upgraded account,
- how to create a group of routers in the upgraded account and assign users to it, including access rights.
The New LIGHT Account Type in Talk2M on Ewon Routers Is a Happy Medium
The Talk2M cloud service allows EWON router users to easily and securely connect to their devices/machines remotely via the Internet from anywhere in the world. Until now, two types of service have been available – Talk2M free and Talk2M pro. From 2 May 2024, a new, affordable account type – Talk2M light – will be available. In addition, the rules for the free account will change.
TALK2M free, light or pro? Which Service to Choose for Your Ewons and Why?
Are you using Ewon Cosy or Flexy routers for remote access and wondering which Talk2M remote access service is right for you? We've put together some arguments to help you decide.
Remote access to Ewon routers from WEB browser via M2Web
The M2Web service enables mobile access to Ewon routers from any computer, tablet or smartphone via any web browser via the Talk2M cloud. In other words, this means that you don't need to install the eCatcher.exe software on your computer or phone.
VIDEO guide to remote access via Ewon routers
Ewon industrial routers are rightly one of the world's most widely used solutions for remote management of PLCs, robots, industrial computers and HMI panels over the Internet. Today, remote management alone is no longer enough and Ewon routers are the only ones to offer you much more. They can read (and write) data from remote PLC control systems from SIEMENS, Allen-Bradley, Mitsubishi, Omron, Schneider, Modbus, etc. They send this data over the Internet to your computer, where you save it in a database and display it in visualizations or Power BI reports. Find out more in our video guide.
