ProfiHub A5

Five new PROFIBUS DP segments in an IP65-rated design

The ProfiHub A5 16010 divides the main PROFIBUS DP segment into five further galvanically isolated segments. It regenerates the signal and enables star or tree topology connections outside a standard control cabinet. The cables are routed through cable glands to the terminal blocks inside the housing.

PROFIBUS DP16010FOXON Technical Support

Please send us the topology, network speed and number of stations. We will check the connections and required accessories.

5 + 1 segmentMAIN and CH1 to CH5
IP65Enclosed design with cable glands
-40 to +75 °COperating temperature
10-32 V DCPower supply, model 16010
Upgrading the existing network

Better signal quality and longer PROFIBUS network operation

By dividing a long cable run into shorter sections, you will improve signal transmission conditions and make maintenance easier. Minimising downtime caused by poor signal quality helps to extend the operational life of your existing PROFIBUS network. Plan the installation during a shutdown and, once the connection has been made, check both communication and signal quality.

A repeater regenerates the signal and provides galvanic isolation between individual metallic segments. It helps to limit the propagation of electrical faults and interference between them. Proper shielding, bonding and termination remain essential. A faulty cable or connector must be repaired; splitting the network does not replace rectifying the cause of the fault.

Installation proposal

Use in both new and existing networks

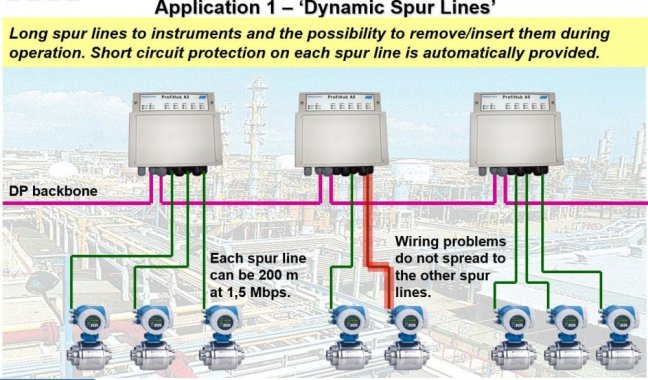

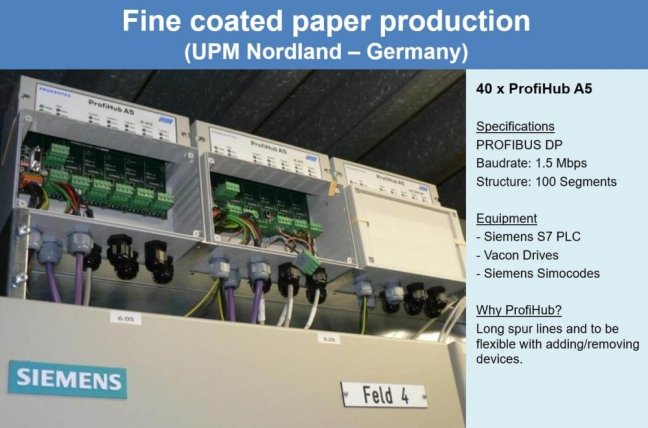

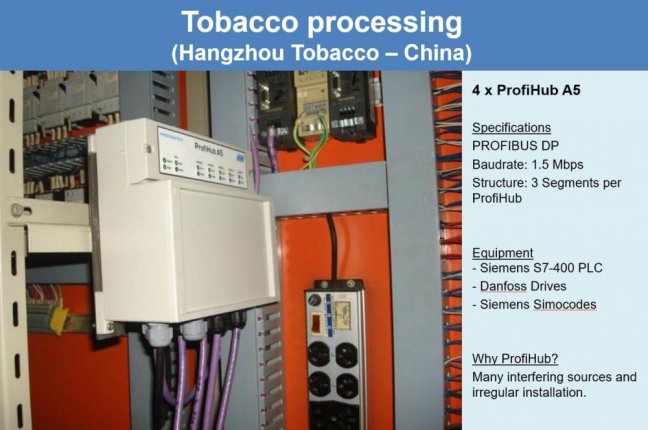

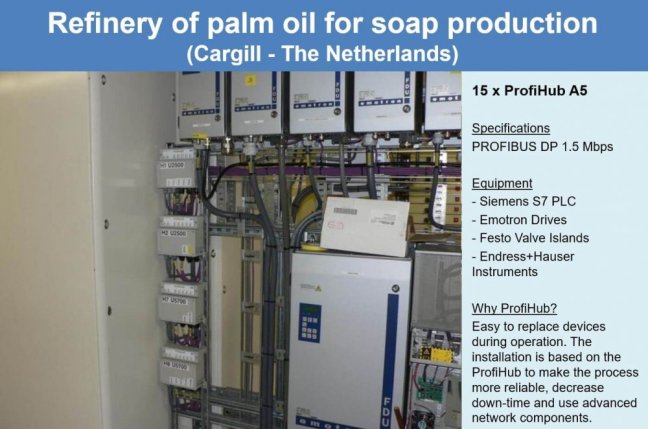

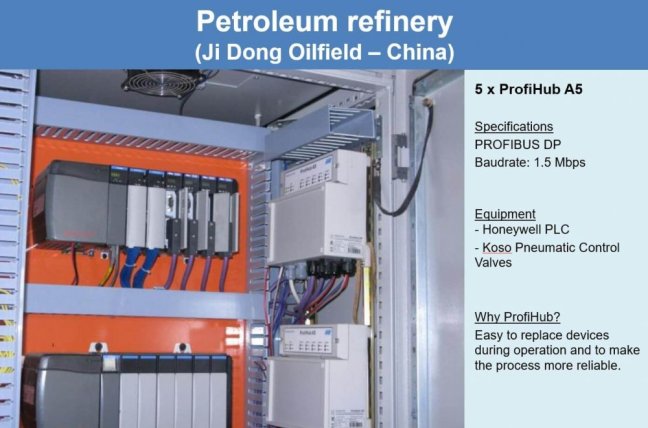

For the distribution of peripherals according to the machine, and for connecting detachable drives, measuring instruments or equipment in damp and dusty environments. The A5 is suitable for use in non-explosive environments.

Plan the replacement or installation of equipment in accordance with the technology’s operational requirements. Once connected, check the polarity, power supply, termination and response of the connected stations.

Installation and operation

Five active segments for a clearer network overview

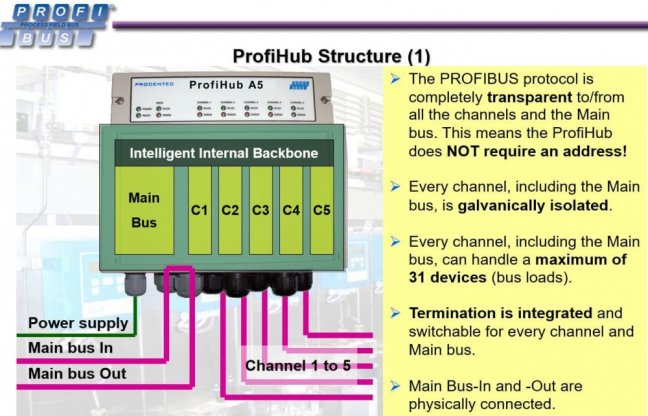

MAIN is used to connect the backbone bus. CH1 to CH5 form separate segments, each with galvanic isolation and its own powered terminator. A5 has a total of six electrical segments; the main channel’s input and output still form a single segment.

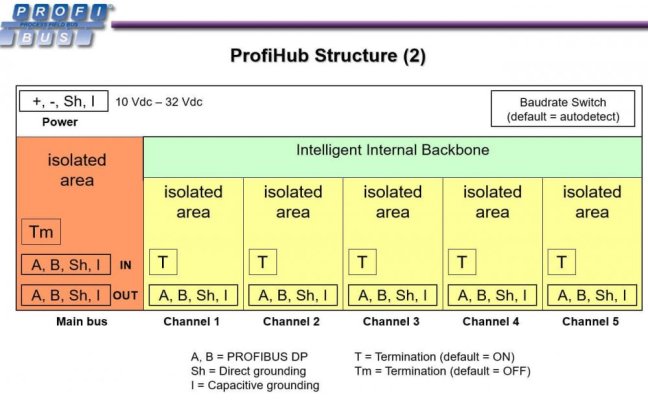

The MAIN segment and the five ProfiHub A5 channels
The MAIN segment and the five ProfiHub A5 channels
Division of peripherals into separate segments
Division of peripherals into separate segments
Installation and operation

Cabling, shielding and termination

A is the green PROFIBUS wire, B is the red one. Connect the shielding either directly or via a capacitive connection, depending on the bonding design. The PROFIBUS cable glands are designed for cables with a diameter of 6 to 12 mm; the power cable should have a diameter of 5 to 10 mm.

MAIN has a default termination setting of OFF, whilst CH1 to CH5 are set to ON. If A5 is at the end of the main segment, switch its termination on as well. Always check the settings after the actual connection has been made.

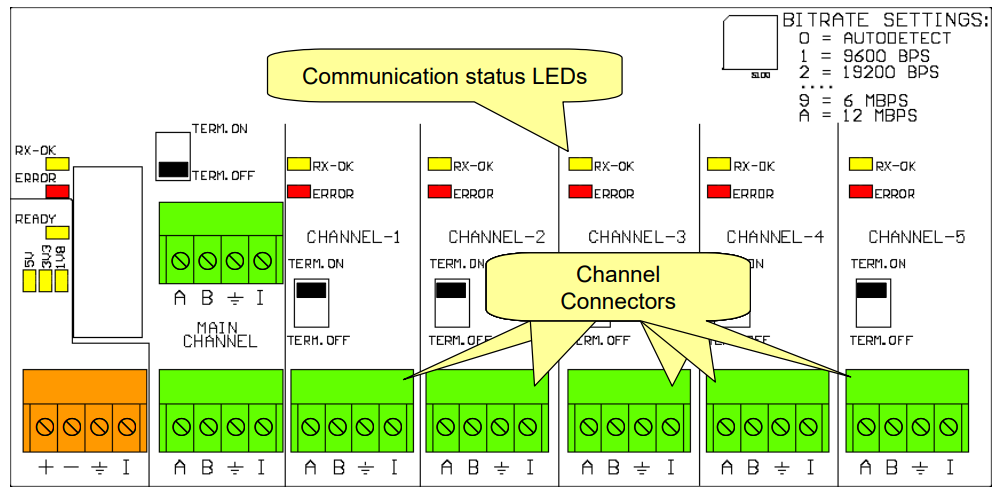

Internal terminal blocks and signalling for A5 channels
Internal terminal blocks and signalling for A5 channels
Termination switches for the main and outgoing segments
Termination switches for the main and outgoing segments
Installation and operation

Installation in more demanding environments

Use the four mounting holes and screws with a diameter of 4 to 5 mm. The recommended orientation is with the cable glands facing downwards. You can maintain the IP65 rating by tightening the cable glands correctly, sealing the lid and plugging any unused holes.

The 16010 power supply operates at 10 to 32 V DC, with a current draw of 130 mA at 24 V and with all channels fully loaded. This is the DC version; the 110/230 V mains power supply is available as a separate order option.

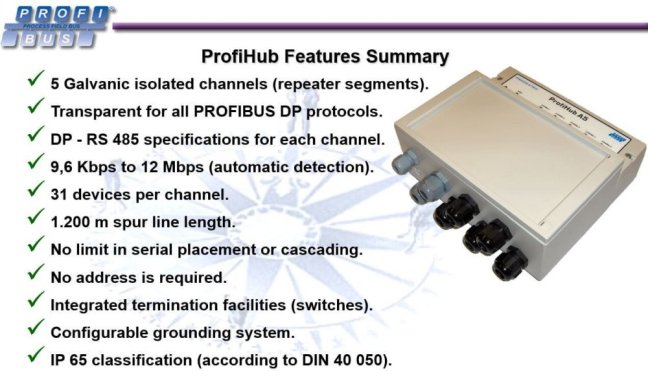

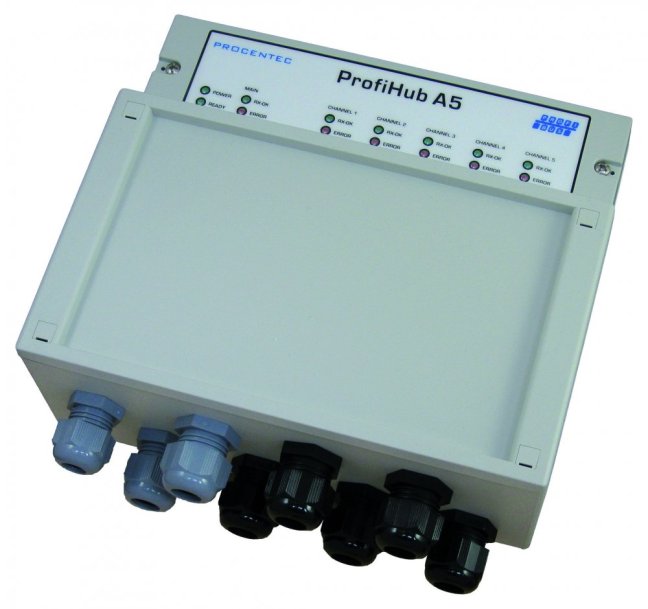

Enclosed ProfiHub A5 version with cable glands
Enclosed ProfiHub A5 version with cable glands

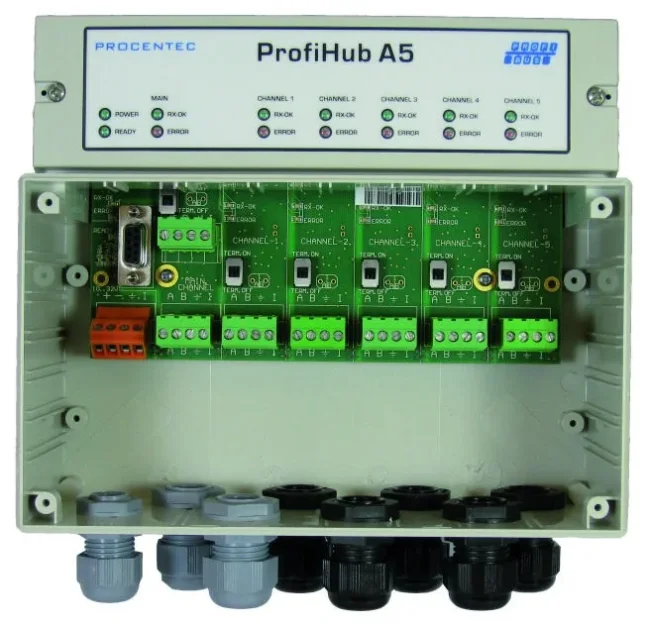

Internal wiring of the ProfiHub A5 after removing the cover
Internal wiring of the ProfiHub A5 after removing the cover
Installation and operation

Speed and on-site diagnostics

The transmission speed is detected automatically by default. The rotary switch also allows you to set a fixed speed of between 9.6 kbit/s and 12 Mbit/s. Select the setting according to the specific speed and plan any changes during a system shutdown.

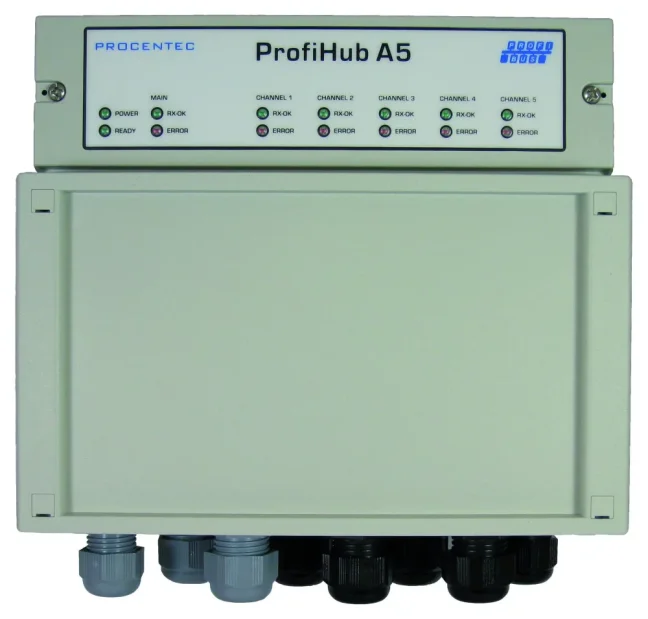

The LEDs on the housing indicate power, speed detection, and communication or faults on individual channels. Inside, there is a DB9 service port for maintenance. The A5 does not have a diagnostic DP slave or its own web interface. For more detailed measurements, connect a separate analyser.

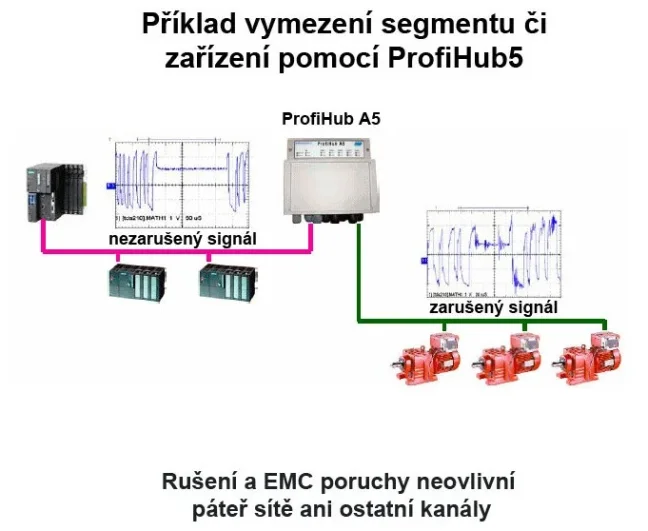

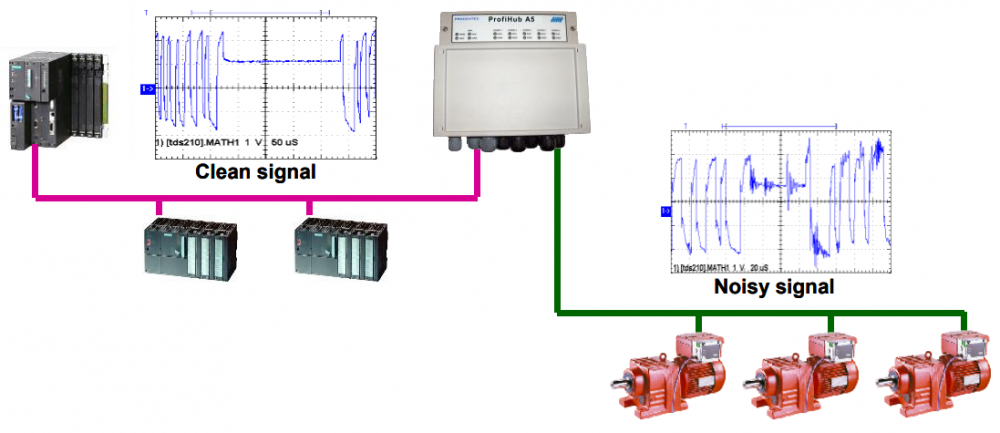

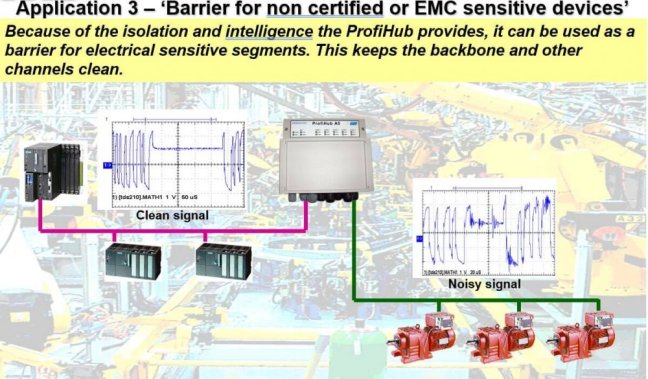

Isolating a disrupted segment using the ProfiHub A5
Isolating a disrupted segment using the ProfiHub A5

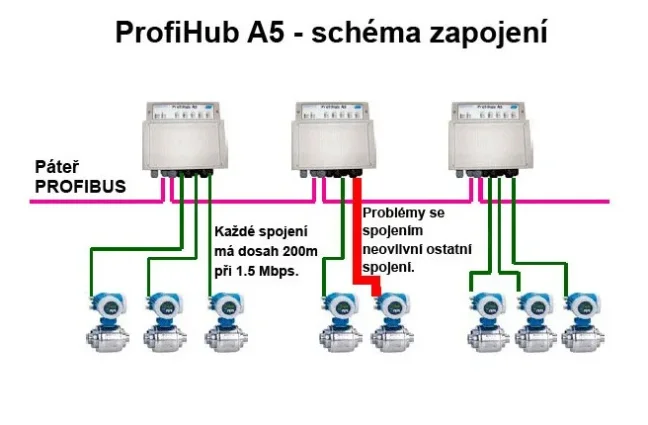

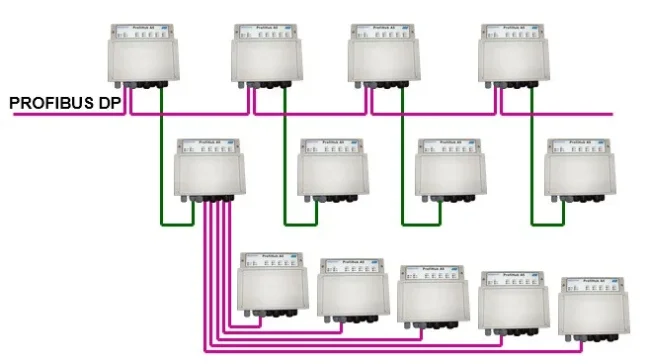

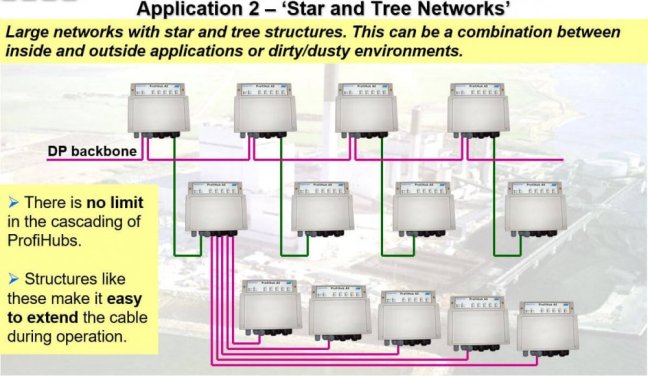

Illustrative star and tree topologies of the ProfiHub A5
Illustrative star and tree topologies of the ProfiHub A5
PROFIBUS DP metallic network

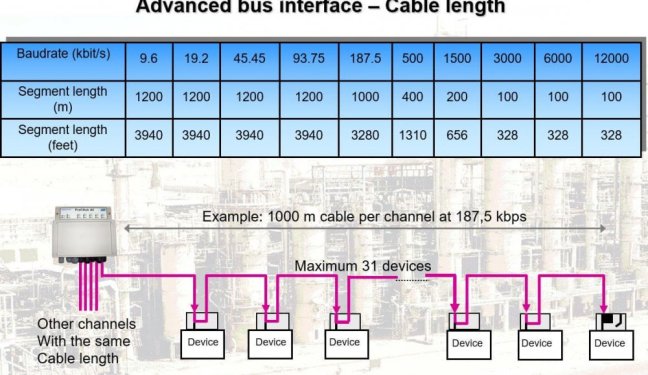

Cable length depending on the segment speed

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

More organised maintenance

Segments and correct termination

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Each segment has its own electrical specifications. During maintenance, the power supply and terminations of the segments that are to continue communicating must remain intact. The response to a missing peripheral is also determined by the PLC’s configuration and programme.

Operating modes

PLC configuration and commissioning

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

Technical specifications

ProfiHub A5, order number 16010

Order number16010
SegmentsMAIN + CH1 to CH5, five galvanically isolated output channels
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s
Speed settingsAutomatic detection or fixed selection via a rotary switch
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Devices per channelUp to 31 additional devices
Cable redundancyNo
DiagnosticsLED and internal DB9 service port; no diagnostic DP slave
Power supply10-32 V DC, reverse polarity protection
Current consumption130 mA at 24 V DC and full channel load
PROFIBUS connectionInternal terminal blocks, external cable glands
Diameter of the PROFIBUS cable6-12 mm
Diameter of the power cable5-10 mm
TerminationIntegrated, powered and switchable; MAIN default OFF, CH1 to CH5 ON
Protection ratingIP65 when the housing is correctly closed and the cable entries are sealed
Operating temperature-40 to +75 °C
InstallationFour mounting holes for 4-5 mm screws
Dimensions including cable glands213 × 210 × 95 mm
Net catalogue weight1239 g; we will confirm the delivery arrangements before the order is placed

When installing, leave space for the connectors, cable bends and access to the controls. We will confirm the design and dimensions based on the specific delivery.

Contents of the delivery

Module and installation accessories

We will supply the ProfiHub A5 16010. We will confirm the contents of the included connectors, terminal blocks and mounting parts in the quotation. We will select the power supply, cables, fibre-optic patch cords and analysers according to the specific network and equipment configuration.

Practical questions

Selection and commissioning

How many segments does the ProfiHub A5 create?

Five new segments, CH1 to CH5, will be created from the main MAIN segment. There are six electrical segments in total. The two connections to MAIN do not constitute two separate segments.

Do I need to change the PLC programme?

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

How should segments be terminated correctly?

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Can the A5 be powered directly from the 230 V mains supply?

No. Order number 16010 requires 10 to 32 V DC. The 110/230 V mains supply is for a different model. Always check the label before connecting.

How can I maintain IP65 protection?

Seal the lid and all cable entries. Use the correct cable diameter, tighten the cable glands and plug any unused holes. The recommended installation orientation is with the cable glands facing downwards.

Does it provide A5 diagnostics to the PLC or ComBricks?

The A5 does not have a built-in diagnostic DP slave. It indicates its status via an LED; for detailed network diagnostics, use a separate analyser, such as ProfiTrace or a suitably configured ComBricks.

PROFIBUS Technical Support

Why order from FOXON

We have been an official distributor for HMS Anybus (formerly PROCENTEC) since 2007.

Proposed network layout

We will review the network speed, cable lengths, number of stations and control cabinet locations. We will propose separate segments to suit the installation.

Selecting accessories

We will select the cabling, PROFIBUS connectors and power supply. We will check the termination of the individual segments.

Verification of a specific design

Before ordering, we will check the product order number, required functions and hardware revision.

Measurement and maintenance

We can help you distinguish between a physical layer problem and a communication error, and select the appropriate diagnostic tool.

Czech technical support

We will discuss specific wiring configurations, fault symptoms and options for long-term network monitoring.

Delivery in accordance with the project

Before placing an order, we will confirm the availability of the specific model, the quantity and the delivery date.

Network topologySegments, lengths and termination
DiagnosticsProfiHub, ProfiTrace and ComBricks
Czech supportConsultation on a specific installation
Documentation

Manuals and technical documentation

In the ‘Downloads’ tab, you will find the technical data sheet, manual and declaration of conformity. Please use the GSD files only for the relevant diagnostic version. For older units, please check the serial number and ensure the settings are correct.

Open downloads
PROFIBUS DP

Technical specifications of the ProfiHub A5

Order number 16010. Please refer to the specific model of the device for its specifications and functions.

Communication

Order number16010
SegmentsMAIN + CH1 to CH5, five galvanically isolated output channels
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s
Speed settingsAutomatic detection or fixed selection via a rotary switch
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Devices per channelUp to 31 additional devices
Cable redundancyNo
DiagnosticsLED and internal DB9 service port; no diagnostic DP slave

Power supply and cabling

Power supply10-32 V DC, reverse polarity protection
Current consumption130 mA at 24 V DC and full channel load
PROFIBUS connectionInternal terminal blocks, external cable glands
Diameter of the PROFIBUS cable6-12 mm
Diameter of the power cable5-10 mm
TerminationIntegrated, powered and switchable; MAIN default OFF, CH1 to CH5 ON

Mechanical design

Protection ratingIP65 when the housing is correctly closed and the cable entries are sealed
Operating temperature-40 to +75 °C
InstallationFour mounting holes for 4-5 mm screws
Dimensions including cable glands213 × 210 × 95 mm
Net catalogue weight1239 g; we will confirm the delivery arrangements before the order is placed
Network design

Length of the metallic segment as a function of speed

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

Installation

Termination and operating conditions

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Before changing the operating mode, please check the relevant manual and version. We can help you check the label and accessories for the parameters of a specific delivery.

ProfiHub A5 · 16010

Frequently Asked Questions about the ProfiHub A5

Selection, connection, diagnostics and operating conditions.

Selection and use

How many segments does the ProfiHub A5 create?

Five new segments, CH1 to CH5, will be created from the main MAIN segment. There are six electrical segments in total. The two connections to MAIN do not constitute two separate segments.

Do I need to change the PLC programme?

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

How should segments be terminated correctly?

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Can the A5 be powered directly from the 230 V mains supply?

No. Order number 16010 requires 10 to 32 V DC. The 110/230 V mains supply is for a different model. Always check the label before connecting.

Wiring and diagnostics

How can I maintain IP65 protection?

Seal the lid and all cable entries. Use the correct cable diameter, tighten the cable glands and plug any unused holes. The recommended installation orientation is with the cable glands facing downwards.

Does it provide A5 diagnostics to the PLC or ComBricks?

The A5 does not have a built-in diagnostic DP slave. It indicates its status via an LED; for detailed network diagnostics, use a separate analyser, such as ProfiTrace or a suitably configured ComBricks.

Is it possible to select a fixed transmission speed for the A5?

Yes. The rotary switch allows for either automatic detection or a fixed speed ranging from 9.6 kbit/s to 12 Mbit/s. All segments operate at the same speed. Please schedule any changes during a system shutdown.

Will ProfiHub eliminate all outages?

Galvanic isolation helps to limit the spread of electrical faults and interference. It does not eliminate faulty cables, incorrect shielding or missing terminations. A disconnected station or a damaged segment will continue to affect the equipment on that segment and the PLC’s response.

Network operations

How many stations can be connected?

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

Can more than one A5 be connected in a cascade?

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.
