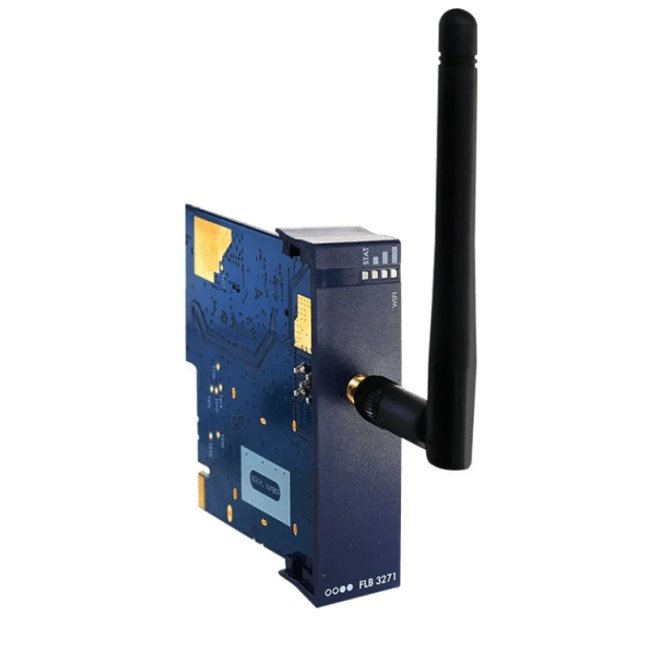

2.4GHz Wi-Fi card for Ewon Flexy 205
802.11 b/g/n, 2.4 GHz WiFi expansion card for the Ewon Flexy 205. Enables the router to connect to the Talk2M cloud service via a WiFi network. More
Code: FLB3271_00
802.11 b/g/n, 2.4 GHz WiFi expansion card for the Ewon Flexy 205. Enables the router to connect to the Talk2M cloud service via a WiFi network. More
Code: FLB3271_00
The FLB3271_00 card is used to extend the Ewon Flexy router with Wi-Fi connectivity for wireless connection to the network.

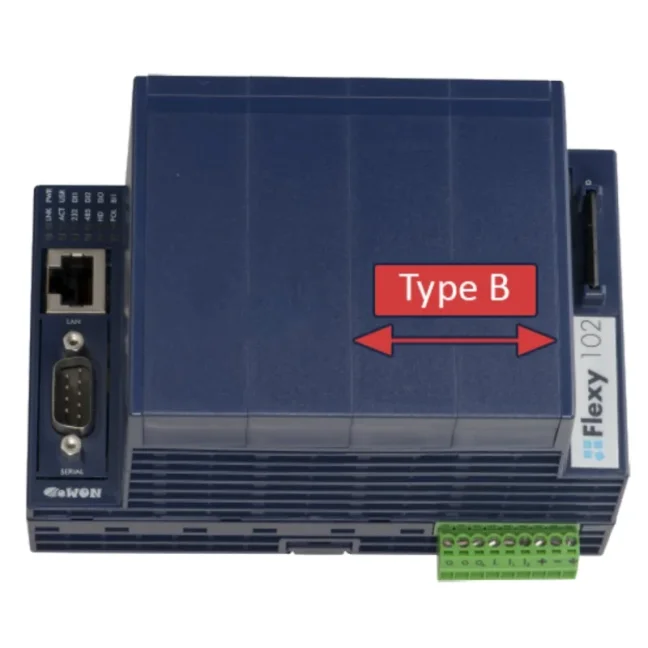

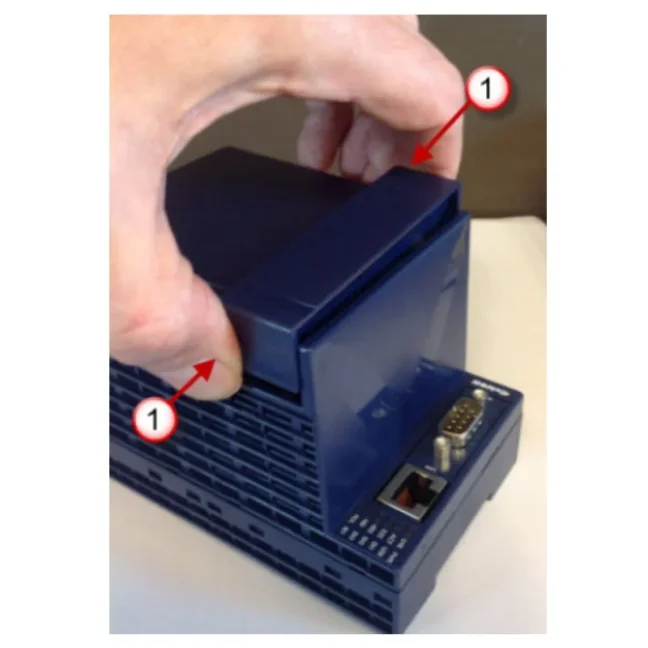

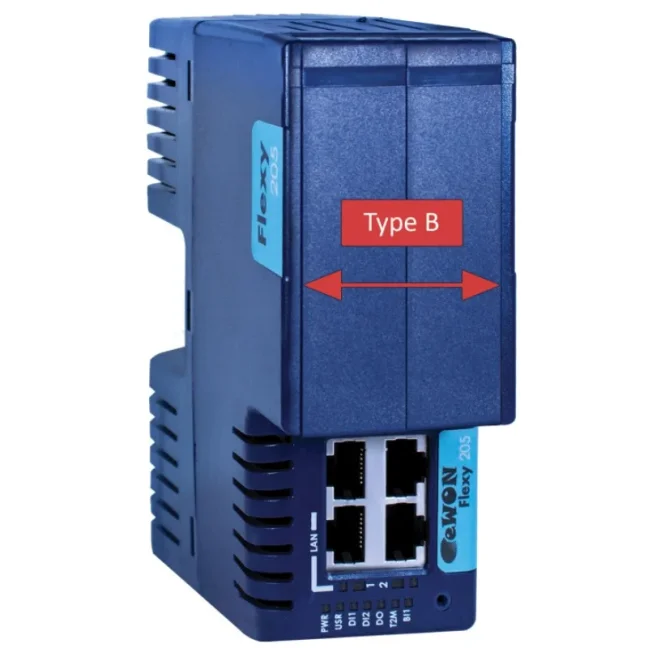

- The card is type B and is inserted into a supported slot on the Ewon Flexy router.
- Compatible with Ewon Flexy 10x, 20x and Flexy 205 routers.
- Supports IEEE 802.11 b/g/n Wi-Fi standards, single stream.
- It operates in the 2.4 GHz band and supports channels 1 to 11.

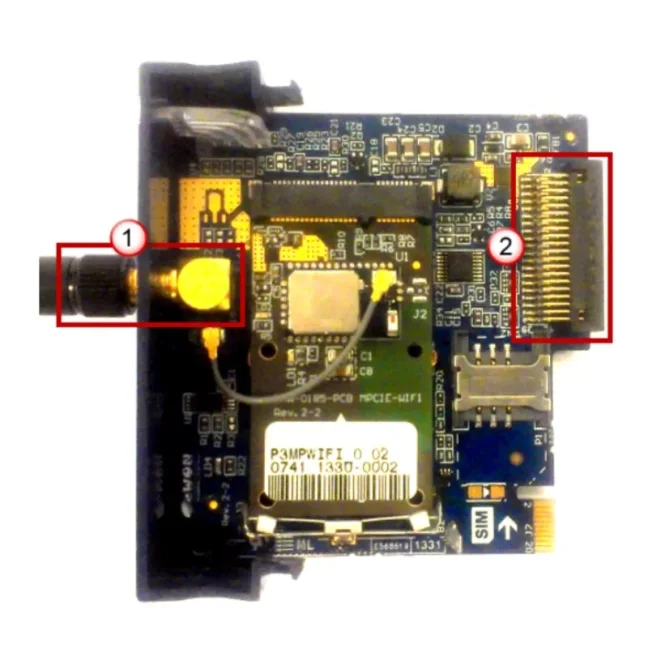

- It is fitted with one RP-SMA female antenna connector.
- A Wi-Fi antenna is included in the package.
- For the FLB3271_00 card to function correctly, the Ewon Flexy router must be running firmware version 14.8s0 or later.
NOTICE: A Wi-Fi extension cable is not included in the pack and must be ordered separately or you must use your own.
Technical specifications
Wi-Fi connection
- Card type: Type B WiFi expansion card for Ewon Flexy routers
- Wi-Fi standards: IEEE 802.11 b/g/n, single stream
- Frequency band: 2.4 GHz
- Channels: 1 to 11 inclusive
- Required router firmware: Ewon Flexy firmware 14.8s0 or later
Antenna
- Antenna connector: 1x RP-SMA female
- WiFi antenna included in the pack: Yes, the antenna is included in the package
- WiFi extension cable included in the pack: No, the cable is not included
Mechanical design
- Dimensions: 22 x 79 x 82 mm (W x H x D)
- Weight: 53 g
- Housing material: plastic
- Battery: does not include a battery
Terms and Conditions
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 10 to 95 per cent, non-condensing
Certification
- Markings and certification: CE, UL, RCM, FCC, IC, UKCA
- Further certifications: Giteki Japan, Russia FSS Notification, WPC India, Pakistan
- Environment tests: Operating and storage temperatures in accordance with IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 and IEC 60068-2-30
- Vibration and shock tests: in accordance with IEC 60068-2-27, IEC 60068-2-64 and IEC 60068-2-6
