PROFIBUS B1 repeater splits one segment into two galvanically isolated sections, allowing additional PROFIBUS stations to be added or the cable length to be extended. Amplifies and smooths signals between the segments, increasing network robustness. Does not require its own PROFIBUS address or changes to the PROFIBUS Master hardware configuration. More

Code: 101-00201A

Anybus / HMS Networks101-00201A
Anybus B1 101-00201A for DIN rail mounting

B1 Repeater · 101-00201A

PROFIBUS DP · Network regeneration and distribution

B1 Repeater

Two galvanically isolated segments in a compact module

The B1 101-00201A is a transparent PROFIBUS DP repeater designed to split a single electrical segment into two. It regenerates the signal, supports speeds of up to 12 Mbit/s and fits onto a DIN rail in a control cabinet. Two power supply inputs enable redundant power supply.

PROFIBUS DP101-00201AFOXON Technical Support

Please send us the topology, network speed and number of stations. We will check the connections and required accessories.

2 segmentsCH1 and CH2
Up to 12 Mbit/sAutomatic speed detection
2 power inputsRedundant power supply connections
IP20DIN rail mounting
Upgrading the existing network

Better signal quality and longer PROFIBUS network operation

By dividing a long cable run into shorter sections, you will improve signal transmission conditions and make maintenance easier. Minimising downtime caused by poor signal quality helps to extend the operational life of your existing PROFIBUS network. Plan the installation during a shutdown and, once the connection has been made, check both communication and signal quality.

A repeater regenerates the signal and provides galvanic isolation between individual metallic segments. It helps to limit the propagation of electrical faults and interference between them. Proper shielding, bonding and termination remain essential. A faulty cable or connector must be repaired; splitting the network does not replace rectifying the cause of the fault.

Installation proposal

Use in both new and existing networks

For extending a cable run, splitting a group of peripherals or creating a measurement point in a switchboard. If there are a large number of outgoing segments, consider using a multi-channel ProfiHub.

Plan the replacement or installation of equipment in accordance with the technology’s operational requirements. Once connected, check the polarity, power supply, termination and response of the connected stations.

Installation and operation

Two segments instead of one long cable

CH1 and CH2 are electrically isolated. Each channel has IN and OUT terminals, which are used for through-wiring of the same segment. The four terminal connections therefore do not correspond to four segments.

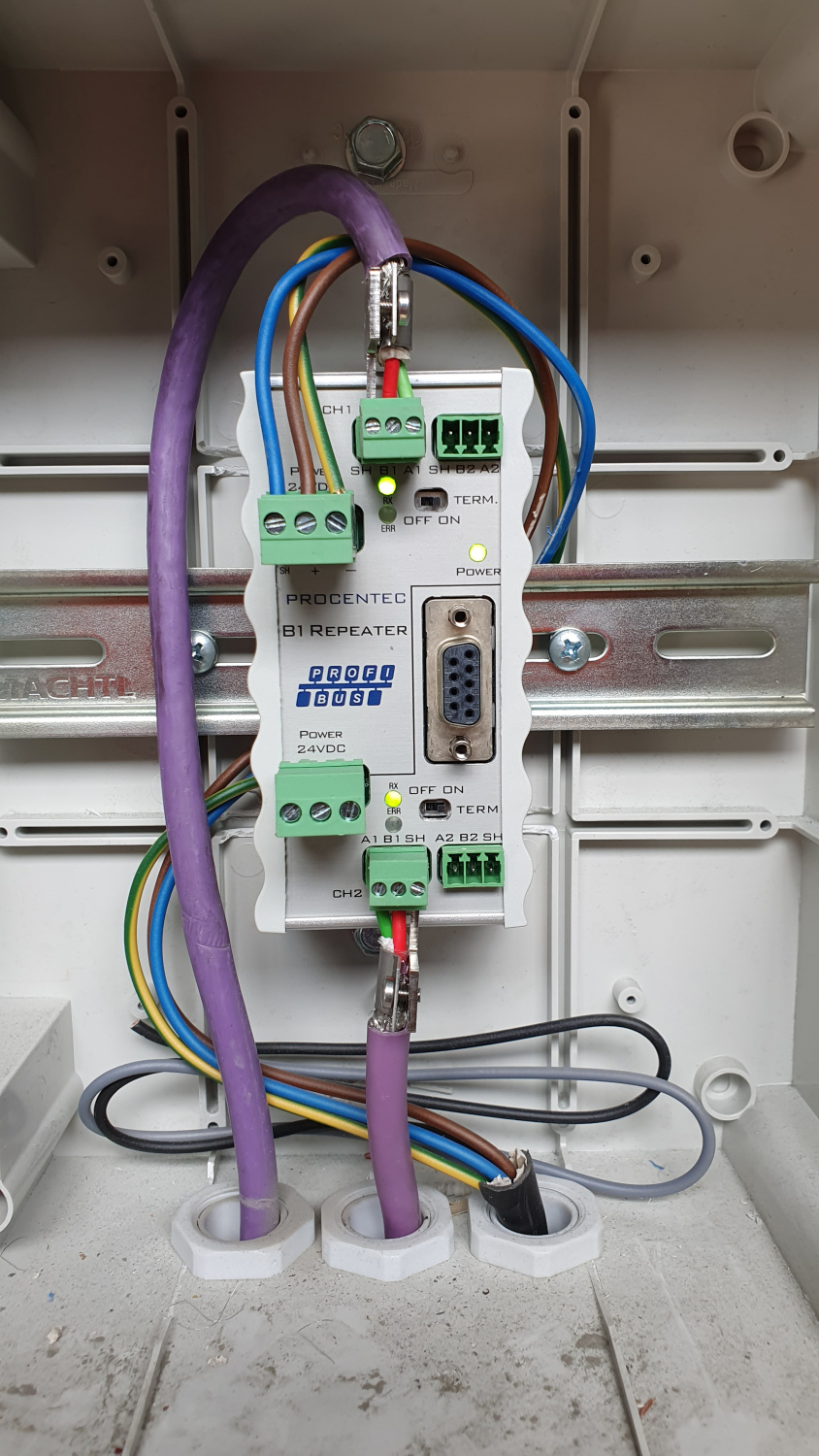

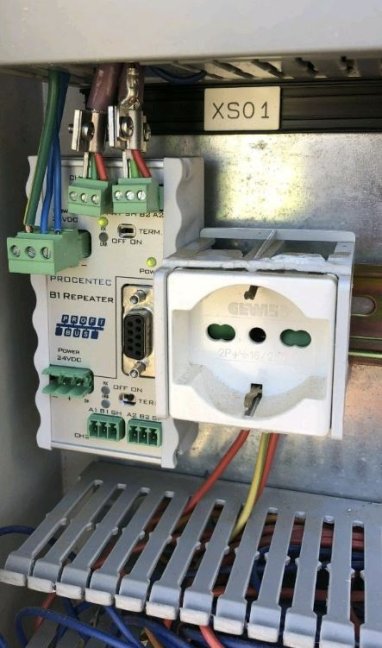

B1 repeater installed in a switchboard
B1 repeater installed in a switchboard

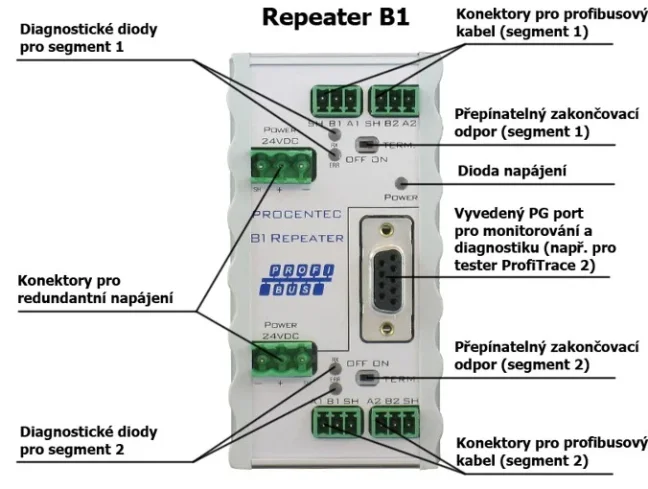

B1 interfaces, terminal blocks and switches
B1 interfaces, terminal blocks and switches

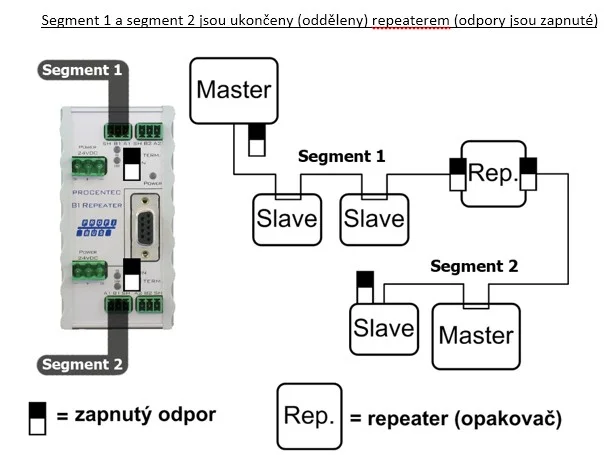

B1 between two separate segments
B1 between two separate segments
Installation and operation

Termination disconnects the OUT terminals

On the B1, each channel has its own termination switch. When set to OFF, the IN and OUT are connected. When set to ON, the OUT of that channel is disconnected. If the line continues to the next station, leave this termination switch switched off.

Conductor A is green, B is red, and SH is used for shielding. The supplied GC-01 shield clamp makes it easier to connect the shield and provide strain relief for the cable.

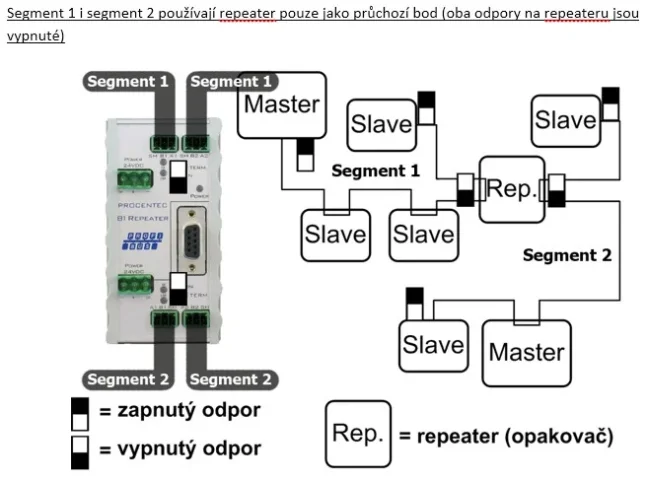

A continuous first segment and a separate second segment B1
A continuous first segment and a separate second segment B1

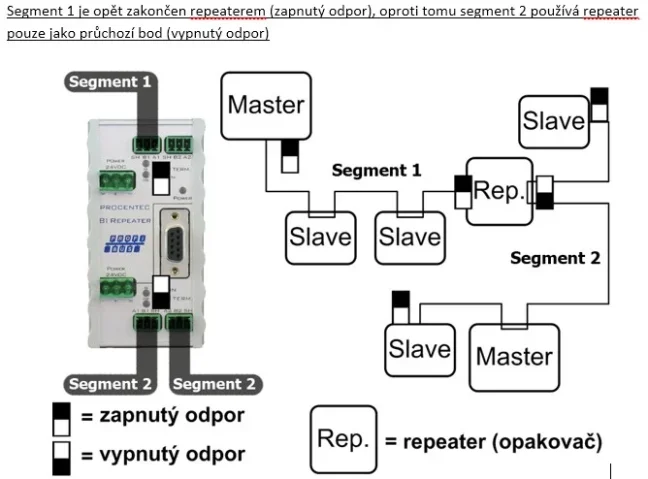

Two through-wired, mutually isolated B1 segments
Two through-wired, mutually isolated B1 segments
Installation and operation

DB9 for measuring the second segment

Service DB9 is electrically connected to CH2. When connecting ProfiTrace, you are measuring the physical layer of the second segment, not both separate segments simultaneously. To measure CH1, connect the analyser to CH1.

The LED POWER, RX and ERR indicators help to distinguish between power supply status, the presence of communication and a communication fault. The standard B1 does not have its own diagnostic DP slave or web server.

An illustrative comparison of the signal before and after inserting a repeater
An illustrative comparison of the signal before and after inserting a repeater

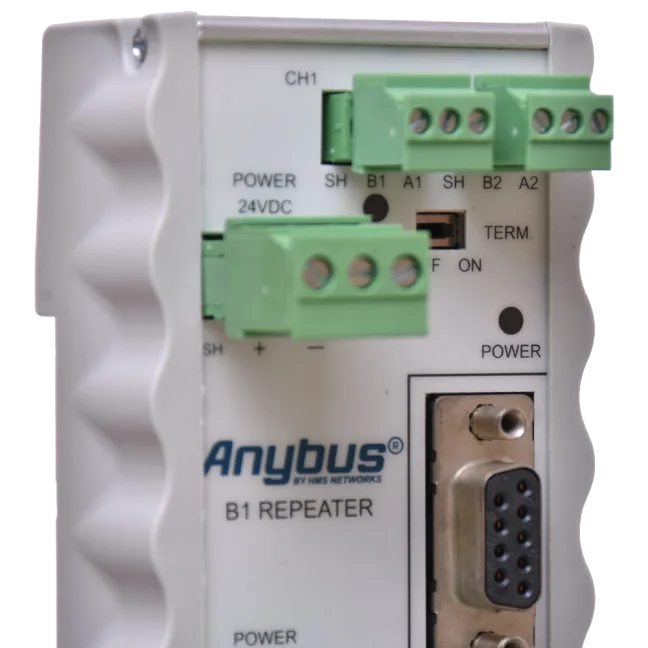

Detail of the power supply, the first channel and the DB9 service connector
Detail of the power supply, the first channel and the DB9 service connector
Detail of the connection of the second B1 segment
Detail of the connection of the second B1 segment
Installation and operation

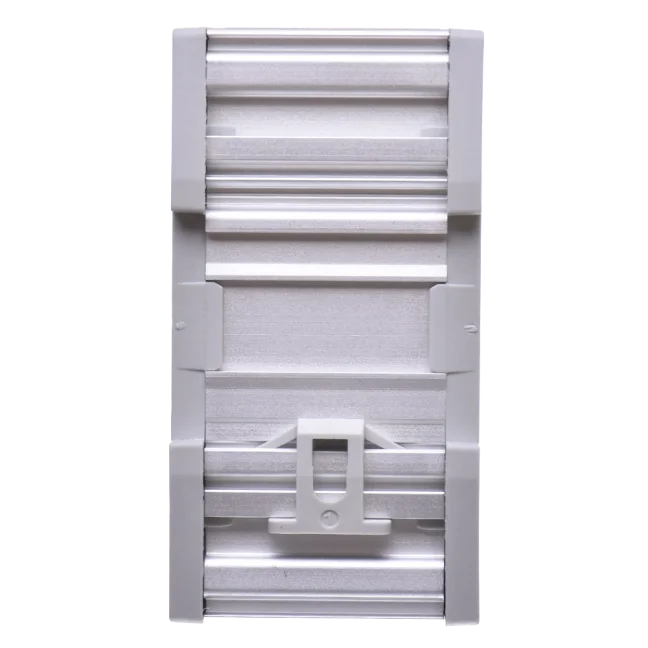

Redundant power supply and mounting

Supply the B1 with 24 V DC within the permitted range of 19 to 28 V DC. The current draw is 65 mA at 24 V. A single power input is sufficient for normal operation; true redundancy is ensured by two independent power supplies.

Mount the device on a 35 mm DIN rail. The recommended orientation is with CH2 facing downwards, so that the service connector is easily accessible. For multiple segments, a single multi-channel hub is more organised than a series of interconnected B1 units.

An illustrative comparison of multiple repeaters and a multi-channel ProfiHub
An illustrative comparison of multiple repeaters and a multi-channel ProfiHub

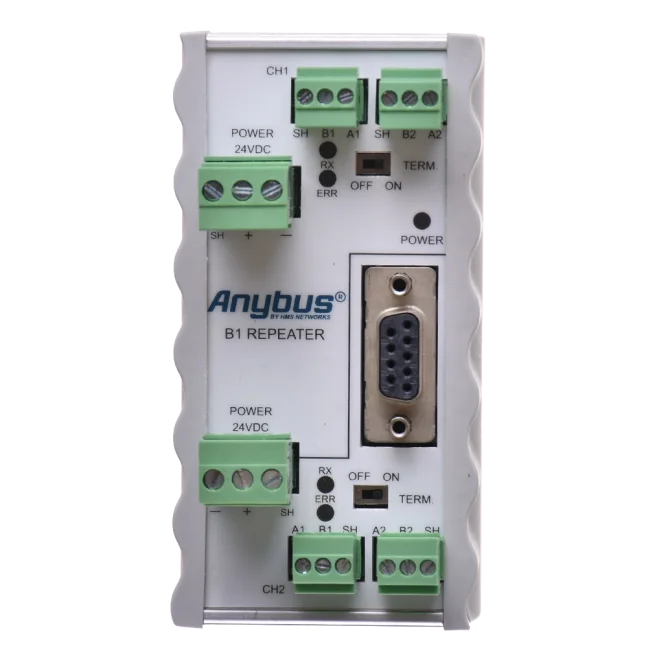

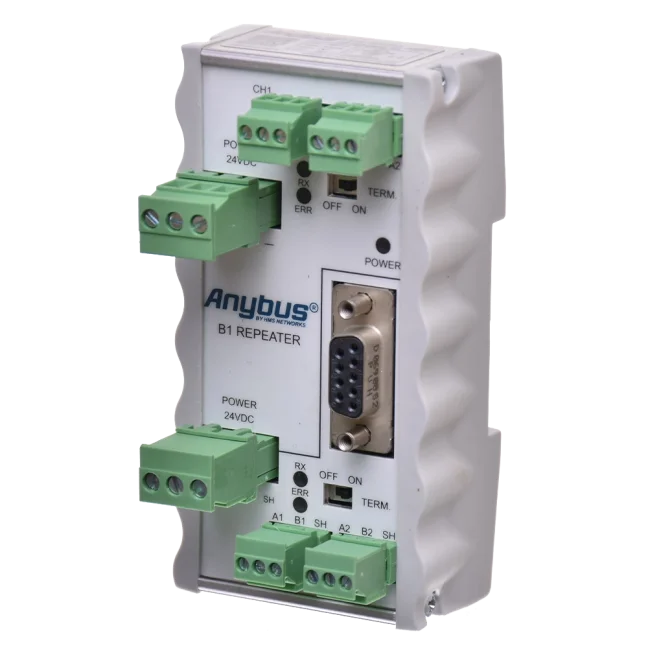

Front view of the Anybus B1
Front view of the Anybus B1

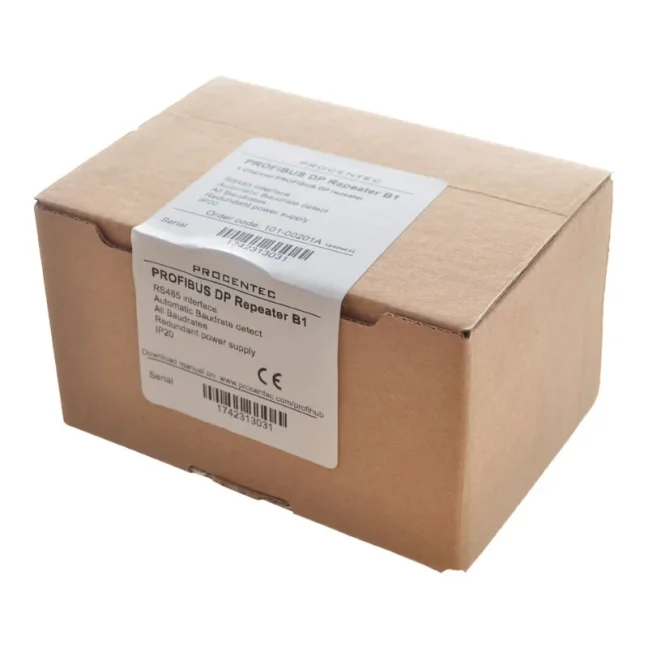

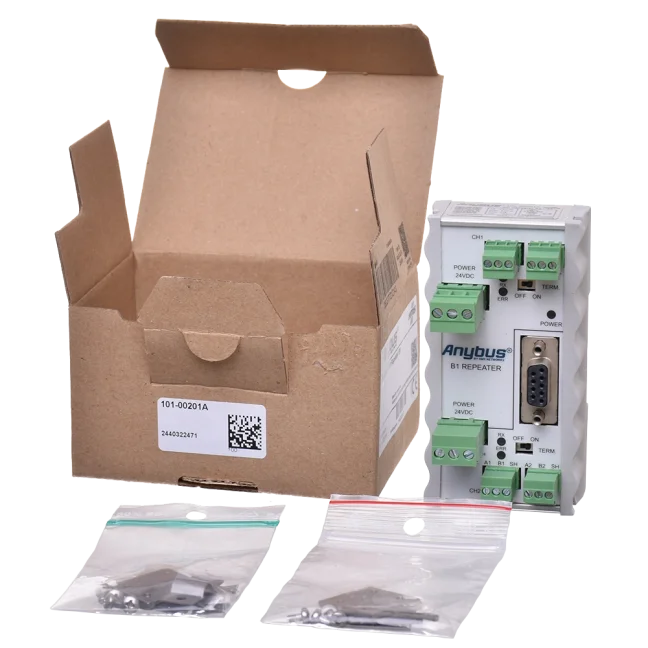

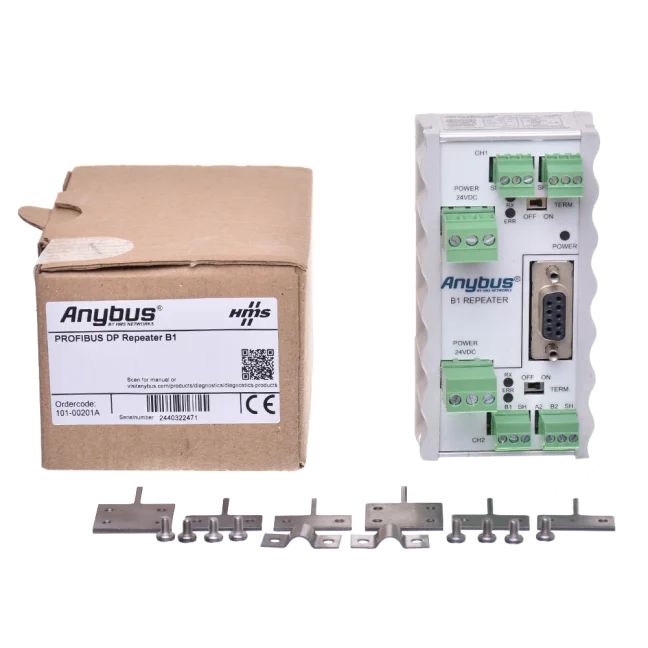

B1 and fitting accessories, alongside the packaging
B1 and fitting accessories, alongside the packaging
PROFIBUS DP metallic network

Cable length depending on the segment speed

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

More organised maintenance

Segments and correct termination

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Each segment has its own electrical specifications. During maintenance, the power supply and terminations of the segments that are to continue communicating must remain intact. The response to a missing peripheral is also determined by the PLC’s configuration and programme.

Operating modes

PLC configuration and commissioning

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

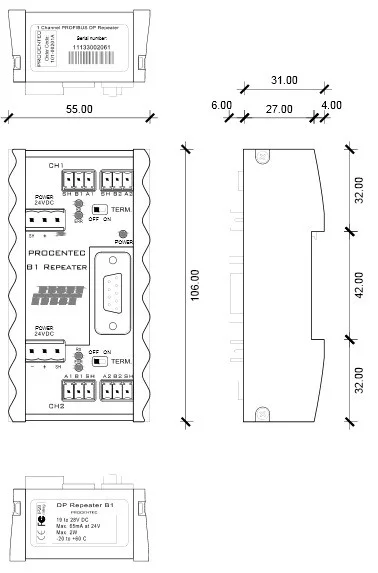

Technical specifications

B1 Repeater, order number 101-00201A

Order number101-00201A
SegmentsTwo galvanically isolated channels, CH1 and CH2
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s; automatic detection
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Devices per channelUp to 31 additional devices
CascadeBased on the master’s timing and bus parameters
DiagnosticsPOWER / RX / ERR LEDs; without diagnostic DP slave
PROFIBUS terminalsIN and OUT for each channel; when termination is enabled, the OUT is disconnected
DB9 ServiceElectrically connected to CH2; this is not a separate segment
TerminationSeparate, integrated and powered for each channel
Power supplyRated 24 V DC, permissible range 19-28 V DC
Redundant power supplyTwo inputs; one is sufficient for normal operation
Current consumption65 mA at 24 V DC
Reverse polarity protectionYes
Protection ratingIP20
Operating temperature-20 to +60 °C
InstallationDIN rail 35 × 7.5 mm
Dimensions55 × 106 × 33 mm, catalogue specification; please check the space for connectors prior to delivery
Net weight125 g

When installing, leave space for the connectors, cable bends and access to the controls. We will confirm the design and dimensions based on the specific delivery.

Contents of the delivery

Module and installation accessories

We will supply the Repeater B1 101-00201A. We will confirm the contents of the supplied connectors, terminal blocks and mounting parts in the quotation. We will select the power supply, cables, fibre-optic patch cords and analysers according to the specific network and equipment configuration.

Practical questions

Selection and commissioning

How many segments does the B1 offer?

B1 has two galvanically isolated segments, CH1 and CH2. The IN and OUT terminals of a single channel form a through-connection within the same segment; the service DB9 connector belongs to CH2.

Do I need to change the PLC programme?

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

What happens when termination is switched on?

On the B1, the OUT terminals of the relevant channel are disconnected when the terminator is switched on. If the cable continues to the next station via OUT, the B1 terminator must be switched off. Terminators must remain switched on and powered at both actual ends of the segment.

Can I measure both segments via the service DB9 port?

No. DB9 is connected to CH2. The analyser’s oscilloscope on this connector displays the physical layer of CH2. To check CH1, connect the measuring instrument to the first segment.

Is one power supply enough?

Yes. The B1 operates with a single power supply input. Two independent power supplies connected to both inputs will provide power redundancy. Ensure the voltage is within the range of 19 to 28 V DC.

Does the B1 have a diagnostic slave or a web interface?

The standard B1 model features local diagnostic LEDs and a DB9 service port. It does not have a built-in diagnostic DP slave or its own web interface. For advanced diagnostics, use a separate analyser.

PROFIBUS Technical Support

Why order from FOXON

We have been an official distributor for HMS Anybus (formerly PROCENTEC) since 2007.

Proposed network layout

We will review the network speed, cable lengths, number of stations and control cabinet locations. We will propose separate segments to suit the installation.

Selecting accessories

We will select the cabling, PROFIBUS connectors and power supply. We will check the termination of the individual segments.

Verification of a specific design

Before ordering, we will check the product order number, required functions and hardware revision.

Measurement and maintenance

We can help you distinguish between a physical layer problem and a communication error, and select the appropriate diagnostic tool.

Czech technical support

We will discuss specific wiring configurations, fault symptoms and options for long-term network monitoring.

Delivery in accordance with the project

Before placing an order, we will confirm the availability of the specific model, the quantity and the delivery date.

Network topologySegments, lengths and termination
DiagnosticsProfiHub, ProfiTrace and ComBricks
Czech supportConsultation on a specific installation
Documentation

Manuals and technical documentation

In the ‘Downloads’ tab, you will find the technical data sheet, manual and declaration of conformity. Please use the GSD files only for the relevant diagnostic version. For older units, please check the serial number and ensure the settings are correct.

Open downloads
PROFIBUS DP

Technical specifications of the Repeater B1

Order number 101-00201A. Please refer to the specific model of the device for its specifications and functions.

Communication

Order number101-00201A
SegmentsTwo galvanically isolated channels, CH1 and CH2
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s; automatic detection
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Devices per channelUp to 31 additional devices
CascadeBased on the master’s timing and bus parameters
DiagnosticsPOWER / RX / ERR LEDs; without diagnostic DP slave

Connectors and power supply

PROFIBUS terminalsIN and OUT for each channel; when termination is enabled, the OUT is disconnected
DB9 ServiceElectrically connected to CH2; this is not a separate segment
TerminationSeparate, integrated and powered for each channel
Power supplyRated 24 V DC, permissible range 19-28 V DC
Redundant power supplyTwo inputs; one is sufficient for normal operation
Current consumption65 mA at 24 V DC
Reverse polarity protectionYes

Mechanical design

Protection ratingIP20
Operating temperature-20 to +60 °C
InstallationDIN rail 35 × 7.5 mm
Dimensions55 × 106 × 33 mm, catalogue specification; please check the space for connectors prior to delivery
Net weight125 g
Network design

Length of the metallic segment as a function of speed

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

Installation

Termination and operating conditions

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Before changing the operating mode, please check the relevant manual and version. We can help you check the label and accessories for the parameters of a specific delivery.

B1 Repeater · 101-00201A

Frequently Asked Questions about the Repeater B1

Selection, connection, diagnostics and operating conditions.

Selection and use

How many segments does the B1 offer?

B1 has two galvanically isolated segments, CH1 and CH2. The IN and OUT terminals of a single channel form a through-connection within the same segment; the service DB9 connector belongs to CH2.

Do I need to change the PLC programme?

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

What happens when termination is switched on?

On the B1, the OUT terminals of the relevant channel are disconnected when the terminator is switched on. If the cable continues to the next station via OUT, the B1 terminator must be switched off. Terminators must remain switched on and powered at both actual ends of the segment.

Can I measure both segments via the service DB9 port?

No. DB9 is connected to CH2. The analyser’s oscilloscope on this connector displays the physical layer of CH2. To check CH1, connect the measuring instrument to the first segment.

Wiring and diagnostics

Is one power supply enough?

Yes. The B1 operates with a single power supply input. Two independent power supplies connected to both inputs will provide power redundancy. Ensure the voltage is within the range of 19 to 28 V DC.

Does the B1 have a diagnostic slave or a web interface?

The standard B1 model features local diagnostic LEDs and a DB9 service port. It does not have a built-in diagnostic DP slave or its own web interface. For advanced diagnostics, use a separate analyser.

When should you choose ProfiHub instead of several B1 units?

If you require more separate segments in a star configuration, the multi-channel ProfiHub simplifies the wiring and consolidates the measurement points into a single device. We will determine the appropriate choice based on the number of segments and the space available in the switchboard.

How many devices can be connected?

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

Network operations

Will B1 eliminate all network outages?

Galvanic isolation helps to limit the spread of electrical faults and interference. It does not eliminate faulty cables, incorrect shielding or missing terminations. A disconnected station or a damaged segment will continue to affect the equipment on that segment and the PLC’s response.

Can B1 units be connected in series?

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.
