Anybus ProfiHub B5+R, order number 17020R

PROFIBUS DP · MAIN + CH1 to CH5

Multi-repeater for PROFIBUS-DP networks

ProfiHub B5+R

Six galvanically isolated segments
Network redundancy and diagnostics

You can create five separate active segments from a single PROFIBUS DP segment. The ProfiHub B5+R regenerates the signal, separates the segments and provides two cable paths for a redundant connection. The built-in diagnostic slave transmits status information and statistics to the PLC, DCS and the ComBricks permanent PROFIBUS network analyser.

9.6 kbit/s to 12 Mbit/s2 redundant power inputsDIN rail · IP20

Please send us the topology, network speed and number of stations. We will check the connections and required accessories.

6 segmentsMAIN and five outgoing channels
Up to 12 Mbit/sAutomatic speed detection
CH4 + CH5Optional cable redundancy
DP-V0Built-in diagnostic slave
Upgrading the existing network

Better signal quality and longer PROFIBUS network operation

The ProfiHub B5+R divides the PROFIBUS network into six segments. It improves signal quality, helps to minimise outages caused by poor signal quality and extends the operational life of the existing network.

Integration into the network is straightforward and, in normal repeater mode, does not require any modification to the PLC program. When splitting the original long cable, cut the PROFIBUS cable at the selected points and connect the resulting sections to a powered ProfiHub. This creates shorter segments that are galvanically isolated from one another. Each of these must be correctly terminated at both ends with a resistor that is switched on and powered.

In normal repeater mode, the order in which the individual segments are connected to the MAIN and CH1 to CH5 channels does not matter. However, always ensure that the polarity of the A/B wires and the terminations are correct. When using redundancy, CH4 and CH5 are reserved as the redundant pair.

ProfiHub regenerates the signal transmitted to the individual segments. Galvanic isolation limits the propagation of electrical faults and electromagnetic interference between segments. Proper shielding and bonding remain important for protection against electrostatic interference as well. When installed correctly, ProfiHub thus helps to keep the PROFIBUS network running reliably for years to come.

Normal repeater operation does not require changes to the PLC program. Enabling the diagnostic slave requires adding the GSD file and configuring the device; using its data in the PLC or HMI also requires data processing. Robust Repeating and redundancy modes require the bus timing to be checked.

Network segmentation

Five new active segments from one main segment

A segment is a section of the network in which the electrical signal is the same. Each segment must be properly terminated at both ends with a termination resistor that is switched on and powered.

ProfiHub supports star and tree topologies. The new RS485 segments feature their own terminations, galvanic isolation and short-circuit protection.

Extension of the line

Connect another group of peripherals, drives or instruments to a separate active segment.

Maintenance in stages

Group the stations by machine or control cabinet. This gives you a smaller section of the network to investigate when troubleshooting.

A measurement point on each segment

DB9 connectors are used to connect the bus and the ProfiTrace 2 analyser when checking the signal.

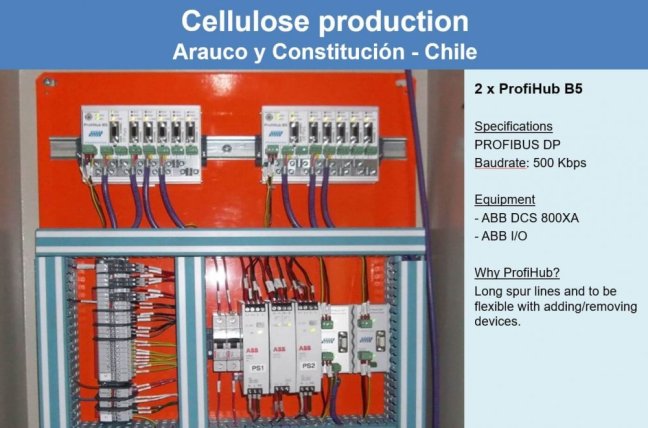

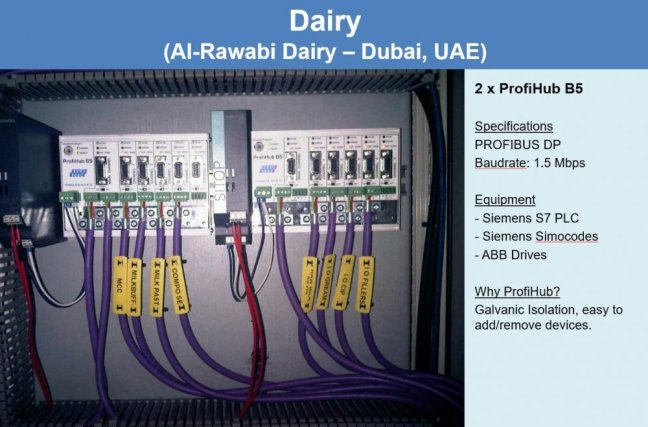

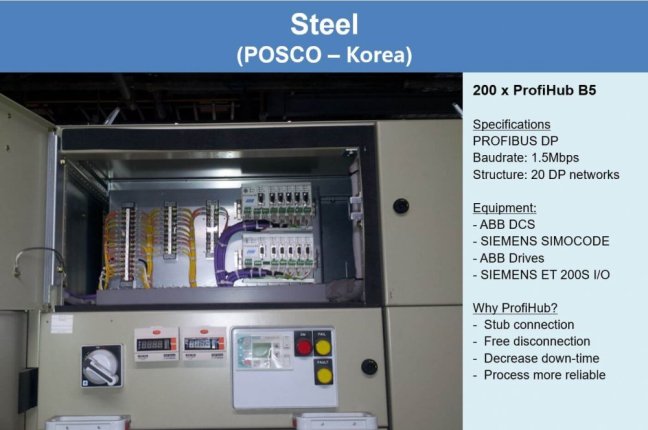

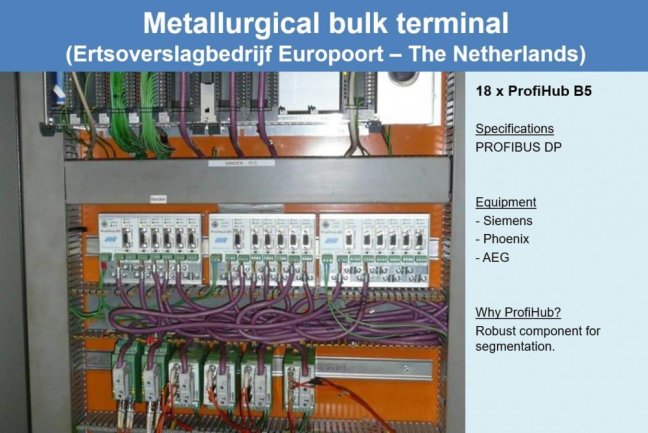

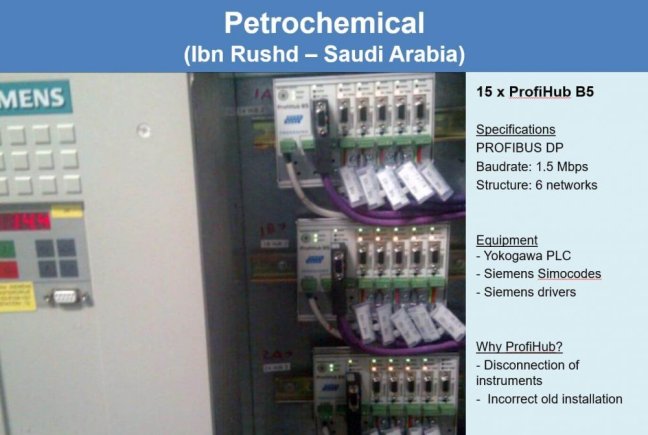

ProfiHub B5+R installed in a control cabinet
ProfiHub B5+R installed in a control cabinet
MAIN segment and channels CH1 to CH5
MAIN segment and channels CH1 to CH5
Separation and regeneration

Limiting electrical faults between segments

Galvanic isolation and short-circuit protection help to isolate an electrical fault in one segment from the others. ProfiHub restores the signal and suppresses short, disruptive pulses.

Segment separation and signal regeneration using the ProfiHub B5+R
Segment separation and signal regeneration using the ProfiHub B5+R

The disconnection of a station or a fault in a segment will still affect the equipment on that segment and the response of the control program. Network segmentation is therefore no substitute for proper shielding, bonding and termination.

Robust Repeating is an optional mode. It checks the start of the telegram before transmitting the data. This does not involve correcting arbitrarily corrupted messages. This mode increases the delay, so it is necessary to check the bus timing and adjust the MinTSDR setting on the master.

Segment design

Cable length depending on network speed

Each channel can connect up to 31 additional devices, including further hubs, optical converters and measuring instruments. The maximum length applies to a correctly installed PROFIBUS DP RS485 cable.

SpeedMaximum segment length
9.6 / 19.2 / 45.45 / 93.75 kbit/s1 200 m
187.5 kbit/s1 000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

FOXON’s recommendation: Where the topology allows, divide the network into smaller groups, for example of 5 to 10 stations. This is a practical recommendation for easier maintenance, not a technical limit of the device.

The number of ProfiHubs that can be cascaded is limited by network timing and cumulative delay. Check the number of repeaters against the selected speed, operating mode and master parameters.

Installation and network segmentation

One multi-repeater for five new segments

The ProfiHub B5+R combines five outgoing repeaters into a single unit mounted on a DIN rail. Each channel retains its own connection, termination and DB9 measurement point.

Illustrative comparison of individual repeaters in a star topology and the ProfiHub B5
Illustrative comparison of individual repeaters in a star topology and the ProfiHub B5

The comparison is illustrative. When designing the control cabinet, use the dimensions and drawing for the specific hardware revision, including space for connectors and cable bends.

Dividing stations into several shorter segments
Dividing stations into several shorter segments
Termination and cabling

Terminal blocks, DB9s and switchable terminators

Connect the main segment to MAIN, and new segments to CH1 to CH5. Removable terminal blocks and DB9 connectors are available. Terminal A is for the green wire and terminal B is for the red wire of the PROFIBUS cable.

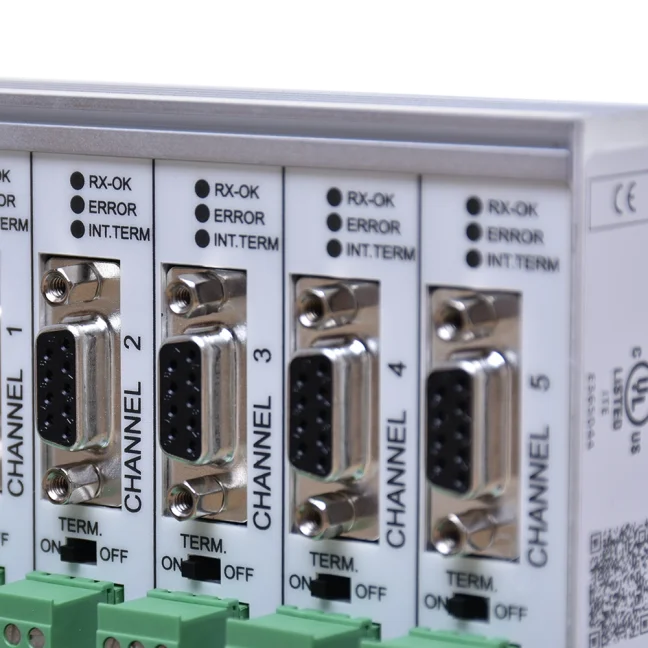

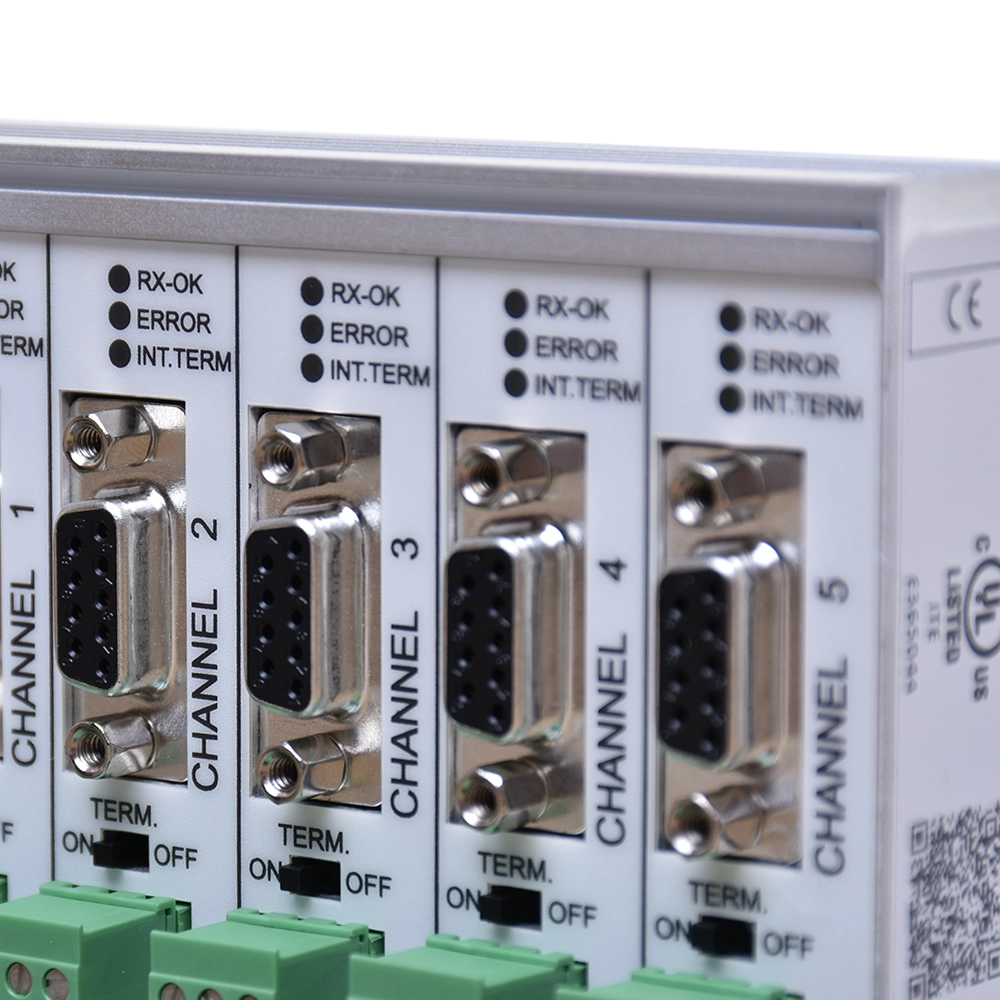

Details of DB9 connectors, channels and termination switches
Details of DB9 connectors, channels and termination switches

Active terminators must be fitted at both ends of each segment. The default setting is OFF on the MAIN port and ON on ports CH1 to CH5. Always adjust the settings to match the actual position of the ProfiHub in the network, and do not combine two terminators at a single point.

When connecting a segment via a DB9, select either a connector termination or a ProfiHub termination, depending on the wiring configuration. If the segment is to remain terminated even after the connector has been disconnected from the hub, use the termination within the connector. The shield can be connected directly or capacitively via terminal I.

Communication redundancy

PROFIBUS cable redundancy via CH4 and CH5 channels

Channels CH4 and CH5 form a redundant pair between two compatible devices. Telegrams are transmitted over both cable paths; if one cable is interrupted, the other path remains available.

ProfiHub B5+R redundant connection via channels CH4 and CH5
ProfiHub B5+R redundant connection via channels CH4 and CH5

In this mode, CH4 and CH5 provide one redundant connection. Channels CH1 to CH3 remain available for other segments. Check compatibility and settings at both ends. A path fault is indicated by the ERROR LED and the alarm contact; after repair, acknowledge the alarm with the ALARM RESET button.

The diagram illustrates the principle of redundancy in the ProfiHub family. For the B5+R, use the channels CH4 and CH5. Redundant mode uses Robust Repeating, so please check the master’s timing; particular attention should be paid to the connection with ComBricks.

Continuous monitoring

Status and statistics sent directly to the PLC

Once activated, the built-in diagnostics function acts as a PROFIBUS DP-V0 slave. Add the GSD PROC6970.gsd to the master project, set the address and select the required data modules.

Methods of transmitting diagnostic data and triggering an alarm
Methods of transmitting diagnostic data and triggering an alarm
  • Equipment statusesPower supply, relays, redundant connections and data transfer rate.
  • Overview of segmentsTermination status, communication status and a list of available stations on each channel.
  • Communication statisticsLoss of stations, SYNC, repeated queries, corrupted messages, and internal or external diagnostics.
  • Event reportingInput data for PLCs/DCSs, diagnostic messages and configurable alarm relay activation.
Network topology and diagnostic data display in ComBricks
Network topology and diagnostic data display in ComBricks

The default address of the diagnostic slave is 126. You can change this using the tool with the Set Slave Address command. The maximum data range is 85 bytes for inputs and 5 bytes for outputs.

ComBricks displays the supported data in its web interface; the data can also be analysed using ProfiTrace or a custom PLC/HMI application. The ProfiHub B5+R itself does not have an Ethernet web interface.

ProfiHub diagnostics overview in the ComBricks system
ProfiHub diagnostics overview in the ComBricks system
Commissioning

Modes by serial number

For units with a serial number starting with 19 or higher, the following overview applies. In all the positions listed, the speed is detected automatically.

Switch positionRepeating modeRedundancyDiagnostic slave
0Normal repeatingNoNo
1Robust RepeatingNoNo
2Robust RepeatingCH4 + CH5No
3Normal repeatingNoYes
4Robust RepeatingNoYes
5Robust RepeatingCH4 + CH5Yes

For B5+R units with a serial number starting with 19 or higher, a change in the switch position takes effect immediately without the need for a restart. Plan the switch change according to the network’s operating conditions. Older units with a serial number starting with 18 or lower have different position assignments, including the fixed-speed option, and load the position upon power-up. Check the label on the specific device before making any settings.

Power supply and alarm

Two power inputs and a potential-free contact

ProfiHub operates on a 12–24 V DC power supply and offers two inputs for redundant power supply. If one power supply fails, the other takes over. For operation without redundancy, a single input is sufficient.

The current draw at 24 V and full load on all channels is 275 mA. The power supply is protected against reverse polarity.

The alarm contact can be connected, for example, to a PLC digital input or to a signalling system. It is potential-free, with a limit of 24 V DC / 0.5 A. It can be used to indicate a power failure, a fault in the redundant path, or configured diagnostic events.

When using a single power supply input, the device will treat the absence of a second input as an alarm. If you connect the same power source to both inputs, you will clear this message, but you will not achieve the redundancy provided by two independent power sources.

Technical specifications

ProfiHub B5+R, order number 17020R

Order number17020R
Number of segments6: MAIN + CH1 to CH5; five galvanically isolated output channels
InterfacePROFIBUS DP RS485, detachable terminal blocks and DB9
Transfer rate9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s
Transparent transmissionDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive
Devices per channelUp to 31 additional devices; this includes hubs and connected analysers
TerminationIntegrated, powered, switchable for each segment
Cable redundancyOptional, via CH4 and CH5
Diagnostic slaveDP-V0; GSD PROC6970.gsd; identification number 6970
Diagnostic slave addressDefault 126, change via software
Diagnostic dataMax. 85 bytes of input / 5 bytes of output
Power supply12–24 V DC; two redundant inputs, reverse polarity protection
Current consumption275 mA at 24 V DC, with all channels fully loaded
Alarm relayPotential-free contact, max. 24 V DC / 0.5 A
InstallationDIN rail 35 × 7.5 mm; recommended orientation with cables facing downwards
Protection rating / temperatureIP20 / -25 to +70 °C
Dimensions167 × 113 × 35 mm excluding the DIN rail and plug-in connectors; confirm the drawing for the hardware revision to be supplied
Weight excluding accessories650 g excluding plug-in connectors, cable clips and packaging
Net catalogue weight660 g; confirm the mechanical design and weight for the hardware revision to be supplied

Transparent PROFIsafe transmission does not replace a safety assessment of the application. Allow space for connectors and cable bends during installation. The stated mechanical data applies to the version described. Confirm the dimensional drawing and weight for the hardware revision to be supplied.

Connecting multiple hubs

Star and tree networks

Divide the individual segments by machine, switchboard or cabling route. Combining several ProfiHubs will enable communication to be extended to other parts of the facility.

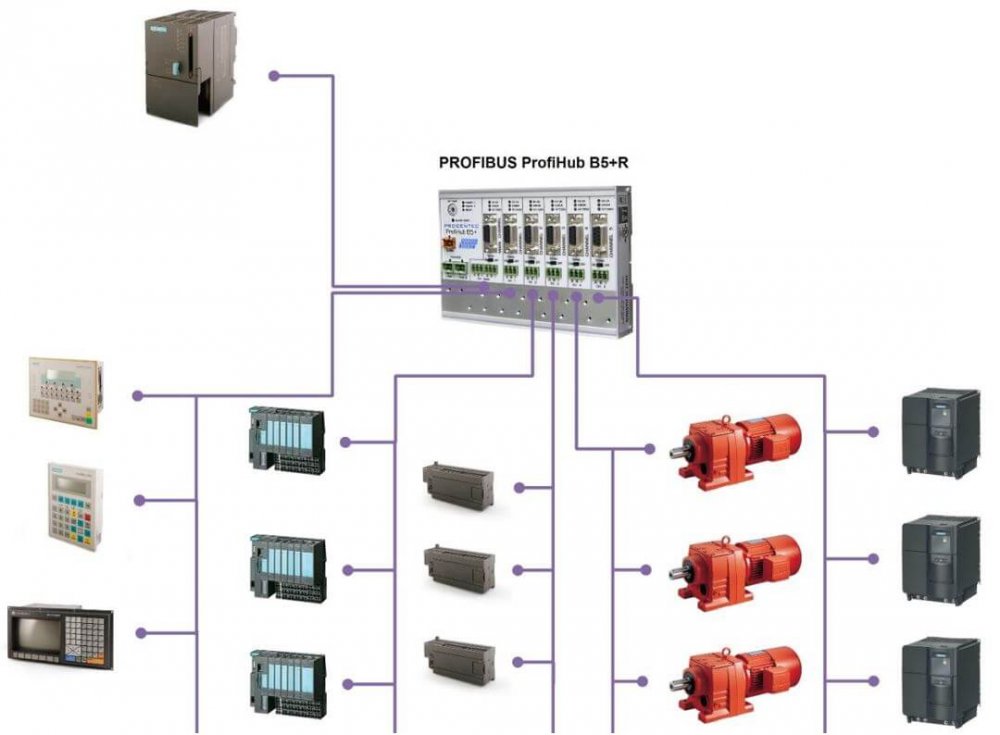

Star topology with five new PROFIBUS-DP segments
Star topology with five new PROFIBUS-DP segments

The example topology combines different members of the ProfiHub family. The B5+R is a copper repeater; fibre-optic connections require suitable fibre-optic equipment.

When taking the section to be disconnected out of service, ensure that the power supply and terminations for the other segments remain intact. The PLC’s response to the loss of peripherals is determined by its configuration and program.

Contents of the delivery

Module and installation accessories

We will supply the ProfiHub B5+R 17020R. We will confirm the contents of the included terminal blocks, shielding clips and mounting parts in the quotation. For installation, we will select a power supply, a PROFIBUS cable and suitable connectors. ProfiTrace and ComBricks are separate devices.

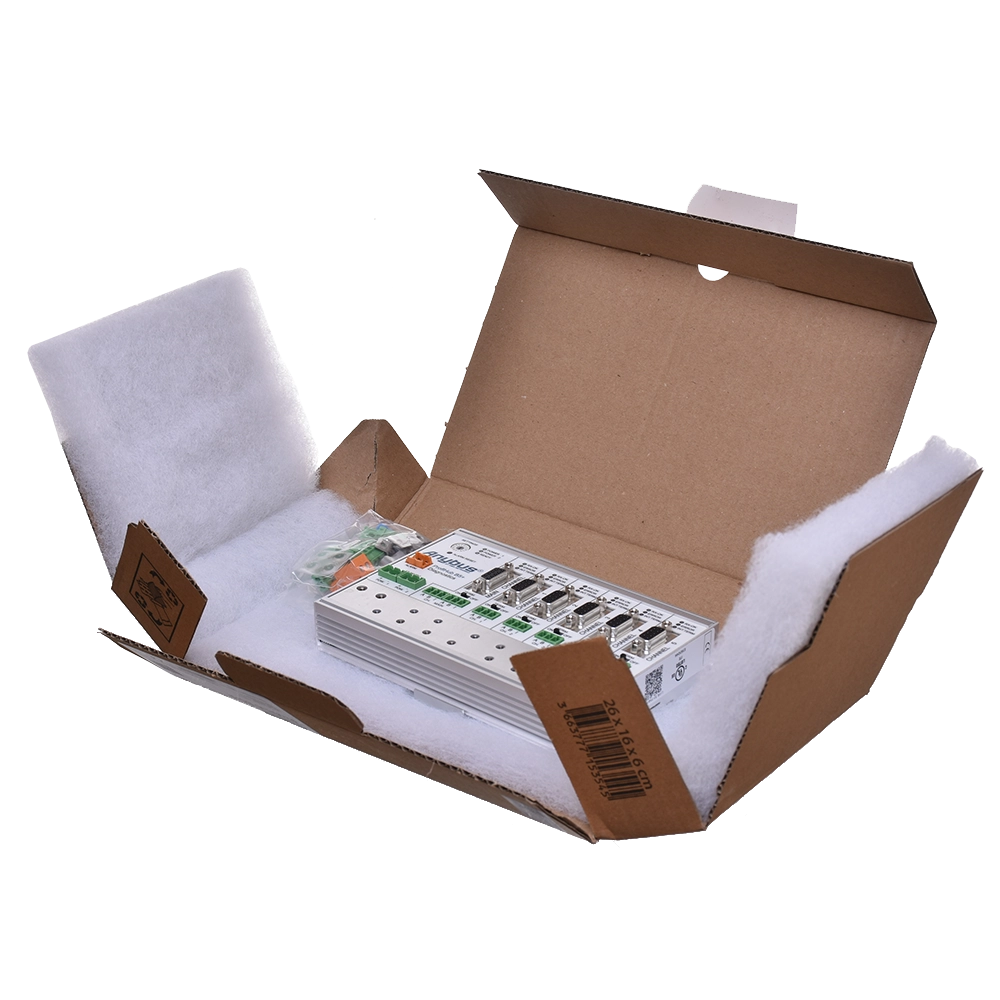

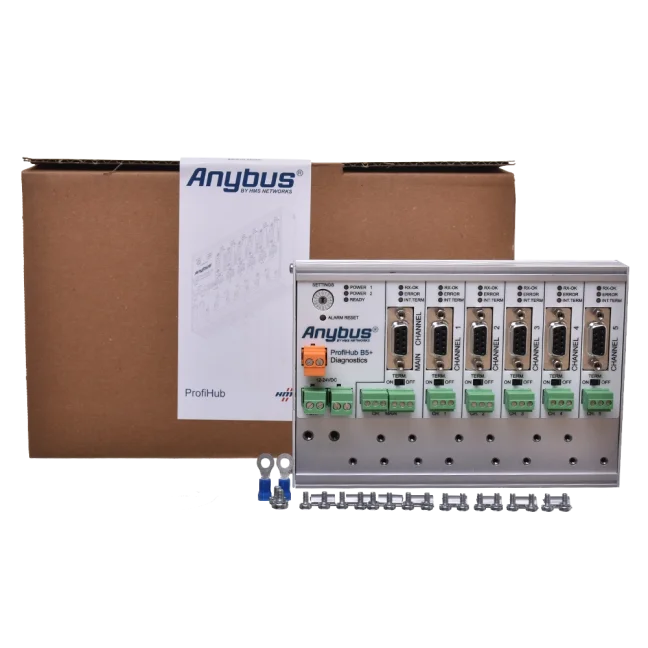

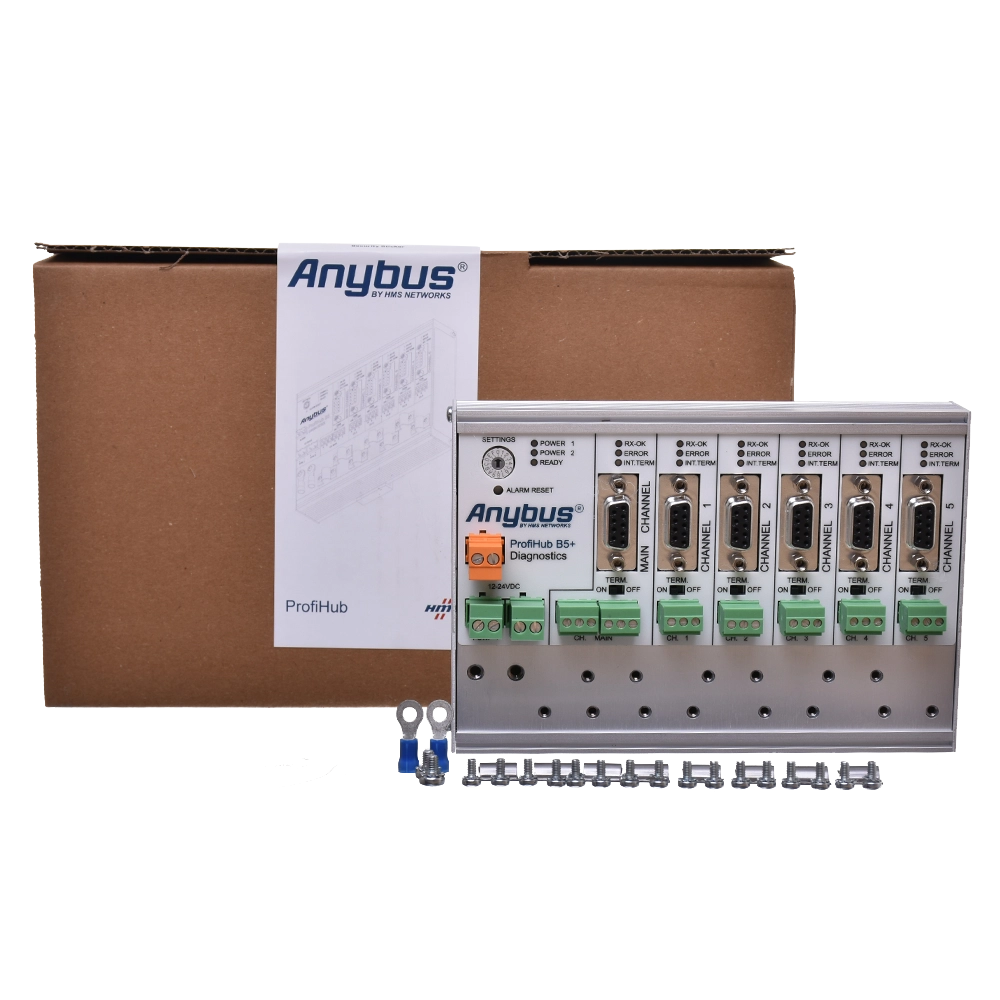

ProfiHub B5+R and accessories, alongside the packaging
ProfiHub B5+R and accessories, alongside the packaging

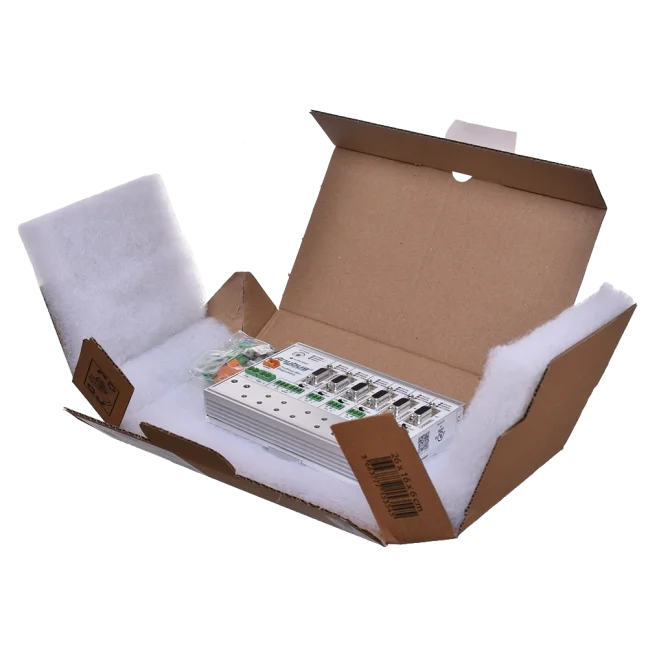

ProfiHub B5+R shipping box
ProfiHub B5+R shipping box
Detailed photographs

Connectors, controls and installation

An illustrative view of the design of the ProfiHub B5 range
An illustrative view of the design of the ProfiHub B5 range

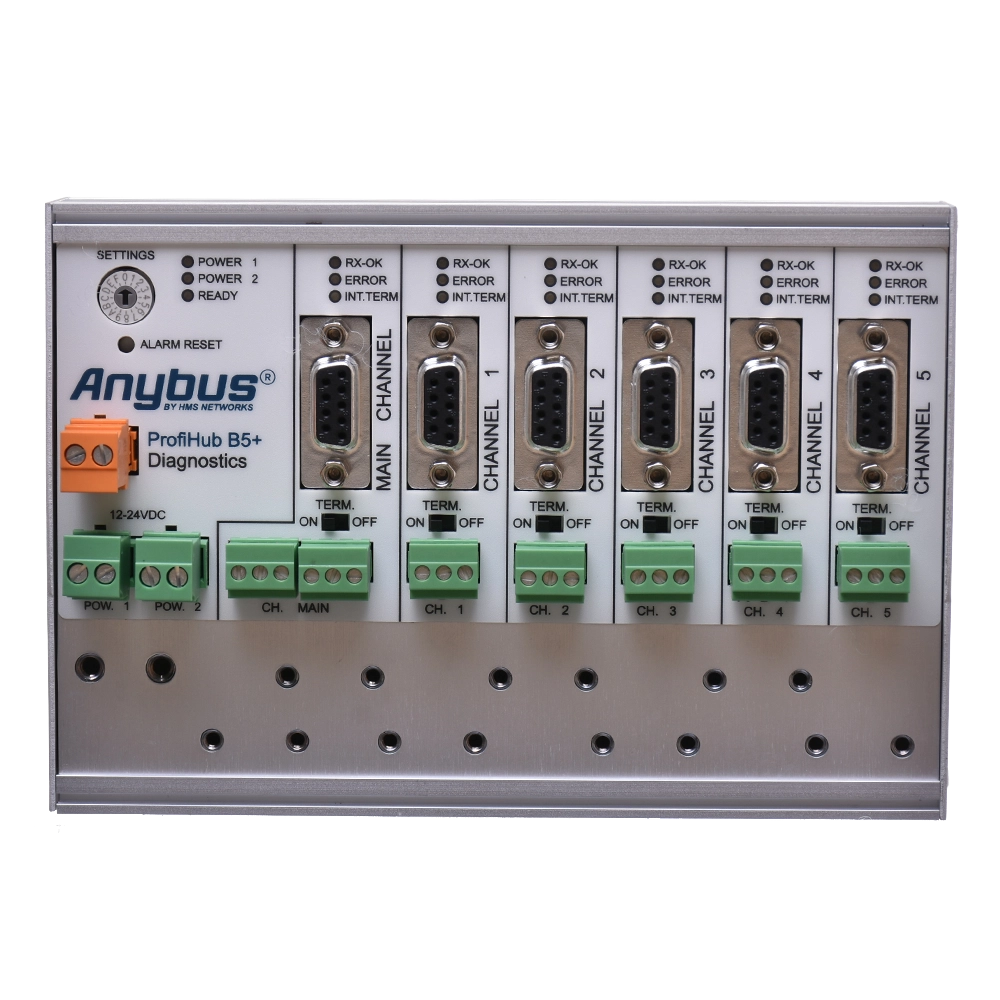

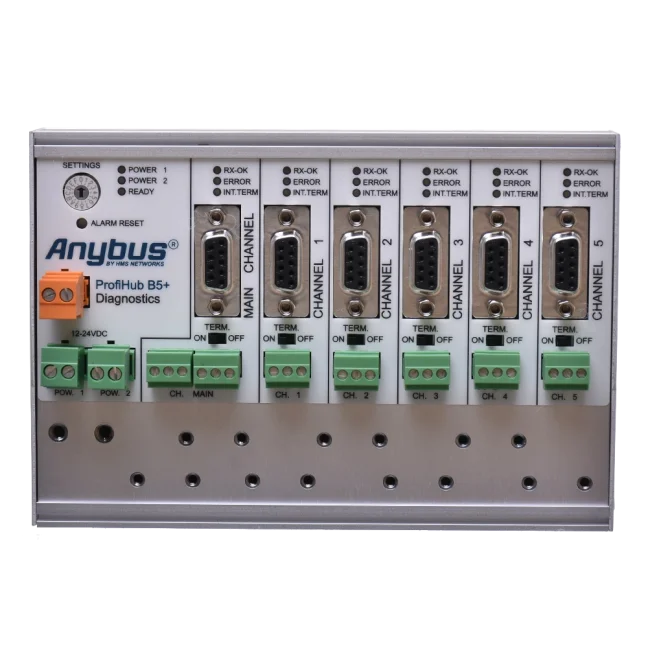

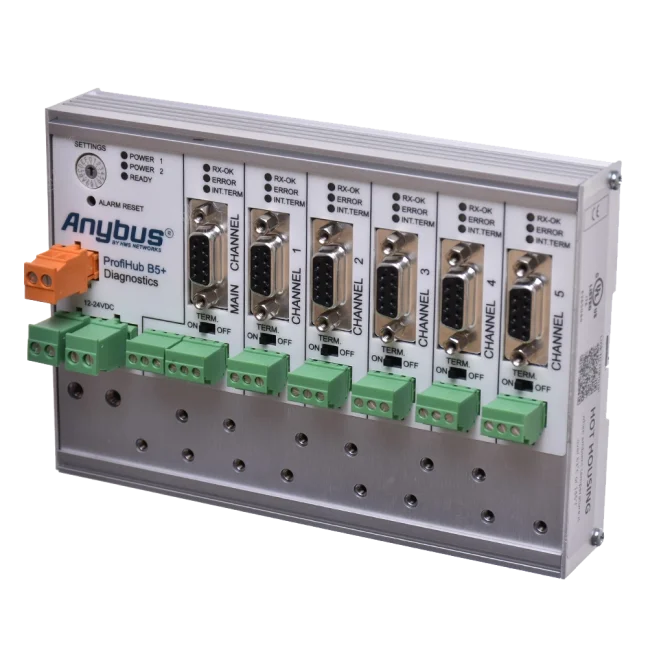

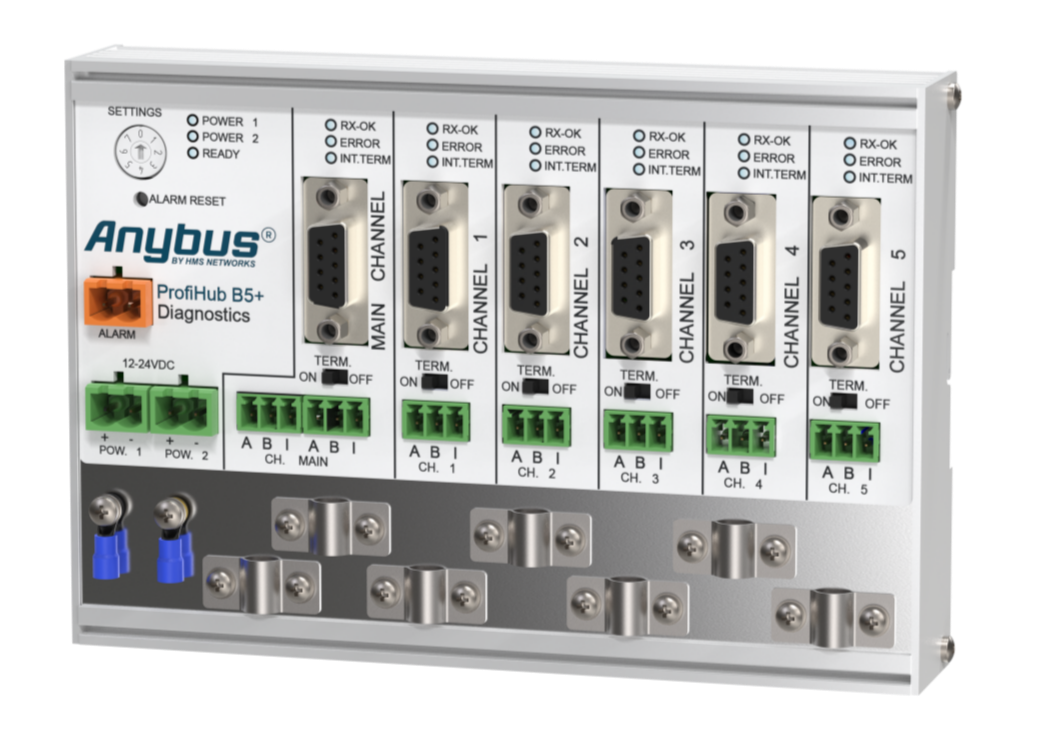

Front view of the ProfiHub B5+R
Front view of the ProfiHub B5+R

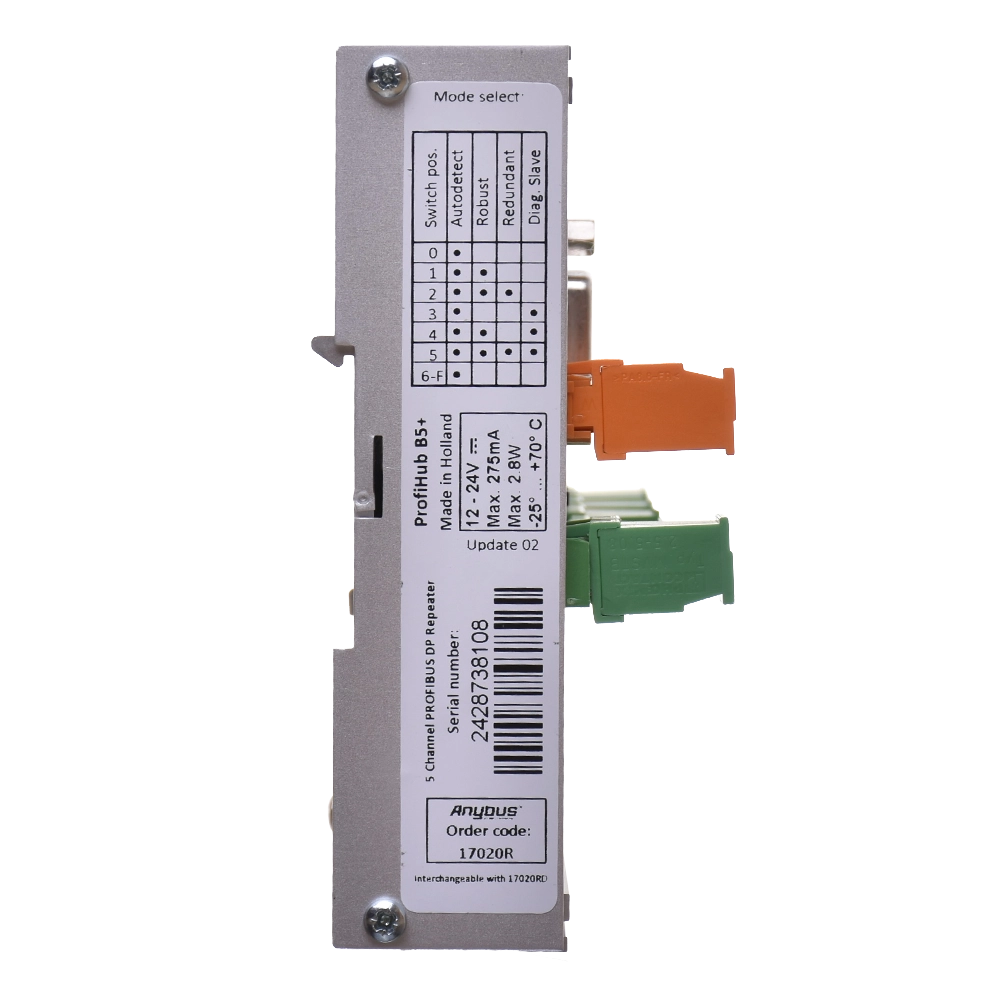

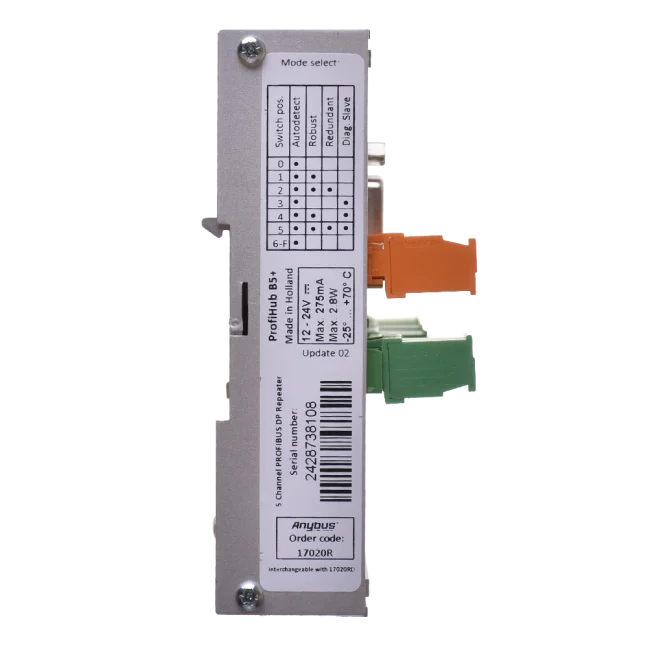

Side view and overview of the switch modes
Side view and overview of the switch modes

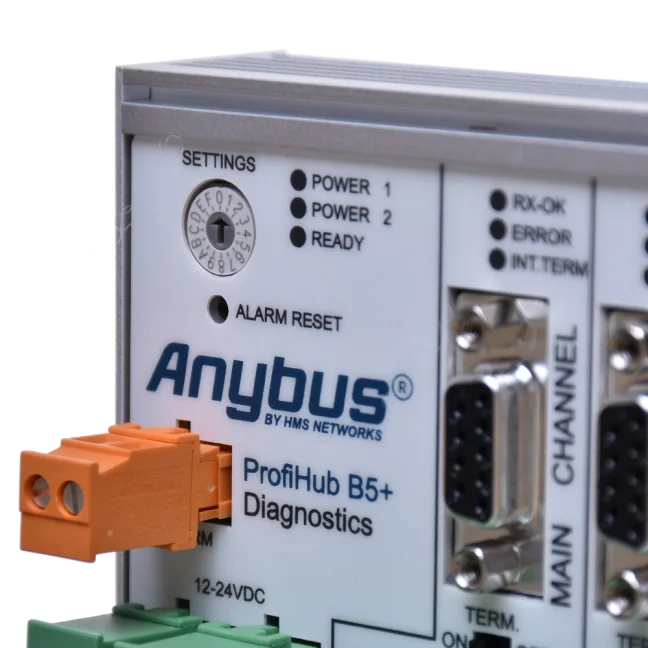

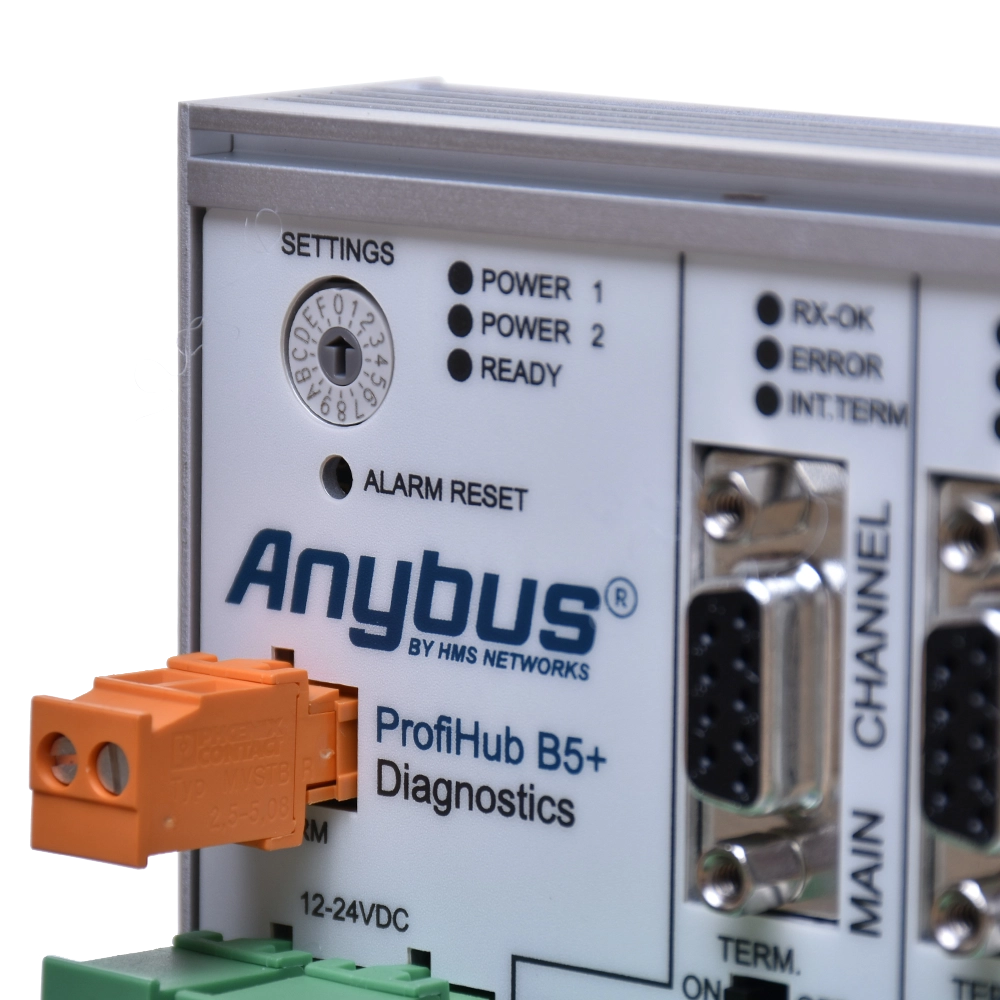

Detail of the rotary switch, power supply and alarm contact
Detail of the rotary switch, power supply and alarm contact

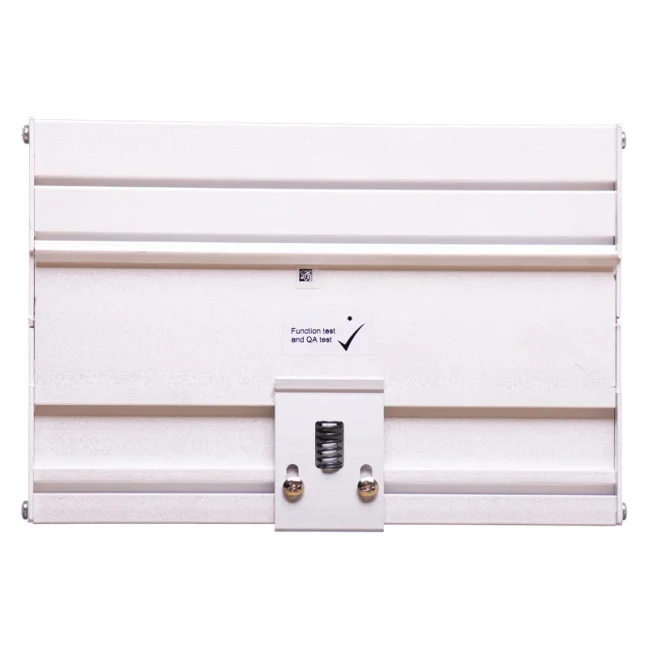

The rear of the ProfiHub B5+R and its DIN rail mounting
The rear of the ProfiHub B5+R and its DIN rail mounting

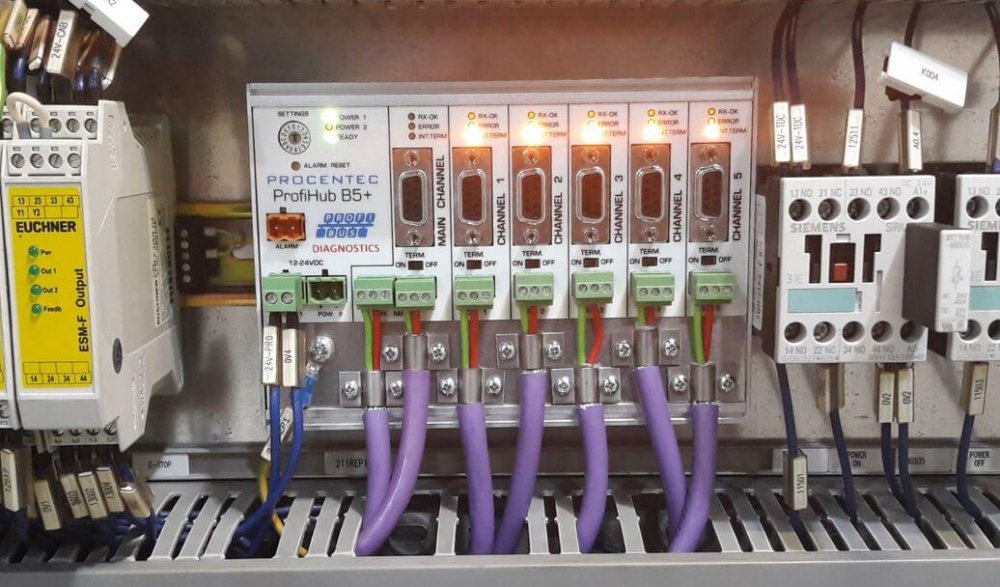

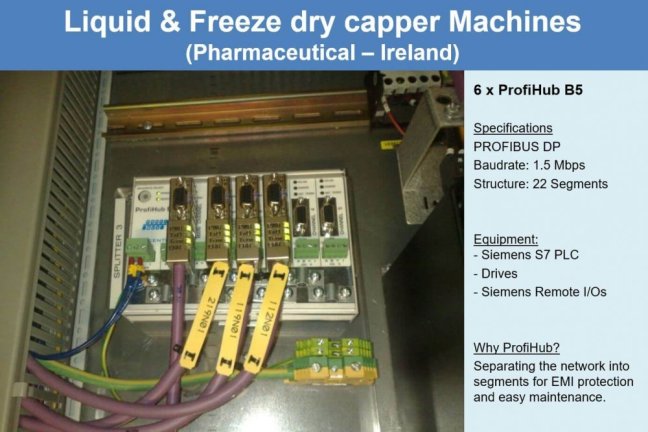

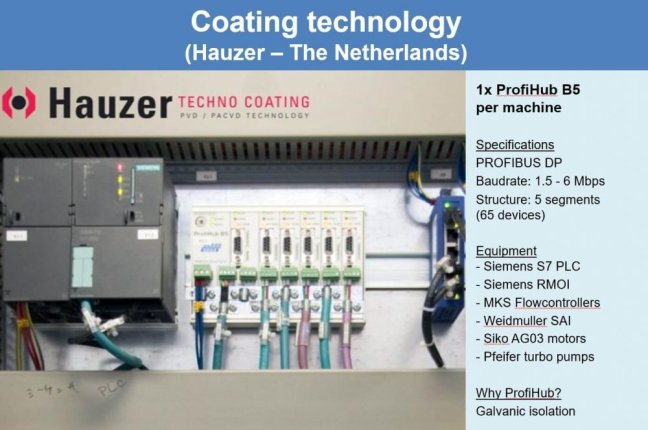

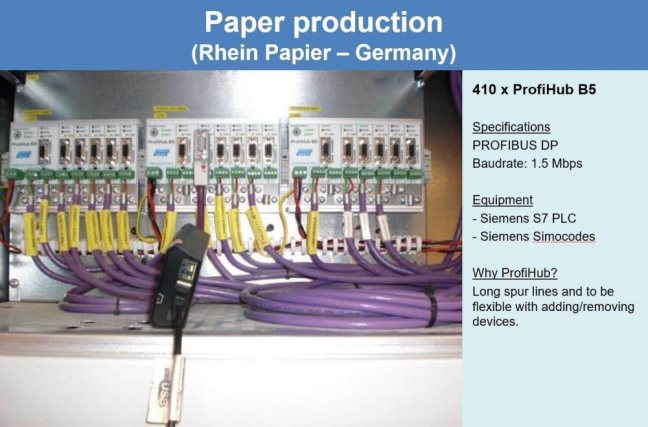

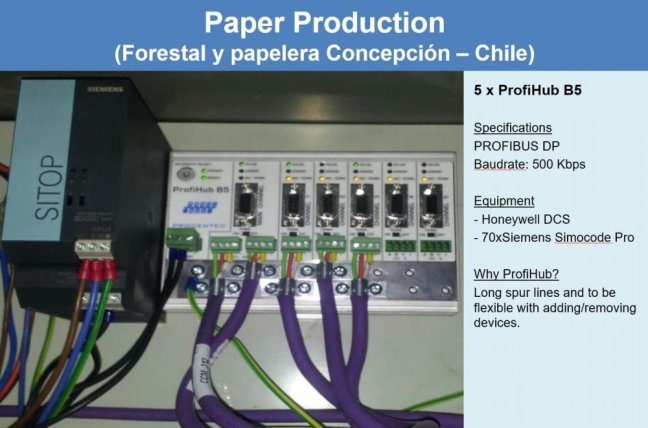

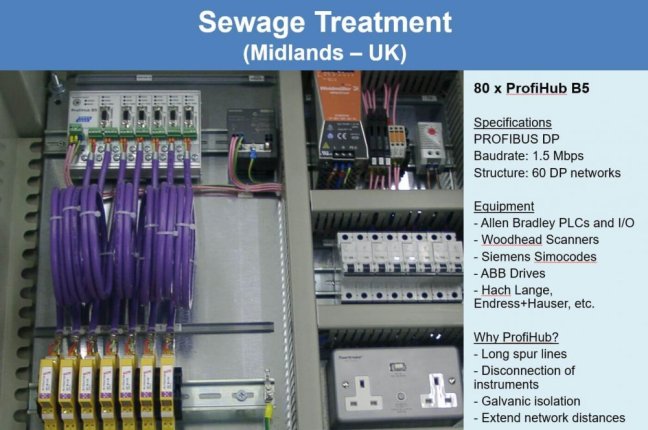

Example of installing the ProfiHub B5+R in a control cabinet
Example of installing the ProfiHub B5+R in a control cabinet
Practical questions

Selection and commissioning

Is it necessary to change the PLC configuration?

For standard transparent repeating, there is no need for a dedicated ProfiHub address or to add it as a slave to the project. When enabling diagnostics, enter the GSD and the address of the diagnostic slave. For Robust Repeating and redundancy, check the bus timing.

Are DB9 connectors separate segments?

No. The DB9 and the terminal block for the relevant channel belong to the same segment. The B5+R offers a total of six segments: MAIN and CH1 to CH5.

Which channels are used for redundancy?

In the case of B5+R, these are the outgoing channels labelled CH4 and CH5. Once redundancy is enabled, they form a single redundant pair. Do not base the numbering on another model or on a diagram of the entire family.

Is it possible to connect 31 stations to each segment, regardless of its length?

The number of devices and the cable length are two separate limits. Ensure you adhere to the length specified for the selected speed, use the correct terminations, and do not exceed the number of connected devices. To make maintenance easier to manage, we recommend dividing the network into smaller groups.

Does ProfiHub have its own web-based diagnostics?

It does not have its own Ethernet web interface. It transmits diagnostic data via PROFIBUS; for a web-based overview, the supported display in the standalone ComBricks system can be used.

Will Robust Repeating eliminate all communication errors?

No. It checks the start of the telegram and helps limit the forwarding of interference-related messages. A faulty cable, incorrect termination or incorrect bonding must be corrected. This mode also changes the delay and requires the MinTSDR setting to be checked.

Why does the alarm trigger an error when there is only one power supply?

ProfiHub monitors both power inputs. If the second input is missing, an alarm is triggered. Connecting a single power supply to both inputs will suppress this alert; independent power supplies are required for true redundancy.

Can the device be used outside the control cabinet?

The B5+R has an IP20 rating. Installation must be suitable for the environment and a temperature range of -25 to +70 °C. For a higher protection rating, select another suitable model or an appropriate protective enclosure.

PROFIBUS Technical Support

Why order from FOXON

We have been an official distributor for HMS Anybus (formerly PROCENTEC) since 2007.
We will select the ProfiHub based on the specific network. We will assist with segment division, redundancy and the transmission of diagnostic data to the control system.

Proposed network layout

We will review the network speed, cable lengths, number of stations and control cabinet locations. We will propose separate segments to suit the installation.

Selecting accessories

We will select the cabling, PROFIBUS connectors and power supply. We will check the termination of the individual segments.

Redundancy verification

We will assess both ends of the connection, the cable routing and the necessary device settings.

PLC diagnostics

We can advise you on the GSD, the address and the selection of diagnostic data for the control system.

Measurement and maintenance

We can help you distinguish between a physical layer problem and a communication error, and select the appropriate diagnostic tool.

Delivery in accordance with the project

Before placing an order, we will confirm the availability of the specific model, the quantity and the delivery date.

Network topologySegments, lengths and termination
DiagnosticsProfiHub, ProfiTrace and ComBricks
Czech supportConsultation on a specific installation
Documentation

Manual, technical data sheet and diagnostic files

The Downloads tab contains the English manual, the current datasheet for 17020R, the GSD file for the diagnostic slave, PDF/DWG drawings and declarations of conformity. Select the switch setting according to the serial number. We will confirm the dimensional drawing for the hardware revision to be supplied.

Open downloads
ProfiHub B5+R · 17020R

Technical specifications

Six galvanically isolated PROFIBUS DP segments, redundant CH4/CH5 interconnection and an integrated diagnostic slave.

PROFIBUS and network parameters
Order number17020R
Number of segments6: MAIN + CH1 to CH5; five galvanically isolated output channels
InterfacePROFIBUS DP RS485, detachable terminal blocks and DB9
Transparent transmissionDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe, PROFIdrive and other FDL-based protocols
Transfer rate9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s
Devices per channelUp to 31 additional devices; this includes hubs and connected analysers
TerminationIntegrated, powered, switchable for each segment
Cable redundancyOptional, via CH4 and CH5
Cascade connectionThe number of units is limited by bus timing and cumulative delay; check the master parameters
Connecting the shieldingDirect or capacitive via terminal I
Diagnostics and operating modes
Diagnostic slaveDP-V0; GSD PROC6970.gsd; identification number 6970
Diagnostic slave addressDefault 126, change via software
Diagnostic dataMax. 85 bytes of input / 5 bytes of output
Diagnostic data evaluationPLC / DCS, the ComBricks continuous PROFIBUS analyser, or ProfiTrace; B5+R has no Ethernet web interface of its own
Normal repeater modeTransparent operation without a dedicated address; activation of the diagnostic slave requires configuration
Speed detectionAutomatic; on older models with a serial number starting with 18 or lower, a fixed speed can also be selected
SignallingLEDs for power, readiness, communication, errors and termination status
Power supply and signalling
Nominal supply voltage12–24 V DC
Absolute voltage limits9–31 V DC as the absolute limit; use a rated 12–24 V DC for the power supply design
Redundant power supplyTwo inputs: POW 1 and POW 2; use independent power sources for true redundancy
Current consumption275 mA at 24 V DC, with all channels fully loaded
Power dissipationMax. 2.8 W
Reverse polarity protectionYes
Power conductor cross-section< 2.5 mm²
Alarm relayPotential-free contact, max. 24 V DC / 0.5 A
Alarm acknowledgementThe ALARM RESET button or the corresponding diagnostic slave module
Mechanical and operational parameters
Dimensions167 × 113 × 35 mm excluding the DIN rail and plug-in connectors; confirm the drawing for the hardware revision to be supplied
Weight excluding accessories650 g excluding plug-in connectors, cable clips and packaging
Net catalogue weight660 g; confirm the mechanical design and weight for the hardware revision to be supplied
InstallationDIN rail 35 × 7.5 mm; recommended orientation with cables facing downwards
Operating temperature-25 to +70 °C
Protection ratingIP20
BatteryDoes not include a battery
Certification and standards
Certification and complianceCE, UKCA, UL, FCC, EMC, RoHS
EU directivesEMC 2014/30/EU; RoHS 2011/65/EU, including amendment 2015/863
Installation requirements for ULMounting on a 35 mm DIN rail; LPS or NEC Class 2 / CEC Class 2 power supply, maximum 100 VA
DNV / offshorePlease confirm the design and validity of the approval for the specific delivery and application; installation on a 35 mm DIN rail with rubber retaining stops is required
WEEE categoryIT and telecommunications equipment

Each segment must be properly terminated at both ends with a termination resistor that is switched on and powered. When enabling Robust Repeating or redundancy, check the bus timing and the MinTSDR settings.

Cabling design

Segment length as a function of speed

SpeedMaximum segment length
9.6 / 19.2 / 45.45 / 93.75 kbit/s1 200 m
187.5 kbit/s1 000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

The maximum lengths apply to a correctly installed PROFIBUS DP RS485 cable. The number of devices, cable length and timing are separate limitations.

Commissioning

Mode selector positions

For serial numbers starting with 19 or higher. In all the positions listed, the speed is detected automatically.

Switch positionRepeating modeRedundancyDiagnostic slave
0Normal repeatingNoNo
1Robust RepeatingNoNo
2Robust RepeatingCH4 + CH5No
3Normal repeatingNoYes
4Robust RepeatingNoYes
5Robust RepeatingCH4 + CH5Yes

For B5+R units with a serial number starting with 19 or higher, a change in the switch position takes effect immediately without the need for a restart. Plan the switch change according to the network’s operating conditions. Older units with a serial number starting with 18 or lower have different position assignments, including the fixed-speed option, and load the position upon power-up. Check the label on the specific device before making any settings.

ProfiHub B5+R · 17020R

Frequently Asked Questions about the ProfiHub B5+R

Wiring, segment termination, diagnostics and operating modes.

Wiring and segments

What is the ProfiHub B5+R and when should it be used?

The ProfiHub B5+R 17020R is a multi-repeater for PROFIBUS DP. It creates five further galvanically isolated segments (CH1 to CH5) from the MAIN segment. It is suitable for extending networks, distributing stations according to machines or switchboards, and modernising installations with poor signal quality.

Is it necessary to change the PLC configuration?

For standard transparent repeating, there is no need for a dedicated ProfiHub address or to add it as a slave to the project. When enabling diagnostics, enter the GSD and the address of the diagnostic slave. For Robust Repeating and redundancy, check the bus timing.

How should the cables be connected, and does the order of the segments matter?

Cables are connected via removable terminal blocks or DB9 connectors. In normal repeater mode, the order in which segments are connected to the MAIN and CH1 to CH5 channels does not matter. Always observe the polarity: A is the green wire, B is the red. The DB9 and terminal block for the same channel belong to a single segment. In redundancy mode, CH4 and CH5 have a reserved function.

What is a segment and how is it terminated correctly?

A segment is a section of the network carrying the same electrical signal. A terminating resistor must be correctly connected and powered at both ends. ProfiHub has its own switchable terminations: MAIN is set to OFF by default, whilst CH1 to CH5 are set to ON. Adjust the settings according to the actual topology and do not use two terminations at the same point.

How many devices can be connected, and how long can the cable be?

Up to 31 additional devices, including further hubs and analysers, can be connected to each channel. The segment length depends on the speed: up to 1200 m at 9.6 to 93.75 kbit/s, 1000 m at 187.5 kbit/s, 400 m at 500 kbit/s, 200 m at 1.5 Mbit/s and 100 m at 3 to 12 Mbit/s. For easier maintenance, we recommend dividing the network into smaller groups, for example, of 5 to 10 stations.

Will ProfiHub prevent all outages caused by interference?

ProfiHub regenerates the signal and provides galvanic isolation between segments. It helps to minimise the transmission of electrical faults and interference between them. It is not a substitute for repairing a faulty cable, ensuring proper shielding, bonding or terminations. A disconnected station or a damaged segment will continue to affect the equipment in that segment and the PLC’s response.

Redundancy and power supply

How does PROFIBUS cable redundancy work?

Channels CH4 and CH5 form a single redundant pair between two compatible devices. Telegrams are transmitted via both cable paths; if one is interrupted, the other remains available. CH1 to CH3 can still be used for separate segments. The mode must be set correctly at both ends, and the master’s timing must be verified.

Is one power supply enough?

ProfiHub monitors both power inputs. If the second input is missing, an alarm is triggered. Connecting a single power supply to both inputs will suppress this alarm; independent power supplies are required for true redundancy. The rated supply voltage is 12–24 V DC.

How do I use the alarm contact?

You can connect the potential-free contact, for example, to a PLC digital input or to a signalling device, within the limits of 24 V DC / 0.5 A. It signals a power failure, a fault in the redundant path or configured diagnostic events. Once the cause has been rectified, you can reset the alarm using the ALARM RESET button or the corresponding diagnostic slave module.

Diagnostics and configuration

How do I connect the diagnostic unit to a PLC, DCS or ComBricks?

Activate the diagnostic slave and add GSD PROC6970.gsd to the master’s configuration. The default address is 126; you can change this using the tool with the ‘Set Slave Address’ command. Select the required data modules; the maximum range is 85 bytes for inputs and 5 bytes for outputs. Statuses and statistics can be analysed in the PLC/DCS, the ComBricks PROFIBUS permanent analyser or in ProfiTrace.

Does ProfiHub have its own web-based diagnostics?

It does not have its own Ethernet web interface. It transmits diagnostic data via PROFIBUS; for a web-based overview, the supported display in the standalone ComBricks system can be used.

What does ‘Robust Repeating’ do, and when does the change in mode take effect?

Robust Repeating checks the start of the telegram and helps to limit the transmission of interfering messages. It increases the delay, so please check the bus timing and MinTSDR settings. For B5+R units with a serial number starting with 19 or higher, a switch change takes effect immediately without a restart. Older units with serial numbers starting with 18 or lower have different switch positions and load these settings on power-up. Always select the settings according to the label on the specific device.

Extensions and environments

Can ProfiHubs be connected in a cascade?

Yes. Multiple ProfiHubs can be interconnected to form a larger star or tree network. The number of units is limited by the master’s timing and the total delay. When designing the network, check the network speed, repeat mode and bus parameters; simply using a ProfiHub does not imply unlimited length or an arbitrary number of levels.

Can the device be used outside the control cabinet?

The B5+R has an IP20 rating. Installation must be suitable for the environment and a temperature range of -25 to +70 °C. For a higher protection rating, select another suitable model or an appropriate protective enclosure.
