Card with 3 USB ports for the Ewon Flexy 205
Expansion card with 3x USB 2.0 ports for the Ewon Flexy 205. Used to connect devices to the router via the USB interface. More
Code: FLB3601_00
Expansion card with 3x USB 2.0 ports for the Ewon Flexy 205. Used to connect devices to the router via the USB interface. More
Code: FLB3601_00

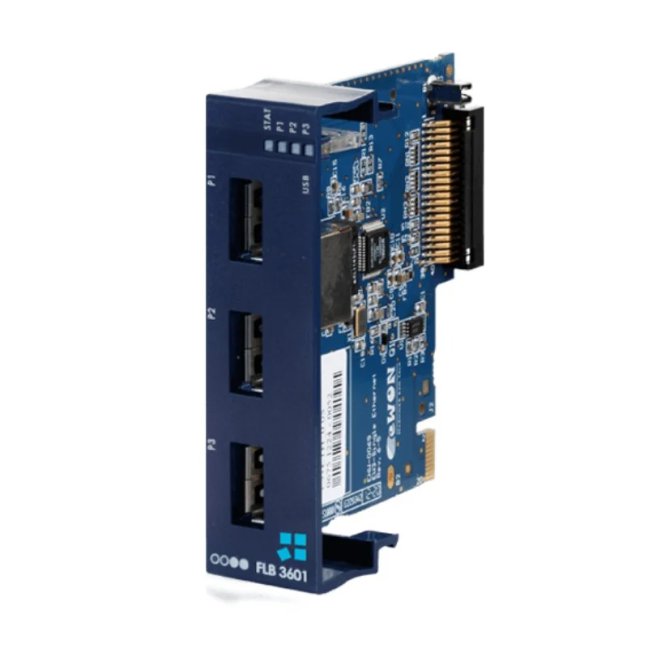

The FLB3601_00 card is used to expand the Ewon Flexy router with three USB ports for connecting devices via the USB interface.

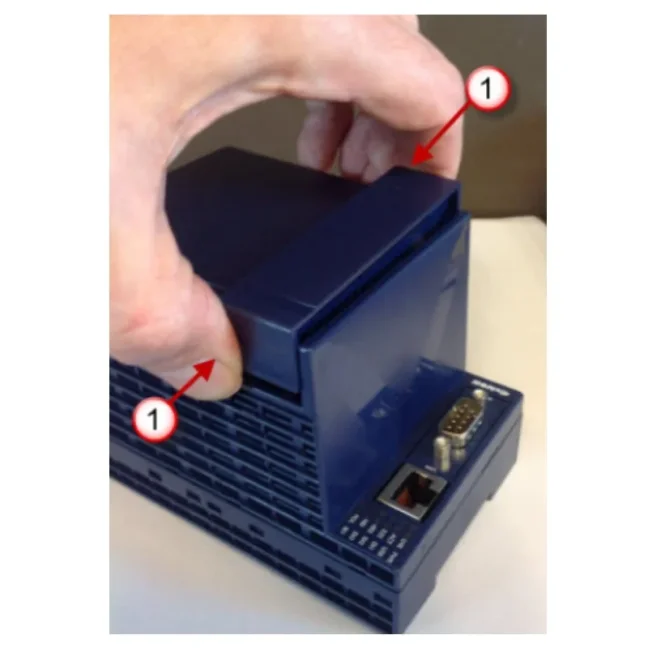

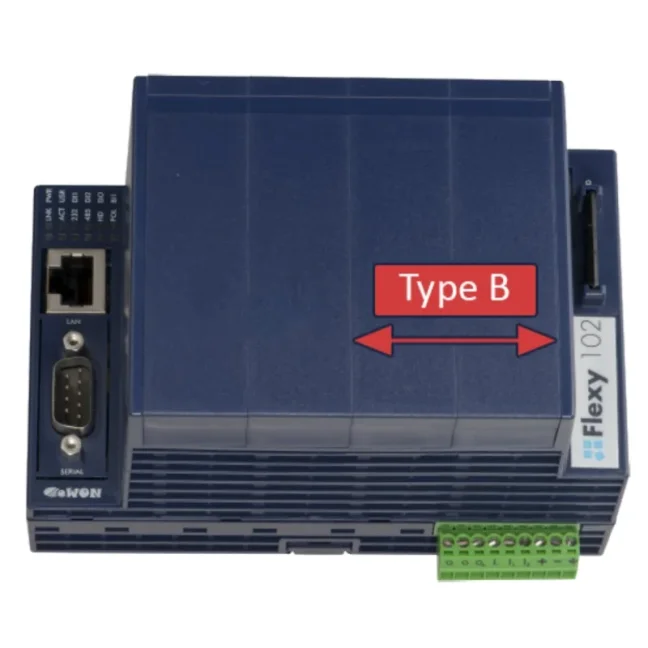

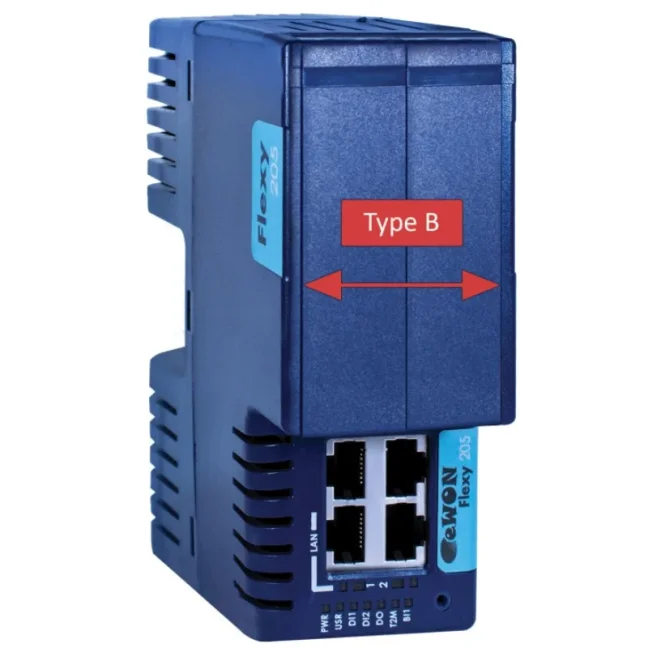

- The card is type B and is inserted into a supported slot on the Ewon Flexy router.
- Compatible with Ewon Flexy 10x, 20x and Flexy 205 routers.

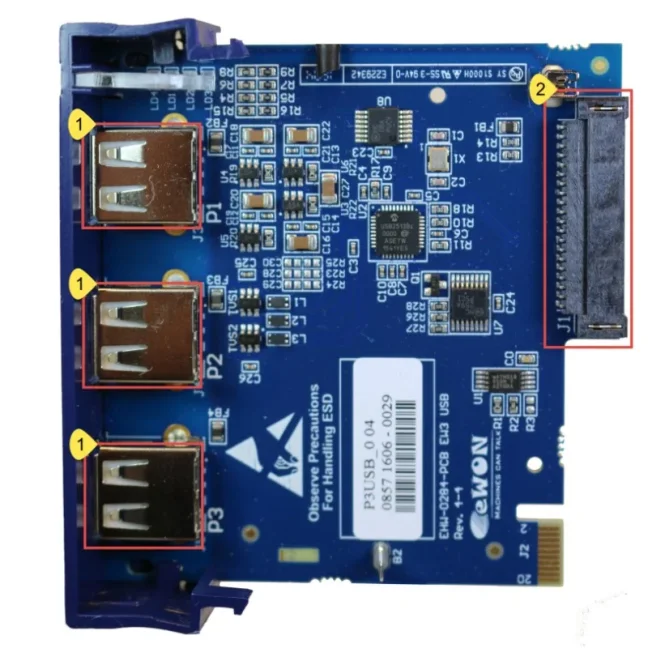

- The card is equipped with 3× USB 2.0 ports with female Type A connectors.
- There are 4 LEDs for signalling: one for the overall status of the module and one for the status of each USB port.
- The current limit is 500 mA per port; the total current limit for all ports combined is 500 mA.
- USB ports can be enabled or disabled at system level.
Technical specifications
USB interface
- Card type: Type B USB expansion card for Ewon Flexy routers
- Compatibility: Ewon Flexy 10x, 20x and Flexy 205
- Number of USB ports: 3
- USB port types: USB 2.0
- Connectors: 3× USB Type A female
- Maximum number of USB connections: up to 10 USB connections
Signalling and port control
- LED indicators: 4 LEDs - 1× overall module status and 1× status of each USB port
- Port activation: All USB ports are enabled or disabled together
- Current limit: 500 mA per port, with a maximum total of 500 mA for the entire card
- Insulation to earth: 500 V, limited by the design of the USB connector
- USB stick included in the pack: No, the USB stick is not included
Mechanical design
- Dimensions: 22 x 79 x 78 mm (W x H x D)
- Weight: 41 g
- Housing material: plastic
- Battery: does not include a battery
Terms and Conditions
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 10 to 95 per cent, non-condensing
Certification
- Markings and certification: CE, UL, FCC, IC, UKCA
- Environment tests: Operating and storage temperatures in accordance with IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 and IEC 60068-2-30
- Vibration and shock tests: in accordance with IEC 60068-2-27, IEC 60068-2-64 and IEC 60068-2-6
