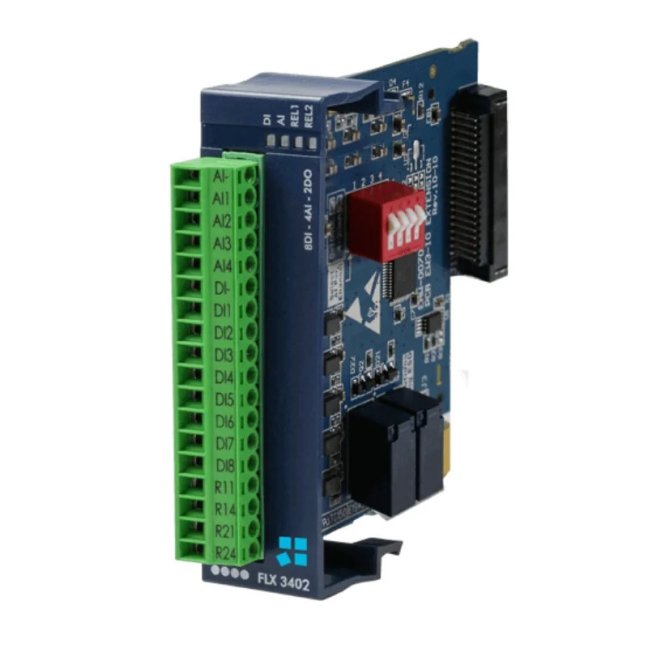

Card with 8x DI, 4x AI and 2x DO for Ewon Flexy 205
Expansion I/O card for the Ewon Flexy 205 with 8 digital inputs, 4 configurable analogue inputs and 2 relay outputs. It enables the collection of signals from remote machines and equipment and their transmission via the Ewon Flexy router to central systems. More
Code: FLX3402_00
Expansion I/O card for the Ewon Flexy 205 with 8 digital inputs, 4 configurable analogue inputs and 2 relay outputs. It enables the collection of signals from remote machines and equipment and their transmission via the Ewon Flexy router to central systems. More
Code: FLX3402_00
The FLX3402_00 card is used to expand the Ewon Flexy router with inputs and outputs for connecting signals from machines, equipment or remote installations.

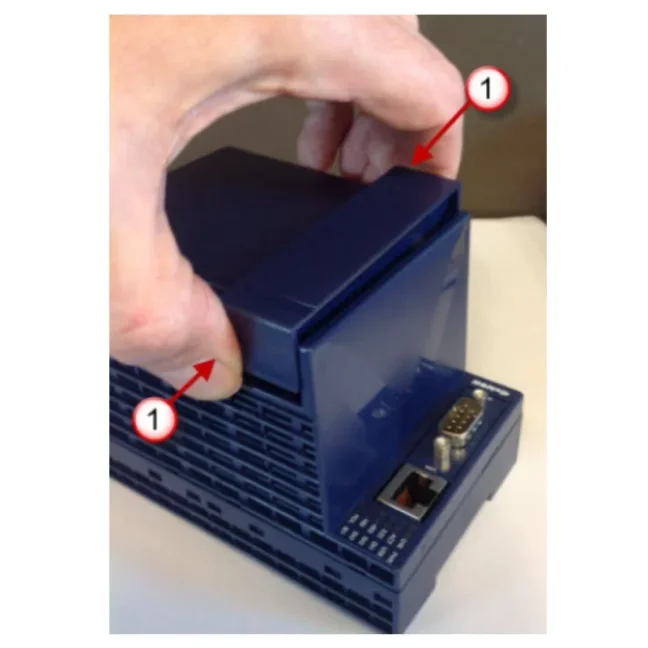

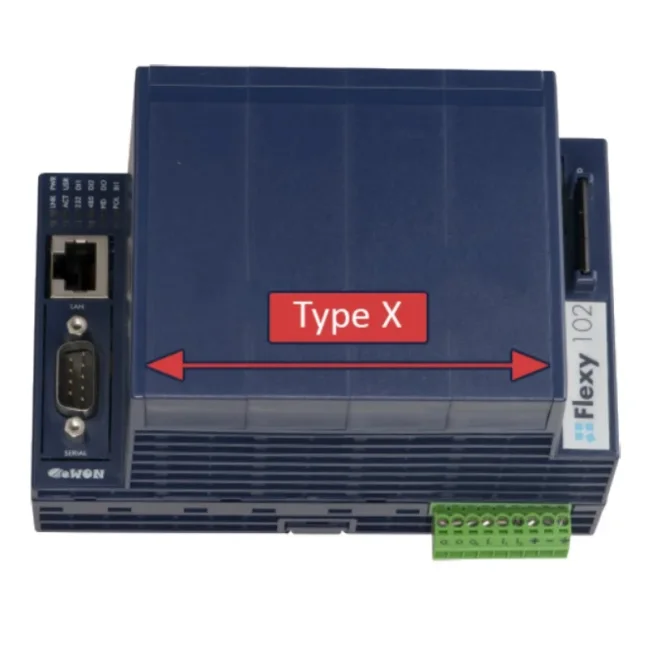

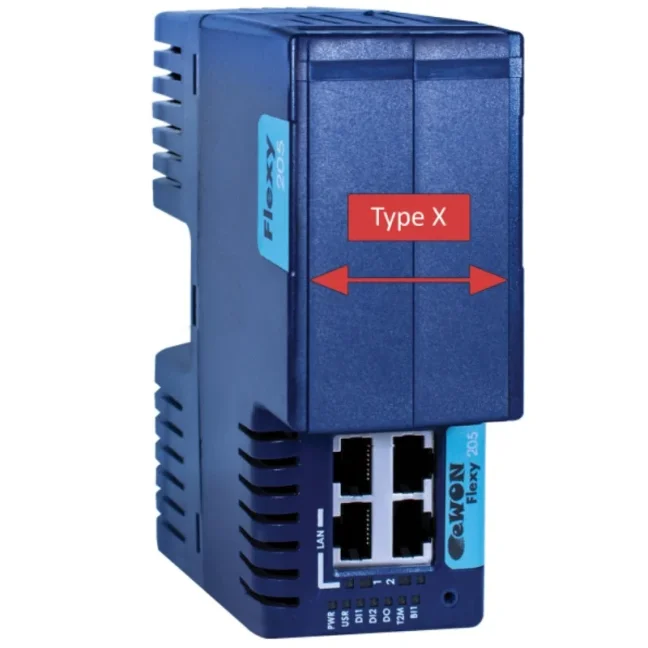

- The card is of type X and can be inserted into any supported slot on the Ewon Flexy router.
- Compatible with Ewon Flexy 10x, 20x and Flexy 205 routers.
- It offers 8 digital inputs, 4 configurable analogue inputs and 2 digital outputs.
- Analogue inputs can be configured as 0-10 V voltage inputs with 16-bit resolution or as 4-20 mA current inputs. The mode is selected using DIP switches.
- Digital inputs are designed for 0-12/24 VDC signals.
- The outputs are configured as 2x NO relay outputs, 2 A / 30 V, VAC/VDC.

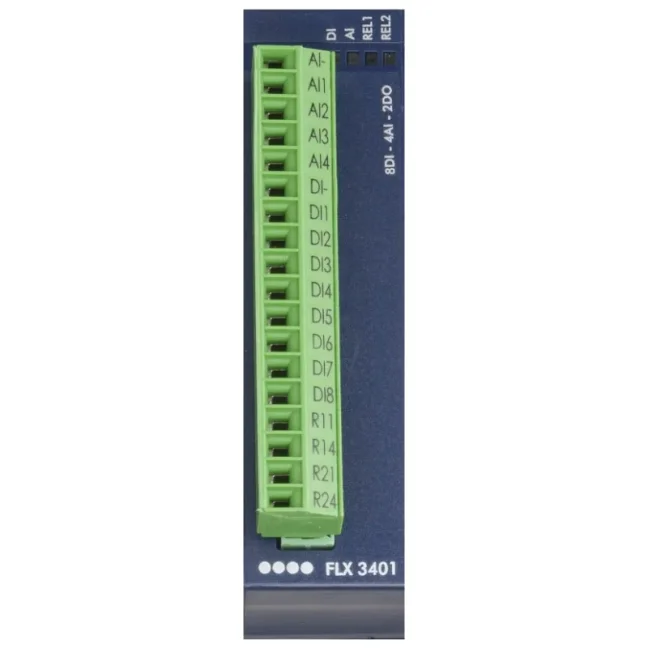

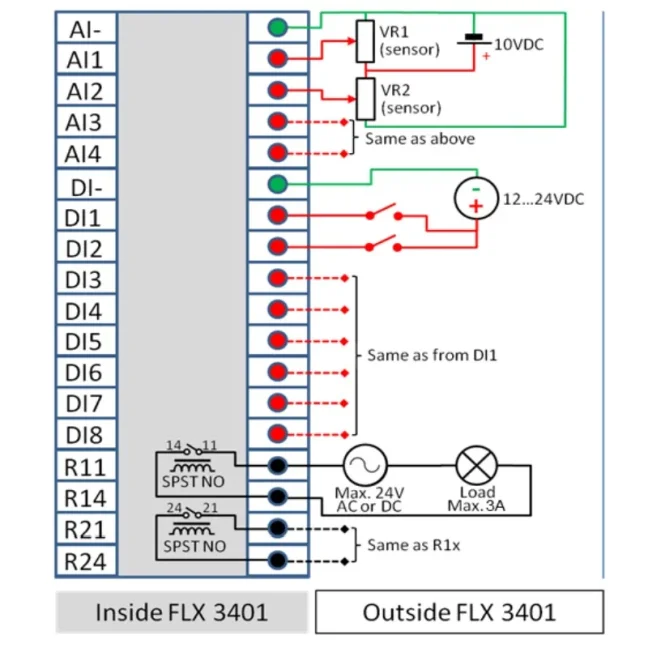

- Wires are connected via an I/O connector with screw terminals.
- The card is suitable for collecting signals that are not available from the connected PLC and transmitting them via the Ewon Flexy router to higher-level or central systems.
Technical specifications
Inputs and outputs
- Card type: X-type expansion I/O card for Ewon Flexy routers
- Compatibility: Ewon Flexy 10x, 20x and Flexy 205
- Analogue inputs: 4× AI
- Range of analogue inputs: 0-10 V voltage mode with 16-bit resolution or 4-20 mA current mode, selectable via DIP switches
- Digital inputs: 8× DI, 0 to 12/24 VDC
- Outputs: 2× NO relay output
- Output load: 2 A / 30 V, VAC/VDC
- Wiring connections: I/O connector with screw terminals
Insulation
- Analogue inputs: 1.5 kV from the power supply
- Digital inputs: 1.5 kV from electronics and power supply
- Relay outputs: 1.5 kV from electronics and power supply
Mechanical design
- Dimensions: 22 x 79 x 84 mm (W x H x D)
- Weight: 50 g
- Housing material: plastic
- Battery: does not include a battery
Terms and Conditions
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 10 to 95 per cent, non-condensing
Certification
- Markings and certification: CE, UL, FCC, IC, UKCA
- Further certifications: Giteki Japan
- Environment tests: Operating and storage temperatures in accordance with IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 and IEC 60068-2-30
- Vibration and shock tests: in accordance with IEC 60068-2-27, IEC 60068-2-64 and IEC 60068-2-6
