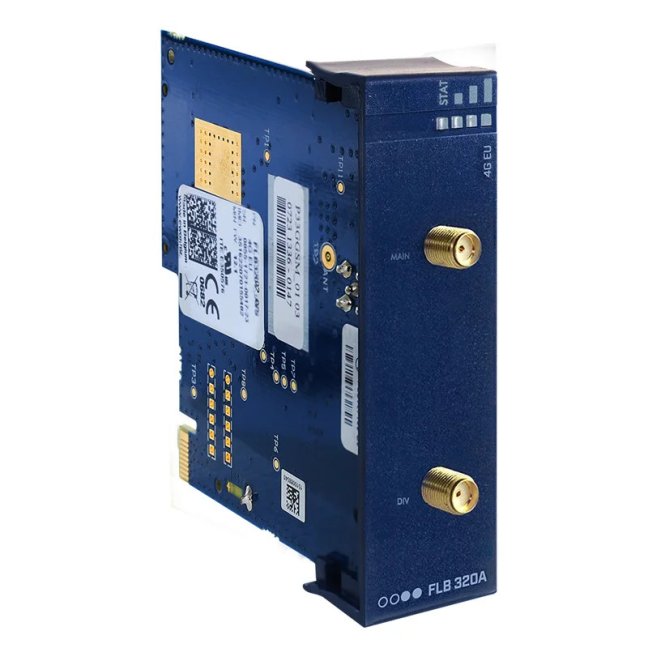

SIM card with 4G EU modem for Ewon Flexy 205

SIM card with 4G EU modem for Ewon Flexy 205


HMS Industrial Networks

Expansion 4G LTE EU SIM card for the Ewon Flexy 205. It allows the router to connect to the Talk2M cloud service via the mobile network operator, for example, in places where fixed-line internet is not available. A SIM card with a data plan is all that is required for operation. More

Code: FLB320A_00

270 EUR excl. VAT (326,70 EUR Incl. VAT)
In stock
pcs
(18 pcs In stock)

Rezervace termínu

Get a quote
HMS Industrial Networks

Expansion 4G LTE EU SIM card for the Ewon Flexy 205. It allows the router to connect to the Talk2M cloud service via the mobile network operator, for example, in places where fixed-line internet is not available. A SIM card with a data plan is all that is required for operation. More

Code: FLB320A_00

The FLB320A_00 card is designed for use in European mobile networks and serves as a 4G LTE modem for Ewon Flexy routers.

  • The card is type B and is inserted into a supported slot on the Ewon Flexy router.
  • Compatible with Ewon Flexy 10x, 20x and Flexy 205 routers.
  • A SIM card with a data plan is required for operation.
  • The board is fitted with two SMA-F connectors for antennas: Main and Diversity. The main antenna is required; the Diversity antenna is optional and can improve the quality and stability of the mobile connection.
  • For the FLB320A card to function correctly, the Ewon Flexy router must be running firmware version 14.8s0 or later.

NOTICE: Neither the antenna nor the SIM card are included in the package. A suitable antenna can be selected according to the specific application or you can use your own; see the ‘Related’ tab.

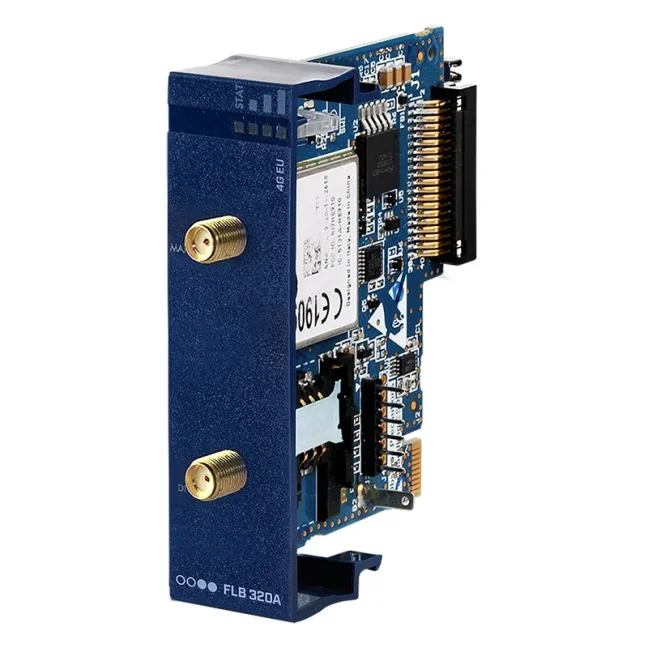

FLB320A 4G LTE EU expansion card for Ewon Flexy

Technical specifications

Mobile network and connectivity

  • Card type: Type B expansion modem card for Ewon Flexy routers
  • Mobile technology: 4G LTE with automatic switch to 3G when the 4G network is unavailable
  • 4G LTE frequency bands: B1, B3, B7, B8, B20, B28A
  • 3G frequency bands: B1, B3, B8
  • Required router firmware: Ewon Flexy firmware 14.8s0 or later

Antennas

  • Antenna connectors: 2x SMA-F female
  • Main antenna: Main SMA-F female
  • Diversity antenna: SMA-F female connector, optional for improved quality and stability of the mobile connection
  • Antenna included in the pack: No, the antenna is not included

Mechanical design

  • Dimensions: 22 x 79 x 82 mm (W x H x D)
  • Weight: 46 g
  • Housing material: plastic
  • Battery: does not include a battery

Terms and Conditions

  • Operating temperature: -25 °C to +60 °C
  • Storage temperature: -30 °C to +70 °C
  • Relative humidity: 10 to 95 per cent, non-condensing

Certification

  • Markings and certification: CE, UL, RCM, UKCA
  • Safety standards: EN IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1
