ProfiSwitch X5 for changing PROFIBUS speeds

ProfiSwitch X5 for changing PROFIBUS speeds


HMS Industrial Networks

PROFIBUS DP multi-repeater with the ability to set individual baudrates for each segment. It increases network robustness and solves situations where the PROFIBUS Master must remain at a higher transmission speed while some devices require a lower one. More

Code: 17030X

1 750 EUR excl. VAT (2 117,50 EUR Incl. VAT)
Recycling fee 0,016 EUR included in the price.
Delivery in 3-4 weeks
pcs
(0 pcs In stock)

Rezervace termínu

Get a quote
HMS Industrial Networks

PROFIBUS DP multi-repeater with the ability to set individual baudrates for each segment. It increases network robustness and solves situations where the PROFIBUS Master must remain at a higher transmission speed while some devices require a lower one. More

Code: 17030X

Anybus / HMS Networks17030X
ProfiSwitch X5 17030X with rotary switches

ProfiSwitch X5 · 17030X

PROFIBUS DP · Network regeneration and distribution

ProfiSwitch X5

A separate transmission rate for each outgoing segment

The ProfiSwitch X5 17030X connects the main PROFIBUS segment to five galvanically isolated outgoing segments. You can set their speeds individually using rotary switches. It uses a buffer when converting speeds, so timing and the watchdog are important considerations during design.

PROFIBUS DP17030XFOXON Technical Support

Please send us the topology, network speed and number of stations. We will check the connections and required accessories.

MAIN + 5 channelsSix electric segments
9.6 kbit/s to 12 Mbit/sSpeed by channel
CH4 + CH5Optional cable redundancy
IP20DIN rail and 12-24 V DC power supply
Upgrading the existing network

Better signal quality and longer PROFIBUS network operation

By dividing a long cable run into shorter sections, you will improve signal transmission conditions and make maintenance easier. Minimising downtime caused by poor signal quality helps to extend the operational life of your existing PROFIBUS network. Plan the installation during a shutdown and, once the connection has been made, check both communication and signal quality.

A repeater regenerates the signal and provides galvanic isolation between individual metallic segments. It helps to limit the propagation of electrical faults and interference between them. Proper shielding, bonding and termination remain essential. A faulty cable or connector must be repaired; splitting the network does not replace rectifying the cause of the fault.

Installation proposal

Use in both new and existing networks

For connecting slower devices to the high-speed main network, or for a longer outgoing segment at a lower speed. Connect the PLC or DCS to the MAIN. A lower speed is no substitute for repairing a damaged cable.

Plan the replacement or installation of equipment in accordance with the technology’s operational requirements. Once connected, check the polarity, power supply, termination and response of the connected stations.

Installation and operation

One master and different segment speeds

Connect the main PLC or DCS to MAIN. CH1 to CH5 can operate in transparent hub mode at the same speed as MAIN, or convert communication to a different set speed.

For example, the main segment may operate at 12 Mbit/s and the remote segment at 1.5 Mbit/s. Its permitted length is then determined by the speed of that segment. It is not recommended that the outgoing channel speed exceed that of the MAIN segment.

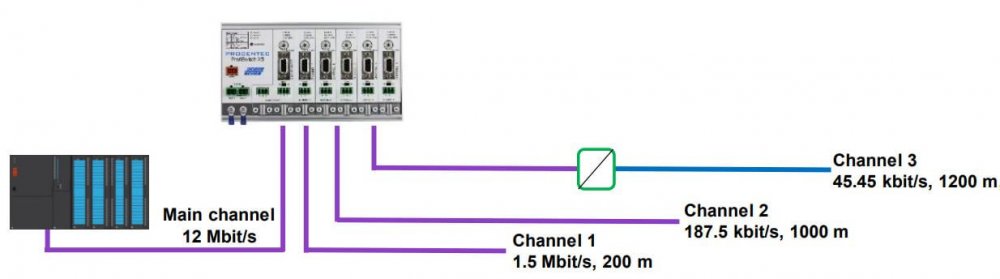

Example of outgoing segments operating at different transmission speeds
Example of outgoing segments operating at different transmission speeds

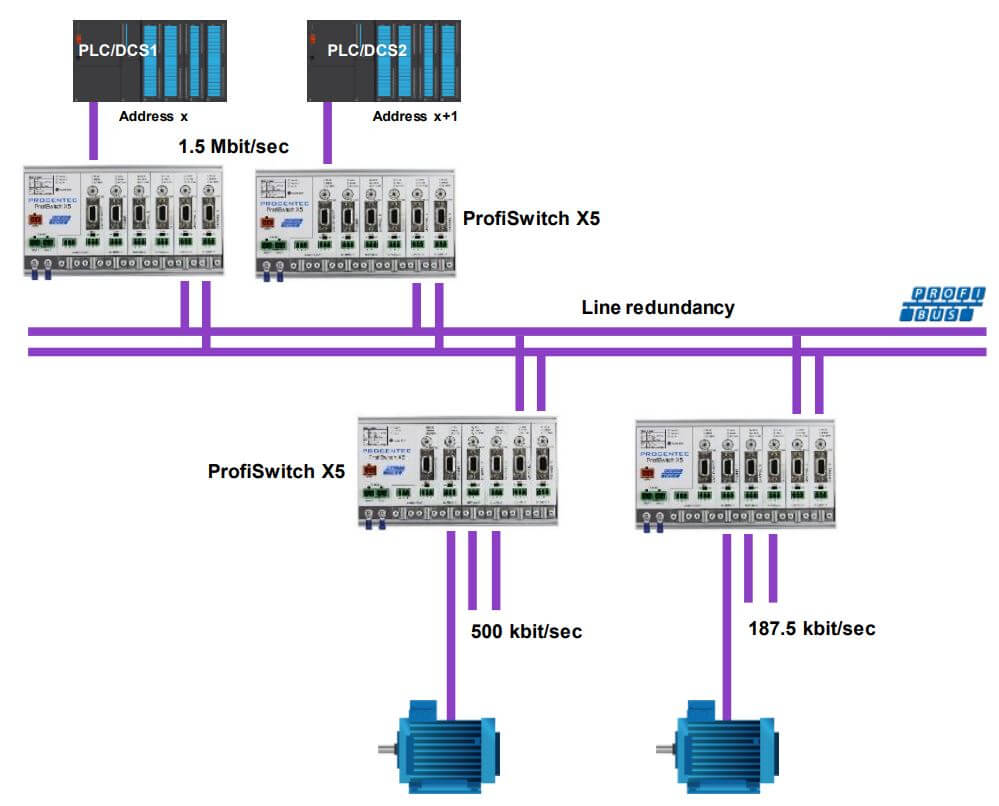

Illustrative diagram showing the connection of multiple ProfiSwitch X5 units and a redundant pair
Illustrative diagram showing the connection of multiple ProfiSwitch X5 units and a redundant pair
Installation and operation

Timing, watchdog and address limiting

Switching between different speeds uses a buffer and a local communication cycle. Consequently, the transmission is neither fully transparent nor as deterministic as that of a standard repeater. Check the response of the application and the watchdog of each slave device.

The main control master must be set to MAIN. A master on an output channel with a different speed communicates only on that channel. Address 1 is not available on CH1 to CH5 for either the master or the slave.

PROFIsafe is not supported. Please verify the use of DP-V2 or other time-sensitive functions for the specific mode and project; support for the physical interface alone does not replace this verification.

Installation and operation

Rotary switches and speed adjustment

Position 0 on the output channel activates Hub mode. Positions 1 to A select a fixed speed. The MAIN switch is read upon power-up; switches CH1 to CH5 are read continuously and any change in speed takes effect immediately. Plan any changes during a shutdown.

On the MAIN, you can also select Robust Repeating or redundant mode. Robust Repeating checks the start of the telegram and adds a delay. Check the master’s parameters before activation.

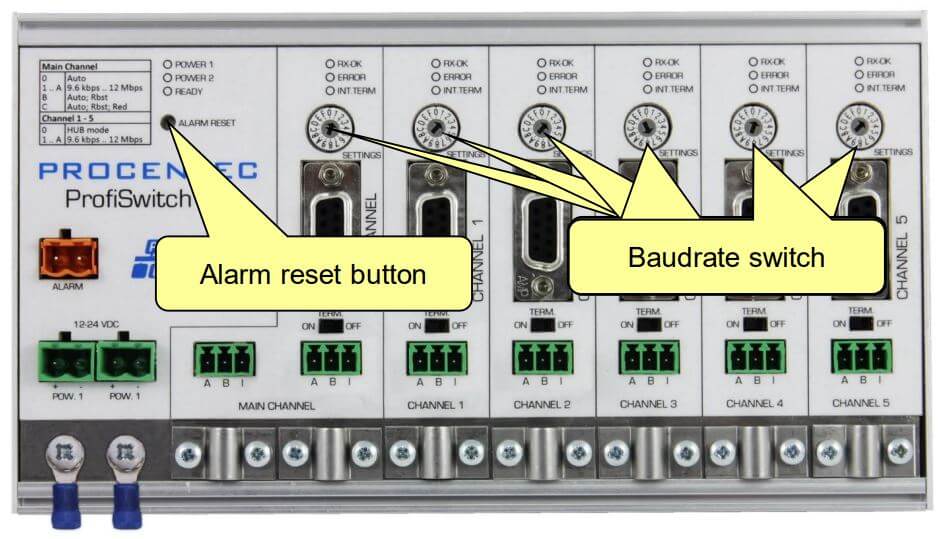

MAIN and CH1 to CH5 speed selectors
MAIN and CH1 to CH5 speed selectors
Installation and operation

PROFIBUS cable redundancy via CH4 and CH5 channels

Position C of the MAIN switch activates the redundant pair CH4 and CH5. Both channels automatically switch to Hub mode and operate at the MAIN speed; their own speed selection is not used in this mode.

If one cable path is interrupted, the other remains available. The status is indicated by the ERROR LED and the alarm contact. Once the fault has been rectified, acknowledge the alarm by pressing the ALARM RESET button. For connection to ComBricks, check that redundancy is supported and verify the MinTSDR settings.

Installation and operation

Cabling, terminations and power supply

The DB9 and the terminal block for the same channel belong to the same segment. A is the green wire, B is the red. Use powered terminations at both ends of the segment and do not create duplicate terminations at the same point.

The rated supply voltage is 12 to 24 V DC; there are two inputs. Use independent power supplies for redundant operation. The alarm contact has a limit of 24 V DC / 0.5 A and also signals a missing power supply input.

The device features local LEDs and DB9 measurement points. Neither the built-in DP slave nor a dedicated Ethernet web interface are offered as standard features on the X5; please use a separate analyser for monitoring.

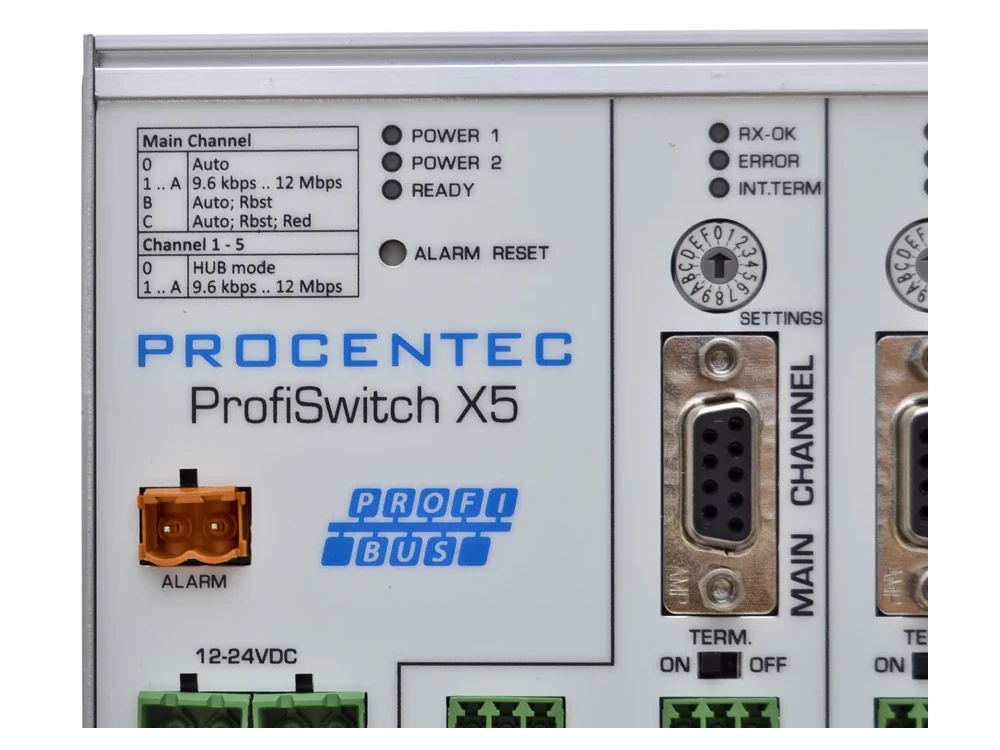

Details of MAIN, power supply and alarm contact X5
Details of MAIN, power supply and alarm contact X5
PROFIBUS DP metallic network

Cable length depending on the segment speed

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

More organised maintenance

Segments and correct termination

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Each segment has its own electrical specifications. During maintenance, the power supply and terminations of the segments that are to continue communicating must remain intact. The response to a missing peripheral is also determined by the PLC’s configuration and programme.

Technical specifications

ProfiSwitch X5, order number 17030X

Order number17030X
SegmentsMAIN + CH1 to CH5, five galvanically isolated output channels
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s
Channel modeHub at the same speed as MAIN, or conversion to a separate speed
Devices per channelUp to 31 additional devices
Location of the main masterMAIN
Address 1 on CH1 to CH5It is not available to either the master or the slave
PROFIsafeNot supported
Timing when converting transmission speedsBuffer and local loop; check the response and the watchdog
Cable redundancyCH4 + CH5, automatic Hub mode at MAIN speed
MAIN switchLoading on start-up
Switches CH1 to CH5Any change in speed will take effect immediately
PROFIBUS connectionDB9 and detachable terminal blocks, A green / B red
Power supply12-24 V DC, two redundant inputs
Current consumption275 mA, catalogue value at rated supply voltage
Alarm contactPotential-free, max. 24 V DC / 0.5 A
DiagnosticsLED and DB9 measurement port, without its own Ethernet web interface
Protection ratingIP20
Operating temperature-25 to +70 °C
Installation35 mm DIN rail, to be secured using mounting fasteners
Dimensions203 × 111 × 31 mm
Net catalogue weight822 g

When installing, leave space for the connectors, cable bends and access to the controls. We will confirm the design and dimensions based on the specific delivery.

Photographs and wiring diagrams

Device and installation details

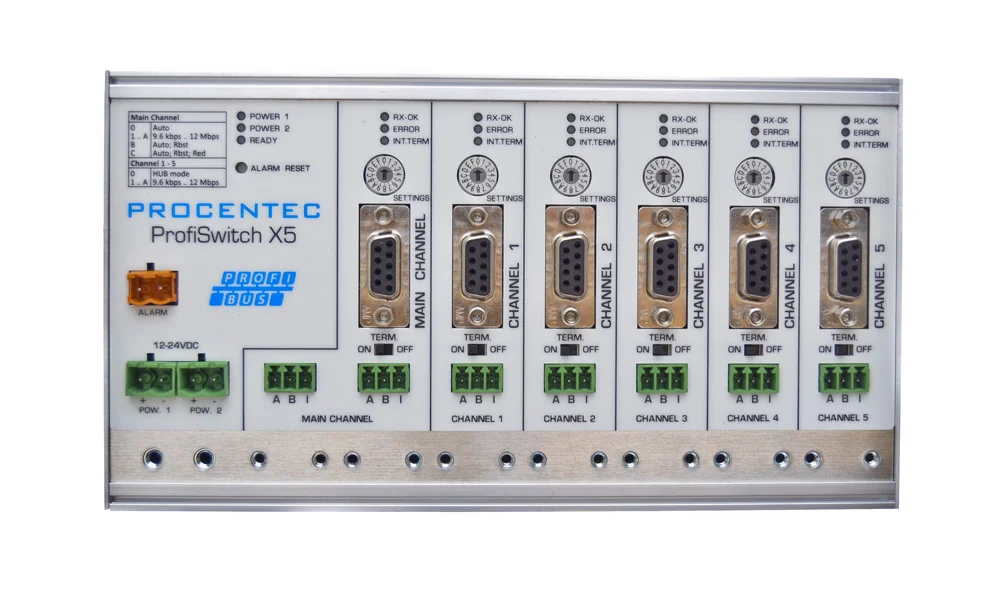

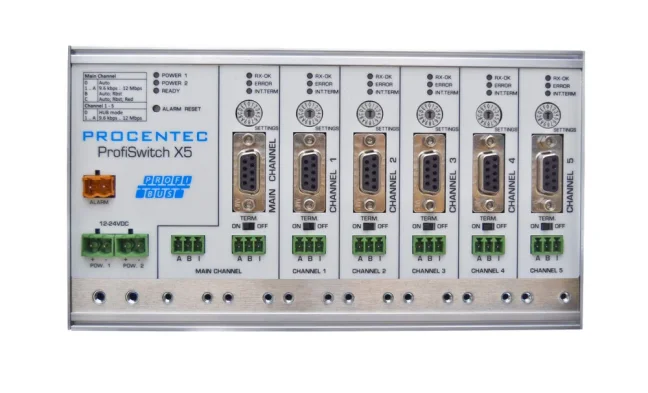

Front view of the ProfiSwitch X5
Front view of the ProfiSwitch X5

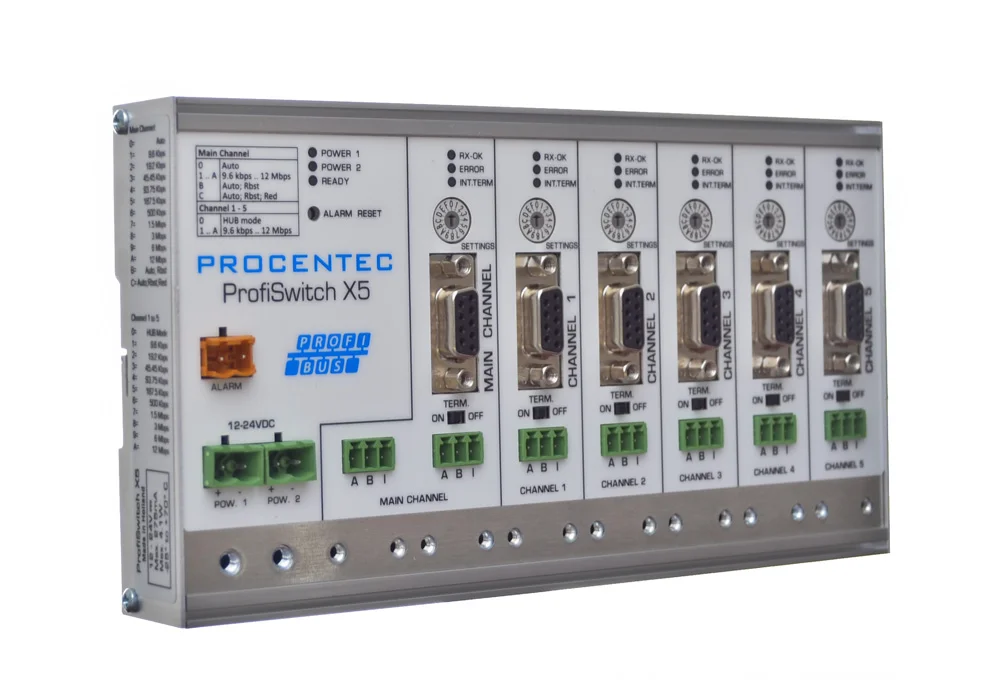

Side view of the ProfiSwitch X5
Side view of the ProfiSwitch X5

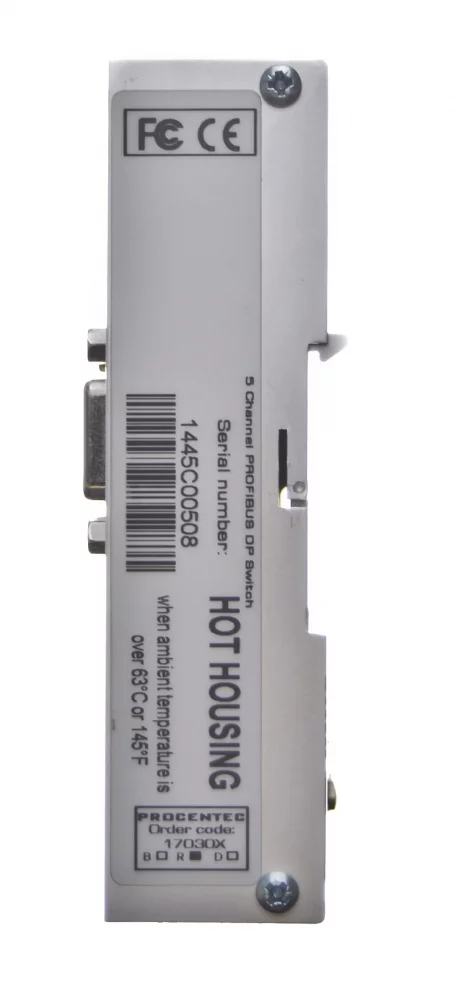

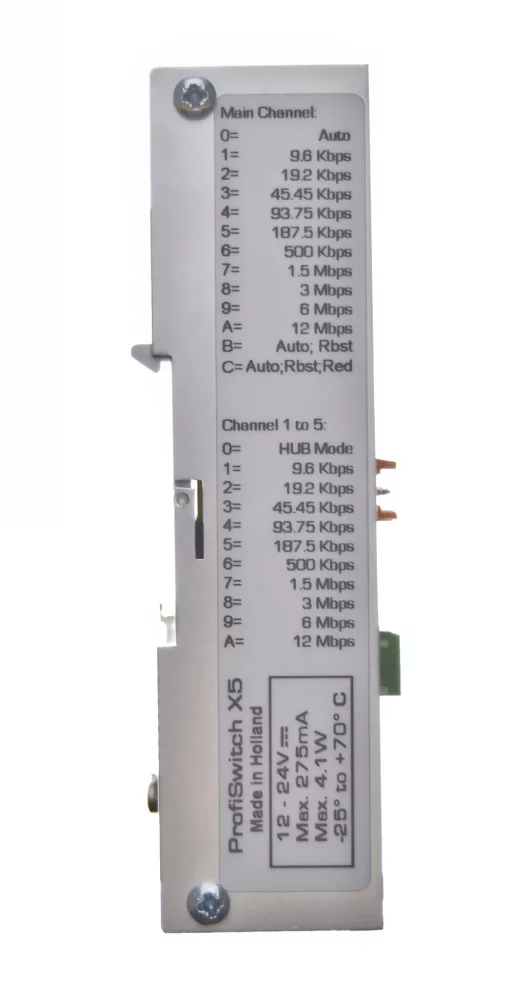

Side view of the connection and the X5 label
Side view of the connection and the X5 label

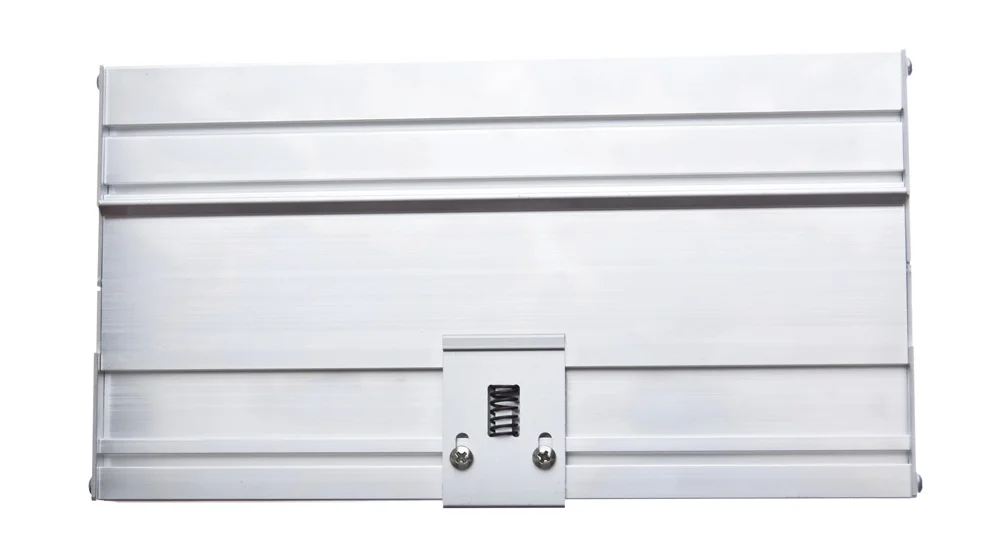

The rear of the ProfiSwitch X5 and DIN rail mounting
The rear of the ProfiSwitch X5 and DIN rail mounting

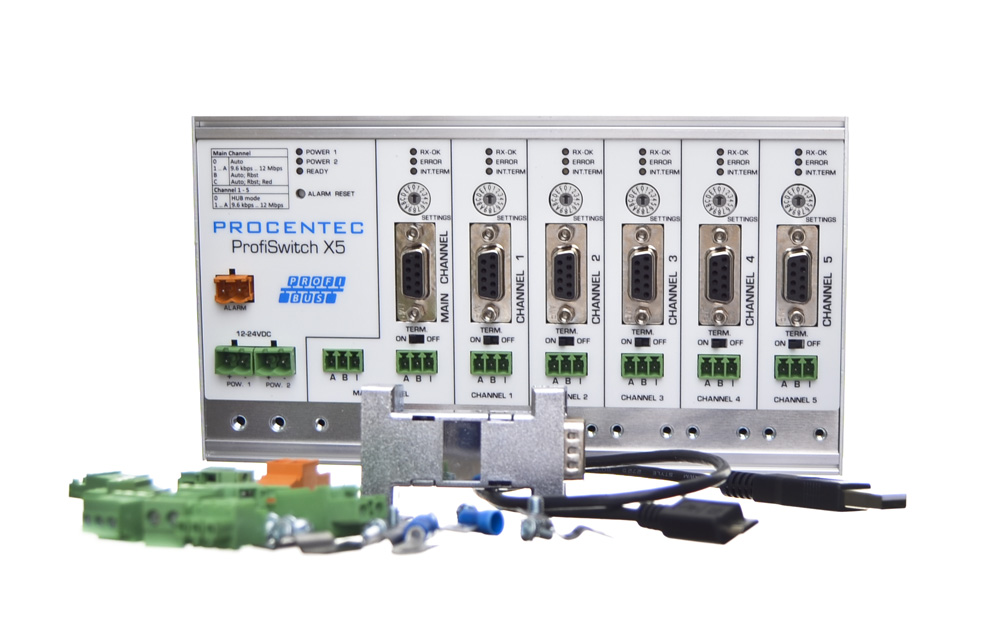

ProfiSwitch X5 and installation accessories
ProfiSwitch X5 and installation accessories
Contents of the delivery

Module and installation accessories

We will supply the ProfiSwitch X5 17030X. We will confirm the contents of the included connectors, terminal blocks and mounting parts in the quotation. We will select the power supply, cables, fibre optic patch cords and analysers according to the specific network and equipment configuration.

Practical questions

Selection and commissioning

When should you use the X5 instead of a standard ProfiHub?

When outgoing segments require a different speed to the main network, for example to accommodate slower devices or longer cables. For the same speeds and standard network segmentation, a transparent repeater is sufficient.

Where does the main PLC or DCS belong?

On MAIN. A master on an outgoing channel with a different speed communicates only on that channel. Address 1 is not available on CH1 to CH5 for either the master or the slave.

Is the switching between different speeds completely transparent?

No. The X5 uses a buffer and the local cycle of the outgoing channel. Check the application’s response, the bus parameters and the watchdog. In Hub mode, the channel operates transparently at the same speed as MAIN.

Does the X5 support PROFIsafe?

No. PROFIsafe is not supported. For safety communication, select another suitable solution and verify the entire application.

Will the change to the switch take effect immediately?

MAIN reads the switch after power-up. CH1 to CH5 read their switches continuously, so any change in speed takes effect immediately. Please plan any switching operations during a shutdown.

Can CH4 and CH5 have different speeds when there is redundancy?

No. In redundant mode, CH4 and CH5 are automatically set to Hub mode and the MAIN speed. The user-selected speed for these two channels is not applied.

PROFIBUS Technical Support

Why order from FOXON

We have been an official distributor for HMS Anybus (formerly PROCENTEC) since 2007.

Proposed network layout

We will review the network speed, cable lengths, number of stations and control cabinet locations. We will propose separate segments to suit the installation.

Selecting accessories

We will select the cabling, PROFIBUS connectors and power supply. We will check the termination of the individual segments.

Verification of a specific design

Before ordering, we will check the product order number, required functions and hardware revision.

Measurement and maintenance

We can help you distinguish between a physical layer problem and a communication error, and select the appropriate diagnostic tool.

Czech technical support

We will discuss specific wiring configurations, fault symptoms and options for long-term network monitoring.

Delivery in accordance with the project

Before placing an order, we will confirm the availability of the specific model, the quantity and the delivery date.

Network topologySegments, lengths and termination
DiagnosticsProfiHub, ProfiTrace and ComBricks
Czech supportConsultation on a specific installation
Documentation

Manuals and technical documentation

In the ‘Downloads’ tab, you will find the technical data sheet, manual and declaration of conformity. Please use the GSD files only for the relevant diagnostic version. For older units, please check the serial number and ensure the settings are correct.

Open downloads
PROFIBUS DP

Technical specifications of the ProfiSwitch X5

Order number 17030X. Please refer to the specific model of the device for its specifications and functions.

Communication

Order number17030X
SegmentsMAIN + CH1 to CH5, five galvanically isolated output channels
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s
Channel modeHub at the same speed as MAIN, or conversion to a separate speed
Devices per channelUp to 31 additional devices
Location of the main masterMAIN
Address 1 on CH1 to CH5It is not available to either the master or the slave
PROFIsafeNot supported
Timing when converting transmission speedsBuffer and local loop; check the response and the watchdog
Cable redundancyCH4 + CH5, automatic Hub mode at MAIN speed

Setup and Power Supply

MAIN switchLoading on start-up
Switches CH1 to CH5Any change in speed will take effect immediately
PROFIBUS connectionDB9 and detachable terminal blocks, A green / B red
Power supply12-24 V DC, two redundant inputs
Current consumption275 mA, catalogue value at rated supply voltage
Alarm contactPotential-free, max. 24 V DC / 0.5 A
DiagnosticsLED and DB9 measurement port, without its own Ethernet web interface

Mechanical design

Protection ratingIP20
Operating temperature-25 to +70 °C
Installation35 mm DIN rail, to be secured using mounting fasteners
Dimensions203 × 111 × 31 mm
Net catalogue weight822 g
Network design

Length of the metallic segment as a function of speed

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

Installation

Termination and operating conditions

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Before changing the operating mode, please check the relevant manual and version. We can help you check the label and accessories for the parameters of a specific delivery.

ProfiSwitch X5 · 17030X

Frequently Asked Questions about the ProfiSwitch X5

Selection, connection, diagnostics and operating conditions.

Selection and use

When should you use the X5 instead of a standard ProfiHub?

When outgoing segments require a different speed to the main network, for example to accommodate slower devices or longer cables. For the same speeds and standard network segmentation, a transparent repeater is sufficient.

Where does the main PLC or DCS belong?

On MAIN. A master on an outgoing channel with a different speed communicates only on that channel. Address 1 is not available on CH1 to CH5 for either the master or the slave.

Is the switching between different speeds completely transparent?

No. The X5 uses a buffer and the local cycle of the outgoing channel. Check the application’s response, the bus parameters and the watchdog. In Hub mode, the channel operates transparently at the same speed as MAIN.

Does the X5 support PROFIsafe?

No. PROFIsafe is not supported. For safety communication, select another suitable solution and verify the entire application.

Wiring and diagnostics

Will the change to the switch take effect immediately?

MAIN reads the switch after power-up. CH1 to CH5 read their switches continuously, so any change in speed takes effect immediately. Please plan any switching operations during a shutdown.

Can CH4 and CH5 have different speeds when there is redundancy?

No. In redundant mode, CH4 and CH5 are automatically set to Hub mode and the MAIN speed. The user-selected speed for these two channels is not applied.

Is it advisable to set the outgoing channel to a higher speed than MAIN?

This is not recommended. A higher output channel speed will not speed up the original PLC/DCS cycle and may increase the risk of communication problems.

How should segments be terminated correctly?

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Network operations

Why is the alarm active when there is only one power source?

The X5 monitors both power inputs. If the second power supply is missing, an alarm will be triggered. For true redundancy, use two independent power supplies; once the cause has been rectified, the alarm can be acknowledged using the RESET button.

Does the X5 have its own online diagnostics?

The X5 does not have its own Ethernet web interface. The LED and DB9 are used for local checks; continuous monitoring is provided by a separate, correctly connected analyser.

How many devices can be connected?

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

Will the X5 eliminate all outages?

Galvanic isolation helps to limit the spread of electrical faults and interference. It does not eliminate faulty cables, incorrect shielding or missing terminations. A disconnected station or a damaged segment will continue to affect the equipment on that segment and the PLC’s response.
