PROFIBUS D1 repeater with IP66 protection and M12 connectors. Splits one segment into two galvanically isolated sections, allowing additional PROFIBUS stations to be added or the cable length to be extended. Amplifies and smooths signals between the segments, increasing network robustness. Does not require its own PROFIBUS address or changes to the PROFIBUS Master hardware configuration. More

Code: 16121

618 EUR excl. VAT (747,78 EUR Incl. VAT)
Recycling fee 0,016 EUR included in the price.
In stock
pcs
(1 pcs In stock)

Rezervace termínu

Get a quote
HMS Industrial Networks

PROFIBUS D1 repeater with IP66 protection and M12 connectors. Splits one segment into two galvanically isolated sections, allowing additional PROFIBUS stations to be added or the cable length to be extended. Amplifies and smooths signals between the segments, increasing network robustness. Does not require its own PROFIBUS address or changes to the PROFIBUS Master hardware configuration. More

Code: 16121

Anybus / HMS Networks16121
Anybus D1 16121, IP66 rating

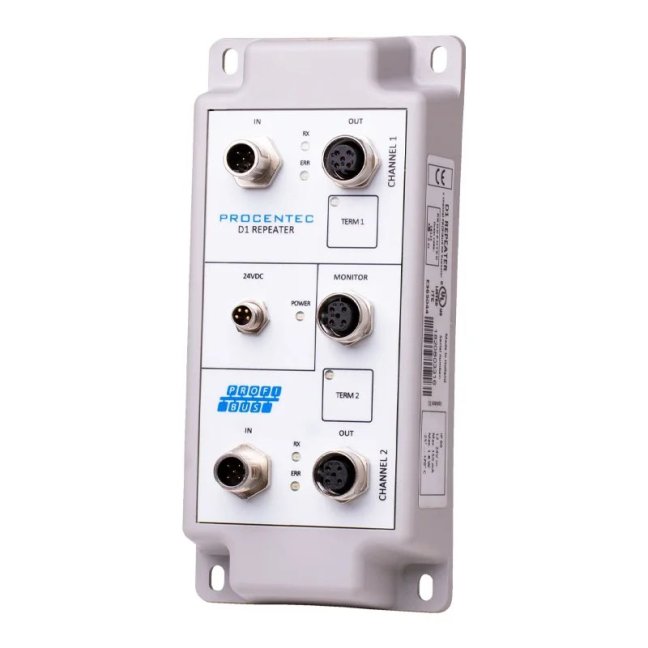

D1 Repeater · 16121

PROFIBUS DP · Network regeneration and distribution

D1 Repeater

Two PROFIBUS DP segments with M12 connectors and an IP66 rating

The D1 16121 regenerates the PROFIBUS DP signal between two galvanically isolated segments. Its IP66 rating and M12 connectors facilitate installation in dusty or damp environments. A dedicated monitoring port on CH2 is provided for connecting an analyser.

PROFIBUS DP16121FOXON Technical Support

Please send us the topology, network speed and number of stations. We will check the connections and required accessories.

2 segmentsCH1 and CH2
IP66Sealed design with M12
12-24 V DCPower supply via M8 connector
Up to 12 Mbit/sAutomatic speed detection
Upgrading the existing network

Better signal quality and longer PROFIBUS network operation

By dividing a long cable run into shorter sections, you will improve signal transmission conditions and make maintenance easier. Minimising downtime caused by poor signal quality helps to extend the operational life of your existing PROFIBUS network. Plan the installation during a shutdown and, once the connection has been made, check both communication and signal quality.

A repeater regenerates the signal and provides galvanic isolation between individual metallic segments. It helps to limit the propagation of electrical faults and interference between them. Proper shielding, bonding and termination remain essential. A faulty cable or connector must be repaired; splitting the network does not replace rectifying the cause of the fault.

Installation proposal

Use in both new and existing networks

For routing PROFIBUS cables outside the control cabinet, connecting a remote group of peripherals and creating an accessible measurement point. Installation must be appropriate for the environment and temperature; IP66 alone does not guarantee resistance to specific chemicals or suitability for use in potentially explosive atmospheres.

Plan the replacement or installation of equipment in accordance with the technology’s operational requirements. Once connected, check the polarity, power supply, termination and response of the connected stations.

Installation and operation

M12 pass-through and separate monitoring port

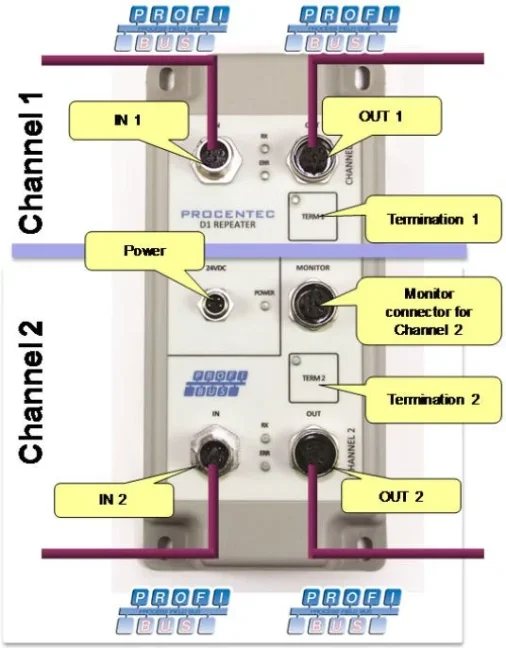

Each channel has an M12 IN and OUT. Both connectors on a given channel are electrically connected even when the terminator is switched on. CH1 is galvanically isolated from CH2. The M12 monitoring connector is connected to CH2 and does not form a third segment.

Connect ProfiTrace via a suitable M12 PROFIBUS adapter. When measuring the physical layer, you will be monitoring CH2; to measure CH1, connect to the first segment.

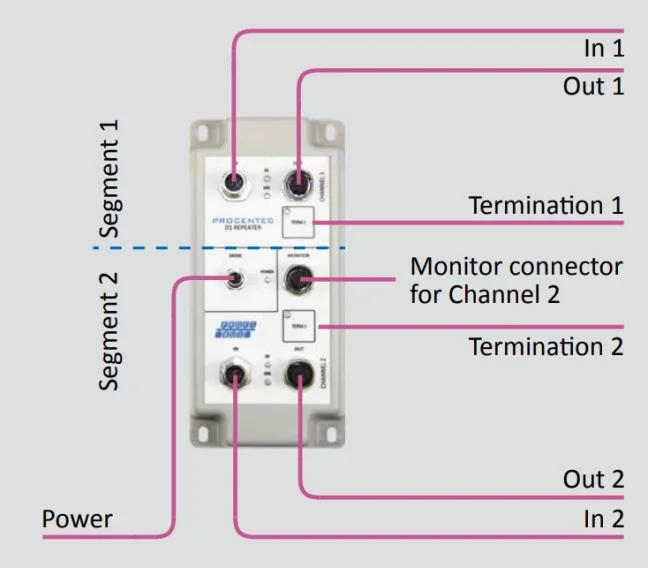

Splitting D1 into CH1 and CH2 with a monitoring port
Splitting D1 into CH1 and CH2 with a monitoring port
Wiring of the M12 communication connector and the M8 power connector D1
Wiring of the M12 communication connector and the M8 power connector D1
Installation and operation

Termination using the TERM button

Press and hold the TERM button for the relevant channel for 3 seconds. The yellow LED will indicate that termination is enabled. The setting will be retained even after the power is switched off. Terminate any unused channels.

Activating termination on D1 does not disconnect OUT. You should therefore only terminate through-cables according to the device’s actual position in the segment, to avoid creating an additional termination in the middle of the cable.

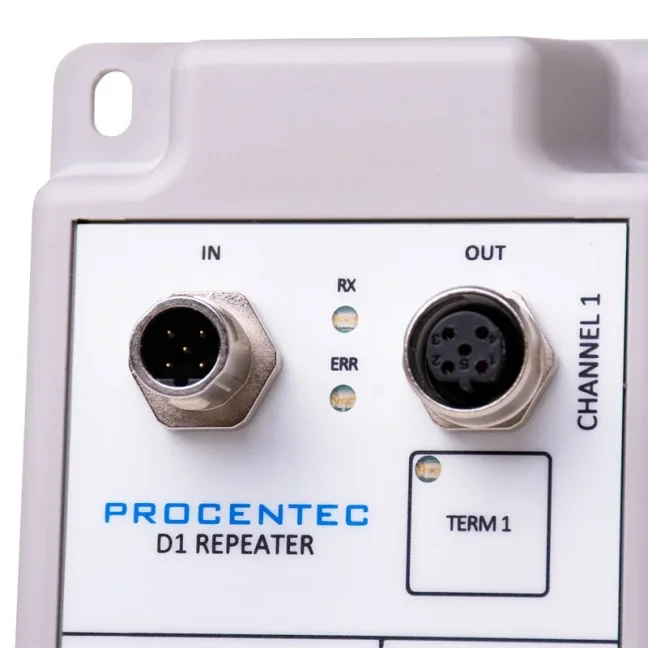

Detail of the first segment and the TERM1 button
Detail of the first segment and the TERM1 button
Installation and operation

Robust Repeating and timing

Standard mode repeats bits with a short delay. Robust Repeating first checks the initial byte of the message and does not forward a telegram with an invalid start. It does not correct arbitrarily corrupted messages.

To switch modes, press and hold both TERM buttons simultaneously for 5 seconds. The settings are retained when the power is switched off. Robust Repeating increases the delay, so please check the master’s timing before activating this feature.

Installation and operation

M8 power supply and sealed mounting

Connect the 12 to 24 V DC power supply using a four-pin M8 connector. Pins 1 and 2 are the positive supply, whilst pins 3 and 4 are 0 V. This is a different interface to the M12 communication interface, so select the connector according to its function and pin configuration.

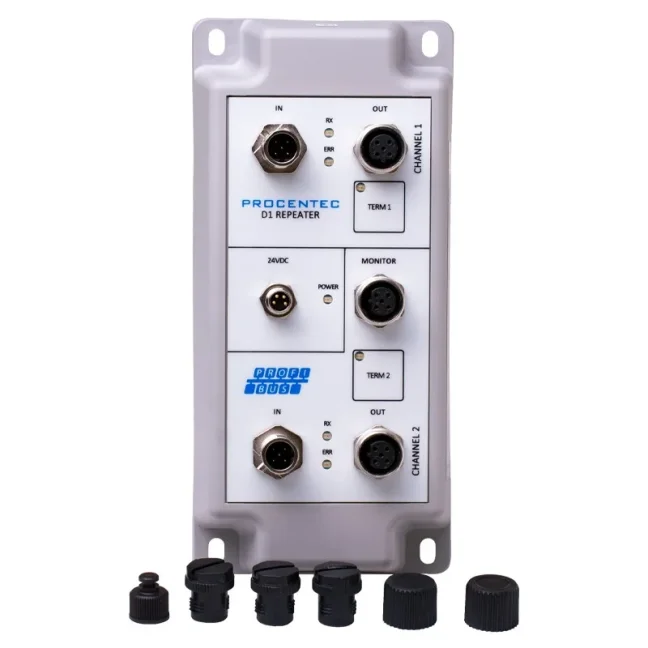

Secure the D1 to a flat surface using four M4 screws. Unused connectors must have their protective caps firmly tightened in place. For IP66 protection, use the appropriate mating connectors and sealed cables.

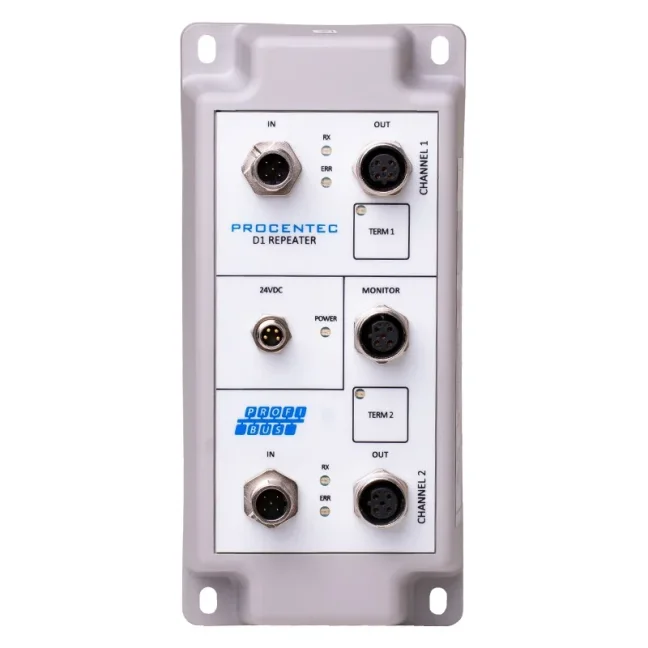

Front view of the D1 repeater
Front view of the D1 repeater

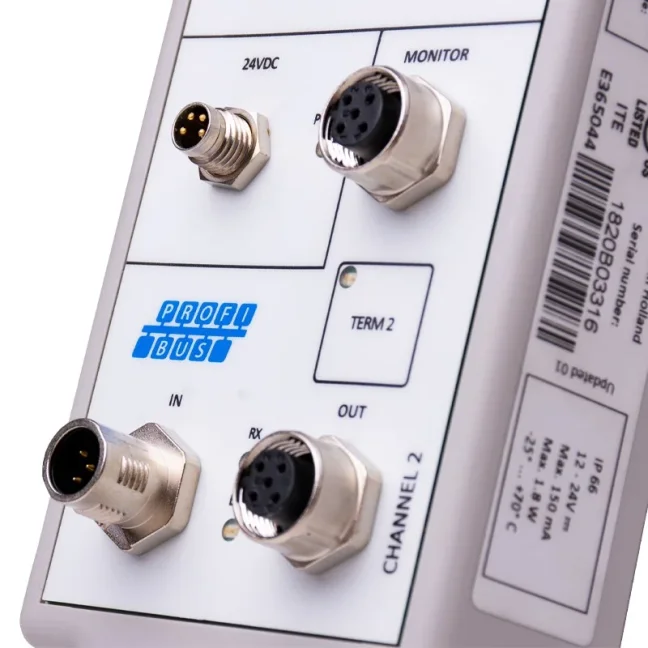

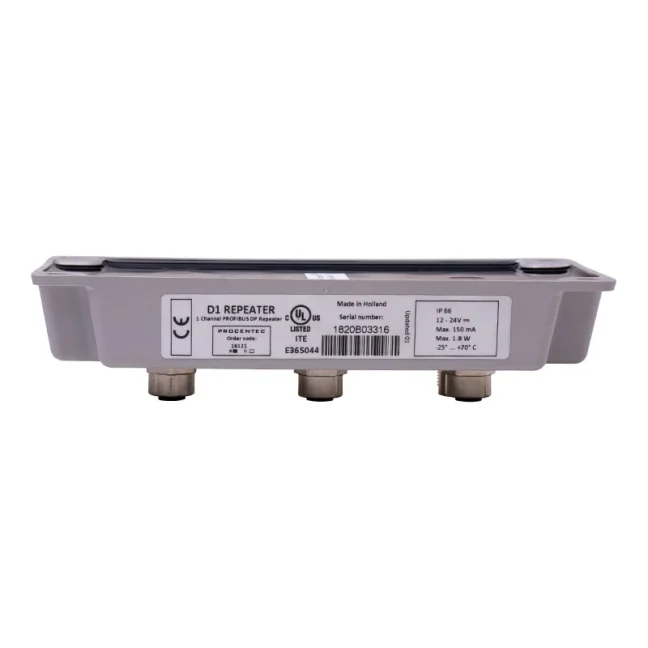

Monitoring port and connectors for the second D1 segment
Monitoring port and connectors for the second D1 segment
Installation and operation

Diagnostics for the standard D1 and the D1+D version

The standard D1 16121 features status LEDs, a monitoring port and Robust Repeating. The PROFIBUS diagnostic slave is part of the D1+D variant; we will check the label to confirm its availability on a specific unit. The GSD file alone does not add the diagnostic function to the standard D1.

D1+D uses GSD PROC6974.gsd. Once activated and configured, it transmits diagnostic data to a PLC, DCS or the ComBricks permanent PROFIBUS network analyser. The separate ComBricks system provides the web overview; D1 has no Ethernet web interface of its own.

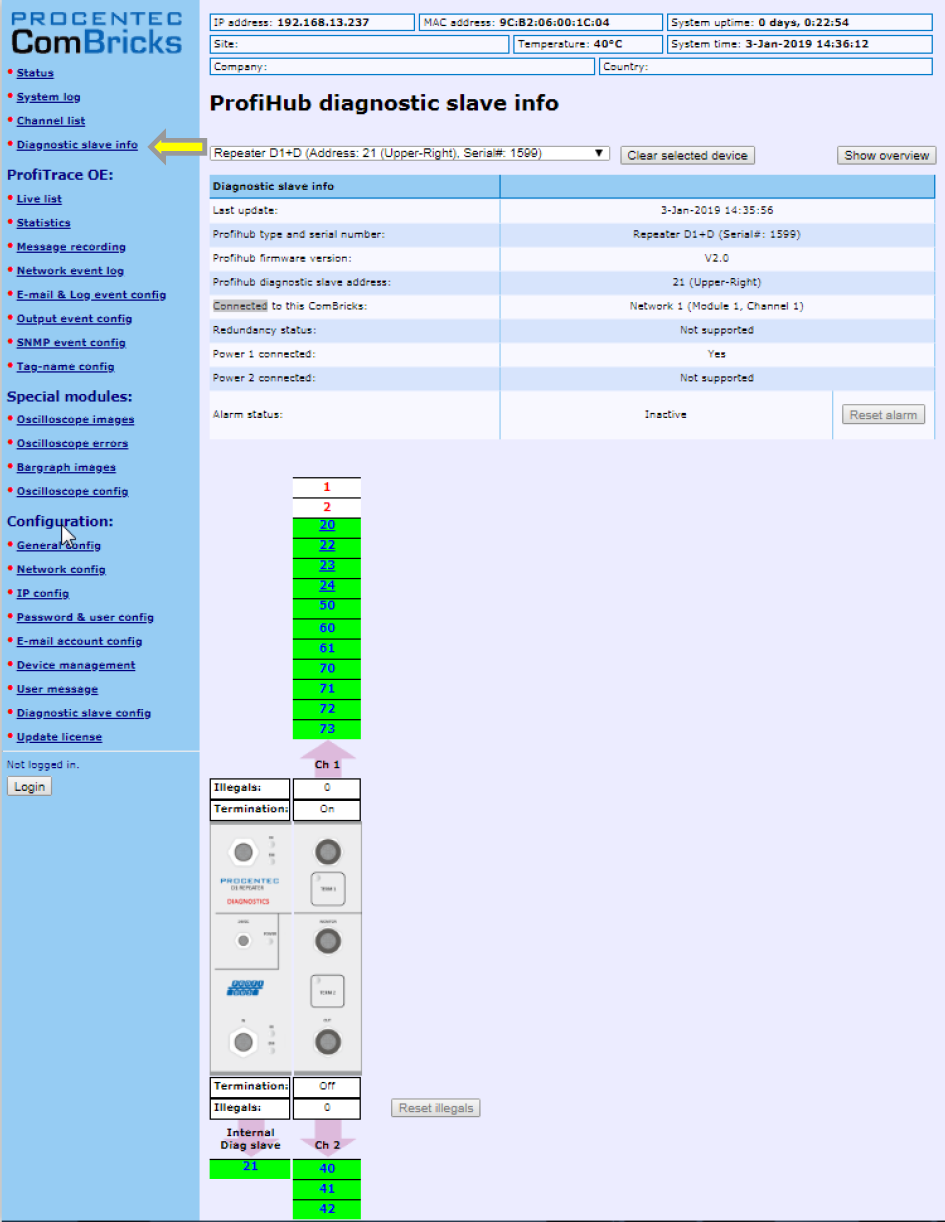

Illustration of the D1+D diagnostic configuration in ComBricks
Illustration of the D1+D diagnostic configuration in ComBricks
PROFIBUS DP metallic network

Cable length depending on the segment speed

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

More organised maintenance

Segments and correct termination

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Each segment has its own electrical specifications. During maintenance, the power supply and terminations of the segments that are to continue communicating must remain intact. The response to a missing peripheral is also determined by the PLC’s configuration and programme.

Operating modes

PLC configuration and commissioning

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

Technical specifications

D1 Repeater, order number 16121

Order number16121
SegmentsTwo galvanically isolated segments, CH1 and CH2
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s, automatic detection
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Devices per channelUp to 31 additional devices
Operating modesNormal repetition and Robust Repeating
Diagnostic DP slaveOnly the relevant D1+D version, GSD PROC6974.gsd; please check the specific item
PROFIBUS connectorsA pair of M12 IN/OUT connectors for each channel; connected even when the terminator is switched on
Monitoring connectorM12 connected to CH2
TerminationPowered and switchable; hold down TERM for 3 seconds
Power supplyRated 12-24 V DC, M8 male connector
M8 power supply pins1 and 2: positive supply; 3 and 4: 0 V
Current consumptionMax. 125 mA at 24 V DC
Reverse polarity protectionYes
Protection ratingIP66 with sealed mating parts and covers
Operating temperature-25 to +70 °C
InstallationFlat surface, four M4 screws
Dimensions79 × 169 × 42 mm
Net catalogue weight610 g

When installing, leave space for the connectors, cable bends and access to the controls. We will confirm the design and dimensions based on the specific delivery.

Contents of the delivery

Module and installation accessories

We will supply the Repeater D1 16121. We will confirm the contents of the supplied connectors, terminal blocks and mounting parts in the quotation. We will select the power supply, cables, fibre-optic patch cords and analysers according to the specific network and equipment configuration.

Practical questions

Selection and commissioning

How many segments does the D1 offer?

D1 has two galvanically isolated segments, CH1 and CH2. The IN and OUT pins of one channel and the CH2 monitoring port are connection points for these segments, not for further segments.

How do I switch termination on?

Hold down the TERM button for the selected channel for 3 seconds. A yellow LED indicates that termination is enabled, and the unit retains this setting even after it is switched off. On D1, the IN and OUT remain connected even when termination is enabled.

Does the M12 monitor measure both segments?

No. The monitoring port is for CH2. To monitor the electrical signal on CH1, connect the analyser to the first segment. Select the appropriate M12 PROFIBUS adapter for ProfiTrace.

What type of connector do I need for the power supply?

A four-pin M8 connector, with a socket matching the device’s connector. Pins 1 and 2 are for the positive power supply (12 to 24 V DC), whilst pins 3 and 4 are for 0 V. Do not confuse the M8 power connector with the M12 communication connector.

What is required for an IP66 rating?

Use sealed connectors and cables suitable for the environment in question. Securely cover any unused connectors with protective caps. An IP66 rating does not automatically imply resistance to every oil emulsion or chemical.

Does every D1 have a diagnostic slave for PLCs and ComBricks?

No. The standard D1 and the diagnostic version D1+D must be distinguished by their labels. GSD PROC6974.gsd is intended for D1+D. We will verify the diagnostic version for a specific delivery before placing the order.

PROFIBUS Technical Support

Why order from FOXON

We have been an official distributor for HMS Anybus (formerly PROCENTEC) since 2007.

Proposed network layout

We will review the network speed, cable lengths, number of stations and control cabinet locations. We will propose separate segments to suit the installation.

Selecting accessories

We will select the cabling, PROFIBUS connectors and power supply. We will check the termination of the individual segments.

Verification of a specific design

Before ordering, we will check the product order number, required functions and hardware revision.

Measurement and maintenance

We can help you distinguish between a physical layer problem and a communication error, and select the appropriate diagnostic tool.

Czech technical support

We will discuss specific wiring configurations, fault symptoms and options for long-term network monitoring.

Delivery in accordance with the project

Before placing an order, we will confirm the availability of the specific model, the quantity and the delivery date.

Network topologySegments, lengths and termination
DiagnosticsProfiHub, ProfiTrace and ComBricks
Czech supportConsultation on a specific installation
Documentation

Manuals and technical documentation

In the ‘Downloads’ tab, you will find the technical data sheet, manual and declaration of conformity. Please use the GSD files only for the relevant diagnostic version. For older units, please check the serial number and ensure the settings are correct.

Open downloads
PROFIBUS DP

Technical specifications of the Repeater D1

Order number 16121. Please refer to the specific model of the device for its specifications and functions.

Communication

Order number16121
SegmentsTwo galvanically isolated segments, CH1 and CH2
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s, automatic detection
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Devices per channelUp to 31 additional devices
Operating modesNormal repetition and Robust Repeating
Diagnostic DP slaveOnly the relevant D1+D version, GSD PROC6974.gsd; please check the specific item

Connections and power supply

PROFIBUS connectorsA pair of M12 IN/OUT connectors for each channel; connected even when the terminator is switched on
Monitoring connectorM12 connected to CH2
TerminationPowered and switchable; hold down TERM for 3 seconds
Power supplyRated 12-24 V DC, M8 male connector
M8 power supply pins1 and 2: positive supply; 3 and 4: 0 V
Current consumptionMax. 125 mA at 24 V DC
Reverse polarity protectionYes

Mechanical design

Protection ratingIP66 with sealed mating parts and covers
Operating temperature-25 to +70 °C
InstallationFlat surface, four M4 screws
Dimensions79 × 169 × 42 mm
Net catalogue weight610 g
Network design

Length of the metallic segment as a function of speed

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

Installation

Termination and operating conditions

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Before changing the operating mode, please check the relevant manual and version. We can help you check the label and accessories for the parameters of a specific delivery.

D1 Repeater · 16121

Frequently Asked Questions about the Repeater D1

Selection, connection, diagnostics and operating conditions.

Selection and use

How many segments does the D1 offer?

D1 has two galvanically isolated segments, CH1 and CH2. The IN and OUT pins of one channel and the CH2 monitoring port are connection points for these segments, not for further segments.

How do I switch termination on?

Hold down the TERM button for the selected channel for 3 seconds. A yellow LED indicates that termination is enabled, and the unit retains this setting even after it is switched off. On D1, the IN and OUT remain connected even when termination is enabled.

Does the M12 monitor measure both segments?

No. The monitoring port is for CH2. To monitor the electrical signal on CH1, connect the analyser to the first segment. Select the appropriate M12 PROFIBUS adapter for ProfiTrace.

What type of connector do I need for the power supply?

A four-pin M8 connector, with a socket matching the device’s connector. Pins 1 and 2 are for the positive power supply (12 to 24 V DC), whilst pins 3 and 4 are for 0 V. Do not confuse the M8 power connector with the M12 communication connector.

Wiring and diagnostics

What is required for an IP66 rating?

Use sealed connectors and cables suitable for the environment in question. Securely cover any unused connectors with protective caps. An IP66 rating does not automatically imply resistance to every oil emulsion or chemical.

Does every D1 have a diagnostic slave for PLCs and ComBricks?

No. The standard D1 and the diagnostic version D1+D must be distinguished by their labels. GSD PROC6974.gsd is intended for D1+D. We will verify the diagnostic version for a specific delivery before placing the order.

How do I activate Robust Repeating?

Press and hold both TERM buttons simultaneously for 5 seconds. The device remembers this mode even after it is switched off. Check the timing before activating this mode, as it increases the transmission delay.

Do I need to change the PLC programme?

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

Network operations

How many devices can be connected?

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

Will D1 eliminate all network outages?

Galvanic isolation helps to limit the spread of electrical faults and interference. It does not eliminate faulty cables, incorrect shielding or missing terminations. A disconnected station or a damaged segment will continue to affect the equipment on that segment and the PLC’s response.

Can the D1 be connected in a cascade?

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

Accessories1
