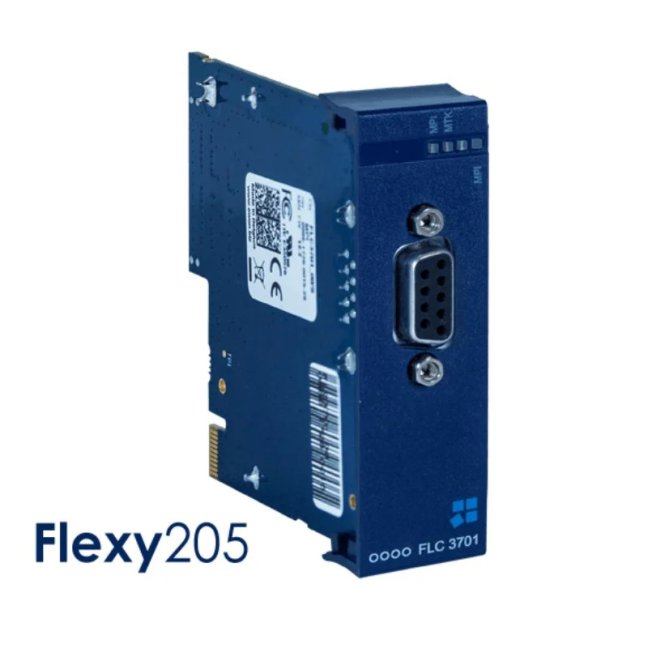

Card with 1x MPI port for Ewon Flexy 205
Expansion card with MPI port for the Ewon Flexy 205. Used to connect the Ewon Flexy router to a Siemens SIMATIC S7 PLC via the MPI interface for remote access and data acquisition. More
Code: FLC3701_00
Expansion card with MPI port for the Ewon Flexy 205. Used to connect the Ewon Flexy router to a Siemens SIMATIC S7 PLC via the MPI interface for remote access and data acquisition. More
Code: FLC3701_00
The FLC3701_00 card is used to expand the Ewon Flexy 205 router with an MPI port for connection to a Siemens SIMATIC S7 PLC.

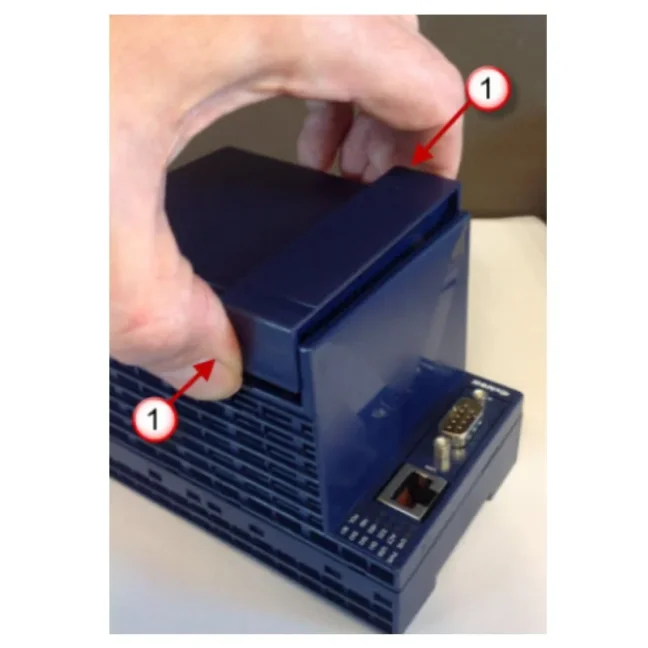

- The card is a Type C card and can be inserted into any supported slot on the Ewon Flexy 205 router.
- It is only compatible with the Ewon Flexy 205 router.

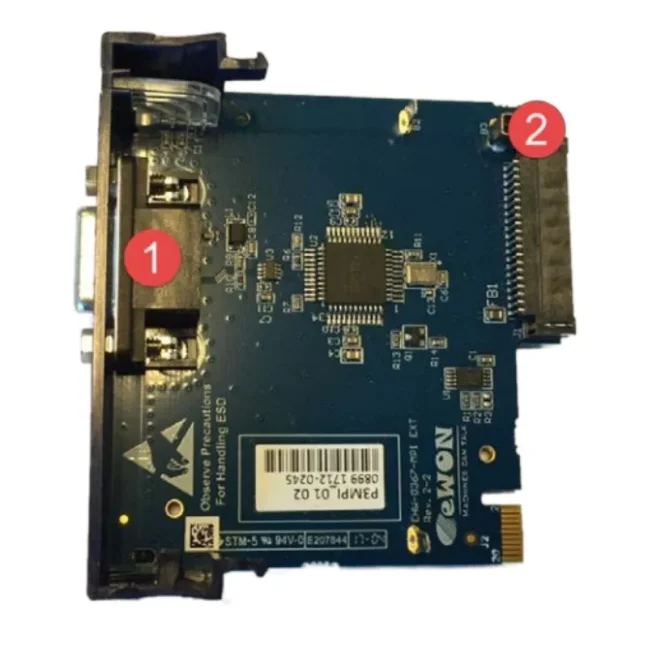

- For connection to the MPI bus, the card is fitted with 1× SUB-D9 female connector.
- It enables remote access and data acquisition from PLCs with an MPI interface via the Ewon Flexy router.
- It supports transparent communication between the ISOTCP and MPI/PROFIBUS (S7) protocols.

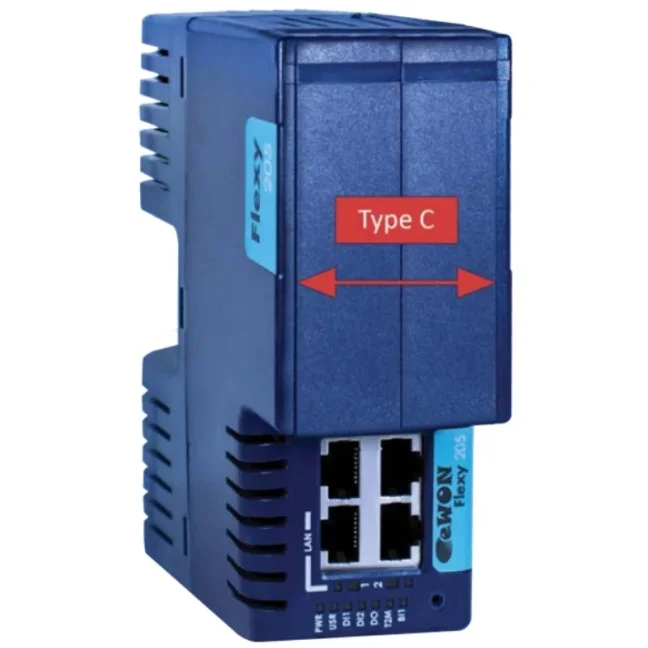

Card location
Technical specifications
MPI interface
- Card type: Type C MPI expansion card for the Ewon Flexy 205 router
- Compatibility: Ewon Flexy 205 only
- Number of ports: 1x MPI port
- Connector: SUB-D9 female
- Physical interface: MPI
- Galvanic isolation: 1500 V across the power supply insulation to earth
Mechanical design
- Dimensions: 22 x 79 x 78 mm (W x H x D)
- Weight: 37.5 g
- Housing material: plastic
- Battery: does not include a battery
Terms and Conditions
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 10 to 95 per cent, non-condensing
Certification
- Markings and certification: CE, UL, FCC, IC, UKCA
- Further certifications: Giteki Japan
- Environment tests: Operating and storage temperatures in accordance with IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 and IEC 60068-2-30
- Vibration and shock tests: in accordance with IEC 60068-2-27, IEC 60068-2-64 and IEC 60068-2-6
