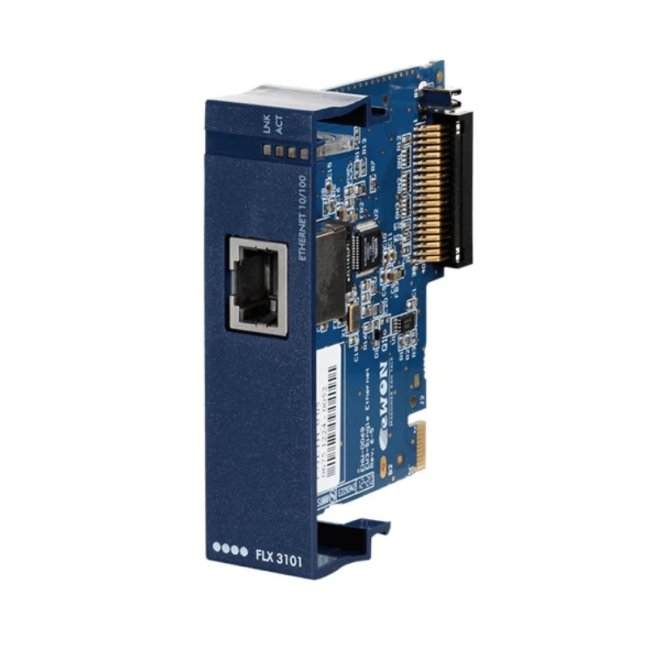

Card with Ethernet WAN port for Ewon Flexy 205
Expansion card with a 10/100 Mb/s Ethernet WAN port for the Ewon Flexy 205. It enables the router to be connected to the Talk2M cloud service via a fixed internet connection. More
Code: FLX3101_00
Expansion card with a 10/100 Mb/s Ethernet WAN port for the Ewon Flexy 205. It enables the router to be connected to the Talk2M cloud service via a fixed internet connection. More
Code: FLX3101_00
The FLX3101_00 card is used to expand the Ewon Flexy router with an Ethernet WAN port for a fixed network connection.

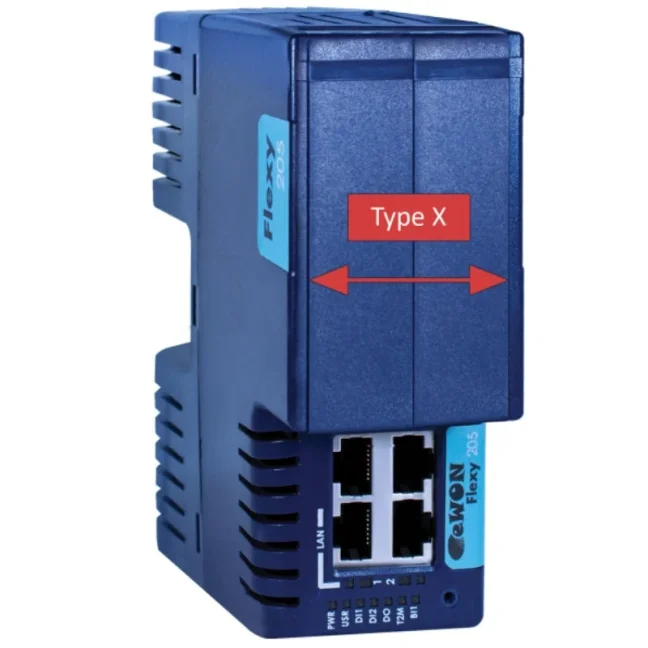

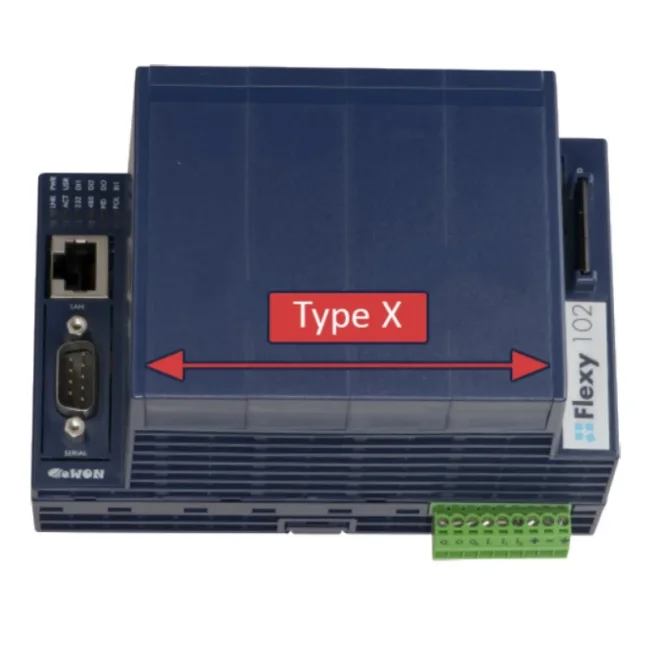

- The card is of type X and can be inserted into any supported slot on the Ewon Flexy router.
- Compatible with Ewon Flexy 10x, 20x and Flexy 205 routers.
- Adds 1× 10/100 Mb/s Ethernet WAN port with Auto Sense functionality.
- The Ewon Flexy router can only be fitted with one of these Ethernet WAN expansion cards.
NOTICE: An Ethernet cable is not included in the package and must be ordered separately or you must use your own.
Technical specifications
Ethernet connection
- Card type: X-type Ethernet WAN expansion card for Ewon Flexy routers
- Ethernet port: 1x Ethernet WAN 10/100 Mb/s
- Speed detection: Auto sense
- Maximum number of cards in the router: 1x FLX3101_00 Ethernet WAN card
- Ethernet cable included in the pack: No, the cable is not included
Mechanical design
- Dimensions: 22 x 79 x 74 mm (W x H x D)
- Weight: 32.5 g
- Housing material: plastic
- Battery: does not include a battery
Terms and Conditions
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 10 to 95 per cent, non-condensing
Certification
- Markings and certification: CE, UL, FCC, IC, UKCA
- Environment tests: Operating and storage temperatures in accordance with IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 and IEC 60068-2-30
- Vibration and shock tests: in accordance with IEC 60068-2-27, IEC 60068-2-64 and IEC 60068-2-6
