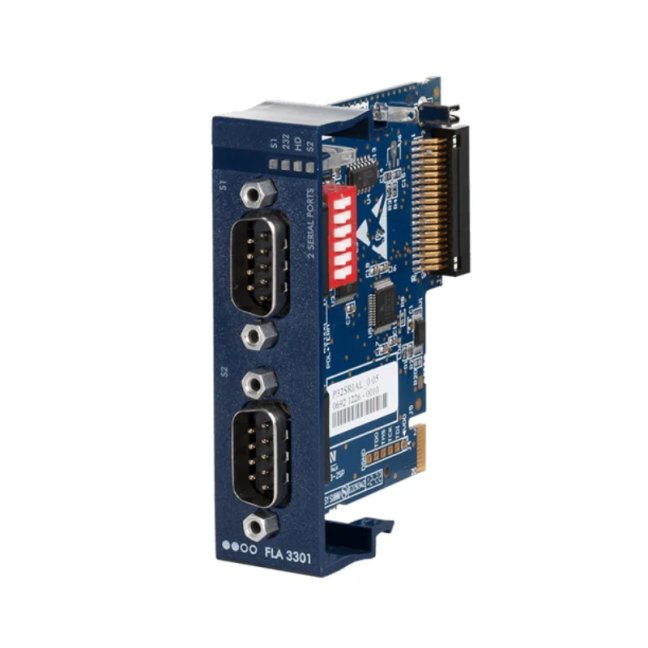

Card with 2x serial ports for Ewon Flexy 205
Expansion card with 2x serial ports for the Ewon Flexy 205. Used to connect the Ewon Flexy router to serial devices or PLCs via RS232, RS485 or RS422 interfaces. More
Code: FLA3301_00
Expansion card with 2x serial ports for the Ewon Flexy 205. Used to connect the Ewon Flexy router to serial devices or PLCs via RS232, RS485 or RS422 interfaces. More
Code: FLA3301_00
The FLA3301_00 card is used to expand the Ewon Flexy router with two serial ports for connecting serial devices or PLCs.

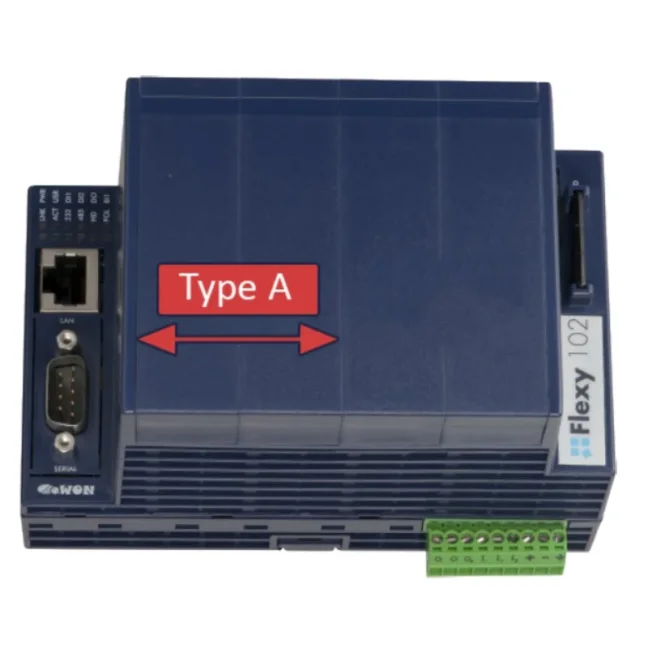

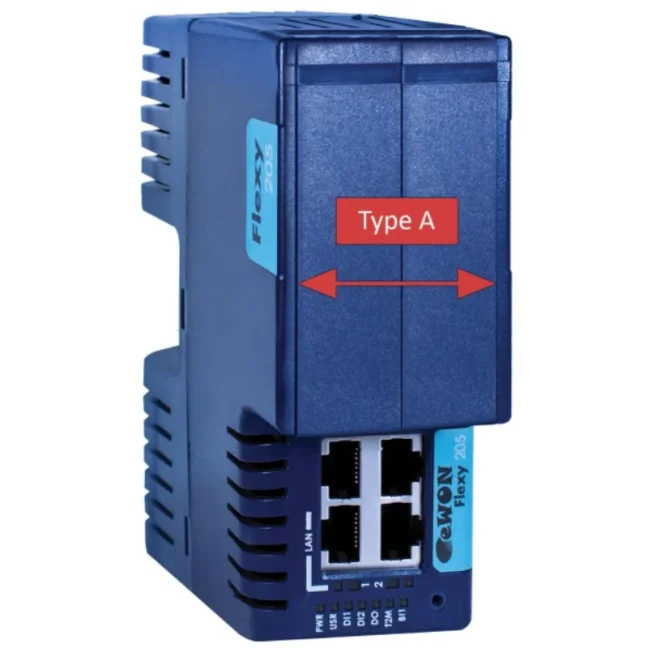

- The card is type A and is inserted into a supported slot on the Ewon Flexy router.
- Compatible with Ewon Flexy 10x, 20x and Flexy 205 routers.

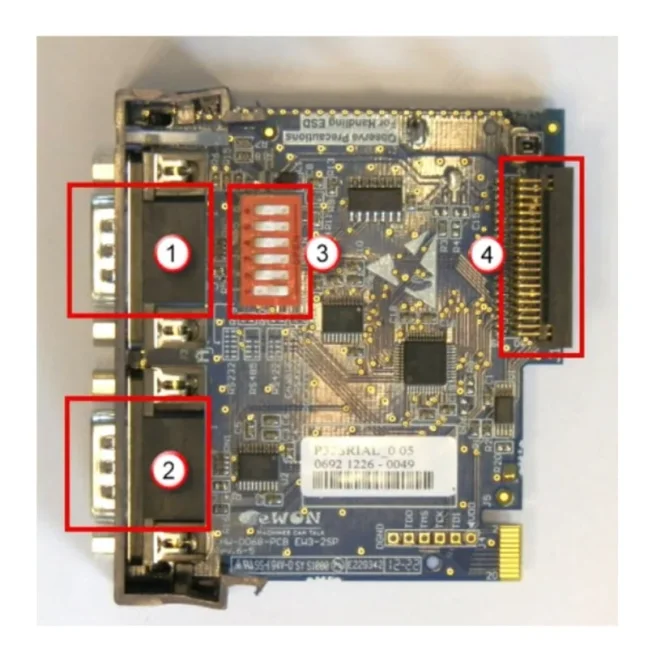

- The card is equipped with two serial ports: 1× RS232 and 1× RS232/RS485/RS422.
- The mode of the second RS232/RS485/RS422 port is selected using DIP switches.
- Both serial ports use a male SUB-D9 connector.
- This card is suitable for connecting the Ewon Flexy router to serial devices, PLCs or other industrial equipment.
Technical specifications
Serial interface
- Card type: Type A expansion serial card for Ewon Flexy routers
- Compatibility: Ewon Flexy 10x, 20x and Flexy 205
- Number of serial ports: 2
- Port 1: RS232/RS422/RS485, configurable via DIP switches
- Port 2: RS232
- Connectors: 2× SUB-D9 male
Mechanical design
- Dimensions: 22 x 79 x 78 mm (W x H x D)
- Weight: 40 g
- Housing material: plastic
- Battery: does not include a battery
Terms and Conditions
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 10 to 95 per cent, non-condensing
Certification
- Markings and certification: CE, UL, FCC, IC, UKCA
- Environment tests: Operating and storage temperatures in accordance with IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 and IEC 60068-2-30
- Vibration and shock tests: in accordance with IEC 60068-2-27, IEC 60068-2-64 and IEC 60068-2-6
