ComBricks - Fixed backplane HS + 2 Sub

Each ComBricks module from HMS Industrial Networks is factory-equipped with the appropriate backplane unit for connection to other modules. In case of damage or the need for replacement, we also offer these parts separately.

The ComBricks - Fixed backplane HS + 2 Sub serves as a spare component for modular PROFIBUS systems. It ensures reliable connection of individual modules when mounted on a DIN rail. The unit is compact – it cannot be disassembled and is extendible with additional standard ComBricks backplane units added on the right side.

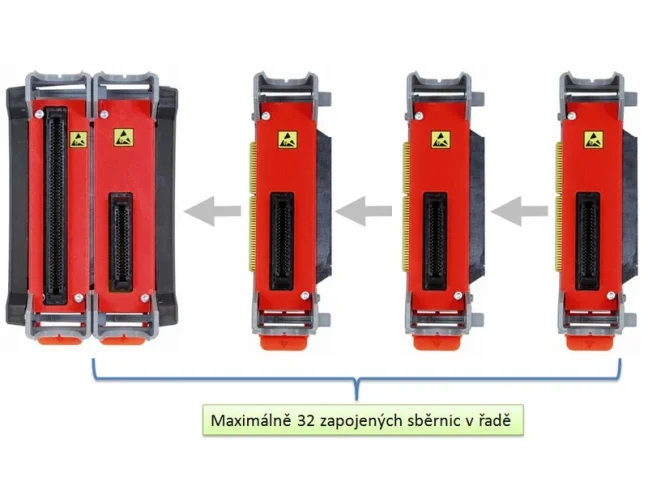

The ComBricks configuration consists of a head station module inserted in the leftmost slot of the fixed ComBricks backplane socket. Other ComBricks modules are inserted into the slots to the right of the head station – the backplane can be extended by adding more standard ComBricks backplane units. The ComBricks backplane can handle one head station and up to 32 additional modules (we recommend to insert a maximum of 10 modules into the backplane).

ComBricks is an intelligent solution for PROFIBUS networks that combines monitoring, diagnostics, and bus extension in a single system, enabling remote network status monitoring via a web interface.

Why choose the ComBricks backplane unit?
• Wide compatibility: Suitable for most ComBricks modules.
• Robust design: The construction prevents unwanted shifting.
• Modular expandability: Easily add additional modules as needed.

Technical specifications
• Type: Spare part
• Number of connectable modules: 1x Head Station + 2x others (as required)
• Mounting: Standard DIN rail
• Manufacturer: HMS Industrial Networks

Package contents

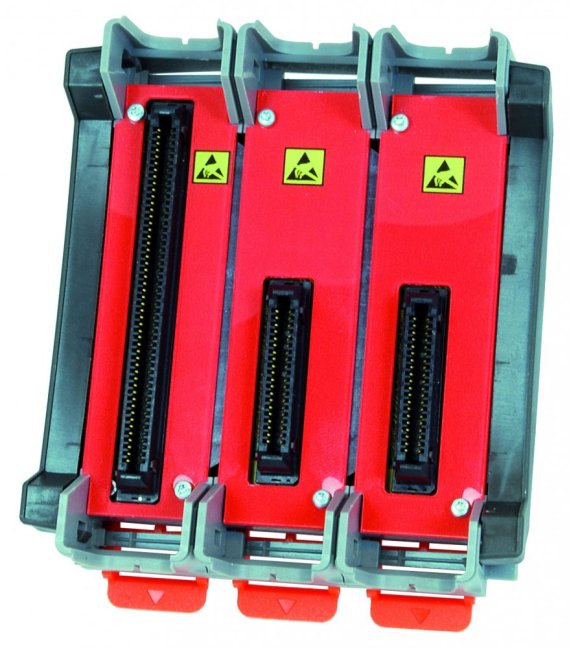

• 1 pc ComBricks backplane unit for one Head Station module and two other modules for DIN rail mounting

Usage recommendations
• Before connecting, check the number and type of modules – it must match the system length.
• Use the included documentation (see the Download section).
• Ensure correct positioning of the modules – a reliable connection eliminates the risk of instability or poor contacts.
