8 Channel Digital Input Module ComBricks

Add to favourites

8 Channel Digital Input Module ComBricks

-50% Sale of stock FOXON PLUS
HMS Industrial Networks

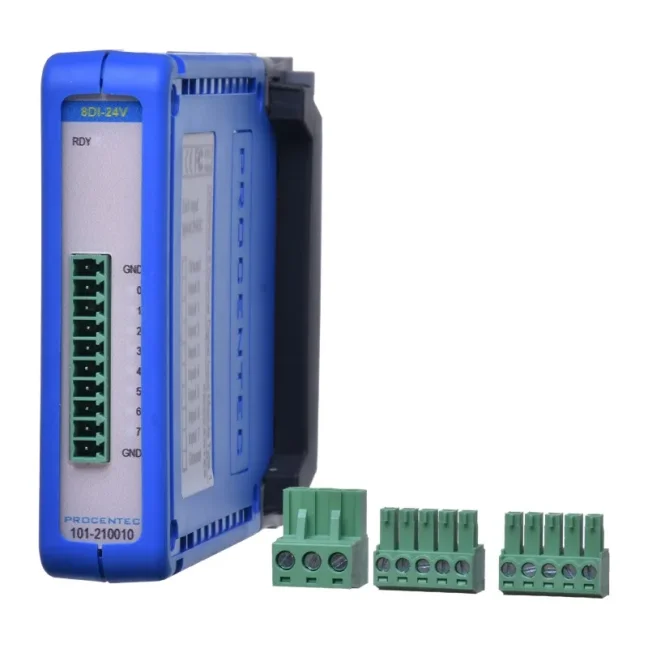

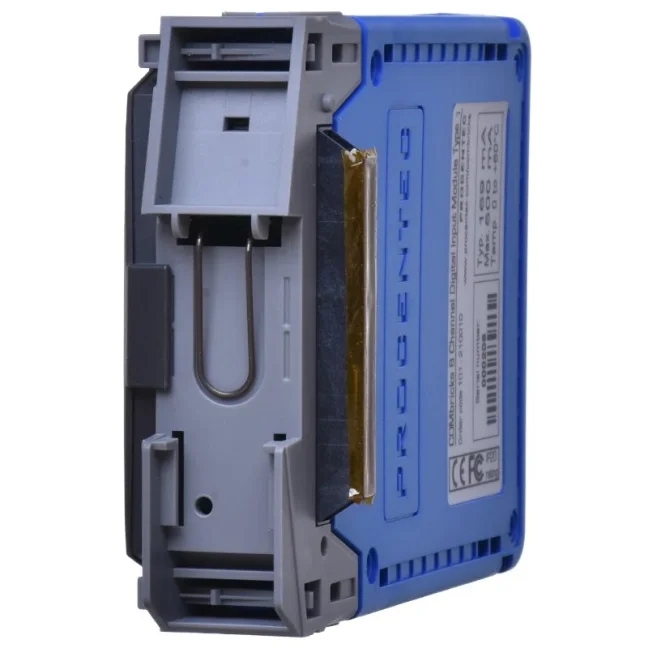

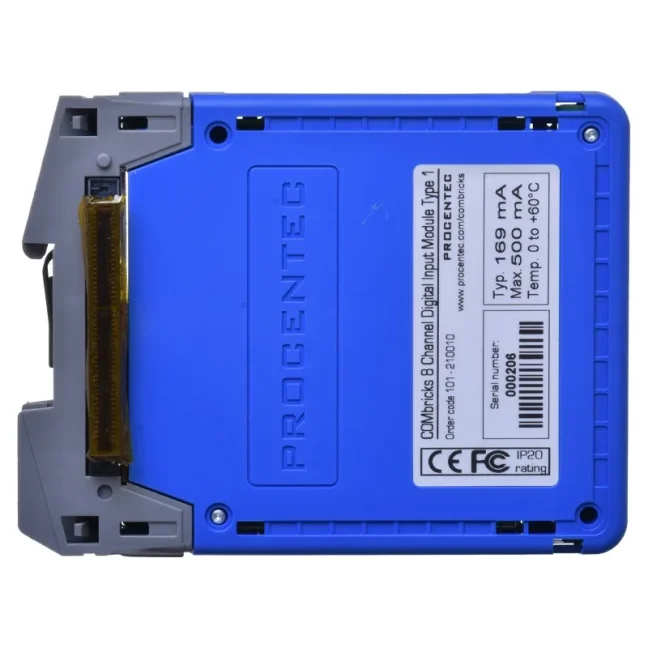

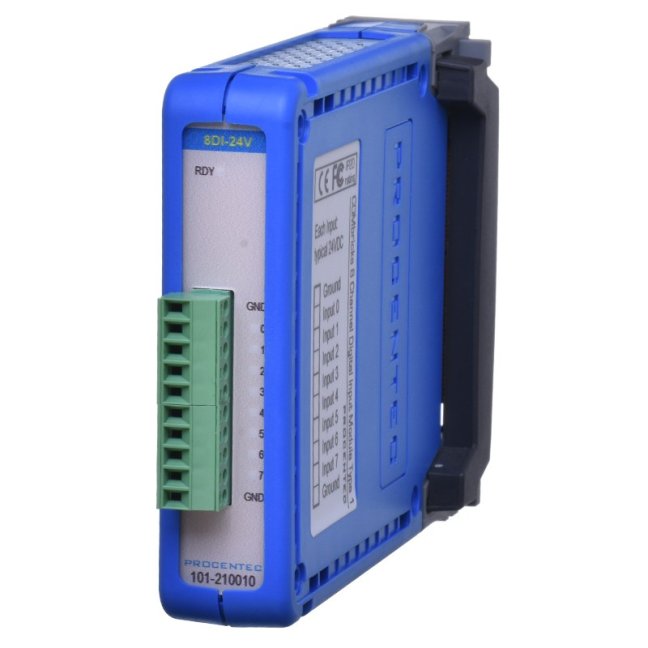

8-channel (8x digital input) digital input module from ComBricks, 24 VDC. It can be controlled via the web server, DP slave or PROFINET IO device. More

Code: 101-210010

Original price 308 EUR excl. VAT. Save 50% (154 EUR excl. VAT) 154 EUR excl. VAT (186,34 EUR Incl. VAT)
Recycling fee 0,016 EUR included in the price.
In stock
pcs
(2 pcs In stock)

Rezervace termínu

Get a quote
HMS Industrial Networks

8-channel (8x digital input) digital input module from ComBricks, 24 VDC. It can be controlled via the web server, DP slave or PROFINET IO device. More

Code: 101-210010

Technical specifications

Backplane

Controllers: PROFINET IO Device, PROFIBUS DP Slave
Modules: 32 (all slots)
Power supply: provided through the backplane
Current consumption: Typ. ±169 mA (500 mA max)
Compatible backplane units: 101-200011, 101-200022, 101-200023, 101-200024, 101-200027

Digital Inputs

8 digital inputs on 1 connector
240 mW at 24 V
3 .. 32 VDC
Input detection frequency: Max. 3 ms

Digital Input Connector

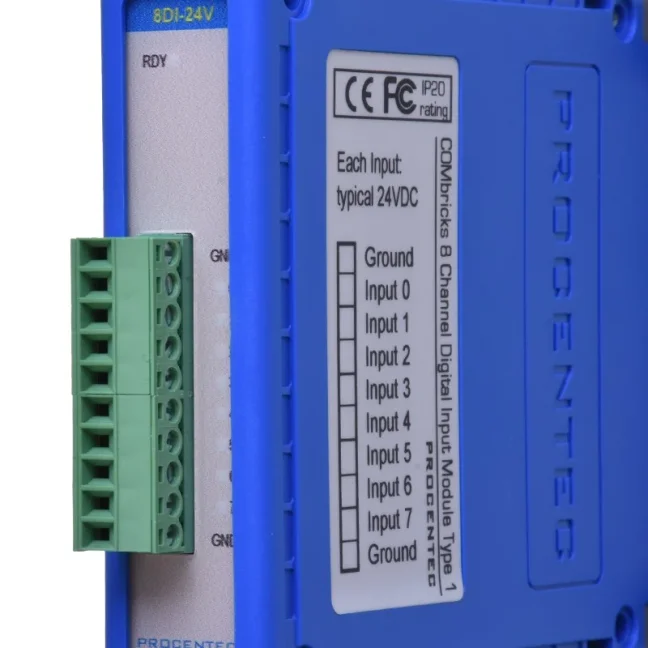

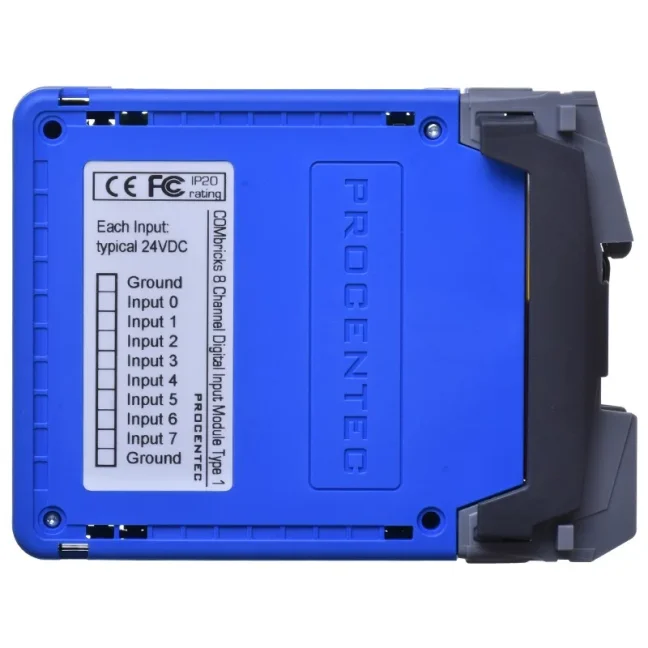

Pins: 1 = GND, 2 ..9 = D10..D17, 10 = GND1
Wire diameter (for the screw terminals): < 1.5 mm2
Wire type: Stranded or solid core

Others

Head Station firmware: V1.271 and later
Dimensions (LxWxH): 140 x 110 x 25 mm
Operating temperature: 0 .. 60 °C
Weight: 100 g
