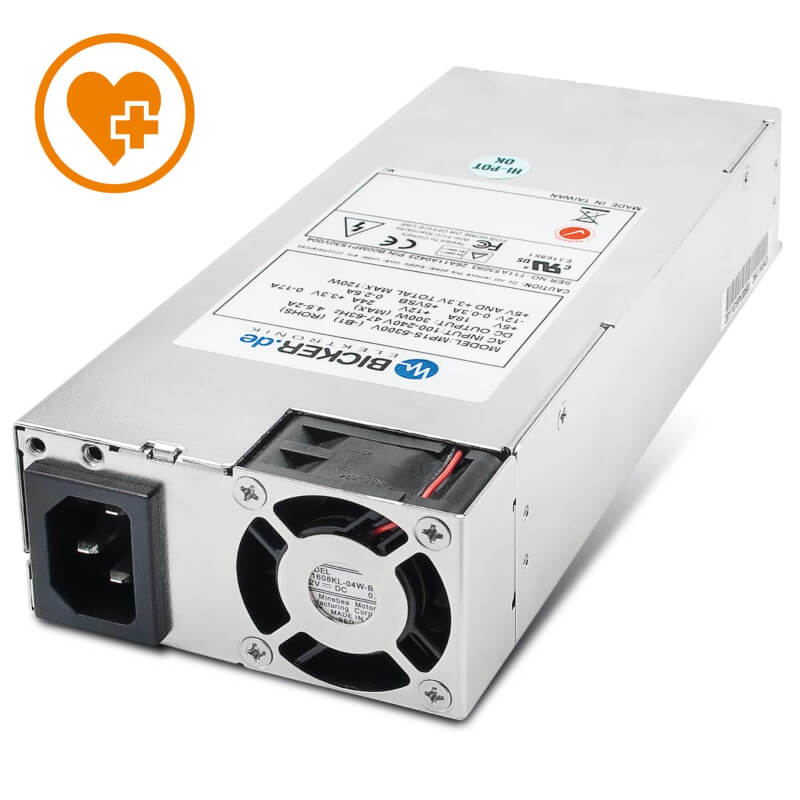

Bicker MP1S-5300V-B1 · medical PC power supply
300 W PC power supply for medical devices
The Bicker MP1S-5300V-B1 powers the motherboard, processor, storage devices and other PC components from a single compact power supply with an output of up to 300 W. It provides +3.3 V, +5 V, +12 V, −12 V and +5 Vsb rails and is designed for integration into medical devices in accordance with IEC/EN 60601-1.
Are you building or upgrading a medical PC system?
Send us the motherboard, processor and other components you need to power. We will help you check the load on the individual power rails and whether the MP1S-5300V-B1 is suitable for your system.
One power supply for the motherboard and other PC components
The MP1S-5300V-B1 converts 90–264 VAC mains voltage into all standard power rails required by a PC system. This means there is no need to use several separate power supplies for the motherboard, processor, storage devices and other components.
The total output power is up to 300 W. The main +12 V rail provides up to 24 A, and the individual outputs do not require a minimum load. The power supply is therefore suitable for compact medical and professional PC systems where standard PC power is required in a design intended for integration into equipment.
One power supply can power the motherboard, processor, storage devices and other components. The limits of the individual power rails must also be taken into account when designing the system.
+3.3 V, +5 V, +12 V, −12 V and +5 Vsb standby rails are available, so there is no need to generate the individual voltages using additional converters.
The wide input voltage range allows the same power supply to be used in devices intended for different countries and mains systems.
Output voltages and available currents
When choosing a PC power supply, the total 300 W rating is not the only value that matters. You also need to check the current required by the processor, motherboard and other components on each individual power rail.
| Output voltage | Maximum current |
|---|---|
| +3.3 VDC | 17 A |
| +5 VDC | 18 A |
| +12 VDC | 24 A |
| −12 VDC | 0.3 A |
| +5 Vsb | 2.5 A |
A suitable foundation for a medical PC system
For a medical device, using a standard PC power supply simply because it has the required power and connectors is not enough. The power supply section must meet higher requirements for electrical safety and insulation.
The MP1S-5300V-B1 complies with IEC/EN 60601-1 3rd Edition and UL 60601-1 3rd Edition. Between the mains input and the outputs, it provides 4000 VAC insulation corresponding to 2× MOPP, while the leakage current is below 300 µA at both 115 VAC and 230 VAC.
This makes the power supply a suitable building block for medical PCs and other devices where patient protection and leakage current limits need to be considered from the design stage.
The power supply is designed for use in medical electrical equipment and complies with the relevant requirements of IEC/EN 60601-1.
The 4000 VAC insulation between the mains input and the outputs provides two means of patient protection between the mains supply and the powered electronics.
The low leakage current makes it easier to design equipment where the total leakage current of the entire medical system must be kept under control.
Safety of the final device
A certified power supply simplifies the design, but does not replace assessment of the complete device
The MP1S-5300V-B1 is a component intended for integration into the final product. Using a medical-grade power supply helps meet the requirements for the power section of the device, but the final equipment must still be assessed as a complete system.
The power supply must be installed inside a suitable metal enclosure and is not intended for standalone operation outside the final device.
After installation, the electromagnetic compatibility of the complete device must be verified in its actual configuration.
In addition to the power supply itself, the mechanical design, protective grounding, wiring and other parts of the final device must also be assessed.
Lower mains load and reduced noise during normal operation
The MP1S-5300V-B1 uses active PFC to improve the way current is drawn from the mains and reduce unnecessary loading of the power infrastructure. This is particularly useful in professional systems where several power supplies may be used within one device or installation.
Efficiency reaches 80–84% at full load. Part of the input power is therefore converted into heat, which is removed by the integrated fan. Its speed is regulated according to operating conditions, so it does not have to run continuously at maximum speed and the power supply can operate more quietly under lower thermal load.
Helps improve the way the power supply draws current from the mains and reduces unnecessary loading of the power infrastructure.
Higher efficiency means a smaller share of the input power is converted into waste heat inside the device.
Fan speed control adapts the cooling performance to current operating conditions and helps reduce unnecessary fan noise.
Standard PC cabling simplifies integration
The power supply uses standard connectors for the motherboard, processor power, PCI Express card and storage devices. When designing a custom medical PC, there is therefore no need to create a special wiring harness for the individual power rails.
20+4-pin ATX/EPS connector for the motherboard and 4+4-pin P4/EPS connector for the processor power supply.
The 6+2-pin PCI Express connector allows a compatible expansion card to be powered directly from the power supply.
Four SATA connectors are supplemented by HDD and FDD power connectors, allowing several internal devices to be connected without an additional power supply.
Short power interruptions do not necessarily restart the computer immediately
The power supply can bridge a very short loss of input voltage. The hold-up time is greater than 16 ms, so a very brief voltage dip or interruption does not necessarily result in an immediate drop in the output voltages.
The Power Good signal also informs the motherboard whether the supply voltages are within the required range. After power-up, it is activated with a delay of 100–500 ms, and when the correct power conditions are lost, the specified switch-off delay is 1 ms.
Built-in protections help limit the effects of faults
If a short circuit, overload or excessive output value occurs, the integrated protection functions help prevent prolonged operation outside the permitted conditions.
In the event of a short circuit, the power supply either switches off the affected output or automatically resumes operation after the fault is removed, depending on the particular power rail.
If the permitted load is exceeded to approximately 110–160%, the power supply switches off to prevent prolonged operation beyond its rated capability.
The main +3.3 V, +5 V and +12 V rails are protected against exceeding defined voltage and current limits.
Scope of delivery
- 1× Bicker MP1S-5300V-B1 medical PC power supply with permanently attached cabling containing the following connectors:
- 1× ATX/EPS 20+4 pin connector, length approx. 350 mm
- 1× P4/EPS 4+4 pin connector, length approx. 370 mm
- 1× PCI Express 6+2 pin connector, length approx. 400 mm
- 2× HDD power connectors
- 1× FDD power connector
- 4× SATA power connectors
The X1-184 mounting kit for installation in a standard 1U chassis measuring 100 × 190 mm is not included and can be ordered separately.
The X1-132 mains power cord with European plug and IEC 60320 C13 connector is not included and can be ordered separately.
About the manufacturer
Bicker Elektronik
Bicker Elektronik is a German manufacturer that has been developing and supplying power supplies, DC/DC converters, UPS systems and other components for industrial and professional computer applications since 1994.
Its portfolio also includes power supplies for medical technology. The MP1S-5300V-B1 combines standard PC power rails and connectors with the safety features required for integration into medical devices.
Why buy from FOXON
Do you need a power supply for a medical PC system?
Send us your PC configuration or a list of the components you need to power. We will check the required output power, load on the individual power rails and whether the MP1S-5300V-B1 is suitable for your application.
Request a solutionBook an online meeting
Do you need help checking the required power, load on the individual rails or suitability for a medical PC system? Choose a convenient time for a short online consultation in the calendar below.
Technical parameters
Basic specifications
- Device type: medical AC/DC PC power supply for integration
- Model: MP1S-5300V-B1
- Power: 300 W
- Input: 90–264 VAC
- Outputs: +3.3 VDC, +5 VDC, +12 VDC, −12 VDC, +5 Vsb
- PFC: active
- Cooling: integrated temperature-controlled fan
- Design: compact power supply for integration into equipment
Input parameters
- Input voltage range: 90–264 VAC
- Input frequency: 47–63 Hz
- Input current: 4.5 A at 115 VAC / 2 A at 230 VAC
- Inrush current: 70 A at 115 VAC / 140 A at 230 VAC
- Power factor correction: active PFC
- Efficiency: 80–84% at 115 VAC and full load
Output parameters
- +3.3 VDC: 0–17 A, regulation ±5%, ripple and noise max. 60 mV
- +5 VDC: 0–18 A, regulation ±5%, ripple and noise max. 60 mV
- +12 VDC: 0–24 A, regulation ±5%, ripple and noise max. 120 mV
- −12 VDC: 0–0.3 A, regulation ±10%, ripple and noise max. 120 mV
- +5 Vsb: 0–2.5 A, regulation ±5%, ripple and noise max. 60 mV
- Maximum total output power: 300 W
- Combined +3.3 V and +5 V output power: max. 120 W
- Minimum output load: not required
Power Good and short power interruption bridging
- Hold-up time: more than 16 ms
- Power Good – switch-on delay: 100–500 ms
- Power Good – switch-off delay: 1 ms
Electrical safety and certifications
- Medical safety: IEC/EN 60601-1, 3rd Edition
- Additional safety standard: UL 60601-1, 3rd Edition
- Insulation voltage input / output: 4000 VAC, 2× MOPP
- Insulation voltage input / protective earth: 1500 VAC, 1× MOPP
- Insulation resistance: 100 MΩ at 500 VDC test voltage between input and output and between input and protective earth
- Leakage current: <300 µA at 115 VAC / 230 VAC
- Protection class: I
- Certifications / markings: TÜV, CCC, CE; UL 60601-1
Protection functions
- Short-circuit protection: +5 V and +12 V – switch-off; +3.3 V, −12 V and +5 Vsb – automatic recovery after the fault is removed
- Overload protection: 110–160%, switch-off
- Overvoltage protection +3.3 V: 3.6–4.3 V
- Overvoltage protection +5 V: 5.6–6.5 V
- Overvoltage protection +12 V: 13.2–15 V
- Overcurrent protection +3.3 V: 18.7–27.2 A
- Overcurrent protection +5 V: 19.8–28.8 A
- Overcurrent protection +12 V: 26.4–38.4 A
Operating conditions
- Operating temperature: 0 to +50 °C
- Storage temperature: −20 to +80 °C
- Operating humidity: 10–85% RH, non-condensing
- Storage humidity: 10–90% RH, non-condensing
- Maximum operating altitude: 3000 m
- MTBF: more than 187,000 hours according to MIL-HDBK-217F at +25 °C with fan
- Environment: dry indoor areas only
Mechanical design and installation
- Dimensions (W × D × H): 81.5 × 190 × 40.3 mm ±0.5 mm
- Weight: 1.2 kg
- Installation: intended for integration into a suitable metal enclosure
- Mounting screws: 6#-32 × L6 thread
- Cooling during installation: free air circulation must be ensured and ventilation openings must not be covered
PC component connections
- ATX/EPS: 20+4 pin, cable length approx. 350 mm
- P4 / EPS: 4+4 pin, cable length approx. 370 mm
- PCI Express: 6+2 pin, cable length approx. 400 mm
- HDD: 2× power connector
- FDD: 1× power connector
- SATA: 4× power connector
Frequently Asked Questions about the Bicker MP1S-5300V-B1 Medical PC Power Supply
Use and outputs
What is the Bicker MP1S-5300V-B1?
The MP1S-5300V-B1 is a medical AC/DC PC power supply with a maximum output power of 300 W. From a 90–264 VAC mains input, it provides the standard PC power rails +3.3 V, +5 V, +12 V, −12 V and +5 Vsb. It is designed as a built-in component for powering a computer or individual PC components in medical and professional equipment.
What is the maximum output power of the MP1S-5300V-B1?
The maximum total output power is 300 W. When designing the system, the load limits of the individual power rails must also be taken into account. The combined output power of the +3.3 V and +5 V rails is limited to 120 W.
What outputs does the MP1S-5300V-B1 provide?
The power supply provides +3.3 VDC / 17 A, +5 VDC / 18 A, +12 VDC / 24 A, −12 VDC / 0.3 A and standby +5 Vsb / 2.5 A outputs. The maximum total output power is 300 W.
What connectors does the MP1S-5300V-B1 have?
The power supply has permanently attached cabling with an ATX/EPS 20+4-pin connector for the motherboard, a P4/EPS 4+4-pin connector for the processor, a PCI Express 6+2-pin connector, four SATA connectors, two HDD power connectors and one FDD connector.
Medical safety and 2× MOPP
Why is the MP1S-5300V-B1 classified as a medical PC power supply?
The power supply complies with IEC/EN 60601-1 and UL 60601-1 requirements. It also offers increased dielectric strength and low leakage current, which are important when designing the power supply section of medical electrical equipment.
What does 2× MOPP mean for the MP1S-5300V-B1?
Between the mains input and the outputs, the dielectric strength is 4000 VAC, corresponding to two Means of Patient Protection – 2× MOPP. Between the mains input and protective earth, the dielectric strength is 1500 VAC, corresponding to 1× MOPP.
What leakage current does the MP1S-5300V-B1 have?
The leakage current is below 300 µA at both 115 VAC and 230 VAC input voltage. Low leakage current is especially important when designing medical equipment, where the total leakage current of the complete system must be taken into account.
Does using the MP1S-5300V-B1 automatically certify the complete medical device?
No. The MP1S-5300V-B1 is a power supply component designed for integration. After installation, the complete equipment must comply with the applicable safety and electromagnetic compatibility requirements as a whole.
Operation and protection functions
Does the MP1S-5300V-B1 have a fan?
Yes. The power supply uses an integrated temperature-controlled fan. During installation, free airflow must be ensured and the ventilation openings must not be blocked.
Can the MP1S-5300V-B1 bridge a short power interruption?
Yes, but only for a very short period. The hold-up time is longer than 16 ms. Energy stored in the input stage can therefore bridge short voltage dips or mains interruptions lasting only a few milliseconds.
Is the MP1S-5300V-B1 a replacement for a UPS?
No. A hold-up time of more than 16 ms is intended only for bridging very short power interruptions. If the computer must continue operating during a longer outage or shut down safely, a separate UPS is required.
What protection functions does the MP1S-5300V-B1 provide?
The power supply includes protection against short circuits, overload, overvoltage and overcurrent. In the event of a short circuit, some outputs switch off, while others automatically resume operation once the fault has been removed. At approximately 110–160 % of the specified output power, the power supply shuts down due to overload.
Installation and selection
What are the dimensions of the MP1S-5300V-B1 and is it suitable for a 1U chassis?
The power supply measures 81.5 × 190 × 40.3 mm. The optional X1-184 mounting kit is available for installation in a standard 1U chassis measuring 100 × 190 mm and includes a front panel and rear mounting bracket.
What is the operating temperature range of the MP1S-5300V-B1?
The operating temperature range is 0 to +50 °C. The storage temperature range is −20 to +80 °C. The power supply is intended for use in dry indoor environments without condensation.
When is the MP1S-5300V-B1 a suitable choice?
It is suitable for medical and professional PC systems that require up to 300 W, standard PC power rails and connectors, and a power supply component compliant with IEC/EN 60601-1 with 2× MOPP isolation between the mains input and the outputs.
What is the main difference between the MP1S-5300V-B1 and MP1S-6400V-B1?
The MP1S-5300V-B1 provides a maximum output power of 300 W and has a length of 190 mm. The MP1S-6400V-B1 provides 400 W, is 250 mm long and additionally includes a separate +24 VDC / 6 A output for powering peripherals. When choosing between the two models, the required output power, the need for 24 V power and the available installation space should therefore be considered.
