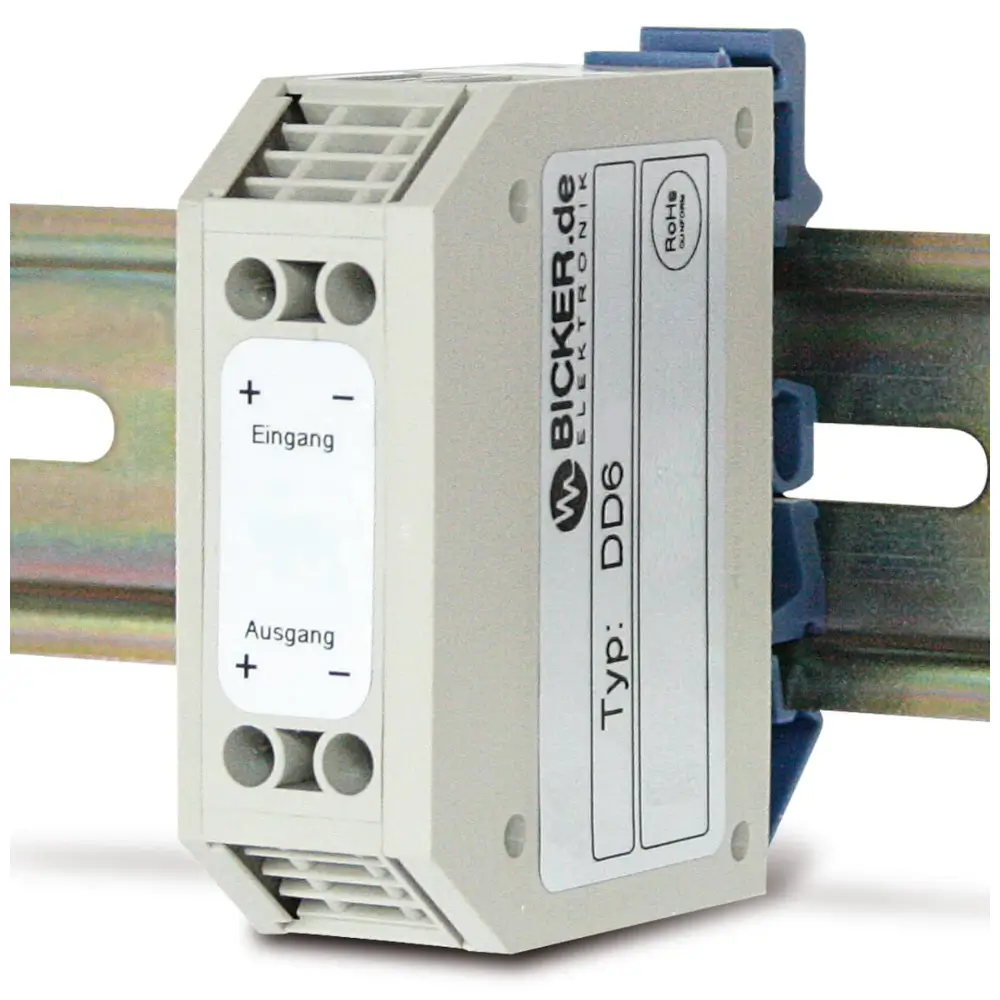

6 W DC/DC voltage converter Bicker (9–36 VDC → 5 / 10 / 12 / 24 VDC) - Type: 9–36 VDC ⟹ 24 VDC

Basic parameters of the DD6 series

• Input voltage: 9–36 VDC (4:1)
• Power: 6 W
• Output voltage: depending on the variant 5 V / 10 V / 12 V / 24 VDC
• Galvanic isolation input/output: yes
• Isolation voltage: 1500 VDC (I/O)
• Efficiency: approx. 78 %
• Mounting: on DIN rail
• Connection: screw terminals
• Cooling: convection (fanless)
• Dimensions: 61 x 21 x 62 mm ±0.8 mm
• Operating temperature: -20 to +60 °C
• Storage temperature: -40 to +85 °C

Variants and key differences

Frequently Asked Questions about Bicker DD6 DC/DC Converters

What is Bicker DD6?

DIN-rail DC/DC converters for converting 9–36 VDC to a stable 5 V / 10 V / 12 V / 24 VDC output (depending on the variant) with a power rating of 6 W.

Where is DD6 used?

For local power supply of low-power electronic modules in control cabinets that require regulated 5/10/12/24 VDC (depending on the variant), even when the 9–36 VDC input supply fluctuates, or when a galvanically isolated supply branch is required.

Can the converter be used for parallel operation or battery charging?

The converter is not intended for parallel operation or for charging batteries.
It is not designed to power high-load devices or an entire control cabinet supply branch.
It is designed as a regulated power source for supplying electronic devices.

Why choose a DC/DC converter with galvanic isolation?

Galvanic input/output isolation helps separate power branches with different potentials and reduces issues related to ground loops and noise transfer between parts of the installation.

Which DD6 variant should I choose?

The variants differ in output voltage and maximum output current: DD6-5 (5 V, up to 1.00 A), DD6-10 (10 V, up to 0.50 A), DD6-12 (12 V, up to 0.47 A), DD6-24 (24 V, up to 0.23 A).

What temperature range does DD6 support?

Operating temperature range: -20 to +60 °C.

Storage temperature: -40 to +85 °C.

How is DD6 protected against output short circuit?

The converter features output short-circuit protection. In the event of a short circuit, it limits the output to prevent damage and automatically returns to normal operation after the fault is removed (auto-recovery).

What type of cooling does DD6 use?

The converter uses convection cooling (fanless) for silent operation and fewer mechanical components.

What mounting and connection type does DD6 use?

DIN-rail mounting with screw terminal connections.
