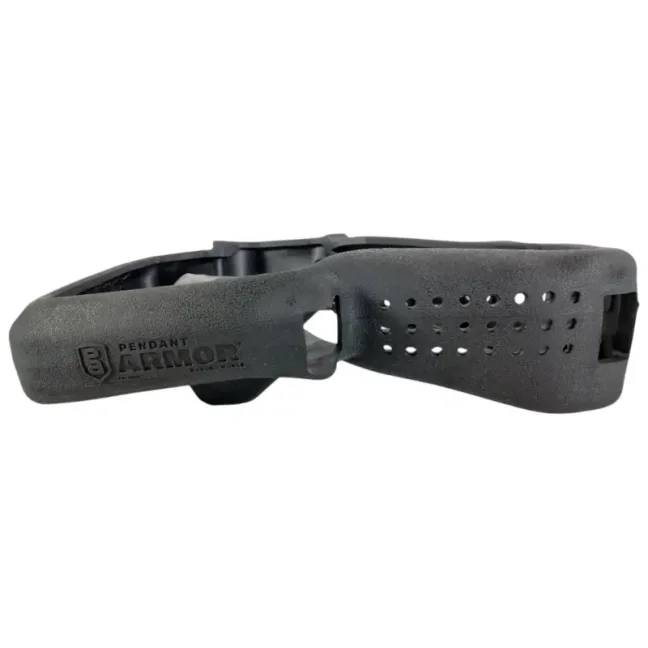

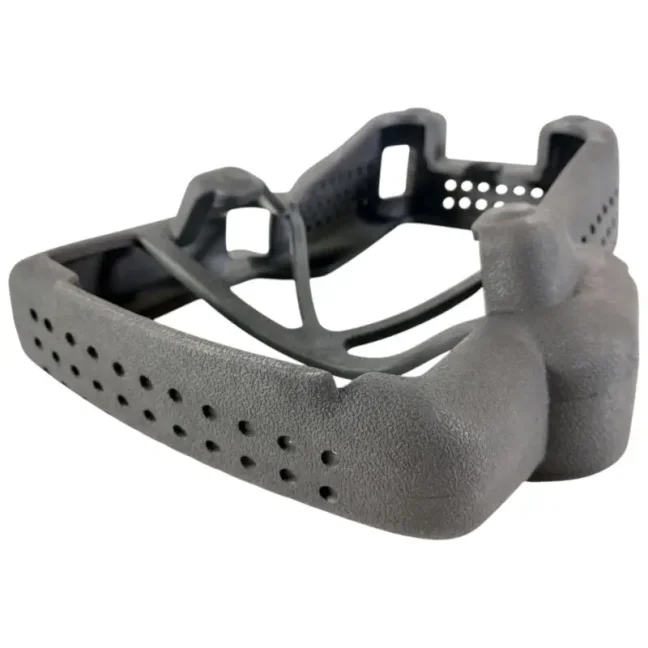

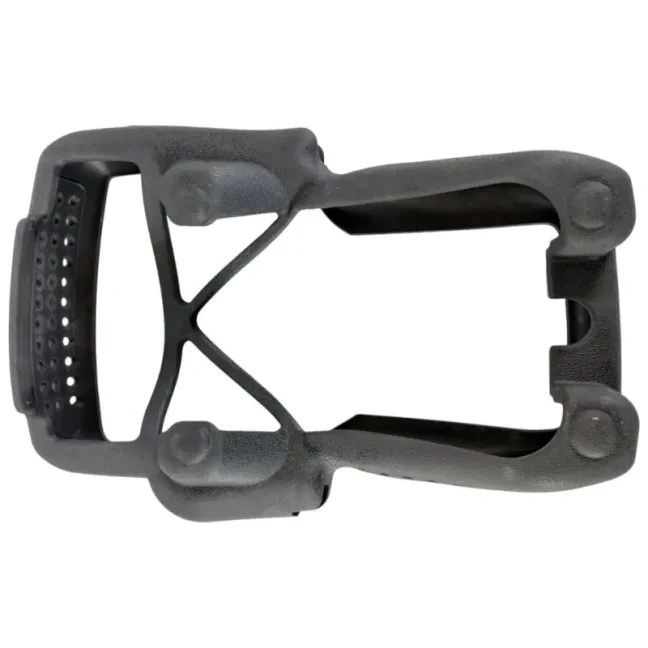

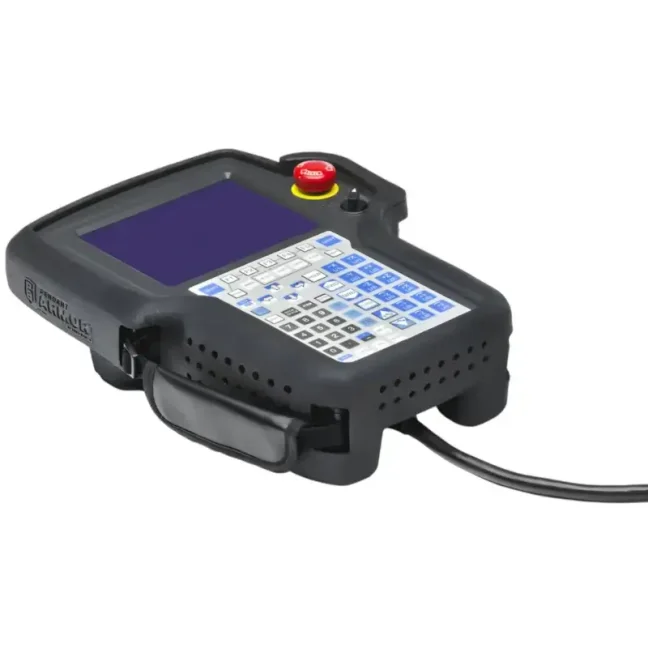

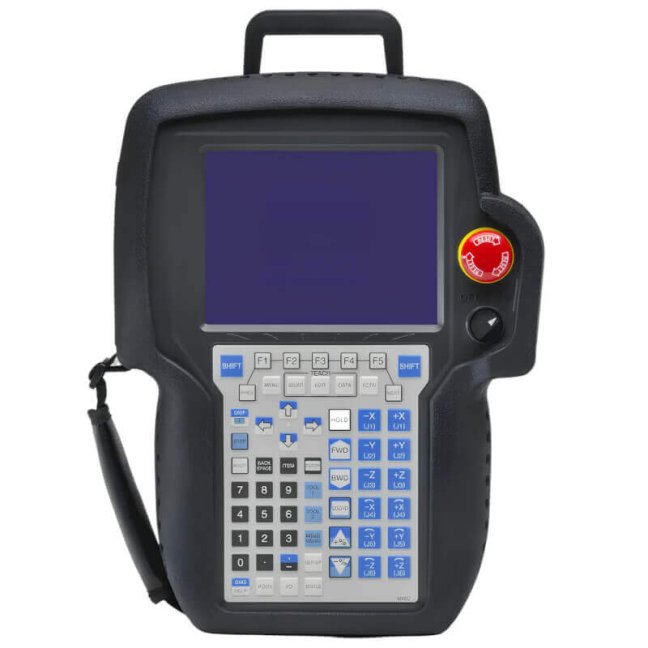

FANUC A05B-2490 and A05B-2518 (C300–C307, C334) Family Teach Pendant ARMOR Bumper
Pendant Armor protective bumper A05B-2490-PA for FANUC A05B-2490 / A05B-2518 iPendant. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains 1 protective bumper. The teach pendant is not included. More
Code: A05B-2490-PA
Pendant Armor protective bumper A05B-2490-PA for FANUC A05B-2490 / A05B-2518 iPendant. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains 1 protective bumper. The teach pendant is not included. More
Code: A05B-2490-PA

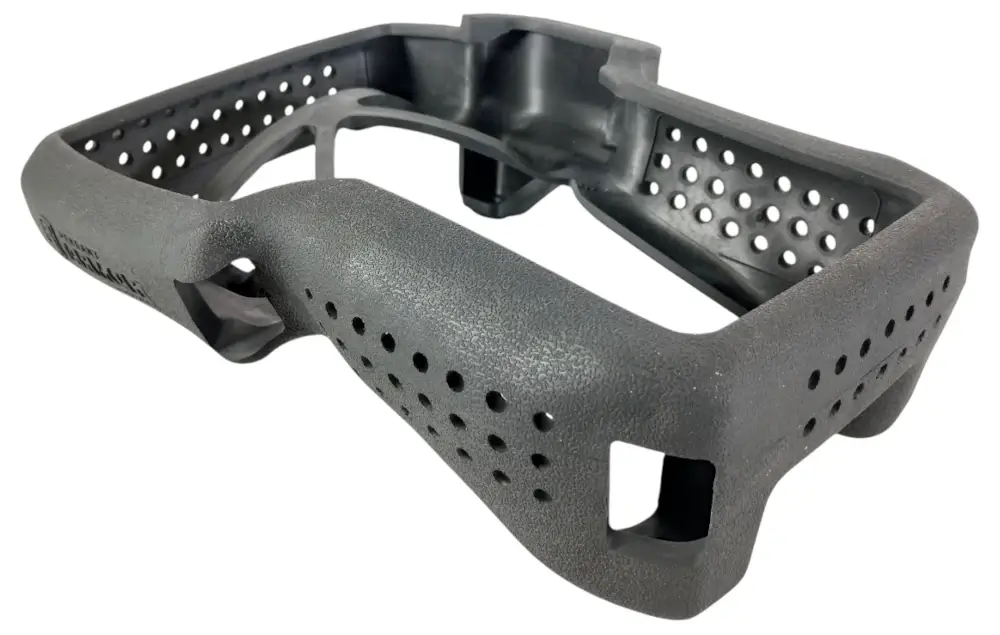

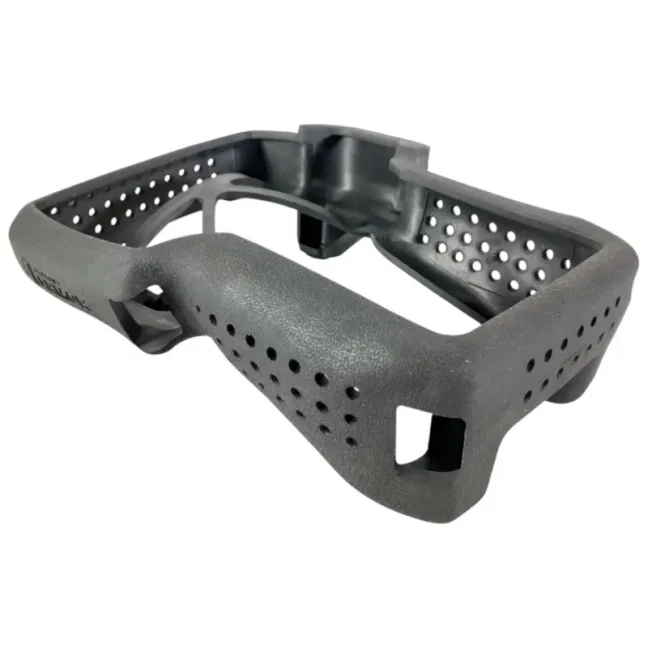

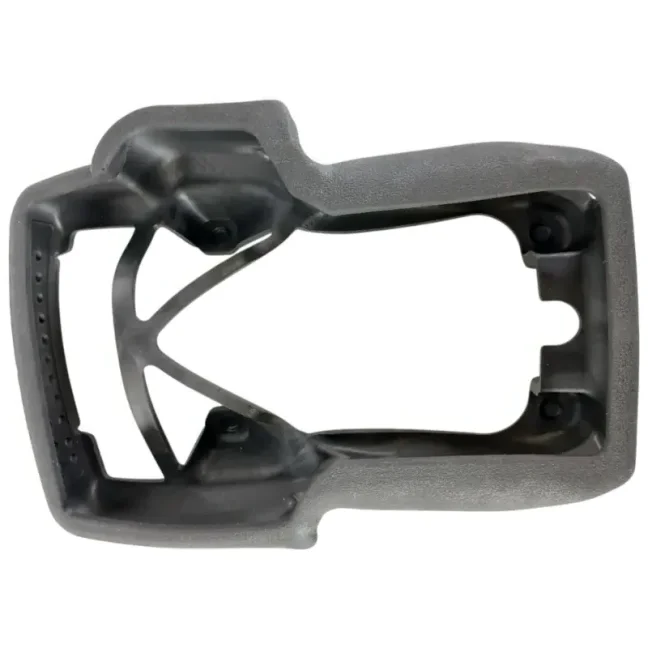

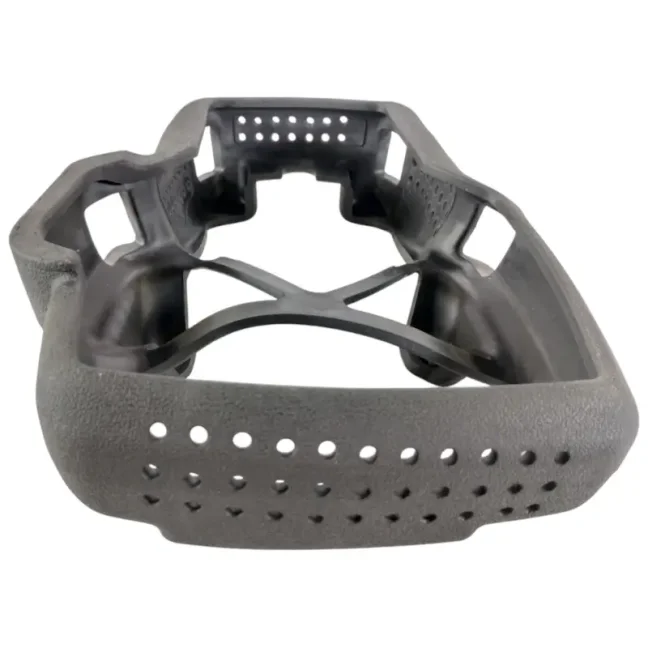

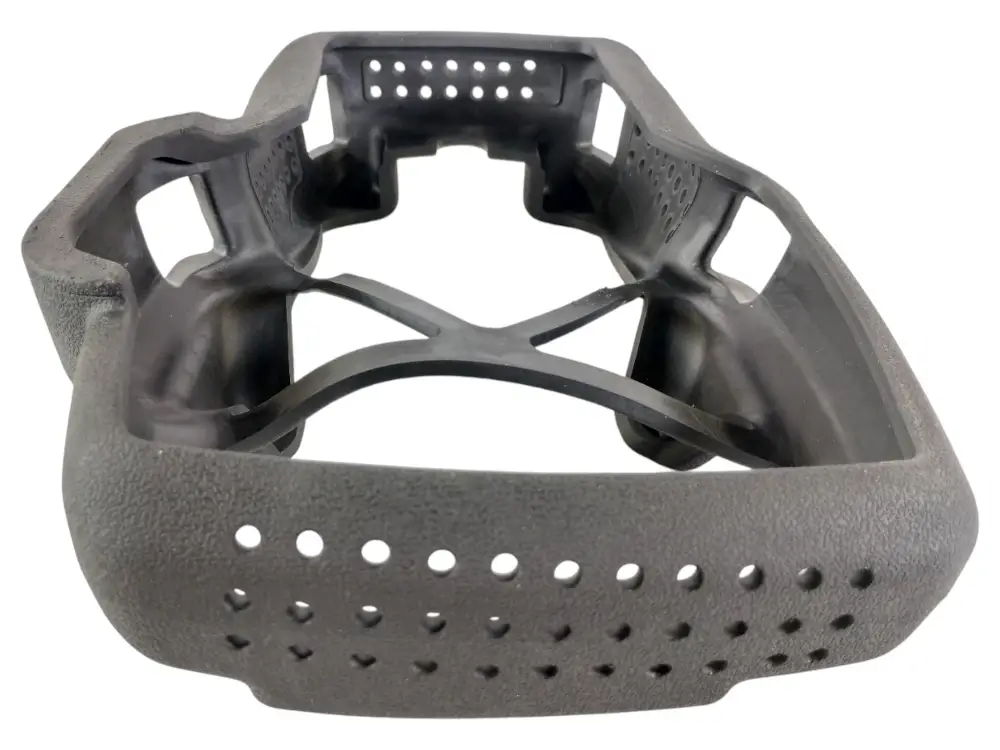

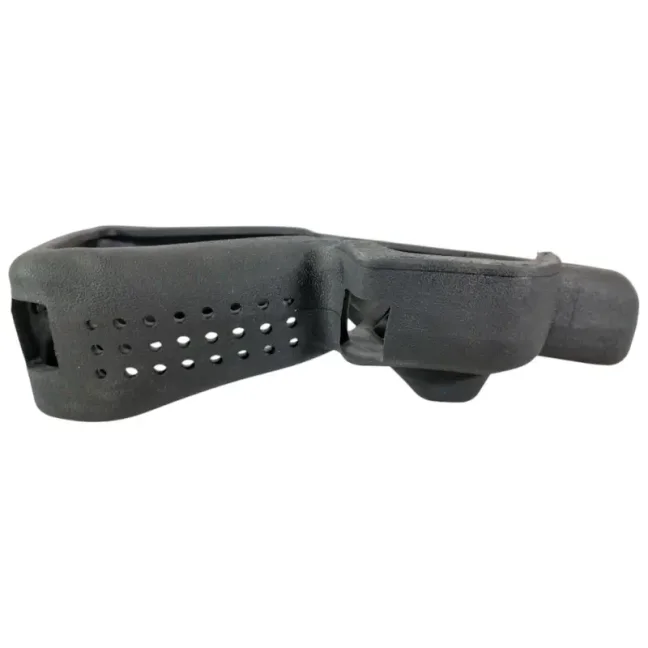

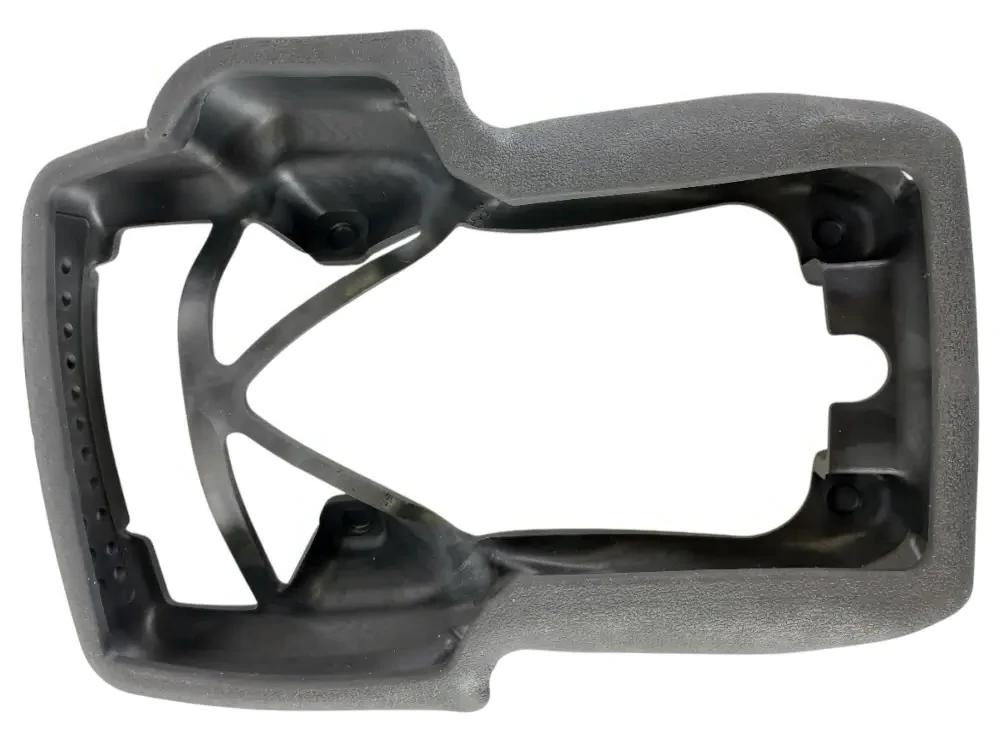

ARMOR for FANUC A05B-2490 / A05B-2518 iPendant
The A05B-2490-PA bumper absorbs impact when handling FANUC A05B-2490 pendants and selected A05B-2518 variants. It helps extend their service life and reduce repair, pendant replacement and unplanned downtime costs.
- Flexible Santoprene™ bumper
- Shaped for A05B-2490 and selected A05B-2518

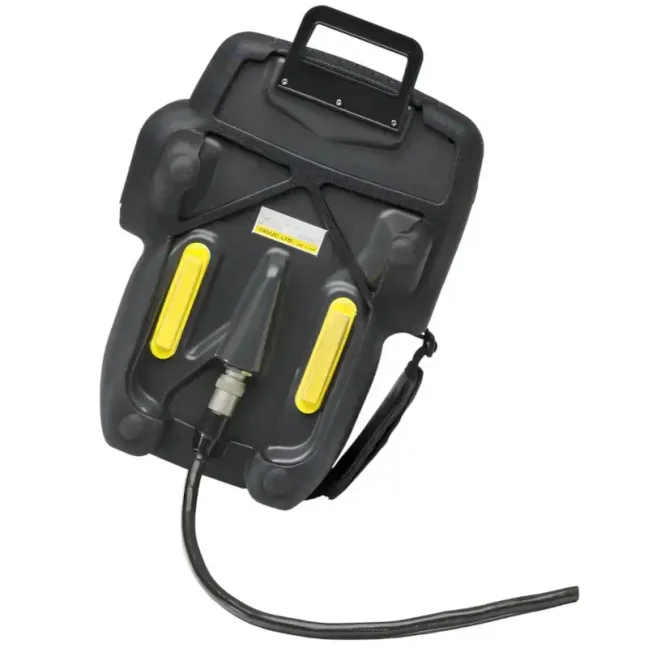

- Access to rear enabling switches

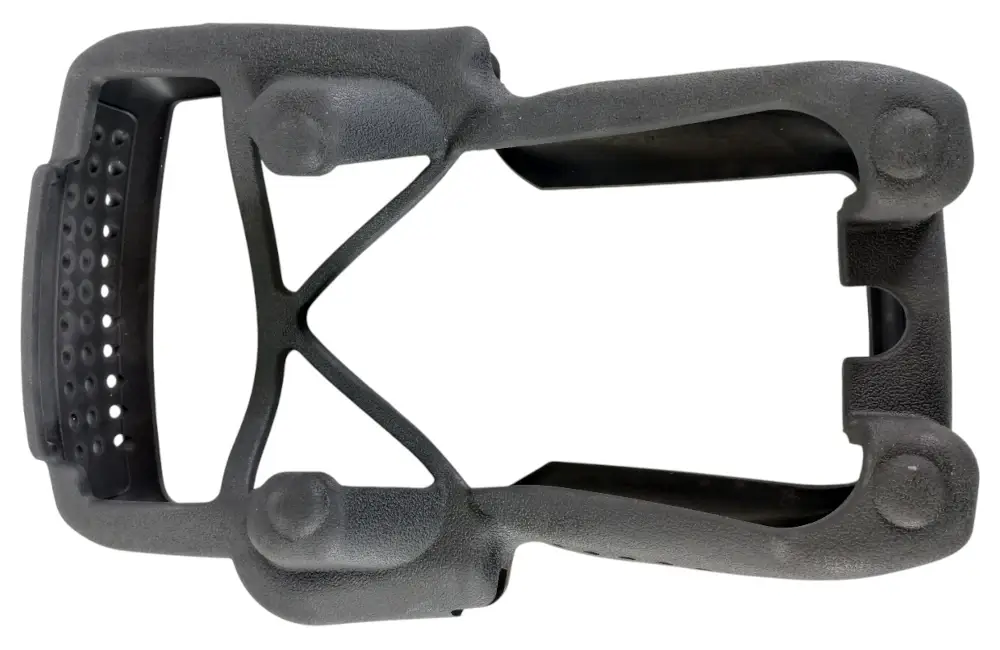

- One-piece flexible frame
Send the full part number or a photo of the nameplate. We will help you choose and prepare a quotation.

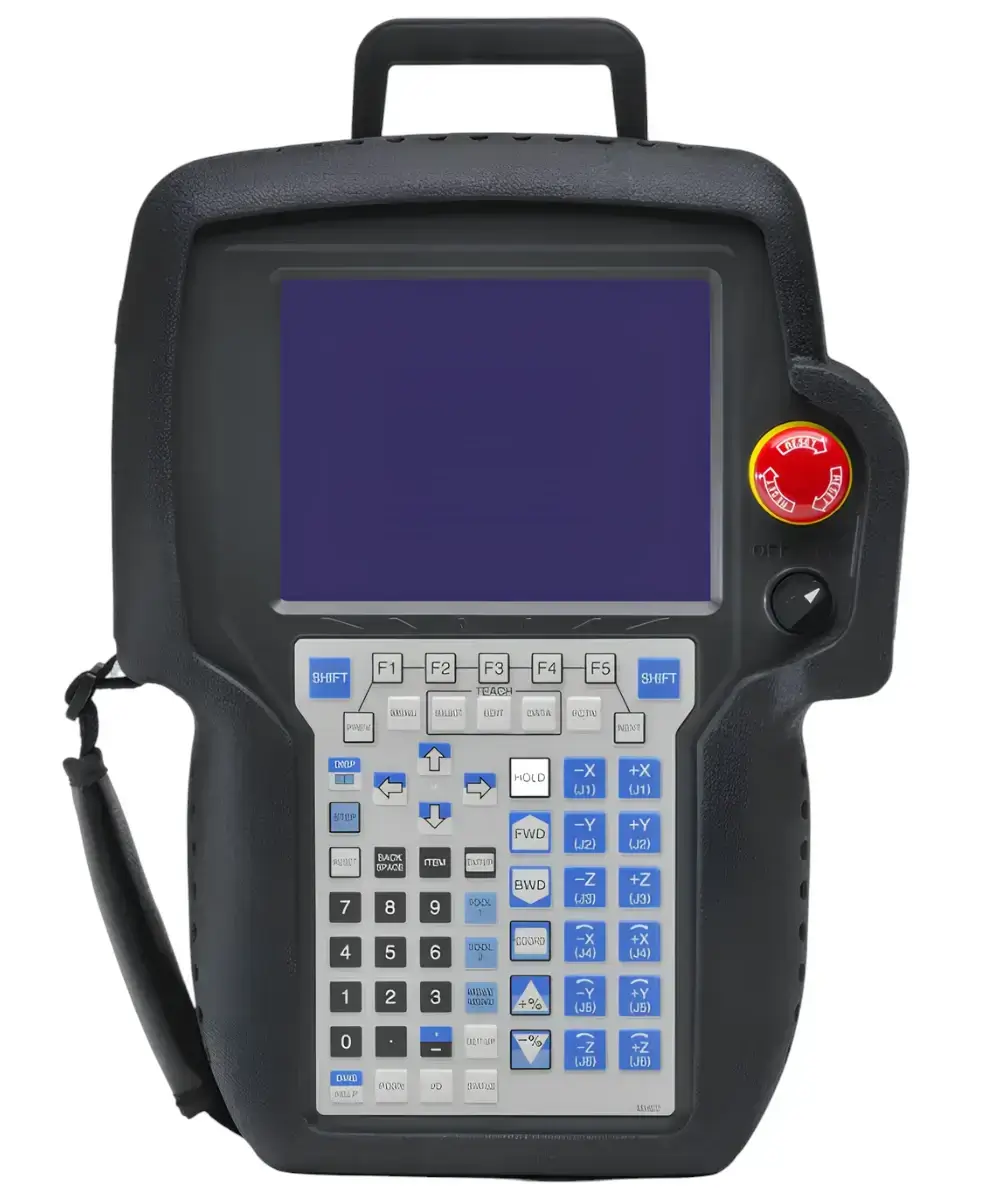

Does it fit your FANUC A05B-2490 / A05B-2518 iPendant?
For the FANUC A05B-2490 family and A05B-2518-C300 to C307 and C334 variants. Check the full pendant designation before ordering.
Flexible thermoplastic vulcanizate (TPV).
Net weight of the bumper.
| Bumper part number | A05B-2490-PA |
|---|---|
| For pendant | FANUC A05B-2490 / A05B-2518 iPendant |
| Pendant part number | A05B-2490; A05B-2518-C300–C307, C334 |
| Design | One-piece flexible protective frame |
| Material and colour | Santoprene™ (TPV), black |
| Net weight | 505 g |
Before ordering, check the full model designation and part number of your pendant. Bumpers for different models are not interchangeable.
Compatible pendant models
- A05B-2490-C002
- A05B-2490-C003
- A05B-2490-C004
- A05B-2490-C005
- A05B-2490-C006
- A05B-2490-C101
- A05B-2490-C102
- A05B-2490-C105
- A05B-2490-C110
- A05B-2490-C120
- A05B-2490-C121
- A05B-2490-C122
- A05B-2490-C123
- A05B-2490-C125
- A05B-2490-C167
- A05B-2490-C170
- A05B-2490-C170R
- A05B-2490-C171
- A05B-2490-C171FC
- A05B-2490-C171R
- A05B-2490-C172
- A05B-2490-C172R
- A05B-2490-C173
- A05B-2490-C173R
- A05B-2490-C174
- A05B-2490-C177
- A05B-2490-C195
- A05B-2490-C200
- A05B-2490-C202
- A05B-2490-C202R
- A05B-2490-C203
- A05B-2490-C203R
- A05B-2490-C204
- A05B-2490-C204R
- A05B-2490-C205
- A05B-2490-C205R
- A05B-2490-C206
- A05B-2490-C206R
- A05B-2490-C210
- A05B-2490-C210R
- A05B-2490-C211
- A05B-2490-C211R
- A05B-2490-C212
- A05B-2490-C212R
- A05B-2490-C213
- A05B-2490-C213R
- A05B-2490-C214
- A05B-2490-C214R
- A05B-2490-C215
- A05B-2490-C215R
- A05B-2490-C216
- A05B-2490-C216R
- A05B-2490-C220
- A05B-2490-C220R
- A05B-2490-C221
- A05B-2490-C221R
- A05B-2490-C222
- A05B-2490-C222R
- A05B-2490-C223
- A05B-2490-C223R
- A05B-2490-C225
- A05B-2490-C225R
- A05B-2490-C267
- A05B-2490-C267R
- A05B-2490-C270
- A05B-2490-C270R
- A05B-2490-C271
- A05B-2490-C272
- A05B-2490-C272R
- A05B-2490-C273
- A05B-2490-C273R
- A05B-2490-C274
- A05B-2490-C274R
- A05B-2490-C275
- A05B-2490-C275R
- A05B-2490-C276
- A05B-2490-C276R
- A05B-2490-C277
- A05B-2490-C277R
- A05B-2490-C295
- A05B-2490-C295R
- A05B-2490-C310
- A05B-2490-C370
- A05B-2490-C370R
- A05B-2490-C371
- A05B-2490-C371R
- A05B-2490-C372
- A05B-2490-C372FC
- A05B-2490-C372R
- A05B-2490-C373
- A05B-2518-C300
- A05B-2518-C301
- A05B-2518-C302
- A05B-2518-C303
- A05B-2518-C304
- A05B-2518-C305
- A05B-2518-C306
- A05B-2518-C307
- A05B-2518-C334
Longer pendant life, lower operating costs
Dropping a teach pendant does not have to mean a repair or replacement. The flexible bumper absorbs impact and helps prevent mechanical damage. The savings extend beyond the pendant itself to the time spent replacing it and the losses caused by interrupted production.
Lower repair costs
The bumper absorbs impact energy and reduces the risk of mechanical damage. If it protects the pendant, the repair costs following a drop are avoided.
Longer pendant life
Protection during everyday handling helps keep the pendant in service for longer and reduce the need for premature replacement.
Lower risk of downtime
If the pendant remains undamaged and functional after a drop, there is no need to replace it or stop production because of damage to the pendant.
Protection during everyday handling
Impact absorption
The flexible frame surrounds the pendant and helps reduce the consequences of drops or impacts during handling.
A more secure grip

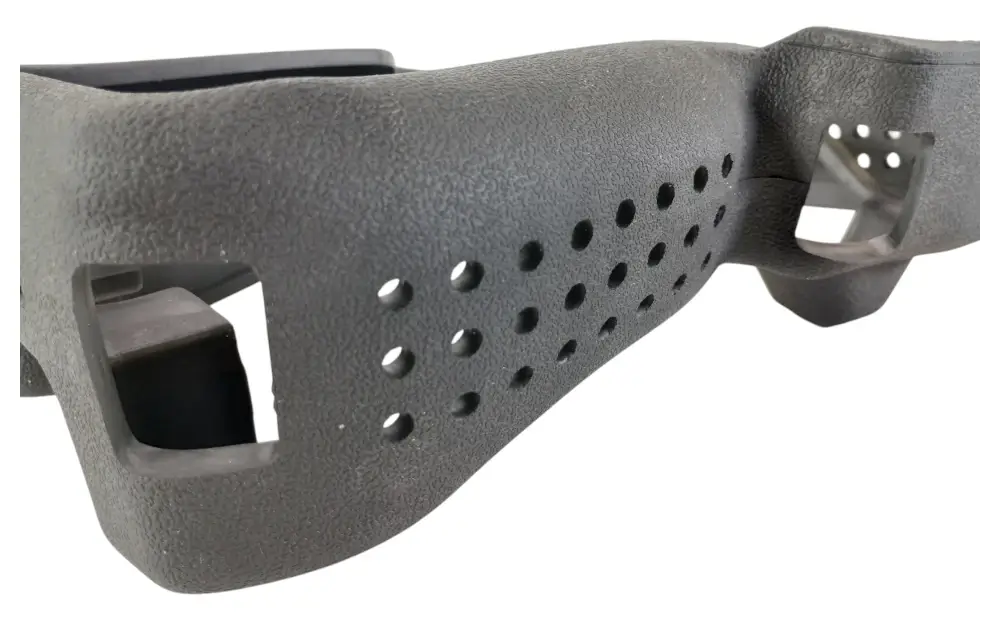

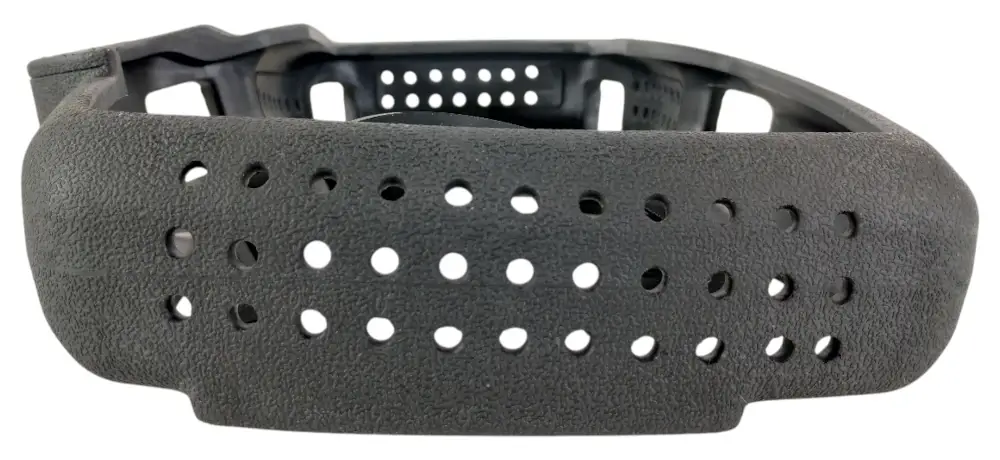

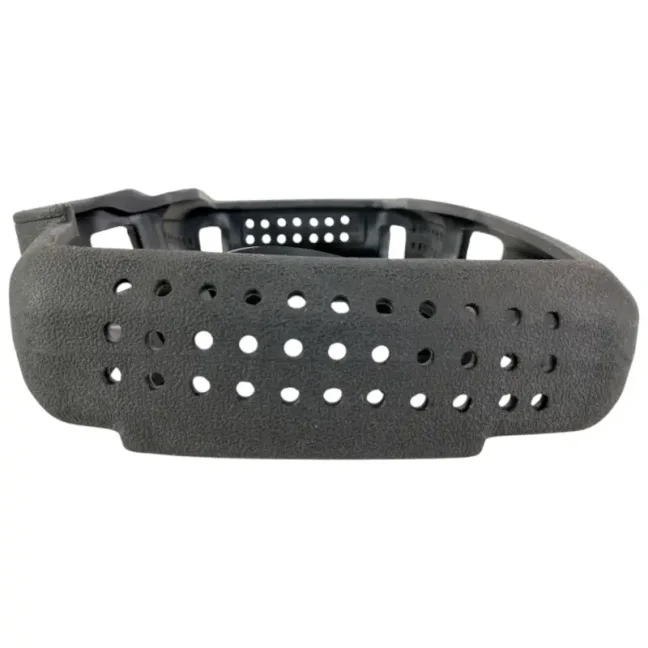

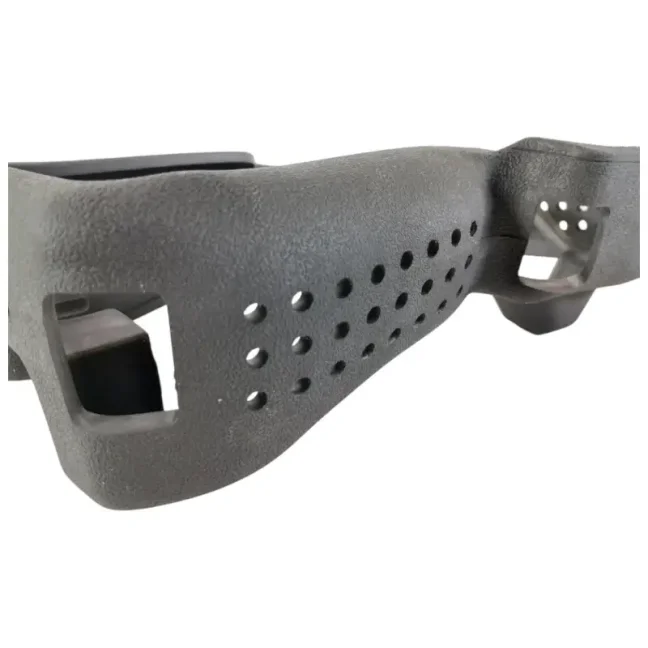

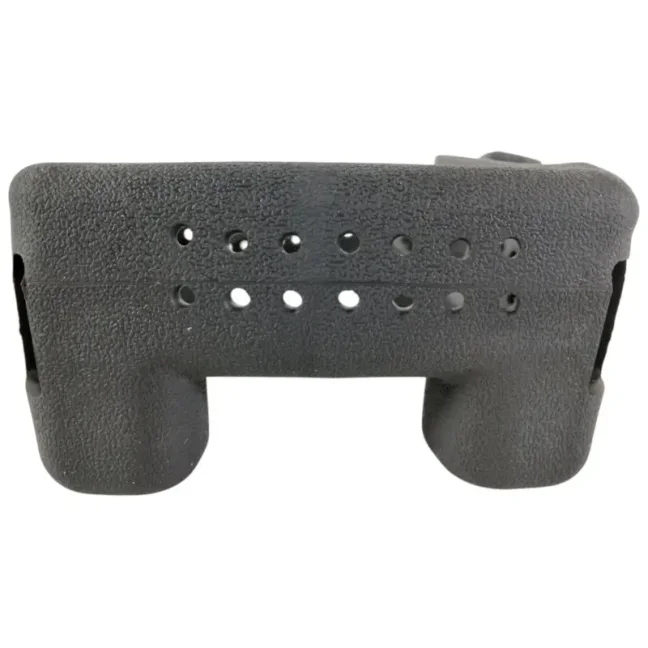

The pronounced surface texture improves grip. Perforations reduce weight and allow liquids to drain away.
Access to controls
Protective ridges around the rotary switches and emergency stop button do not obstruct their operation. The rear enabling switches remain accessible.
The bumper reduces the risk of mechanical damage. It does not guarantee that the pendant will survive every drop without damage.
What's included
- 1× Pendant Armor protective bumper for FANUC A05B-2490 / A05B-2518 iPendant.
The teach pendant and separate hand strap are not included. The enlarged hanger and cradle adapter are separate accessories and are not listed in this package.
Fitting the bumper and using it in operation
Fitting instructions for the FANUC A05B-2490 / A05B-2518 iPendant bumper
Before fitting, power down the controller and disconnect the cable at the rear of the pendant. Use the enlarged hanger only if you have one available. Keep the original screws.
Follow the instructions and your workplace's service procedures. After fitting, check access to the controls and safety devices.
Fitting instructions for the FANUC A05B-2490 / A05B-2518 iPendant bumper
Power down the controller and disconnect the cable at the rear of the pendant.

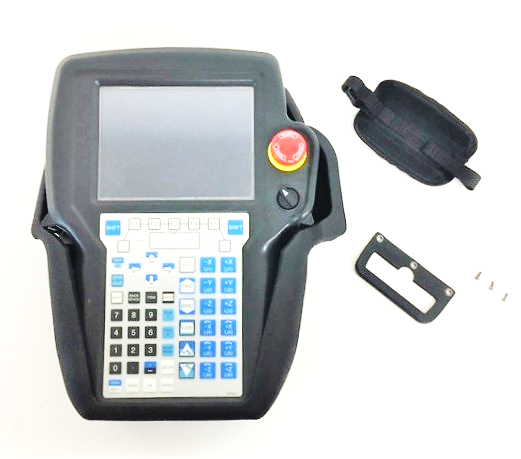

Remove the original Velcro hand strap and hanger. Keep the screws.
Place the bumper face up on a clean, dry surface.
Place the pendant on the bumper and fit it into the lower edge.
Check that the hand-strap attachment and the bottom edge of the pendant are fully seated in the bumper.
Fit the bumper along both sides and then over the top of the pendant.
Reattach the Velcro hand strap. If you have an enlarged hanger, fit it using the original screws. The enlarged hanger is not included in this package.
If local safety requirements require direct, unobstructed access to the emergency stop button, trim the protective rubber brow to meet those requirements. A cutting line is molded around the brow; a utility knife can be used to cut Santoprene™.
Reconnect the controller cable at the rear of the pendant and release the emergency stop button.
Power up the controller.
Installation is complete.
Contact with chemicals
Material resistance depends on the specific substance and operating conditions. Check Santoprene™ chemical compatibility for oils, coolants or cleaning agents.
Take a closer look at ARMOR bumpers
Tomáš Krepčík from FOXON presents protective bumpers and screen protection for ABB, KUKA and FANUC pendants. Take a closer look at their design.

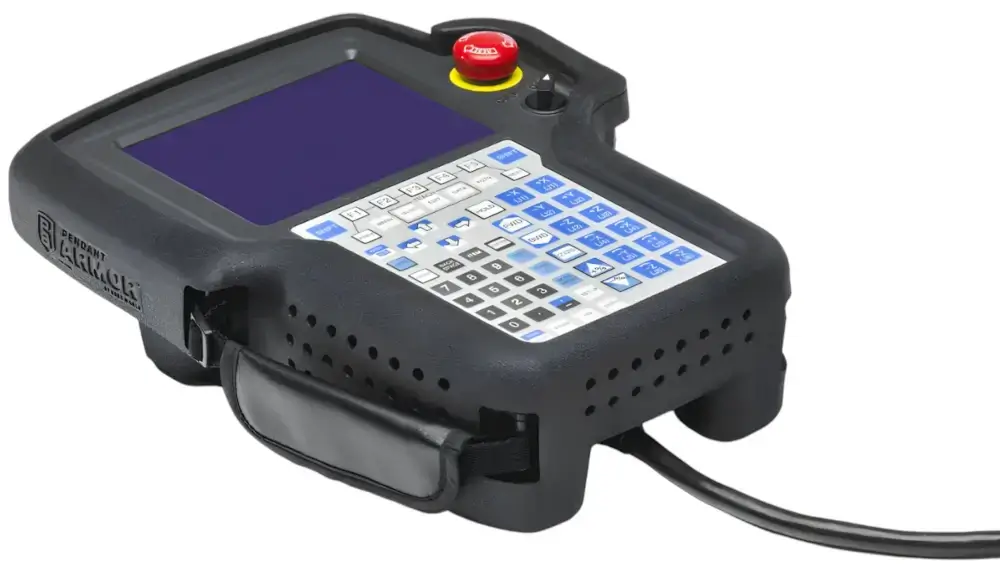

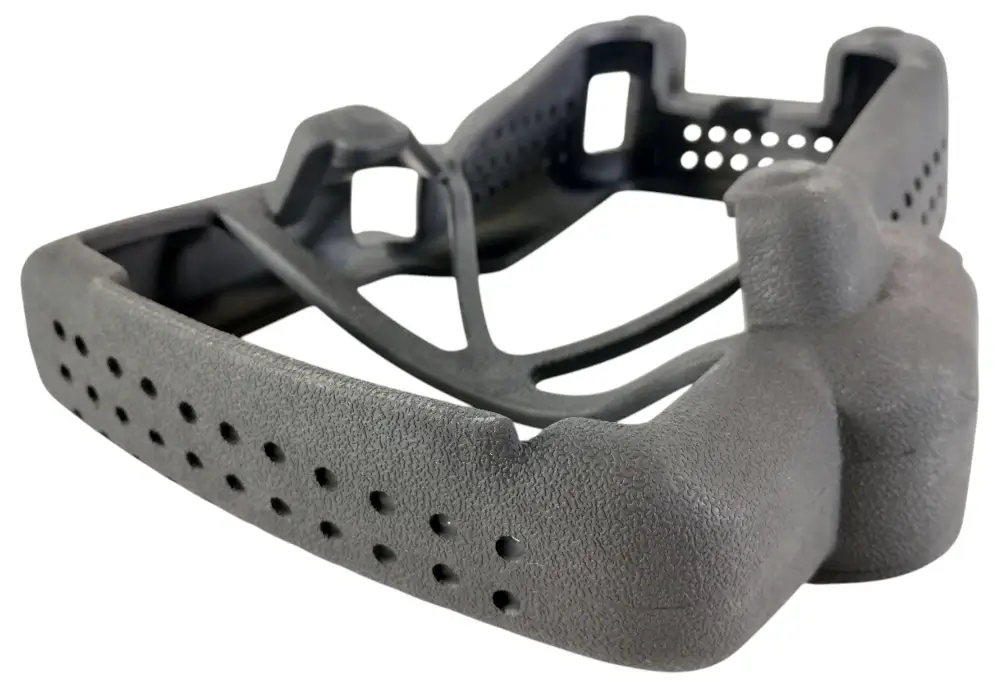

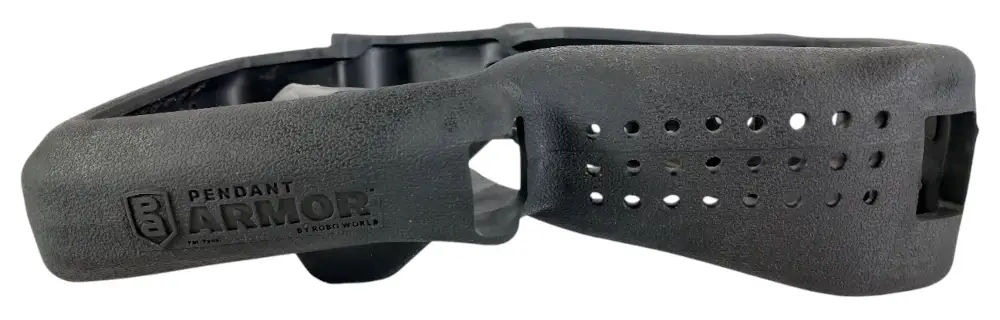

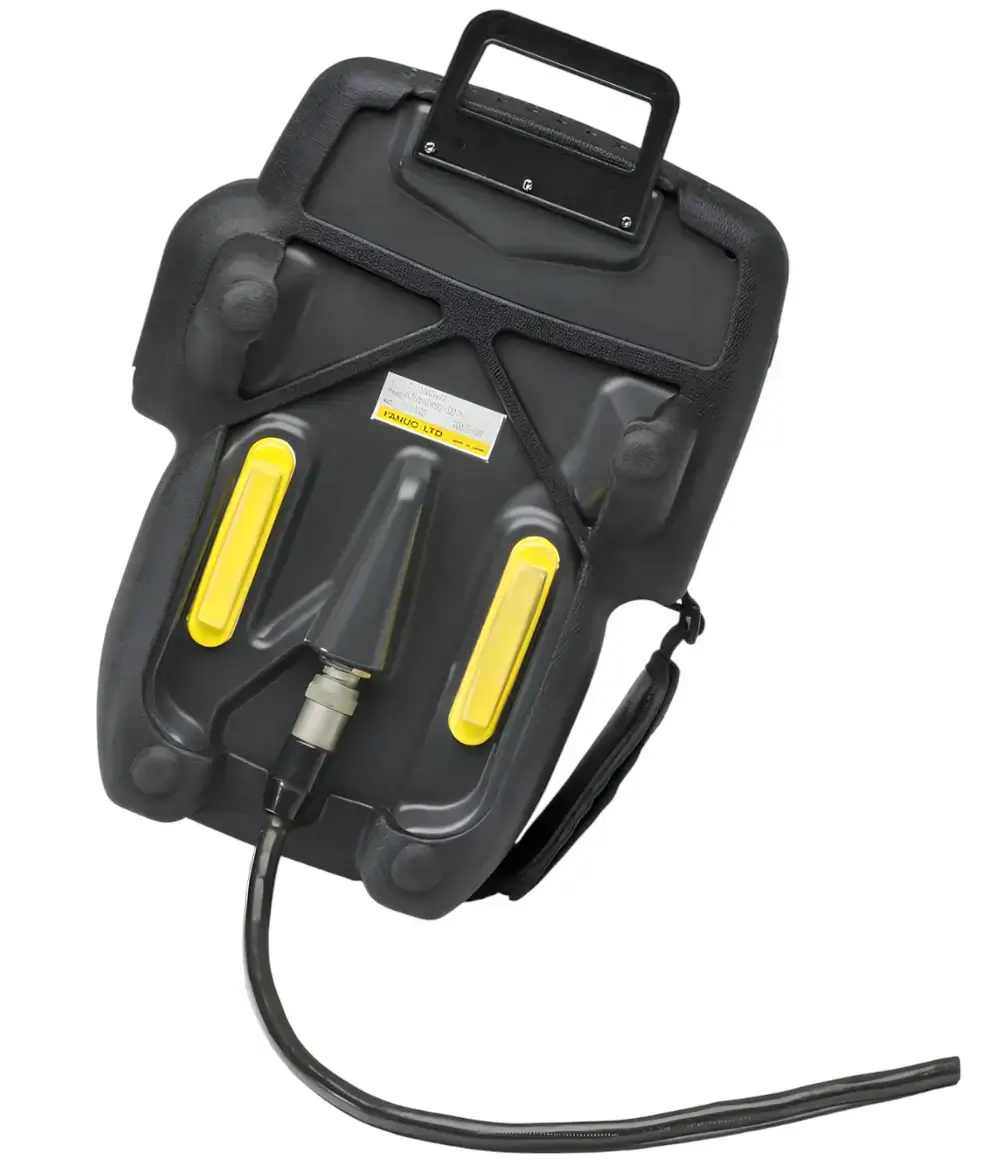

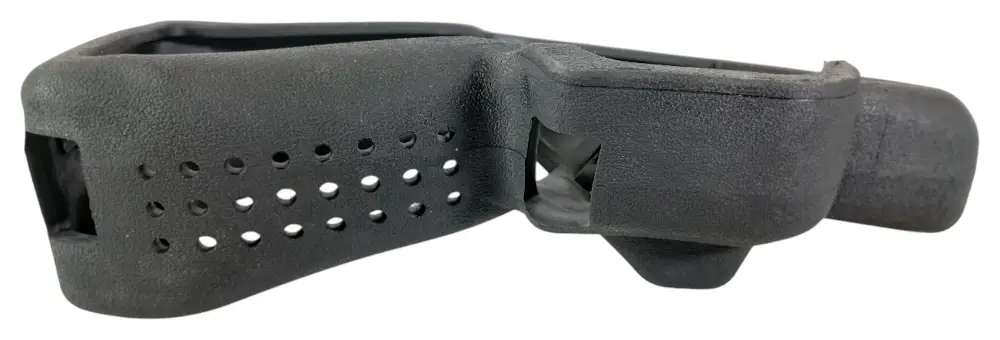

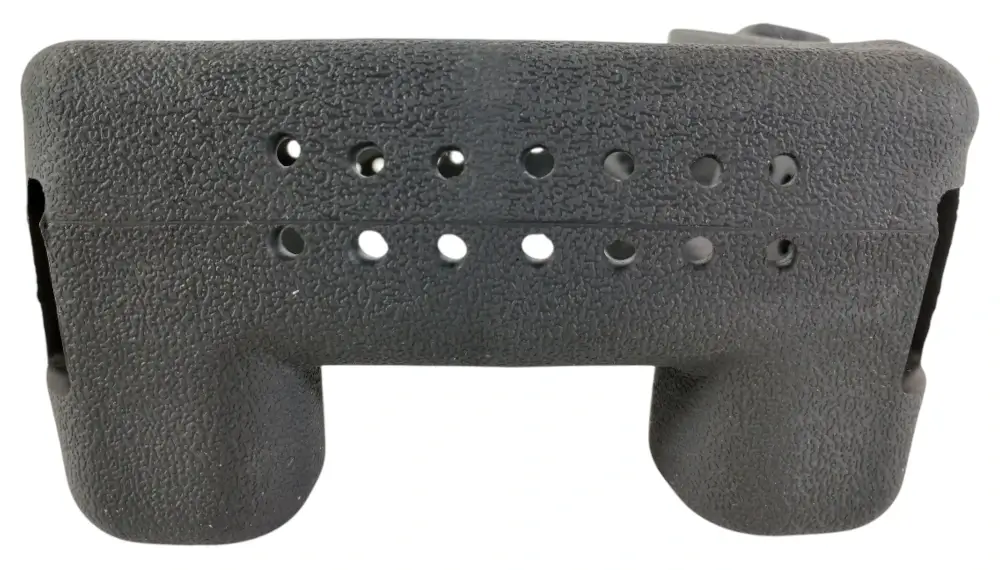

More photos of the FANUC A05B-2490 / A05B-2518 iPendant bumper (10)
Frequently asked questions
Is the teach pendant included?
No. The package contains one protective bumper. The teach pendant, separate hand strap, enlarged hanger and cradle adapter are not included.
Is the FANUC brand name enough to choose a bumper?
No. The exact pendant model and full part number matter. The A05B-2490-PA bumper is designed for FANUC A05B-2490 / A05B-2518 iPendant. Compare your pendant’s identification with the listed compatibility.
Does the bumper also protect the screen surface?
To protect the screen surface against scratches, we recommend separate screen protection for FANUC A05B-2490 / A05B-2518 iPendant. The protective frame and screen protection serve different purposes.
What should I check when fitting the bumper?
Power down the controller and disconnect the cable at the rear of the pendant. Follow the instructions here and check access to the controls and safety devices after fitting. The enlarged hanger is not included.
How can I request bumpers for several pendants or delivery abroad?
Send the pendant models, quantities and delivery country. We will check the versions and prepare a quotation for the bumpers and suitable screen protection.
Add screen protection
For the FANUC A05B-2490 / A05B-2518 iPendant bumper, we offer a set of 5 protective screen films. The bumper protects the pendant body, while screen protection helps prevent scratches on the screen surface.
We will send a no-obligation quotation within 1 hour.
Is your pendant already damaged? Explore professional teach pendant repair options.
Protective cover for teach pendant: compatible with industrial robots
Material: Santoprene™ (thermoplastic vulcanizate – TPV)
Color: Black
Net Weight: 505 g
Construction: one-piece flexible cover, precisely molded for the specific model
Compatible with Teach Pendant models:
- A05B-2490-C002
- A05B-2490-C003
- A05B-2490-C004
- A05B-2490-C005
- A05B-2490-C006
- A05B-2490-C101
- A05B-2490-C102
- A05B-2490-C105
- A05B-2490-C110
- A05B-2490-C120
- A05B-2490-C121
- A05B-2490-C122
- A05B-2490-C123
- A05B-2490-C125
- A05B-2490-C167
- A05B-2490-C170
- A05B-2490-C170R
- A05B-2490-C171
- A05B-2490-C171FC
- A05B-2490-C171R
- A05B-2490-C172
- A05B-2490-C172R
- A05B-2490-C173
- A05B-2490-C173R
- A05B-2490-C174
- A05B-2490-C177
- A05B-2490-C195
- A05B-2490-C200
- A05B-2490-C202
- A05B-2490-C202R
- A05B-2490-C203
- A05B-2490-C203R
- A05B-2490-C204
- A05B-2490-C204R
- A05B-2490-C205
- A05B-2490-C205R
- A05B-2490-C206
- A05B-2490-C206R
- A05B-2490-C210
- A05B-2490-C210R
- A05B-2490-C211
- A05B-2490-C211R
- A05B-2490-C212
- A05B-2490-C212R
- A05B-2490-C213
- A05B-2490-C213R
- A05B-2490-C214
- A05B-2490-C214R
- A05B-2490-C215
- A05B-2490-C215R
- A05B-2490-C216
- A05B-2490-C216R
- A05B-2490-C220
- A05B-2490-C220R
- A05B-2490-C221
- A05B-2490-C221R
- A05B-2490-C222
- A05B-2490-C222R
- A05B-2490-C223
- A05B-2490-C223R
- A05B-2490-C225
- A05B-2490-C225R
- A05B-2490-C267
- A05B-2490-C267R
- A05B-2490-C270
- A05B-2490-C270R
- A05B-2490-C271
- A05B-2490-C272
- A05B-2490-C272R
- A05B-2490-C273
- A05B-2490-C273R
- A05B-2490-C274
- A05B-2490-C274R
- A05B-2490-C275
- A05B-2490-C275R
- A05B-2490-C276
- A05B-2490-C276R
- A05B-2490-C277
- A05B-2490-C277R
- A05B-2490-C295
- A05B-2490-C295R
- A05B-2490-C310
- A05B-2490-C370
- A05B-2490-C370R
- A05B-2490-C371
- A05B-2490-C371R
- A05B-2490-C372
- A05B-2490-C372FC
- A05B-2490-C372R
- A05B-2490-C373
- A05B-2518-C300
- A05B-2518-C301
- A05B-2518-C302
- A05B-2518-C303
- A05B-2518-C304
- A05B-2518-C305
- A05B-2518-C306
- A05B-2518-C307
- A05B-2518-C334
Protective Covers and Films for Robot Teach Pendants: No More Repairs Thanks to Prevention
A dropped robot controller, everyday handling in harsh industrial conditions, or a damaged display – it takes very little for a faulty teach pendant to stop your line, delay maintenance and increase repair costs. Yet you can proactively protect FANUC, KUKA and ABB robot control panels with robust covers and protective films that prevent display damage.
VIDEO: A Close-Up Look at Protective Covers for ABB, KUKA and FANUC Teach Pendants
Over the course of his career at FOXON, our sales representative Tomáš Krepčík has handled hundreds of damaged teach pendants that were later repaired. It made him wonder whether there was anything that could protect these expensive devices from mechanical damage. Today, we are a European distributor of special protective covers and films.
