KUKA KR C1 Family Teach Pendant ARMOR Bumper

Add to favourites

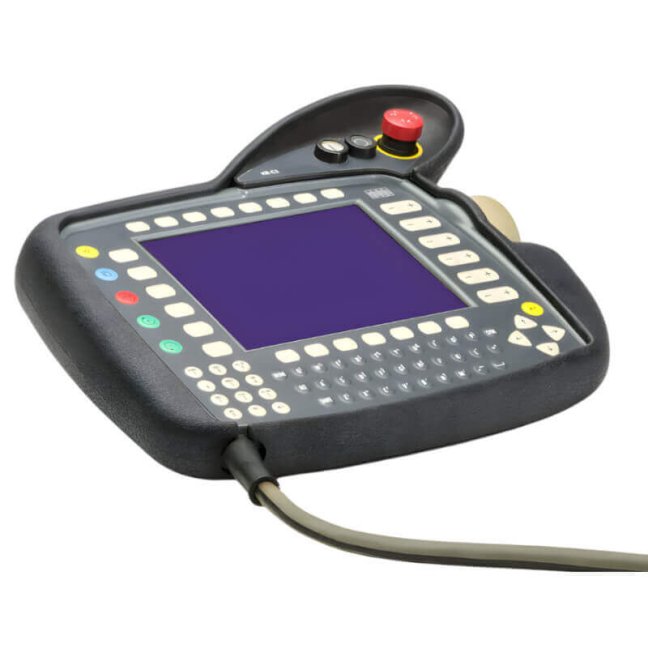

KUKA KR C1 Family Teach Pendant ARMOR Bumper

Preventive maintenance FOXON PLUS
Roboworld

Pendant Armor protective bumper KRC1-PA for KUKA KR C1 / KR C2 smartPAD. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains the bumper, 2 hand-hold caps and 1 ml of cyanoacrylate adhesive. The teach pendant is not included. More

Code: KRC1-PA

305 EUR excl. VAT (369,05 EUR Incl. VAT)
Quantity discount
Units
Discount
Price without VAT
0 - 4
0%
305,00
5 - 9
3%
295,85
10 and more
5%
289,75
In stock
pcs
(12 pcs In stock)

Rezervace termínu

Get a quote
Roboworld

Pendant Armor protective bumper KRC1-PA for KUKA KR C1 / KR C2 smartPAD. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains the bumper, 2 hand-hold caps and 1 ml of cyanoacrylate adhesive. The teach pendant is not included. More

Code: KRC1-PA

KR C1 / KR C2 · 00-114-265

ARMOR for KUKA KR C1 / KR C2 smartPAD

The KRC1-PA bumper for KUKA KR C1 and KR C2 smartPAD absorbs impact from drops and improves grip. It helps extend the pendant’s service life and reduce repair, replacement and unplanned downtime costs.

  • Flexible Santoprene™ bumper
  • Shaped for KUKA KR C1 / KR C2
  • Access to USB and the 6-axis mouse
  • Two hand-hold caps included

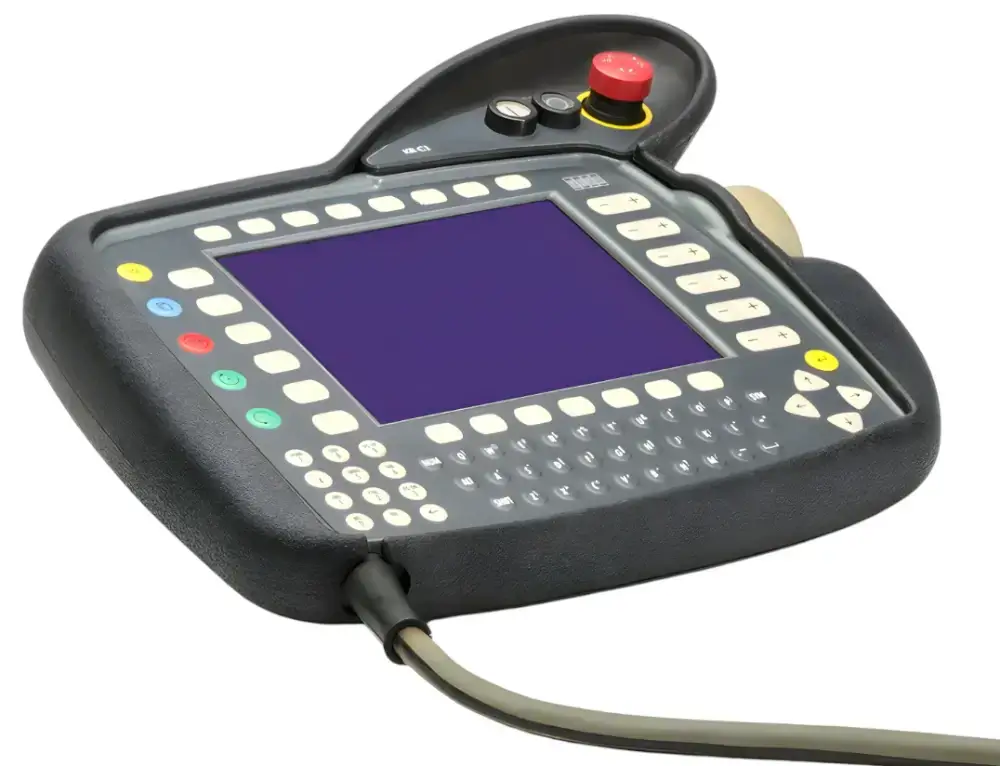

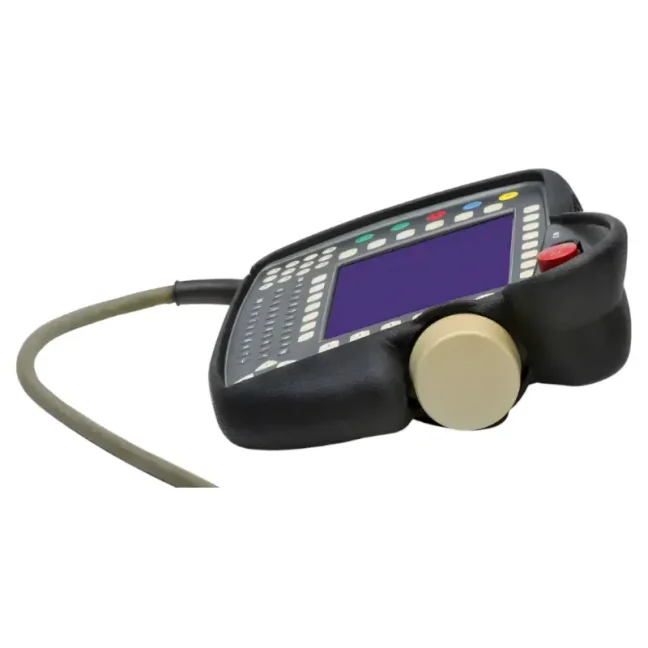

Bumper fitted to a KUKA KR C1 / KR C2 smartPAD pendant. The pendant is not included.
Bumper fitted to a KUKA KR C1 / KR C2 smartPAD pendant. The pendant is not included.
Need to check the right bumper for your pendant?

Send the full part number or a photo of the nameplate. We will help you choose and prepare a quotation.

Check compatibility

Does it fit your KUKA KR C1 / KR C2 smartPAD?

KR C1 / KR C2

KUKA KR C1 and KR C2 smartPAD, 00-114-265.

Santoprene™

Flexible thermoplastic vulcanizate (TPV).

425 g

Net weight of the bumper.

Bumper part numberKRC1-PA
For pendantKUKA KR C1 / KR C2 smartPAD
Pendant part number00-114-265
DesignOne-piece flexible protective frame
Material and colourSantoprene™ (TPV), black
Net weight425 g

Before ordering, check the full model designation and part number of your pendant. Bumpers for different models are not interchangeable.

Longer pendant life, lower operating costs

Dropping a teach pendant does not have to mean a repair or replacement. The flexible bumper absorbs impact and helps prevent mechanical damage. The savings extend beyond the pendant itself to the time spent replacing it and the losses caused by interrupted production.

Lower repair costs

The bumper absorbs impact energy and reduces the risk of mechanical damage. If it protects the pendant, the repair costs following a drop are avoided.

Longer pendant life

Protection during everyday handling helps keep the pendant in service for longer and reduce the need for premature replacement.

Lower risk of downtime

If the pendant remains undamaged and functional after a drop, there is no need to replace it or stop production because of damage to the pendant.

Protection during everyday handling

Impact absorption

The flexible frame surrounds the pendant and helps reduce the consequences of drops or impacts during handling.

A more secure grip

The pronounced surface texture improves grip. Perforations reduce weight and allow liquids to drain away.

Access to controls

Shaped cutouts preserve access to the controls and USB. The 6-axis mouse remains functional. An integrated retaining flap helps prevent loss of the stylus.

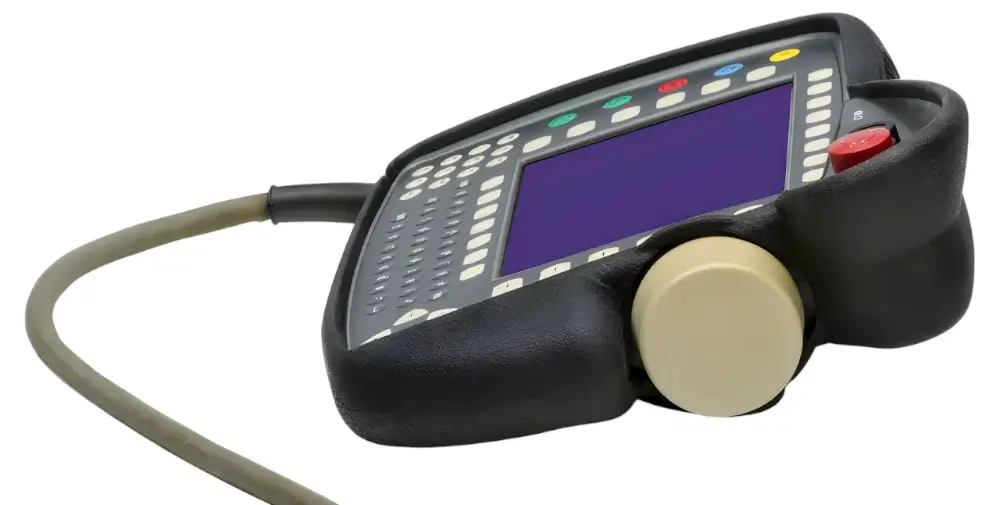

KUKA KR C1 / KR C2 smartPAD bumper – detail 1
KUKA KR C1 / KR C2 smartPAD bumper – detail 1

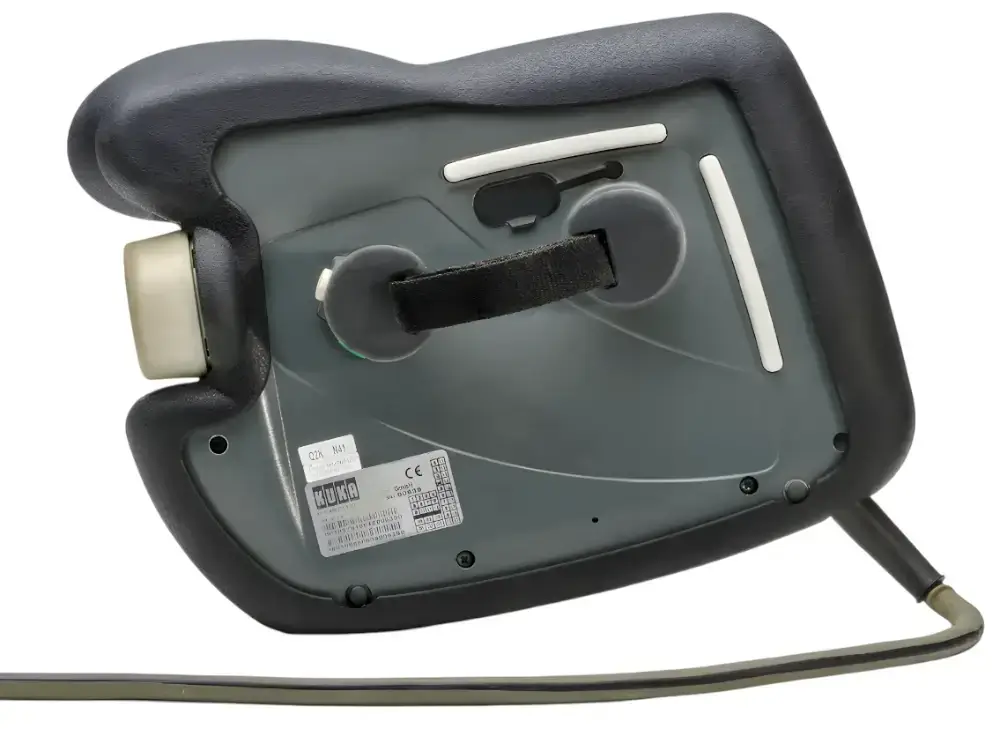

KUKA KR C1 / KR C2 smartPAD bumper – detail 2
KUKA KR C1 / KR C2 smartPAD bumper – detail 2

The bumper reduces the risk of mechanical damage. It does not guarantee that the pendant will survive every drop without damage.

What's included

  • 1× Pendant Armor protective bumper for KUKA KR C1 / KR C2 smartPAD.
  • 2× hand-hold cap.
  • 1 ml of cyanoacrylate adhesive.

The teach pendant, separate hand strap and stylus are not included. The hand-hold caps are optional during installation and help prevent the protected pendant from sliding across a dry surface.

Fitting the bumper and using it in operation

Fitting instructions for the KUKA KR C1 / KR C2 smartPAD bumper

Before fitting, power down the controller and press the emergency stop button. The cable does not need to be disconnected. If you use the hand-hold caps, attach them with the supplied adhesive as described below.

Follow the instructions and your workplace's service procedures. After fitting, check access to the controls and safety devices.

Fitting instructions for the KUKA KR C1 / KR C2 smartPAD bumper

  1. Power down the controller and press the emergency stop button.

  2. Place the bumper face up on a clean, dry surface.

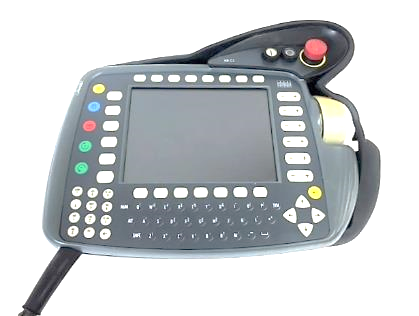

  3. Insert the pendant’s top right corner into the bumper. Seat the bumper around the protective rim of the emergency stop button.

    KUKA KR C1 / KR C2 smartPAD bumper – detail 3

  4. Pull the bumper over the 6-axis mouse and seat the right edge.

  5. Pull the bumper over the top and left edges of the pendant.

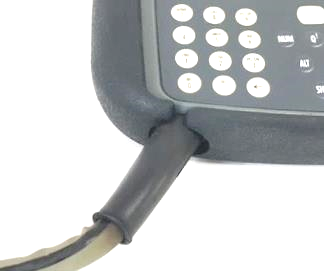

  6. Wrap the bumper around the cable.

    KUKA KR C1 / KR C2 smartPAD bumper – detail 6

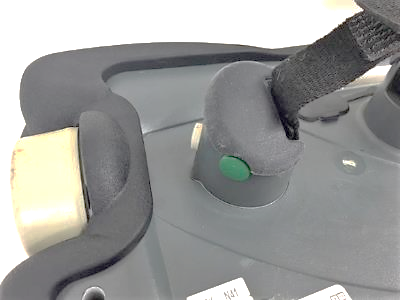

  7. First dry-fit the hand-hold cap near the 6-axis mouse. Its notch accommodates the green Start button. If using the cap, apply a thin continuous bead of adhesive around its inside circumference, fit it to the hand-hold and hold for 45 seconds.

    KUKA KR C1 / KR C2 smartPAD bumper – detail 7

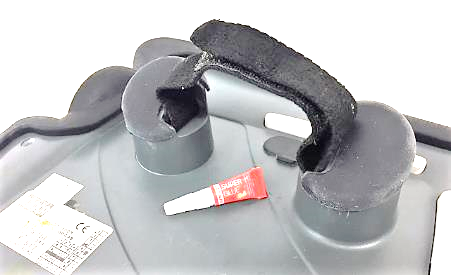

  8. Dry-fit the right cap in the same way. If using it, apply a thin continuous bead of adhesive around its inside circumference, fit it and hold for 45 seconds.

    KUKA KR C1 / KR C2 smartPAD bumper – detail 8

  9. Power up the controller and release the emergency stop button. Installation is complete.

Contact with chemicals

Material resistance depends on the specific substance and operating conditions. Check Santoprene™ chemical compatibility for oils, coolants or cleaning agents.

Material chemical compatibility guide

Take a closer look at ARMOR bumpers

Tomáš Krepčík from FOXON presents protective bumpers and screen protection for ABB, KUKA and FANUC pendants. Take a closer look at their design.

Frequently asked questions

Is the teach pendant included?

No. The package contains the bumper, two hand-hold caps and 1 ml of cyanoacrylate adhesive. The pendant, separate hand strap and stylus are not included.

Is the KUKA brand name enough to choose a bumper?

No. The exact pendant model and full part number matter. The KRC1-PA bumper is designed for KUKA KR C1 / KR C2 smartPAD. Compare your pendant’s identification with the listed compatibility.

Does the bumper also protect the screen surface?

To protect the screen surface against scratches, we recommend separate screen protection for KUKA KR C1 / KR C2 smartPAD. The protective frame and screen protection serve different purposes.

Do I need to disconnect the cable to fit the bumper?

No. The KRC1-PA bumper can be fitted and removed without disconnecting the pendant cable. Power down the controller before fitting and follow the instructions.

How can I request bumpers for several pendants or delivery abroad?

Send the pendant models, quantities and delivery country. We will check the versions and prepare a quotation for the bumpers and suitable screen protection.

Add screen protection

For the KUKA KR C1 / KR C2 smartPAD bumper, we offer a screen protector in packs of 5. The bumper protects the pendant body, while screen protection helps prevent scratches on the screen surface.

View screen protection for KUKA KR C1 / KR C2 smartPAD
FOXON delivers parts worldwide and accepts faulty parts for repair
We deliver ARMOR protective bumpers worldwide.

We will send a no-obligation quotation within 1 hour.

+420 488 588 749poptavka@foxon.cz
Request bumpers for several pendantsContact our sales team

Is your pendant already damaged? Explore professional teach pendant repair options.

Protective cover for teach pendant: compatible with industrial robots

Material: Santoprene™ (thermoplastic vulcanizate – TPV)

Color: Black

Net Weight: 425 g

Construction: one-piece flexible cover, precisely molded for the specific model

Compatible with Teach Pendant models:

  • KUKA KR C1
  • KUKA KR C2 (00‑114‑265)
Are you looking for a spare part, a repair, one of our products, or do you need to check availability or get advice on a technical solution? Send us the order number, a photo of the nameplate, or a brief description of your request. We will usually get back to you within one hour during business hours.
