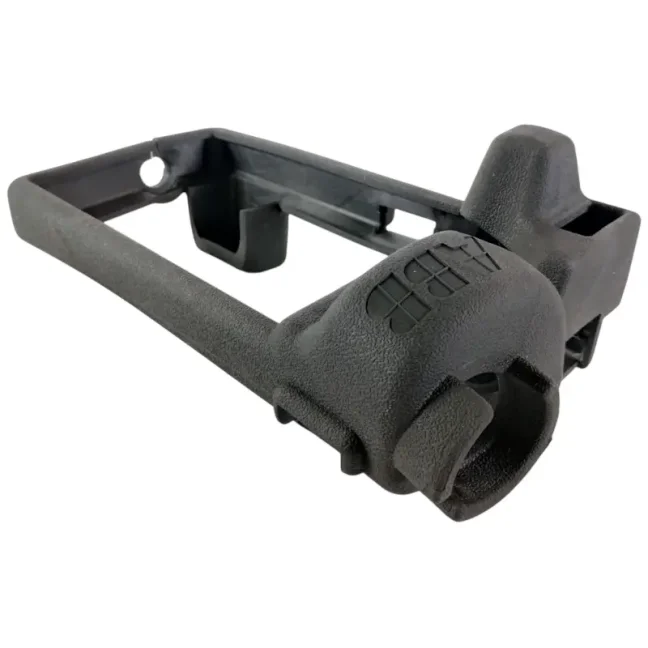

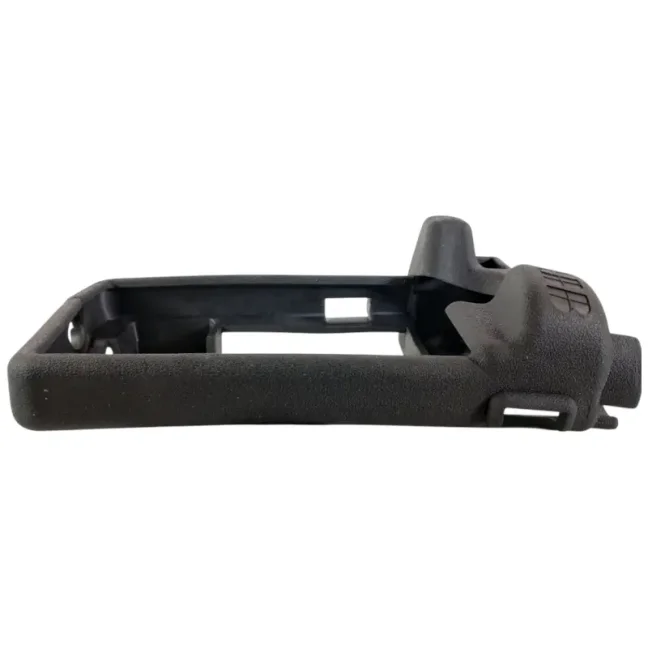

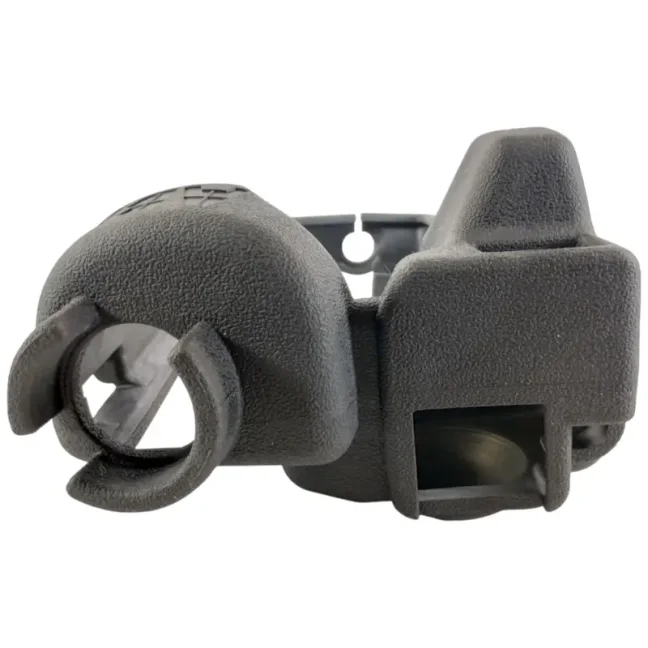

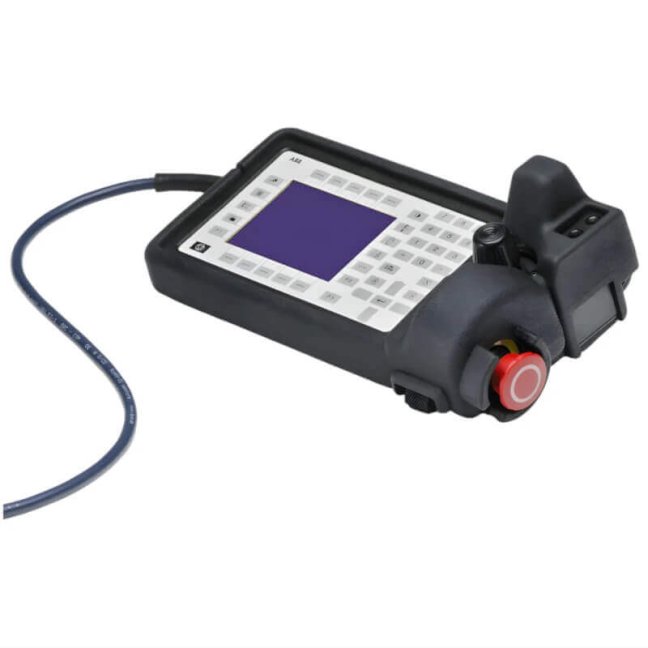

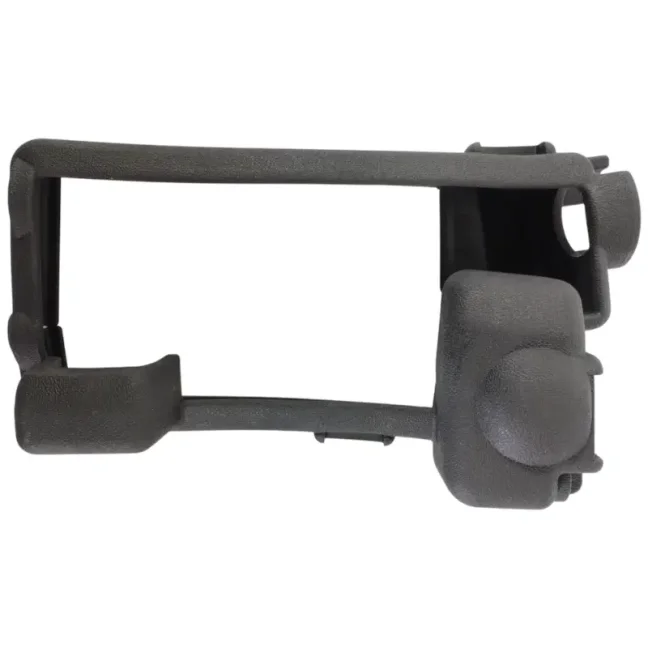

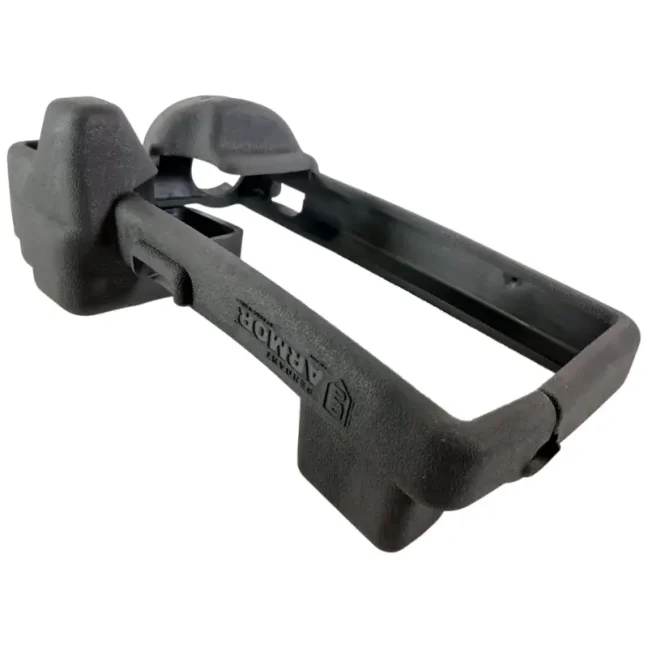

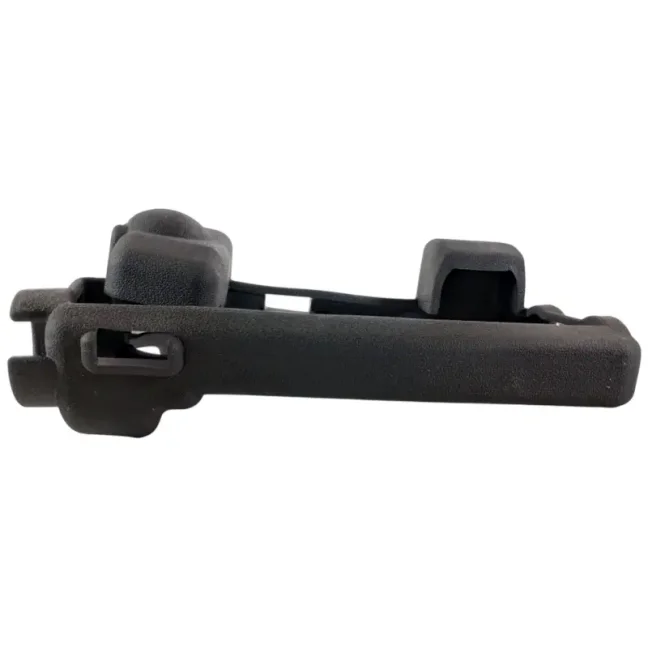

ABB S4C Family Teach Pendant ARMOR Bumper
Pendant Armor protective bumper S4C-PA for ABB S4C / S4C Plus. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains 1 protective bumper. The teach pendant is not included. More
Code: S4C-PA
Pendant Armor protective bumper S4C-PA for ABB S4C / S4C Plus. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains 1 protective bumper. The teach pendant is not included. More
Code: S4C-PA

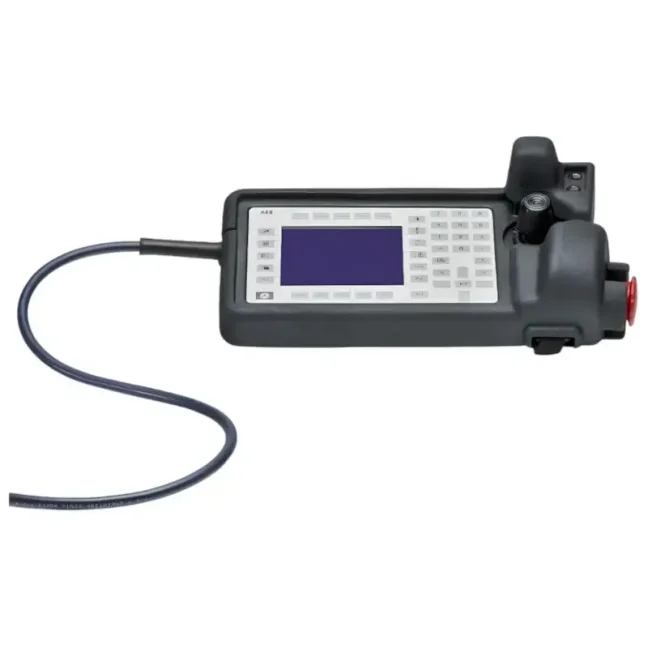

ARMOR for ABB S4C / S4C Plus
The S4C-PA bumper for ABB S4C / S4C Plus absorbs impact from drops and improves grip. It helps extend the pendant’s service life and reduce repair, replacement and unplanned downtime costs.
- Flexible Santoprene™ bumper
- Shaped for ABB S4C / S4C Plus
- Access to USB and controls

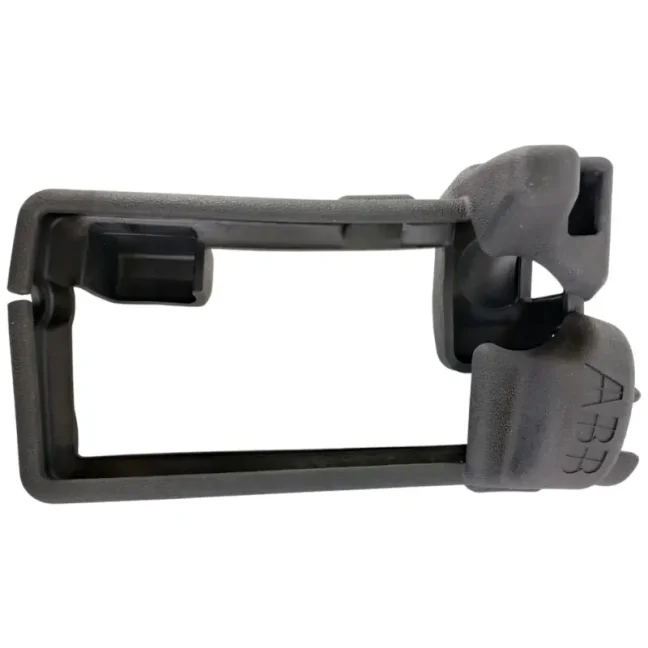

- One-piece flexible frame
Send the full part number or a photo of the nameplate. We will help you choose and prepare a quotation.
Does it fit your ABB S4C / S4C Plus?
ABB S4C and S4C Plus teach pendants for the M94–M96 and M97–M2000A series.
Flexible thermoplastic vulcanizate (TPV).
Net weight of the bumper.
| Bumper part number | S4C-PA |
|---|---|
| For pendant | ABB S4C / S4C Plus |
| Pendant part number | 3HNE00311-1 / 3HNE00312-1 / 3HNE00313-1 / 3HNE00314-1 |
| Design | One-piece flexible protective frame |
| Material and colour | Santoprene™ (TPV), black |
| Net weight | 479 g |
Before ordering, check the full model designation and part number of your pendant. Bumpers for different models are not interchangeable.
Compatible pendant models
- 3HNE00311-1 · M94–M96
- 3HNE00312-1 · M94–M96
- 3HNE00313-1 · M97–M2000A
- 3HNE00314-1 · M97–M2000A
Longer pendant life, lower operating costs
Dropping a teach pendant does not have to mean a repair or replacement. The flexible bumper absorbs impact and helps prevent mechanical damage. The savings extend beyond the pendant itself to the time spent replacing it and the losses caused by interrupted production.
Lower repair costs
The bumper absorbs impact energy and reduces the risk of mechanical damage. If it protects the pendant, the repair costs following a drop are avoided.
Longer pendant life
Protection during everyday handling helps keep the pendant in service for longer and reduce the need for premature replacement.
Lower risk of downtime
If the pendant remains undamaged and functional after a drop, there is no need to replace it or stop production because of damage to the pendant.
Protection during everyday handling
Impact absorption
The flexible frame surrounds the pendant and helps reduce the consequences of drops or impacts during handling.
A more secure grip
The pronounced surface texture improves grip. Perforations reduce weight and allow liquids to drain away.
Access to controls

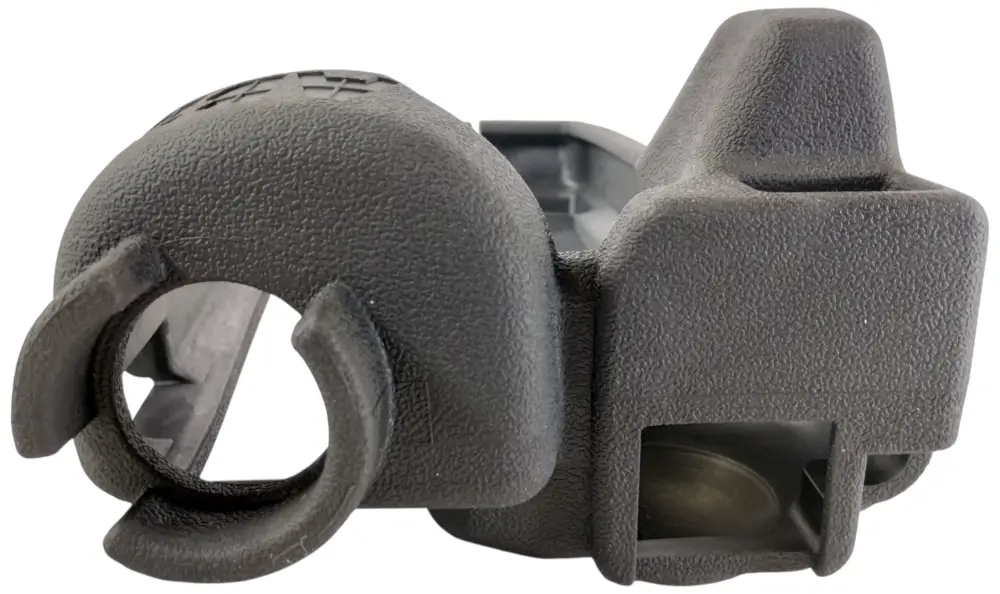

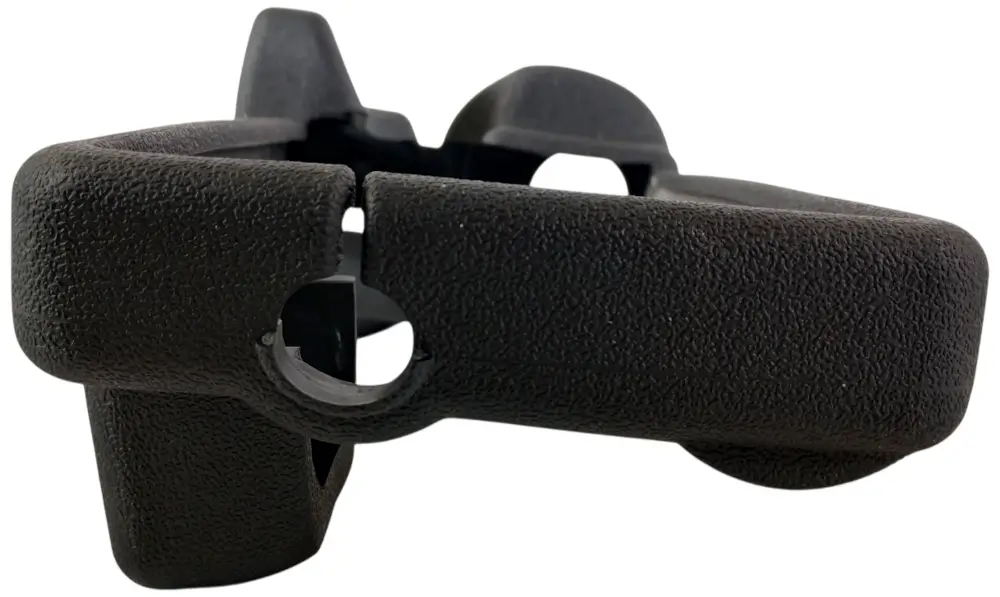

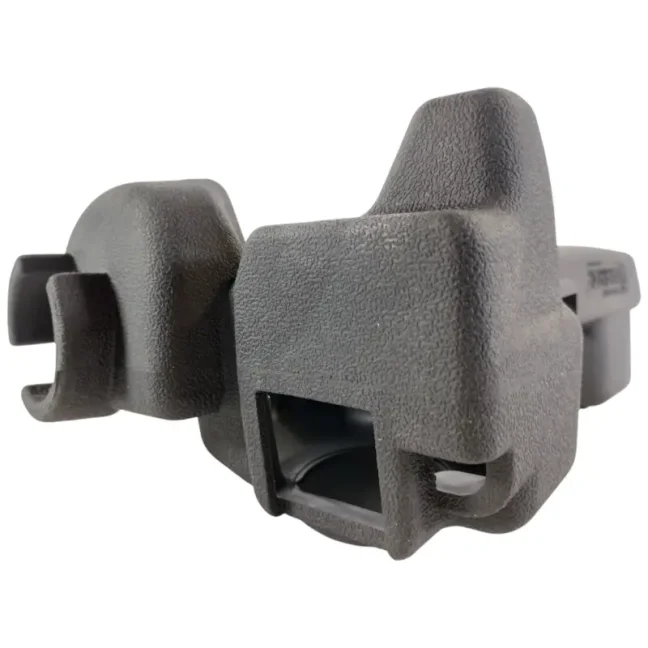

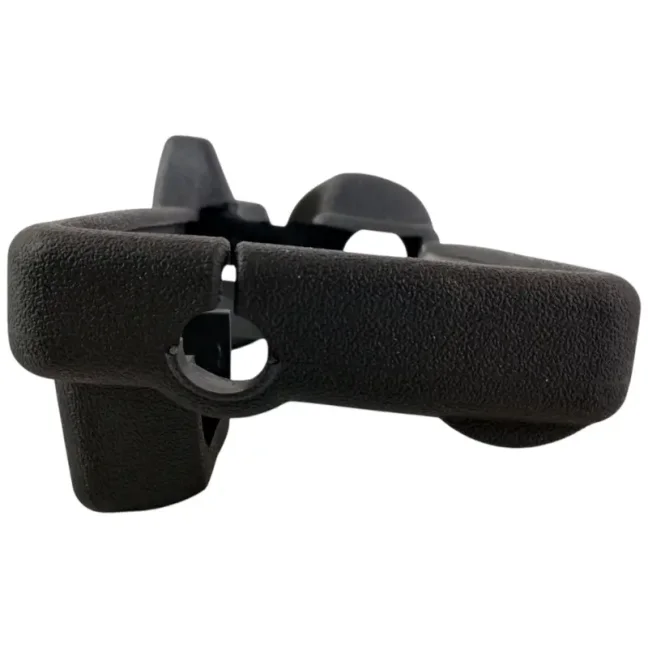

Cutouts preserve access to USB and the cable pass-through. The protective rims around the emergency stop and joystick are shaped for this pendant.
The bumper reduces the risk of mechanical damage. It does not guarantee that the pendant will survive every drop without damage.
What's included
- 1× Pendant Armor protective bumper for ABB S4C / S4C Plus.

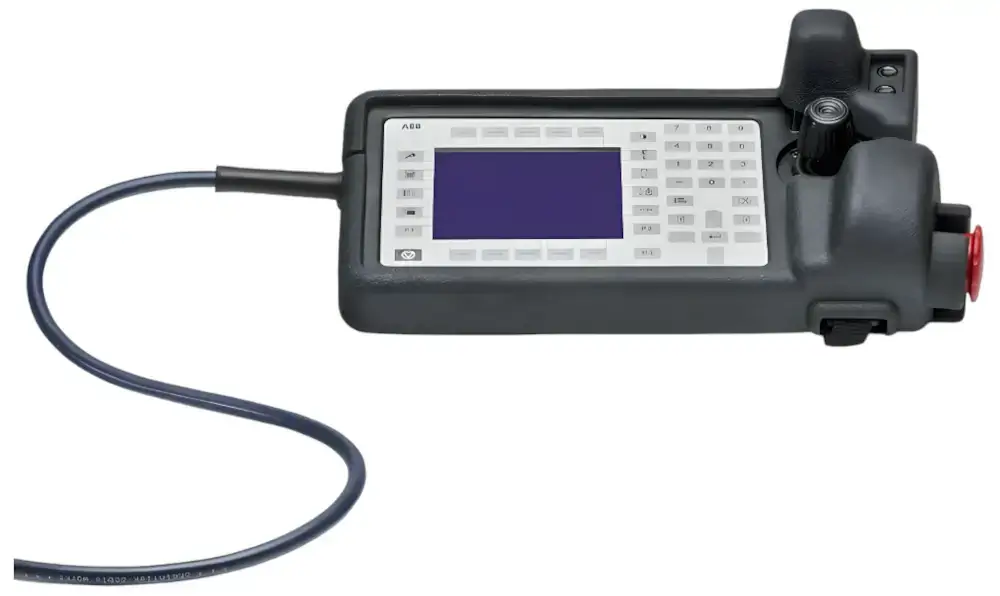

The teach pendant and separate hand strap are not included. The package contains only the protective bumper.
Fitting the bumper and using it in operation
Fitting instructions for the ABB S4C / S4C Plus bumper
Before fitting, power down the controller and release the lower end of the pendant’s hand strap. Check access to the emergency stop during installation in accordance with your workplace’s safety requirements.
Follow the instructions and your workplace's service procedures. After fitting, check access to the controls and safety devices.
Fitting instructions for the ABB S4C / S4C Plus bumper
Power down the controller.

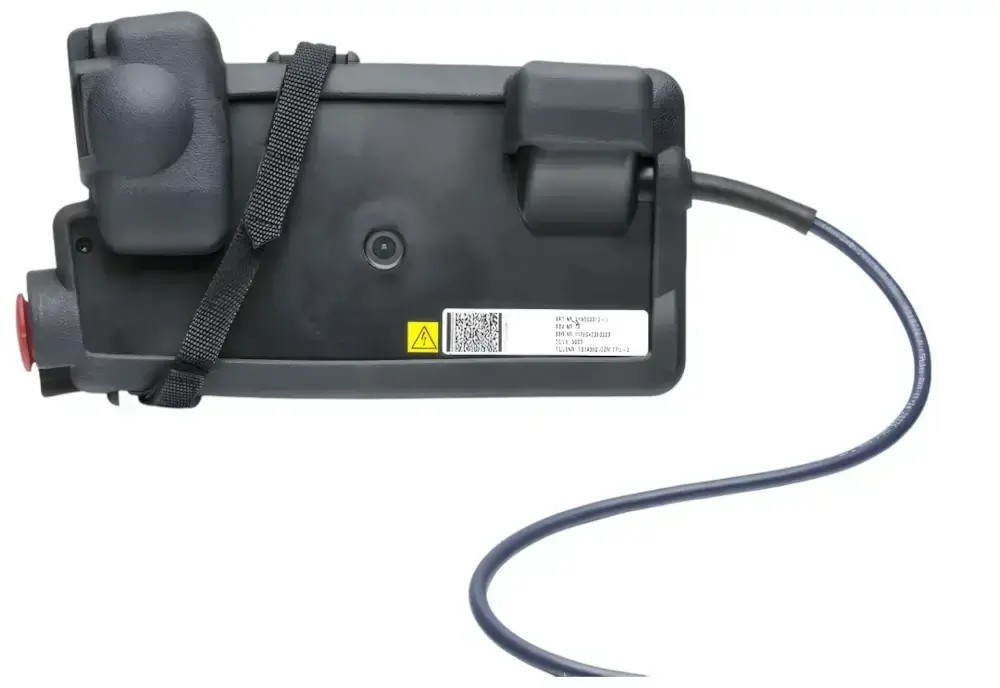

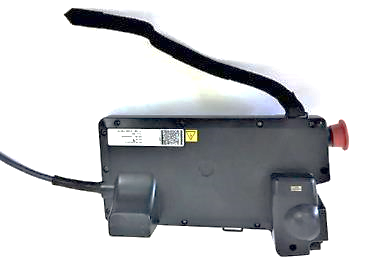

At the rear of the pendant, unthread the Velcro hand strap from its lower attachment.
Place the bumper face up on a clean, dry surface. Place the pendant on it, pass the hand strap through the lower cutout and fully press the emergency stop.

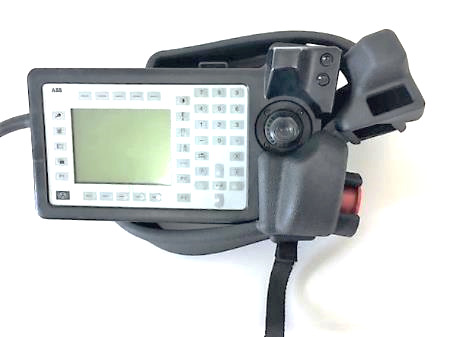

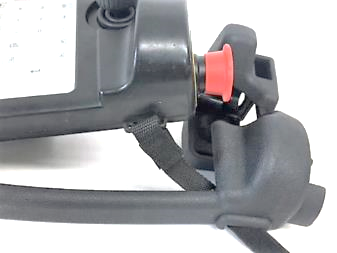

Start with the emergency stop corner. Insert it into the bumper, pull the hand strap through as you go and fully seat the corner.
Fit the upper right corner of the bumper. Seat the rear part first, then the front.

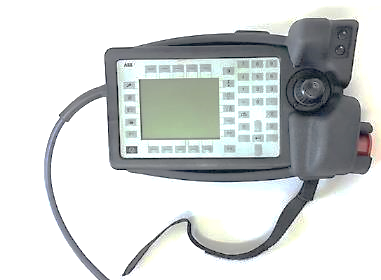

Pull the left side of the bumper over the pendant’s left edge. Check the cable cutout.

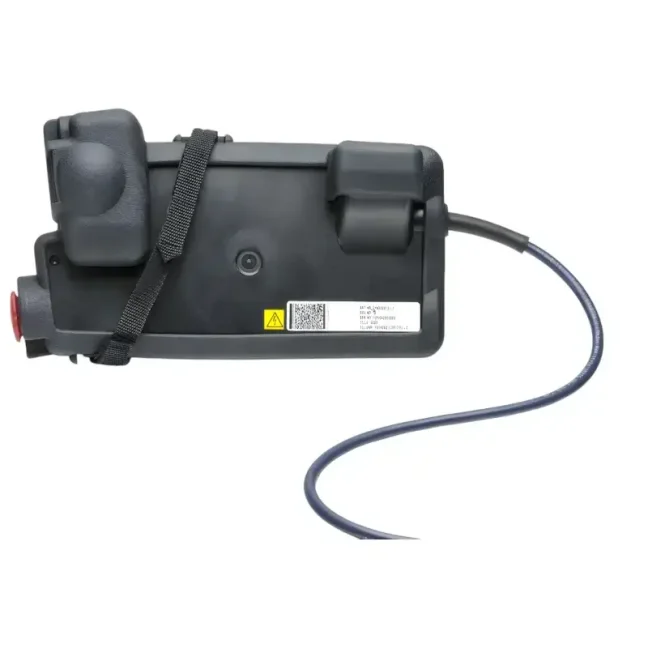

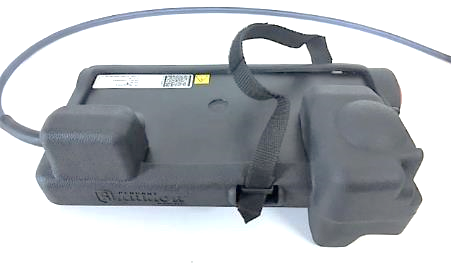

At the rear, pass the hand strap through the upper strap cam. Ensure that both Velcro sections engage securely.
If local safety requirements call for direct, unobstructed access to the emergency stop, cut away the protective rubber rim in accordance with those requirements. Santoprene™ can be cut with a utility knife.
Power up the controller and release the emergency stop.
Installation is complete.
Contact with chemicals
Material resistance depends on the specific substance and operating conditions. Check Santoprene™ chemical compatibility for oils, coolants or cleaning agents.
Take a closer look at ARMOR bumpers
Tomáš Krepčík from FOXON presents protective bumpers and screen protection for ABB, KUKA and FANUC pendants. Take a closer look at their design.

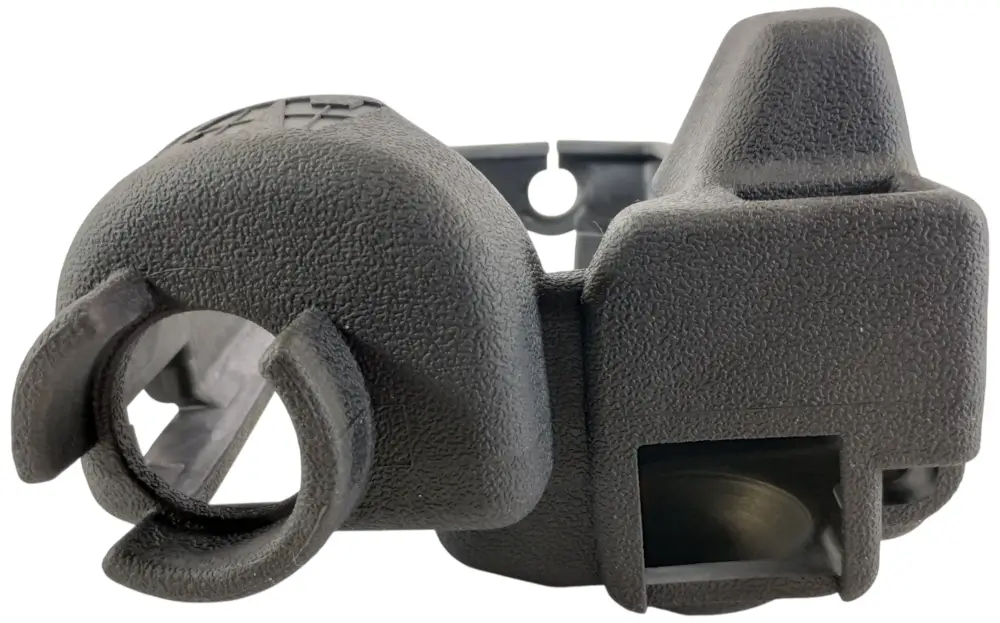

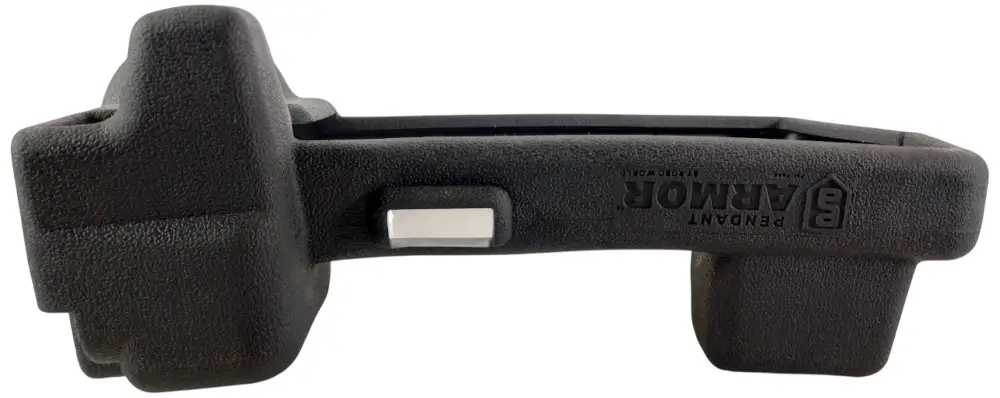

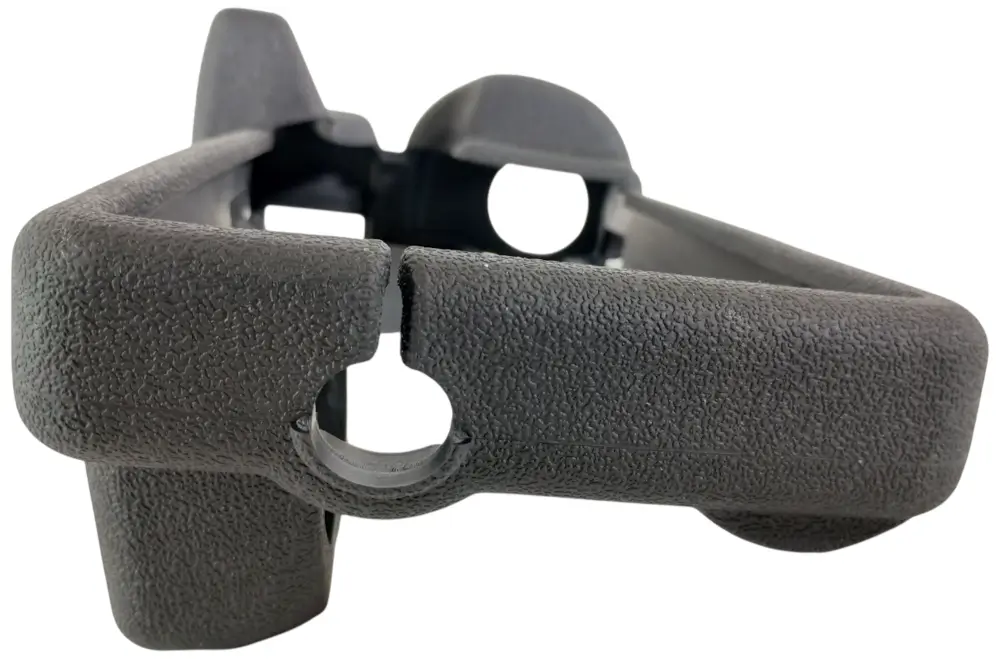

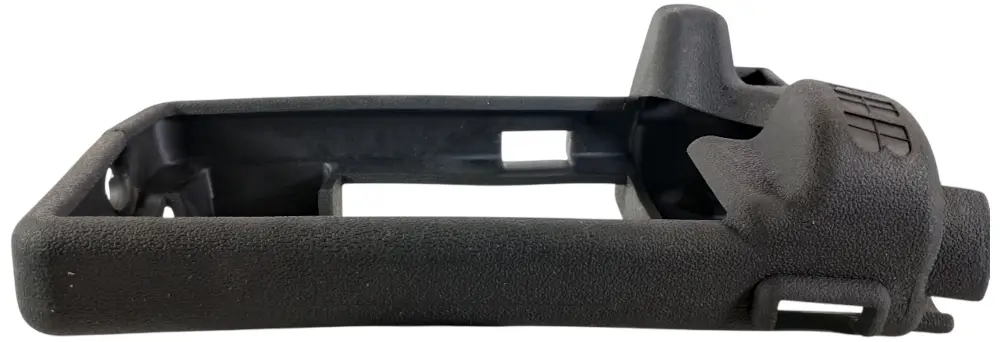

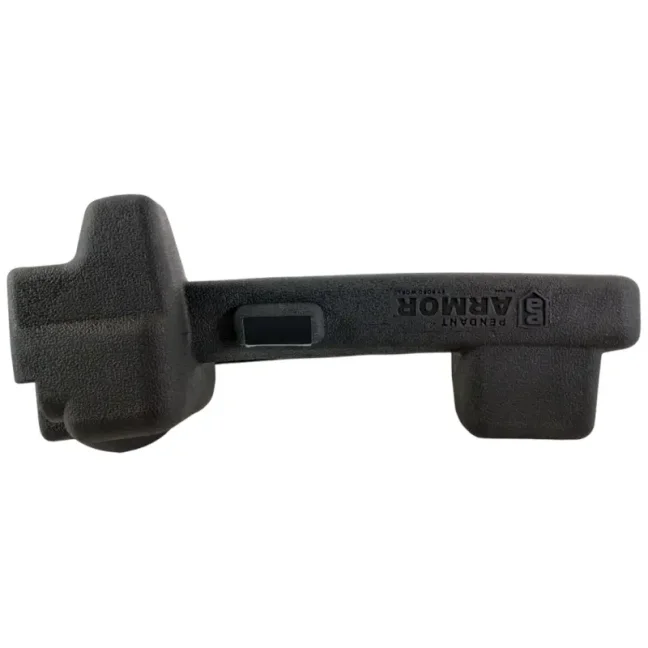

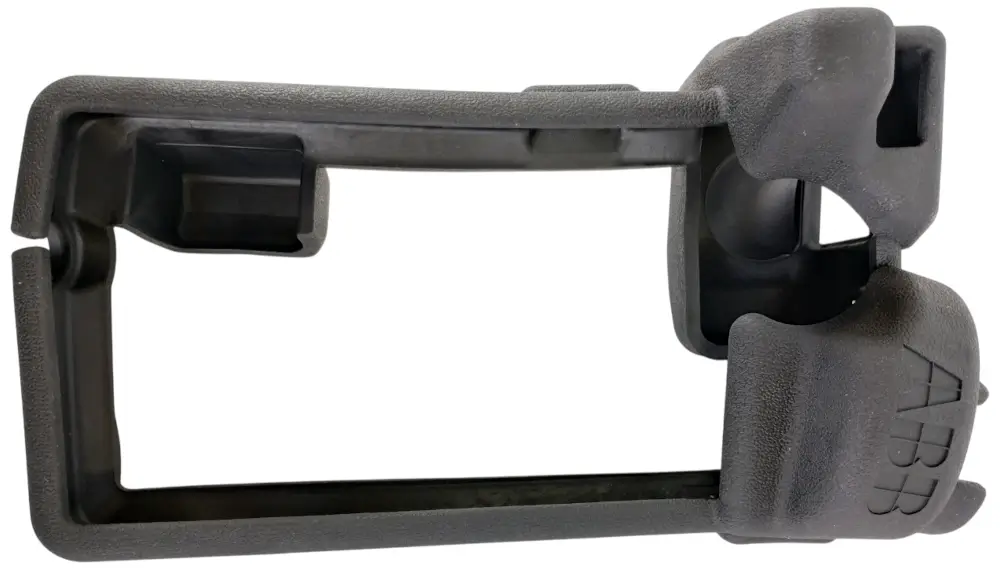

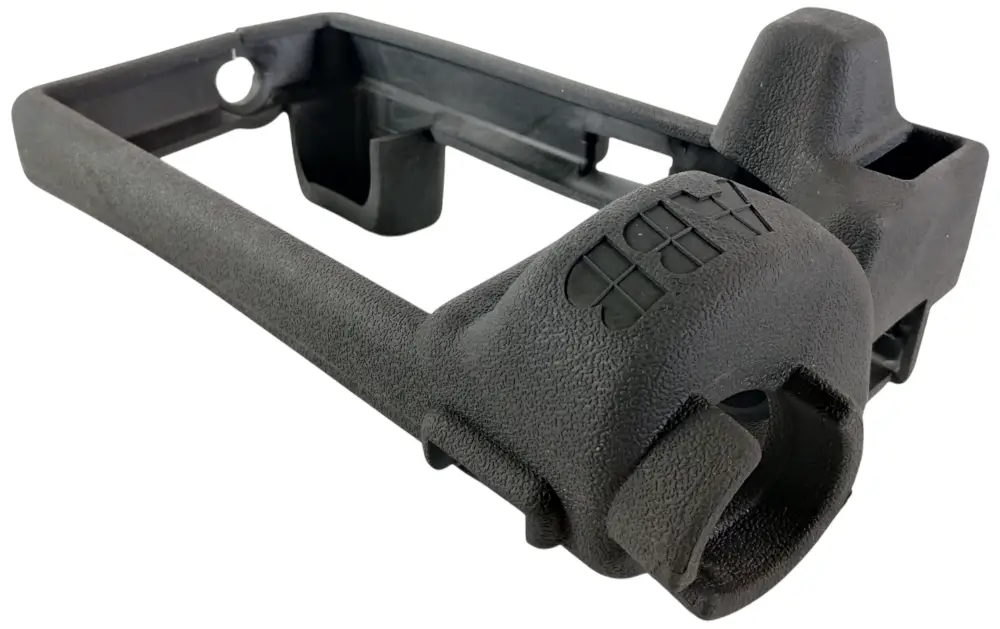

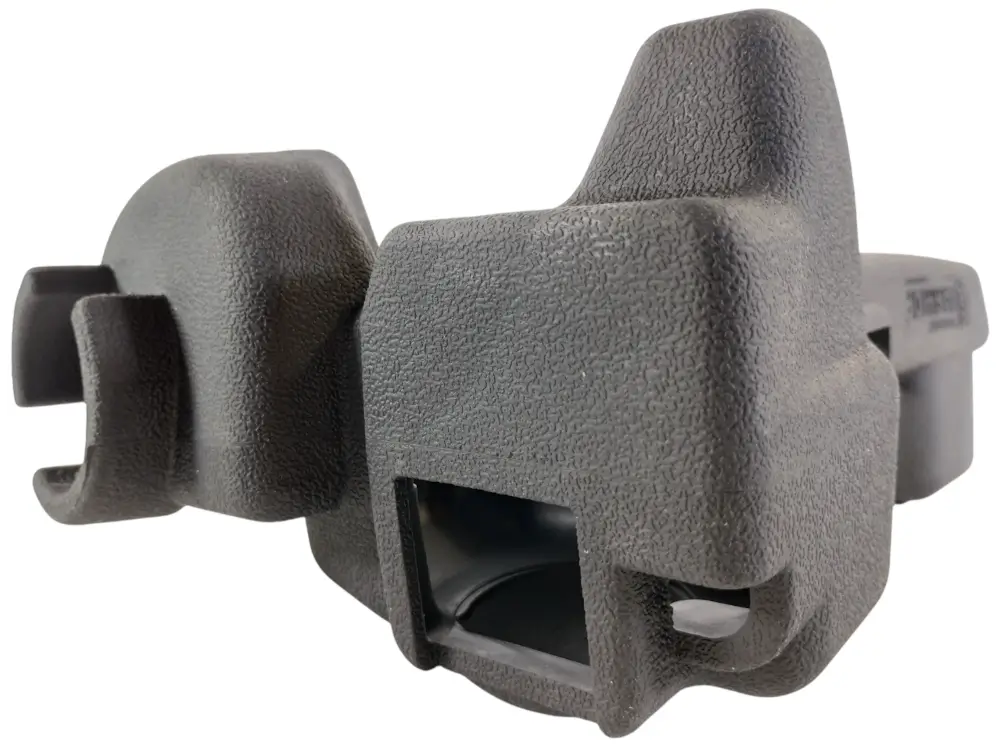

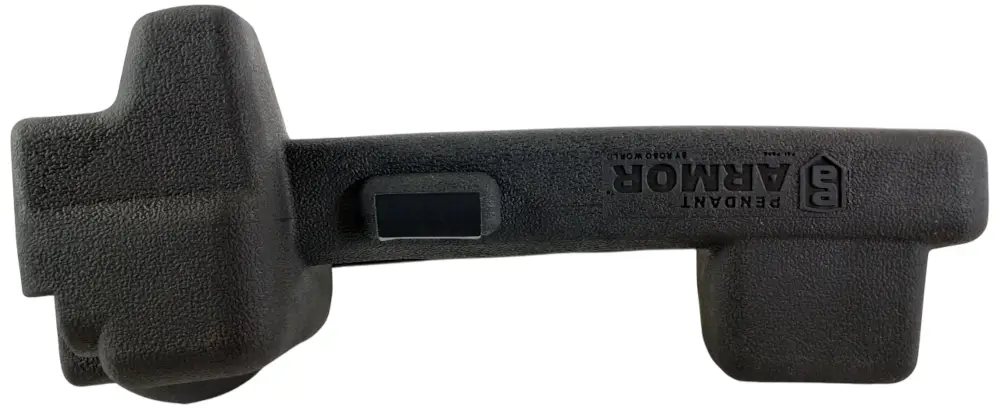

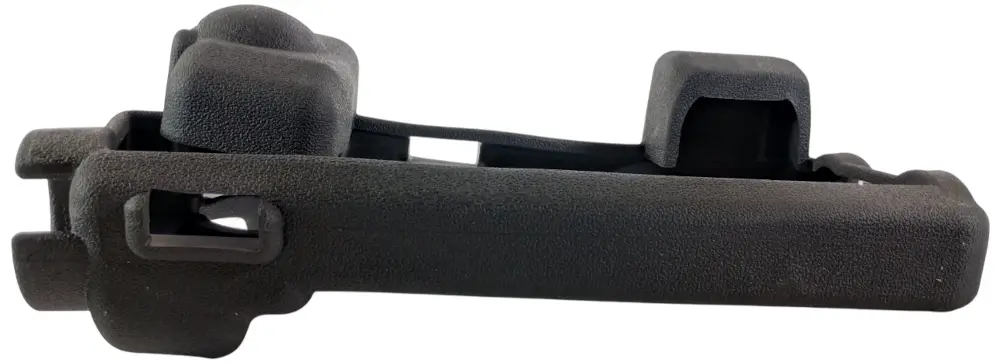

More photos of the ABB S4C / S4C Plus bumper (13)
Frequently asked questions
Is the teach pendant included?
No. The package contains one protective bumper. The pendant and separate hand strap are not included.
Is the ABB brand name enough to choose a bumper?
No. The exact pendant model and full part number matter. The S4C-PA bumper is designed for ABB S4C / S4C Plus. Compare your pendant’s identification with the listed compatibility.
Does the bumper also protect the screen surface?
The bumper protects the pendant body. For screen surface protection, send the exact pendant model and a photo of the screen; we will check suitable options for separate screen protection.
What should I check when fitting the bumper?
Power down the controller, pass the hand strap through the cutouts and secure it firmly after fitting. Check access to the emergency stop. If local safety requirements call for direct, unobstructed access, modify the protective rubber rim as described in the instructions.
How can I request bumpers for several pendants or delivery abroad?
Send the pendant models, quantities and delivery country. We will check the versions and prepare a quotation for the bumpers and suitable screen protection.
Add screen protection
Need to protect the screen surface of your ABB S4C pendant too? Send the pendant model and a photo of the screen. We will check suitable protection options for the specific version.
We will send a no-obligation quotation within 1 hour.
Is your pendant already damaged? Explore professional teach pendant repair options.
Protective cover for teach pendant: compatible with industrial robots
Material: Santoprene™ (thermoplastic vulcanizate – TPV)
Color: Black
Net Weight: 479 g
Construction: one-piece flexible cover, precisely molded for the specific model
Compatible with Teach Pendant models:
- 3HNE00311-1 (M94–M96 series robots)
- 3HNE00312-1 (M94–M96 series robots)
- 3HNE00313-1 (M97–M2000A series robots)
- 3HNE00314-1 (M97–M2000A series robots)
Frequently Asked Questions (FAQ) – ARMOR Protective Cover for ABB S4C Teach Pendant
What is the ARMOR protective cover for ABB S4C and what is it used for?
It is a protective cover for the control panel (teach pendant) of ABB industrial robots from the S4C and S4C Plus series. It protects the device against impacts, drops, liquids, and general wear in industrial environments.
Which teach pendant models is the cover compatible with?
The cover is designed for the following ABB models:
- 3HNE00311-1 (robots M94–M96)
- 3HNE00312-1 (robots M94–M96)
- 3HNE00313-1 (robots M97–M2000A)
- 3HNE00314-1 (robots M97–M2000A)
What material is the cover made of and why is it important?
The cover is made of Santoprene™ (TPV), a thermoplastic vulcanizate combining rubber flexibility with plastic durability. It is resistant to chemicals, oils, coolants, and temperature fluctuations while maintaining its shape over time.
How does the cover protect the device in case of a drop?
The material absorbs impact energy and distributes the force of impact. The cover mainly protects the rear and side parts of the panel, which are most vulnerable during a fall.
Does the cover limit access to buttons, connectors, or the display?
No. The cover is precisely shaped for specific models, includes cutouts for connectors and controls, and does not limit normal device operation.
Is the cover suitable for harsh industrial environments?
Yes. It is designed for industrial use and is resistant to moisture, oils, coolants, and common industrial chemicals.
Does the cover improve handling of the teach pendant?
Yes. The textured, non-slip surface ensures a secure grip even when wearing gloves or in wet conditions. Perforations also help drain liquids.
How is the cover installed?
The cover is easily fitted onto the panel without tools. Thanks to its precise design, it stays securely in place even during frequent handling.
Can the cover help prevent production downtime?
It helps reduce the risk of panel damage caused by drops or liquid exposure, which are common causes of downtime. However, it does not address failures caused by electronics or software.
What is the lifespan of Santoprene™ material?
The material has excellent resistance to aging – it does not harden, crack, or lose flexibility even during long-term use in demanding conditions.
What is included in the package?
The package includes only the protective cover. The teach pendant and strap are not included.
Is the cover compatible with other ABB series besides S4C?
No. The cover is specifically designed for the S4C and S4C Plus series. For other generations (e.g., IRC5), a different model is required.
Who is this product suitable for?
For manufacturing companies, system integrators, and maintenance teams working with robotic systems where frequent handling of the teach pendant increases the risk of mechanical damage or liquid exposure.
What is the main benefit compared to using the panel without a cover?
Lower risk of damage, longer device lifespan, improved ergonomics, and reduced likelihood of unplanned downtime caused by mechanical damage.
Protective Covers and Films for Robot Teach Pendants: No More Repairs Thanks to Prevention
A dropped robot controller, everyday handling in harsh industrial conditions, or a damaged display – it takes very little for a faulty teach pendant to stop your line, delay maintenance and increase repair costs. Yet you can proactively protect FANUC, KUKA and ABB robot control panels with robust covers and protective films that prevent display damage.
VIDEO: A Close-Up Look at Protective Covers for ABB, KUKA and FANUC Teach Pendants
Over the course of his career at FOXON, our sales representative Tomáš Krepčík has handled hundreds of damaged teach pendants that were later repaired. It made him wonder whether there was anything that could protect these expensive devices from mechanical damage. Today, we are a European distributor of special protective covers and films.
