ABB OmniCore Teach Pendant ARMOR Bumper
Pendant Armor protective bumper OMNI-PA for ABB OmniCore FlexPendant. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains the bumper, protection for the 6-axis joystick and 1 adapter for the original cradle. The teach pendant is not included. More
Code: OMNI-PA
Pendant Armor protective bumper OMNI-PA for ABB OmniCore FlexPendant. The flexible Santoprene™ frame absorbs impact, improves grip and helps extend the pendant’s service life. It reduces the risk of mechanical damage and the associated repair, replacement and unplanned downtime costs. We deliver worldwide. The package contains the bumper, protection for the 6-axis joystick and 1 adapter for the original cradle. The teach pendant is not included. More
Code: OMNI-PA

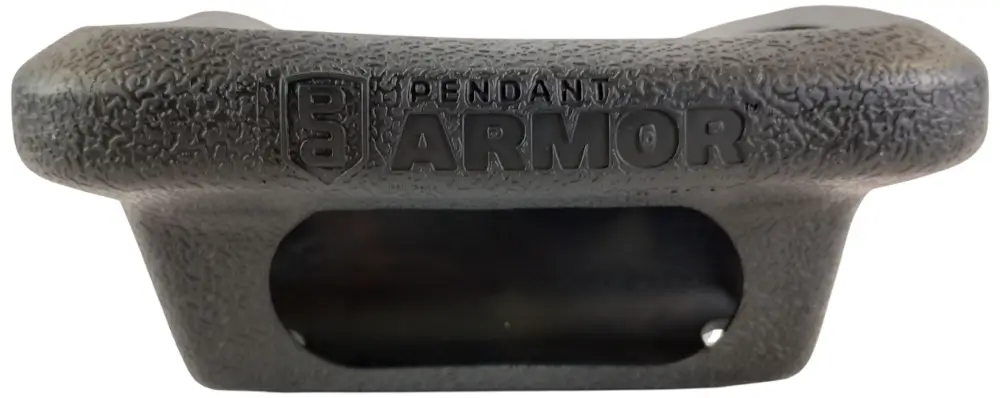

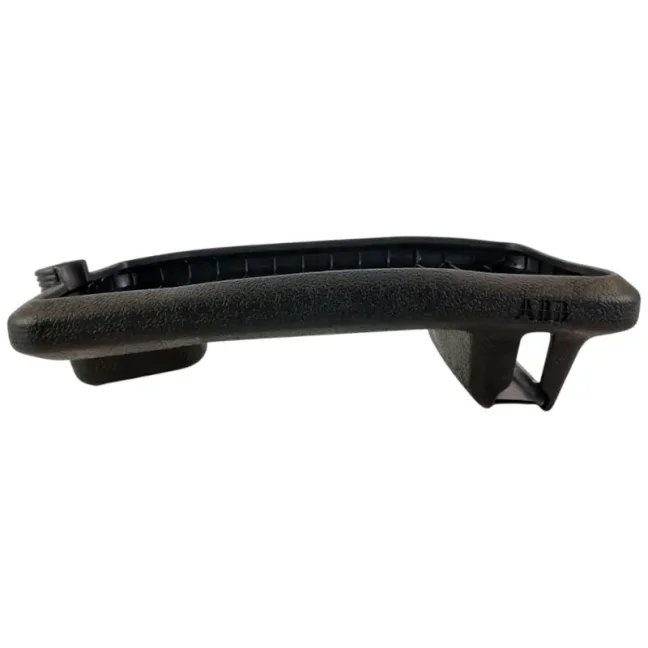

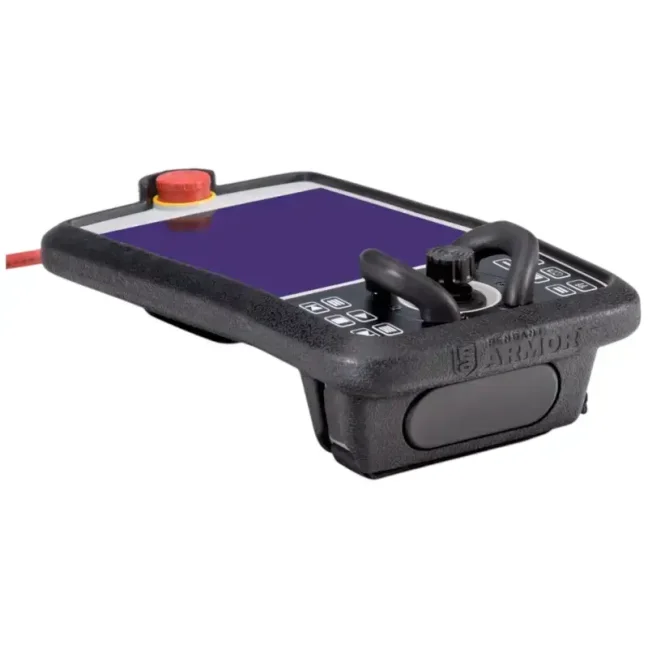

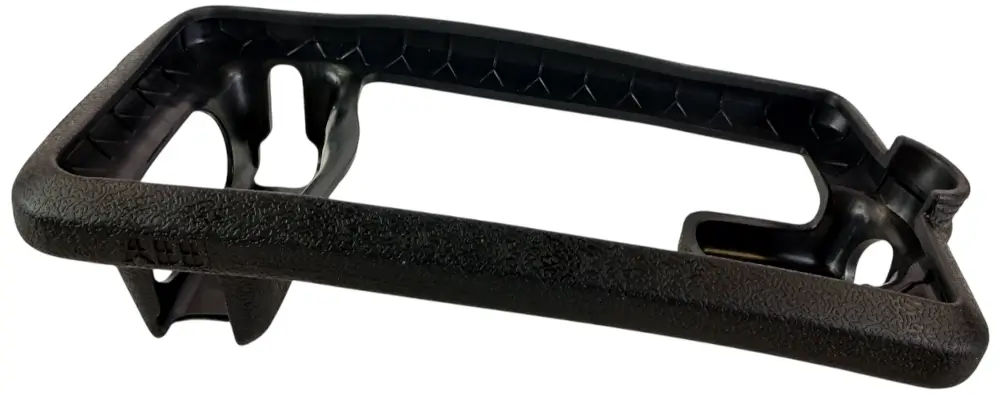

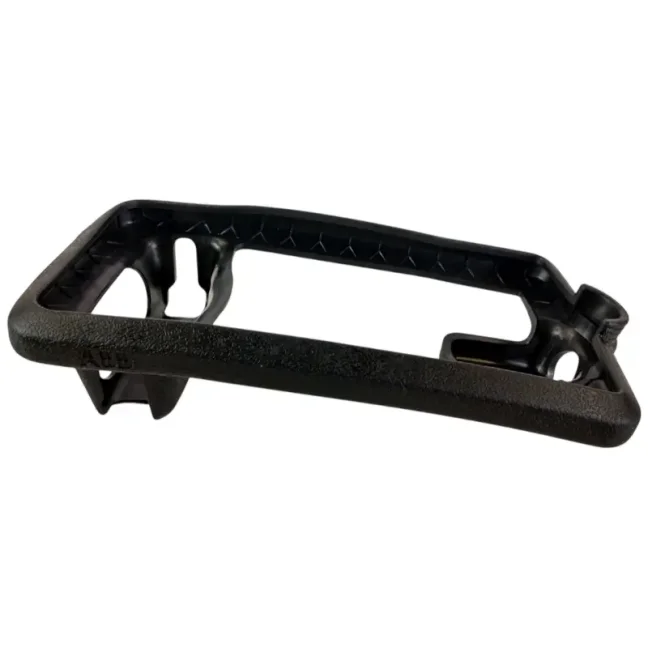

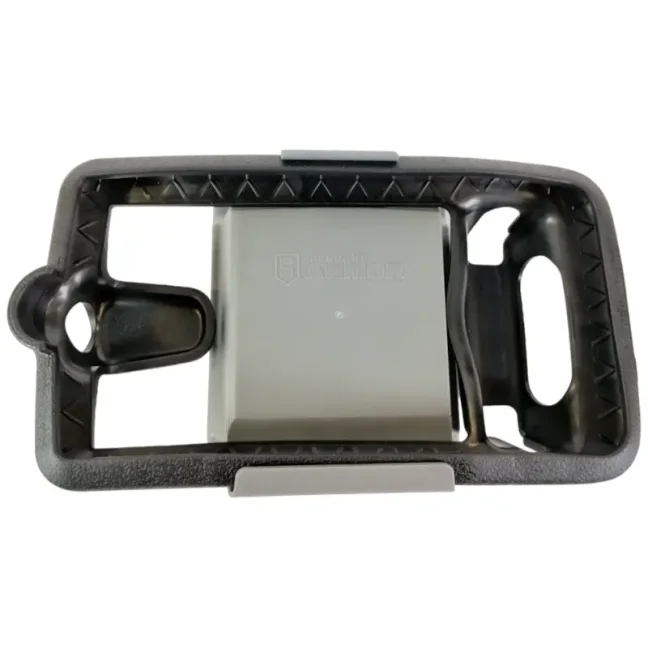

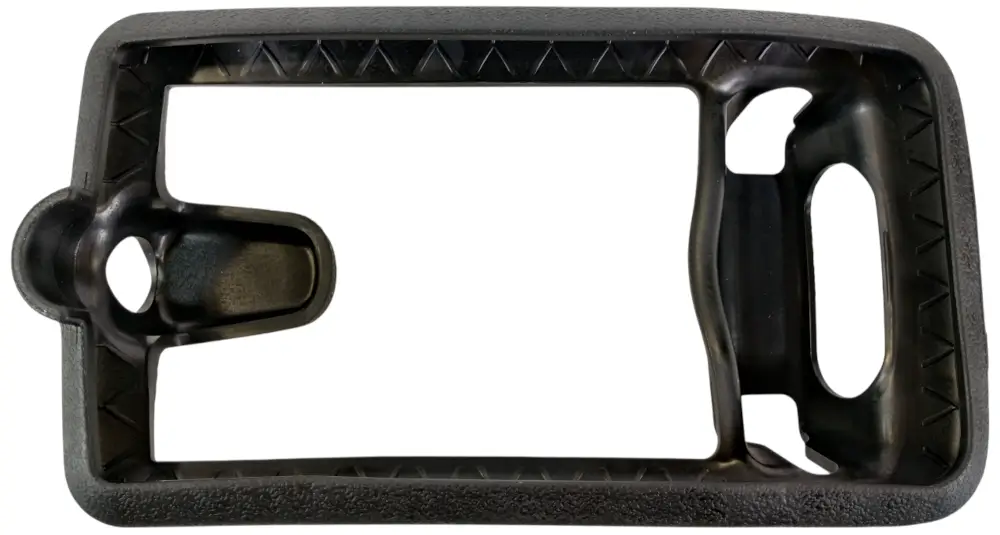

ARMOR for ABB OmniCore FlexPendant

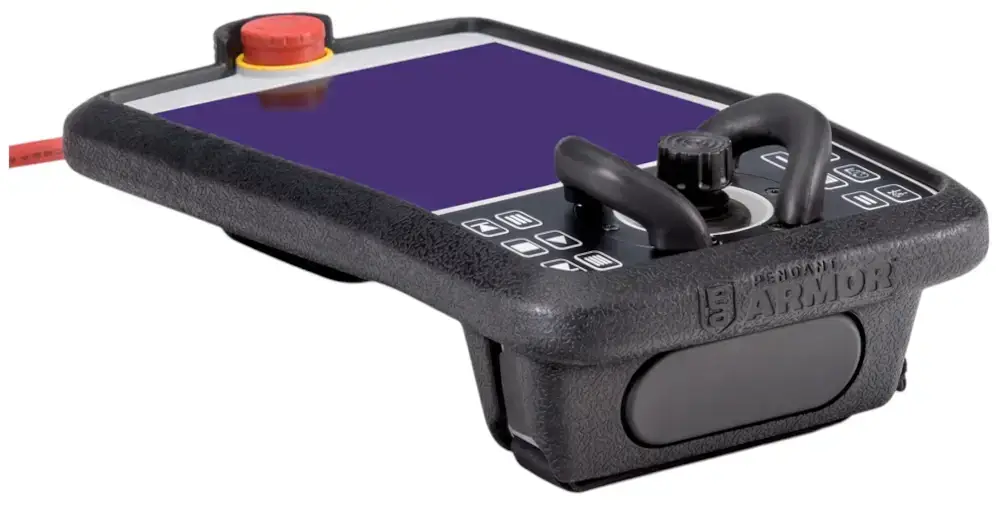

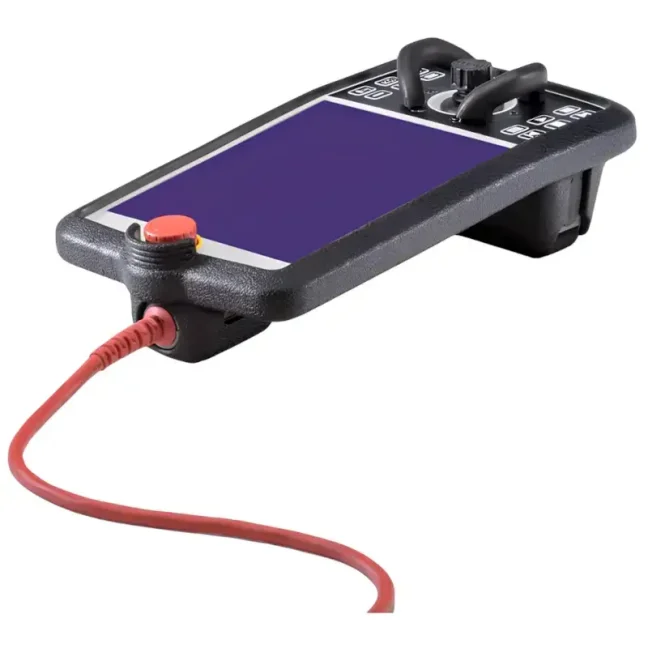

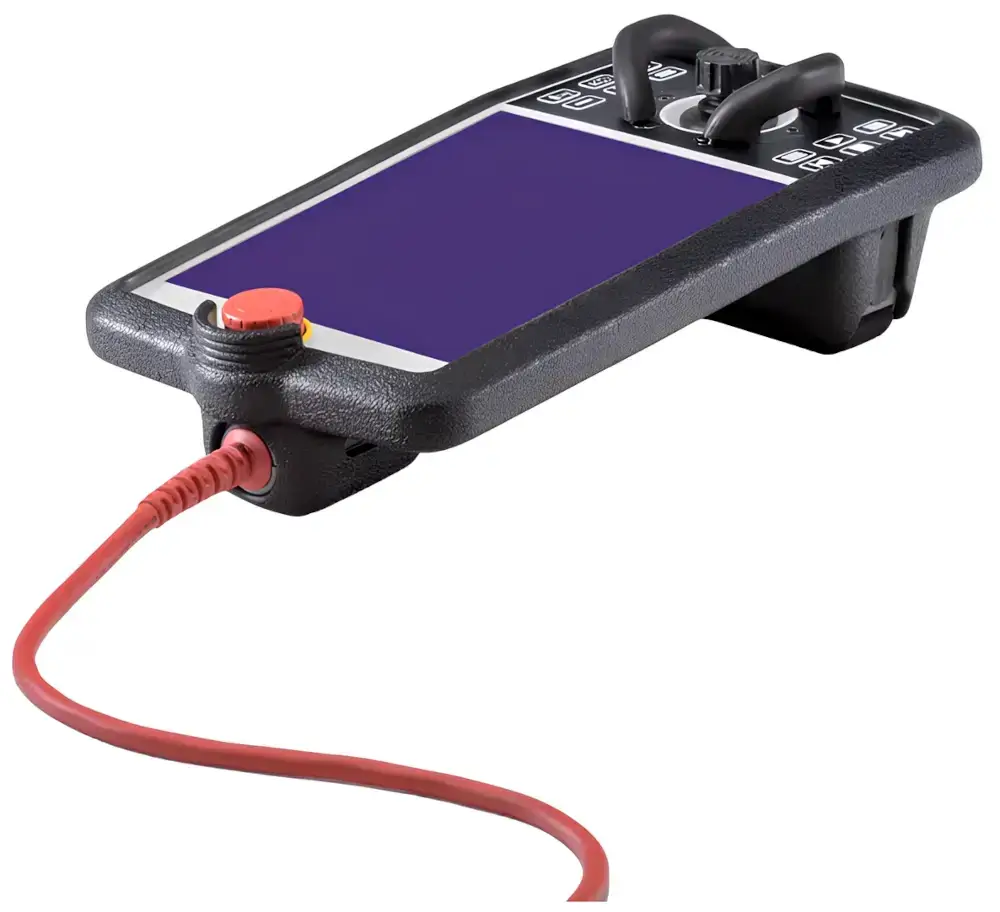

The OMNI-PA bumper for ABB OmniCore FlexPendant absorbs impact from drops and improves grip. It helps extend the pendant’s service life and reduce repair, replacement and unplanned downtime costs.
- Flexible Santoprene™ bumper
- Shaped for ABB OmniCore
- Access to USB and the enabling switch
- Cradle adapter included
Send the full part number or a photo of the nameplate. We will help you choose and prepare a quotation.
Does it fit your ABB OmniCore FlexPendant?
ABB OmniCore FlexPendant teach pendants DSQC 3060, DSQC 3120 and DSQC 3124.
Flexible thermoplastic vulcanizate (TPV).
Net weight of the bumper.
| Bumper part number | OMNI-PA |
|---|---|
| For pendant | ABB OmniCore FlexPendant |
| Pendant part number | 3HAC064211-001 / 3HAC065726 / 3HAC086996-001 |

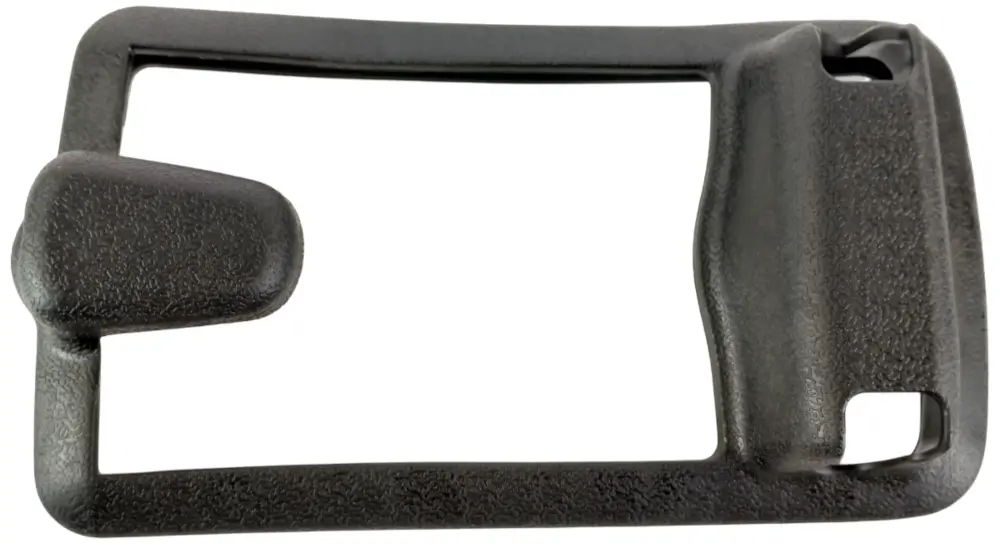

| Design | One-piece flexible protective frame |
| Material and colour | Santoprene™ (TPV), black |
| Net weight | 230 g |
Before ordering, check the full model designation and part number of your pendant. Bumpers for different models are not interchangeable.
Compatible pendant models
- DSQC 3060
- DSQC 3120
- DSQC 3124
- 3HAC064211-001
- 3HAC065726
- 3HAC086996-001
Longer pendant life, lower operating costs
Dropping a teach pendant does not have to mean a repair or replacement. The flexible bumper absorbs impact and helps prevent mechanical damage. The savings extend beyond the pendant itself to the time spent replacing it and the losses caused by interrupted production.
Lower repair costs
The bumper absorbs impact energy and reduces the risk of mechanical damage. If it protects the pendant, the repair costs following a drop are avoided.
Longer pendant life
Protection during everyday handling helps keep the pendant in service for longer and reduce the need for premature replacement.
Lower risk of downtime
If the pendant remains undamaged and functional after a drop, there is no need to replace it or stop production because of damage to the pendant.
Protection during everyday handling
Impact absorption
The flexible frame surrounds the pendant and helps reduce the consequences of drops or impacts during handling.
A more secure grip

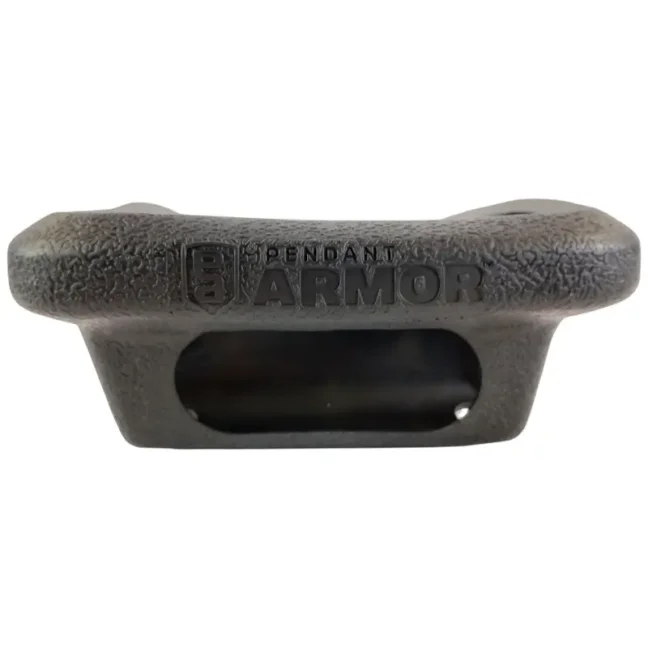

The pronounced surface texture improves grip during everyday handling.
Access to controls
The bumper preserves access to USB and the enabling switch. Protective guards for the 6-axis joystick are included.
The bumper reduces the risk of mechanical damage. It does not guarantee that the pendant will survive every drop without damage.

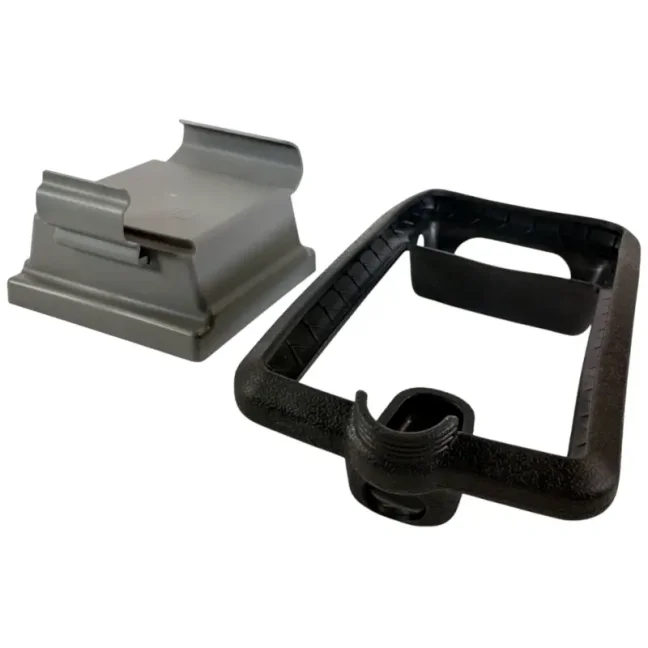

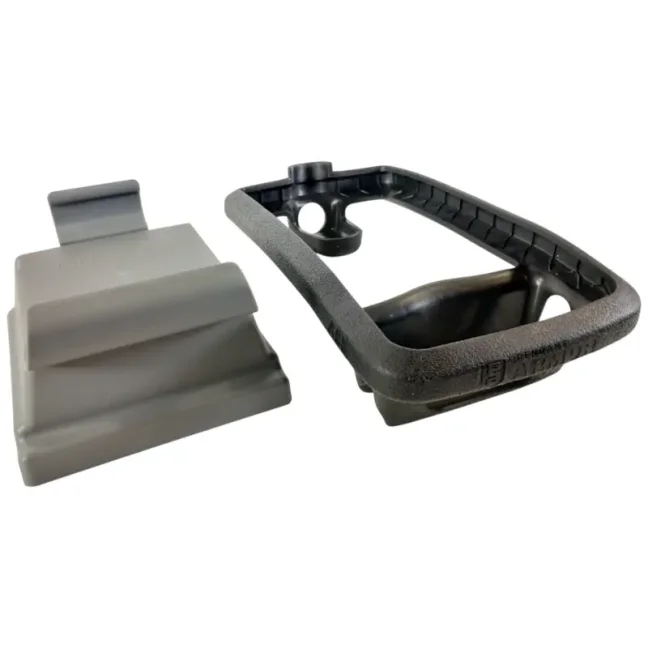

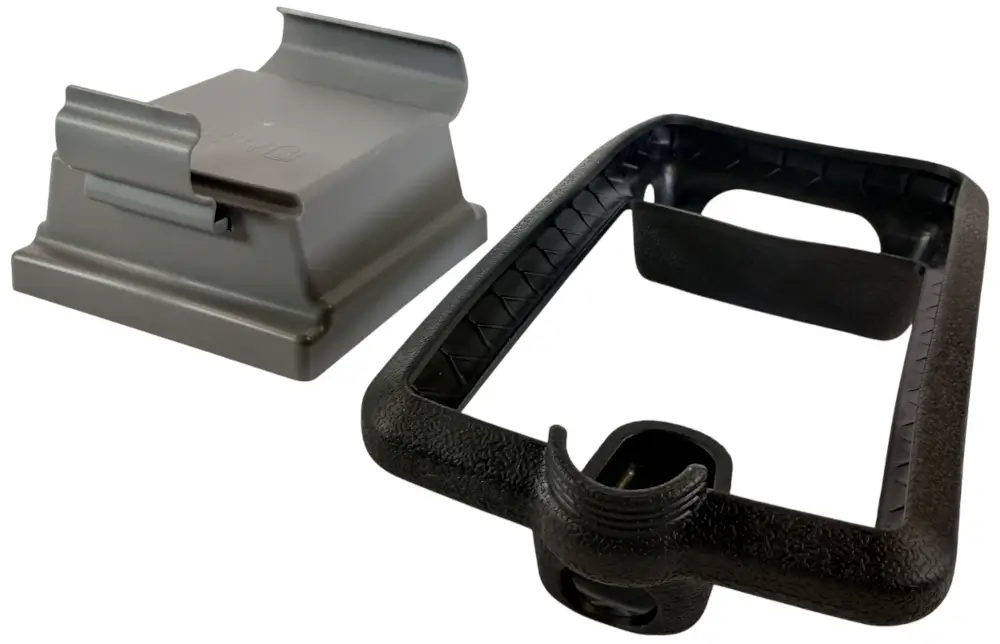

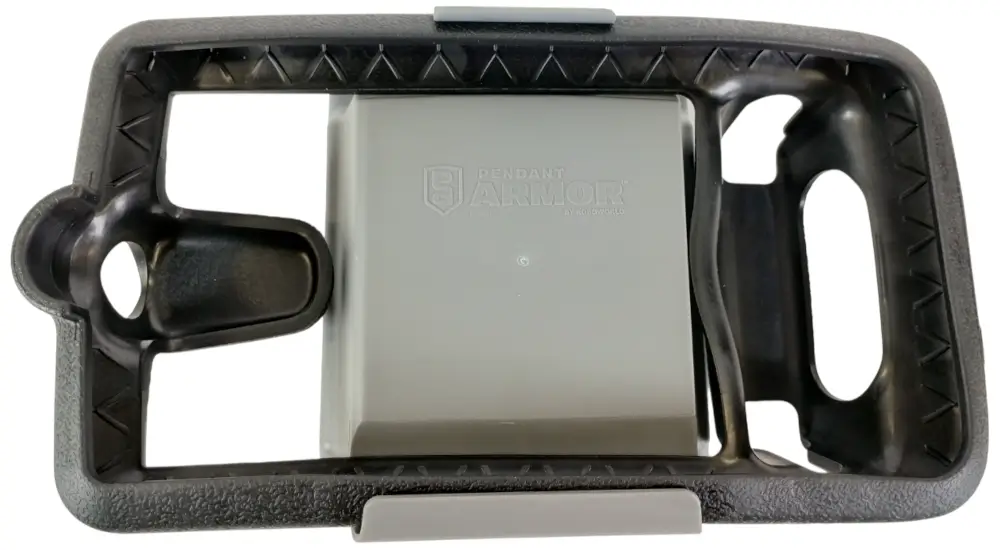

What's included
- 1× Pendant Armor protective bumper for ABB OmniCore FlexPendant.
- Protective guards for the 6-axis joystick.

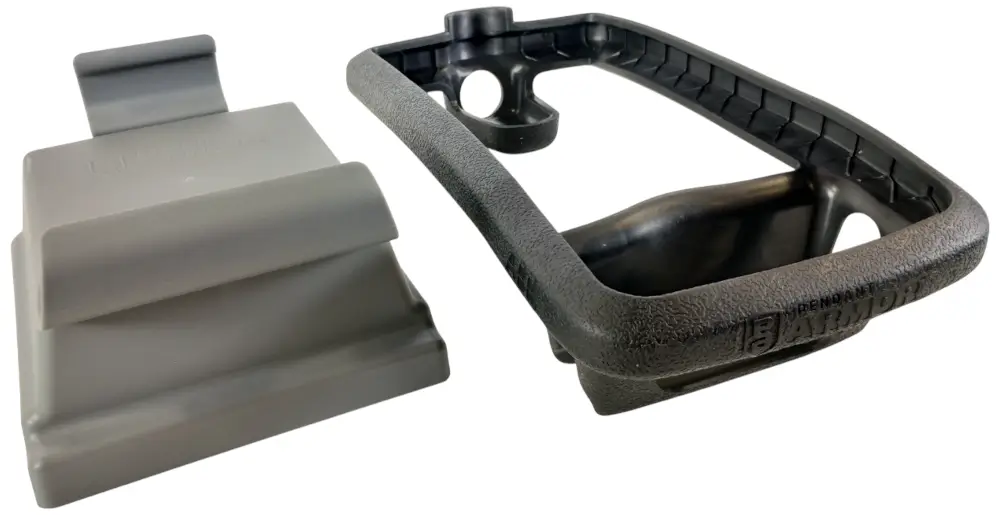

- 1× adapter for the original pendant cradle.
The teach pendant and separate hand strap are not included. The package also includes joystick protection and a cradle adapter.
Fitting the bumper and using it in operation
Fitting instructions for OmniCore DSQC 3060
The procedure below is for DSQC 3060. Before fitting, power down the controller and disconnect the cable at the controller end, not from the pendant. For DSQC 3120 and DSQC 3124, first check the procedure and cradle version.
Follow the instructions and your workplace's service procedures. After fitting, check access to the controls and safety devices.
Fitting instructions for OmniCore DSQC 3060
Power down the controller and disconnect the cable at the controller end. Do not disconnect it from the FlexPendant.

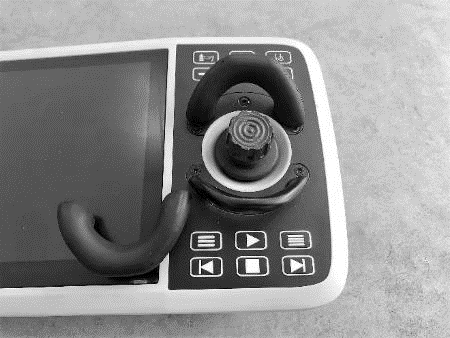

Open the protective guards at their seams and fit them over the wire hoops around the joystick.

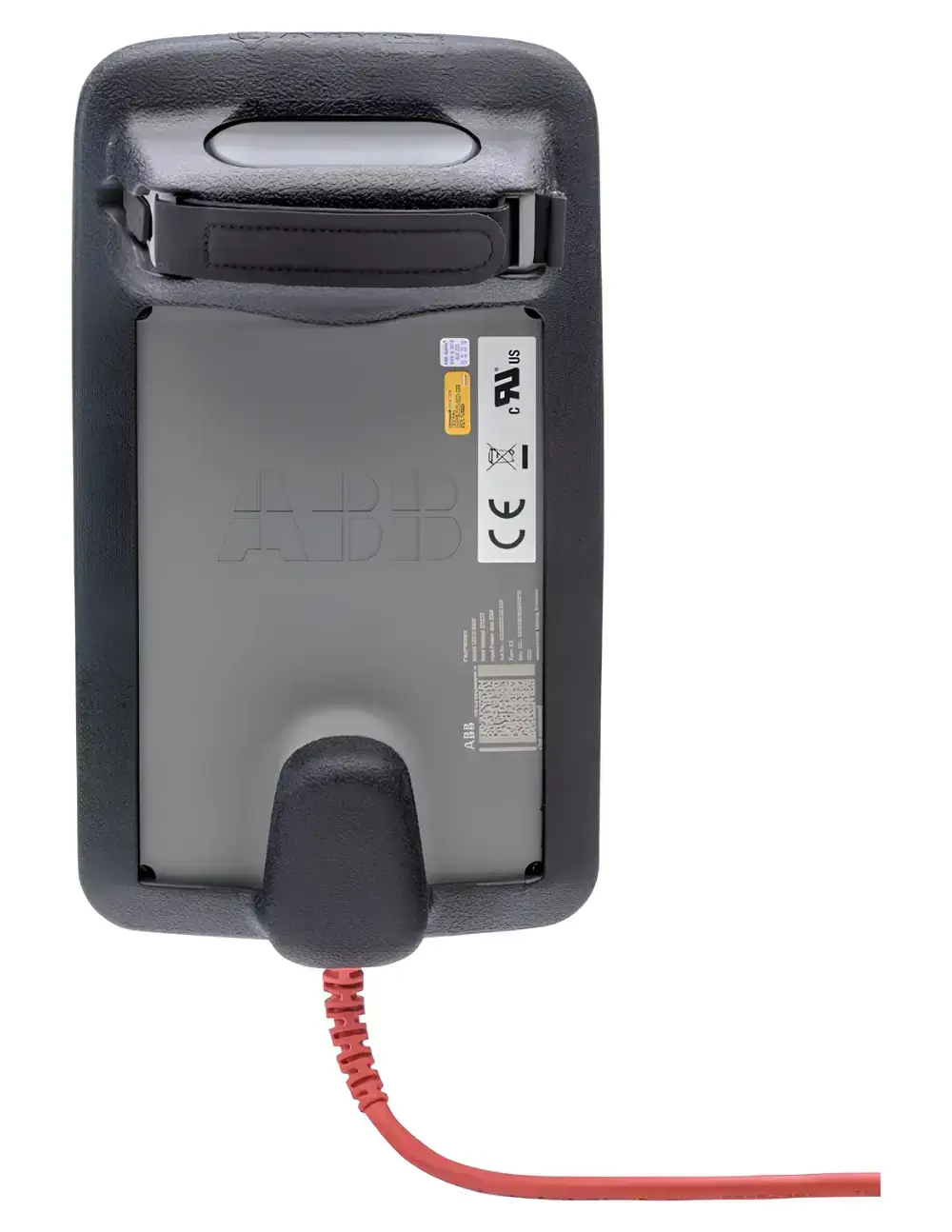

Turn the pendant over and unthread the Velcro hand strap on one side.

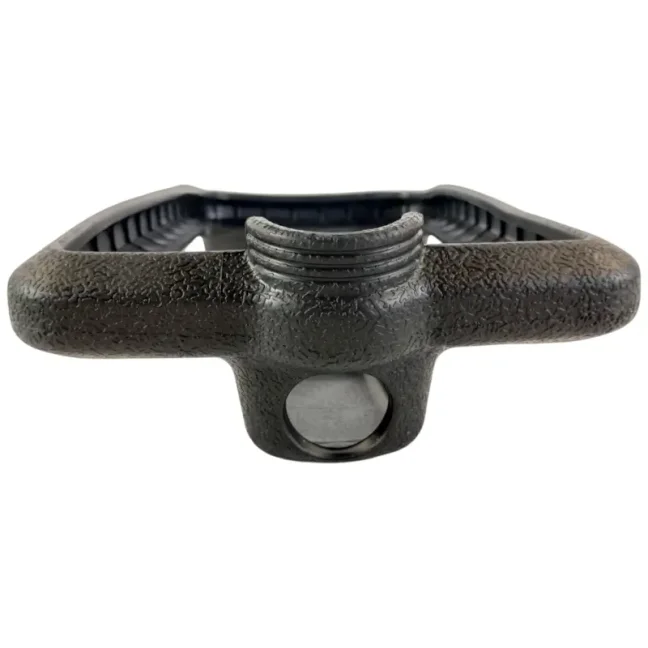

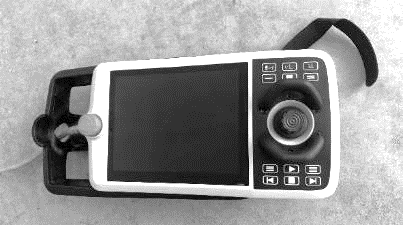

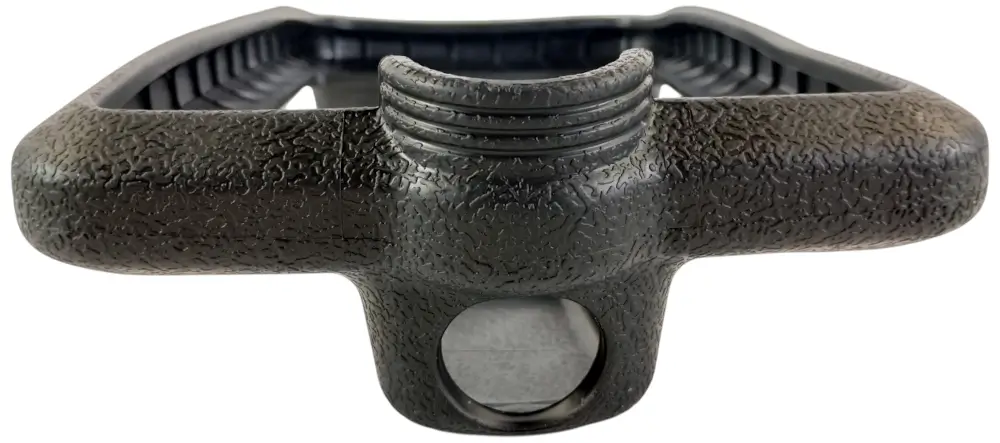

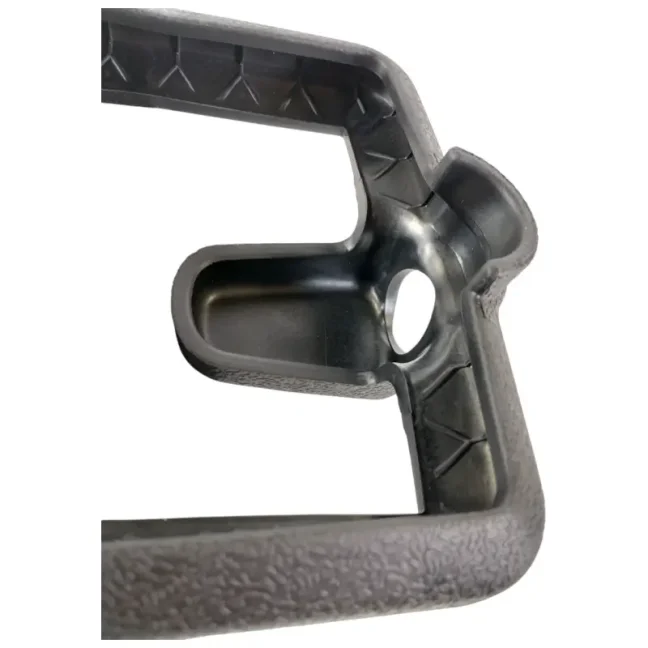

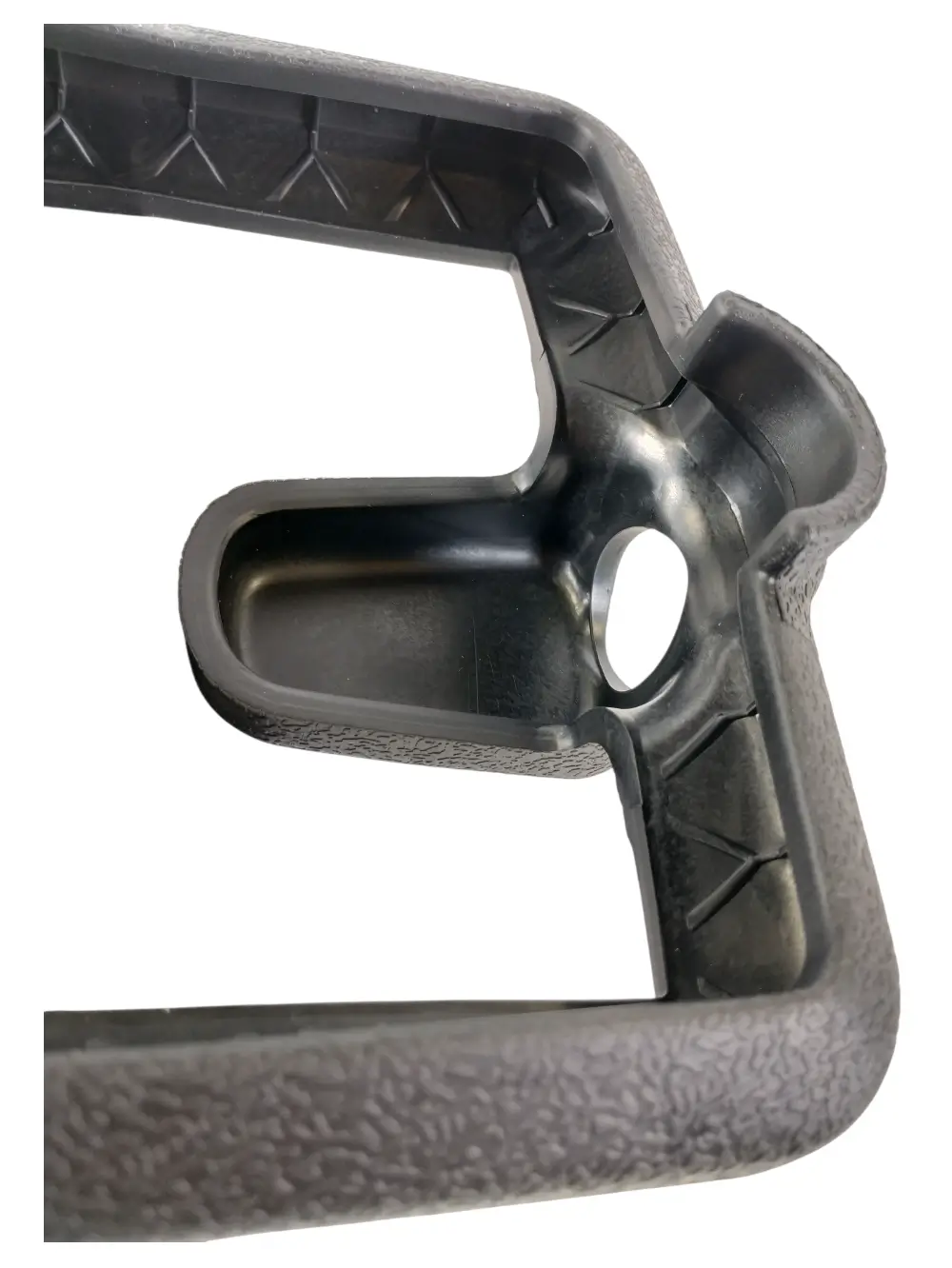

Place the bumper face up on the work surface and the pendant on it. Pass the cable through the opening at the base of the raised emergency stop rim.

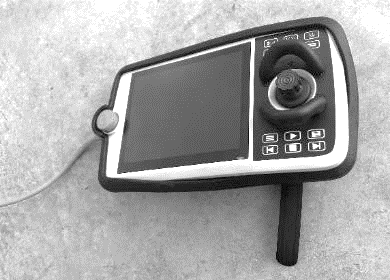

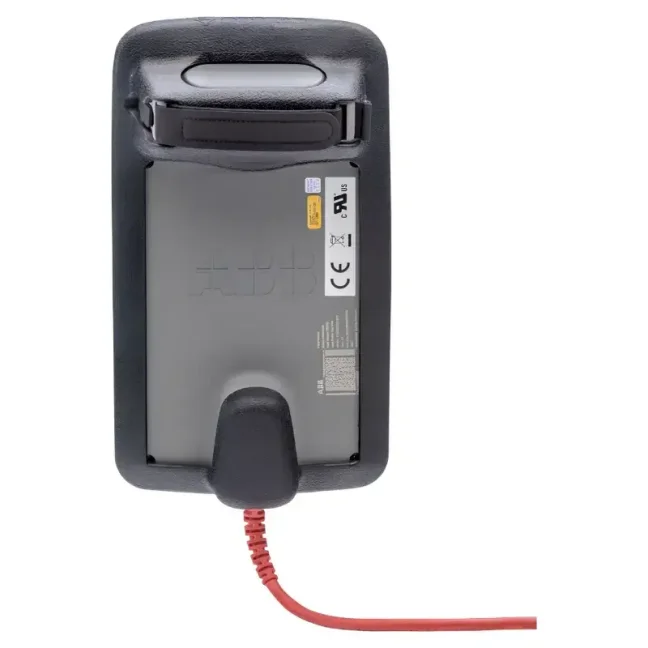

Seat the pendant in the bumper while pulling the cable through. Pass the hand strap through the rear of the bumper.

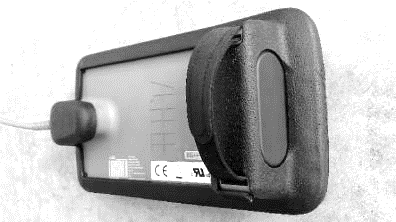

Turn the assembly over, pass the remaining strap end through its cutout and secure the Velcro. Fit the remaining bumper edges.
If local safety requirements call for direct, unobstructed access to the emergency stop, cut away the rubber rim accordingly. Molded cut lines mark the rim; Santoprene™ can be cut with a utility knife.

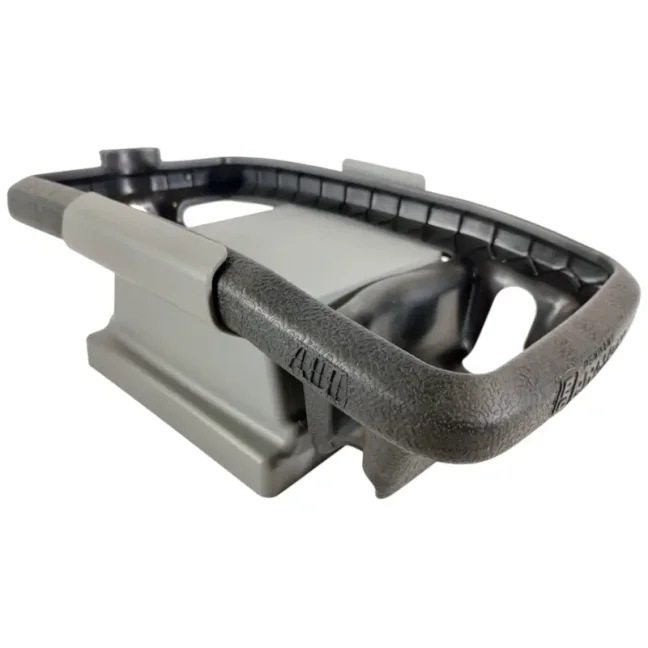

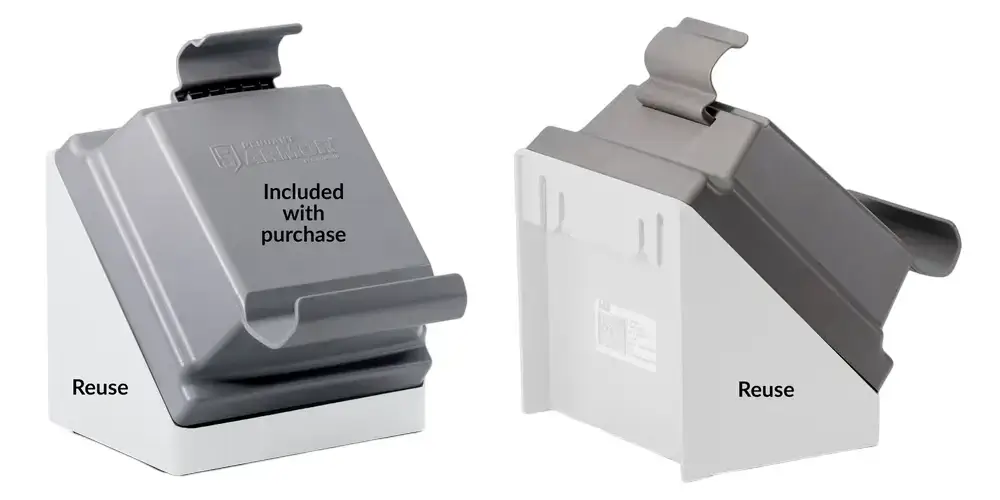

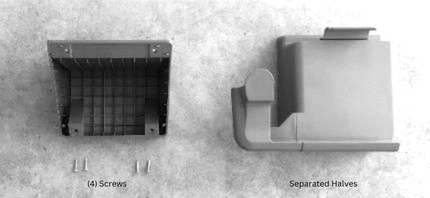

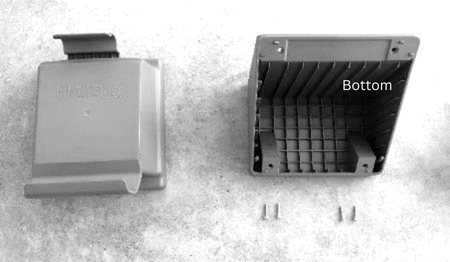

Separate the cradle halves with a Phillips screwdriver. Keep the 4 screws.

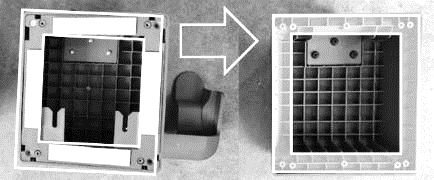

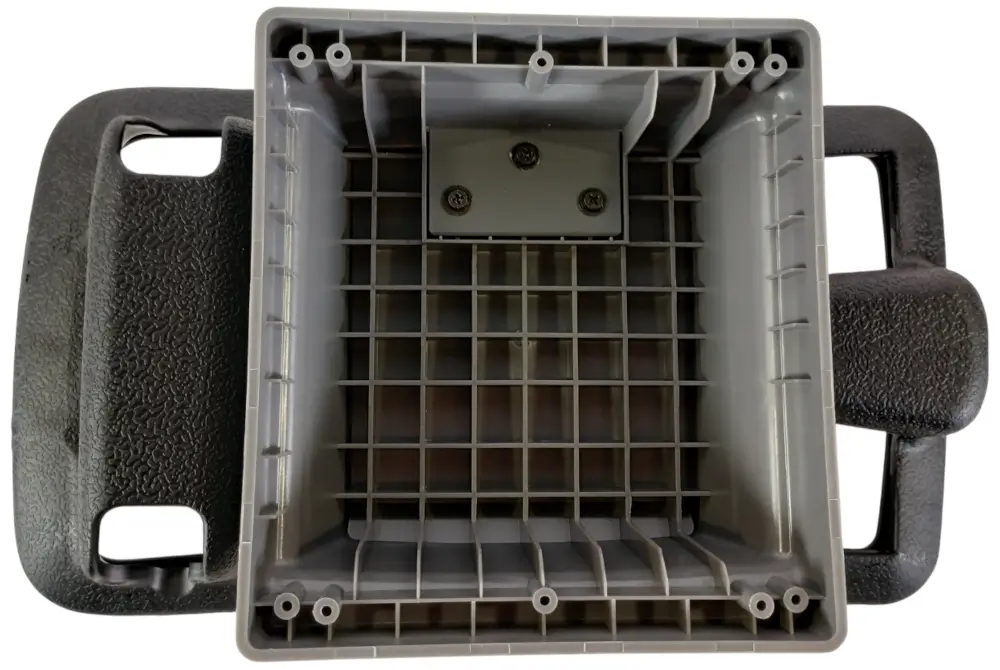

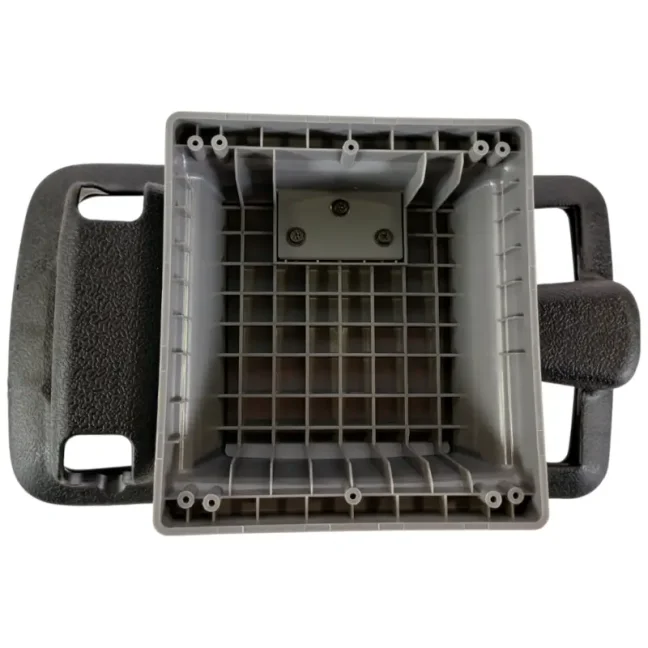

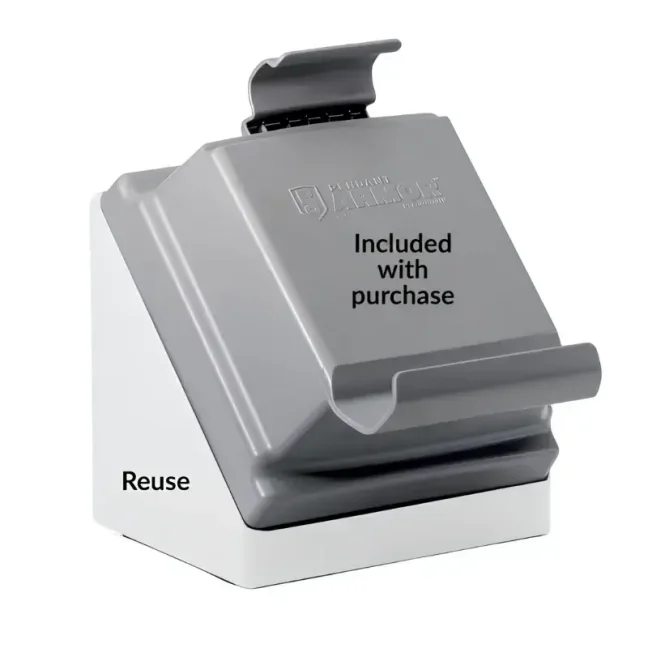

Transfer the adhesive-backed plate and screws from the original cradle’s front upper section to the front upper section of the Pendant Armor adapter.
Attach the adapter’s front upper section to the original cradle base with its 4 screws.

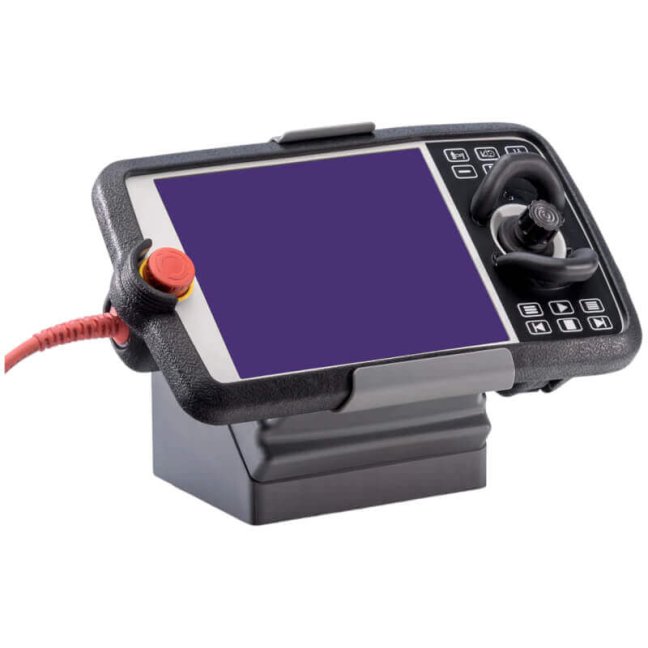

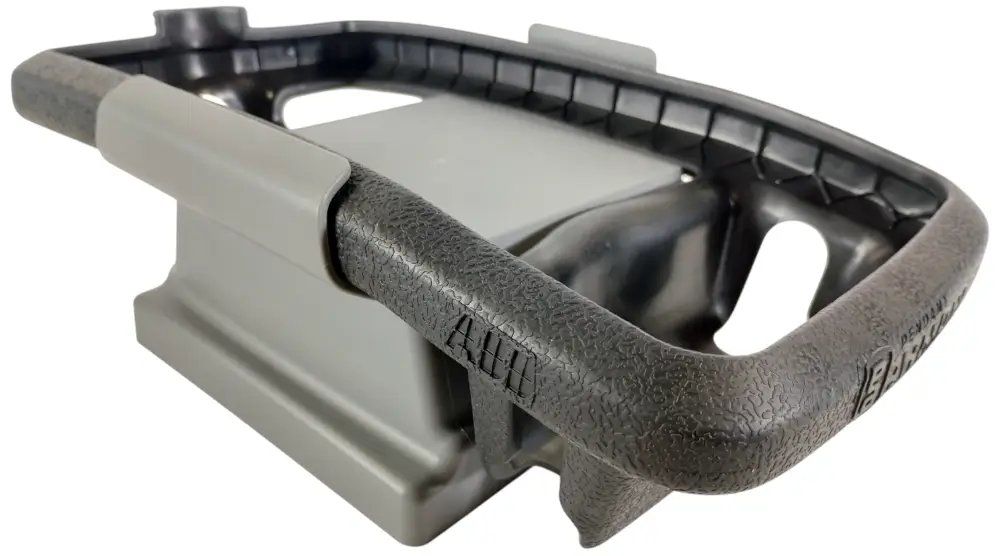

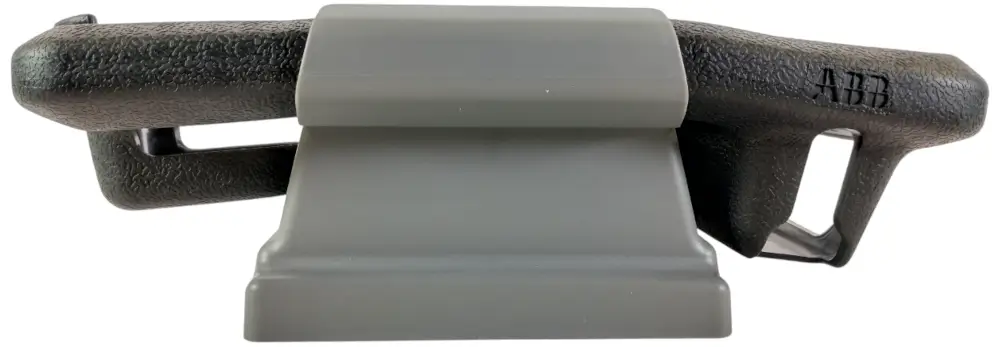

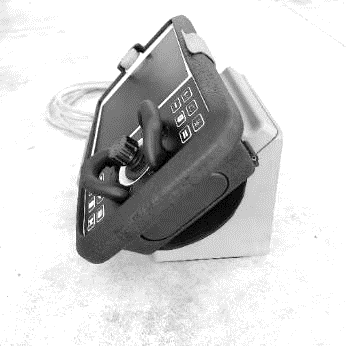

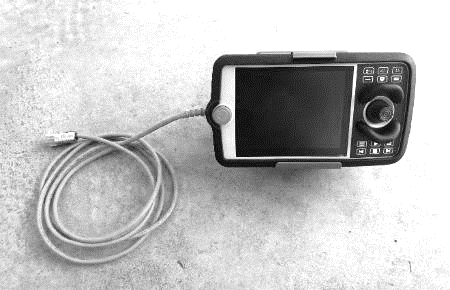

Centre the protected pendant in the modified cradle’s lower lip. Tilt its top backwards until the upper lip slides over the protected pendant.
Reconnect the cable to the controller, release the emergency stop and power up the controller. Installation is complete.
Contact with chemicals
Material resistance depends on the specific substance and operating conditions. Check Santoprene™ chemical compatibility for oils, coolants or cleaning agents.
Take a closer look at ARMOR bumpers
Tomáš Krepčík from FOXON presents protective bumpers and screen protection for ABB, KUKA and FANUC pendants. Take a closer look at their design.
More photos of the ABB OmniCore FlexPendant bumper (15)
Frequently asked questions
Is the teach pendant included?
No. The package contains the bumper, joystick guards and one adapter for the original cradle. The pendant and separate hand strap are not included.
Is the ABB brand name enough to choose a bumper?
No. The exact pendant model and full part number matter. The OMNI-PA bumper is designed for ABB OmniCore FlexPendant. Compare your pendant’s identification with the listed compatibility.
Does the bumper also protect the screen surface?
To protect the screen surface against scratches, we recommend separate screen protection for ABB OmniCore FlexPendant. The protective frame and screen protection serve different purposes.
Can the pendant with the bumper be placed in the original cradle?
An adapter for the original cradle is included. For DSQC 3060, the cradle conversion uses its original parts and 4 screws as described in the instructions. For DSQC 3120 and DSQC 3124, first check the specific cradle version.
How can I request bumpers for several pendants or delivery abroad?
Send the pendant models, quantities and delivery country. We will check the versions and prepare a quotation for the bumpers and suitable screen protection.
Add screen protection
For the ABB OmniCore FlexPendant bumper, we offer a tempered glass screen protector. The bumper protects the pendant body, while screen protection helps prevent scratches on the screen surface.
We will send a no-obligation quotation within 1 hour.
Is your pendant already damaged? Explore professional teach pendant repair options.
Protective cover for teach pendant: compatible with industrial robots
Material: Santoprene™ (thermoplastic vulcanizate – TPV)
Color: Black
Net Weight: 230 g
Construction: one-piece flexible cover, precisely molded for the specific model
Compatible with Teach Pendant models:
- DSQC 3060 (3HAC064211-001, 3HAC065726-001)
- DSQC 3120 (3HAC085590-001)
Protective Covers and Films for Robot Teach Pendants: No More Repairs Thanks to Prevention
A dropped robot controller, everyday handling in harsh industrial conditions, or a damaged display – it takes very little for a faulty teach pendant to stop your line, delay maintenance and increase repair costs. Yet you can proactively protect FANUC, KUKA and ABB robot control panels with robust covers and protective films that prevent display damage.
VIDEO: A Close-Up Look at Protective Covers for ABB, KUKA and FANUC Teach Pendants
Over the course of his career at FOXON, our sales representative Tomáš Krepčík has handled hundreds of damaged teach pendants that were later repaired. It made him wonder whether there was anything that could protect these expensive devices from mechanical damage. Today, we are a European distributor of special protective covers and films.
