SCHILDKNECHT DATAEAGLE 4000

DATAEAGLE 473x configuration: 1× Master + 1× Slave

Item 10002 represents a configuration of the DATAEAGLE 473x radio link comprising one Master unit and 1 Slave unit. Base modules, communication functions and accessories must be selected separately. This item does not, in itself, constitute a supply of 2 radio units.

Are you enquiring about this option, or the whole set?
Please send us a network diagram, the number of units and your transmission requirements. We will coordinate the modules, communication and configuration.

Enquire about the configuration and complete set-up
1 × MasterRadio control unit
1 × SlaveRemote radio units
2 unitsThe required number of radio modules

Using the configuration

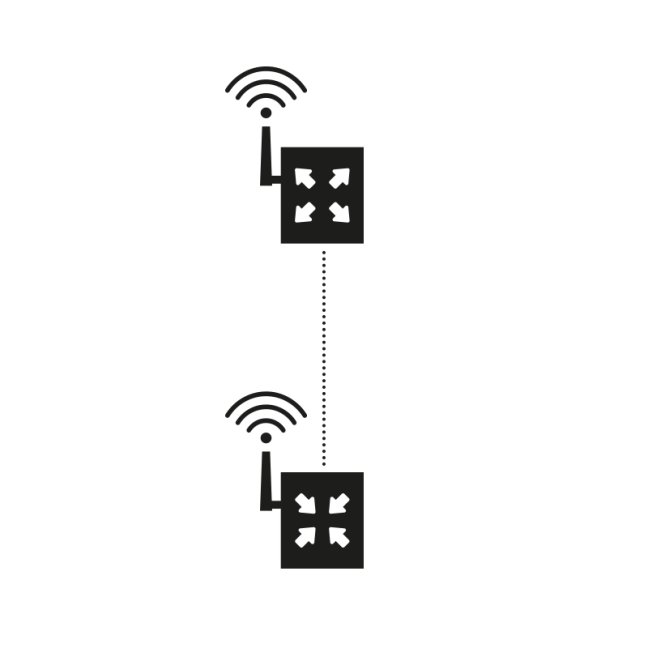

The configuration determines the arrangement of the radio units. One Master-Slave pair connects two technology sites.

The terms ‘Master’ and ‘Slave’ here refer to the roles of the DATAEAGLE radio units. They do not refer to the number or designation of end devices in an industrial network.

Configuration details

ManufacturerSCHILDKNECHT
Configuration item code10002
Item typeConfiguration without radio hardware
Intended forDATAEAGLE 473x Compact and X-treme
Master radio units1
Slave radio units1
Total number of basic modules required2
TopologyPoint-to-Point
Supported protocols and limitsDetermines the selected communication option
Modules and accessories in this itemThey are not included

Communication options and limits

According to the protocol, the following are possible for a single receiver 15481 Point-to-Point or 15485 Safe Point-to-Point. We will determine the specific variant based on the application.

The number of radio receivers and the number of devices connected via a radio link are two different limits. With PROFINET, the second limit relates to the number of devices; with EtherNet/IP, it relates to the number of connections. The limit applies to the selected communication option and is not extended simply by adding another receiver.

Secure communication requires an appropriate communication method and verification of the entire application. A radio link does not replace the machine’s safety controls. During the design phase, it is essential to assess response times, communication monitoring and behaviour in the event of a loss of connection.

Contents of the offer and required components

The configuration item itself does not include radio units. Select the core modules 473x Compact 15475 or 473x X-treme 15476, the communication option for individual units and this system configuration. We will specify the number, type and communication functions separately in the quotation.

We will supply the antennas, any necessary antenna cables, mounting accessories and industrial network connections. We will confirm the price, availability and scope of configuration before you place your order.

Documentation to download

DATAEAGLE TV videos, tutorials and webinars

Selected videos from the manufacturer in English. Start with a brief introduction, or go for in-depth webinars and tutorials.

EN · 1:29

Wireless PROFINET - DATAEAGLE 4000

A brief overview of the DATAEAGLE4000 series for wireless industrial communication.

Open the video on YouTube
EN · 3:40

How does DATAEAGLE radio transmission work?

The difference between a cable connection and a radio link, and an explanation of data pre-processing in the DATAEAGLE system.

Open the video on YouTube

The videos demonstrate the principles behind the DATAEAGLE 4000 series and show examples of its use. Specific functions and connections depend on the model selected and its configuration. The hardware manuals relate to the corresponding radio units, not to the communication or configuration item itself.

Industrial Wireless Webinars - 3 videos in English
Industrial Wireless Webinar - Part 1: Designing an Industrial Wireless Link, in English
EN · 38:26 · 2020
1. Design of an industrial wireless link

The basics of power transmission, differences compared to cables and slip rings, project planning and practical demonstrations.

Watch the English webinar
Industrial Wireless Webinar - Part 2: WLAN, Bluetooth and their applications, in English
EN · 46:39 · 2020
2. WLAN, Bluetooth and their uses

A comparison of radio technologies, signal propagation, network convergence and examples from the field of automation.

Watch the English webinar
Industrial Wireless Webinar - Part 3: Applications, Diagnostics and Antennas, in English
EN · 44:47 · 2020
3. Applications, diagnostics and antennas

Industry examples, a demonstration of PROFINET/PROFIsafe diagnostics in the DATAEAGLE Wizard, and the selection and positioning of antennas.

Watch the English webinar
Firmware update guides - in English
EN · 2:40 · 2016
Main firmware update

An older demonstration of how to connect the unit to a PC and update the main CPU’s firmware. The instructions in the video are in English.

Older examples from2016. The programme interface and procedure vary depending on the model. Before updating, please check the exact model, hardware and firmware versions, and ensure you have the correct update file. FOXON’s technical support team will help you with the correct procedure.

More videos on the DATAEAGLE TV channel - The channel also features German videos; the selection in this section is in English.

Frequently Asked Questions

Does this price include a complete wireless connection?

This card is a configuration item. The complete connection package also includes the corresponding base modules, communication options and accessories.

Does the configuration also specify the supported protocol?

The communication option determines the supported protocols and device limits. The configuration defines the roles and arrangement of the radio units.

Can the Compact and X-treme be combined?

We will select the appropriate version for each installation site. We will verify the suitability of the combination, the radio option and the compatibility of the configurations when designing the system.

What else should be added to the proposal?

Please send us the wiring diagram, the number of radio sites, the number of end devices, the protocol, the communication times, the distance and photographs of the site.
