PROFINET DATAEAGLE 473x X-treme wireless, Bluetooth 5 / 2,4 GHz, base module

PROFINET DATAEAGLE 473x X-treme wireless, Bluetooth 5 / 2,4 GHz, base module

FOXON PLUS

Schildknecht

Basic radio module for PROFINET wireless connectivity. Bluetooth 5 / 2,4 GHz, IP65, M12 connector, 24 V DC. Communication options and configuration are selected separately. More

Code: 15476

644 EUR excl. VAT (779,24 EUR Incl. VAT)
Recycling fee 0,04 EUR included in the price.
Delivery in 2-3 weeks
pcs
(0 pcs In stock)

Rezervace termínu

Get a quote
Schildknecht

Basic radio module for PROFINET wireless connectivity. Bluetooth 5 / 2,4 GHz, IP65, M12 connector, 24 V DC. Communication options and configuration are selected separately. More

Code: 15476

SCHILDKNECHT DATAEAGLE 4000

DATAEAGLE 473x X-treme - wireless PROFINET technology

DATAEAGLE 473x X-treme (15476) connects parts of an industrial Ethernet network via a Bluetooth 5/2,4GHz radio link. The IP65-rated version is designed for installation alongside equipment. This card serves as the base module. The communication functions and configuration must be selected to suit the entire system.

Are you enquiring about a single module or a complete wireless link?
Please send us a network diagram, the number of units and your transmission requirements. We will coordinate the modules, communication and configuration.

Enquire about a module or a complete assembly
Bluetooth 5 / 2,4 GHzRadio technology
IP65Installation of the equipment
PROFINETDepending on the chosen communication channel

Using wireless PROFINET

Radio connectivity is ideal for mobile trolleys, turntables, cranes and other pieces of equipment where data cables are prone to wear and tear or are difficult to route. The connection is designed taking into account the distance, the environment, the communication load and the required response times.

The X-treme version, with an IP65 rating, is mounted on the equipment. During installation, it is essential to seal the connections correctly and select an antenna suitable for the specific location and environment.

Technical specifications

ManufacturerSCHILDKNECHT
Manufacturer’s order number15476
ModelDATAEAGLE 473x X-treme
Item typeBasic radio module
Radio technologyBluetooth 5 / 2,4 GHz
MatingIP65
Power supply24 V DC
Connecting the power supplyM12, A-coding, 5-pin connector
Ethernet connectionM12; we will specify the connector type in the quotation
Maximum speed of the wired interface100Mbit/s - this is not the radio’s bandwidth
Antenna socketSMA, female, 50 Ω
MountingSecured with four screws
Operating temperature-20 to +60°C
Dimensions (W × H × D)88 × 120 × 42 mm
Module weight280g
Approximate range indoors100m
Approximate range outdoors300m
Communication and rolesDepending on the communication option selected and the configuration

The range is approximate. It depends on the antennas, obstacles, the location and movement of the units, and surrounding radio traffic. The stated speed of the wired interface does not represent the radio transmission bandwidth.

Communication and Transmission Design

The basic module does not, on its own, determine all communication functions. The system is supplemented by the selected communication option and the configuration of the radio units.

Communication optionRadio receiversPROFINET devices / EtherNet/IP connectionsSafety communications
15481 - Multiprotocol Point-to-Pointmax. 1max. 4No
15482 - Multiprotocol Multipointmax. 4max. 6No
15483 - Multiprotocol Safe Multipointmax. 4max. 8Yes, provided there is a suitable proposal
15485 - Multiprotocol Safe Point-to-Pointmax. 1max. 4Yes, provided there is a suitable proposal

The number of radio receivers and the number of devices connected via a radio link are two different limits. With PROFINET, the second limit relates to the number of devices; with EtherNet/IP, it relates to the number of connections. The limit applies to the selected communication option and is not extended simply by adding another receiver.

Secure communication requires an appropriate communication method and verification of the entire application. A radio link does not replace the machine’s safety controls. During the design phase, it is essential to assess response times, communication monitoring and behaviour in the event of a loss of connection.

Module, complete assembly and accessories

The selection process consists of three steps: the basic module, the communication option and the configuration. For two radio sites, you will need two corresponding units. The configurations are 10002: 1× Master + 1× Slave, 10003: 1 × Master + 2 × Slave, 10004: 1 × Master + 3 × Slave, 10005: 1 × Master + 4 × Slave.

Antennas are not included with the standalone unit. We will select a suitable antenna for each unit, along with an antenna cable and mounting bracket as required. We will also provide power cables, Ethernet cables and connectors. We will confirm the exact contents of the delivery and the required configuration in the quotation.

Please send us a network diagram, the number of remote devices, the protocol and the required communication times, the distance, a description of the movement and photographs of the environment. When replacing an older module, please include a photograph of the label and the current configuration.

Documentation to download

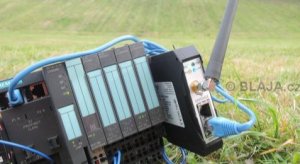

Diagrams and examples of use

The diagrams and illustrations show examples of installation. The specific number of stations, communication functions and accessories depend on the model selected and the configuration specified in the quotation.

DATAEAGLE TV videos, tutorials and webinars

Selected videos from the manufacturer in English. Start with a brief introduction, or go for in-depth webinars and tutorials.

EN · 1:29

Wireless PROFINET - DATAEAGLE 4000

A brief overview of the DATAEAGLE4000 series for wireless industrial communication.

Open the video on YouTube
EN · 3:40

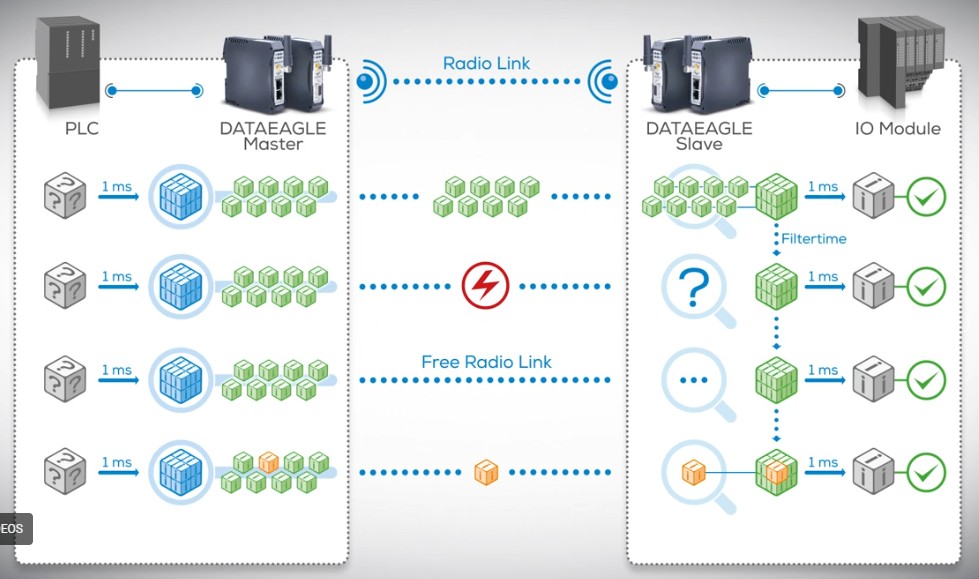

How does DATAEAGLE radio transmission work?

The difference between a cable connection and a radio link, and an explanation of data pre-processing in the DATAEAGLE system.

Open the video on YouTube

The videos demonstrate the principles behind the DATAEAGLE 4000 series and show examples of its use. Specific functions and connections depend on the model selected and its configuration.

Industrial Wireless Webinars - 3 videos in English
Industrial Wireless Webinar - Part 1: Designing an Industrial Wireless Link, in English
EN · 38:26 · 2020
1. Design of an industrial wireless link

The basics of power transmission, differences compared to cables and slip rings, project planning and practical demonstrations.

Watch the English webinar
Industrial Wireless Webinar - Part 2: WLAN, Bluetooth and their applications, in English
EN · 46:39 · 2020
2. WLAN, Bluetooth and their uses

A comparison of radio technologies, signal propagation, network convergence and examples from the field of automation.

Watch the English webinar
Industrial Wireless Webinar - Part 3: Applications, Diagnostics and Antennas, in English
EN · 44:47 · 2020
3. Applications, diagnostics and antennas

Industry examples, a demonstration of PROFINET/PROFIsafe diagnostics in the DATAEAGLE Wizard, and the selection and positioning of antennas.

Watch the English webinar
Firmware update guides - in English
EN · 2:40 · 2016
Main firmware update

An older demonstration of how to connect the unit to a PC and update the main CPU’s firmware. The instructions in the video are in English.

Older examples from2016. The programme interface and procedure vary depending on the model. Before updating, please check the exact model, hardware and firmware versions, and ensure you have the correct update file. FOXON’s technical support team will help you with the correct procedure.

More videos on the DATAEAGLE TV channel - The channel also features German videos; the selection in this section is in English.

Frequently Asked Questions

Is one unit enough for wireless transmission?

No. To connect two radio sites, you need two suitable units with the appropriate communication and configuration. This card constitutes one module.

Are all the protocols included in the basic module?

No. With this range, you select the communication option and configuration. It is only the combination of these that determines the supported functions and limits.

Is the range guaranteed indoors as well?

Range is affected by metal obstacles, movement, antennas and surrounding radio traffic. To carry out the design, we need the transmission route and photographs of the surroundings.

Is the aerial part of the unit?

The antenna must be selected separately, depending on the installation. When quoting for a complete system, we will specify the antennas, cables, mounting arrangements and unit connections.

Can the existing module be replaced without further verification?

Before carrying out the replacement, we will verify the exact model, radio variant, communication functions, roles and settings on both sides of the connection. A similar name alone does not confirm that the replacement is suitable.

Why buy DATAEAGLE from FOXON

Schildknecht Distributor

We are the distributor of Schildknecht products for the Czech Republic and Slovakia. We have been representing the manufacturer since 2015.

Products in stock

We hold Schildknecht products in stock. We will confirm the availability of the selected model and the required quantity before you place your order.

From single items to larger batches

We can arrange deliveries ranging from single items to larger batches. We can also help organise deliveries for the repeat production of machinery and equipment.

Technical support and consultancy

We can help you choose modules, communication options, configurations and antennas. We provide technical support and advice on installation and operation.

More than 3 500customers
We supply tomore than 100 countries around the world
Express delivery?We’ll look into it - please contact us straight away.

DATAEAGLE enquiry - 15476

Please quote code 15476, the required quantity and whether you are enquiring about a single item or a complete system. For the proposal, please attach a network diagram, a specification, the number of radio sites and end devices, the distance, photographs of the site and the required response times.

Enquire about a module or a complete assembly

Book an online consultation · +420 488 588 749 · poptavka@foxon.cz

Technical specifications

ManufacturerSCHILDKNECHT
Manufacturer’s order number15476
ModelDATAEAGLE 473x X-treme
Item typeBasic radio module
Radio technologyBluetooth 5 / 2,4 GHz
MatingIP65
Power supply24 V DC
Connecting the power supplyM12, A-coding, 5-pin connector
Ethernet connectionM12; we will specify the connector type in the quotation
Maximum speed of the wired interface100Mbit/s - this is not the radio’s bandwidth
Antenna socketSMA, female, 50 Ω
MountingSecured with four screws
Operating temperature-20 to +60°C
Dimensions (W × H × D)88 × 120 × 42 mm
Module weight280g
Approximate range indoors100m
Approximate range outdoors300m
Communication and rolesDepending on the communication option selected and the configuration

The range is approximate. It depends on the antennas, obstacles, the location and movement of the units, and surrounding radio traffic. The stated speed of the wired interface does not represent the radio transmission bandwidth.

The supported protocols, number of remote devices and connections will vary depending on the specific model and configuration. Please refer to the ‘Description’ tab for further details.
