DATAEAGLE 473x configuration: 1× Master + 3× Slave
Item 10004 comprises a configuration of the DATAEAGLE 473x radio link with one Master unit and 3 Slave units. Base modules, communication functions and accessories must be selected separately. This item does not, in itself, constitute a supply of 4 radio units.
Are you enquiring about this option, or the whole set?
Please send us a network diagram, the number of units and your transmission requirements. We will coordinate the modules, communication and configuration.
Using the configuration

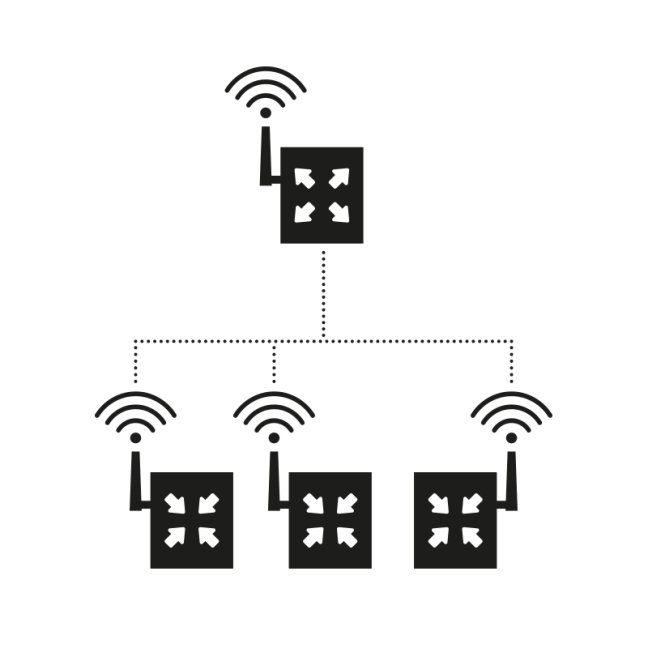

The configuration determines the arrangement of the radio units. One Master unit connects3 remote Slave radio units in a multipoint configuration.
The terms ‘Master’ and ‘Slave’ here refer to the roles of the DATAEAGLE radio units. They do not refer to the number or designation of end devices in an industrial network.
Configuration details
| Manufacturer | SCHILDKNECHT |
|---|---|
| Configuration item code | 10004 |
| Item type | Configuration without radio hardware |
| Intended for | DATAEAGLE 473x Compact and X-treme |
| Master radio units | 1 |
| Slave radio units | 3 |
| Total number of basic modules required | 4 |
| Topology | Multipoint |
| Supported protocols and limits | Determines the selected communication option |
| Modules and accessories in this item | They are not included |
Communication options and limits
For 3 receivers, the Multipoint communication option is required, for example 15482 or for security communications 15483 Safe. Options 15481 and 15485 are limited to a single radio receiver. We will determine the specific variant based on the application.
The number of radio receivers and the number of devices connected via a radio link are two different limits. With PROFINET, the second limit relates to the number of devices; with EtherNet/IP, it relates to the number of connections. The limit applies to the selected communication option and is not extended simply by adding another receiver.
Secure communication requires an appropriate communication method and verification of the entire application. A radio link does not replace the machine’s safety controls. During the design phase, it is essential to assess response times, communication monitoring and behaviour in the event of a loss of connection.
Contents of the offer and required components
The configuration item itself does not include radio units. Select the core modules 473x Compact 15475 or 473x X-treme 15476, the communication option for individual units and this system configuration. We will specify the number, type and communication functions separately in the quotation.
We will supply the antennas, any necessary antenna cables, mounting accessories and industrial network connections. We will confirm the price, availability and scope of configuration before you place your order.
Documentation to download
DATAEAGLE TV videos, tutorials and webinars
Selected videos from the manufacturer in English. Start with a brief introduction, or go for in-depth webinars and tutorials.
Wireless PROFINET - DATAEAGLE 4000
A brief overview of the DATAEAGLE4000 series for wireless industrial communication.
Open the video on YouTubeHow does DATAEAGLE radio transmission work?
The difference between a cable connection and a radio link, and an explanation of data pre-processing in the DATAEAGLE system.
Open the video on YouTubeThe videos demonstrate the principles behind the DATAEAGLE 4000 series and show examples of its use. Specific functions and connections depend on the model selected and its configuration. The hardware manuals relate to the corresponding radio units, not to the communication or configuration item itself.
Industrial Wireless Webinars - 3 videos in English

1. Design of an industrial wireless link
The basics of power transmission, differences compared to cables and slip rings, project planning and practical demonstrations.
Watch the English webinar
2. WLAN, Bluetooth and their uses
A comparison of radio technologies, signal propagation, network convergence and examples from the field of automation.
Watch the English webinar
3. Applications, diagnostics and antennas
Industry examples, a demonstration of PROFINET/PROFIsafe diagnostics in the DATAEAGLE Wizard, and the selection and positioning of antennas.
Watch the English webinarFirmware update guides - in English
Main firmware update
An older demonstration of how to connect the unit to a PC and update the main CPU’s firmware. The instructions in the video are in English.
Communication interface firmware update
An older English guide to updating the interface for the DATAEAGLE 3000 and 4000 series.
Older examples from2016. The programme interface and procedure vary depending on the model. Before updating, please check the exact model, hardware and firmware versions, and ensure you have the correct update file. FOXON’s technical support team will help you with the correct procedure.
More videos on the DATAEAGLE TV channel - The channel also features German videos; the selection in this section is in English.
Frequently Asked Questions
Does this price include a complete wireless connection?
This card is a configuration item. The complete connection package also includes the corresponding base modules, communication options and accessories.
Does the configuration also specify the supported protocol?
The communication option determines the supported protocols and device limits. The configuration defines the roles and arrangement of the radio units.
Can the Compact and X-treme be combined?
We will select the appropriate version for each installation site. We will verify the suitability of the combination, the radio option and the compatibility of the configurations when designing the system.
What else should be added to the proposal?
Please send us the wiring diagram, the number of radio sites, the number of end devices, the protocol, the communication times, the distance and photographs of the site.
Why buy DATAEAGLE from FOXON
Schildknecht Distributor
We are the distributor of Schildknecht products for the Czech Republic and Slovakia. We have been representing the manufacturer since 2015.
Products in stock
We hold Schildknecht products in stock. We will confirm the availability of the selected model and the required quantity before you place your order.
From single items to larger batches
We can arrange deliveries ranging from single items to larger batches. We can also help organise deliveries for the repeat production of machinery and equipment.
Technical support and consultancy
We can help you choose modules, communication options, configurations and antennas. We provide technical support and advice on installation and operation.
DATAEAGLE Enquiry - 10004
Please quote code 10004, the required quantity and whether you are enquiring about a single item or a complete system. For the proposal, please attach a network diagram, the protocol, the number of radio sites and end devices, the distance, photographs of the site and the required response times.
Enquire about the configuration and complete set-upBook an online consultation · +420 488 588 749 · poptavka@foxon.cz

Test of Schildknecht wireless PROFINET solution between SIMATIC S7-1200 and ET 200S
We will test the wireless DATAEAGLE Bluetooth (2.4 GHz) PROFINET IO solution from Schildknecht. We will show how to configure these modules using a PC and you will see that it really couldn’t be any easier. Everything is also available online in a video demonstration.
