W&T 97200 timeair, CO₂ monitor with time-to-ventilation indicator
W&T 97200 timeair, CO₂ monitor with time-to-ventilation indicator

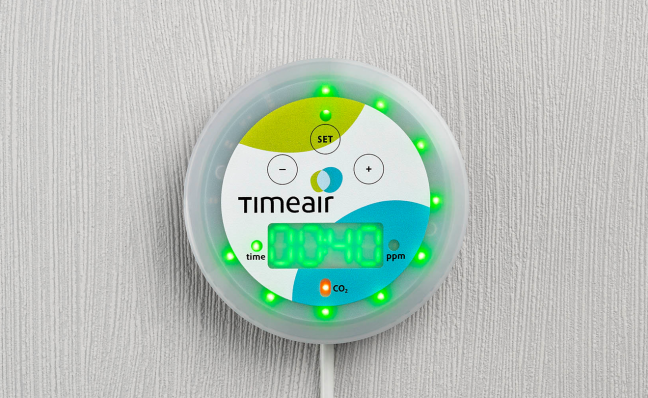

The W&T timeair 97200 measures carbon dioxide concentration and displays an estimate of the time remaining until ventilation is required. Colour indicators and a digital display provide an overview directly in the room; power is supplied by the included 5 V USB power supply. More
Code: 97200
The W&T timeair 97200 measures carbon dioxide concentration and displays an estimate of the time remaining until ventilation is required. Colour indicators and a digital display provide an overview directly in the room; power is supplied by the included 5 V USB power supply. More
Code: 97200
Standalone CO₂ monitor with a ventilation countdown timer
Price on request
The W&T timeair 97200 measures carbon dioxide concentration and displays an estimate of the time remaining until ventilation is required. Colour indicators and a digital display provide an overview directly in the room; power is supplied by the included 5 V USB power supply.
Do you need to select or order the W&T 97200?
Please send us the required quantity and a description of the wiring configuration. We will confirm the price and availability in our quotation.
Usage
It is designed for offices, meeting rooms, schools and other shared spaces. It indicates the need for ventilation based on the measured CO₂ concentration and its trends.
Technical specifications for the W&T 97200
| Sensor | Measuring air quality using CO₂ |
|---|---|
| Supply voltage | 5 V DC via a Micro-USB connector |
| Power connection | Micro-USB socket |
| Current consumption | typ. 200 mA at 5 V DC |
| Signalling | 7-segment LED display for showing measured values and remaining time Coloured LED ring for indicating remaining time and alarms CO₂ LED indicators |
| Control elements | 3 touch sensors for device configuration |
| Measuring range | 0–5000 ppm CO₂ |
| Display range | 400–5,000 ppm CO₂ |
| Resolution | 1 ppm CO₂ |
| Measurement error | Air quality (400–5000 ppm): max. ±100 ppm +5 % of the measured value |
| Measurement period | 10s |
| Housing and mounting | Compact plastic casing for wall mounting or magnetic attachment to a whiteboard or similar surface ∅88 mm × 18.9 mm |
| Degree of protection | IP20 |
| Weight | approx. 70 g |
| Ambient temperature | Storage: -40 to +70 °C Operating temperature: 0 to +40 °C |
| Permissible relative humidity | 0 to 90 per cent relative humidity (non-condensing) |
| Contents of the delivery | 1x timeair 1x USB power adaptor, DC 5 V, 1 A 1x USB cable with USB-Micro connector, 1.8 m |
Local signalling and limit settings
- The device operates independently, without OPC UA or MQTT network integration. It is not an Ethernet sensor designed for direct data collection into a SCADA system.
- The alert threshold can be set between 700 and 3000 ppm. Once this threshold is reached, a visual alarm is activated, along with an optional audible alarm.
- Twelve LEDs indicate the time remaining in the last hour; the digital display shows the last two hours before ventilation is required and also displays the current concentration.
- In the range of 400–5000 ppm, the maximum error is ±100 ppm + 5 per cent of the measured value. Values are updated every 10 seconds; a resolution of 1 ppm does not represent the measurement accuracy.
Commissioning and accessories
Place the monitor in a suitable location within the measurement area and connect the supplied USB power supply. The cover allows for both wall mounting and magnetic attachment, for example to a whiteboard. Use the touch controls to set the threshold, display mode and, if required, an audible alarm.
Contents of the delivery
- 1x timeair
- 1x USB power adaptor, DC 5 V, 1 A
- 1x USB cable with USB-Micro connector, 1.8 m
Frequently Asked Questions
Does Timeair support Ethernet, OPC UA or MQTT?
This model is intended for local display and signalling. It does not feature a network interface for OPC UA or MQTT integration.
Does the timer need to be set according to a fixed schedule?
The indicator is based on the measured CO₂ concentration and its trends, rather than on a fixed, recurring ventilation interval.
What is included in the power supply?
The package includes a 5 V / 1 A USB power adapter and a 1.8 m USB cable with a Micro-USB connector.
