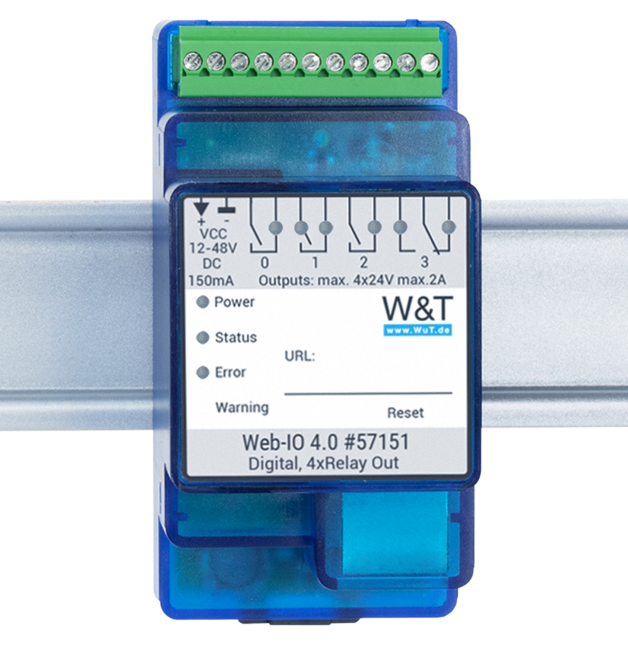

W&T 57151 Web-IO 4.0, 4× relays (3× NO, 1× CO), OPC UA, MQTT
W&T 57151 Web-IO 4.0, 4× relays (3× NO, 1× CO), OPC UA, MQTT
The W&T Web-IO 4.0 Digital 57151 connects 3× NO + 1× CO to a 10/100BaseT Ethernet connection. The outputs can be controlled via a web interface or via OPC UA, MQTT, REST and Modbus TCP. The relay contacts switch up to 2 A at 24 V or 0.5 A at 48 V. More
Code: 57151
The W&T Web-IO 4.0 Digital 57151 connects 3× NO + 1× CO to a 10/100BaseT Ethernet connection. The outputs can be controlled via a web interface or via OPC UA, MQTT, REST and Modbus TCP. The relay contacts switch up to 2 A at 24 V or 0.5 A at 48 V. More
Code: 57151
Four relay outputs controlled via Ethernet
Price on request
The W&T Web-IO 4.0 Digital 57151 connects 3× NO + 1× CO to a 10/100BaseT Ethernet connection. The outputs can be controlled via a web interface or via OPC UA, MQTT, REST and Modbus TCP. The relay contacts switch up to 2 A at 24 V or 0.5 A at 48 V.
Do you need to select or order the W&T 57151?
Please send us the required quantity and a description of the wiring configuration. We will confirm the price and availability in our quotation.
Usage
It is used for remote switching, status reporting and the interconnection of operational signals with a higher-level system. It is used for technical monitoring, equipment control and the recording of changes via a network.
Technical specifications for the W&T 57151
| Digital outputs | 4 relay outputs 3 × make contact (NO) 1x changeover contact (CO) At 24 V: maximum switching current 2 A At 48 V: maximum switching current 0.5 A With a suitable external isolating relay, voltages of up to 230 V can also be switched. |
|---|---|
| Network interface | Automatic 10/100BaseT detection |
| Power supply | Power-over-Ethernet (PoE) or 12–48 V DC (approximately 100 mA at 24 V) |
| Galvanic isolation | Inputs/outputs relative to the network interface: min. 1000 V |
| Connectors and terminal blocks | 1 x 11-channel screw-type terminal block for inputs/outputs and power supply – plug-in 1 x RJ45 for network connection |
| Signalling | Status LEDs for the network 4 LEDs for digital status indication |
| Protocols and services | HTTP and HTTPS TCP and UDP sockets, client and server MQTT – Publishing and Subscribing REST SNMP V1, V2, V3, including traps Sending emails via the SMTP protocol OPC UA OPC DA via an OPC server Modbus TCP Inventory and device group management |
| Response times | Data and switching operation: typically 12 ms |
| Housing and mounting | Plastic housing for DIN rail mounting Version for installation in secondary switchboards 90 × 45 × 56 mm (d × w × h) |
| Degree of protection | IP20 |
| Weight | approx. 200 g |
| Storage temperature | -25 to +70 °C |
| Operating temperature | 0 to +60 °C |
| Permissible relative humidity | 5 to 95 per cent RH, non-condensing |
| Contents of the delivery | 1x Web-IO 4.0 Digital 4x relay output 57151 1× quick start guide The power supply and other accessories must be ordered separately |
Contacts, communications and events
- The four potential-free relay outputs consist of three normally open (NO) contacts and one changeover (CO) contact. This model does not have any digital inputs.
- The contacts are rated for a maximum of 48 V for direct switching. Voltages of 110 V or 230 V can only be controlled using a suitable external isolating relay; the module’s own contacts are not designed for this purpose.
- Web administration uses HTTP/HTTPS. OPC UA, MQTT Publish/Subscribe, REST, Modbus TCP, SNMP V1/V2/V3, TCP/UDP and email messages are available. OPC DA is accessed via a separate OPC server.
- Up to 30 configurable actions allow you, for example, to send an email, an SNMP trap, an HTTP request or to change an output. Box-to-Box mode transfers states between suitably configured devices.
Commissioning and accessories
Before connecting, check the connector type, voltage and load current. Connect the network and PoE or an external 12–48 V DC power supply, then configure the IP address, access rights, communication services and event responses. The power supply and other accessories must be ordered separately.
Contents of the delivery
- 1x Web-IO 4.0 Digital 4x relay output 57151
- 1× quick start guide
- The power supply and other accessories can be
- order separately
Frequently Asked Questions
What connections does this model have?
The four potential-free relay outputs consist of three normally open (NO) contacts and one changeover (CO) contact. This model does not have any digital inputs.
Can I switch 230 V directly?
No. The relay contacts themselves are designed for the specified load up to 48 V. For higher voltages, a suitable external isolating relay is required.
Is OPC DA built directly into the device?
Direct communication includes OPC UA. For OPC DA, the manufacturer specifies access via a separate OPC server.
Why order from FOXON?
Before placing an order, we will check the current availability of the part and confirm the estimated delivery date. We will assist you in selecting the equipment and necessary accessories based on the wiring configuration and required communication. We will confirm the warranty terms and the scope of any diagnostics or repairs for the specific quotation.
Documentation and technical consultancy
Technical data and documentation W&T 57151
Manuals, firmware and tools for this model can also be found in the Downloads tab. For service enquiries, please use sale and repair of FOXON industrial parts.
