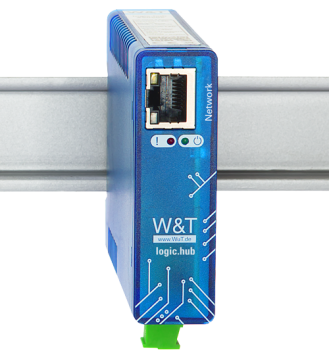

The W&T logic.hub 50506 enables users to create automation sequences in a graphical logic editor, display values on a dashboard and communicate via the built-in Mosquitto MQTT broker. It is a standalone industrial device designed for DIN rail mounting. More

Code: 50506

575 EUR excl. VAT (695,75 EUR Incl. VAT)
Delivery 3-8 days
pcs
(0 pcs In stock)

Rezervace termínu

Get a quote
W&T

The W&T logic.hub 50506 enables users to create automation sequences in a graphical logic editor, display values on a dashboard and communicate via the built-in Mosquitto MQTT broker. It is a standalone industrial device designed for DIN rail mounting. More

Code: 50506

W&T 50506

Logic control, dashboard and MQTT broker in a single device

Price on request

The W&T logic.hub 50506 enables users to create automation sequences in a graphical logic editor, display values on a dashboard and communicate via the built-in Mosquitto MQTT broker. It is a standalone industrial device designed for DIN rail mounting.

Do you need to select or order the W&T 50506?
Please send us the required quantity and a description of the wiring configuration. We will confirm the price and availability in our quotation.

Enquire about a product and consultation
Logical editorGraphical automation sequences
MQTT broker and dashboardLocal communication and display
1× Gigabit EthernetPoE or 24–48 V DC

Usage

It is used for the local interconnection of network data, logical links and visualisation without the need for a separate computer to run the application. The specific behaviour is determined by the logic created and the connected devices.

Technical specifications for the W&T 50506

Network interface1 x 100/1000BaseT with auto-detection/Auto-MDIX, RJ45
Power supplyPower over Ethernet (PoE) or
24 to 48 V DC (+/-10 %) at the screw terminal
Power connectionRemovable screw terminal block
Current consumptionPoE Class 2 (3.84 to 6.49 W) and
typ. 140 mA at 24 V DC with an external power supply
SignallingLEDs for system status, faults and network status
Processor and memoryMarvell 88F6820
Flash: 4 GB (eMMC)
RAM: 1 GB (DDR3)
MQTT brokerMosquitto: v2.0.22
Housing and mountingPlastic housing with integrated DIN rail mounting
105 × 22 × 75 mm (L × W × H)
Weightapprox. 120 g
Storage temperature-40 to +70 °C
Operating temperature0 to 60 °C
Permissible relative humidity0 to 95 per cent relative humidity, non-condensing
Contents of the deliverylogic.hub
Quick Start Guide

Logic, visualisation and local communication

  • Automation links are configured in the web-based logic editor. The dashboard is used to display and control the system in accordance with the application created.
  • The built-in MQTT broker uses Mosquitto. Configuration and network parameters are facilitated by web-based management, WuTility and the WuT launcher tool.
  • The platform has 4 GB eMMC and 1 GB DDR3 RAM. Part of the storage is used by the system; the full capacity is not available as free space for application data.
  • Back-up capacitors enable a controlled shutdown when the power supply is disconnected. They are not a substitute for a UPS for maintaining operation during a power failure.

Commissioning and accessories

Connect Gigabit Ethernet and PoE or 24–48 V DC power. Configure addressing and access to the web management interface, connect data sources and establish the necessary logical links. Test conditions, responses and behaviour in the event of a communication failure.

Contents of the delivery

  • logic.hub
  • Quick Start Guide

Frequently Asked Questions

Do applications run directly in logic.hub?

Yes. The device includes a logic editor, a dashboard and an MQTT broker. A computer with a web browser is used for configuration and management.

Is logic.hub the same device as rule.box with Node-RED?

logic.hub uses its own logic editor and dashboard. Functions and environments are not automatically assessed against rule.box models when selected.

Will the capacitors keep the equipment running during a prolonged power cut?

No. It is used for controlled shutdown. An appropriate backup power supply is required for uninterrupted operation.

Why buy from FOXON

W&T distributor

We are a distributor of W&T products. We supply new original products with a warranty.

Stock availability and delivery

We check current availability from our own and partner warehouses. Before you order, we confirm the price and possible delivery date for the specific model.

Product selection and technical advice

We help you choose the model, power supply and accessories to suit your connections and communication requirements.

Solution design and configuration

We discuss the connections and application requirements. Where needed, we propose a suitable setup and agree on the scope of assistance with configuration and commissioning.

More than 3,500customers
We supply tomore than 100 countries worldwide
Express delivery?We will check. Contact us now.

Documentation and technical consultancy

Technical data and documentation for W&T 50506

Manuals, firmware and tools for this model are also available in the Downloads tab. We can help with product selection and configuration according to your connections and communication requirements.

Do you need to select or order the W&T 50506?
Please send us the required quantity and a description of the wiring configuration. We will confirm the price and availability in our quotation.

Enquire about a product and consultation

Technical specifications of the W&T 50506

Network interface1 x 100/1000BaseT with auto-detection/Auto-MDIX, RJ45
Power supplyPower over Ethernet (PoE) or
24 to 48 V DC (+/-10 %) at the screw terminal
Power connectionRemovable screw terminal block
Current consumptionPoE Class 2 (3.84 to 6.49 W) and
typ. 140 mA at 24 V DC with an external power supply
SignallingLEDs for system status, faults and network status
Processor and memoryMarvell 88F6820
Flash: 4 GB (eMMC)
RAM: 1 GB (DDR3)
MQTT brokerMosquitto: v2.0.22
Housing and mountingPlastic housing with integrated DIN rail mounting
105 × 22 × 75 mm (L × W × H)
Weightapprox. 120 g
Storage temperature-40 to +70 °C
Operating temperature0 to 60 °C
Permissible relative humidity0 to 95 per cent relative humidity, non-condensing
Contents of the deliverylogic.hub
Quick Start Guide
