Communication option for the DATAEAGLE 373x base module. Multipoint connection, up to 4 radio receivers and 4 PROFIBUS DP stations. Does not support safety communication. Stand-alone option without a radio module. More

Code: 15381

290 EUR excl. VAT (350,90 EUR Incl. VAT)
Delivery in 2-3 weeks
pcs
(0 pcs In stock)

Rezervace termínu

Get a quote
Schildknecht

Communication option for the DATAEAGLE 373x base module. Multipoint connection, up to 4 radio receivers and 4 PROFIBUS DP stations. Does not support safety communication. Stand-alone option without a radio module. More

Code: 15381

SCHILDKNECHT DATAEAGLE 3000

PROFIBUS Multipoint - communication for DATAEAGLE 373x

Item 15381 specifies the communication functions of the DATAEAGLE 373x radio modules. It allows up to four radio receivers to be connected to a single radio control unit. It must be ordered together with the corresponding base module and configuration. This item does not include the radio unit itself.

Are you enquiring about this option, or the whole set?
Please send us a network diagram, the number of units and your transmission requirements. We will coordinate the modules, communication and configuration.

Enquire about a communication option and package

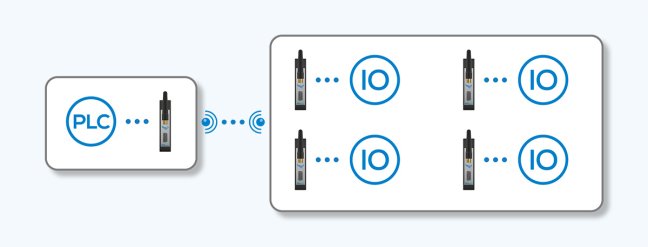

MultipointTopology of a radio link
max. 4Radio receivers
max. 4PROFIBUS DP station

Using the communication option

For wireless connection to a PROFIBUS DP network, select the appropriate topology and number of remote stations. This option is not intended for the transmission of safety protocols.

Technical and configuration details

ManufacturerSCHILDKNECHT
Order number15381
Item typeCommunication option for the base module
Intended forDATAEAGLE 373x Compact and X-treme
CommunicationPROFIBUS DP
TopologyMultipoint - one radio transmitter and up to four receivers
Maximum number of radio receivers4
Maximum number of PROFIBUS DP stations4
Safety communicationsNot supported
The basic radio module in this itemNot included

Limitations and suitability for use

Option 15381 supports a maximum of 4 PROFIBUS DP stations via a radio link. Four radio receivers do not mean four stations per receiver. PROFIsafe is not supported with this option.

Before placing an order, we will assess the PROFIBUS speed, communication load, topology and required response times.

What needs to be ordered

The communication option does not replace the base module. To view the full range, please select 373x Compact 15375 or 373x X-treme 15376, the appropriate communication option for each unit and the configuration of their roles.

We will tailor the range of communication options to the number of radio modules. We will design the antennas, cables, mounting and network connections to suit the installation. We will confirm the scope of supply and the possibility of modifying an existing unit before you place your order.

A comparison of communication options

Communication optionRadio receiversPROFIBUS DP stationSafety communications
15380 - PROFIBUS Point-to-Pointmax. 1max. 4No
15381 - PROFIBUS Multipointmax. 4max. 4No
