- Aquam8628 / Aquam8128 - switches with up to 28 M12 ports, Layer 3 / Layer 2, EN50155
Aquam8628 / Aquam8128 - switches with up to 28 M12 ports, Layer 3 / Layer 2, EN50155
EN50155 onboard switches with up to 24× 100 Mbit/s + 4× 1 Gbit/s M12. Aquam86xx: Layer 3; Aquam81xx: Layer 2. Optional PoE and bypass, IP65, -40 to +70 °C. More
EN50155 onboard switches with up to 24× 100 Mbit/s + 4× 1 Gbit/s M12. Aquam86xx: Layer 3; Aquam81xx: Layer 2. Optional PoE and bypass, IP65, -40 to +70 °C. More
Aquam8628 / Aquam8128 - switches with up to 28 M12 ports, Layer 3 / Layer 2, EN50155
Aquam8628 / Aquam8128 is a series of onboard switches with up to 24 Fast Ethernet ports and four gigabit M12 ports. Aquam86xx models support Layer 3; Aquam81xx models are Layer 2. PoE, bypass, NAT and ETBN depend on the specific configuration and are not included in every version.

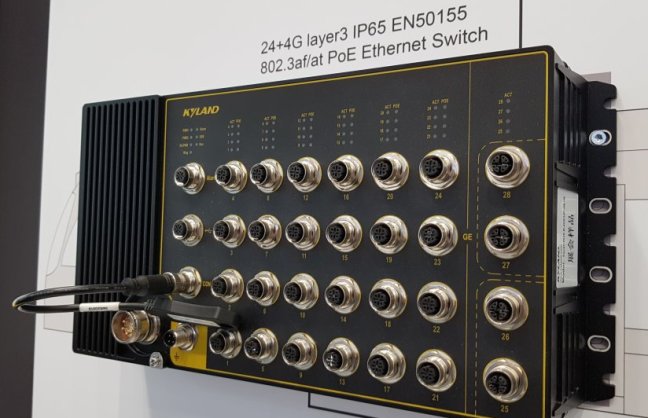

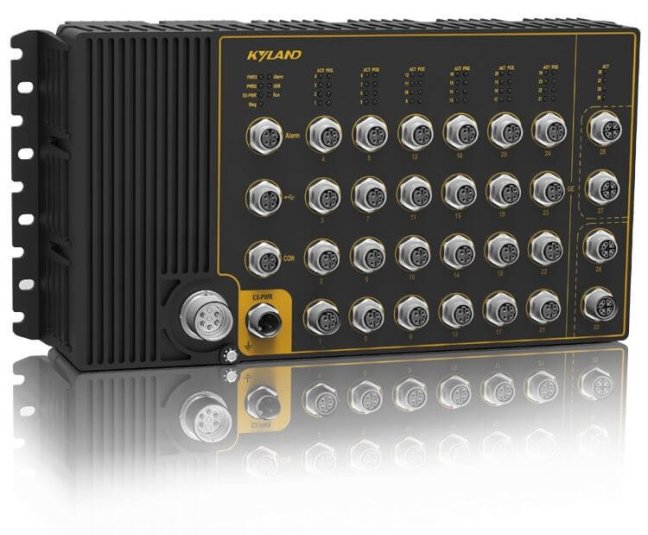

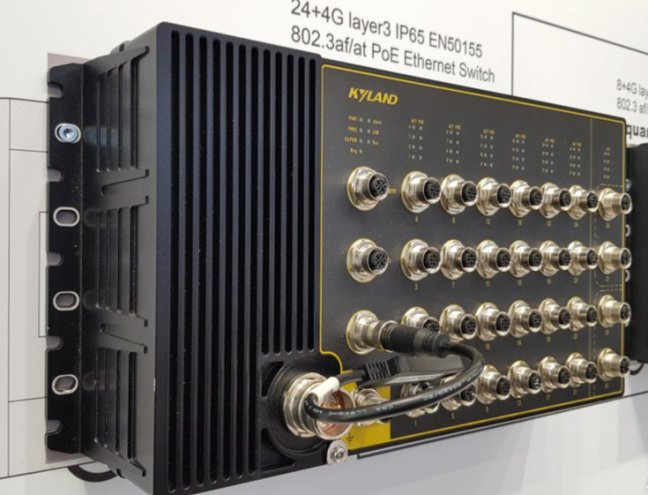

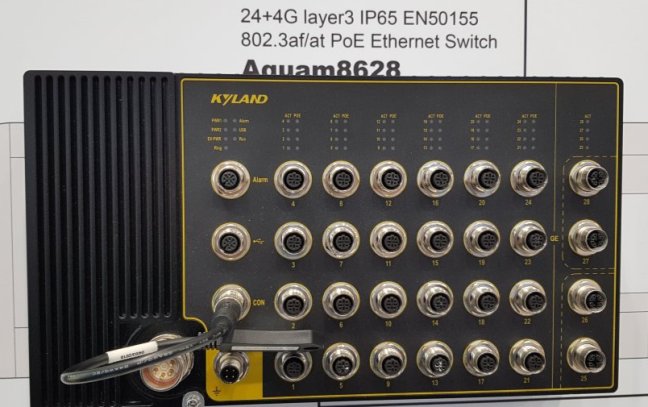

Illustrative series photograph. The actual ports and mechanical version depend on the confirmed configuration.
Need help selecting or ordering this switch?
Send us the required number and type of ports, power supply and quantity. We will recommend a suitable model and confirm availability.
Switch applications
Aquam switches serve Ethernet networks on rail vehicles, passenger information systems, CCTV systems and other industrial installations requiring resistance to shock and vibration. M12 connectors help ensure secure cabling connections.
Before selecting a device, check the required vehicle standards, power supply, port count and installation space. We will confirm compliance of the specific supplied variant and the available documents in our quotation.
Technical specifications
| Version | Configuration on request |
| Manufacturer / series | Kyland Aquam8628 / Aquam8128 |
| Type | Managed switches: Aquam86xx Layer 3 / Aquam81xx Layer 2 |
| Ethernet ports | Up to 24× 10/100Base-T(X), M12 D + 4× 10/100/1000Base-T(X), M12 X |
| PoE | Optional; IEEE 802.3af/at, up to 30 W per port, shared budget depends on the power supply |
| Power supply | L2-L2: 24-48 VDC (16.8-60 VDC); H6-H6: 72-110 VDC (50.4-137.5 VDC) |
| Power inputs | Two redundant inputs |
| Power connectors | M23 for the switch; separate M12 for additional PoE power |
| Maximum power consumption | <25 W at 110 VDC without PoE |
| Degree of protection | IP65 |
| Dimensions (W × H × D) | 380 × 189 × 91.3 mm |
| Device weight | 5 kg |
| Chassis / cooling | Metal chassis; natural convection, fanless |
| Mounting | Panel mounting |
| Operating temperature | -40 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Relative humidity | 5-95 %, non-condensing |
| MAC address table | 32K |
| Packet buffer | 32 Mbit |
| Railway applications | EN50155, EN50121; IEC61373 for shock and vibration |
| Manufacturer warranty | 5 years |
Ports and network functions
Layer 3 models support static routing, OSPF, RIP and VRRP. Layer 2 models do not inherit these routing functions. The series offers VLAN, QoS, port mirroring, SNMP and diagnostics. Bypass requires variant B; NAT and TTDP/TTDB/TRDP functions are selected through the corresponding NAT/ETBN variant.
PoE and optional functions
The PoE/PoE+ version has a shared power budget of 80/120 W depending on the variant and power supply. An additional isolated 50-54 VDC supply allows the budget to be increased to up to 240 W. A limit of up to 30 W per port does not mean that all ports can be loaded to this value simultaneously.
If you require bypass, NAT or ETBN, state this in your enquiry. We will confirm the specific ports, supported functions and firmware for the selected order code.
Scope of supply and accessories
We will confirm the exact scope of supply in our quotation. Select power cables, M12/M23 connectors and mounting accessories for the specific device. The connector coding and contact count must match the relevant port.
Frequently asked questions
How do I select the exact configuration?
Send the full order number or a photograph of the nameplate, the required port count, power supply and any PoE requirement. For a replacement, we will also check the dimensions and network configuration.
Does every model in this series have PoE?
No. PoE is a feature of selected order configurations. The exact port and power supply code is decisive; the series name alone is not sufficient.
How do I select cables and connectors?
Check the M12 coding, contact count and wiring of every port. Ethernet, power and console connectors are not interchangeable.
Can FOXON help me select a switch?
Yes. Send us your requirements for ports, data rates, power supply and operating environment. We will recommend a suitable model and accessories and provide technical support.
Why order from FOXON?
We are a distributor of Kyland. We supply new industrial switches and help you select the right model for your network.
Selection for your network
We discuss the number and type of ports, data rates, power supply and operating conditions. We recommend a suitable switch and the accessories you need.
Availability and delivery date
We check the current availability of the required model and quantity. We confirm the delivery date before you place your order.
Supplies for individual machines and projects
We prepare quotations for a single switch or multiple units for machine builders and integrators. We agree on quantities and subsequent deliveries to suit your project.
Technical support
We advise on device connections, power supply and mounting. We discuss technical questions in the context of your specific model and network.
Available switch configurations
| Order configuration | Ethernet ports | PoE | Power supply |
|---|---|---|---|
| 24T / 24P | 24× 100 Mbit/s | T: without PoE; P: PoE | L2-L2 / H6-H6 |
| 4GE24T / 4GE24P | 24× 100 Mbit/s + 4× 1 Gbit/s | T: without PoE; P: PoE | L2-L2 / H6-H6 |
The table lists series configurations, not confirmed stock availability of every variant. We will establish the full order number and check availability to match your requirements.
Dimensional drawings
Downloads
- Kyland Aquam81xx / Aquam86xx - Web operation manual (EN)
- Kyland Aquam81xx / Aquam86xx - Hardware installation manual (EN)
- Kyland Aquam8628 / Aquam8128 - Datasheet (EN)
The manufacturer datasheet and manuals are in English. Check the mounting, wiring and operating requirements before installation.
Switch and accessories enquiry
Send the order number or your network requirements and the required quantity. For optical connections, include the fibre type and route length.
Request a switch and accessories| Version | Configuration on request |
| Manufacturer / series | Kyland Aquam8628 / Aquam8128 |
| Type | Managed switches: Aquam86xx Layer 3 / Aquam81xx Layer 2 |
| Ethernet ports | Up to 24× 10/100Base-T(X), M12 D + 4× 10/100/1000Base-T(X), M12 X |
| PoE | Optional; IEEE 802.3af/at, up to 30 W per port, shared budget depends on the power supply |
| Power supply | L2-L2: 24-48 VDC (16.8-60 VDC); H6-H6: 72-110 VDC (50.4-137.5 VDC) |
| Power inputs | Two redundant inputs |
| Power connectors | M23 for the switch; separate M12 for additional PoE power |
| Maximum power consumption | <25 W at 110 VDC without PoE |
| Degree of protection | IP65 |
| Dimensions (W × H × D) | 380 × 189 × 91.3 mm |
| Device weight | 5 kg |
| Chassis / cooling | Metal chassis; natural convection, fanless |
| Mounting | Panel mounting |
| Operating temperature | -40 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Relative humidity | 5-95 %, non-condensing |
| MAC address table | 32K |
| Packet buffer | 32 Mbit |
| Railway applications | EN50155, EN50121; IEC61373 for shock and vibration |
| Manufacturer warranty | 5 years |
