Kyland Aquam8012A

Aquam8012A - Layer 2 managed switches with M12, EN50155

Aquam8012A is a series of Layer 2 managed switches for onboard Ethernet networks. Depending on configuration, it offers nine 100 Mbit/s ports or a combination of 8+4 or 9+3 Fast Ethernet and Gigabit Ethernet ports. PoE, bypass and power supply are selected by the order code; we will confirm the specific version in our quotation.

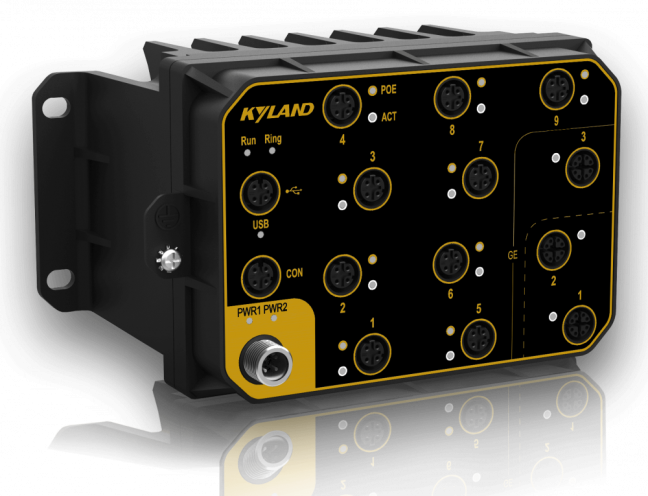

Kyland Aquam8012A - series photograph

Illustrative series photograph. The actual ports and mechanical version depend on the confirmed configuration.

Need help selecting or ordering this switch?
Send us the required number and type of ports, power supply and quantity. We will recommend a suitable model and confirm availability.

Request a switch and accessories
Up to 12 M12 Ethernet ports
Layer 2; VLAN and diagnostics
PoE depends on the order configuration

Switch applications

Aquam switches serve Ethernet networks on rail vehicles, passenger information systems, CCTV systems and other industrial installations requiring resistance to shock and vibration. M12 connectors help ensure secure cabling connections.

Before selecting a device, check the required vehicle standards, power supply, port count and installation space. We will confirm compliance of the specific supplied variant and the available documents in our quotation.

Technical specifications

VersionConfiguration on request
Manufacturer / seriesKyland Aquam8012A
TypeLayer 2 managed industrial Ethernet switch
Ethernet ports9× 100 Mbit/s; or 8× 100 Mbit/s + 4× 1 Gbit/s; or 9× 100 Mbit/s + 3× 1 Gbit/s
PoEOptional; IEEE 802.3af/at, up to 30 W per port, shared budget 60 W
Power supplyWithout PoE: L13-L13 / L14-L14 / H6-H6; PoE: WV-WV
Power supply variantsL13-L13: 24 VDC (16.8-30 VDC); L14-L14: 48 VDC (33.6-60 VDC); H6-H6: 72-110 VDC (50.4-137.5 VDC); WV-WV: 24-110 VDC (16.8-154 VDC)
Power inputsTwo redundant inputs
Maximum power consumption<12 W without PoE; <80 W with 60 W PoE
Degree of protectionWe will confirm the degree of protection of the specific version before you order.
Dimensions (W × H × D)Depends on the mechanical version; we will check the drawing before you order.
Device weight<2 kg
Chassis / coolingMetal chassis; natural convection, fanless
MountingPanel mounting
Operating temperature-40 to +75 °C
Storage temperature-40 to +85 °C
Relative humidity5-95 %, non-condensing
MAC address table8K
Packet buffer4 Mbit
Railway applicationsEN50155, EN50121; IEC61373 for shock and vibration
Manufacturer warranty5 years

Ports and network functions

The series offers VLAN/PVLAN, LACP, QoS, IGMP snooping, port mirroring, SNMPv1/v2c/v3, Syslog and LLDP. DT-Ring and STP/RSTP/MSTP are available for ring topologies. Routing functions of the Aquam8512A series are not a feature of this Layer 2 model. Bypass requires a variant with the B designation.

Scope of supply and accessories

We will confirm the exact scope of supply in our quotation. Select power cables, M12/M23 connectors and mounting accessories for the specific device. The connector coding and contact count must match the relevant port.

Frequently asked questions

How do I select the exact configuration?

Send the full order number or a photograph of the nameplate, the required port count, power supply and any PoE requirement. For a replacement, we will also check the dimensions and network configuration.

Does every model in this series have PoE?

No. PoE is a feature of selected order configurations. The exact port and power supply code is decisive; the series name alone is not sufficient.

How do I select cables and connectors?

Check the M12 coding, contact count and wiring of every port. Ethernet, power and console connectors are not interchangeable.

Can FOXON help me select a switch?

Yes. Send us your requirements for ports, data rates, power supply and operating environment. We will recommend a suitable model and accessories and provide technical support.

Why order from FOXON?

We are a distributor of Kyland. We supply new industrial switches and help you select the right model for your network.

Selection for your network

We discuss the number and type of ports, data rates, power supply and operating conditions. We recommend a suitable switch and the accessories you need.

Availability and delivery date

We check the current availability of the required model and quantity. We confirm the delivery date before you place your order.

Supplies for individual machines and projects

We prepare quotations for a single switch or multiple units for machine builders and integrators. We agree on quantities and subsequent deliveries to suit your project.

Technical support

We advise on device connections, power supply and mounting. We discuss technical questions in the context of your specific model and network.

Kyland distributionNew industrial switches
Selection for your applicationSwitch and required accessories
Technical supportBefore purchase and during use

Available switch configurations

Order configurationEthernet portsPoEPower supply
9T / 9P9× 100 Mbit/s9T: without PoE; 9P: PoEDepends on the order code
4GE8T / 4GE8P8× 100 Mbit/s + 4× 1 Gbit/sT: without PoE; P: PoEDepends on the order code
3GE9T / 3GE9P9× 100 Mbit/s + 3× 1 Gbit/sT: without PoE; P: PoEDepends on the order code

The table lists series configurations, not confirmed stock availability of every variant. We will establish the full order number and check availability to match your requirements.

Dimensional drawings

Aquam8012A - Mechanical version with cooling fins
Aquam8012A - Mechanical version with cooling fins. Dimensions are in mm; the ports shown are illustrative. Check the exact mechanical version of the supplied device before mounting.
Aquam8012A - Mechanical version without cooling fins
Aquam8012A - Mechanical version without cooling fins. Dimensions are in mm; the ports shown are illustrative. Check the exact mechanical version of the supplied device before mounting.

Downloads

The manufacturer datasheet and manuals are in English. Check the mounting, wiring and operating requirements before installation.

For the 2016 installation manual, check compatibility with the hardware revision of the supplied device.
