6AV2124-0MC01-0AX0

Sales, Repair, Purchase

SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12" widescreen TFT display, 16 million colours, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11. More

Code: 6AV2124-0MC01-0AX0

from 1 570 EUR excl. VAT (1 899,70 EUR Incl. VAT)

Total in stock: 178 pcs External stock 178 pcs

Condition

Get a quote

Code: 6AV2124-0MC01-0AX0

Part Sales 4

Condition	Code	Warranty	Availability	Delivery Express?	Price excl. VAT
New in sealed box (NC)	6AV2124-0MC01-0AX0 NC	12/24 months	In external stock 95 pcs	Within 2-4 days / Express	On request	Get a quote
New in open box (NO)	6AV2124-0MC01-0AX0 NO	12/24 months	In external stock 1 pcs	Within 2-4 days / Express	On request	Get a quote
Refurbished (R)	6AV2124-0MC01-0AX0 R	12/24 months	In external stock 81 pcs	Within 2-4 days / Express	On request	Get a quote
Used and tested (T)	6AV2124-0MC01-0AX0 T	6 months	In external stock 1 pcs	Within 2-4 days / Express	On request	Get a quote

Repair of the part

Name	Code	Delivery	Warranty	Price excl. VAT
Touch layer repair	6AV2124-0MC01-0AX0 OTM	Within 1 week	12/24 months	444 EUR	Enquire a repair
Express touch layer repair	6AV2124-0MC01-0AX0 EOTM	Immediate service	12/24 months	593 EUR	Enquire a repair
Complete part repair	6AV2124-0MC01-0AX0 O	3-6 weeks	24 months	On request	Enquire a repair

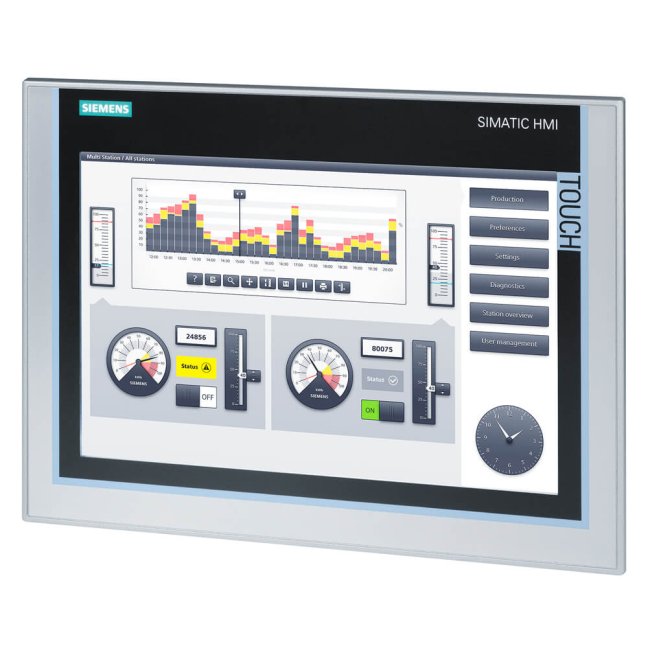

6AV2124-0MC01-0AX0 – TP1200 Comfort

Siemens 6AV2124-0MC01-0AX0: SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11.

Need to buy or repair this part?
We will check replacement part availability and the options for diagnosing and repairing your faulty unit.

Request a quote for purchase or repair

Technical specifications

Manufacturer	Siemens
Order number	6AV2124-0MC01-0AX0
Product type	TP1200 Comfort
Display type	TFT
Screen diagonal	12.1 in
Display width	261.1 mm
Display height	163.2 mm
Display colors	16 777 216
Horizontal display resolution	1 280 pixel
Vertical display resolution	800 pixel
Touch operation	Yes; Analog-resistive
Supply voltage / Rated value (DC)	24 V
Input current / Current consumption (rated value)	0.85 A
Memory available for user data	12 Mbyte
Interfaces / Number of industrial Ethernet interfaces	1; 2 ports (switch)
Interfaces / Number of RS 485 interfaces	1; RS 422 / 485 combined
Front protection rating	IP65
Rear protection rating	IP20
Operating temperature, vertical installation (min.)	0 °C
Operating temperature, vertical installation (max.)	50 °C; (55 °C, see entry ID: 64847814)
Configuration software / WinCC Comfort (TIA Portal)	Yes; from V11
Configuration software / WinCC Advanced (TIA Portal)	Yes; from V11
Configuration software / WinCC Professional (TIA Portal)	Yes; from V11
Panel front width	330 mm
Panel front height	241 mm
Mounting cutout width	310 mm
Mounting cutout height	221 mm
Mounting depth	64 mm
Weight without packaging	2.8 kg
Weight with packaging	3.5 kg

Part variants and further information

New, sealed (NC): Brand-new, unused part in unopened original packaging. 12-month warranty.
New, opened (NO): Brand-new and unused part, but the original packaging has been opened. 12-month warranty.
New, without packaging (NW): Brand-new and unused part, supplied without original packaging. 12-month warranty.
New (N): New and unused part, typically smaller components supplied in multi-packs in one original package. 12-month warranty.
Refurbished (R): Part has been removed from service, cleaned, inspected and tested to meet original functionality and quality. 12-month warranty.
Used, tested (T): Functional used part that has passed full testing. 6-month warranty.
Used (U): Functional used part. 3-month warranty.

Buy parts and arrange repairs with FOXON

We supply new original and refurbished parts with a warranty. We confirm current availability and the possible delivery date before you place an order. For faulty parts, we check the options for diagnostics and professional repair.
