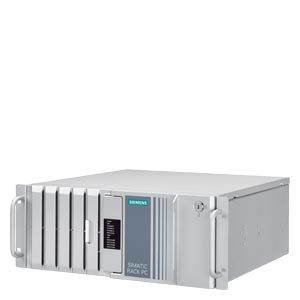

6AG4104-5EC01-2AX8
6AG4104-5EC01-2AX8
SIMATIC IPC547J (rack PC, 19", 4 U); interfaces: 2x USB 3.0 on the front; COM1, audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, temperature and fan monitoring; watchdog; card retainer Core i7-10700E (8C/16T, 2.9 (4.5) GHz, 16 MB cache); mainboard (chipset H410, 2x Gbit Ethernet, 1x DVI-D, 1x DisplayPort, 4x USB 2.0, 2x USB 3.1 Gen. 1, 1x USB 2.0 internal); 1 TB HDD 3.5 SATA and 960 GB SSD 2.5 SATA (for operating system, if M.2 SSD not ordered), enclosure (short) with drive support type C (for internal installation/ 0.2 g vibration, 2 g shock), blue chromated, 100/240 V AC industrial power supply unit, power supply cable Europe, 16 GB DDR4 SDRAM (2x 8 GB), dual channel, without expansion, without operating system, TPM 2.0,
More
Code: 6AG4104-5EC01-2AX8
SIMATIC IPC547J (rack PC, 19", 4 U); interfaces: 2x USB 3.0 on the front; COM1, audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, temperature and fan monitoring; watchdog; card retainer Core i7-10700E (8C/16T, 2.9 (4.5) GHz, 16 MB cache); mainboard (chipset H410, 2x Gbit Ethernet, 1x DVI-D, 1x DisplayPort, 4x USB 2.0, 2x USB 3.1 Gen. 1, 1x USB 2.0 internal); 1 TB HDD 3.5 SATA and 960 GB SSD 2.5 SATA (for operating system, if M.2 SSD not ordered), enclosure (short) with drive support type C (for internal installation/ 0.2 g vibration, 2 g shock), blue chromated, 100/240 V AC industrial power supply unit, power supply cable Europe, 16 GB DDR4 SDRAM (2x 8 GB), dual channel, without expansion, without operating system, TPM 2.0,
More
Code: 6AG4104-5EC01-2AX8
Repair of the part
| Name | Code | Delivery | Warranty | Price excl. VAT | |
|---|---|---|---|---|---|
| Complete part repair | 6AG4104-5EC01-2AX8 O | 3-6 weeks | 24 months | On request | Enquire a repair |
6AG4104-5EC01-2AX8 – IPC547J
Siemens 6AG4104-5EC01-2AX8: SIMATIC IPC547J industrial PC.
Need to buy or repair this part?
We will check replacement part availability and the options for diagnosing and repairing your faulty unit.
Technical specifications
| Manufacturer | Siemens |
|---|---|
| Order number | 6AG4104-5EC01-2AX8 |
| Configured display | SIMATIC IPC547J (rack PC, 19", 4 U) |
| Configured interfaces | interfaces: 2x USB 3.0 on the front |
| Configured interfaces | COM1 |
| Configured expansion slots | 7 slots: 5x PCI Express, 2x PCI |
| Configured design and package contents | watchdog |
| Configured processor | card retainer; Core i7-10700E (8C/16T, 2.9 (4.5) GHz, 16 MB cache) |
| Configured interfaces | mainboard (chipset H410, 2x Gbit Ethernet, 1x DVI-D, 1x DisplayPort, 4x USB 2.0, 2x USB 3.1 Gen. 1, 1x USB 2.0 internal) |
| Configured storage | 1 TB HDD 3.5 SATA and 960 GB SSD 2.5 SATA (for operating system, if M.2 SSD not ordered) |
| Configured design and package contents | enclosure (short) with drive support type C (for internal installation/ 0.2 g vibration, 2 g shock) |
| Configured power supply | blue chromated, 100/240 V AC industrial power supply unit |
| Installed memory | power supply cable Europe, 16 GB DDR4 SDRAM (2x 8 GB) |
| Configured operating system | without operating system |
| Product type | IPC547J |
| Front protection rating | IP30 |
| Rear protection rating | IP20 |
| Operating temperature / min. | 0 °C; Max. 10 °C/h (no condensation) |
| Operating temperature / max. | 40 °C |
| Width | 430 mm |
| Height | 177 mm; 4U |
| Depth | 446 mm; Device with short enclosure: 356 mm |
Part variants and further information
- New, sealed (NC): Brand-new, unused part in unopened original packaging. 12-month warranty.
- New, opened (NO): Brand-new and unused part, but the original packaging has been opened. 12-month warranty.
- New, without packaging (NW): Brand-new and unused part, supplied without original packaging. 12-month warranty.
- New (N): New and unused part, typically smaller components supplied in multi-packs in one original package. 12-month warranty.
- Refurbished (R): Part has been removed from service, cleaned, inspected and tested to meet original functionality and quality. 12-month warranty.
- Used, tested (T): Functional used part that has passed full testing. 6-month warranty.
- Used (U): Functional used part. 3-month warranty.
Buy parts and arrange repairs with FOXON
We supply new original and refurbished parts with a warranty. We confirm current availability and the possible delivery date before you place an order. For faulty parts, we check the options for diagnostics and professional repair.
Need to buy or repair this part?
Send the full order number, required quantity and, for repairs, a description of the fault. We will prepare a quotation within 1 hour.
