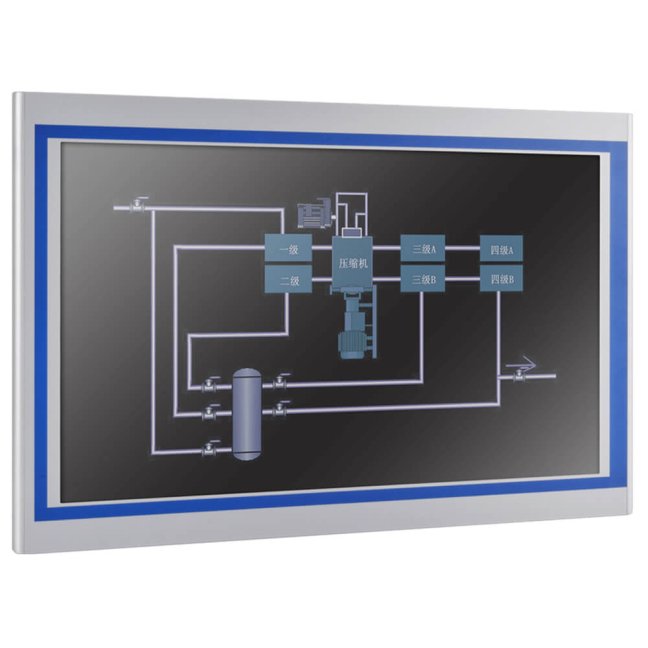

21.5" industrial touch screen resistive NODKA A2152

Add to favourites

21.5" industrial touch screen resistive NODKA A2152

Warranty 2 years (option up to 4 years)

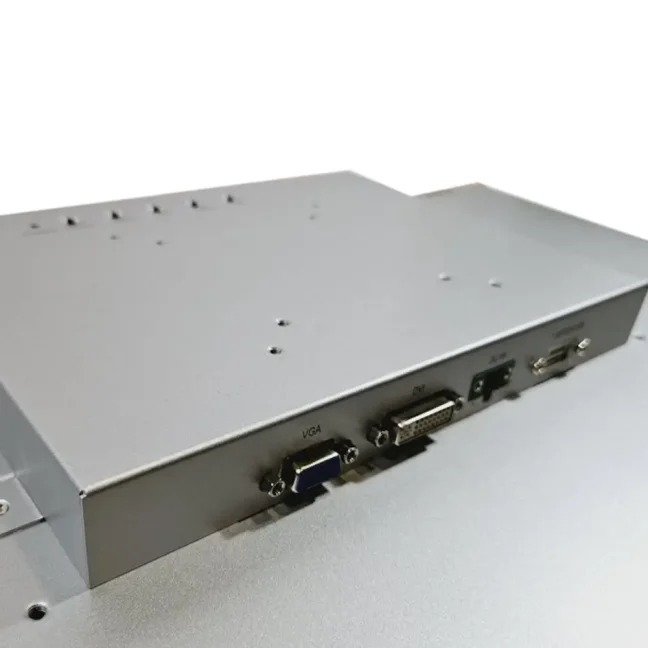

21.5" industrial resistive touch screen monitor, 1920x1080, VGA+DVI, USB touch driver, 12-24VDC More

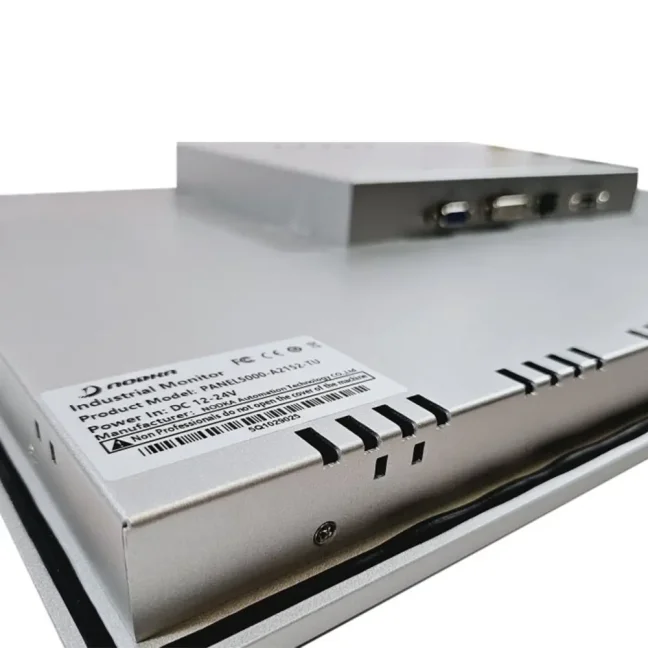

Manufacturer: NODKA Code: PANEL5000-A2152-TU

737,70 EUR excl. VAT (892,62 EUR incl. VAT)
Recycling fee 0,51 EUR v cene.
In stock
pcs
(6 pcs in stock)
Buy more for 230 EUR and get free delivery!
0 EUR230 EUR

21.5" industrial resistive touch screen monitor, 1920x1080, VGA+DVI, USB touch driver, 12-24VDC More

Manufacturer: NODKA Code: PANEL5000-A2152-TU

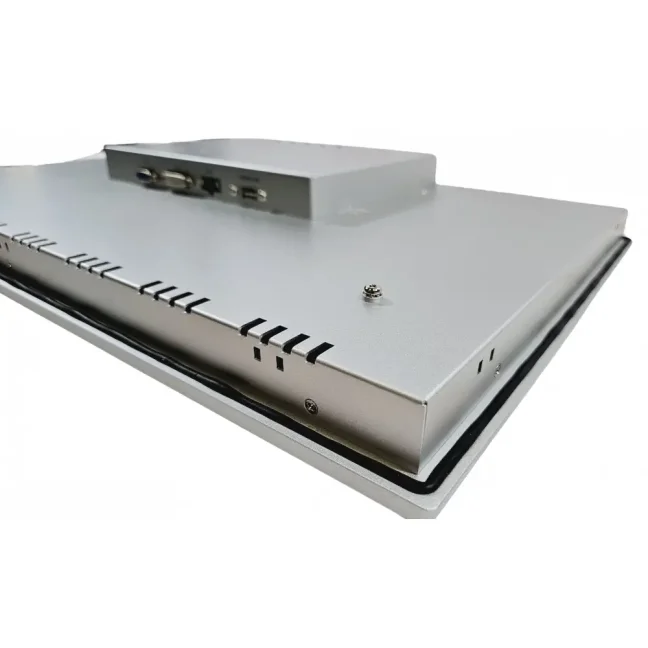

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

NODKA - výrobce průmyslových počítačů, PC panelů a monitorůThe front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire monitor is sealed, fanless and without ventilation holes.

Rugged touch screen with resistive touch control

The monitor has a resistive touch, resistant to water, dust and oil. Touch screen lifetime is up to 50 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

Top-quality details

The NODKA touch monitor is structurally of very high quality and meets the highest quality requirements.

Physical

  • Dimensions：550mm x 342mm x 60mm
  • Cut Out Size：553mm x 325mm
  • Weight：7.04kg
  • Indicators：Power switch and indicators at the back panel
  • Box Structure：High-strength sheet metal structure, high temperature paint handling

Mounting

  • Mount：Panel and VESA mounting

Power

  • Consumption：17 watt
  • Power Supply：12-24V DC voltage input

LCD

  • LCD Size：21.5" TFT LCD
  • Resolution：1920×1080
  • Colors：16.7MB
  • Active Area：476.64mm x 268.11mm (18.77"x 10.56")
  • Backlight：LED
  • MTBF：30000hrs
  • Pixel Pitch：0.248 x 0.248
  • Luminance：250cd/m2
  • Contrast Ratio：3000:1
  • Viewing Angle：178(H)/150(V)

Touch Screen

  • Touchscreen Type：five-wire resistive touch screen
  • Resolution：4096 x 4096
  • Transmittance：More than 81%
  • Controller interface：USB
  • Driver Support：Windows XP, Windows 7, Windows 8, Windows 10, Linux
  • Response Time：< 5ms
  • Surface hardness：Mohs' Number 3H
  • Click life：250g / 35,000,000 times
  • Draw life：250g / 5,000,000 times

Environment

  • Work temperature：0 ~ 50°C
  • Storage Temperature：-30 ~ 70℃
  • Relative Humidity：10~95% (Non condensation)
  • Vibration：SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock：SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
  • EMC：CE/FCC Class A
  • Water-proof：Front panel IP65
Download
PANEL5000 A2152 Datasheet (pdf, 511.4 kB)
NODKA Company.pdf (pdf, 6 MB)
