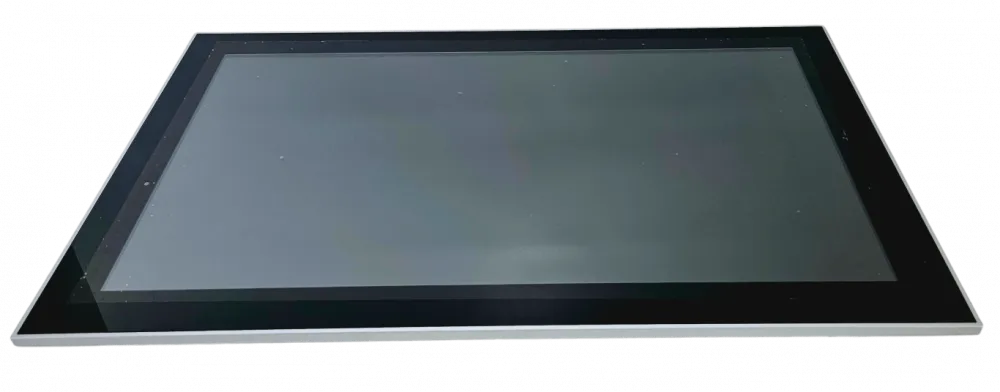

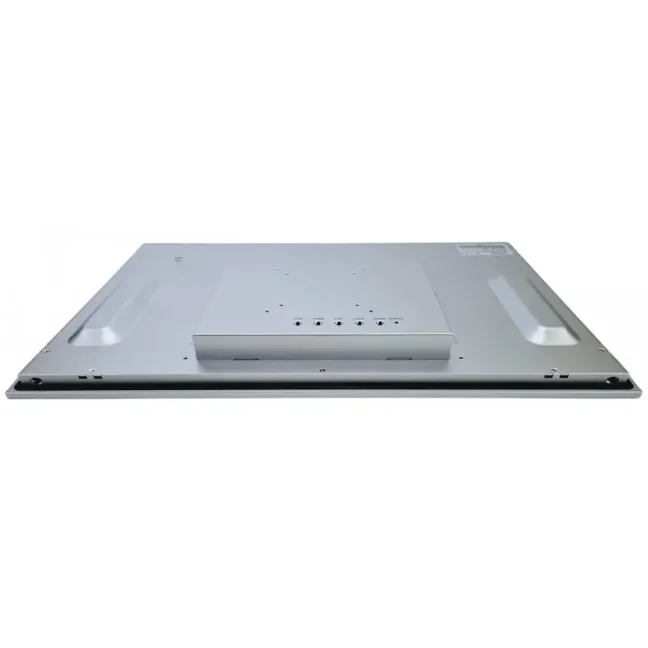

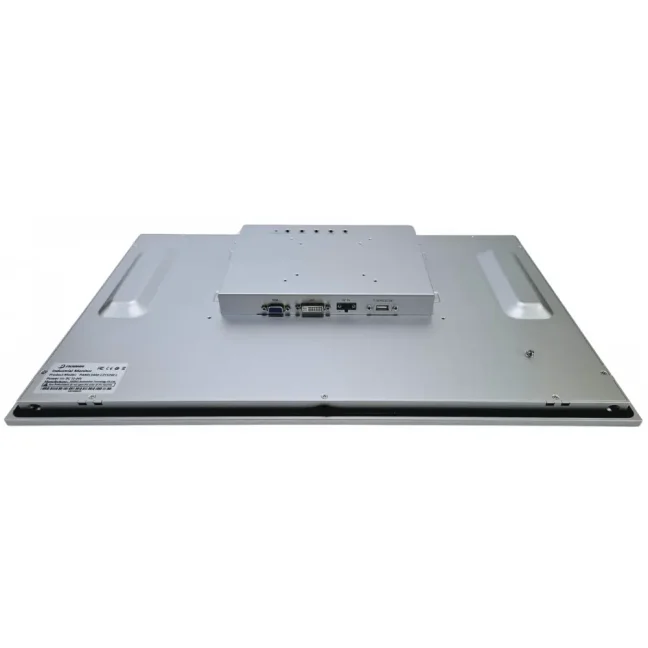

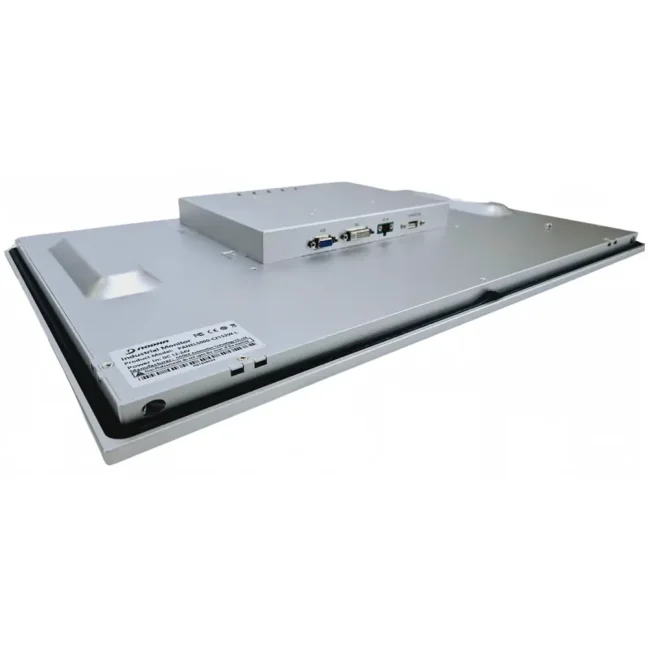

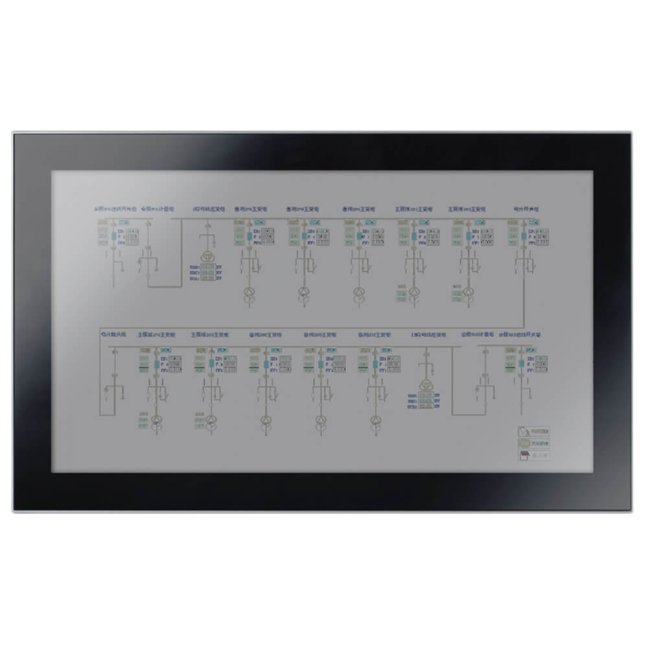

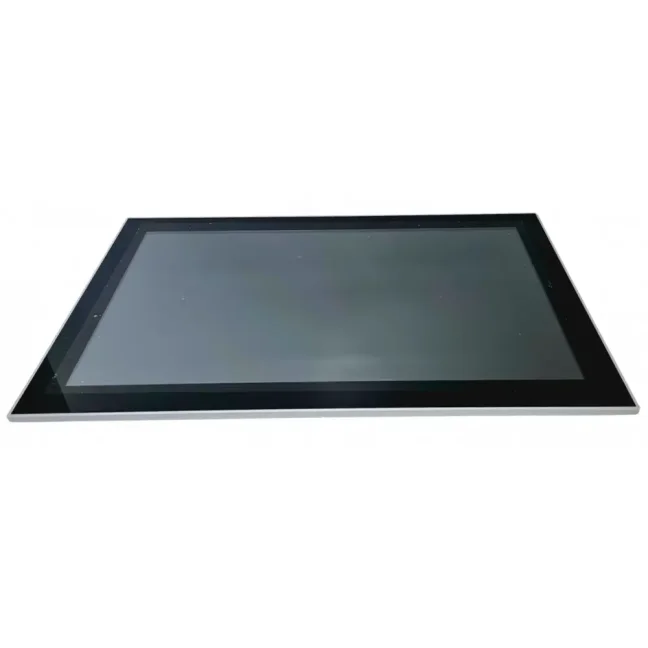

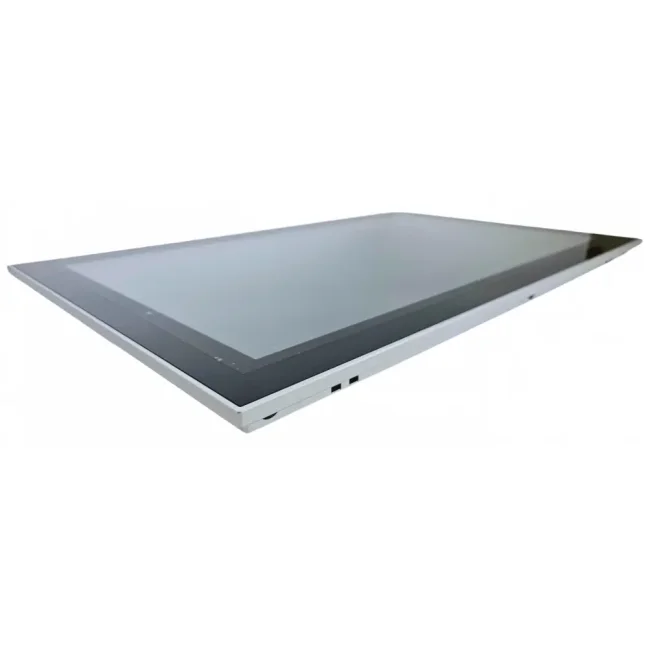

21.5" industrial touch screen capacitive monitor NODKA C2152
21.5" industrial touch screen capacitive monitor NODKA C2152

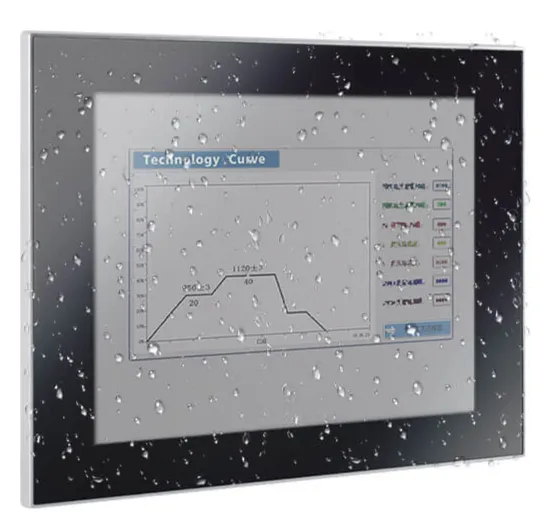

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design
The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire monitor is sealed, fanless and without ventilation holes.
Excellent touch control precision

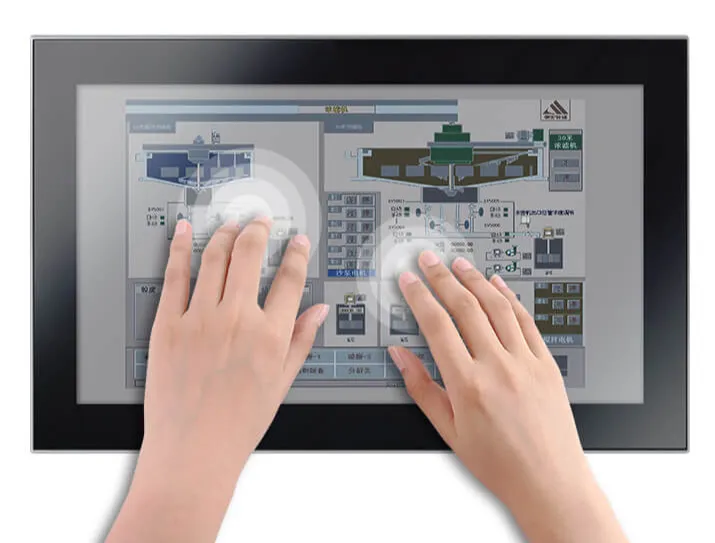

The touch control of the monitor is capacitive, i.e. it is very sensitive with high resolution and fast response to light touch. The monitor supports multi-touch control for up to 10 touches at a time. The lifetime of the touch screen is up to 10 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.
Top-quality details
The NODKA touch monitor is structurally of very high quality and meets the highest quality requirements.
Physical
- Dimensions：550mm x 342mm x 47mm
- Cut Out Size：533mm x 325mm (20.98" x 12.80")
- Weight：5.56kg（12.26Ib）

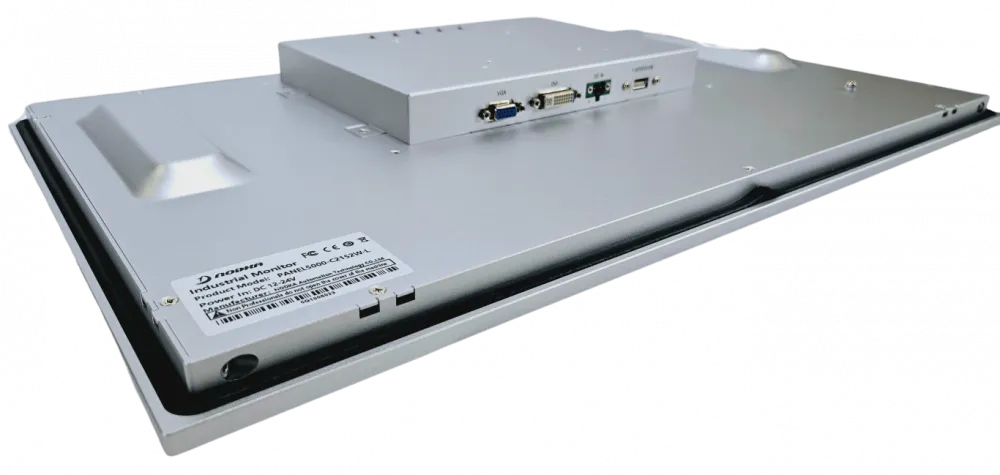

- Box Structure：Front panel: aluminum-magnesium alloy, anodized coating; back cover: SGCC, Ground isolation protection
Mounting

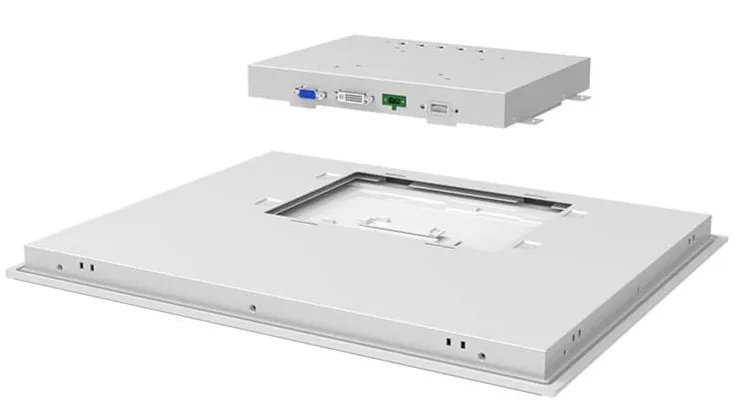

- Mount：Embedded, wall mounted, desktop and VESA mounting
Power
- Power cons：17W
- Power Supply：DC 12V - DC 24V
LCD
- LCD Size：21.5" Full HD TFT
- Resolution：1920 x 1080
- Colors：16.7MB
- Active Area：476.64mm x 268.11mm (18.77"x 10.56")
- Backlight：LED
- MTBF：30000hrs
- Pixel Pitch：0.248 x 0.248
- Luminance：250cd/m
- Contrast Ratio：3000 : 1
- Viewing Angle：(L) 89 / (R) 89 / (T) 89 / (B) 89
Touch Screen
- Touchscreen Type：Multi-point capacitive touch screen
- Transmittance：More than 87%
- Controller interface：USB 2.0 Type B
- Driver Support：Windows 7, Windows 8, Windows 10, Linux
- Surface hardness：Mohs' Number 7H
- Multi-touch：10 points (windows system)
Environment
- Work temperature：-20 ~ 60° C (full HD 0~50° C )
- Storage Temperature：-30 ~ 80℃ (-22 ~ 176℉)
- Relative Humidity：10~95% RH@40°C,non-condensing
- Vibration：Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
- Shock：Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
- EMC：CE/FCC Class B
- Water-proof：Front panel IP65
