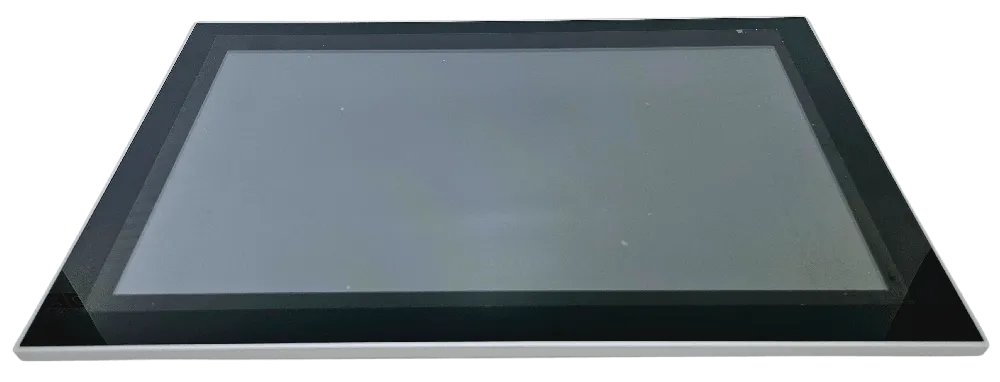

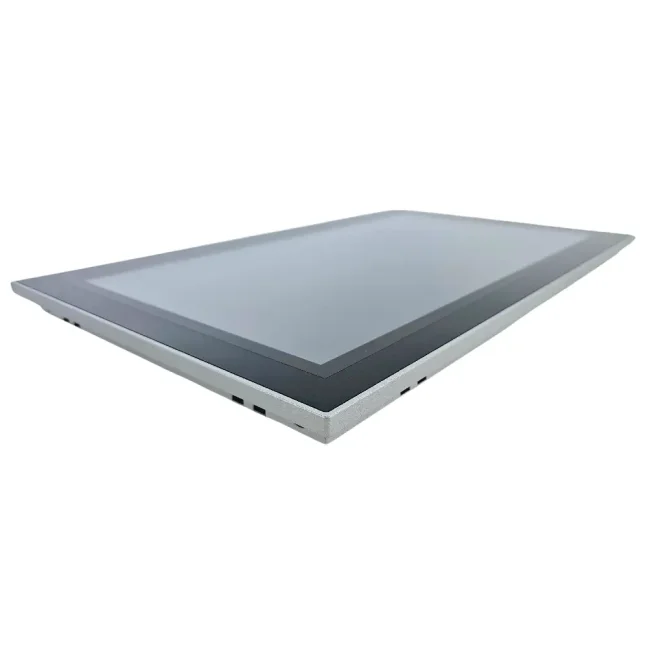

15.6" industrial touch screen capacitive NODKA C1563

Add to favourites

15.6" industrial touch screen capacitive NODKA C1563

-18%
Warranty 2 years (option up to 4 years)

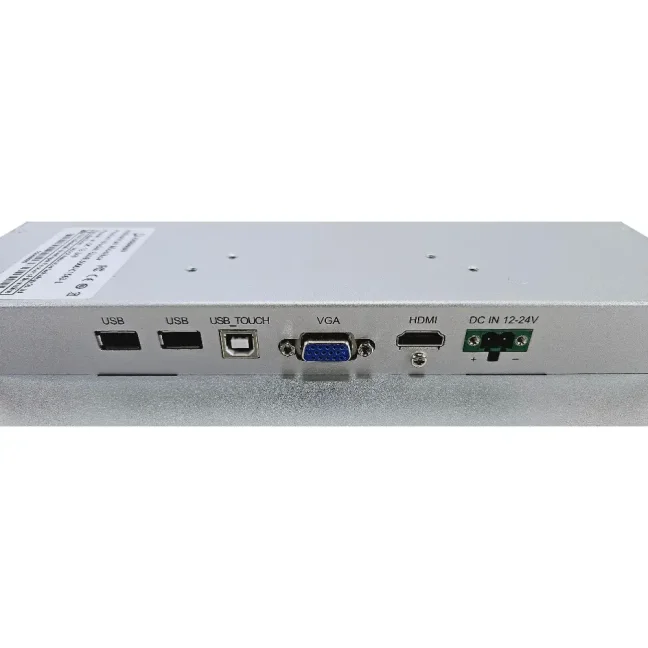

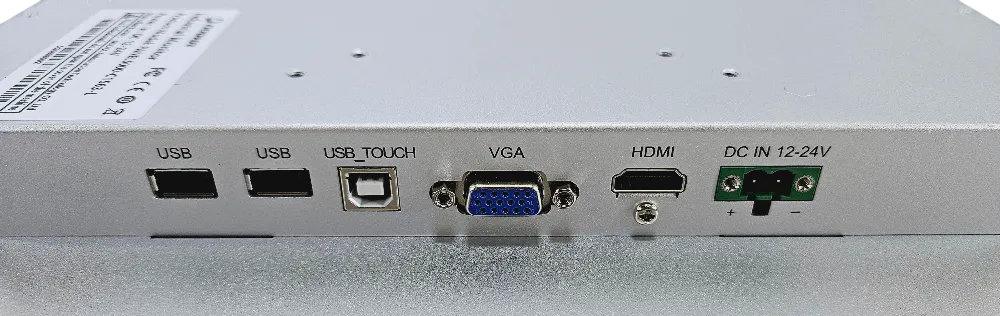

15.6" industrial capacitive touch screen monitor, 1366x768, VGA+HDMI, USB touch driver, 12-24VDC More

Manufacturer: NODKA Code: PANEL5000-C1563-L

Original price 594 EUR excl. VAT. Save 18% (105 EUR excl. VAT) 489 EUR excl. VAT (591,69 EUR incl. VAT)
Recycling fee 0,51 EUR v cene.
In stock
pcs
(5 pcs in stock)
Buy more for 230 EUR and get free delivery!
0 EUR230 EUR

15.6" industrial capacitive touch screen monitor, 1366x768, VGA+HDMI, USB touch driver, 12-24VDC More

Manufacturer: NODKA Code: PANEL5000-C1563-L

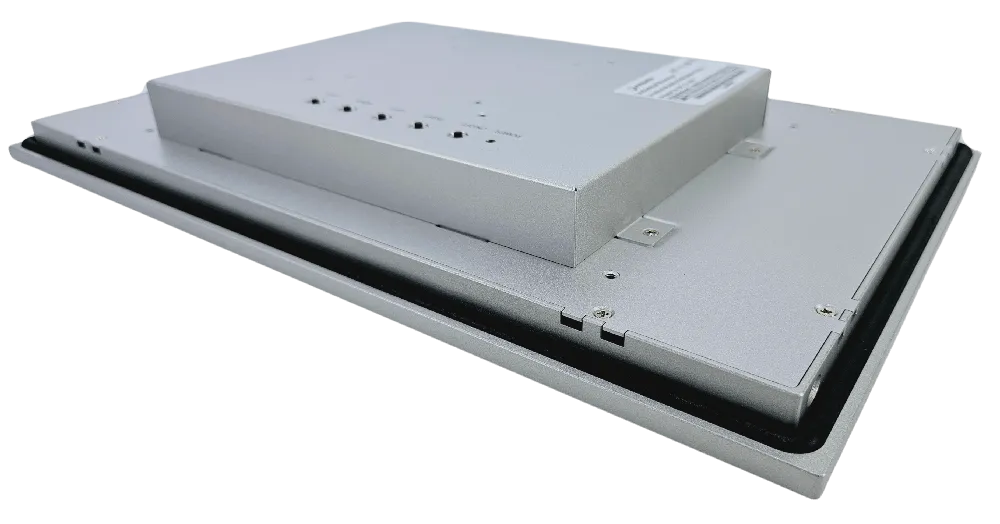

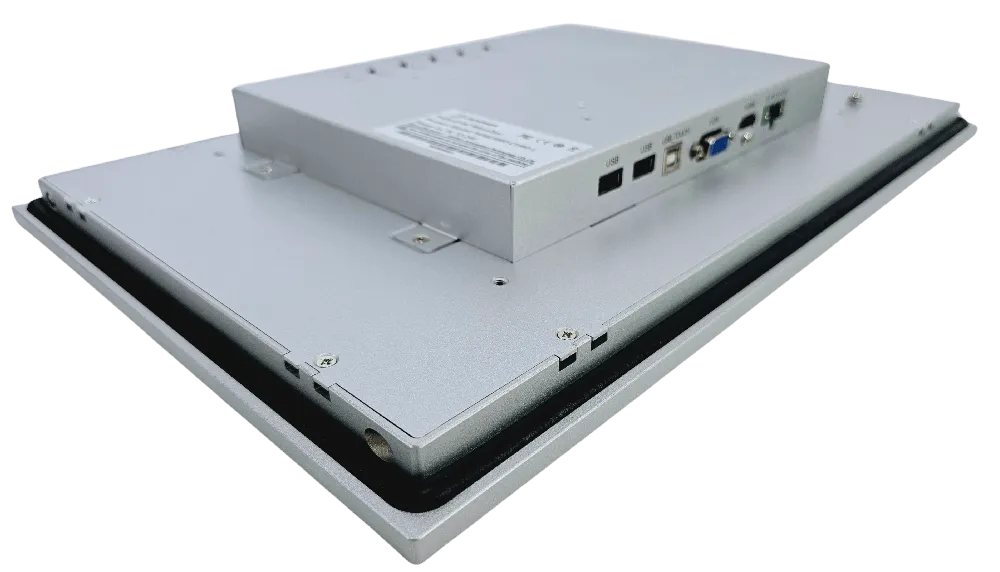

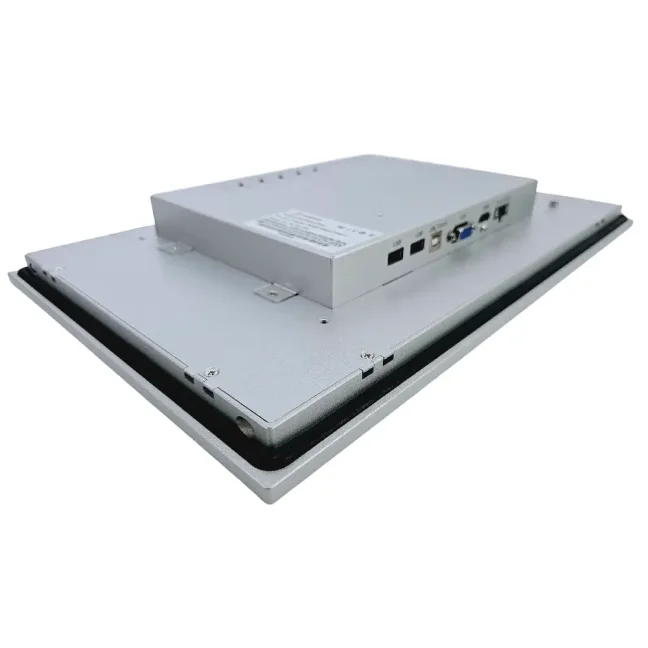

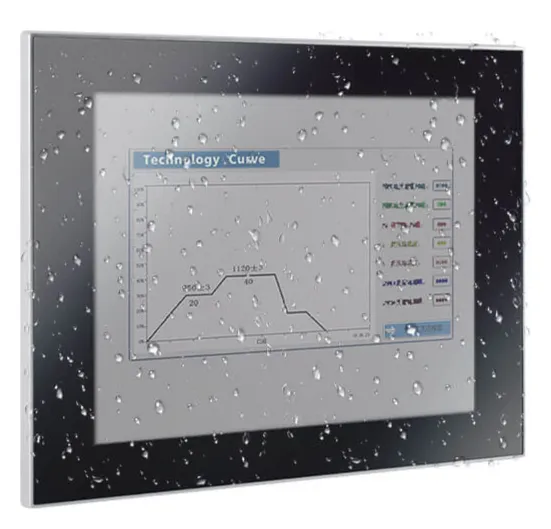

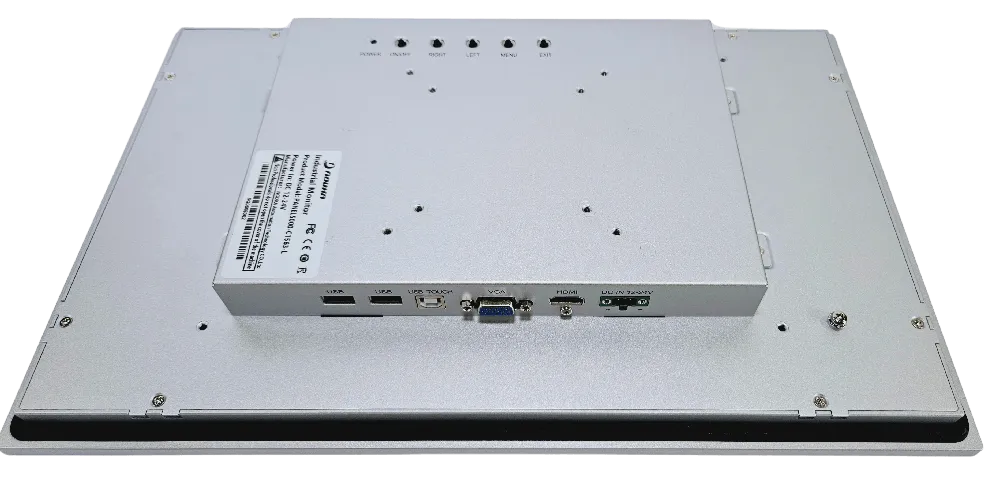

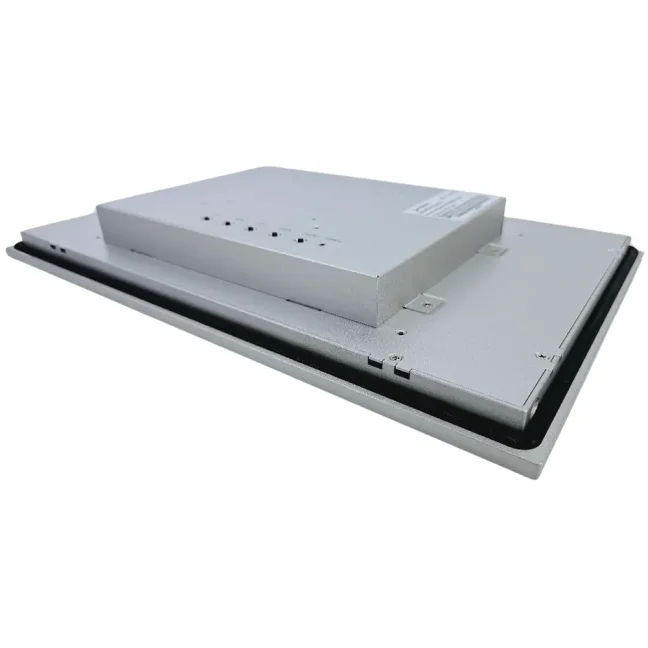

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

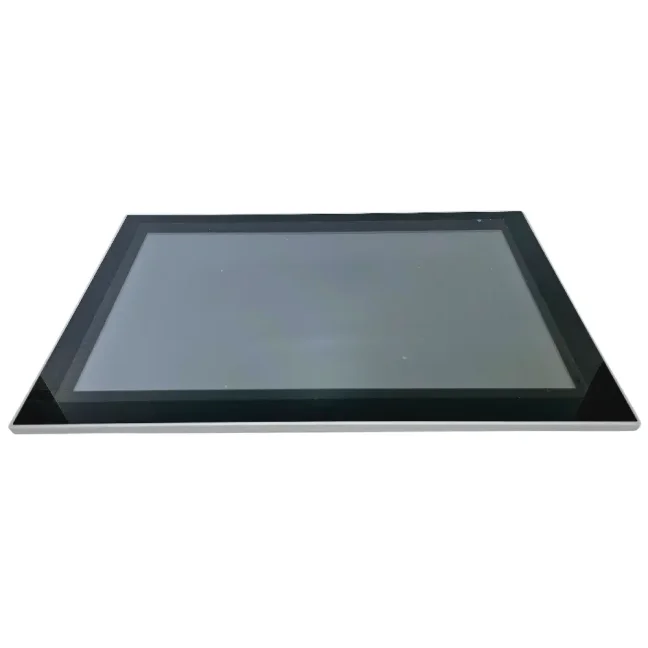

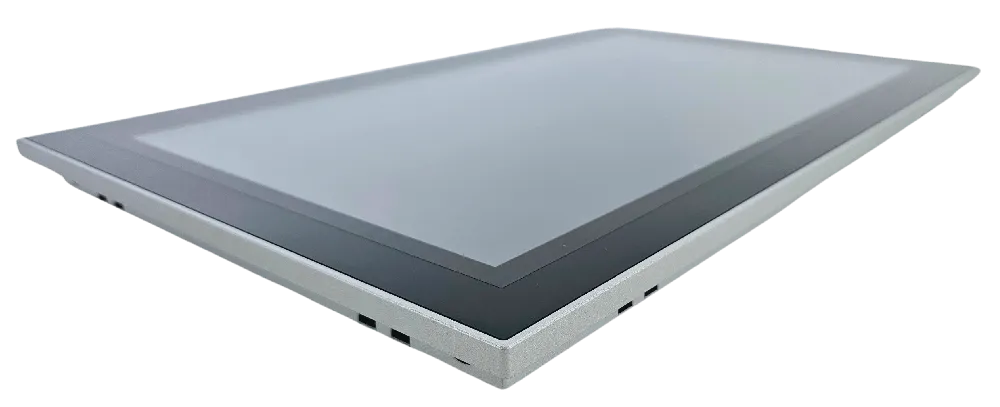

NODKA - výrobce průmyslových počítačů, PC panelů a monitorůThe front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire monitor is sealed, fanless and without ventilation holes.

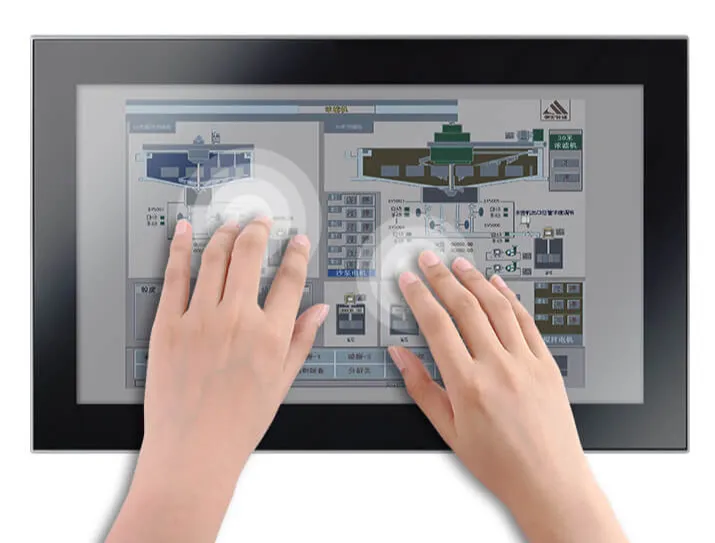

Excellent touch control precision

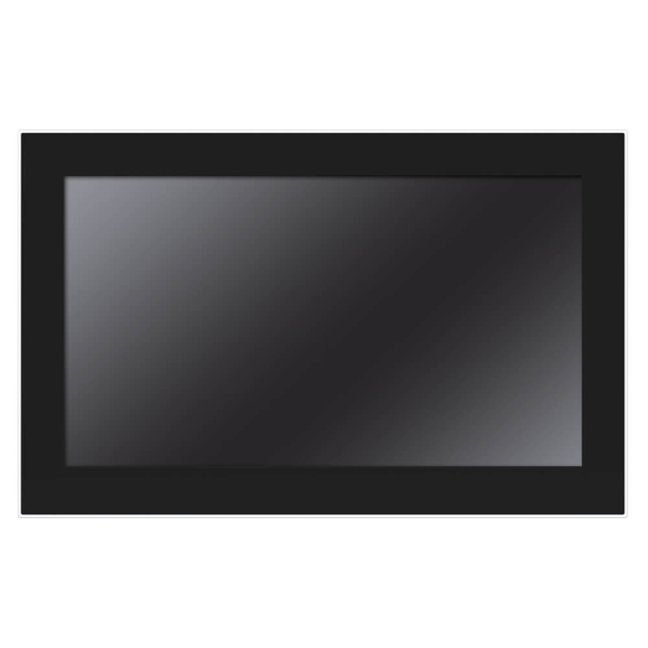

The touch control of the monitor is capacitive, i.e. it is very sensitive with high resolution and fast response to light touch. The monitor supports multi-touch control for up to 10 touches at a time. The lifetime of the touch screen is up to 10 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

Top-quality details

The NODKA touch monitor is structurally of very high quality and meets the highest quality requirements.

Physical

  • Dimensions：405 mm x258 mm x 47 mm
  • Cut Out Size：387 mm x240 mm
  • Weight：3.8 kg
  • Box Structure：Front panel: aluminum-magnesium alloy, anodized coating; back cover: SGCC, Ground isolation protection

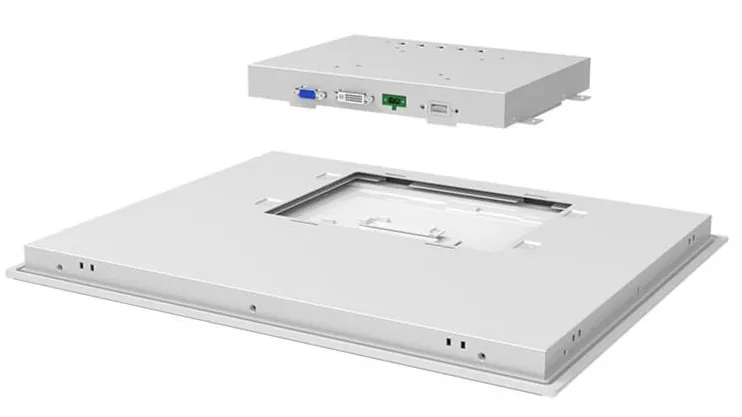

Mounting

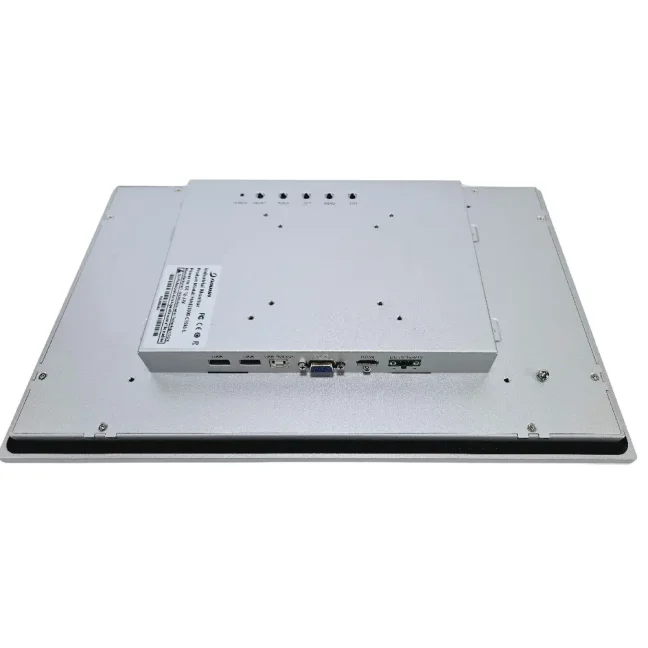

  • Mount：Embedded, wall mounted, desktop and VESA mounting

Power

  • Power Dissipation：8W
  • Power Supply：DC 12V - DC 24V

LCD

  • LCD Size：15.6" TFT
  • Resolution：1366 x 768 (option full HD 1920x1080)
  • Colors：16.7MB
  • Active Area ：344.232mm×193.536mm(13.55' x 7.62")
  • Backlight：LED
  • MTBF：50000hrs
  • Pixel Pitch：0.252 x 0.252
  • Luminance：400cd/m ( full HD: 250cd/m )
  • Contrast Ratio：800:1 (full HD 3000:1)
  • Viewing Angle：(L) 85 / (R) 85 / (T) 50/ (B) 80 (full HD: 89/89/89/89)

Touch Screen

  • Touchscreen Type：Multi-point capacitive touch screen
  • Transmittance：More than 87%
  • Controller interface：USB 2.0 Type B
  • Driver Support：Windows 7, Winows8, Windows 10, Windows 11, Linux
  • Surface hardness：Mohs' Number 7H
  • Multi-touch：10 points (windows system)

Environment

  • Work temperature：-20 ~ 60° C (full HD 0~50° C )
  • Storage Temperature：-30 ~ 80℃ (-22 ~ 176℉)
  • Relative Humidity：10~95% RH@40°C,non-condensing
  • Vibration：Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock：Operating 10G peak acceleration (11 ms duration), follow IEC 60068-2-27
  • EMC：CE/FCC Class B
  • Water-proof：Front panel IP65
