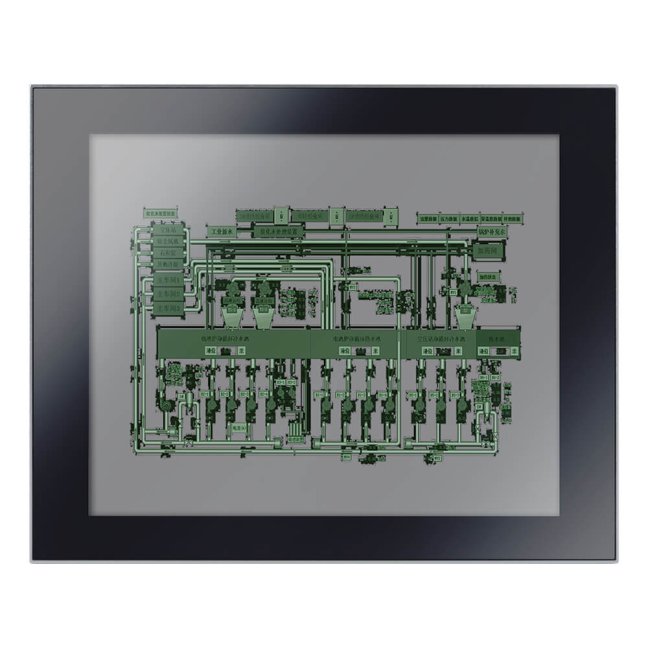

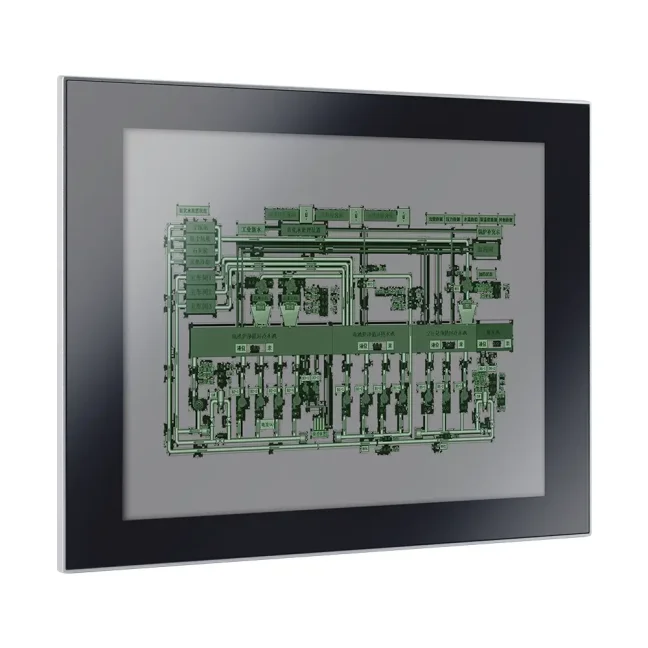

19" industrial touch screen capacitive NODKA C193

More photos (4)

Add to favourites

19" industrial touch screen capacitive NODKA C193

FOXON PLUS

Warranty 2 years (option up to 4 years)

19" industrial capacitive touch screen monitor, 1280x1024, VGA+HDMI, USB touch driver, 12-24VDC More

Code: PANEL5000-C193-L

Recycling fee 0,51 EUR included in the price.

0 pcs in stock

19" industrial capacitive touch screen monitor, 1280x1024, VGA+HDMI, USB touch driver, 12-24VDC More

Code: PANEL5000-C193-L

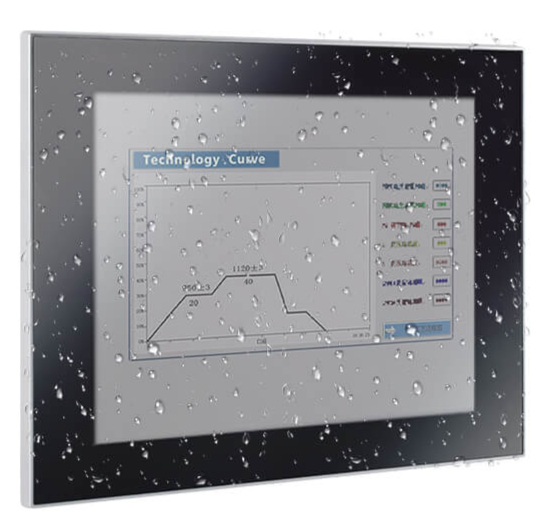

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire monitor is sealed, fanless and without ventilation holes.

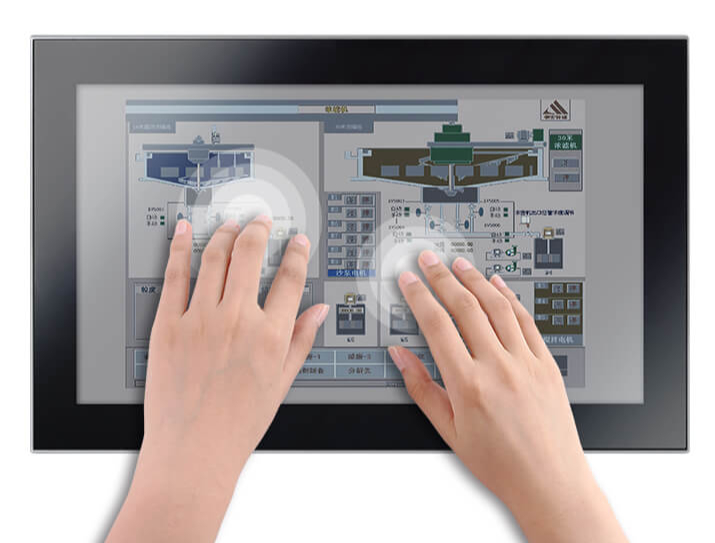

Excellent touch control precision

The touch control of the monitor is capacitive, i.e. it is very sensitive with high resolution and fast response to light touch. The monitor supports multi-touch control for up to 10 touches at a time. The lifetime of the touch screen is up to 10 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

Top-quality details

The NODKA touch monitor is structurally of very high quality and meets the highest quality requirements.

Physical

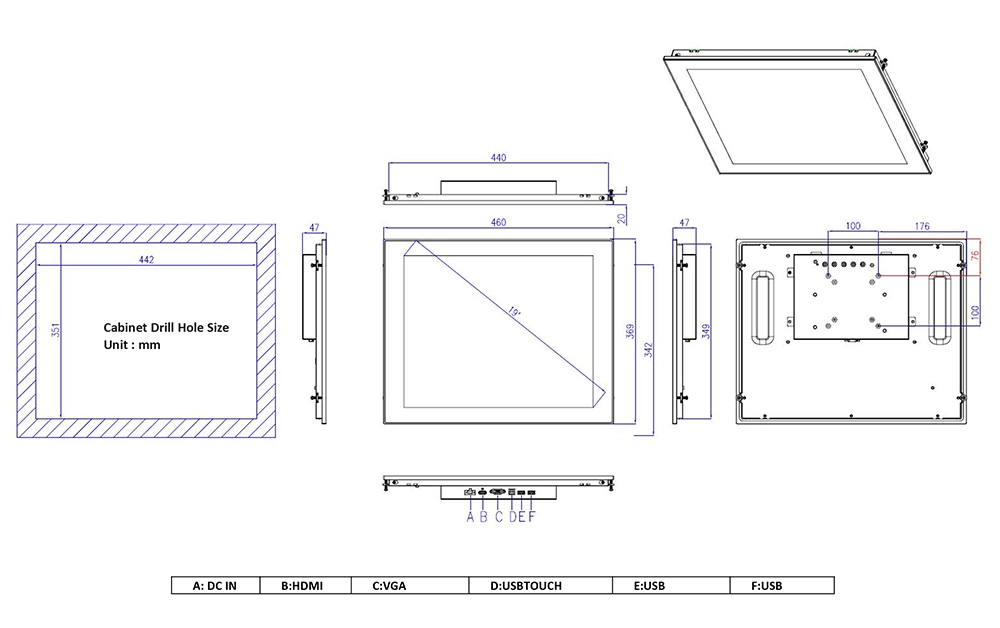

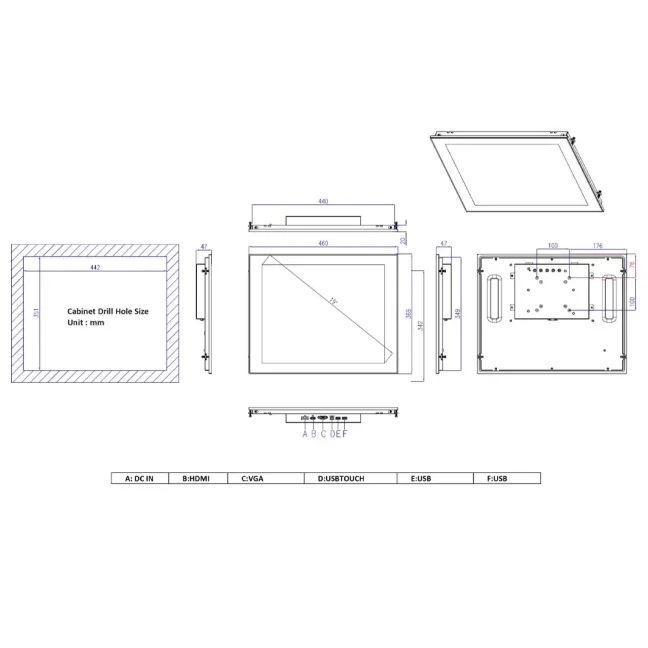

Dimensions：460 mm x 369 mm x 47 mm (18.11" x 14.52" x 1.85")
Cut Out Size：442 mm x 351 mm (17.40" x 13.81")
Weight：5.18kg（11.42 Ib）
Box Structure：Front panel: aluminum-magnesium alloy, anodized coating; back cover: SGCC, ground isolation protection

Mounting

Mount：Embedded, wall mounted, desktop and VESA mounting

Power

Power cons：8 W
Power Supply：DC 12V - DC 24V

LCD

LCD Size：19" HD TFT
Resolution：1280 x 1024
Colors：16.7MB
Active Area：376.32mm x 301.06mm (14.82"x 11.85")
Backlight：LED
MTBF：30 000 hrs
Pixel Pitch：0.294 x 0.294
Luminance：250 cd/m²
Contrast Ratio：1000:1
Viewing Angle：(L) 85 / (R) 85 / (T) 80 / (B) 80

Touch Screen

Touchscreen Type：Multi-point capacitive touch screen
Transmittance：More than 87%
Controller interface：USB 2.0 Type B
Driver Support：Windows 7, Windows8, Windows 10, Windows 11, Linux
Surface hardness：Mohs' Number 7H
Multi-touch：10 points (windows system)

Environment

Work temperature：-20 ~ 60° C (-4~140℉)
Storage Temperature：-30 ~ 80℃ (-22 ~ 176℉)
Relative Humidity：5~95% RH@40°C,non-condensing
Vibration：Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
Shock：Operating 10G peak acceleration (11 ms duration), follow IEC 60068-2-27
EMC：CE/FCC Class B
Water-proof：Front panel IP65
