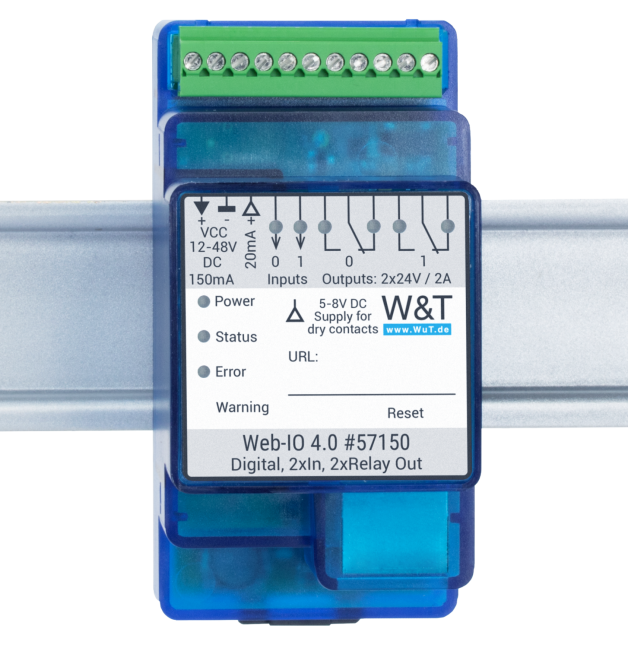

W&T 57150 Web-IO 4.0, 2× contact inputs and 2× changeover relays, OPC UA, MQTT

W&T 57150

W&T 57150 Web-IO 4.0, 2× contact inputs and 2× changeover relays, OPC UA, MQTT

The W&T Web-IO 4.0 Digital 57150 connects 2× DI + 2× CO to 10/100BaseT Ethernet. The outputs can be controlled via a web interface or via OPC UA, MQTT, REST and Modbus TCP. The relay contacts switch up to 2 A at 24 V or 0.5 A at 48 V. More

Code: 57150

Get a quote

Code: 57150

W&T 57150

Two contact inputs and two relay outputs via Ethernet

Price on request

Do you need to select or order the W&T 57150?
Please send us the required quantity and a description of the wiring configuration. We will confirm the price and availability in our quotation.

Enquire about purchasing or repairing a part

2× DI + 2× COPotential-free relay contacts

2 A / 24 V; 0.5 A / 48 VLoad according to voltage level

PoE or 12–48 V DCDIN rail mounting

Usage

It is used for remote switching, status reporting and the interconnection of operational signals with a higher-level system. It is used for technical monitoring, equipment control and the recording of changes via a network.

Technical specifications for the W&T 57150

Digital inputs	2 switch inputs Activation via potential-free contacts Auxiliary DC control voltage 5 V / 20 mA (auxiliary voltage even when powered via PoE)
Digital outputs	2 relay outputs Changeover contacts (CO) At 24 V: maximum switching current 2 A At 48 V: maximum switching current 0.5 A With a suitable external isolating relay, voltages of up to 230 V can also be switched.
Network interface	Automatic 10/100BaseT detection
Power supply	Power-over-Ethernet (PoE) or 12–48 V DC (approximately 100 mA at 24 V)
Galvanic isolation	Inputs/outputs relative to the network interface: min. 1000 V
Connectors and terminal blocks	1 x 11-channel screw-type terminal block for inputs/outputs and power supply – plug-in 1 x RJ45 for network connection
Signalling	Status LEDs for the network 4 LEDs for digital status indication
Protocols and services	HTTP and HTTPS TCP and UDP sockets, client and server MQTT – Publishing and Subscribing REST SNMP V1, V2, V3, including traps Sending emails via the SMTP protocol OPC UA OPC DA via an OPC server Modbus TCP Inventory and device group management
Response times	Data and switching operation: typically 12 ms
Housing and mounting	Plastic housing for DIN rail mounting Version for installation in secondary switchboards 90 × 45 × 56 mm (d × w × h)
Degree of protection	IP20
Weight	approx. 200 g
Storage temperature	-25 to +70 °C
Operating temperature	0 to +60 °C
Permissible relative humidity	5 to 95 per cent RH, non-condensing
Contents of the delivery	1x Web-IO 4.0 Digital 2x inputs, 2x relay outputs 57150 1× quick start guide The power supply and other accessories must be ordered separately

Contacts, communications and events

Two inputs monitor potential-free contacts and feature integrated 32-bit counters. A 5 V / 20 mA auxiliary voltage is available to control them, even when the module is powered via PoE. The two relay outputs are change-over (CO) contacts.
The contacts are rated for a maximum of 48 V for direct switching. Voltages of 110 V or 230 V can only be controlled using a suitable external isolating relay; the module’s own contacts are not designed for this purpose.
Web administration uses HTTP/HTTPS. OPC UA, MQTT Publish/Subscribe, REST, Modbus TCP, SNMP V1/V2/V3, TCP/UDP and email messages are available. OPC DA is accessed via a separate OPC server.
Up to 30 configurable actions allow you, for example, to send an email, an SNMP trap, an HTTP request or to change an output. Box-to-Box mode transfers states between suitably configured devices.

Commissioning and accessories

Before connecting, check the connector type, voltage and load current. Connect the network and PoE or an external 12–48 V DC power supply, then configure the IP address, access rights, communication services and event responses. The power supply and other accessories must be ordered separately.

Contents of the delivery

1x Web-IO 4.0 Digital 2x inputs, 2x relay outputs 57150
1× quick start guide
The power supply and other accessories can be
order separately

Frequently Asked Questions

What connections does this model have?

Two inputs monitor potential-free contacts and feature integrated 32-bit counters. A 5 V / 20 mA auxiliary voltage is available to control them, even when the module is powered via PoE. The two relay outputs are change-over (CO) contacts.

Can I switch 230 V directly?

No. The relay contacts themselves are designed for the specified load up to 48 V. For higher voltages, a suitable external isolating relay is required.

Is OPC DA built directly into the device?

Direct communication includes OPC UA. For OPC DA, the manufacturer specifies access via a separate OPC server.
