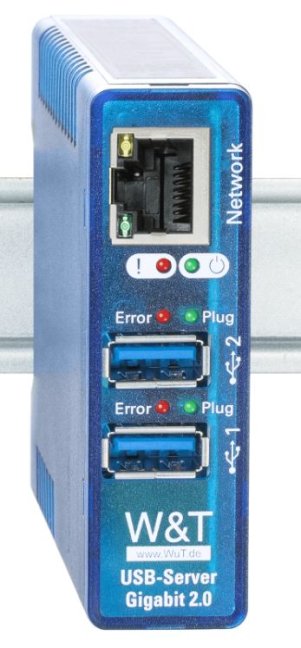

USB Server Gigabit 2.0
Industrial USB LAN Server, 2x USB 2.0, 1x Ethernet 100/1000 Mbit RJ45, 24-48VDC or PoE power supply, DIN rail mounting More
Code: 53663
Industrial USB LAN Server, 2x USB 2.0, 1x Ethernet 100/1000 Mbit RJ45, 24-48VDC or PoE power supply, DIN rail mounting More
Code: 53663
Gigabit USB device network connectivity
The W&T USB Server Gigabit 2.0 53663 makes USB devices accessible via 100/1000 Mbit/s Ethernet. The two USB 2.0 ports can be used, for example, for cameras, audio devices, storage devices or measuring instruments connected via USB Redirector to Windows or Linux.
Do you need to select or order the W&T 53663?
Please send us the required quantity and a description of the wiring configuration. We will check availability and suitable accessories.
Usage
You can use this device where USB peripherals need to be out of reach of a standard USB cable, in remote set-ups or when connected to a virtual machine. Gigabit Ethernet offers a more suitable network connection for data-intensive applications than the Megabit model.
Technical specifications for W&T 53663
| USB ports | 2 USB Type-A ports (500 mA) |
|---|---|
| USB speeds | 1.5 / 12 / 480 Mbit/s (Low / Full / High Speed) |
| Network interface | 100/1000BaseT, auto-detection / Auto-MDIX RJ45 IPv6 on request |
| Galvanic isolation | Network interface section: min. 1500 V |
| Supply voltage | Power-over-Ethernet (PoE) or 24–48 V DC (±10 %) via screw terminal block |
| Current consumption | PoE Class 3 (6.49–12.95 W) External power supply (24 V DC) without a USB device: typically 120 mA External power supply (24 V DC) with 2 USB ports, each rated at 2.5 W: typically 420 mA |
| Power connection | Removable screw terminal block, pitch 5.08 mm Marked ‘L+’ and ‘M’ |
| Signalling | 1× system LED 1× error LED 2× network status LEDs 4× USB status LEDs |
| Housing and mounting | Compact plastic housing for DIN rail mounting 105 × 22 × 75 mm (length × width × height) |
| Degree of protection | IP20 |
| Weight | approx. 120 g |
| Ambient temperature | Storage: -40 to +85 °C Operating temperature with spacing between devices: 0 to +50 °C |
| Permissible relative humidity | 5 to 95 per cent RH, non-condensing |
| Contents of the delivery | 1x USB Server Gigabit 2.0 1× brief user guide in German and English |
Communication and functions
- It supports the USB Control, Bulk, Interrupt and Isochronous modes. Up to eight devices can be connected using an external USB hub.
- Two computers can use different USB ports at the same time. A single USB peripheral is assigned to one computer at any given time.

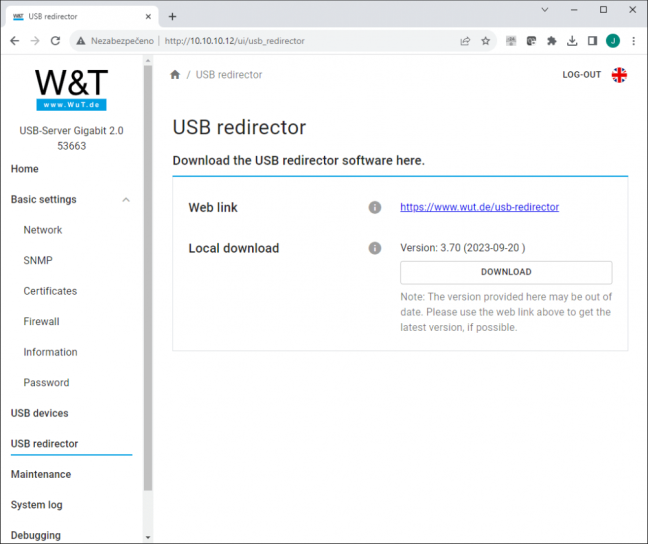

- The USB Redirector enables automatic connection without user login and can be controlled via scripts. It supports routed networks and DNS.

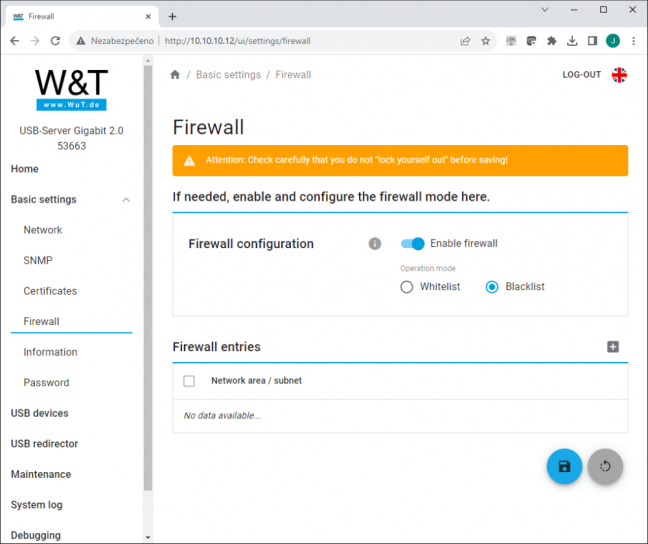

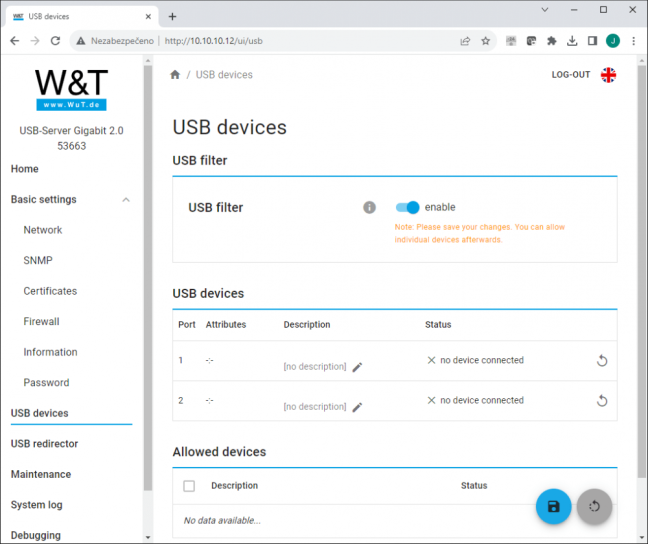

- The current model offers device and user authorisation, WireGuard VPN (as either a client or server), TLS/HTTPS and a firewall. For older models, please check availability based on the firmware version.
- The physical ports on model 53663 are USB 2.0. General support for newer standards in the USB Redirector software does not alter the speed or design of this model’s ports.
Commissioning and accessories

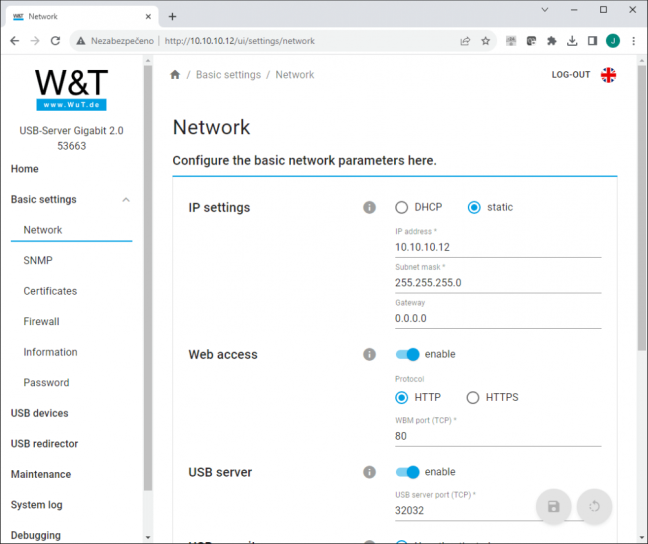

Connect the Ethernet and PoE or 24–48 V DC power supply, set the IP address and install the USB Redirector for your operating system. Keep the drivers for the specific peripheral on your computer. Suitability for a camera or audio also depends on the data rate, network latency and application requirements.
Contents of the delivery
- 1x USB Server Gigabit 2.0
- 1× brief user guide in German and English
Frequently Asked Questions
Does my device have USB 3.0 ports?
No. Model 53663 has two physical USB 2.0 ports with speeds of 1.5 / 12 / 480 Mbit/s. ‘Gigabit’ refers to the Ethernet side.
Can USB peripherals be used in a virtual machine?
Yes, USB Redirector is also designed to connect networked USB devices to virtual environments. You will need to select the version compatible with your operating system.
Will the USB Server replace the camera or meter driver?
No. It facilitates a USB connection over the network. The driver and application software for the specific peripheral must be available on the target system.
Why order from FOXON?
Before placing an order, we will check the current availability of the part and confirm the estimated delivery date. We will assist you in selecting the equipment and necessary accessories based on the wiring configuration and required communication. We will confirm the warranty terms and the scope of any diagnostics or repairs for the specific quotation.
Documentation and technical consultancy
Technical data and documentation W&T 53663
Manuals, firmware and tools for this model can also be found in the Downloads tab. For service enquiries, please use sale and repair of FOXON industrial parts.
Do you need to select or order the W&T 53663?
Please send us the required quantity and a description of the wiring configuration. We will check availability and suitable accessories.

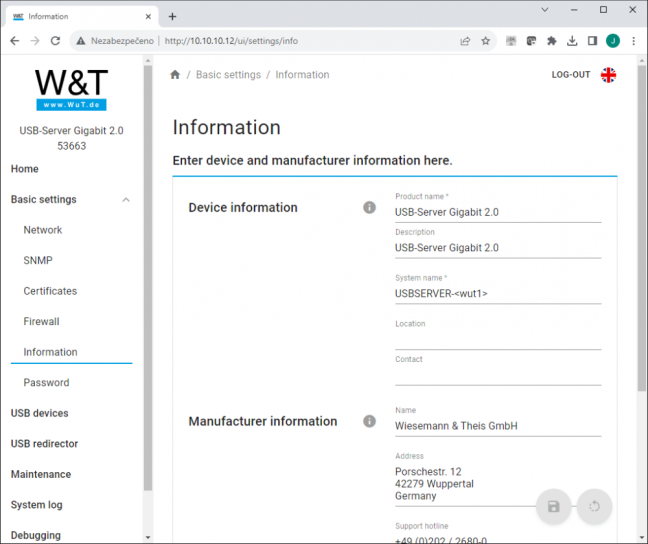

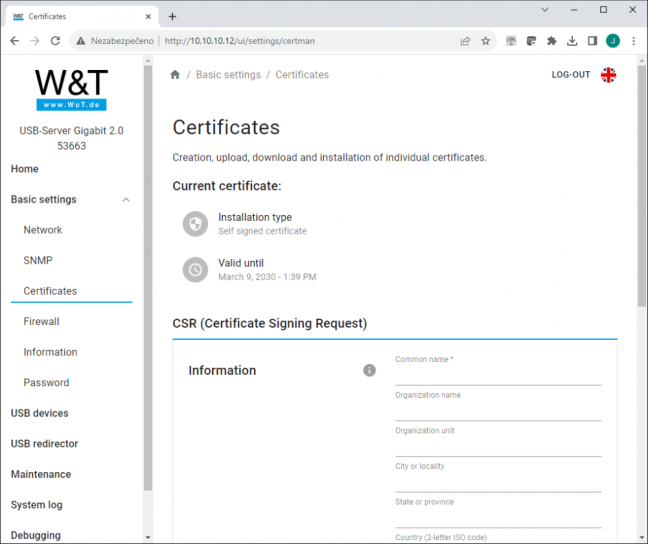

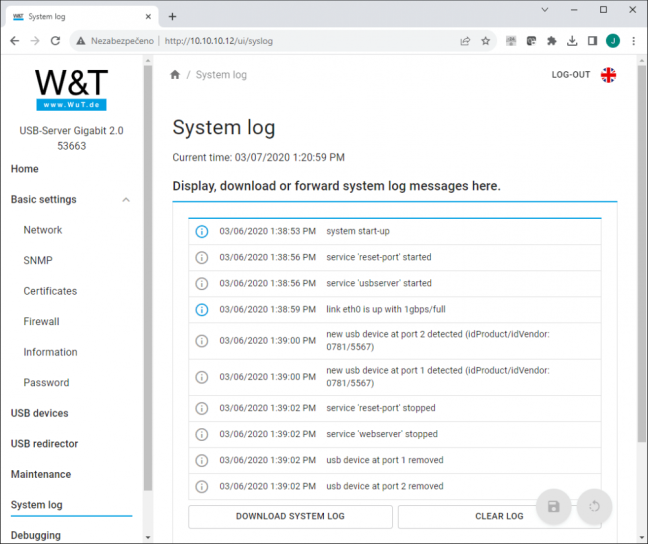

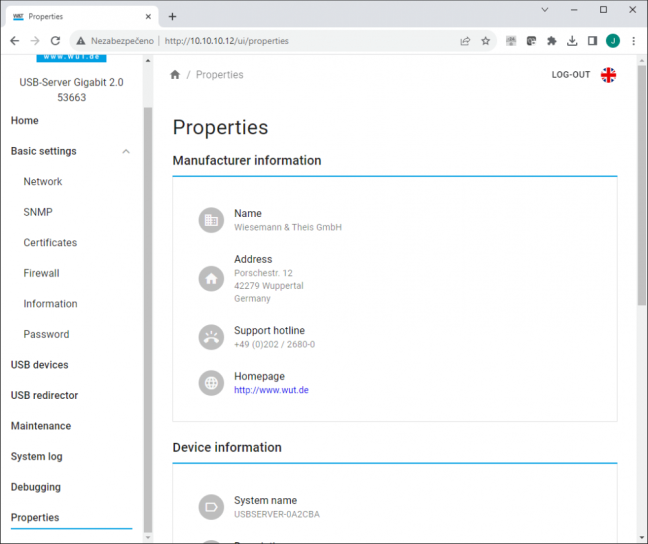

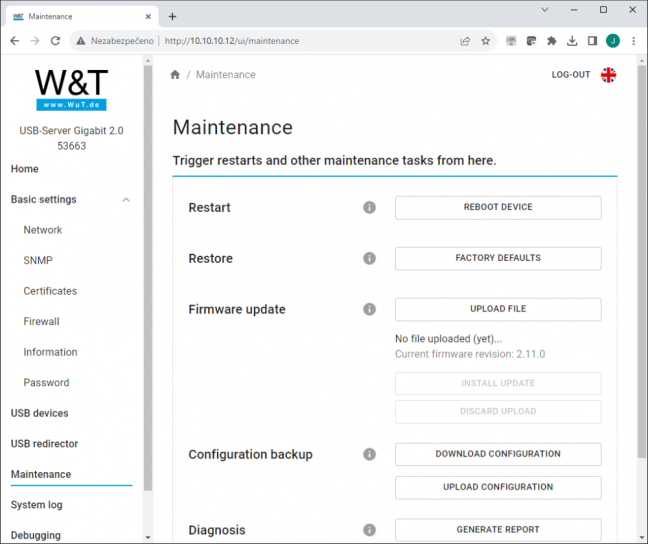

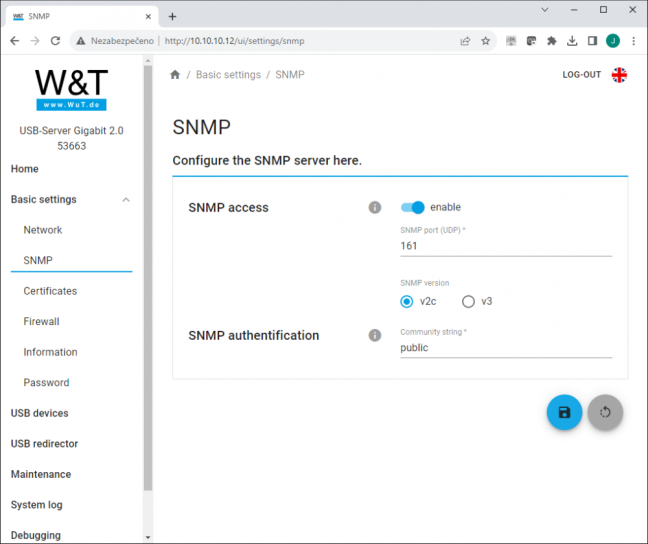

Diagrams and illustrations
Technical specifications for the W&T 53663
| USB ports | 2 USB Type-A ports (500 mA) |
|---|---|
| USB speeds | 1.5 / 12 / 480 Mbit/s (Low / Full / High Speed) |
| Network interface | 100/1000BaseT, auto-detection / Auto-MDIX RJ45 IPv6 on request |
| Galvanic isolation | Network interface section: min. 1500 V |
| Supply voltage | Power-over-Ethernet (PoE) or 24–48 V DC (±10 %) via screw terminal block |
| Current consumption | PoE Class 3 (6.49–12.95 W) External power supply (24 V DC) without a USB device: typically 120 mA External power supply (24 V DC) with 2 USB ports, each rated at 2.5 W: typically 420 mA |
| Power connection | Removable screw terminal block, pitch 5.08 mm Marked ‘L+’ and ‘M’ |
| Signalling | 1× system LED 1× error LED 2× network status LEDs 4× USB status LEDs |
| Housing and mounting | Compact plastic housing for DIN rail mounting 105 × 22 × 75 mm (length × width × height) |
| Degree of protection | IP20 |
| Weight | approx. 120 g |
| Ambient temperature | Storage: -40 to +85 °C Operating temperature with spacing between devices: 0 to +50 °C |
| Permissible relative humidity | 5 to 95 per cent RH, non-condensing |
| Contents of the delivery | 1x USB Server Gigabit 2.0 1× brief user guide in German and English |
