- LAPP 22260136 - M12 female connector for CANopen
LAPP 22260136 - M12 female connector for CANopen
LAPP 22260136 AB-C5-M12FS-PG9-SH: M12 female, 5-pin, A-coded, shielded version. Screw terminals 0.25-0.75 mm², cable 6-8 mm, IP67 when correctly connected. More
Code: 22260136
LAPP 22260136 AB-C5-M12FS-PG9-SH: M12 female, 5-pin, A-coded, shielded version. Screw terminals 0.25-0.75 mm², cable 6-8 mm, IP67 when correctly connected. More
Code: 22260136

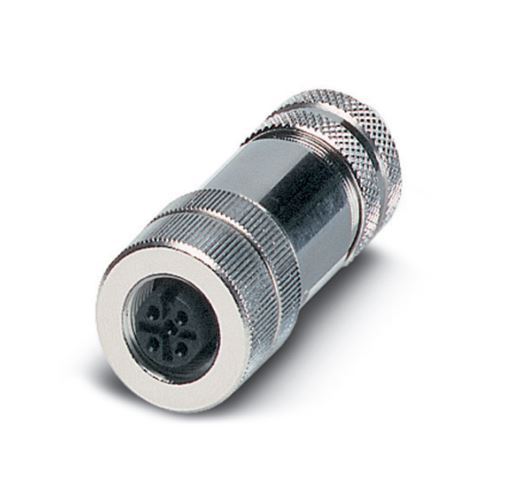

M12 female connector for CANopen
5 contacts · A-coded · shielded version
LAPP 22260136 AB-C5-M12FS-PG9-SH is a straight, shielded M12 female connector with 5 contacts and A coding. Screw terminals allow on-site cable assembly. It accepts cables with a diameter of 6-8 mm and conductors of 0.25-0.75 mm². The industrial design provides IP67 when correctly mated and sealed.
Please send us the port designation, cable diameter and the required version. We will check that the connector and accessories are correct.
Device connections and bespoke cabling
You can use this connector when making your own cable lengths, repairing a damaged cable end, or connecting devices with a compatible M12 port. For CANopen and DeviceNet, the A-coding, pin configuration and cable parameters must all match. The same thread type or number of contacts does not in itself guarantee compatibility.
A coding and the correct mating connector

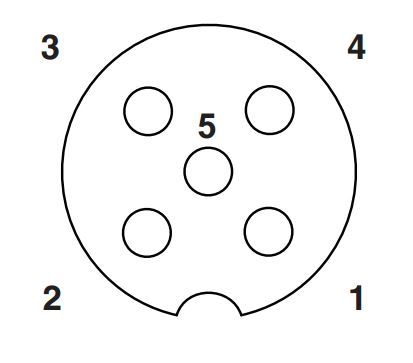

Order number 22260136 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 female connector to the corresponding M12 male port; check the pin numbering and the device wiring before installation.
Screw connection and cable shielding

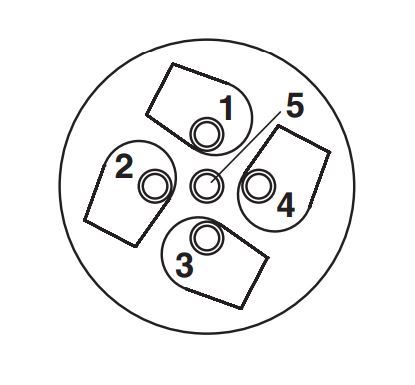

Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.

Cable gland and contents of the package
The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.
We select the cable and its counterpart individually, depending on the specific installation. We will confirm the number of items and the necessary fitting accessories before placing the order.

Terminating the bus and connecting devices
This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.
When replacing a connector, plan to take the relevant part of the system offline. Once the work is complete, check the polarity, continuity of the wires, shielding and communication with the connected device.

Technical specifications 22260136
| Manufacturer | LAPP |
|---|---|
| Order number | 22260136 |
| Series | EPIC® SENSOR M12 |
| Model designation | AB-C5-M12FS-PG9-SH |
| Design | M12 female, straight 180° |
| Coding | A |
| Number of contacts | 5 |
| Shielding | Yes |
| Connecting the wires | Screw terminals |
| Conductor cross-section | 0.25-0.75 mm² |
| Cable diameter | 6-8 mm |
| Rated voltage | 60 V DC in accordance with IEC |
| Rated current | 4 A according to IEC |
| Contact resistance | ≤3 mΩ |
| Insulation resistance | ≥100 MΩ |
| Protection rating when correctly mated | IP67 |
| Operating temperature | -40 to +85 °C |
| Connection cycles | ≥100 |
| Contact material / surface | CuZn / Au |
| Catalogue length | 57 mm |
| Catalogue diameter | 20,2 mm |
| Net catalogue weight | 49 g |
| Cable gland | Not included in the scope of supply according to the manufacturer’s current specification |
Selecting and connecting the connector
What is the coding for connector 22260136?
Order number 22260136 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 female connector to the corresponding M12 male port; check the pin numbering and the device wiring before installation.
Is the connector suitable for CANopen and DeviceNet?
You can use this connector when making your own cable lengths, repairing a damaged cable end, or connecting devices with a compatible M12 port. For CANopen and DeviceNet, the A-coding, pin configuration and cable parameters must all match. The same thread type or number of contacts does not in itself guarantee compatibility.
What type of cable and conductor cross-section can be connected?
Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.
Is the cable gland included in the scope of supply?
The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.
Does the connector include a terminating resistor?
This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.
Why order from FOXON
We can help you match the choice of connector to the actual CAN network wiring. Please send us a photograph of the port and cable, the device model number, and a brief description of your requirements.
Precise connector design
We will check the order code, the device interface and the available space for the cable.
Cables and accessories
We will select the appropriate cable, connector and any necessary fittings.
Checking the wiring
We’ll go through the pinout, the shielding connections and the termination of the cable run.
CAN network diagnostics
We can help you choose a tester or identify the causes of communication failures.
Czech technical support
We will discuss the specific equipment, topology and procedure for replacing the connector.
Delivery Confirmation
Before placing an order, we will confirm the design, the quantity and the delivery date.
LAPP documentation and installation guides

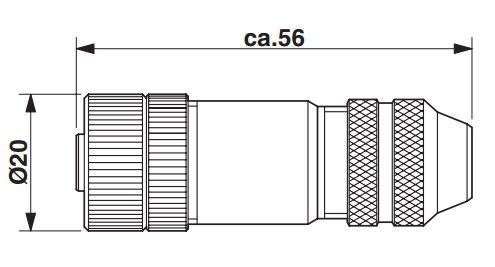

In the ‘Downloads’ tab, you will find the current LAPP technical data sheet for the exact order number 22260136. It also includes a dimensional drawing and the contact numbering.
Open downloadsTechnical specifications 22260136
AB-C5-M12FS-PG9-SH
Identification and connection
| Manufacturer | LAPP |
|---|---|
| Order number | 22260136 |
| Series | EPIC® SENSOR M12 |
| Model designation | AB-C5-M12FS-PG9-SH |
| Design | M12 female, straight 180° |
| Coding | A |
| Number of contacts | 5 |
| Shielding | Yes |
| Connecting the wires | Screw terminals |
| Conductor cross-section | 0.25-0.75 mm² |
| Cable diameter | 6-8 mm |
Electrical and operational data
| Rated voltage | 60 V DC in accordance with IEC |
|---|---|
| Rated current | 4 A according to IEC |
| Contact resistance | ≤3 mΩ |
| Insulation resistance | ≥100 MΩ |
| Protection rating when correctly mated | IP67 |
| Operating temperature | -40 to +85 °C |
| Connection cycles | ≥100 |
| Contact material / surface | CuZn / Au |
| Catalogue length | 57 mm |
| Catalogue diameter | 20,2 mm |
| Net catalogue weight | 49 g |
| Cable gland | Not included in the scope of supply according to the manufacturer’s current specification |
Connection and installation
Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.
Order number 22260136 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 female connector to the corresponding M12 male port; check the pin numbering and the device wiring before installation.
Operating conditions and termination
The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.
This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.
Choosing the right connector
What is the coding for connector 22260136?
Order number 22260136 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 female connector to the corresponding M12 male port; check the pin numbering and the device wiring before installation.
Is the connector suitable for CANopen and DeviceNet?
You can use this connector when making your own cable lengths, repairing a damaged cable end, or connecting devices with a compatible M12 port. For CANopen and DeviceNet, the A-coding, pin configuration and cable parameters must all match. The same thread type or number of contacts does not in itself guarantee compatibility.
What type of cable and conductor cross-section can be connected?
Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.
Installation and connection
Is the cable gland included in the scope of supply?
The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.
Does the connector include a terminating resistor?
This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.
What is the difference between 22260135 and 22260136?
22260135 has male pins, whilst 22260136 has female pins. Both connectors are straight, shielded, have 5 pins and are A-coded. Select the appropriate counterpart for the device’s port and check its electrical connection.
Does the IP67 rating still apply when the connector is disconnected?
No. The required protection rating depends on the connectors being correctly assembled, sealed and mated with the appropriate counterpart. Protect disconnected connectors from water, dust and mechanical damage.
Operation and Diagnostics
Do I need a special configuration or a GSD?
This passive connector has no address or firmware of its own. It does not require any PLC, GSD or EDS configuration. Assess the configuration of the connected device and the control response whilst working on the cable separately.
Can I use it instead of a PROFIBUS connector with B-coding?
Order number 22260136 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 female connector to the corresponding M12 male port; check the pin numbering and the device wiring before installation.
What information should I provide to help choose the right connector?
Please send us a photograph and details of the port, the cable diameter, the conductor cross-section, the required protection rating and the wiring diagram. We will check the mating connector and the required cable gland.
