LAPP 22260135 AB-C5-M12MS-PG9-SH: M12 male, 5-pin, A-coded, shielded version. Screw terminals 0.25-0.75 mm², cable 6-8 mm, IP67 when correctly connected. More

Code: 22260135

26 EUR excl. VAT (31,46 EUR Incl. VAT)
Recycling fee 0,04 EUR included in the price.
Delivery 3-8 days
pcs
(2 pcs In stock)

Rezervace termínu

Get a quote
LAPPGROUP

LAPP 22260135 AB-C5-M12MS-PG9-SH: M12 male, 5-pin, A-coded, shielded version. Screw terminals 0.25-0.75 mm², cable 6-8 mm, IP67 when correctly connected. More

Code: 22260135

LAPP22260135
LAPP 22260135 AB-C5-M12MS-PG9-SH

EPIC® SENSOR M12

Connecting an industrial CAN network

M12 male connector for CANopen

5 contacts · A-coded · shielded version

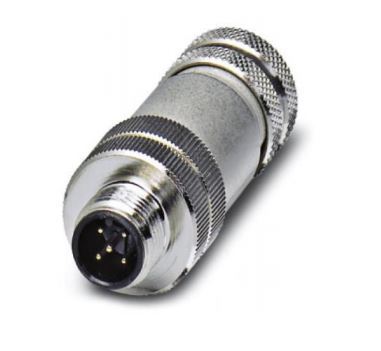

The LAPP 22260135 AB-C5-M12MS-PG9-SH is a straight, shielded M12 male connector with 5 contacts and A-coding. The screw terminals allow the cable to be assembled on site. Designed for cables with a diameter of 6-8 mm and conductors of 0.25-0.75 mm², this industrial-grade connector offers an IP67 rating once correctly connected and sealed.

22260135AB-C5-M12MS-PG9-SH

Please send us the port designation, cable diameter and the required version. We will check that the connector and accessories are correct.

M12 maleA coding
5 contactsShielded version
6-8 mmOuter diameter of the cable
0.25-0.75 mm²Screw connection of wires
Uses

Device connections and bespoke cabling

You can use this connector when making your own cable lengths, repairing a damaged cable end, or connecting devices with a compatible M12 port. For CANopen and DeviceNet, the A-coding, pin configuration and cable parameters must all match. The same thread type or number of contacts does not in itself guarantee compatibility.

Choosing a connector

A coding and the correct mating connector

Order number 22260135 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 male connector to the corresponding M12 female port; check the pin numbering and the device wiring before installation.

Installation

Screw connection and cable shielding

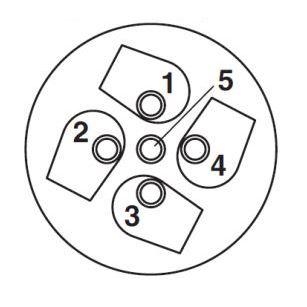

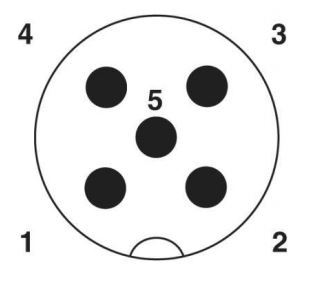

Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.

LAPP 22260135 AB-C5-M12MS-PG9-SH - detail 2
LAPP 22260135 - connector detail
Accessories

Cable gland and contents of the package

The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.

We select the cable and its counterpart individually, depending on the specific installation. We will confirm the number of items and the necessary fitting accessories before placing the order.

LAPP 22260135 AB-C5-M12MS-PG9-SH - detail 3
LAPP 22260135 - connector detail
Commissioning

Terminating the bus and connecting devices

This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.

When replacing a connector, plan to take the relevant part of the system offline. Once the work is complete, check the polarity, continuity of the wires, shielding and communication with the connected device.

LAPP 22260135 AB-C5-M12MS-PG9-SH - detail 4
LAPP 22260135 - connector detail
LAPP AB-C5-M12MS-PG9-SH

Technical specifications 22260135

ManufacturerLAPP
Order number22260135
SeriesEPIC® SENSOR M12
Model designationAB-C5-M12MS-PG9-SH
DesignM12 male, straight 180°
CodingA
Number of contacts5
ShieldingYes
Connecting the wiresScrew terminals
Conductor cross-section0.25-0.75 mm²
Cable diameter6-8 mm
Rated voltage60 V DC in accordance with IEC
Rated current4 A according to IEC
Contact resistance≤3 mΩ
Insulation resistance≥100 MΩ
Protection rating when correctly matedIP67
Operating temperature-40 to +85 °C
Connection cycles≥100
Contact material / surfaceCuZn / Au

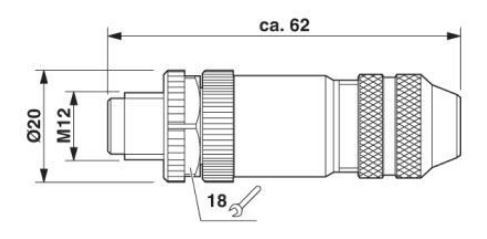

Catalogue length62 mm
Catalogue diameter20,2 mm
Net catalogue weight46 g
Cable glandNot included in the scope of supply according to the manufacturer’s current specification
Practical questions

Selecting and connecting the connector

What is the coding for connector 22260135?

Order number 22260135 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 male connector to the corresponding M12 female port; check the pin numbering and the device wiring before installation.

Is the connector suitable for CANopen and DeviceNet?

You can use this connector when making your own cable lengths, repairing a damaged cable end, or connecting devices with a compatible M12 port. For CANopen and DeviceNet, the A-coding, pin configuration and cable parameters must all match. The same thread type or number of contacts does not in itself guarantee compatibility.

What type of cable and conductor cross-section can be connected?

Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.

Is the cable gland included in the scope of supply?

The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.

Does the connector include a terminating resistor?

This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.

CAN Technical Support

Why order from FOXON

We can help you match the choice of connector to the actual CAN network wiring. Please send us a photograph of the port and cable, the device model number, and a brief description of your requirements.

Precise connector design

We will check the order code, the device interface and the available space for the cable.

Cables and accessories

We will select the appropriate cable, connector and any necessary fittings.

Checking the wiring

We’ll go through the pinout, the shielding connections and the termination of the cable run.

CAN network diagnostics

We can help you choose a tester or identify the causes of communication failures.

Czech technical support

We will discuss the specific equipment, topology and procedure for replacing the connector.

Delivery Confirmation

Before placing an order, we will confirm the design, the quantity and the delivery date.

The correct connectorInterface, coding and mating connector
CAN cablingConductors, shielding and terminations
Czech supportConsultation on a specific installation
Documentation

LAPP documentation and installation guides

In the ‘Downloads’ tab, you will find the current LAPP technical data sheet for the exact order number 22260135. It also includes a dimensional drawing and the contact numbering.

Open downloads
EPIC® SENSOR M12

Technical specifications 22260135

AB-C5-M12MS-PG9-SH

Identification and connection

ManufacturerLAPP
Order number22260135
SeriesEPIC® SENSOR M12
Model designationAB-C5-M12MS-PG9-SH
DesignM12 male, straight 180°
CodingA
Number of contacts5
ShieldingYes
Connecting the wiresScrew terminals
Conductor cross-section0.25-0.75 mm²
Cable diameter6-8 mm

Electrical and operational data

Rated voltage60 V DC in accordance with IEC
Rated current4 A according to IEC
Contact resistance≤3 mΩ
Insulation resistance≥100 MΩ
Protection rating when correctly matedIP67
Operating temperature-40 to +85 °C
Connection cycles≥100
Contact material / surfaceCuZn / Au
Catalogue length62 mm
Catalogue diameter20,2 mm
Net catalogue weight46 g
Cable glandNot included in the scope of supply according to the manufacturer’s current specification
Wiring

Connection and installation

Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.

Order number 22260135 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 male connector to the corresponding M12 female port; check the pin numbering and the device wiring before installation.

Uses

Operating conditions and termination

The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.

This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.

FAQ - LAPP 22260135

Choosing the right connector

What is the coding for connector 22260135?

Order number 22260135 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 male connector to the corresponding M12 female port; check the pin numbering and the device wiring before installation.

Is the connector suitable for CANopen and DeviceNet?

You can use this connector when making your own cable lengths, repairing a damaged cable end, or connecting devices with a compatible M12 port. For CANopen and DeviceNet, the A-coding, pin configuration and cable parameters must all match. The same thread type or number of contacts does not in itself guarantee compatibility.

What type of cable and conductor cross-section can be connected?

Connect the wires to the screw terminals in accordance with the contact numbering and the circuit diagram for the specific device. Ensure the cross-sectional area is 0.25-0.75 mm² and the outer diameter of the cable is 6-8 mm. Check the shield contact, strain relief and seal. The IP67 rating applies to a correctly assembled, connected and sealed connector.

Installation

Installation and connection

Is the cable gland included in the scope of supply?

The manufacturer’s current specifications state that the product is supplied without a cable gland. We will therefore check and confirm the required cable gland and sealing accessories in the quotation. Neither the PG9 designation nor the illustrative photographs guarantee that all installation accessories are included.

Does the connector include a terminating resistor?

This is a connector for connecting a cable, not a bus terminating resistor. CAN termination should be handled separately in accordance with the topology and device specifications. The connector does not regenerate the signal and does not create a galvanically isolated segment.

What is the difference between 22260135 and 22260136?

22260135 has male pins, whilst 22260136 has female pins. Both connectors are straight, shielded, have 5 pins and are A-coded. Select the appropriate counterpart for the device’s port and check its electrical connection.

Does the IP67 rating still apply when the connector is disconnected?

No. The required protection rating depends on the connectors being correctly assembled, sealed and mated with the appropriate counterpart. Protect disconnected connectors from water, dust and mechanical damage.

Maintenance

Operation and Diagnostics

Do I need a special configuration or a GSD?

This passive connector has no address or firmware of its own. It does not require any PLC, GSD or EDS configuration. Assess the configuration of the connected device and the control response whilst working on the cable separately.

Can I use it instead of a PROFIBUS connector with B-coding?

Order number 22260135 has coding type A. The version with coding type B for PROFIBUS is not a direct replacement. Connect the M12 male connector to the corresponding M12 female port; check the pin numbering and the device wiring before installation.

What information should I provide to help choose the right connector?

Please send us a photograph and details of the port, the cable diameter, the conductor cross-section, the required protection rating and the wiring diagram. We will check the mating connector and the required cable gland.
