License for measuring CANbus network nodes for the CANtouch® tester.

Network node measurement license with DeviceNet bus protocol for CANtouch® tester.

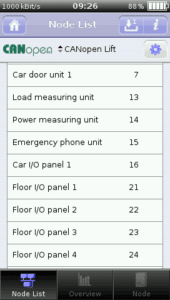

Lincence allows you to measure individual nodes in the network (stations in the network) in a bar graph, where each bar represents a percentage value of the signal quality ratio. And it also displays the minimum and maximum signal quality value during the measurement. Using predefined node lists, it is easier to see if a node is missing.

Individual nodes can be measured in more detail using an oscilloscope, which shows us the voltage range, interference, edge steepness and signal quality level.
The smileys shown allow you to judge the measurement at a glance.

After purchasing the CANtouch device, all licenses can be tested for 30 days. This period starts with the activation of the trial version by the user.
After the trial period, the optional measurements are deactivated and a license is required for their continued use.
The status of the purchased licenses or the remaining run time of the trial versions can be viewed via the application icon.

The license works as a file (*.cbthlic), which you will receive after ordering and copy to the CANtouch unit using a PC and a USB device.
