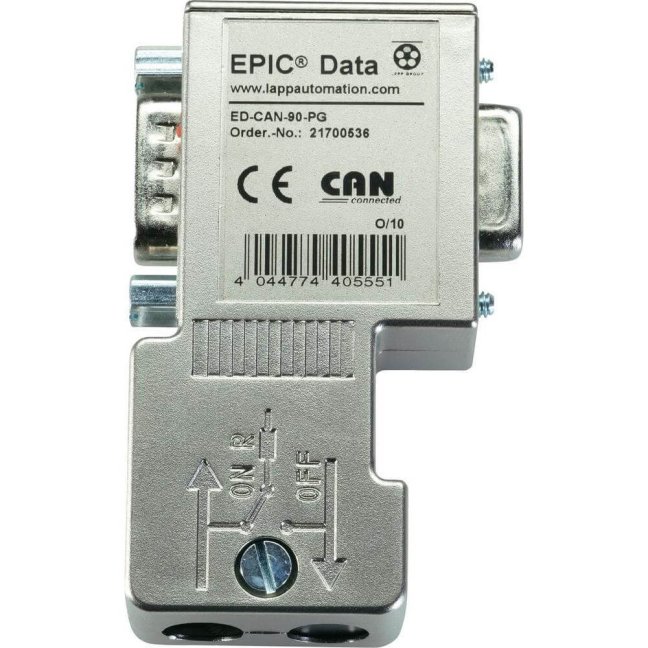

LAPP 21700536 - 90° CAN / CANopen connector with PG port

LAPP 21700536 - 90° CAN / CANopen connector with PG port


LAPPGROUP

LAPP 21700536 ED-CAN-90-PG: CAN / CANopen connector, 9-pin D-Sub, 90° outlet, with PG port. Screw terminals, switchable 120 Ω termination, IP20. More

Code: 21700536

54 EUR excl. VAT (65,34 EUR Incl. VAT)
Recycling fee 0,04 EUR included in the price.
In stock
pcs
(4 pcs In stock)

Rezervace termínu

Get a quote
LAPPGROUP

LAPP 21700536 ED-CAN-90-PG: CAN / CANopen connector, 9-pin D-Sub, 90° outlet, with PG port. Screw terminals, switchable 120 Ω termination, IP20. More

Code: 21700536

LAPP21700536
LAPP 21700536 ED-CAN-90-PG

EPIC® DATA CAN Sub-D

Connecting an industrial CAN network

90° CAN / CANopen connector

With a PG port for diagnostics

The LAPP 21700536 ED-CAN-90-PG connects a CAN/CANopen cable to a device with a 9-pin D-Sub interface. The 90° cable outlet, screw terminals and metallised housing facilitate installation in a control cabinet. The integrated 120 Ω terminator can be switched between the ‘OFF’ pass-through mode and the ‘ON’ terminating mode. An additional PG port provides access to the bus for programming and diagnostics.

21700536ED-CAN-90-PG

Please send us the port designation, cable diameter and the required version. We will check that the connector and accessories are correct.

90°Direction of the cable outlet
120 ΩSwitchable termination
1 Mbit/sMaximum transfer speed
PG portAdditional network access
Uses

Device connections and bespoke cabling

This connector is used when constructing, modifying or maintaining a CAN / CANopen bus network. Connecting the wires using screw terminals does not require a special crimping tool. When selecting a connector, check the device interface, the cable exit point and access to the termination switch.

CAN Termination

OFF / ON switch and disconnection of the outgoing bus

Inside the through bus, the switch must be set to the OFF position. At the physical end of the line, set the switch to ON to connect a 120 Ω terminator. The ON position also disconnects the outgoing bus. If you switch it on in the middle of the route, you will cut off the connected devices.

Terminate the copper CAN bus at both physical ends according to the network design, usually with a 120 Ω resistor between CAN_H and CAN_L. Device addresses do not determine the end of the cable run. CAN termination does not use the power supply circuit of a PROFIBUS termination network.

Installation

Wiring of D-Sub cables and contacts

Connect the cable to the 6 screw terminals for conductors up to 1.0 mm². The connector accepts cables with an outer diameter of 5-8 mm. CAN Low goes to pin 2, CAN High to pin 7 and CAN Gnd to pin 3. Check that the polarity is correct, that the shield is properly connected and that the cable is mechanically strain-relieved.

Pin 2CAN Low
Pin 7CAN High
Pin 3CAN Gnd
Pin 6GND
Pin 9CAN V+
Differences in design

Power supply for other network components

The angled version has separate connections for supplying power to other 24 V network components. Pin 9 is CAN V+ and pin 6 is GND. This involves feeding power to the corresponding network wires; it is not a built-in power supply. Before connecting, check the pinout and the permitted voltage of the connected device.

PG port and its use

Access for programming and diagnostics

The ED-CAN-90-PG variant features an additional D-Sub interface for connecting a programming or diagnostic device. The PG port itself is not an analyser and does not provide its own measurements or a web interface. Adjust the length of any diagnostic connection to suit the design of the CAN network.

This product is designed for CAN and CANopen. For use in other CAN-based networks, such as DeviceNet, please check the pin-out, power supply and device requirements. The CAN designation does not imply universal interchangeability of all connectors or support for CAN FD at higher data rates.

LAPP ED-CAN-90-PG

Technical specifications 21700536

ManufacturerLAPP
Order number21700536
SeriesEPIC® DATA CAN Sub-D
Model designationED-CAN-90-PG
Device interfaces9-pin D-Sub, female
Cable outlet90°
PG / diagnostic portYes, an additional D-Sub interface for programming and diagnostics
Connecting the cable6 screw terminals, conductors up to 1.0 mm²
Cable diameter5-8 mm
CaseMetallised, EMC protection
UsesCAN / CANopen
Maximum transfer speed1 Mbit/s
Termination120 Ω, switchable
OFF positionThrough-wiring, terminations disabled
ON positionTermination enabled, outgoing bus disconnected
Power connections for other componentsYes, 24 V for the angled version
Protection ratingIP20
Operating temperature0 to +60 °C
Storage and transport-25 to +80 °C
Dimensions65 × 48 × 16 mm
Net catalogue weight43 g
Contents of the delivery

Connectors and installation accessories

We will supply the LAPP 21700536 connector. We will select the CAN/CANopen cable, tools, mating connector and any diagnostic adaptor separately, depending on the installation. We will confirm the quantity and contents of the package in our quotation.

Practical questions

Selecting and connecting the connector

When should the termination switch be set to the ON position?

Inside the through bus, the switch must be set to the OFF position. At the physical end of the line, set the switch to ON to connect a 120 Ω terminator. The ON position also disconnects the outgoing bus. If you switch it on in the middle of the route, you will cut off the connected devices.

Does the ON position disconnect downstream devices from the bus?

Inside the through bus, the switch must be set to the OFF position. At the physical end of the line, set the switch to ON to connect a 120 Ω terminator. The ON position also disconnects the outgoing bus. If you switch it on in the middle of the route, you will cut off the connected devices.

What is the difference between 21700537, 21700536 and 21700538?

21700537 ED-CAN-90 has a 90° outlet without a PG port. 21700536 ED-CAN-90-PG has a 90° outlet and a PG port. 21700538 ED-CAN-AX has a straight 180° outlet without a PG port. The angled versions have separate power connections; the straight version does not.

Does this connector have a PG port?

The ED-CAN-90-PG variant features an additional D-Sub interface for connecting a programming or diagnostic device. The PG port itself is not an analyser and does not provide its own measurements or a web interface. Adjust the length of any diagnostic connection to suit the design of the CAN network.

What types of wires and cables can be connected?

Connect the cable to the 6 screw terminals for conductors up to 1.0 mm². The connector accepts cables with an outer diameter of 5-8 mm. CAN Low goes to pin 2, CAN High to pin 7 and CAN Gnd to pin 3. Check that the polarity is correct, that the shield is properly connected and that the cable is mechanically strain-relieved.

CAN Technical Support

Why order from FOXON

We can help you match the choice of connector to the actual CAN network wiring. Please send us a photograph of the port and cable, the device model number, and a brief description of your requirements.

Precise connector design

We will check the order code, the device interface and the available space for the cable.

Cables and accessories

We will select the appropriate cable, connector and any necessary fittings.

Checking the wiring

We’ll go through the pinout, the shielding connections and the termination of the cable run.

CAN network diagnostics

We can help you choose a tester or identify the causes of communication failures.

Czech technical support

We will discuss the specific equipment, topology and procedure for replacing the connector.

Delivery Confirmation

Before placing an order, we will confirm the design, the quantity and the delivery date.

The correct connectorInterface, coding and mating connector
CAN cablingConductors, shielding and terminations
Czech supportConsultation on a specific installation
Documentation

LAPP documentation and installation guides

In the ‘Downloads’ tab, you will find the current LAPP technical data sheet for the exact order number 21700536. The accompanying installation instructions explain the OFF/ON function. An EU Declaration of Conformity for this range is also available.

Open downloads
EPIC® DATA CAN Sub-D

Technical specifications 21700536

ED-CAN-90-PG

Interfaces and installation

ManufacturerLAPP
Order number21700536
SeriesEPIC® DATA CAN Sub-D
Model designationED-CAN-90-PG
Device interfaces9-pin D-Sub, female
Cable outlet90°
PG / diagnostic portYes, an additional D-Sub interface for programming and diagnostics
Connecting the cable6 screw terminals, conductors up to 1.0 mm²
Cable diameter5-8 mm
CaseMetallised, EMC protection

Communication and termination

UsesCAN / CANopen
Maximum transfer speed1 Mbit/s
Termination120 Ω, switchable
OFF positionThrough-wiring, terminations disabled
ON positionTermination enabled, outgoing bus disconnected
Power connections for other componentsYes, 24 V for the angled version

Operating conditions

Protection ratingIP20
Operating temperature0 to +60 °C
Storage and transport-25 to +80 °C
Dimensions65 × 48 × 16 mm
Net catalogue weight43 g
Wiring

Connection and installation

Connect the cable to the 6 screw terminals for conductors up to 1.0 mm². The connector accepts cables with an outer diameter of 5-8 mm. CAN Low goes to pin 2, CAN High to pin 7 and CAN Gnd to pin 3. Check that the polarity is correct, that the shield is properly connected and that the cable is mechanically strain-relieved.

The angled version has separate connections for supplying power to other 24 V network components. Pin 9 is CAN V+ and pin 6 is GND. This involves feeding power to the corresponding network wires; it is not a built-in power supply. Before connecting, check the pinout and the permitted voltage of the connected device.

Uses

Operating conditions and termination

Inside the through bus, the switch must be set to the OFF position. At the physical end of the line, set the switch to ON to connect a 120 Ω terminator. The ON position also disconnects the outgoing bus. If you switch it on in the middle of the route, you will cut off the connected devices.

Terminate the copper CAN bus at both physical ends according to the network design, usually with a 120 Ω resistor between CAN_H and CAN_L. Device addresses do not determine the end of the cable run. CAN termination does not use the power supply circuit of a PROFIBUS termination network.

FAQ - LAPP 21700536

Choosing the right connector

When should the termination switch be set to the ON position?

Inside the through bus, the switch must be set to the OFF position. At the physical end of the line, set the switch to ON to connect a 120 Ω terminator. The ON position also disconnects the outgoing bus. If you switch it on in the middle of the route, you will cut off the connected devices.

Does the ON position disconnect downstream devices from the bus?

Inside the through bus, the switch must be set to the OFF position. At the physical end of the line, set the switch to ON to connect a 120 Ω terminator. The ON position also disconnects the outgoing bus. If you switch it on in the middle of the route, you will cut off the connected devices.

What is the difference between 21700537, 21700536 and 21700538?

21700537 ED-CAN-90 has a 90° outlet without a PG port. 21700536 ED-CAN-90-PG has a 90° outlet and a PG port. 21700538 ED-CAN-AX has a straight 180° outlet without a PG port. The angled versions have separate power connections; the straight version does not.

Installation

Installation and connection

Does this connector have a PG port?

The ED-CAN-90-PG variant features an additional D-Sub interface for connecting a programming or diagnostic device. The PG port itself is not an analyser and does not provide its own measurements or a web interface. Adjust the length of any diagnostic connection to suit the design of the CAN network.

What types of wires and cables can be connected?

Connect the cable to the 6 screw terminals for conductors up to 1.0 mm². The connector accepts cables with an outer diameter of 5-8 mm. CAN Low goes to pin 2, CAN High to pin 7 and CAN Gnd to pin 3. Check that the polarity is correct, that the shield is properly connected and that the cable is mechanically strain-relieved.

How do you connect CAN Low and CAN High?

Connect the cable to the 6 screw terminals for conductors up to 1.0 mm². The connector accepts cables with an outer diameter of 5-8 mm. CAN Low goes to pin 2, CAN High to pin 7 and CAN Gnd to pin 3. Check that the polarity is correct, that the shield is properly connected and that the cable is mechanically strain-relieved.

How does the power connection work?

The angled version has separate connections for supplying power to other 24 V network components. Pin 9 is CAN V+ and pin 6 is GND. This involves feeding power to the corresponding network wires; it is not a built-in power supply. Before connecting, check the pinout and the permitted voltage of the connected device.

Maintenance

Operation and Diagnostics

Is this connector compatible with both DeviceNet and CAN FD?

This product is designed for CAN and CANopen. For use in other CAN-based networks, such as DeviceNet, please check the pin-out, power supply and device requirements. The CAN designation does not imply universal interchangeability of all connectors or support for CAN FD at higher data rates.

Do I need a PLC or EDS configuration?

A passive connector has no address, firmware or EDS file of its own. Simply connecting the connector does not require any changes to the PLC programme. However, if you make any alterations to the cabling, check the topology and how the system responds to a station being disconnected.

Why did the network stop communicating after being switched to ON?

The ON position disconnects the output bus. If the connector is inside the cable, switch it back to OFF in accordance with the network design. At the same time, check that both actual ends of the cable are correctly terminated and that the CAN Low and CAN High signals have not been swapped.
