APC-5712 Automation Computer ESTONE - Estone: Online configurator

More photos (16)

Add to favourites

APC-5712 Automation Computer ESTONE - Estone: Online configurator

TOP 1 Good price/ performance FOXON PLUS

Compact, fanless industrial computer with Intel N97, 4 cores, Turbo up to 3.6 GHz. 4× Intel GbE LAN, HDMI + DisplayPort, 2× USB 3.0 + 2× USB 2.0, RS232 and RS485. SO-DIMM DDR4, M.2 SATA SSD 2242, 12-24 V DC power supply, dimensions 170 × 112 × 48 mm. RAM, SSD and OS as per configuration. More

Code: APC-5712

685 EUR excl. VAT (828,85 EUR Incl. VAT)

Estone

Delivery in 3-6 weeks

pcs

(0 pcs In stock)

Get a quote

Code: APC-5712

Options 3

Estone	Code	Availability	Price excl. VAT
Online configurator	APC-5712	Delivery in 3-6 weeks	685 EUR	Online configurator APC-5712
APC-5712-8G-SSD128G	APC-5712-8G-SSD128G	In stock 22 pcs	867 EUR	Get a quote
APC-5712-16G-SSD256G	APC-5712-16G-SSD256G	In stock 6 pcs	987 EUR	Get a quote

ESTONE / APC-5712Fanless

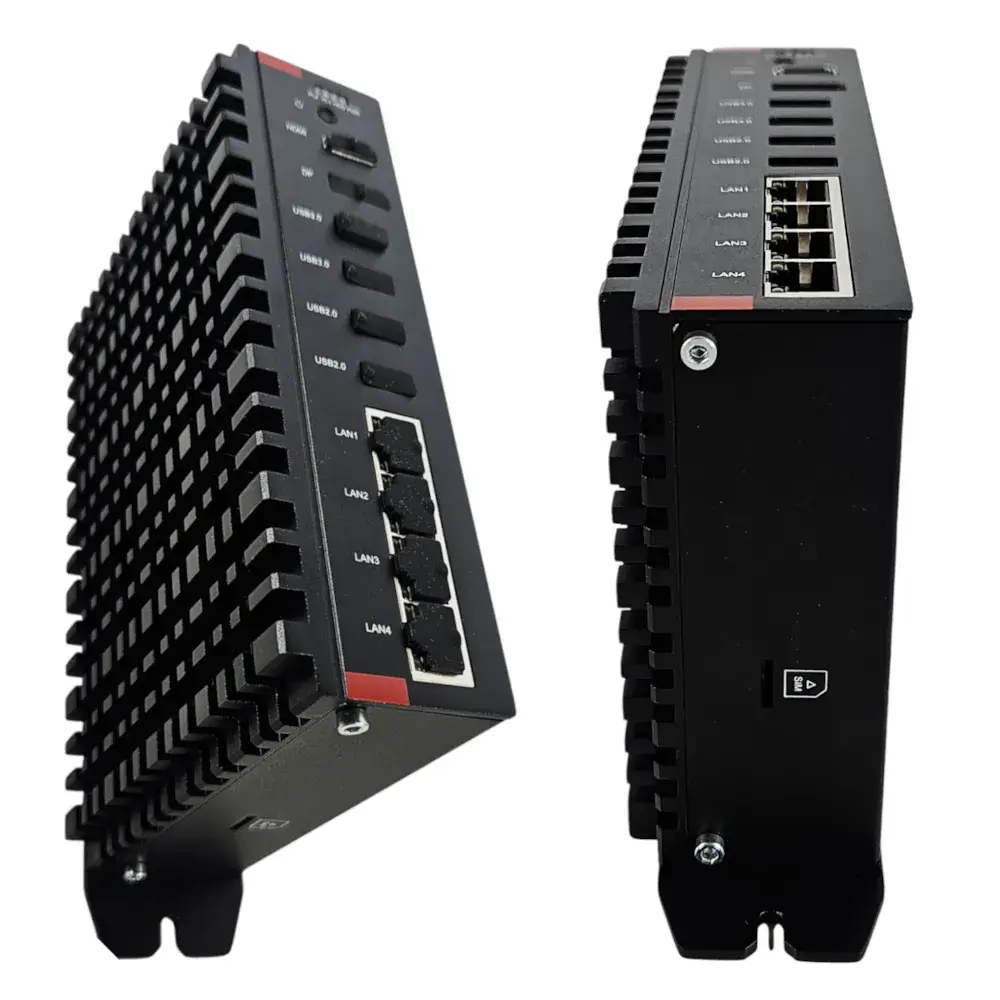

Two views of the ESTONE APC-5712 with a passive heat sink and four LAN ports

Compact enclosure: 170 × 112 × 48 mm

Compact industrial computer with 4× LAN ports

ESTONE
APC-5712

Intel N97
4× Intel GbE LAN

A fanless quad-core computer with HDMI, DisplayPort, RS232 and RS485. The case measures 170 × 112 × 48 mm, is powered by 12-24 V DC and can be mounted on a panel or a DIN rail. You can select the RAM, SSD and operating system according to your application; we can also supply the unit without these components.

Intel N97 up to 3.6 GHz4× Intel i210-ATM.2 SATA 2242

Select a configuration Enquire about a configuration

2-year warranty · Option to extend to 4 years

170 × 112 × 48 mmEnclosure dimensions excluding projections

4× GbE LANIntel i210-AT controllers

RS232 + RS485Two separate serial ports

12-24 V DCIndustrial power supply

Optional components

Supplied without RAM, without SSD and without an OS
or a configuration tailored to your requirements

APC-5712

You can choose the RAM, SSD and operating system separately. We can supply either a barebone computer for you to build yourself or a system configured for your specific application.

RAM

With or without RAM

We can supply the computer without memory or fit it with the required capacity of DDR4, in configurations of 8 or 16 GB.

1× SO-DIMM DDR4

STORAGE

With or without an SSD

Choose delivery without a drive or with an SSD sized for your application and stored data.

M.2 SATA 2242

OPERATING SYSTEM

With or without an OS

We will supply the computer either without an operating system or with the required supported OS. We will confirm the edition and licence in the quotation.

In accordance with the application’s requirements

Custom configuration
Send us your required RAM, SSD capacity and operating system choice. Include your mounting and communication requirements.

Enquire about a custom configuration

Available configurations

Without RAM and an SSD, or with components selected according to the application

All three models on offer feature the Intel N97 processor. They differ in terms of RAM and SSD configuration. The operating system is selected separately at the time of ordering.

Custom configuration

In the configurator, you can choose between 8 or 16 GB of RAM, a 128 GB or 256 GB SSD, and an operating system. You can also opt for a configuration without RAM, without an SSD and without an OS.

APC-5712

8 GB RAM + 128GB SSD

Pre-configured version with 8 GB DDR4 and a 128 GB M.2 SSD. We will confirm the operating system and complete scope of delivery in the quotation.

APC-5712-8G-SSD128G

16 GB RAM + 256GB SSD

The version with 16 GB DDR4 and a 256 GB M.2 SSD. For larger data volumes and applications with higher memory requirements.

APC-5712-16G-SSD256G

Prices and availability are listed above the description. We will confirm RAM capacities above 16 GB for the specific hardware revision before ordering.

Use in manufacturing

Four network interfaces in a compact chassis

01 / NETWORKS

4× Intel GbE LAN

Separate physical ports for connecting production equipment, a higher-level network or setting up a communication gateway. The functionality and communication rules are determined by the software used.

02 / VISUALISATION

HDMI + DisplayPort

Graphical outputs for local HMIs, machine visualisation or operational overviews. We will assess the application’s performance and operating system requirements during the selection process.

03 / DATA COLLECTION

RS232 and RS485

For connecting devices with a serial interface. Communication protocols and any necessary licences are provided by the selected application software.

Processor performance

A comparison of the Intel N97 with other processors

An indicative comparison based on PassMark PerformanceTest V10. The highlighted column corresponds to the processor in this computer.

On smaller screens, scroll the table horizontally.

PassMark CPU Benchmarks · source check 14. 11. 2026
Parameter	ESTONE APC-5712Intel N97	J6412	Intel Core i3-6100	Intel Core i5-7200U	Intel Core i3-8145U	Intel Celeron J1900
CPU MarkTotal CPU performance	5 799	3 783	4 086	3 372	3 752	1 138
Single ThreadSingle-thread performance	2 021	1 360	2 146	1 728	2 046	653
Cores / threads	4 / 4	4 / 4	2 / 4	2 / 4	2 / 4	4 / 4
Base clock	2.0 GHz	2.0 GHz	3.7 GHz	2.5 GHz	2.1 GHz	2.0 GHz
Boost clock	3.6 GHz	2.6 GHz	Without Turbo Boost	3.1 GHz	3.9 GHz	2.4 GHz
Typical CPU TDP	12 W	10 W	51 W	15 W	15 W	10 W
Package / socket	FCBGA1264	FCBGA1493	LGA 1151	FCBGA1356	FCBGA1528	FCBGA1170
CPU category	Mobile / embedded	Mobile / embedded	Desktop	Laptop	Laptop	Desktop
First entry in the database	Quarter 2, 2023	Quarter 3, 2021	Quarter 4, 2015	Quarter 4, 2016	Quarter 4, 2018	Quarter 1, 2014
Number of results	1 837	310	5 566	11 785	1 229	884
V10 data date	14. 11. 2026	14. 11. 2026	14. 11. 2026	14. 11. 2026	14. 11. 2026	14. 11. 2026
Source of results	N97 ↗	J6412 ↗	i3-6100 ↗	i5-7200U ↗	i3-8145U ↗	J1900 ↗

A higher score indicates better performance in the test in question. The results are an average of various configurations and are subject to change. This is not a measurement of the entire ESTONE PC. TDP is a parameter used to design the processor’s cooling system. It does not represent the power consumption of the entire computer.

Communication and display interfaces

4× Intel GbE LAN and HDMI + DisplayPort

Four Intel i210-AT Gigabit Ethernet ports, four USB ports and two separate serial ports. HDMI and DisplayPort are used to connect monitors.

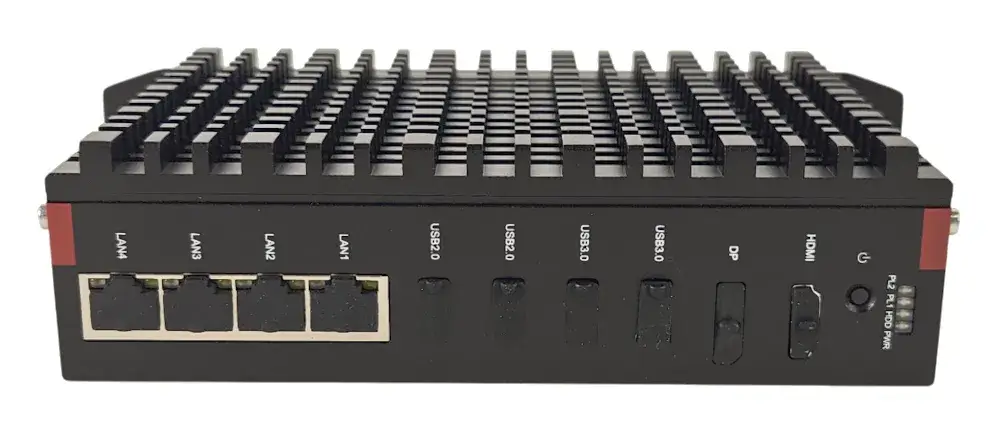

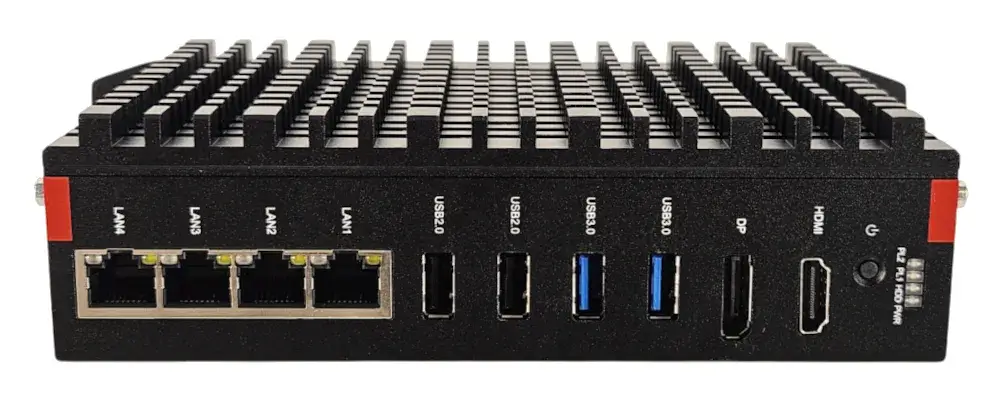

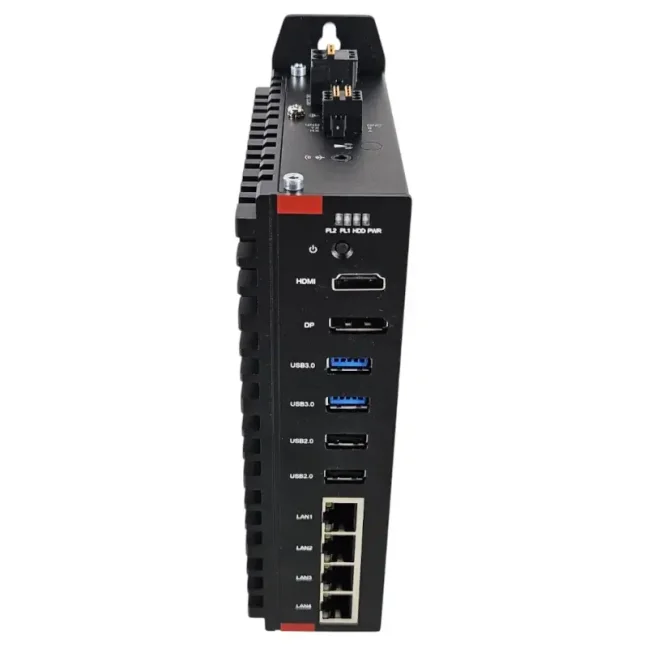

The ESTONE APC-5712 panel with four LAN ports, two USB 3.0 ports, two USB 2.0 ports, an HDMI port and a DisplayPort — Four network ports and video interfaces on one panel. The power input and serial ports are on a different side of the enclosure.

ETHERNET

4 × 1 Gbit/s

Four physical network interfaces with Intel i210-AT controllers.

USB

2× USB 3.0 + 2× USB 2.0

For connecting keyboards, mice, cameras, scanners and other compatible peripherals.

VIDEO

DisplayPort + HDMI

DisplayPort up to 4096 × 2160 at 60 Hz. HDMI up to 3840 × 2160 at 30 Hz.

Dimensions and installation

170 × 112 × 48 mm
Mounting on a panel or DIN rail

The enclosure measures 170 × 112 × 48 mm and has a net weight of approximately 1.25 kg. Allow for mounting flanges, terminals, cables and space for heat dissipation during installation.

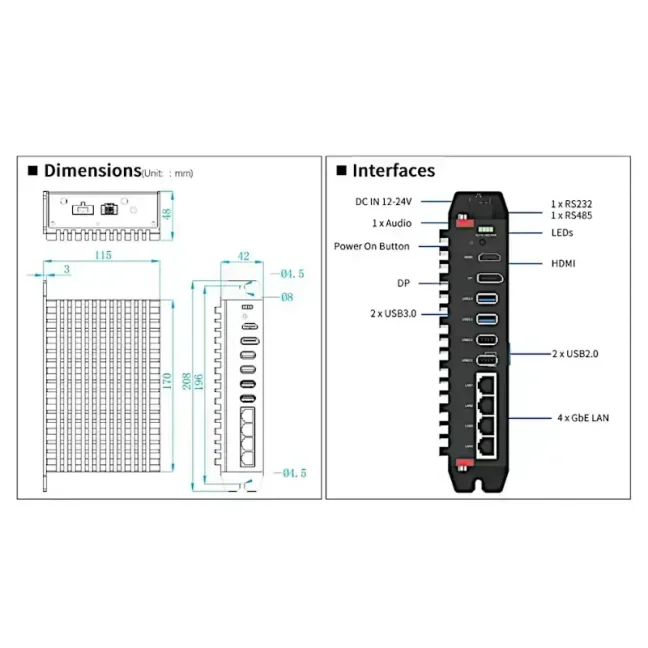

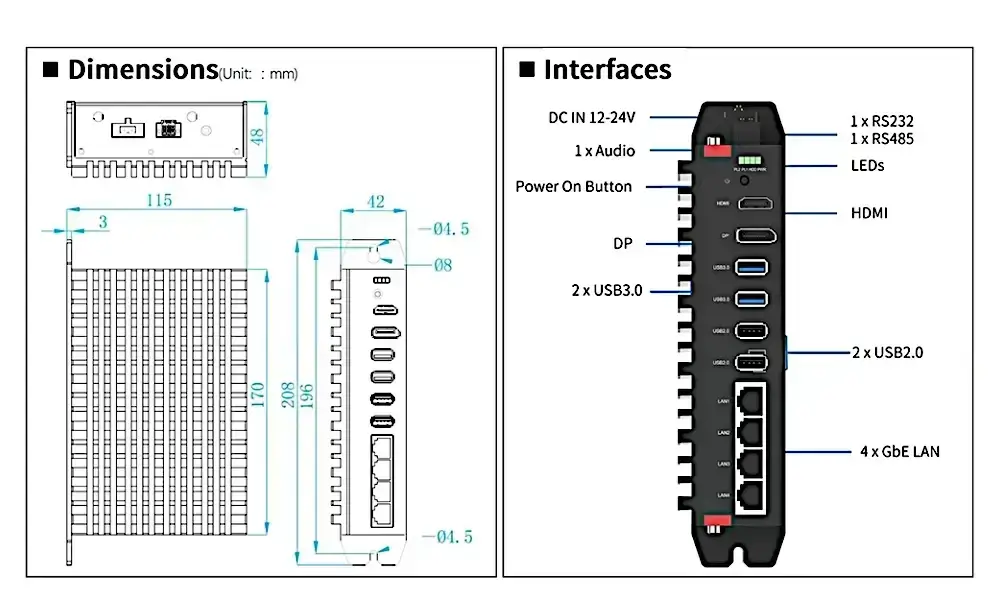

Dimensional drawing and interface description for the ESTONE APC-5712 industrial computer — Enclosure dimensions and interface layout. The overall dimension, including the mounting flanges, is 208 mm as shown in the drawing. Click to open the diagram in full resolution.

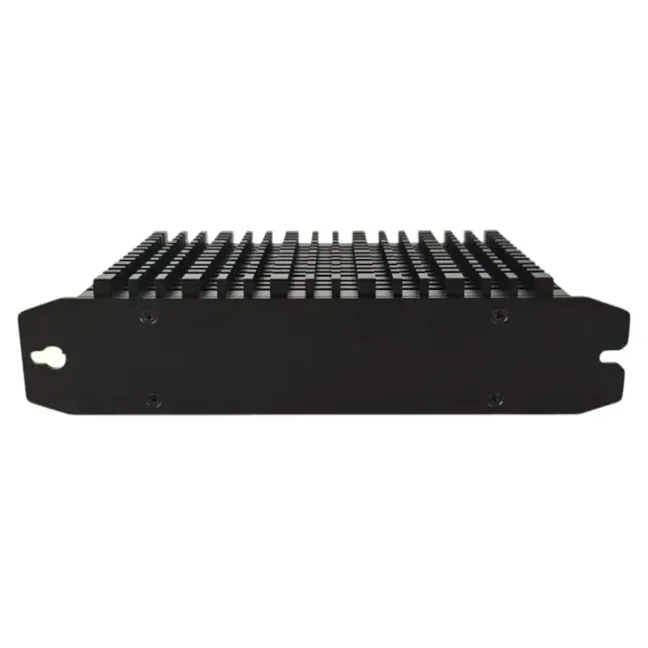

APC-5712 computer mounting plate with flanges and mounting holes — Mounting on a plate or wall
Mounting flanges for installation in a control cabinet. The DIN rail bracket is an optional accessory and must be ordered separately.

To install the unit, ensure there is sufficient space around the heat sink. The platform’s operating temperature range is −20 to +60 °C, provided a suitable SSD is used and adequate airflow is ensured; we will confirm the specific range for a given configuration based on its components.

Optional wireless extension

Mini PCIe and external SIM slot

Inside, there is one full-size Mini PCIe slot with a SIM card holder for a suitable communications module. The SIM card is accessible from the outside of the case.

The outer cover of the SIM card slot on the side of the ESTONE APC-5712 computer — SIM card accessible from the outside
For a mobile connection, you will need a compatible 3G/4G modem, an antenna, a SIM card and the relevant system settings. Simply inserting the SIM card will not establish a connection.

Mini PCIe can also be used for a compatible Wi-Fi module. A modem, Wi-Fi module, antennas and other accessories are not automatically included with the basic PC. We will confirm their installation in the quotation.

Enquire about a wireless connection

Detailed photographs

Enclosure and connectors from several angles

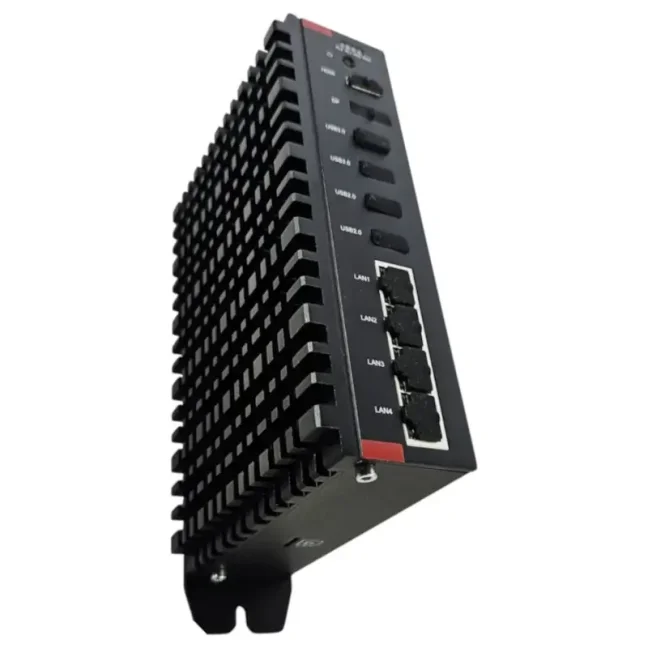

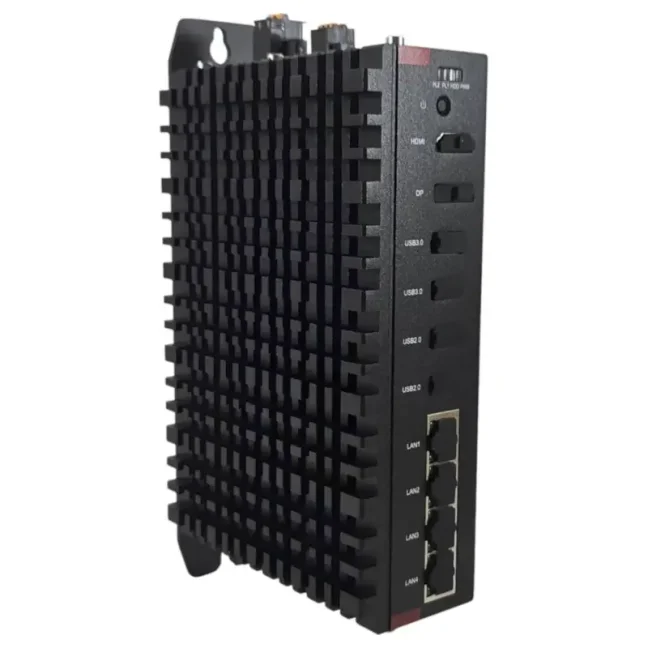

Close-up of the finned heat sink and connectors on the ESTONE APC-5712 panel — Heat sink and connectors
The metal casing dissipates heat via external fins. No fan is required to cool the computer.

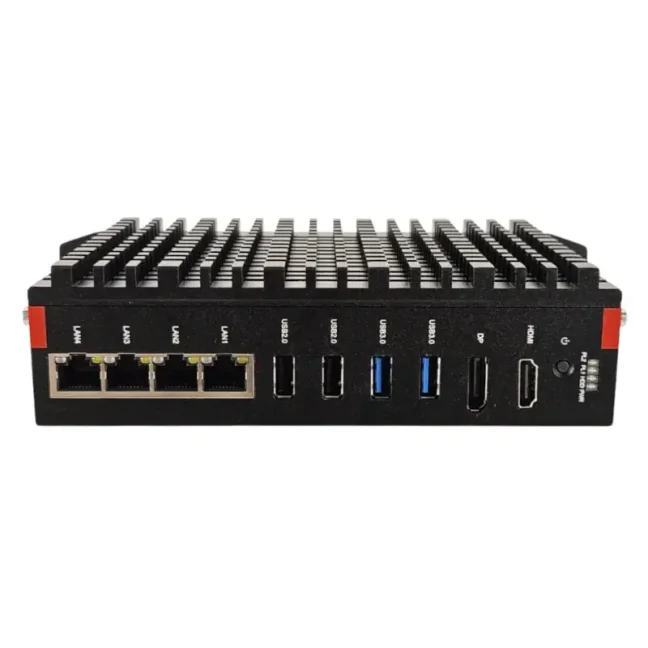

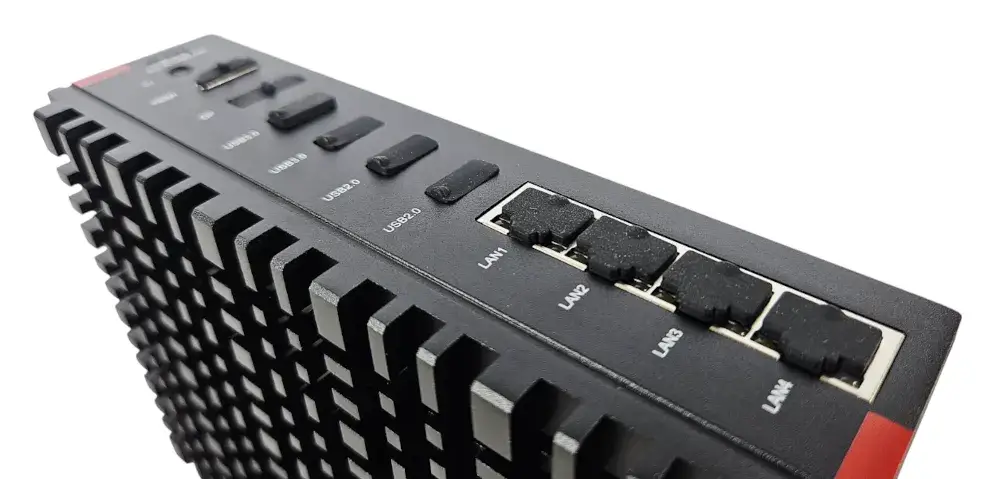

A second look at the APC-5712 panel with Ethernet, USB, HDMI and DisplayPort connectors — Access to interfaces
In addition to the four LAN ports, there are USB and video outputs. When installing the unit, leave enough space for the connected cables.

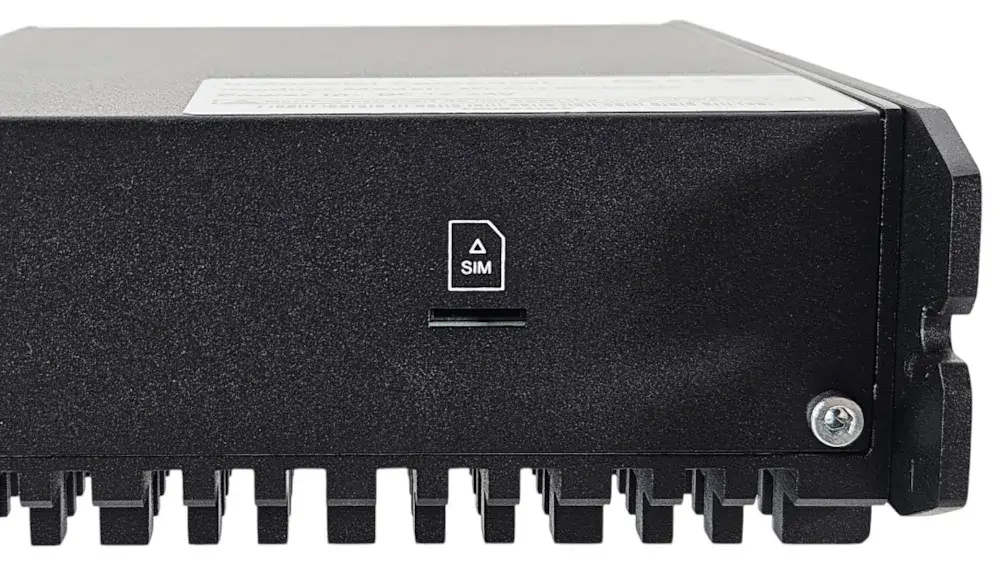

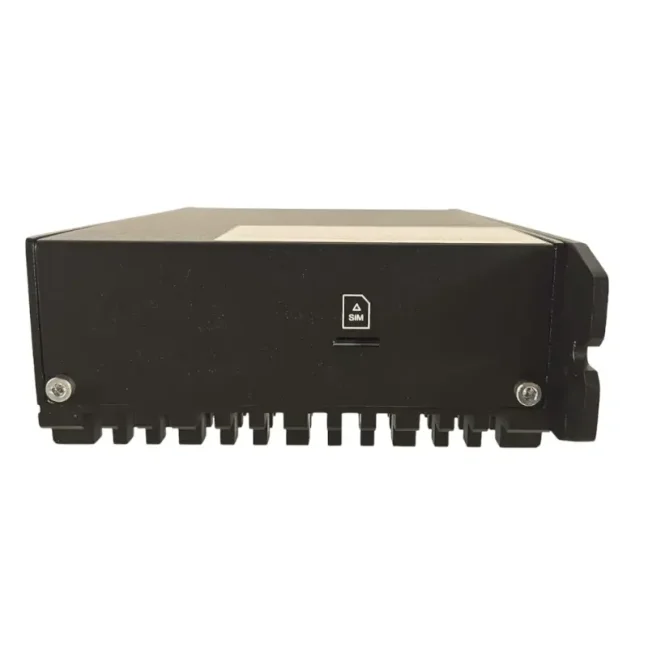

APC-5712 side panel with SIM card slot cover — SIM slot cover
The SIM slot is accessible via a cover on the side of the case. The mobile modem is fitted separately inside the PC.

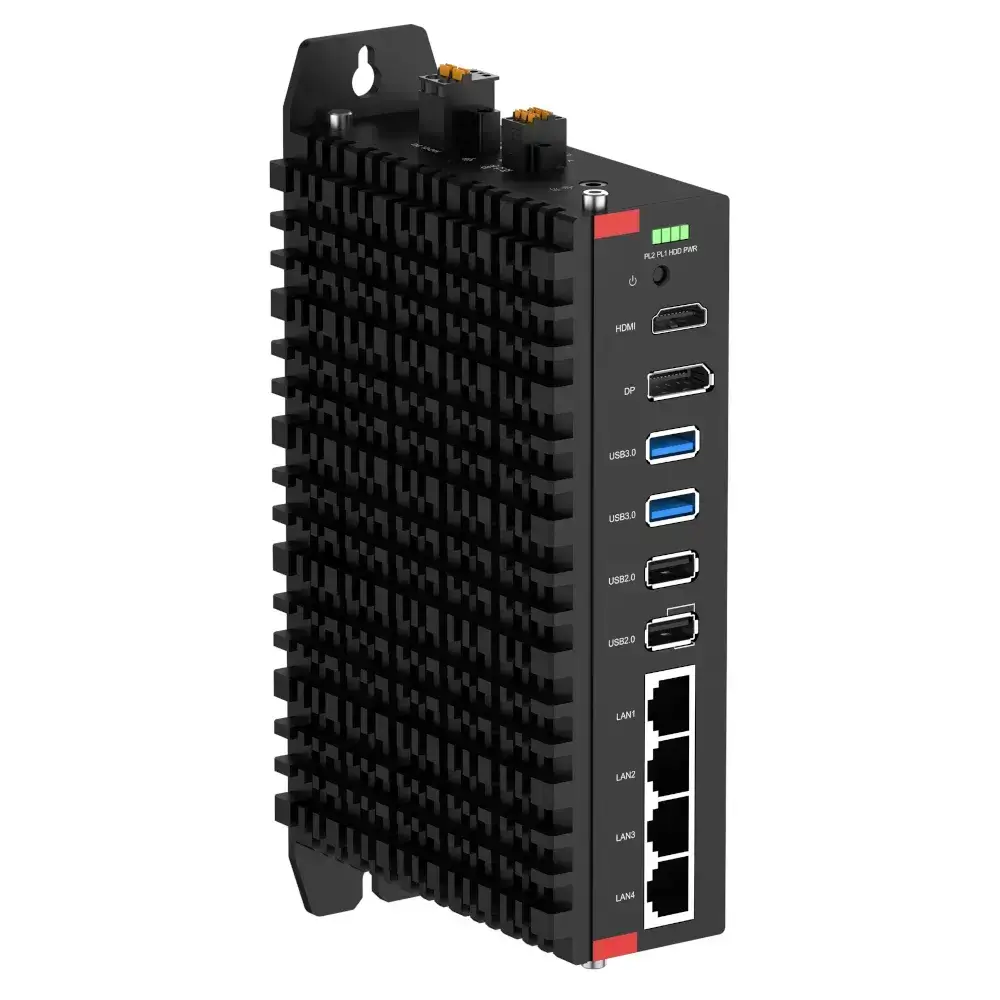

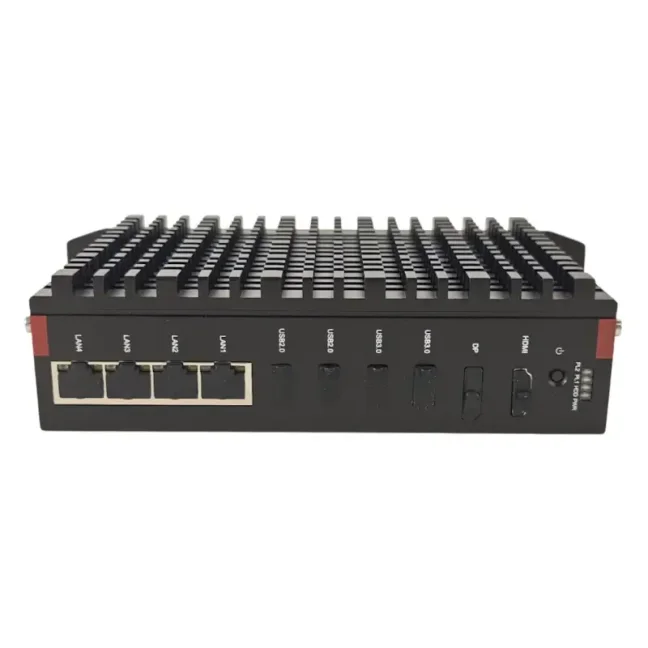

An overview of the ESTONE APC-5712 computer with its heat sink and communication ports — Slim enclosure
An overall view of the panel and heat sink. The case measures 170 × 112 × 48 mm.

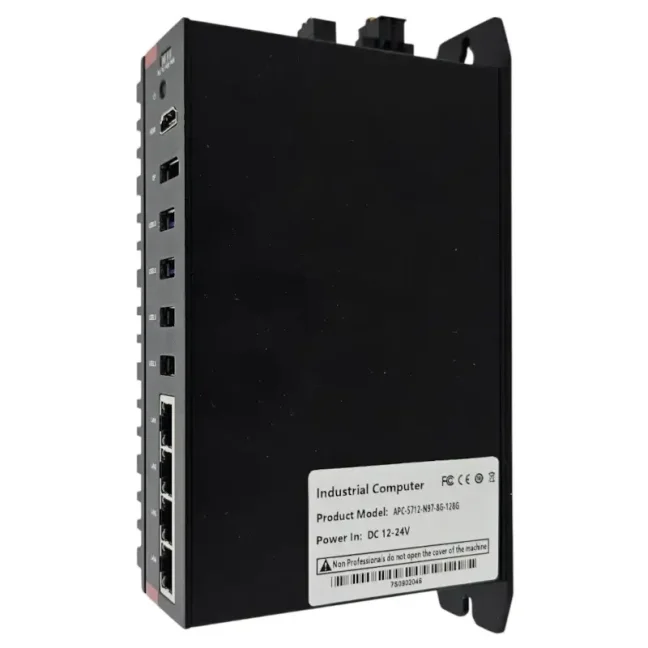

The rear panel with the manufacturer’s label and a view of the APC-5712 computer panel — Manufacturer’s label and panel
The configuration shown is an example. The RAM, SSD and operating system depend on the variant ordered.

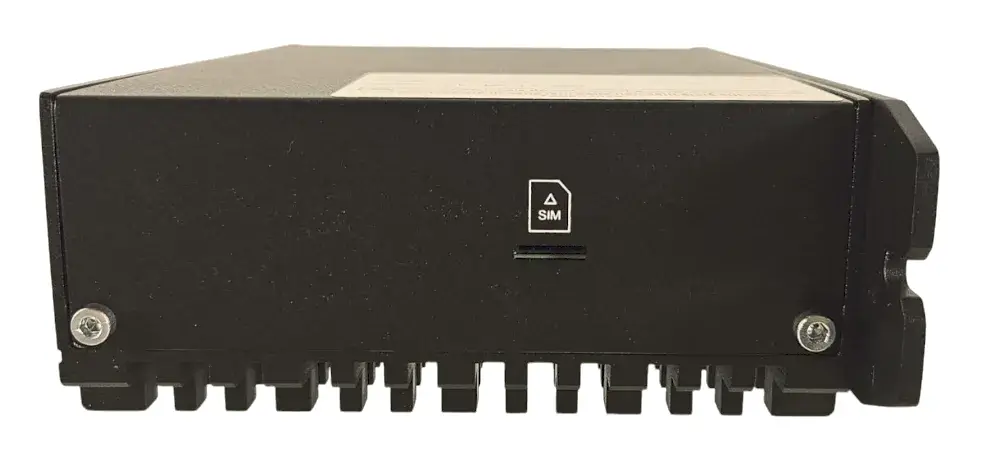

A view of the heat sink and SIM card side cover on the APC-5712 industrial computer — Enclosure viewed from both sides
Overview of the dimensions of the housing, ribbing, mounting flanges and SIM slot cover.

Contents of the delivery

Installed components and accessories as ordered

All the options on offer include a PC with an Intel N97 processor. The RAM, SSD and operating system depend on the configuration selected. We will confirm the power supply, DIN rail mount and wireless modules separately in the quotation.

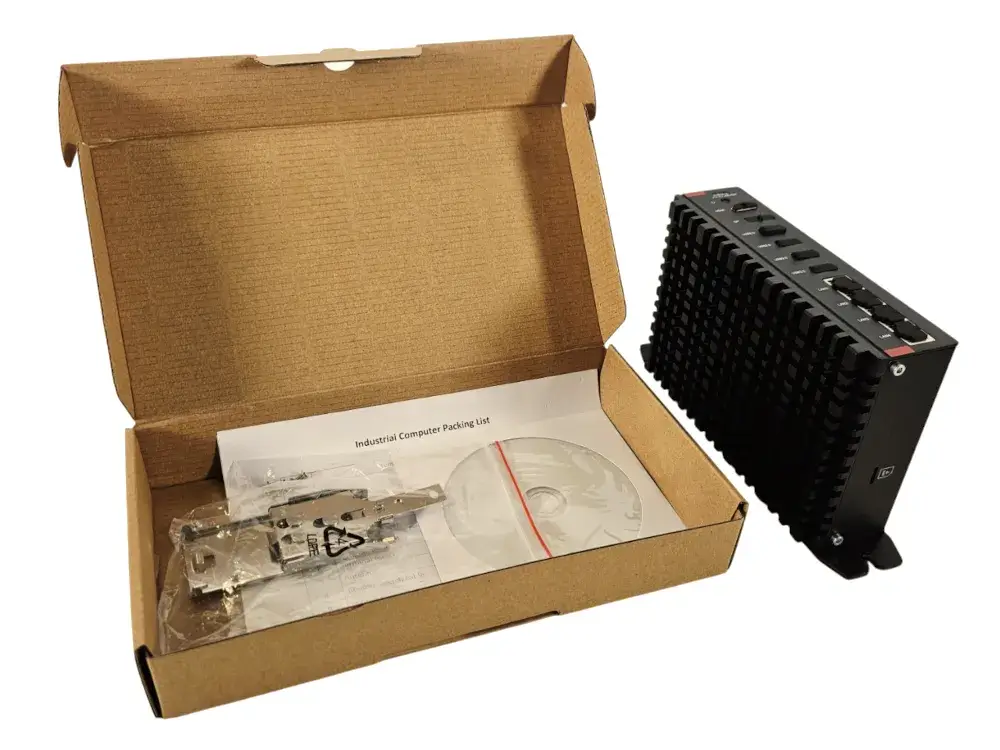

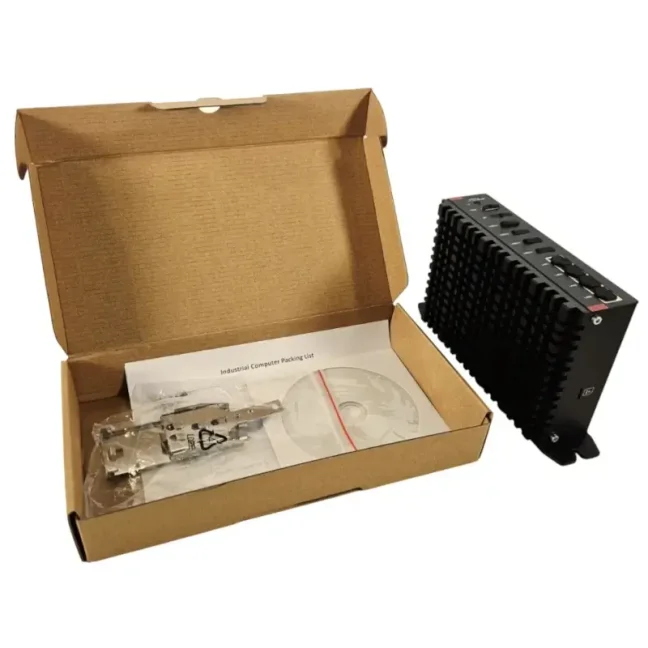

Unboxed APC-5712 computer package containing a PC and accessories — Computer and accessories
The photograph shows the computer and accessories in their packaging. We will confirm the exact contents of the package for the configuration you have ordered.

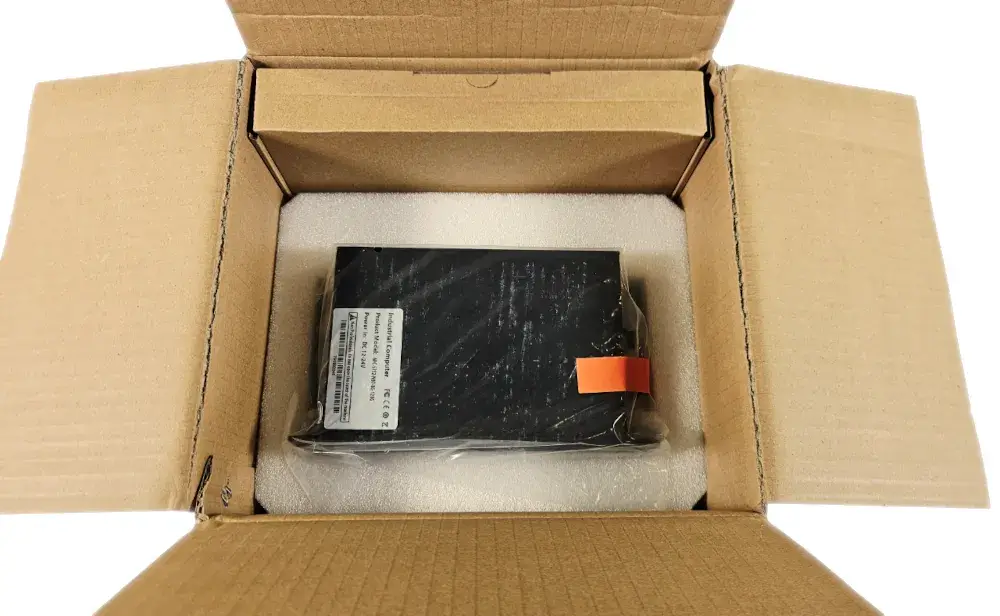

An APC-5712 computer in a protective sleeve and with foam padding in the box — Protective packaging
The computer is protected by packaging and padding during transport.

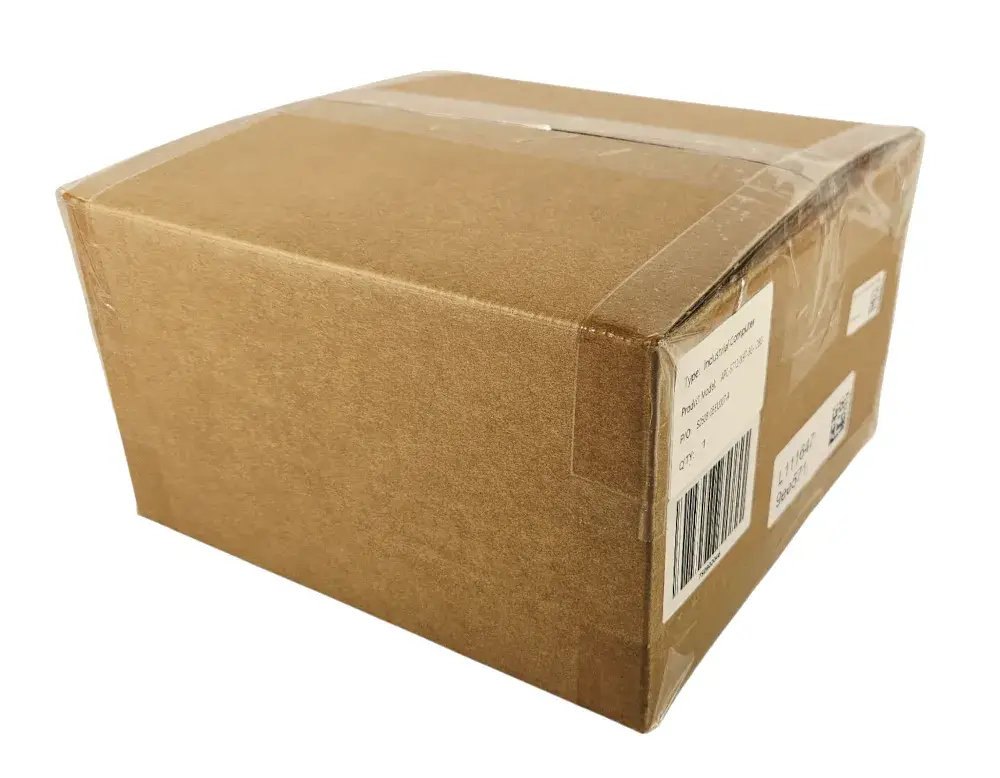

Shipping box with the APC-5712 computer’s manufacturer’s label — Transport packaging
The configuration details and contents of the delivery correspond to the confirmed order.

Power supply and serial communication

12-24 V DC, RS232 and RS485 on the terminals

12-24 V DC power supply with protection against overcurrent, overvoltage and reverse polarity. The RS232 and RS485 signals are connected to separate terminals, which makes connection in the control cabinet easier.

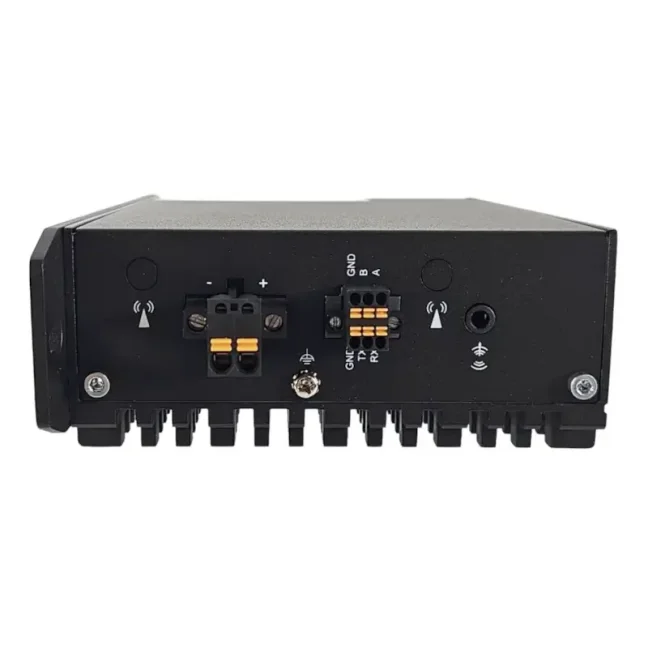

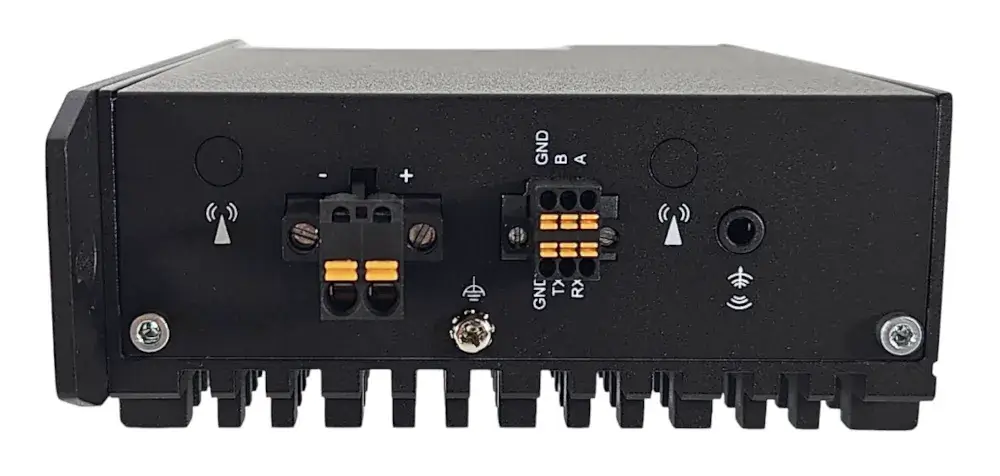

Separate panel of the APC-5712 with power terminal block and RS232 and RS485 terminals — Power input and serial ports on the terminals. Check the wiring and polarity in the user manual before connecting.

Processor TDP: 12 WThis figure relates to the Intel N97 processor. It does not represent the maximum power consumption of the entire system.
Maximum power consumption of the platform: 90 WSelect the power supply based on the actual configuration, the connected peripherals and the required reserve capacity.
Watchdog and TPM 2.0The watchdog can be programmed within a range of 1-255 levels. TPM 2.0 and other options are configured in the BIOS; their use depends on the system and application.

Practical matters

Before placing an order

Do you supply the computer without RAM, an SSD or an operating system?

Yes. With the configurator option, the RAM, SSD and operating system can be selected individually. We can supply the PC without these components or with your chosen combination. The Intel N97 processor remains part of the computer.

Do all models come with 8 GB of RAM and a 128 GB SSD?

No. The APC-5712-8G-SSD128G model has that configuration. The APC-5712-16G-SSD256G model has 16 GB of RAM and a 256 GB SSD. For the base APC-5712 model, the RAM, SSD and OS are selected separately.

What RAM and SSD should I choose?

The computer has one SO-DIMM slot for DDR4-3200 and one M.2 M-Key slot for a 2242-format SATA SSD. In the configurator, we offer 8 or 16 GB of RAM and a 128 GB or 256 GB SSD. We will check the higher RAM capacity for the specific revision. For the M.2 slot, select the SATA interface; the shape of the connector alone does not guarantee compatibility.

Is the DIN rail mount included in the pack?

The DIN rail mount is an optional accessory and must be ordered separately. The computer has flanges for mounting on a panel or wall. Please specify the required mounting method in your enquiry.

Is it enough to insert a SIM card to connect via 4G?

That’s not enough. You’ll need a compatible modem in the Mini PCIe slot, an antenna, a SIM card and the operating system settings. Neither the modem nor the antenna are automatically included in the basic configuration.

Which operating system should I order?

We will supply the computer either without an operating system or with a supported system for your application. The platform supports Windows 10, Windows 11 and Ubuntu. We will confirm the specific edition, licence and drivers for the configuration you have ordered; application software and licences are not automatically included with the PC.

Can the computer start up automatically once the power is restored?

The BIOS provides settings for behaviour after power is restored and for Wake on LAN. We will confirm the required behaviour, settings and compatibility with your application when preparing the system.

Can the warranty be extended?

The standard warranty period is 2 years. A 1-year extension is available for an additional charge of 10 per cent of the price, and a 2-year extension for 20 per cent of the price. We will confirm the chosen warranty period, price and terms in our quotation.

ESTONE Supplies and Technical Support

Why order from FOXON?

We can help you choose an ESTONE industrial computer and prepare a configuration tailored to your application.

Choosing a PC based on its intended use

We will discuss the required performance, number of ports, mounting and operating conditions. We will check whether the APC-5712 suits your software and connections.

Availability of systems and parts

Before you place your order, we will confirm the availability of the specific model, components and accessories, as well as the estimated delivery date.

From single items to large production runs

We supply both individual computers and series for machine manufacturers and system integrators. We will agree on quantities and subsequent deliveries on a project-by-project basis.

Custom configuration

We’ll install the required RAM and SSD, select the operating system and any necessary accessories. We can also supply the PC without RAM, a hard drive or an operating system.

Software pre-installation

Subject to agreement, we will pre-install the selected software solution. We will include the scope of the installation and the necessary licences in the quotation.

Technical support

We can assist with setting up your PC, configuring it and answering technical queries. We will assess more complex requirements on a case-by-case basis, depending on the specific configuration and application.

The standard warranty is 2 years. On request, we can offer a paid extension of the warranty for up to 4 years.

From a single itemto large production runs

Custom configurationRAM, SSD and operating system

Technical supportBefore delivery and during operation

Documentation and drivers

Technical data sheet, manual and wiring diagram

In the ‘Downloads’ tab, you will find the English technical data sheet, a user manual containing a description of the connectors and the BIOS, and a quick installation guide.

Open downloads

Drivers for your system

Send us the PC configuration and exact operating system edition. We will check the appropriate drivers for the motherboard and any wireless module.

Request drivers

ESTONE APC-5712

Technical specifications

Specifications for a computer with an Intel N97 processor. The RAM, SSD, operating system and accessories included depend on the model ordered.

Technical specifications of the ESTONE APC-5712
Processor, memory and storage
Model	ESTONE APC-5712
Processor	Intel N97 processor, 4 cores / 4 threads
Processor frequency	2.0 GHz, Turbo up to 3.6 GHz
Cache	6 MB Intel Smart Cache
Processor TDP	12 WThis does not refer to the maximum power consumption of the entire PC.
BIOS	AMI UEFI BIOS
RAM	1× SO-DIMM DDR4-3200 MHzConfigurations of 8 or 16 GB are available; we will confirm the higher capacity for a specific revision.
Storage	1× M.2 M-Key SATA SSD, 2242 form factor128 GB or 256 GB in the available configurations; also available without an SSD.
Communication and display interfaces
Ethernet	4× Intel i210-AT GbE LAN, RJ45 socket
USB	2× USB 3.0 + 2× USB 2.0, Type A
COM1	1× RS232, terminal block connection
COM2	1× RS485, terminal block connection
DisplayPort	Up to 4096 × 2160 at 60 Hz
HDMI	Up to 3840 × 2160 at 30 Hz
Audio	3.5mm MIC-IN / LINE-OUT, ALC897, OMTP
Status indicators	Power and disk activity indicators, 2 programmable LEDs
Extensions and system functions
Mini PCIe	1× full-size Mini PCIe with SIM holderFor a compatible Wi-Fi or 3G/4G module, to be ordered separately.
SIM card	Accessible through the external coverA mobile connection requires a modem, an antenna, a SIM card and system settings.
TPM	TPM 2.0
Watchdog	Programmable, range 1-255 levelsUnits and specific settings depend on the firmware used.
Resumption of operations	Configuring post-power-restore behaviour and Wake on LAN in the BIOSWe will confirm the settings and compatibility for the specific configuration.
Power supply and mechanical design
Input voltage	12-24 V DC
Power protection	Overcurrent, overvoltage and polarity reversal
Maximum power consumption of the platform	90 WThe actual power consumption and the recommended power supply depend on the configuration and the connected peripherals.
Casing and cooling	Aluminium-magnesium alloy, fanless passive cooling
Enclosure dimensions	170 × 112 × 48 mmExcluding projections. Use the drawing for installation and account for flanges, terminals and cables; the overall dimension including flanges is 208 mm.
Net weight	Approximately 1.25 kg
Installation	On a mounting plate or wall; optionally on a DIN railThe DIN rail bracket must be ordered separately.
Operating conditions
Operating temperature of the platform	−20 to +60 °CWith a suitable SSD and adequate airflow. We will confirm the operating temperature range of the specific system according to its installed components.
Storage temperature	−40 to +80 °C
Relative humidity	5-95 %, non-condensing
Vibration during operation	5-500 Hz, 1.5 Grms with SSDIEC 60068-2-64
Shock resistance	20 G, pulse width 11 ms, with SSDIEC 60068-2-27
EMC	CE / FCC
Configuration and delivery
Operating system	Windows 10, Windows 11, Ubuntu; available with or without an operating systemWe will confirm the edition, licence and drivers for the specific configuration.

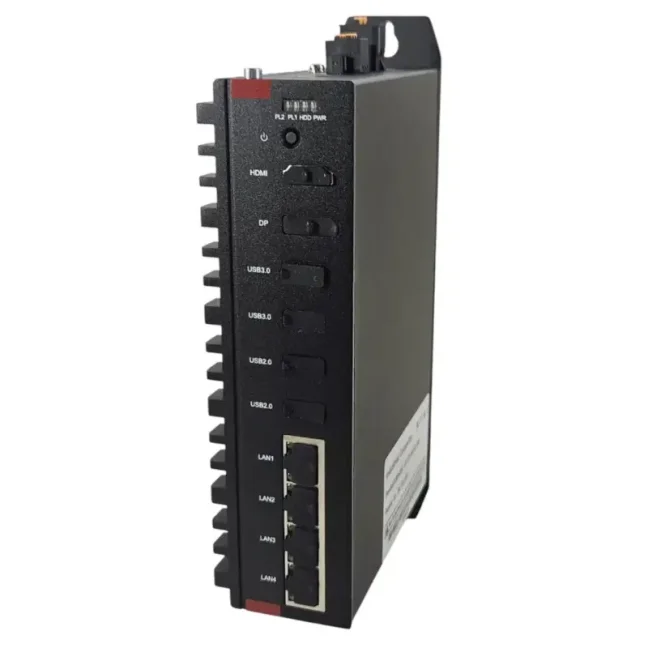

Configurable version	APC-5712RAM, SSD and OS can be selected separately; the Intel N97 processor is included with the PC.
8 GB / 128 GB model	APC-5712-8G-SSD128G
16 GB / 256 GB model	APC-5712-16G-SSD256G
Accessories and software	Depending on the specific offerWe will confirm the power supply, DIN rail mount, modems, antennas and software licences separately.
FOXON Warranty	2 years, with the option of a paid extension up to 4 years

7 Reasons to Choose a NODKA Industrial Computer

In 2023, we established cooperation with Nodka, a manufacturer of industrial computers, panel PCs and monitors, and it turned out to be a good choice. We successfully tested the products and then implemented them in full operation at our customers. Let us take a closer look at this innovation in our market, starting with computers.

Review: How the NODKA UPS Supercapacitor Works – a Test by Jaroslav Blažek

In his review, Jaroslav Blažek (blaja.cz) focused on the UPS Supercapacitor from the manufacturer NODKA. Did it protect a connected device during a power outage as it should have? And for how long did it supply the device with power? Find out in the video below.

Review: NODKA eBOX-3240 Industrial Computer Under Jaroslav Blažek’s Close Inspection

NODKA industrial computers offer a wide range of applications and are available in several designs, including embedded versions for control cabinets, desktop models, and rack-mounted variants. Jaroslav Blažek (blaja.cz) tested the embedded version designated eBOX-3240. How was his experience working with this computer?

Case Study: NODKA Panel PCs and Computers as the Foundation of Dubax Projects

Self-service equipment for unattended gas stations must operate 24/7 — in frost, heat, dust, and vibrations. Without outages. Without restarts. At the same time, it must be simple and intuitive for every driver. Read the case study to see how Dubax used rugged NODKA industrial hardware in self-service systems for paying for refueling.

Kepware Server 7.0: One Platform Instead of Two, Higher Security, and the End of OPC .NET

Kepware Server 7.0.236.0 unifies the former KEPServerEX and ThingWorx Kepware Server into a single product. It introduces security changes, adds support for Windows Server 2025, and removes legacy technologies present in the previous products. Below is an overview of what’s new and what has changed so you can upgrade smoothly.

Name

Surname

Company

Phone

Inquiry Details

Attach a file / photo

Browse

I acknowledge that my personal details will be processed.

Are you looking for a spare part, a repair, one of our products, or do you need to check availability or get advice on a technical solution? Send us the order number, a photo of the nameplate, or a brief description of your request. We will usually get back to you within one hour during business hours.
