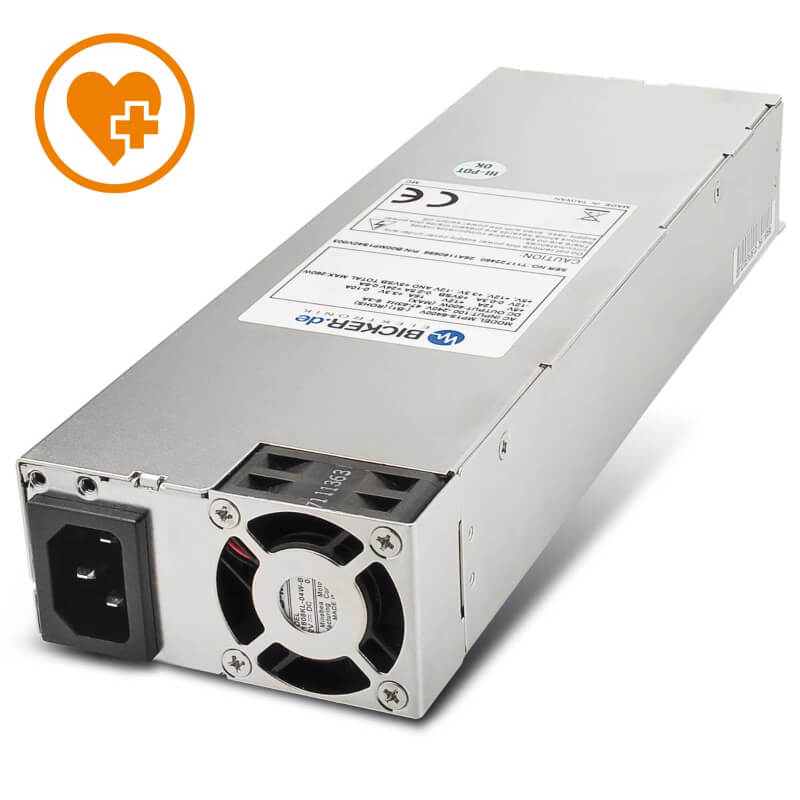

Bicker MP1S-6400V-B1 · medical ATX power supply
400 W power supply for a medical computer and 24 V peripherals
Bicker MP1S-6400V-B1 can power the motherboard, processor, storage devices and compatible medical peripherals from a single mains power supply. In addition to standard PC power rails, it provides a separate +24 VDC / 6 A output and is designed for integration into devices according to IEC/EN 60601-1.
Do you need to power a medical computer and 24 V peripherals?
Send us your PC configuration, the power consumption of the connected devices and their power requirements. We will help verify the load on each output rail and whether the MP1S-6400V-B1 is suitable for your system.
One power supply for the PC and 24 V peripherals
MP1S-6400V-B1 converts 90–264 VAC mains voltage into standard PC power rails while also providing a separate +24 VDC output. This makes it possible to power both the computer section and compatible 24 V peripherals from a single power supply.
The total output power is 400 W. The standard PC rails can provide up to 260 W combined, while the separate +24 V rail delivers up to 6 A. In many applications, this removes the need for an additional external AC/DC power supply just for a monitor or other 24 V electronics.
Using fewer power supplies means less cabling, fewer mains connections and a clearer overall system design. This can simplify not only initial integration but also servicing and subsequent maintenance.
One power supply can power the PC section as well as compatible 24 V peripherals. The total output power and combined limits of the individual rails must be taken into account during system design.
The integrated 24 V output can replace an additional AC/DC adapter and simplify the power architecture of a medical system.
The 90–264 VAC input range allows the same power supply to be used in equipment intended for different countries and mains networks.
Separate 24 V output for peripherals
The additional +24 VDC output with a maximum current of 6 A is intended for devices that cannot be powered from standard PC power rails. Typical applications include medical monitors, imaging units and other electronics requiring 24 VDC.
The computer section and connected peripheral can therefore share one mains connection. This reduces the number of power components and simplifies the design of compact systems.
The +24 VDC output is provided via a separate cable terminated with Faston connectors. During integration, the current consumption, permissible voltage tolerances and connection method of the specific peripheral must be verified.
The separate rail provides up to 144 W for compatible monitors, imaging units and other medical peripherals.
The computer and compatible 24 V peripherals can use one common power supply instead of several separate adapters.
The 24 V output is provided via a separate pair of wires for connecting a compatible device.
Output voltages and available currents
The 400 W total output rating alone is not enough to determine whether the power supply is suitable. The current requirements of the motherboard, processor, storage devices and any 24 V peripherals must also be checked on each individual output.
| Output voltage | Maximum current |
|---|---|
| +24 VDC | 6 A |
| +3.3 VDC | 10 A |
| +5 VDC | 12 A |
| +12 VDC | 16 A |
| −12 VDC | 0.3 A |
| +5 Vsb | 2.5 A |
Power supply for medical devices
For medical equipment, choosing a standard PC power supply simply because it has the required output and connectors is not sufficient. The power section must meet increased requirements for electrical safety and leakage current.
MP1S-6400V-B1 complies with IEC/EN 60601-1 and UL 60601-1. The manufacturer specifies a leakage current of less than 300 µA at both 115 VAC and 230 VAC input voltage. The power supply therefore provides a suitable basis for medical systems in which power safety needs to be addressed already at component level.
Powering the computer and a 24 V peripheral from one power supply can also reduce the number of mains-powered sections and simplify the assessment of the complete system.
The power supply meets the relevant safety requirements for medical electrical equipment.
Low leakage current makes it easier to design systems in which the combined leakage current of all components must be monitored.
One common power supply for the PC and 24 V peripheral can simplify both the system design and the assessment of the power section.
Safety of the final device
A certified power supply simplifies design, but the complete device still needs to be assessed
MP1S-6400V-B1 is a power component intended for integration into a finished product. Its safety approvals help when designing medical equipment, but they do not automatically mean that the complete device complies with all requirements or is certified.
The power supply is designed as an embedded component for installation inside a suitable enclosure of the final system.
After integration, the electromagnetic compatibility of the complete device must be assessed in its actual configuration.
Protective grounding, cabling, mechanical design, connected peripherals and other parts of the final device must also be taken into account.
Lower power losses and cooling as needed
MP1S-6400V-B1 uses active PFC to improve the way current is drawn from the mains and help reduce unnecessary load on the power infrastructure.
Efficiency reaches 84% at rated load and 230 VAC input voltage. Higher efficiency helps reduce the amount of energy converted into waste heat inside the power supply.
The integrated fan adjusts its speed according to temperature, so cooling adapts to the current operating conditions. The power supply is designed for operation at an ambient temperature of 0 to +40 °C, so sufficient airflow must be ensured when it is installed in the final device.
Helps improve the way the power supply draws current from the mains.
Higher efficiency helps reduce energy losses and heat generation inside the device.
Fan speed is controlled according to temperature and adapts to the actual operating conditions of the power supply.
Standard PC connectors and cabling
MP1S-6400V-B1 uses fixed cabling with standard connectors for the motherboard, processor, expansion cards, and storage devices. The PC part of the system therefore does not require custom-made cabling.
The 20+4-pin ATX/EPS connector and 4+4-pin P4/EPS connector allow direct connection of standard PC components.
The 6+2-pin PCI Express connector allows a compatible expansion card to be powered directly from the power supply.
Four SATA connectors, HDD and FDD connectors are complemented by separate +24 VDC / GND wires with Faston connectors.
Bridging short power interruptions
MP1S-6400V-B1 can maintain its output voltages for a short period after the mains input is lost. The manufacturer specifies a hold-up time of more than 16 ms. A very short voltage dip or interruption therefore does not necessarily cause the computer to restart immediately.
The Power Good signal also informs the motherboard whether the supply voltages are within the required range. After power-up, it is activated with a delay of 100–500 ms, while the manufacturer specifies a 1 ms switch-off delay when the correct power conditions are lost.
Protection against short circuit, overload and overvoltage
The power supply includes protective functions that help limit the consequences of short circuits, overloads or output values exceeding the permitted limits. The exact behaviour of the protection depends on the specific rail and type of fault condition.
In the event of a short circuit, the main output rails including +24 VDC are switched off. For the +5 Vsb standby rail, the manufacturer specifies automatic recovery after the fault has been removed.
If the defined load is exceeded to approximately 110–160%, the power supply switches off to prevent prolonged operation beyond its rated capacity.
The +3.3 V, +5 V and +12 V rails have defined protection limits against excessive voltage and current.
Scope of delivery
- 1× Bicker MP1S-6400V-B1 medical PC power supply with permanently attached cabling containing the following connectors and wires:
- 1× ATX/EPS 20+4 pin connector, length approx. 350 mm
- 1× P4/EPS 4+4 pin connector, length approx. 370 mm
- 1× PCI Express 6+2 pin connector, length approx. 400 mm
- 2× HDD power connectors
- 1× FDD power connector
- 4× SATA power connectors
- 1× +24 VDC and GND output wire pair with Fast On connectors, length approx. 450 mm
The X1-132 mains power cable with European plug and IEC 60320 C13 connector is not included and can be ordered separately.
About the manufacturer
Bicker Elektronik
Bicker Elektronik is a German manufacturer that has been developing and supplying power supplies, DC/DC converters, UPS systems and other components for industrial and professional computer applications since 1994.
Its portfolio also includes power supplies for medical equipment. MP1S-6400V-B1 combines standard PC power rails, a separate 24 V output and the features required for integration into medical devices.
Why buy from FOXON
Do you want to power a medical computer and 24 V peripherals from one power supply?
Send us your computer configuration, the power requirements of the connected peripherals and the required quantity. We will verify the load on each power rail, the total output power and whether the MP1S-6400V-B1 is suitable for your application.
Request a solutionBook an online meeting
Do you need to verify the required power, load on the individual rails or connection of medical peripherals? Choose a time for a short online consultation directly in the calendar below.
Technical specifications
Basic characteristics
- Device type: medical AC/DC PC power supply for integration
- Model: MP1S-6400V-B1
- Power: 400 W
- Input: 90–264 VAC
- Outputs: +24 VDC, +3.3 VDC, +5 VDC, +12 VDC, −12 VDC, +5 Vsb
- PFC: active
- Efficiency: up to 84%
- Cooling: integrated temperature-controlled fan
- Design: 1U medical ATX PC power supply for integration into equipment
- Special feature: separate +24 VDC / 6 A output for powering medical peripherals
Input parameters
- Input voltage range: 90–264 VAC
- Input frequency: 47–63 Hz
- Input current: 6 A at 115 VAC / 3 A at 230 VAC
- Inrush current: 70 A at 115 VAC / 140 A at 230 VAC, at +25 °C and cold start
- Power factor correction: active PFC
- Efficiency: 84% at rated load and 230 VAC
Output parameters
- +24 VDC: 0–6 A, regulation ±5%, ripple and noise max. 240 mV
- +3.3 VDC: 0–10 A, regulation ±5%, ripple and noise max. 60 mV
- +5 VDC: 0–12 A, regulation ±5%, ripple and noise max. 60 mV
- +12 VDC: 0–16 A, regulation ±5%, ripple and noise max. 120 mV
- −12 VDC: 0–0.3 A, regulation ±10%, ripple and noise max. 120 mV
- +5 Vsb: 0–2.5 A, regulation ±5%, ripple and noise max. 60 mV
- Maximum total output power: 400 W
- Combined +3.3 V and +5 V output power: max. 90 W
- Combined +3.3 V, +5 V, +12 V, −12 V and +5 Vsb output power: max. 260 W
- Minimum output load: not required
Power Good and short-term power interruption bridging
- Hold-up time: more than 16 ms
- Power Good – turn-on delay: 100–500 ms
- Power Good – turn-off delay: 1 ms
Electrical safety and certifications
- Medical safety: IEC/EN 60601-1, 3rd edition
- Additional safety standard: UL 60601-1
- Leakage current: <300 µA at 115 VAC / 230 VAC
- Protection class: I
- Certifications / markings: TÜV, UL, CCC, CE
Protection functions
- Short-circuit protection: +3.3 V, +5 V, +12 V, −12 V and +24 V – shutdown; +5 Vsb – automatic recovery after the fault is removed
- Overload protection: 110–160%, shutdown
- Overvoltage protection +3.3 V: 3.6–4.3 V
- Overvoltage protection +5 V: 5.6–6.5 V
- Overvoltage protection +12 V: 13.2–15 V
- Overcurrent protection +3.3 V: 11–16 A
- Overcurrent protection +5 V: 13.2–19.2 A
- Overcurrent protection +12 V: 16–24 A
Operating conditions
- Operating temperature: 0 to +40 °C
- Storage temperature: −20 to +80 °C
- Operating humidity: 10–85% RH, non-condensing
- Storage humidity: 10–90% RH, non-condensing
- Maximum operating altitude: 3000 m
- MTBF: 149,000 hours according to MIL-HDBK-217F at +25 °C with fan operation
- Environment: dry indoor areas only
Mechanical design and installation
- Dimensions (W × D × H): 81.5 × 250 × 40.3 mm ±0.5 mm
- Weight: 1.2 kg
- Installation: the power supply is intended for installation in a suitable metal enclosure
- Mounting screws: thread 6#-32 × L6
- Cooling during installation: free air circulation must be ensured and the ventilation openings must not be covered
PC component connections
- ATX/EPS: 20+4 pin, cable length approx. 350 mm
- P4 / EPS: 4+4 pin, cable length approx. 370 mm
- PCI Express: 6+2 pin, cable length approx. 400 mm
- HDD: 2× power connector
- FDD: 1× power connector
- SATA: 4× power connector
- +24 VDC: separate Fast-On output, cable length approx. 450 mm
Frequently Asked Questions about the Bicker MP1S-6400V-B1 Medical PC Power Supply
Use and outputs
What is the Bicker MP1S-6400V-B1?
The MP1S-6400V-B1 is a medical AC/DC PC power supply in a 1U design with a maximum output power of 400 W. From a 90–264 VAC mains input, it provides the standard PC power rails +3.3 V, +5 V, +12 V, −12 V and +5 Vsb, as well as a separate +24 VDC output. It is designed as a built-in component for powering a computer and medical peripherals from a single power supply.
What is the maximum output power of the MP1S-6400V-B1?
The maximum total output power is 400 W. The standard PC outputs +3.3 V, +5 V, +12 V, −12 V and +5 Vsb can provide a combined maximum of 260 W. The combined output power of the +3.3 V and +5 V rails is limited to 90 W. When designing the system, it is therefore necessary to consider not only the total output power but also the limits of the individual rails.
What outputs does the MP1S-6400V-B1 provide?
The power supply provides +24 VDC / 6 A, +3.3 VDC / 10 A, +5 VDC / 12 A, +12 VDC / 16 A, −12 VDC / 0.3 A and standby +5 Vsb / 2.5 A outputs. The maximum total output power is 400 W.
What is the separate +24 VDC output used for?
The +24 VDC output can provide up to 6 A and can be used, for example, to power medical peripherals, monitors or other equipment in diagnostic, therapeutic and imaging systems. This allows the PC and connected peripherals requiring 24 V power to be supplied from a single power supply.
What connectors does the MP1S-6400V-B1 have?
The power supply has permanently attached cabling with an ATX/EPS 20+4-pin connector for the motherboard, a P4/EPS 4+4-pin connector for the processor, a PCI Express 6+2-pin connector, four SATA connectors, two HDD power connectors, one FDD connector and a separate two-wire +24 VDC output terminated with Faston connectors.
Medical safety
Why is the MP1S-6400V-B1 classified as a medical PC power supply?
The power supply has medical safety approvals according to IEC/EN 60601-1 and UL 60601-1. It also offers low leakage current and is intended as a power supply component for computer and peripheral systems used in medical applications.
What leakage current does the MP1S-6400V-B1 have?
The leakage current is below 300 µA at both 115 VAC and 230 VAC input voltage. Low leakage current is especially important when designing medical equipment, where the total leakage current of the complete system must be taken into account.
What is the advantage of powering the PC and 24 V peripherals from a single power supply?
The MP1S-6400V-B1 can power both the computer motherboard and selected medical peripherals requiring 24 VDC from a single mains power supply. This can simplify the power architecture of the equipment and, according to the manufacturer, can also help reduce the overall leakage current of the system compared with using multiple separate power supplies.
Does using the MP1S-6400V-B1 automatically certify the complete medical device?
No. The MP1S-6400V-B1 is a power supply component designed for integration. After installation, the complete equipment must comply with the applicable safety and electromagnetic compatibility requirements as a whole.
Operation and protection functions
Does the MP1S-6400V-B1 have a fan?
Yes. The power supply uses an integrated temperature-controlled fan. During installation, free airflow must be ensured and the ventilation openings must not be blocked.
Can the MP1S-6400V-B1 bridge a short power interruption?
Yes, but only for a very short period. The hold-up time is longer than 16 ms. Energy stored in the input stage can therefore bridge short voltage dips or mains interruptions lasting only a few milliseconds.
Is the MP1S-6400V-B1 a replacement for a UPS?
No. A hold-up time of more than 16 ms is intended only for bridging very short power interruptions. If the computer must continue operating during a longer outage or shut down safely, a separate UPS is required.
What protection functions does the MP1S-6400V-B1 provide?
The power supply includes protection against short circuits, overload, overvoltage and overcurrent. In the event of a short circuit, the main outputs switch off, and at approximately 110–160 % of the specified output power the power supply also shuts down. The standby +5 Vsb output automatically resumes operation once the fault has been removed.
Installation and selection
What are the dimensions of the MP1S-6400V-B1 and is it suitable for a 1U chassis?
The power supply measures 81.5 × 250 × 40.3 mm. With a height of 40.3 mm, it has a low-profile 1U design and is intended for integration into suitable PC and medical systems. When designing the chassis, its length of 250 mm and sufficient airflow must also be taken into account.
What is the operating temperature range of the MP1S-6400V-B1?
The operating temperature range is 0 to +40 °C. The storage temperature range is −20 to +80 °C. The power supply is intended for use in dry indoor environments without condensation.
What is the main difference between the MP1S-6400V-B1 and MP1S-5300V-B1?
The MP1S-6400V-B1 provides a maximum output power of 400 W and additionally includes a separate +24 VDC / 6 A output for powering peripherals. It is also longer, with a length of 250 mm. The MP1S-5300V-B1 provides 300 W, does not have a separate 24 V output and is 190 mm long. When choosing between the two models, the required output power, the need for 24 V power and the available installation space should therefore be considered.
