USB Server Megabit 2.0

FOXON PLUS

Industrial USB LAN Server, 2x USB 2.0, 1x Ethernet 100 Mbit RJ45, 24-48VDC or PoE power supply, DIN rail mounting More

Code: 53665

298 EUR excl. VAT (360,58 EUR Incl. VAT)

Recycling fee 0,033 EUR included in the price.

Quantity discount

Units

Discount

Price without VAT

0 - 4

298,00

5 - 9

292,04

10 - 19

283,10

20 and more

271,18

In stock

pcs

(2 pcs In stock)

Get a quote

Industrial USB LAN Server, 2x USB 2.0, 1x Ethernet 100 Mbit RJ45, 24-48VDC or PoE power supply, DIN rail mounting More

Code: 53665

W&T 53665

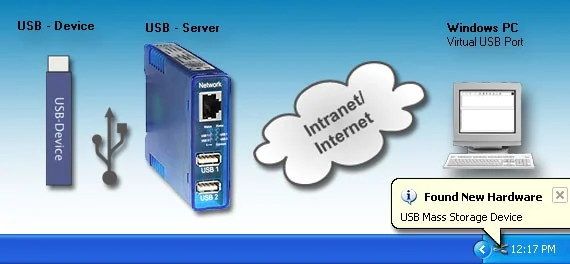

USB devices connected via the network

The W&T USB Server Megabit 2.0 53665 connects USB peripherals to a computer via 100 Mbit/s Ethernet. It has two USB 2.0 ports and, using the USB Redirector, makes the connected device accessible in Windows or Linux as a local USB peripheral.

Do you need to select or order the W&T 53665?
Please send us the required quantity and a description of the wiring configuration. We will check availability and suitable accessories.

Enquire about purchasing or repairing a part

2× USB 2.0Up to 500 mA per port

100BaseTEthernet 100 Mbit/s

Windows and LinuxConnection via USB Redirector

Usage

The Megabit model is primarily intended for USB licence keys, printers, scanners and measuring devices. USB devices can be located at the point of use or in the server room and accessed from a computer or virtual machine connected to the network.

Technical specifications for the W&T 53665

USB ports	2 USB Type-A ports (500 mA)
USB speeds	1.5 / 12 / 480 Mbit/s (Low / Full / High Speed)
Network interface	100BaseT, automatic detection / Auto-MDIX RJ45
Galvanic isolation	Network interface section: min. 1500 V
Power supply	Power-over-Ethernet (PoE) or 24–48 V DC (±10 %) via screw terminal block
Current consumption	PoE Class 3 (6.49 W – 12.95 W) External power supply (24 V DC) without USB device: typ. 120 mA External power supply (24 V DC) with 2 USB ports, each rated at 2.5 W: typically 420 mA
Power connection	Removable screw terminal block
LED indicators	System: status and error Network: connections and data transmission USB: status and error for each port
Housing and mounting	Compact plastic housing for DIN rail mounting 105 × 22 × 75 mm (length × width × height)
Degree of protection	IP20
Weight	approx. 120 g
Ambient temperature	Storage: -40 to +85 °C Operating temperature with spacing between devices: 0 to +50 °C
Permissible relative humidity	5 to 95 per cent RH, non-condensing
Contents of the delivery	1x USB-Server Megabit 2.0 1× brief user guide in German and English

Communication and functions

Supported USB transfer modes include Control, Bulk, Interrupt and Isochronous. Up to eight USB devices can be connected using an external USB hub.
Each of the two USB ports can be connected to a different computer. At any given time, a specific USB device is used by the computer to which it is assigned.

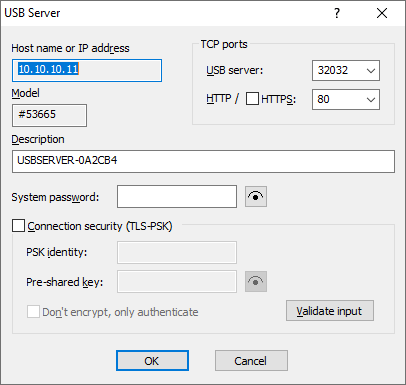

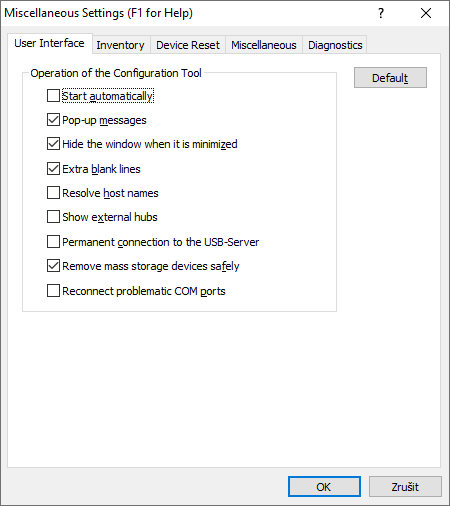

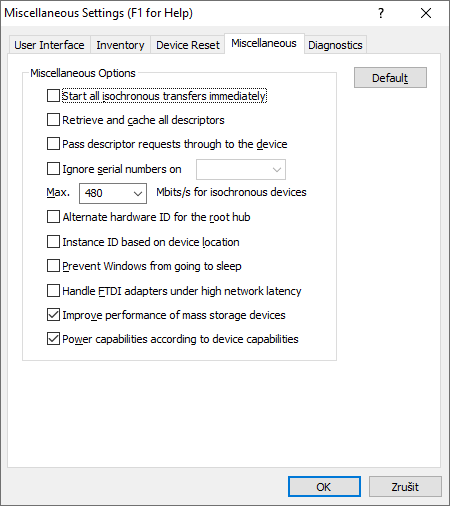

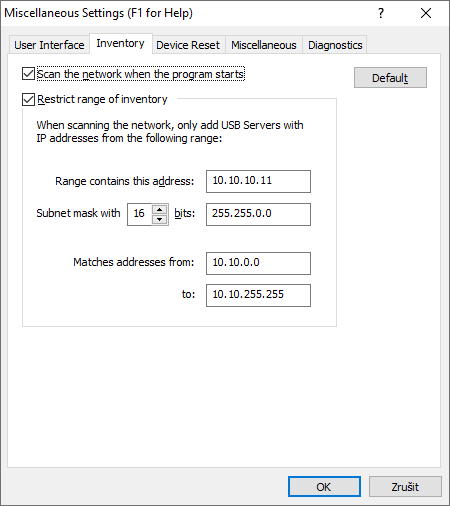

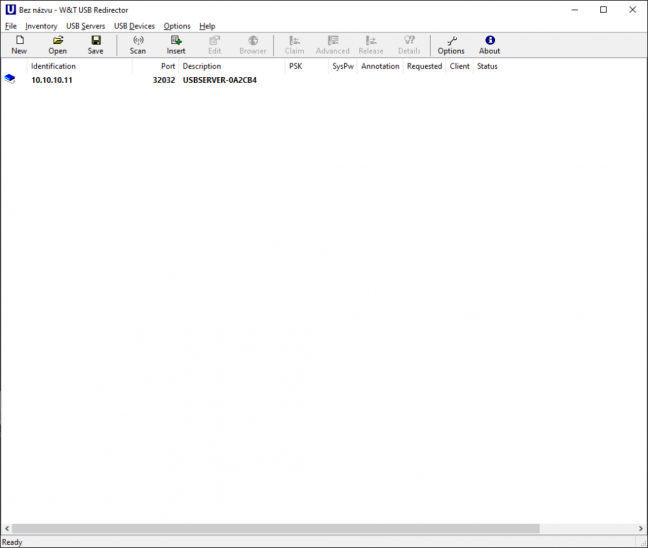

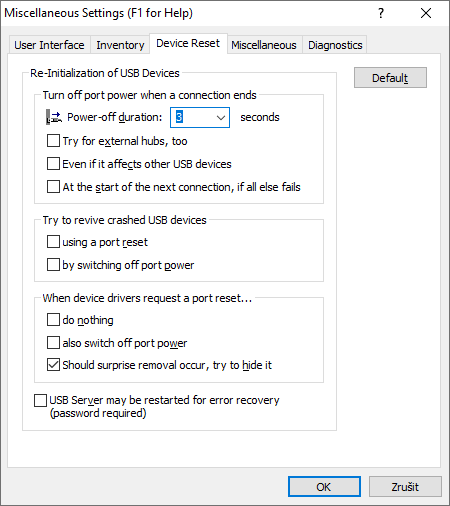

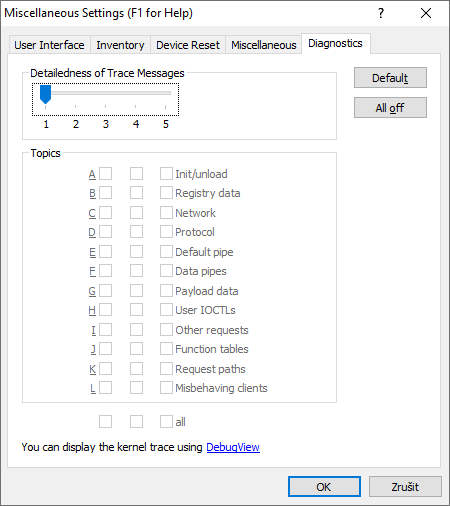

The USB Redirector supports automatic connection without user login and script-based control. Network communication supports routing and DNS.
For cameras, audio and data storage, W&T recommends the Gigabit 53663 model. The USB speed of 480 Mbit/s is not the throughput of the Ethernet connection on the 53665 model.

Commissioning and accessories

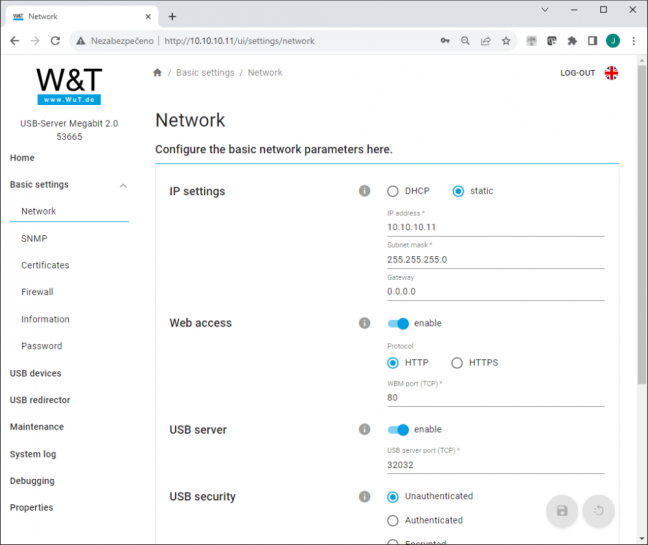

Connect the device to an Ethernet connection and a PoE or 24–48 V DC power supply. Use WuTility or DHCP to configure the network, and install the appropriate USB Redirector and the driver for the USB peripheral itself on your computer. When installing alongside other devices, maintain spacing appropriate to the operating conditions.

Contents of the delivery

1x USB-Server Megabit 2.0
1× brief user guide in German and English

Frequently Asked Questions

Do I need any additional software on my computer?

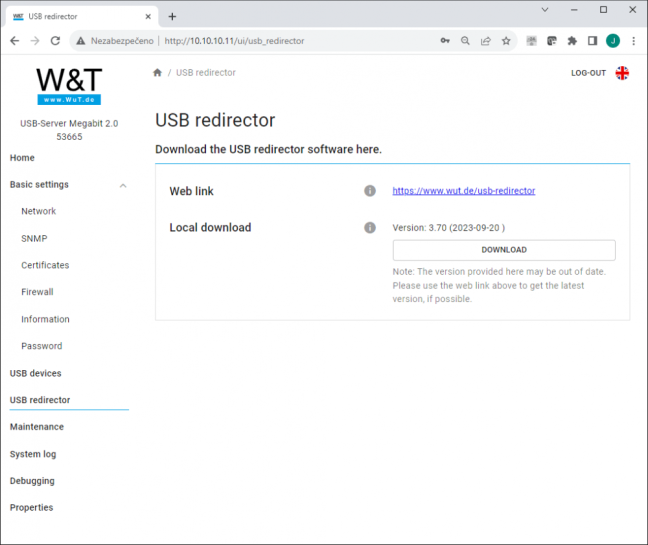

Yes. The W&T USB Redirector enables USB devices to be connected via the network on supported versions of Windows or Linux. The driver for the connected peripheral is still required.

Can two computers use a single USB device at the same time?

Each USB device is assigned to a single computer. The first computer can be connected to USB1 and the second to USB2 at the same time.

Is this model suitable for a high-speed camera or a USB drive?

For cameras, audio and storage, the manufacturer recommends the Gigabit 53663 model. Both the data rate and the requirements of the specific application are important factors in the selection process.

Why order from FOXON?

Before placing an order, we will check the current availability of the part and confirm the estimated delivery date. We will assist you in selecting the equipment and necessary accessories based on the wiring configuration and required communication. We will confirm the warranty terms and the scope of any diagnostics or repairs for the specific quotation.

More than 3,500customers

We supply tomore than 100 countries worldwide

Express delivery?We will look into this; please contact us immediately.

Documentation and technical consultancy

Technical data and documentation W&T 53665

Manuals, firmware and tools for this model can also be found in the Downloads tab. For service enquiries, please use sale and repair of FOXON industrial parts.

Do you need to select or order the W&T 53665?
Please send us the required quantity and a description of the wiring configuration. We will check availability and suitable accessories.

Enquire about purchasing or repairing a part

Diagrams and illustrations

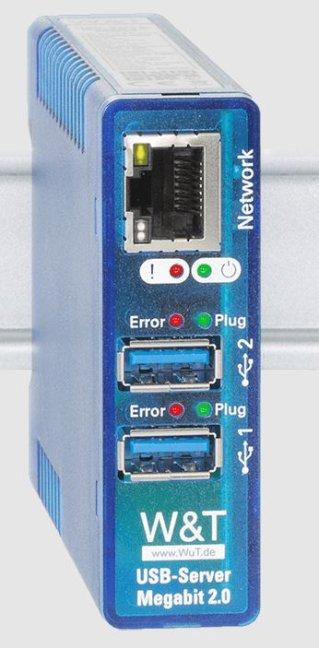

W&T 53665 – diagram or illustration of the product

Technical specifications for the W&T 53665
