Industrial Automation

SICOM3009A, 8x 100M - Type: 8x10/100Base-T(X) RJ45 ports + 24-48VDC (18-72VDC), redundant power inputs

Add to favourites

SICOM3009A, 8x 100M - Type: 8x10/100Base-T(X) RJ45 ports + 24-48VDC (18-72VDC), redundant power inputs

-50% Sale of stock
Kyland

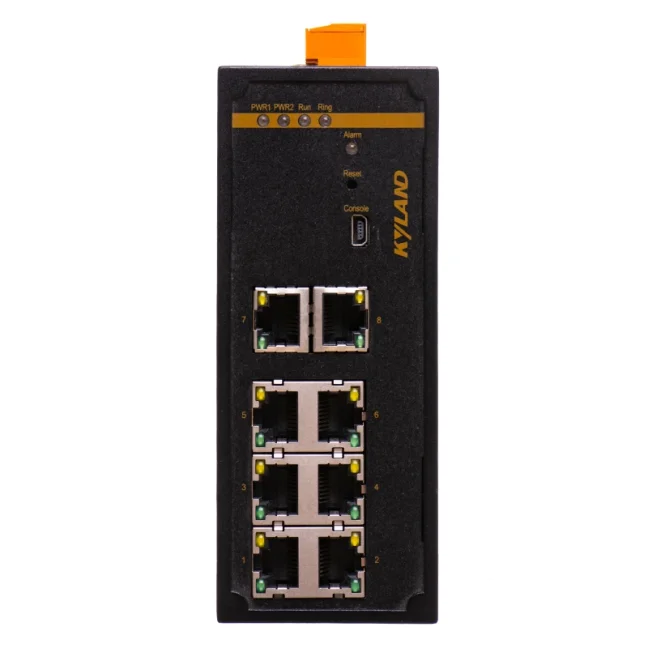

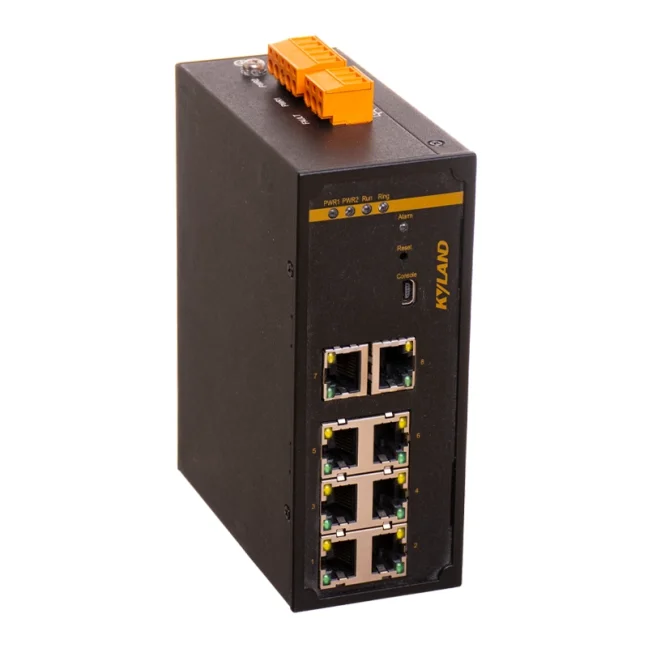

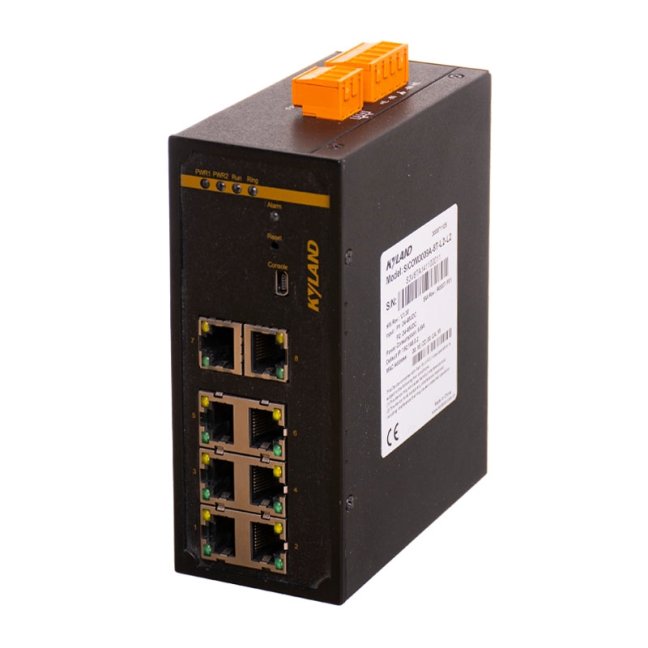

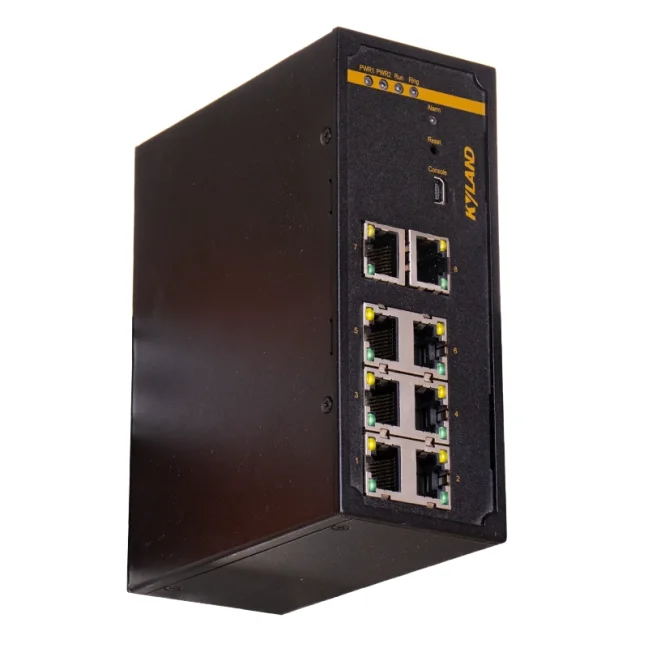

Industrial switch 8x 100M RJ45, managed, power supply 24-48VDC (18-72VDC), metal robust chassis. More

Code: SICOM3009A-8T-L2-L2

Standard price 392 EUR excl. VAT. Save 50% (196 EUR excl. VAT) 196 EUR excl. VAT (237,16 EUR Incl. VAT)
Recycling fee 0,04 EUR included in the price.
Variant does not exist
In stock
pcs
(1 pcs In stock)

Rezervace termínu

Get a quote
Kyland

Industrial switch 8x 100M RJ45, managed, power supply 24-48VDC (18-72VDC), metal robust chassis. More

Code: SICOM3009A-8T-L2-L2

Options 2

Type Code Availability Price excl. VAT
8x10/100Base-T(X) RJ45 ports + 24-48VDC (18-72VDC), redundant power inputs SICOM3009A-8T-L2-L2 In stock  1 pcs
196 EUR
1x100Base-FX, single mode fiber port; 7x10/100Base-T(X) RJ45 ports + SC connector, single-mode, 1310nm, 40km + 24-48VDC (18-72VDC), redundant power inputs SICOM3009A-1S7T-SC40-L2-L2 In stock  1 pcs
308 EUR

Overview

SICOM3009A is one of Kyland green low power consumption industrial Ethernet switch series. It is equipped with 3 100Base-FX optic ports and 6 10/100Base-TX copper ports, making it ideal for building a fast Ethernet fiber optic ring and leaving a spare fiber port for uplink use. Redundant Ethernet IEC62439-6/DRP ring protocol, DT-Ring/+ and MSTP increase system reliability and the availability of your network backbone. The SICOM3009A series is designed especially for harsh environments with -40 to 85°C wide temperature range, EMC level 4, IP40 protection class, and can be deployed in wind power, distribution network automation, transportation, oil & gas and many other industrial applications.

*Latest Updates: UL508, Class 1 Div 2 certification has been finalized.

Key Features

  • Green Ethernet solution with ultra low power consumption design
  • As low as 5 watts full load power consumption
  • 6 10/100Base-TX ports and 3 Fast Ethernet fiber/RJ45 optional ports
  • Supports IEC62439-6, DT-Ring protocols and MSTP
  • Supports one-key recovery
  • Provides Mini USB Console port, supports setting backup and recovery through USB
  • Supports VCT (Virtual Cable Test)
  • UL508, Class 1 Div 2, CE, FCC certificates


Features & Benefits

  • Redundancy Technology: supports IEC62439-6 (recovery time<20ms), DT-Ring protocols (recovery time<50ms) and MSTP
  • Multicast Protocol: supports IGMP Snooping, GMRP and static multicast
  • Network Partition: supports VLAN, GVRP, PVLAN
  • Service Quality: supports QoS
  • Bandwidth Management: supports port trunking, port speed limit, broadcast storm control
  • Network Management and Monitoring: supports CLI, Telnet, WEB management methods, Kyvision centralized management, SNMPv1/v2/v3, RMON, LLDP, SNTP, DHCP
  • Network Security: supports MAC address binding with port, IEEE802.1X, SSH, SSL, TACACS+, ACL
  • Device Management: supports FTP/TFTP upgrade, also supports Syslog upload and download
  • Device Maintenance: supports port mirroring, VCT (Virtual Cable Test)
  • Alarm Output: supports IP/MAC conflicts, power, port and ring alarms
  • Special Function: supports Link Check and Loop Status Check

Ordering Information
SICOM3009A-Ports-Connector-PS1-PS2
SICOM3009A-Ports-Connector-PS1
Ports
3S6T  3x100Base-FX, single mode fiber port; 6x10/100Base-T(X) RJ45 ports
3M6T  3x100Base-FX, multi mode fiber port; 6x10/100Base-T(X) RJ45 ports
2S6T  2x100Base-FX, single mode fiber port; 6x10/100Base-T(X) RJ45 ports
2M6T  2x100Base-FX, multi mode fiber port; 6x10/100Base-T(X) RJ45 ports
1S7T  1x100Base-FX, single mode fiber port; 7x10/100Base-T(X) RJ45 ports
1M7T  1x100Base-FX, multi mode fiber port; 7x10/100Base-T(X) RJ45 ports
8T  8x10/100Base-T(X) RJ45 ports
Connector 100M fiber port specifications
SC05  SC connector, multi-mode, 1310nm, 5km
ST05  ST connector, multi-mode, 1310nm, 5km
FC05  FC connector, multi-mode, 1310nm, 5km
SC40  SC connector, single-mode, 1310nm, 40km
ST40  ST connector, single-mode, 1310nm, 40km
FC40  FC connector, single-mode, 1310nm, 40km
SC60  SC connector, single-mode, 1310nm, 60km
SC80  SC connector, single-mode, 1550nm, 80km
NA No 100Base-FX fiber port
PS1-PS2
L2-L2 24-48VDC (18-72VDC), redundant power inputs
L5-L5 12-24VDC (9-36VDC), redundant power inputs
PS1
HV  100-240VAC, 50/60Hz; 110-220VDC (85-264VAC/77-300VDC), single power input

Accessories
DT-BGAZ-02 Panel for panel mounting
DT-FCZ-RJ45-01 Dustproof cover for RJ45 port
DT-XL-Mini USB-USB-2m Mini USB to USB cable for Console management, 2m
Technical Specifications
Standard IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T and 100Base-FX)
IEEE 802.3x (Flow Control)
IEEE 802.1p (Class of Service)
IEEE 802.1Q (VLAN)
IEEE 802.1w (RSTP)
IEEE802.1X
Switch Properties Priority Queues: 4
Number of VLANs: 256
VLAN ID: 1–4093
Number of Multicast Groups: 256
MAC Table: 8K
Packet Buffer: 1Mbit
Packet Forwarding Rate: 1.4 Mpps
Switching Delay:<5μs
Interface Fast Ethernet Port:
100Base-FX, SM/MM, SC/ST/FC connector
10/100Base-T(X), RJ45 port
Console Port: Mini USB
Alarm Contact:
3-pin 5.08mm-spacing plug-in terminal block,250VAC/220VDC Max,2A Max

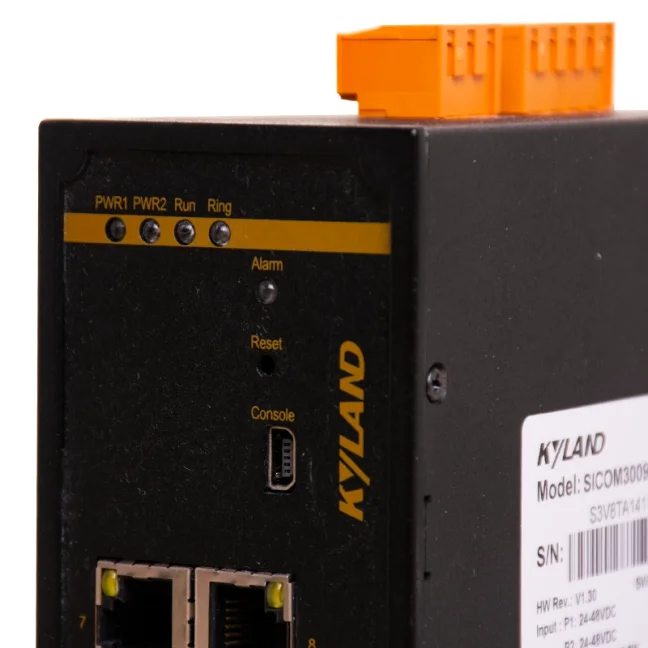

LED LEDs on Front Panel
Running LED: Run
Alarm LED: Alarm (12/24/48VDC model)
Power LED: PWR1,PWR2
Ring LED: Ring
Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port)
Button Reset: Reboot and restore default configuration
Power Requirements Power Input:
100-240VAC, 50/60Hz; 110-220VDC(85-264VAC/77-300VDC)
24-48VDC(18-72VDC)
12-24VDC(9-36VDC)

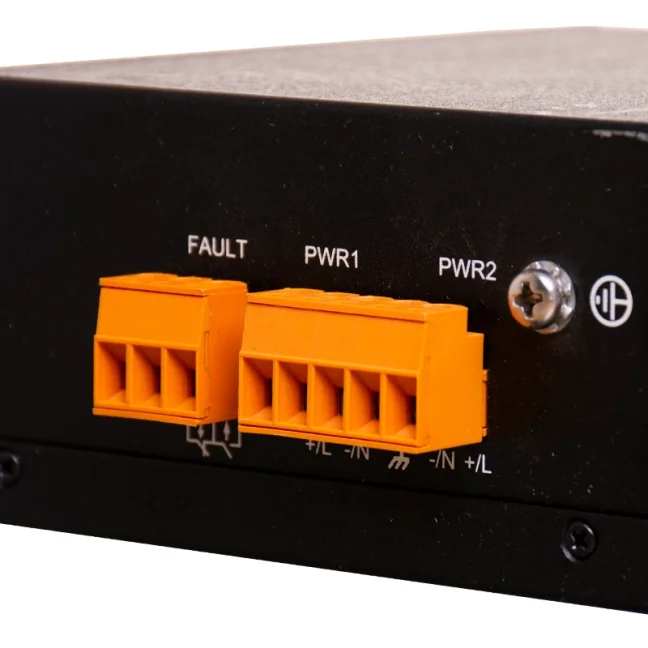

Power Terminal:
5-pin 5.08mm-spacing plug-in terminal block
Power Consumption:<8.1w
Overload Protection: Support
ReverseProtection: Support
Redundancy Protection: Support (12/24/48VDC)
Physical Characteristics Housing: Metal
Cooling: Natural convection, fanless
Protection Class: IP40

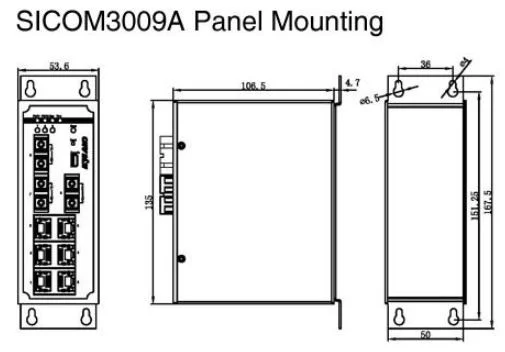

Dimension:
53.6mm×135mm×106.5mm(W×H×D) (12/24/48VDC)
66mm×135mm×107.5mm (W×H×D) (220VAC/DC)
Weight: 0.76Kg

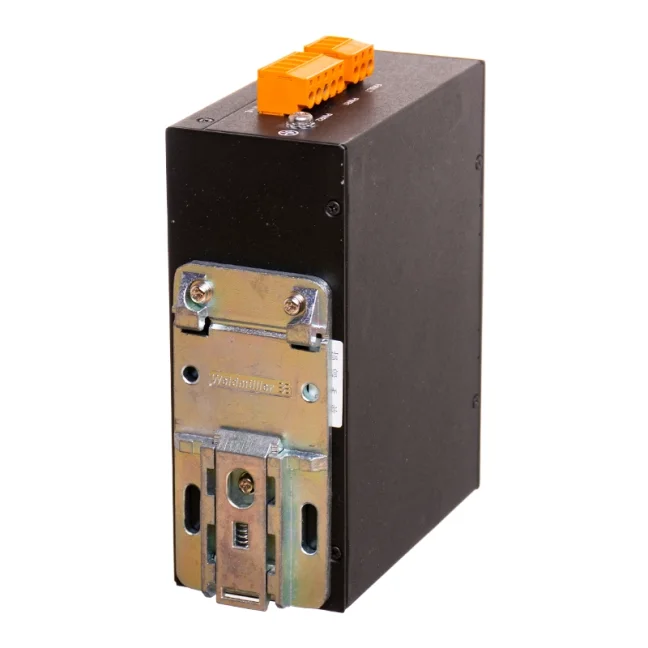

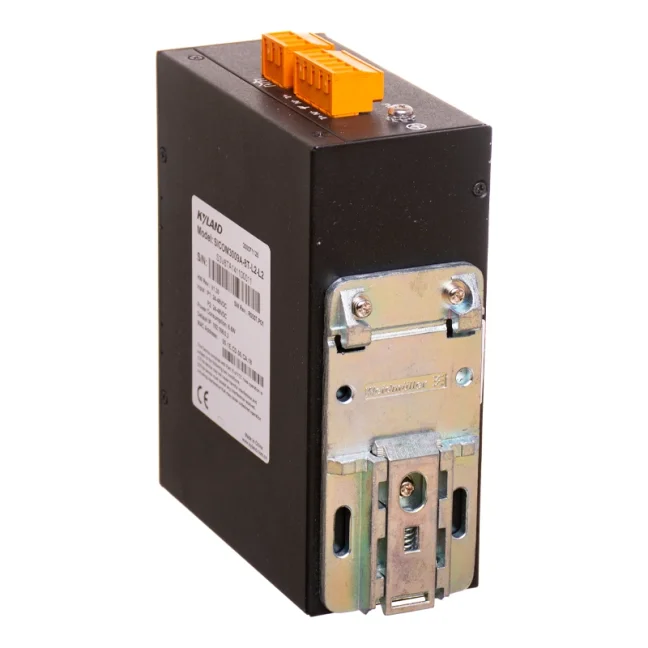

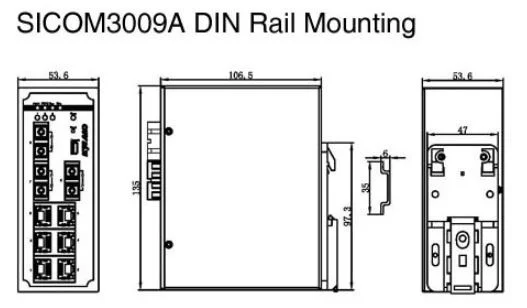

Mounting: DIN-Rail or Panel Mounting
Environmental Limits Operating Temperature:
-40°C to +85°C(12/24/48VDC)
-40°C to +75°C(220VAC/DC)
Storage Temperature: -40°C to +85°C
Ambient Relative Humidity: 5-95% (non-condensing)
Quality Assurance MTBF: 350,877 hrs
Warranty: 5 years
Approvals KEMA, CE(EMC), CE(LVD), FCC: Models with HV:100-240VAC,50/60Hz;110-220VDC
UL508, Class I Div 2, CE(EMC), FCC: Models with L2:24-48VDC and L5:12-24VDC
IEC 60950-1, EN 60950-1
Industry Standard EMI:
FCC CFR47 Part 15,EN55022/CISPR22,Class A
EMS:
IEC61000-4-2(ESD) ±8kV(contact),±15kV(air)
IEC61000-4-3(RS) 10V/m(80MHz–2GHz)
IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV
IEC61000-4-5(Surge) Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6(CS) 10V(150kHz–80MHz)
Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)
Climatic environmental:
IEC60068-2-1 Cold test
IEC60068-2-2 Dry heat test
IEC60068-2-14 Change of temperature test
IEC60068-2-30 Damp heat cyclic test
IEC60068-2-78 Damp heat steady state test
